I have a 1 piece scope mount with stop pin, but need a two piece, with a stop pin on the back mount. 1" scope. Can I buy this ready made?
2 piece scope mounts w/ stop pin on one.... Available???
- Thread starter ITACUD
- Start date

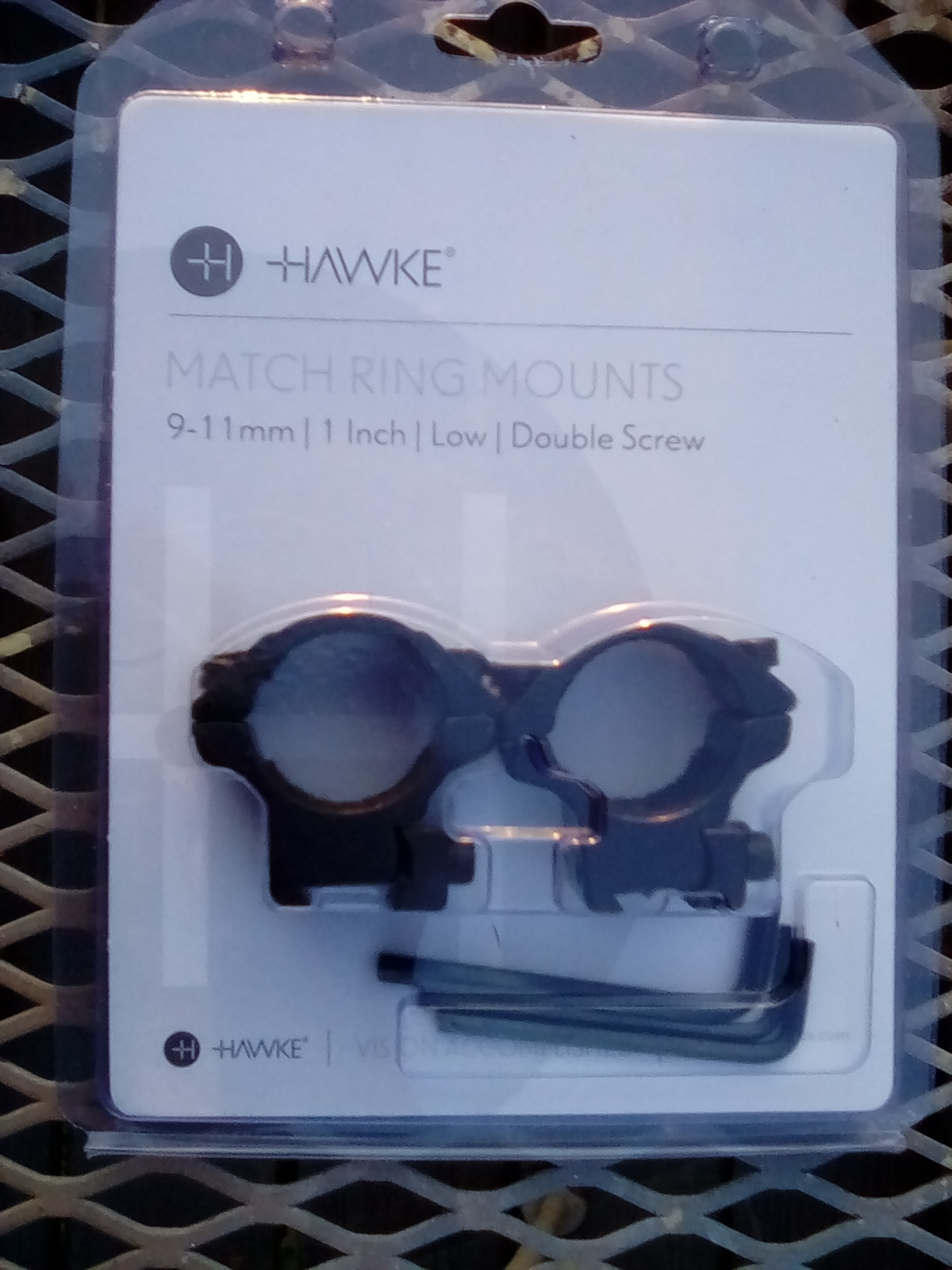

Lots of different brands make those. Recently I've been using the Hawke two piece Match Ring Mounts. They do have the stop pin.
Upvote 0
Even down to ol' gamo got that
gamousa.com
Air Rifle Scope Two Piece Ring Mounts for 1 inch tube
Air rifle scope two piece ring mounts for 1 inch tube rifle scope is very easy to install. Deluxe scope mounts from Gamo.
gamousa.com Upvote 0
Take a very small file to that Hawke stop pin and file the point off so the bottom of the pin is flat. No clue why they make them that way, but you can get more of the pin down in the hole to do the job it's meant for if you do.
Upvote 0
Good Intel, but I can't see anything that link where it says that.Even down to ol' gamo got that
Air Rifle Scope Two Piece Ring Mounts for 1 inch tube
Air rifle scope two piece ring mounts for 1 inch tube rifle scope is very easy to install. Deluxe scope mounts from Gamo.
Upvote 0
Says what? The pin? You can ser it in the picture. If you look a most "air gun" mounts you see the hole for the pin /hex wrench in the bottom 1/2 of one of the rings.. when in doubt e mail there support...
Upvote 0
. lol Thanks. I don't wasn't doubting you, but saying they should put that sort of thing in the description so novices like me can find it
Upvote 0
I throw the stop pin away. My scopes don't slip. This one gave me some trouble but I got them tight enough. Burris steel .22 rings don't have allen screws. But I wanted this look for one a my R7's. I don't want big blocky aluminum rings on it. Blued steel. Believe it or not R7's can be hard to get the scope mounted solidly too.
No stop pin on my HW95 or R9. Nothing on my FWB124. I could list more. My Webley Stingray......... The Tomahawks sort of have a built in stop.
None of my guns have that ugly gack mark left by a stop pin.
No stop pin on my HW95 or R9. Nothing on my FWB124. I could list more. My Webley Stingray......... The Tomahawks sort of have a built in stop.
None of my guns have that ugly gack mark left by a stop pin.
Upvote 0
https://us.hawkeoptics.com/tactical-ring-mounts-1-2-piece-9-11mm-medium.html Excellent rings.
My suggestion is to thoroughly clean all ring mounting surfaces with alcohol wipes including screws/bolts. Use blue locktite for the screws/bolts and set the base to 30" lbs. & ring caps to 18" lbs. When setting the rear mount with stop pin hold the ring base to the rear with stop pin fully engaged. Also don't forget eye relief and horizontal alignment before torquing the screws/bolts. Use a round robin sequence when setting the torque.
My suggestion is to thoroughly clean all ring mounting surfaces with alcohol wipes including screws/bolts. Use blue locktite for the screws/bolts and set the base to 30" lbs. & ring caps to 18" lbs. When setting the rear mount with stop pin hold the ring base to the rear with stop pin fully engaged. Also don't forget eye relief and horizontal alignment before torquing the screws/bolts. Use a round robin sequence when setting the torque.
Upvote 0
Wet threads changes the torque specs value.. you may show 20in pounds but it's higher the values are for dry . I think loctite recommends - 20%. Vs dry
Upvote 0

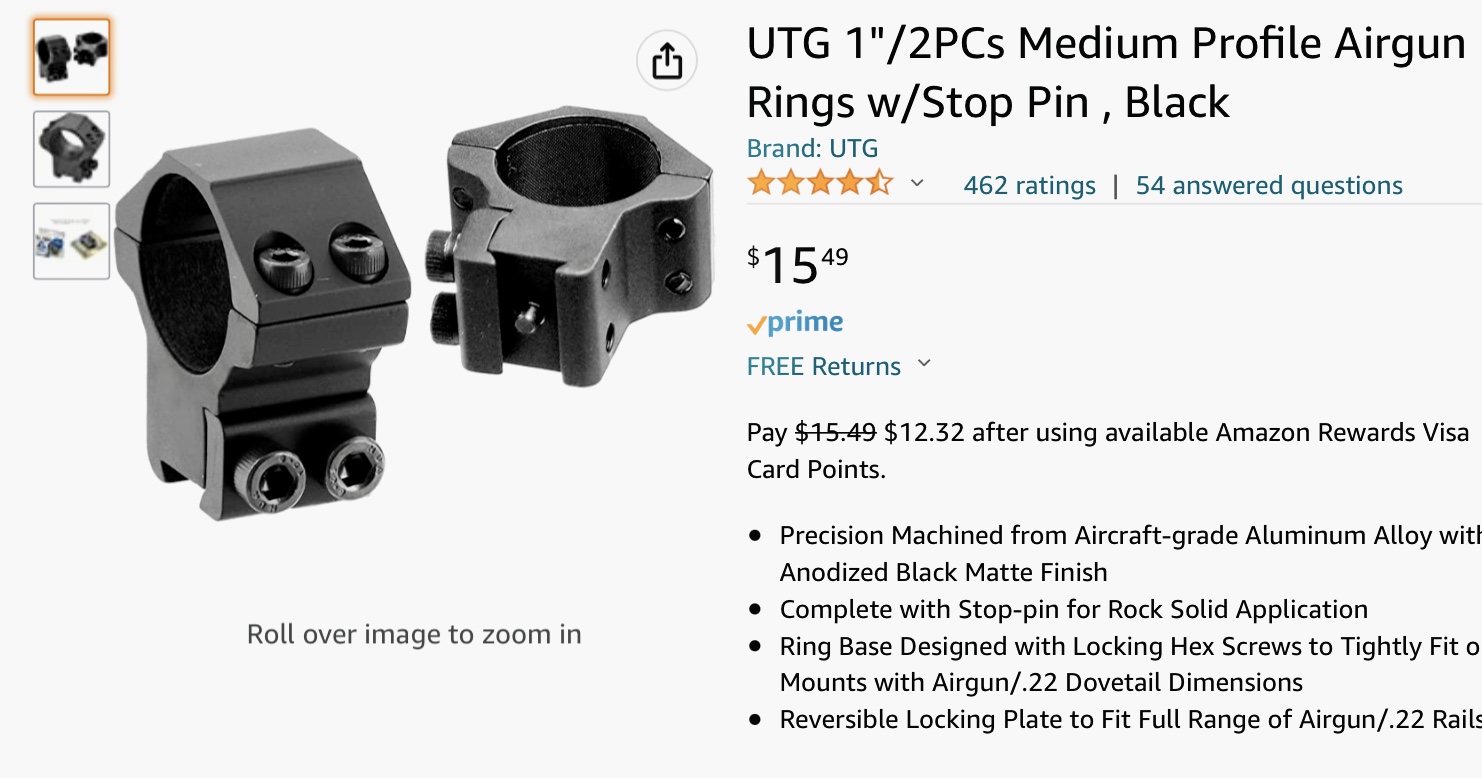

As mentioned. Watch out for the pointed stop. It can lift out easily and mare the receiver. This UTG is the correct shape. Cheap and good. Over tightening a steel ring to the receiver can damage the dovetail also.
Upvote 0
SportsMatch scroll down to see what size you need and click the colored square to see model number , then do a google search for that model to find dealers
AoA does carry some
AoA does carry some
Upvote 0
Not that i shoot scoped but times i have i do feel id prefer set back . " Normal " rings i just cant get the scope back enugh for eye relief so im feeling hunched foreard or somthing... I figured if i had another 1/2" or inch set back be near perfict for my hold..
That then comes down to buy and try and see what you like best for your shooting or holds..
Upvote 0
Reversed Hawke Reach forward Match mounts. Gives you a 1 inch set back and I have them on quite a few of my rifles to get the scopes back where I like them and they're comfortable.

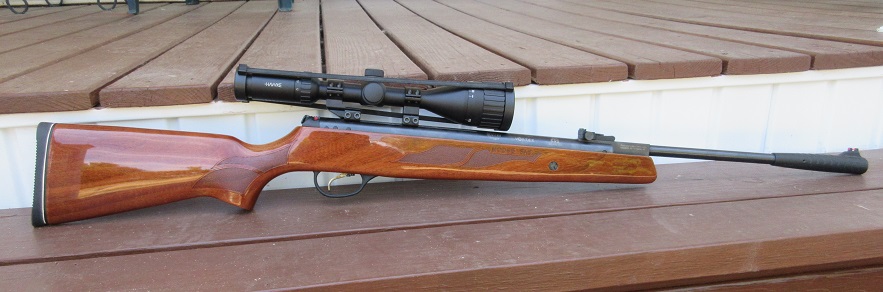

Hatsan Model 95 with a set:

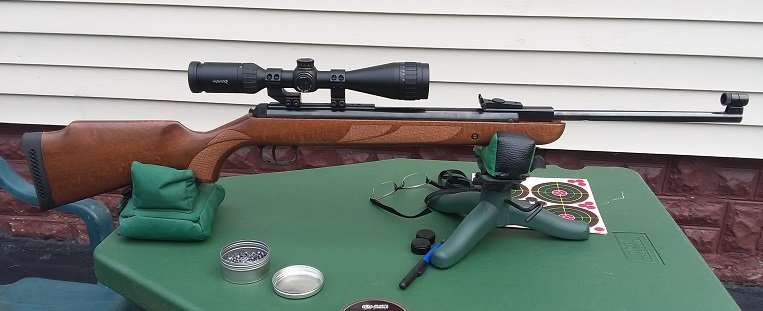

D34K .20 with another:

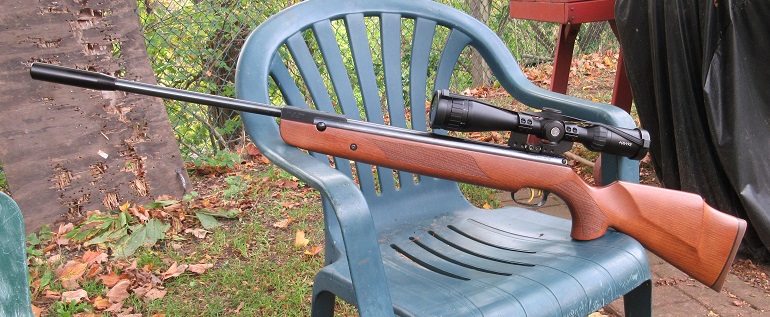

Beeman R9 .20 with a set:
Sportsmatch also makes a few in both 1 inch and 30mm, here's 1 example from AoA:
Hatsan Model 95 with a set:
D34K .20 with another:
Beeman R9 .20 with a set:
Sportsmatch also makes a few in both 1 inch and 30mm, here's 1 example from AoA:
Upvote 0

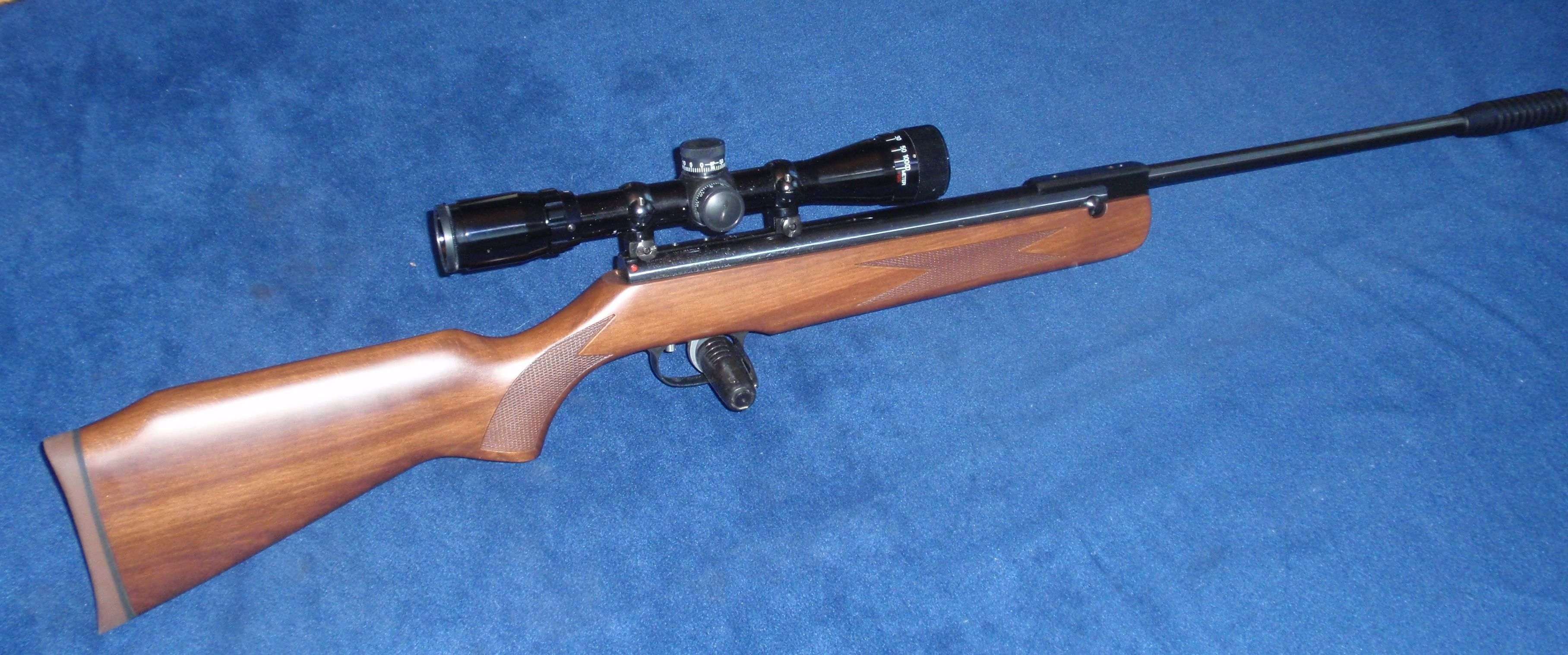

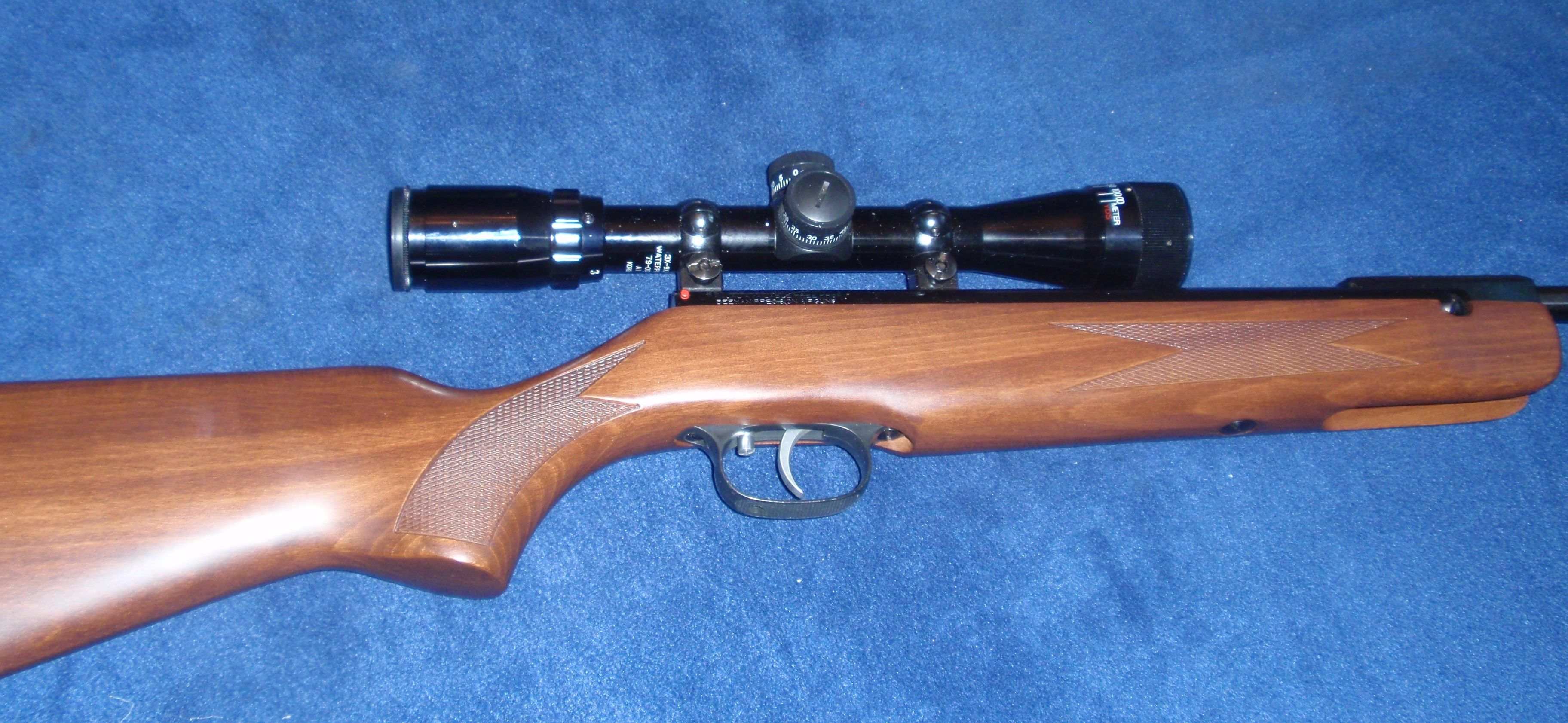

SportsMatch T04C medium rings on my HW95L with a Hawke 3-9 x 40 mm AO scope.SportsMatch scroll down to see what size you need and click the colored square to see model number , then do a google search for that model to find dealers
AoA does carry some
Upvote 0
Haven't seen it mentioned and should have asked already, but what rifle are the rings for...lol.
Upvote 0
HW97 and/or HW50 177 caliber. I have a one piece mount currently on the 97 but not sure if I'm gonna leave it there.
