HW/Weihrauch .20 HW97KT Pellet Performance Comparison Test

A long time AGN member asked me to tune his .20 HW80 for him, shipped it a week ago, and it has disappeared into "never never land." It should have been here last Tuesday but still hasn't shown up and USPS hasn't updated its status to the tracking site for a couple of days now. I hope for his sake it shows up.

At any rate, I had everything set aside and ready to perform the .20 caliber tune for him, and had blocked out time this weekend to do so. With nothing else really to do that was in any way productive, and too cold outside for much else, I decided to test all of the available .20 pellets I had in my always remarkable Weihrauch HW97KT. A few years ago, I installed a Vortek PG-4 Steel HO kit, including the Vortek vacuum piston seal, with the spring cut down to produce between 14.5 and 15.5 fpe.

I have written about this rifle before. It is incredibly consistent as you will ascertain from the accompanying SD data. The original tune resulted in the JSB 13.73 pellet being selected as the preferred ammo, but after many thousands of shots, I thought it would be interesting to see if this were still true. In the end, the 13.73 and the 15.89 pellets basically produced the same group results, though the 13.73 velocity is higher (as anticipated), allowing the rifle to shoot a little flatter. This rifle has been remarkable shooting consistent 1/2" to 3/4" 10 shot groups at 50 yards.

The results of my testing, at 18 yards indoors, can be found below. Thanks for looking...DZ

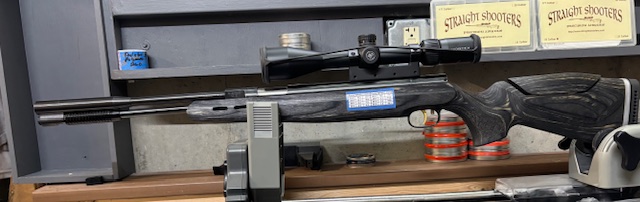

Rifle Image.jpg

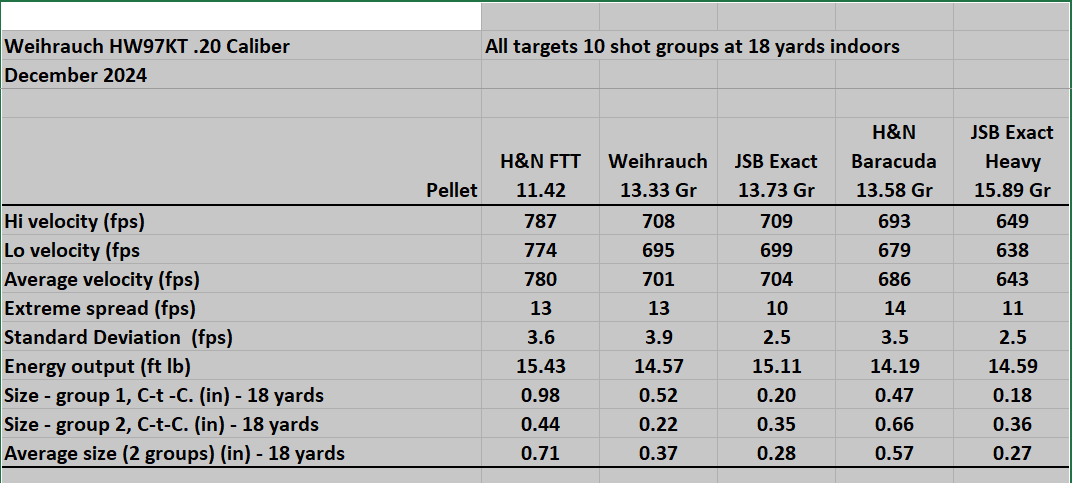

Testing Results & Comparison.12.21.24.png

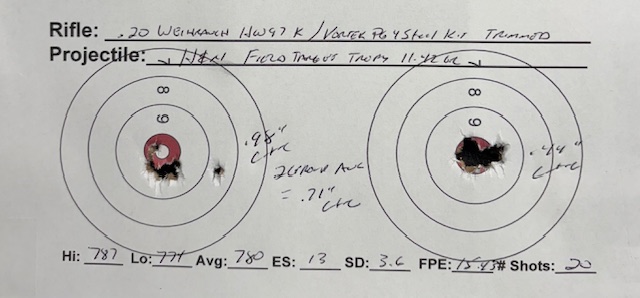

Test Target1.jpg

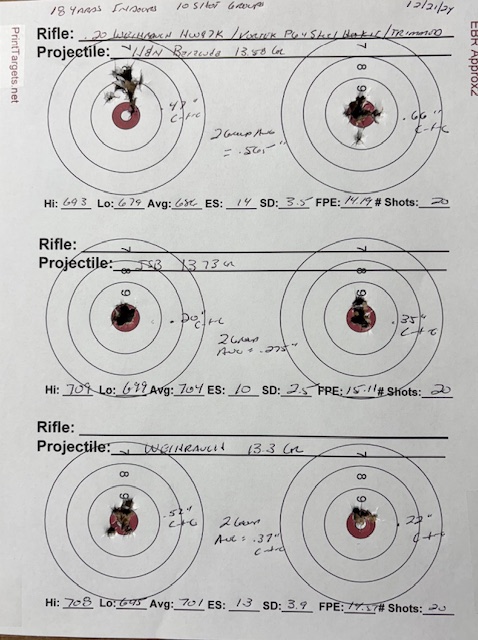

Test Target 2.jpg

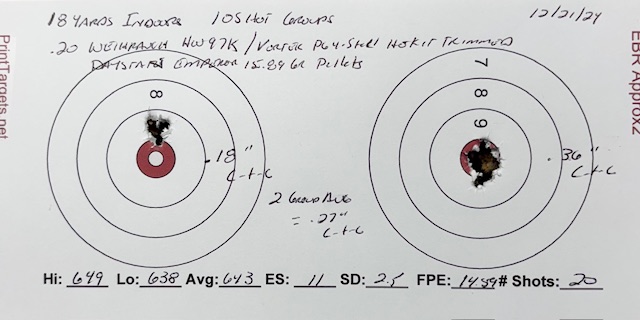

Test Target 3.jpg

Nice work. 👍

I was interested in that question my self so I hung targets at 75 yards and did a regular evening shoot at each. I have no idea how many rounds it actually was. The 13.73's grouped slightly better.

I need to the chrony them next time, then my shots will be counted for me as well

I only had about thirty FTT's so I pulled them out one evening and shot this group at 75y.
It was supposed to be a 5 shot group, but #2 went high and left of bull. That didn't bother me until I got 4 in the bull So I thought let's make it 5 in the bull and shot another one that went left of bull. The last shot was very close just a tad left, for a 7 shot group. Needless to say I ordered some FTT's.


A long time AGN member asked me to tune his .20 HW80 for him, shipped it a week ago, and it has disappeared into "never never land." It should have been here last Tuesday but still hasn't shown up and USPS hasn't updated its status to the tracking site for a couple of days now. I hope for his sake it shows up.

At any rate, I had everything set aside and ready to perform the .20 caliber tune for him, and had blocked out time this weekend to do so. With nothing else really to do that was in any way productive, and too cold outside for much else, I decided to test all of the available .20 pellets I had in my always remarkable Weihrauch HW97KT. A few years ago, I installed a Vortek PG-4 Steel HO kit, including the Vortek vacuum piston seal, with the spring cut down to produce between 14.5 and 15.5 fpe.

I have written about this rifle before. It is incredibly consistent as you will ascertain from the accompanying SD data. The original tune resulted in the JSB 13.73 pellet being selected as the preferred ammo, but after many thousands of shots, I thought it would be interesting to see if this were still true. In the end, the 13.73 and the 15.89 pellets basically produced the same group results, though the 13.73 velocity is higher (as anticipated), allowing the rifle to shoot a little flatter. This rifle has been remarkable shooting consistent 1/2" to 3/4" 10 shot groups at 50 yards.

The results of my testing, at 18 yards indoors, can be found below. Thanks for looking...DZ

View attachment 522176View attachment 522177View attachment 522178View attachment 522179View attachment 522180
I have been shooting the 11gr from my 95. I'm shooting peep sights so its hard to say if the 13s are better.

  • Like
Reactions: .20calguy
A couple or years ago I purchased some FTT that fit very loosely in the breach to the point that they would fall out closing the barrel. I just picked up four of the new smaller tins and they fit overly tight to the point I have been seating them with a pen. Could H&N be playing with .20 sizing? I think I will go back to JSB on my next purchase as I have always had similar accuracy from both brands.

A long time AGN member asked me to tune his .20 HW80 for him, shipped it a week ago, and it has disappeared into "never never land." It should have been here last Tuesday but still hasn't shown up and USPS hasn't updated its status to the tracking site for a couple of days now. I hope for his sake it shows up.

At any rate, I had everything set aside and ready to perform the .20 caliber tune for him, and had blocked out time this weekend to do so. With nothing else really to do that was in any way productive, and too cold outside for much else, I decided to test all of the available .20 pellets I had in my always remarkable Weihrauch HW97KT. A few years ago, I installed a Vortek PG-4 Steel HO kit, including the Vortek vacuum piston seal, with the spring cut down to produce between 14.5 and 15.5 fpe.

I have written about this rifle before. It is incredibly consistent as you will ascertain from the accompanying SD data. The original tune resulted in the JSB 13.73 pellet being selected as the preferred ammo, but after many thousands of shots, I thought it would be interesting to see if this were still true. In the end, the 13.73 and the 15.89 pellets basically produced the same group results, though the 13.73 velocity is higher (as anticipated), allowing the rifle to shoot a little flatter. This rifle has been remarkable shooting consistent 1/2" to 3/4" 10 shot groups at 50 yards.

The results of my testing, at 18 yards indoors, can be found below. Thanks for looking...DZ

View attachment 522176View attachment 522177View attachment 522178View attachment 522179View attachment 522180
My 97K and R1 carbine in .20 are my two favorite all around spring guns. If I could have only one springer it would be hard to choose between them. I don't notice any appreciably difference in accuracy between 11.42's and 13.73's in mine so prefer the lighter for a flatter trajectory.

My 97K and R1 carbine in .20 are my two favorite all around spring guns. If I could have only one springer it would be hard to choose between them. I don't notice any appreciably difference in accuracy between 11.42's and 13.73's in mine so prefer the lighter for a flatter trajectory.
I have only shot 13.73 JSB's in the HW's until recently. I just ordered 10 tins of 11.43 FTT's to have a l👀k.
