I have no exact measurement of Taipan barrel Housing if you can measure it correctly, most probably I can do it
it also needs barrel bushings for fixation in the bridge
the barrel diameter is 15 mm and the liner body is 14 mm so u cant fix the barrel in the middle bridge
solution 1: make 2 bushings for FX liner to grow it from 14mm up to 15 mm
solution 2 change 14 mm fx original liner body to 15 mm tube with threads on both sides (they are different) also these solution has 2 sub solutions
1 sub solution: 15 mm tube with 1 mm wall diameter – need to change front probe also and back adopter will be a different size
2 sub solution: 15 mm tube with 1.5 mm wall, you can use a standard front probe and the back adopter will be the same size as in FX but the tube will be heavier
and one more note. I can make it with dimensions collected from many sources but I haven't Taipan to fit it
actually, it is possible but it will be more like an experiment and prototyping than the complete product. if you are ready for it, your welcome
Br
George
it also needs barrel bushings for fixation in the bridge
the barrel diameter is 15 mm and the liner body is 14 mm so u cant fix the barrel in the middle bridge
solution 1: make 2 bushings for FX liner to grow it from 14mm up to 15 mm
solution 2 change 14 mm fx original liner body to 15 mm tube with threads on both sides (they are different) also these solution has 2 sub solutions
1 sub solution: 15 mm tube with 1 mm wall diameter – need to change front probe also and back adopter will be a different size
2 sub solution: 15 mm tube with 1.5 mm wall, you can use a standard front probe and the back adopter will be the same size as in FX but the tube will be heavier
and one more note. I can make it with dimensions collected from many sources but I haven't Taipan to fit it
actually, it is possible but it will be more like an experiment and prototyping than the complete product. if you are ready for it, your welcome
Br
George
Upvote 0
Hey Guys
Sorry for long absence. I was totally occupied with my PMP.

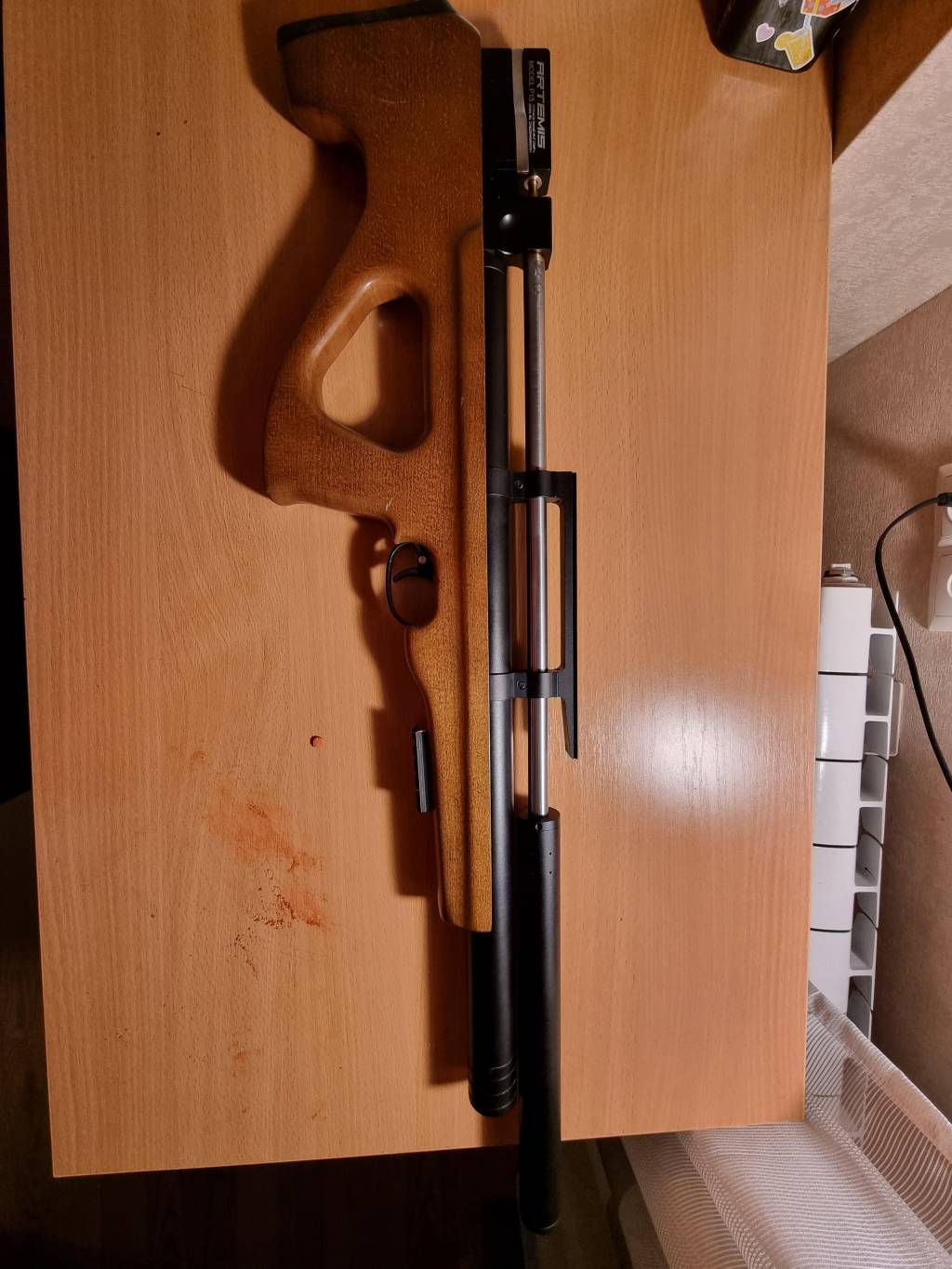

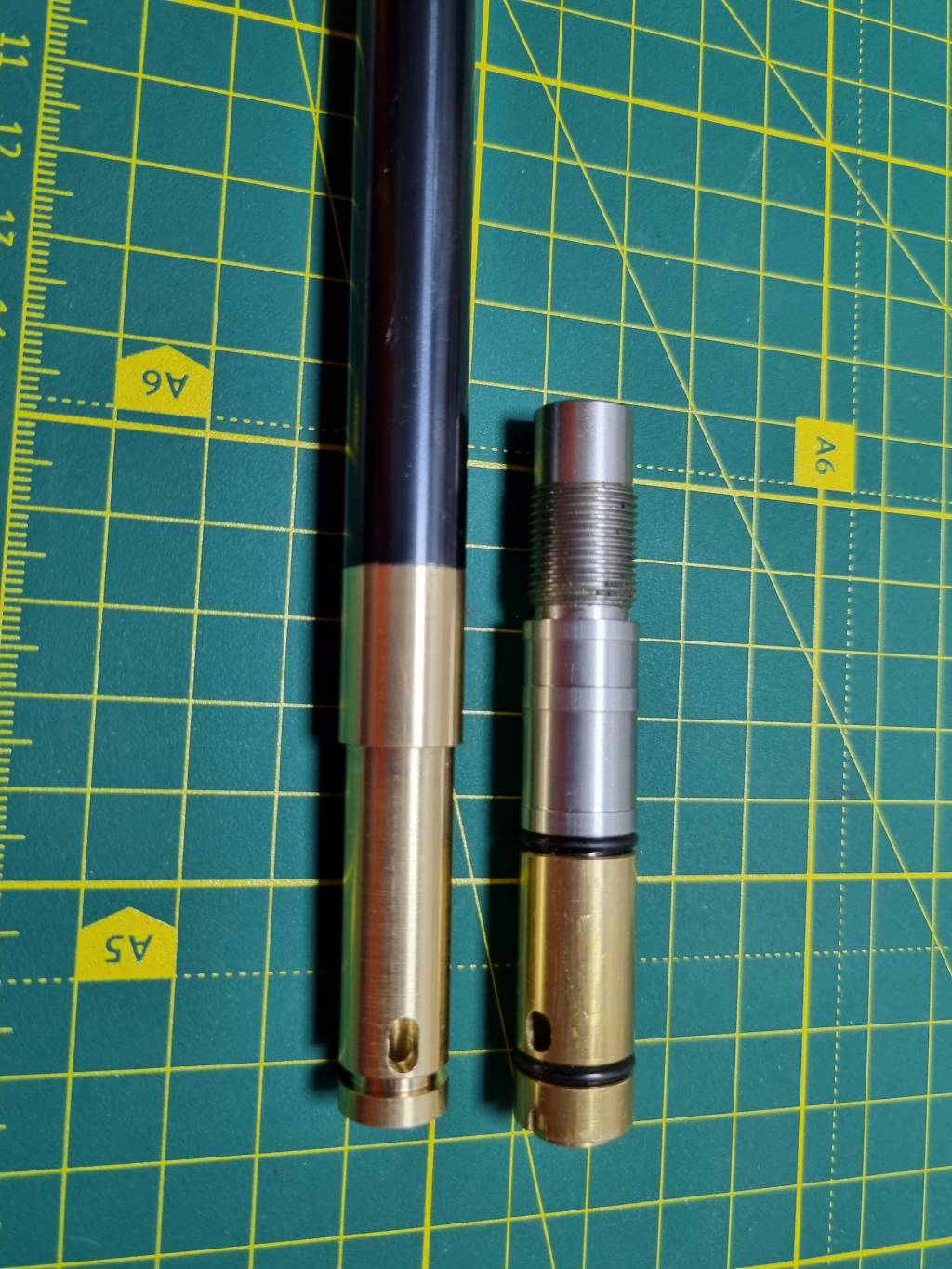

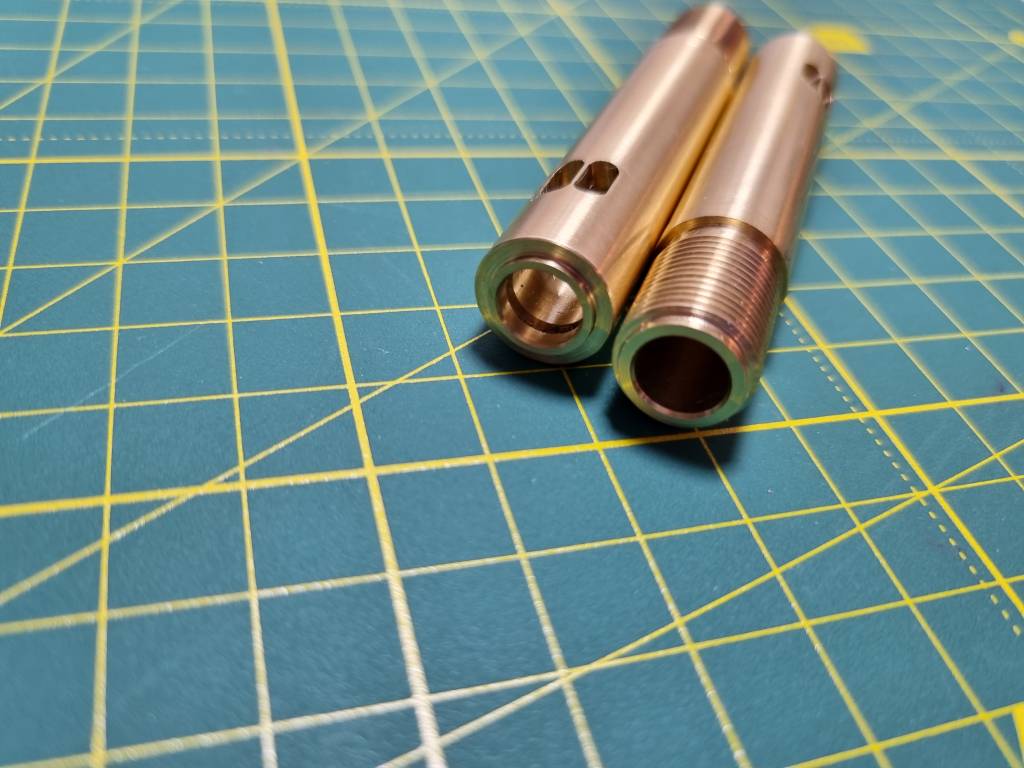

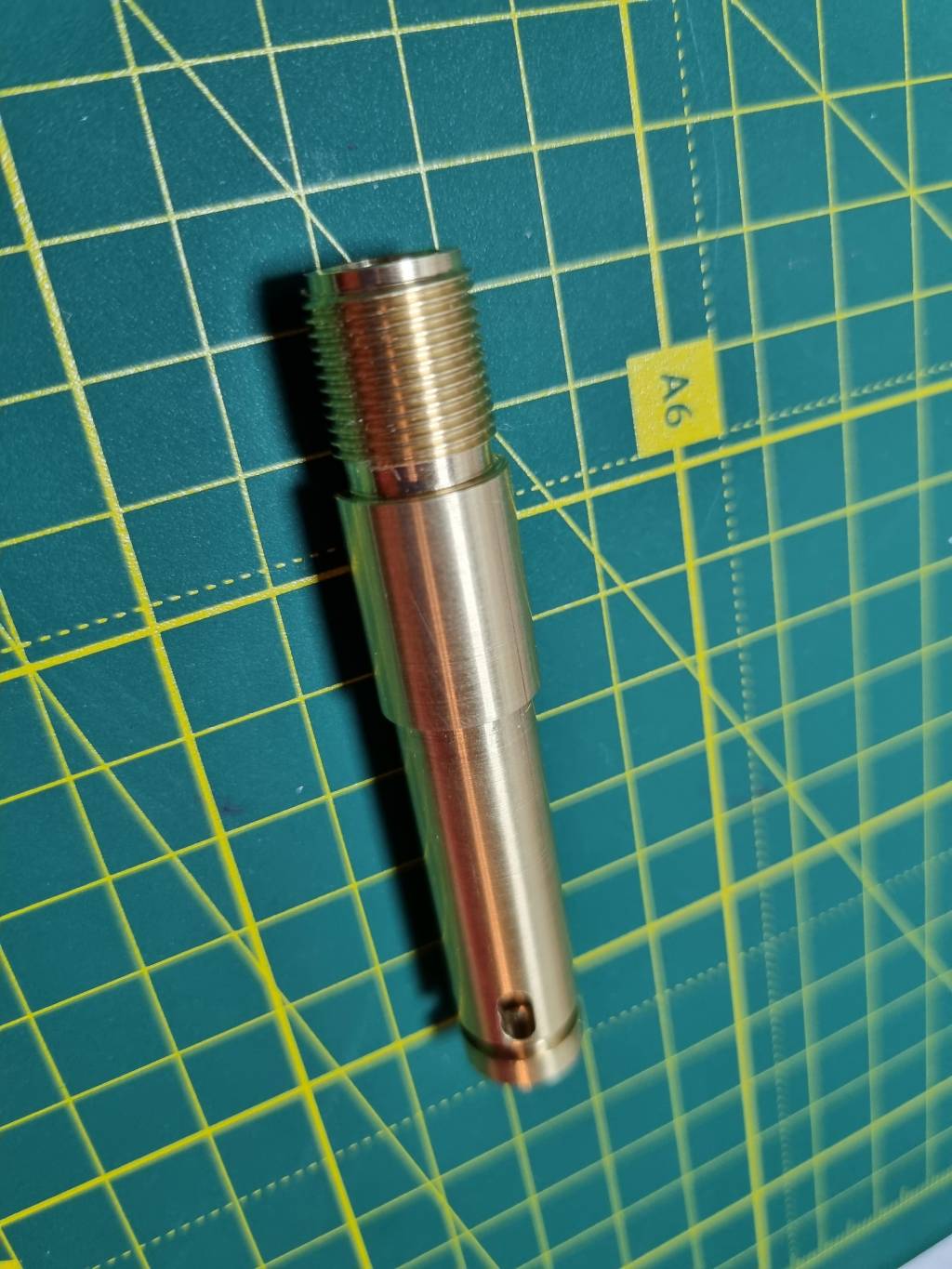

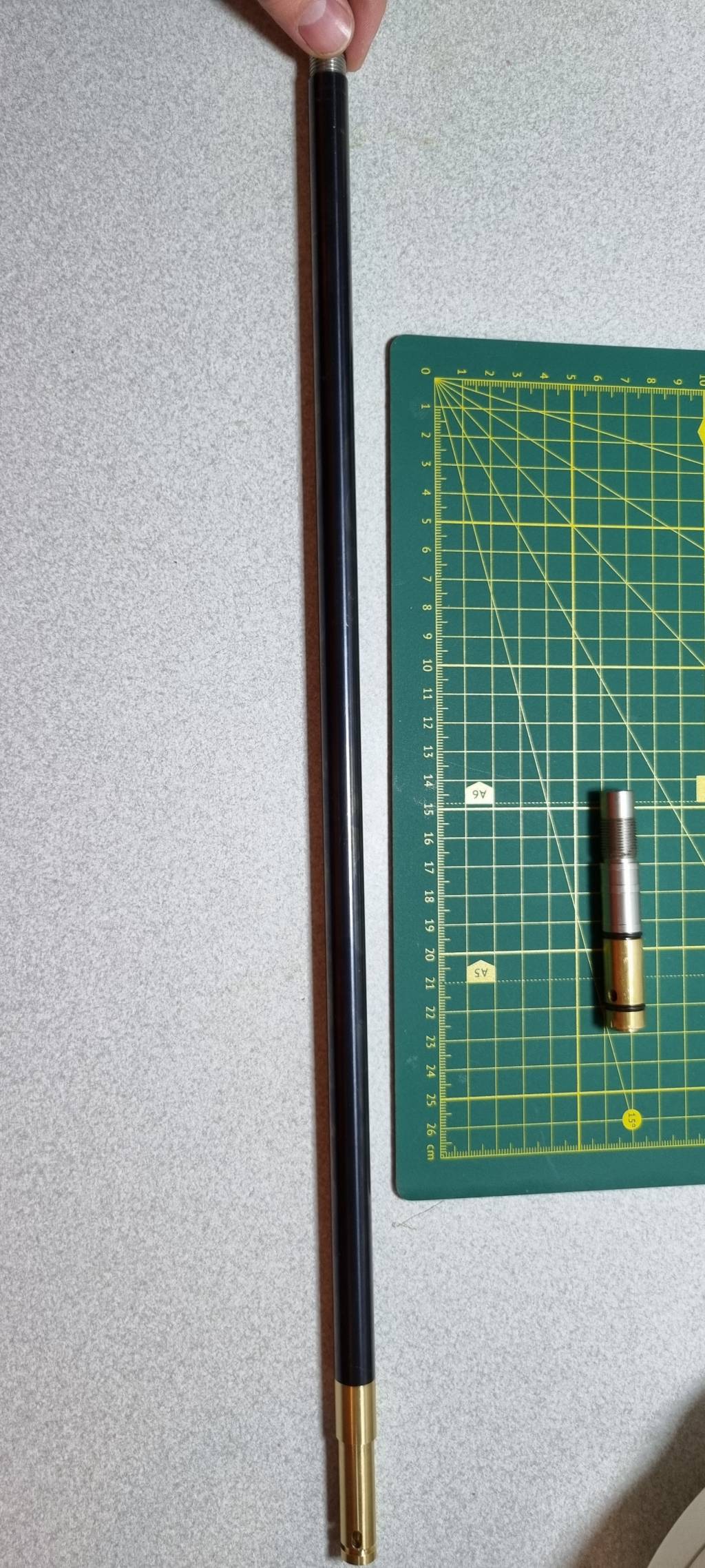

Good news, finally i found on Ebay 13 mm OD capillar tube for My Artemis P15. I made FX liner assembly for it:
frond cap

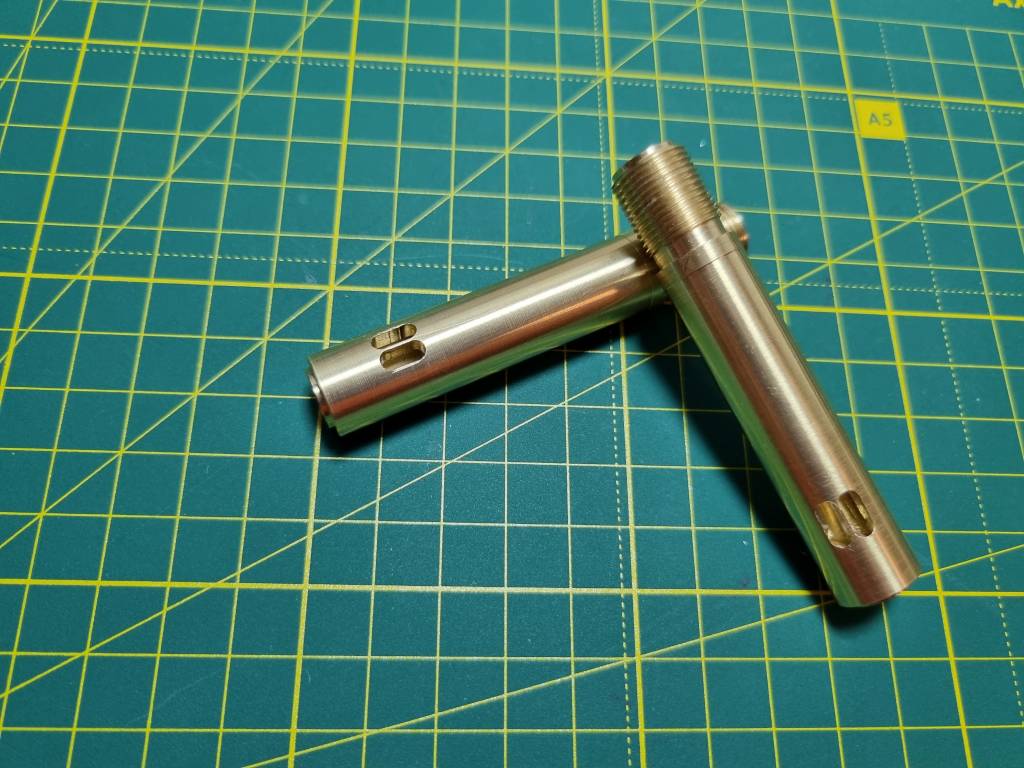

dual transfer port Made for 500mm FX liner,

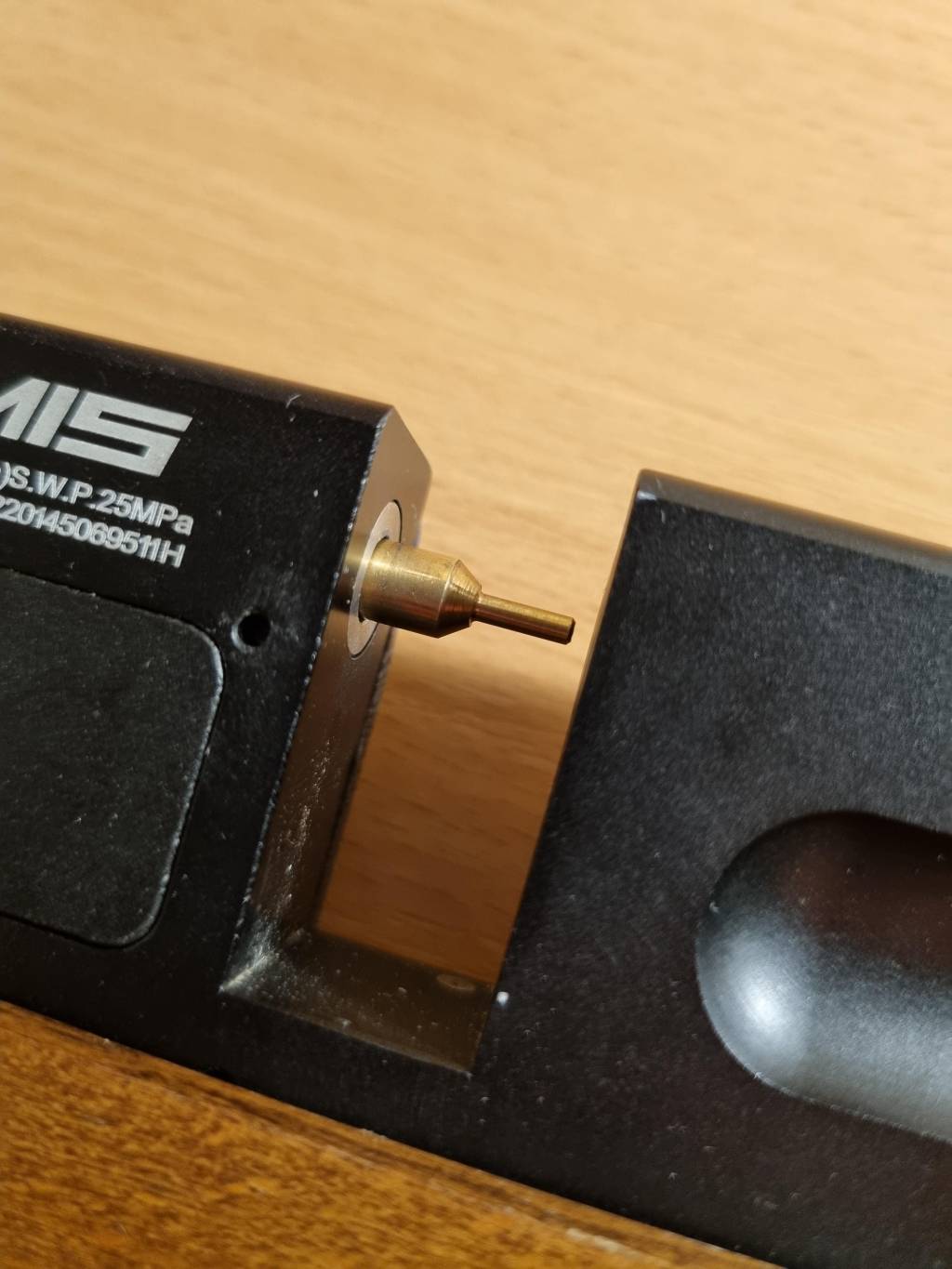

made new slug probe
made new plenum on 28 cubic cm
increased regulator pressure up to 143 BAR an tried to shoot Nielsen .2175 slugs 20.2 grain
Got 40 shots per fill 924-927 FPS(on stock specifications i got only 820-830 fps max)
Next i will shoot on paper and share results with you
Sorry for long absence. I was totally occupied with my PMP.
Good news, finally i found on Ebay 13 mm OD capillar tube for My Artemis P15. I made FX liner assembly for it:
frond cap

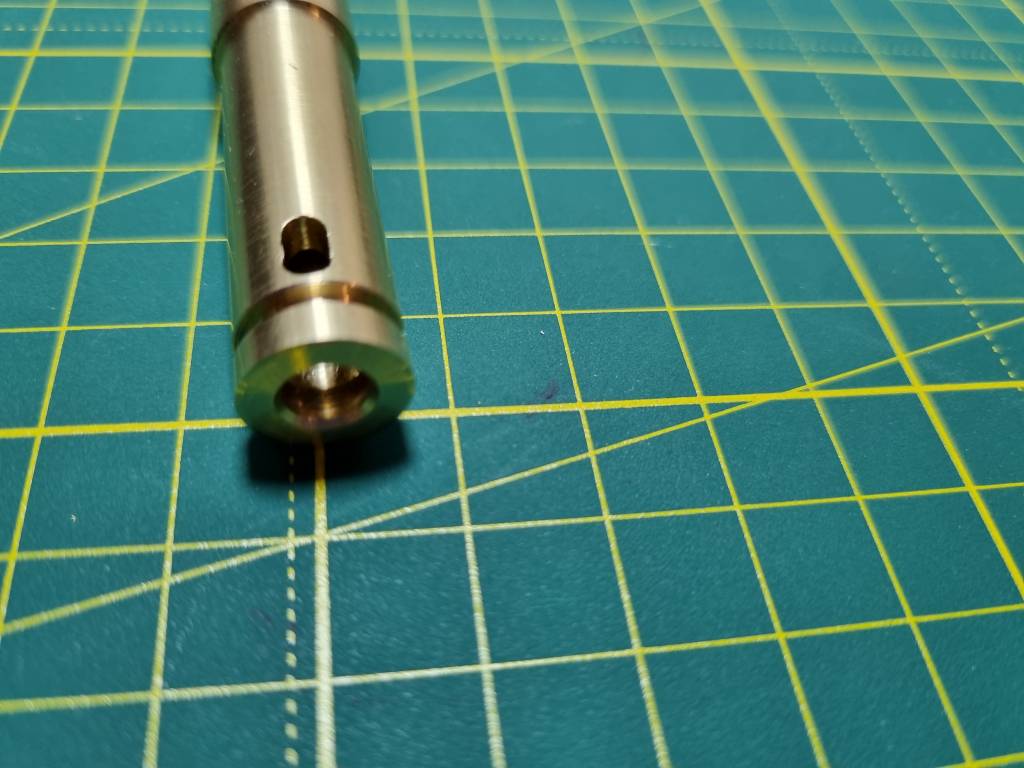

dual transfer port Made for 500mm FX liner,
made new slug probe
made new plenum on 28 cubic cm
increased regulator pressure up to 143 BAR an tried to shoot Nielsen .2175 slugs 20.2 grain
Got 40 shots per fill 924-927 FPS(on stock specifications i got only 820-830 fps max)
Next i will shoot on paper and share results with you
Upvote 0
Thanks for shearing! Hopefully it will help people understand how much time and tooling goes into the development of new idea’s.
Mont
Mont
Upvote 0
You do some very nice work. Thanks for sharing it. I’m only a hobby machinist as well and I can vouch for the effort it takes to bring an idea to a working example.
Dave
Dave
Upvote 0
@Geojorjika does very nice detailed, accurate work. I bought an adaptor for my .25 Delta Wolf that allowed use of a 600mm STX barrel system. I used a 15mm OD, 14mm ID brass tube for shimming to proper diameter to fit snugly in breech of DW. I've tried the Superior, Superior Heavy, and Slug A at commonly accepted speeds with .25 Heavy pellets. The STX liners were no more accurate than the stock LW A.R.T barrel that comes with the DW, plus I had to forego use of the chrono to use them. Additionally, the STX liner system was significantly more "floppy" than the solid LW barrel. Back to the OP, very good work on the adaptor!
Upvote 0
I've been a toolmaker for over 30 years. I have a mill and lathe at home but prefer to use the CNC equipment at work (of course) I got the mill and lathe thinking it would be nice to have at home for when I retire I could still make my stuff at home.. I gotta admit though... I'm getting a bit tired of the trade and find it hard to make anything for myself..
To the OP... I do however enjoy seeing your enthusiasm and reading your excitement in making your own custom parts... it's a handy skill to have... word to the wise... you'll have all kinds of ole buddy could ya would ya projects if you allow it... keep it your hobby and you'll enjoy it much more..
Upvote 0
Hi Geojorjika
Very interested in the FX barrel converter for a Kral in .25.
Are you still making and shipping these.
Very interested in the FX barrel converter for a Kral in .25.
Are you still making and shipping these.
Upvote 0
Hi Luis
sorry for the long absence. can you tell me Kral barrel fits Kratos or not? Do they have the same housing?
