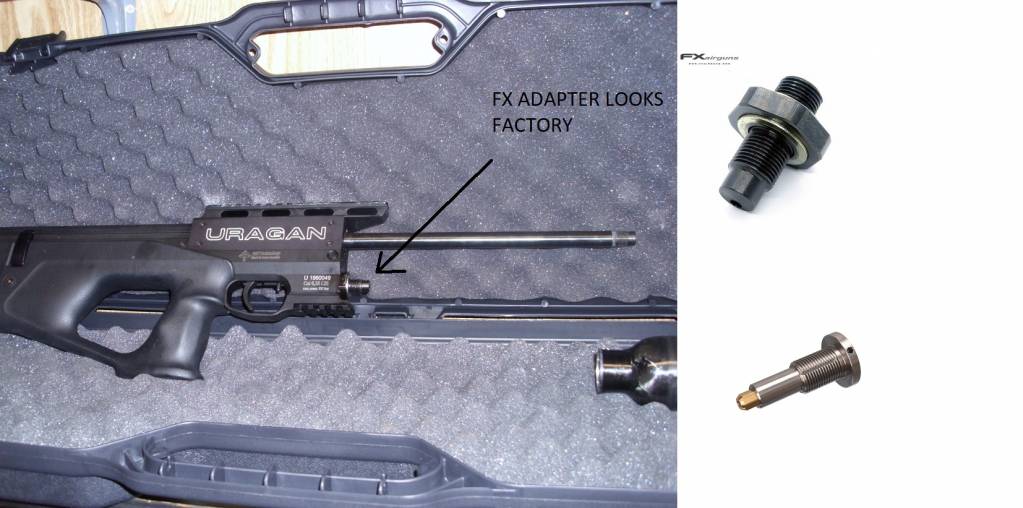

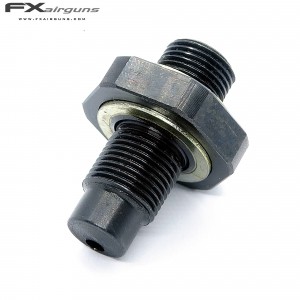

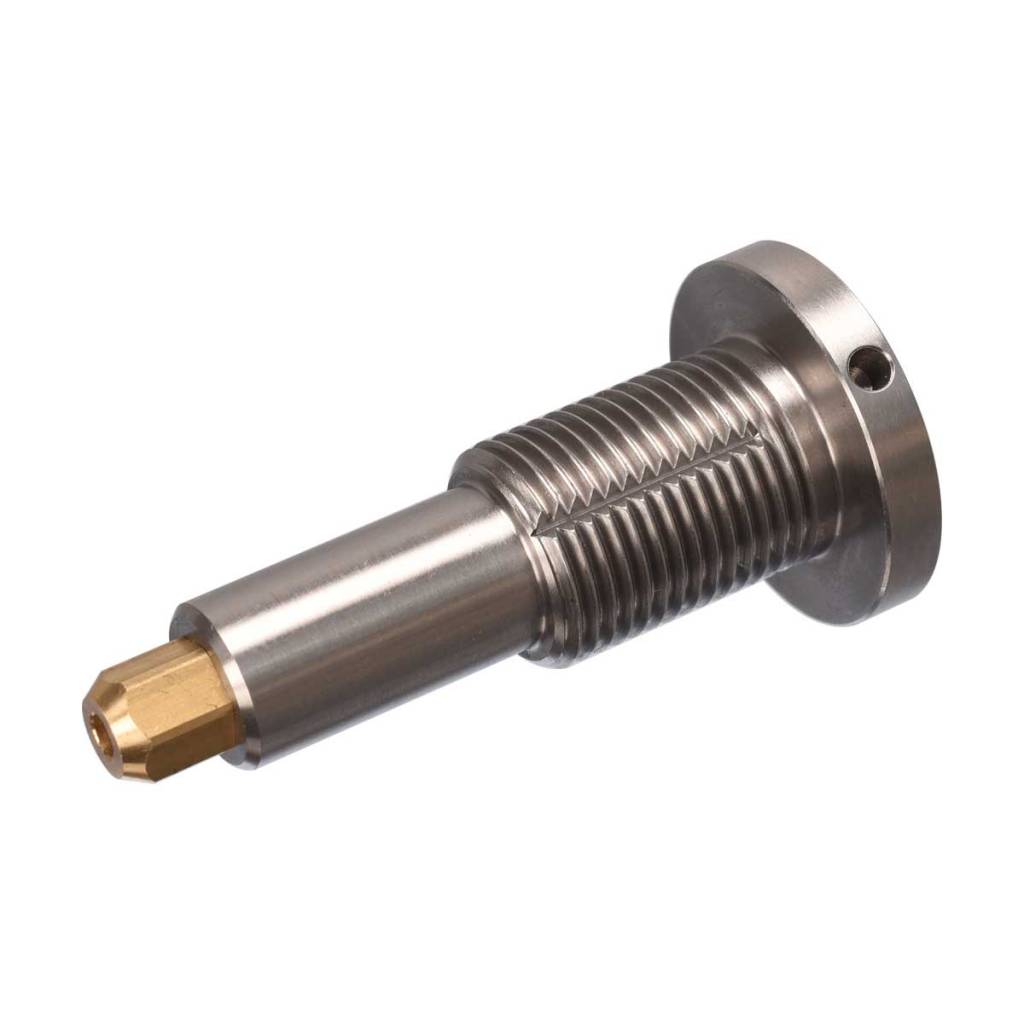

I ORDERED FX ADAPTER JUST SO HAPPEN ITS SAME THREADS AS AGT UARGAN 12MMX1.0 ORDERED TO WASHERS AND USED O RING ALSO HOPE ALL THIS WORKS WITH OUT LEAKING
AGT UARGAN TANK SWAP I HOPE THIS WORKS
- Thread starter gizmo1974
- Start date
very interesting, my .30 would be great with a 300cc bottle for hog hunting
filled to 250bar for just a few shots !
filled to 250bar for just a few shots !
Upvote 0
This is a game changer for the Uragan. If this works, it will for sure be my next gun purchase! Being able to use my fx bottles on it and bottle changes on the fly! Oh my!
Upvote 0
i dont think the FX bottles will fit due to diameter size, unless you take the shroud off.
i believe Fred is just wanting to convert the thread
size to FX thread so aftermarket bottles can be used like the acecare brand maybe ?
Upvote 0
Well the VP ( ALU ) bottle that temporarily came with my Maverick are 60 mm in diameter, so is the FX 480 CC carbon fiber bottle i paid for in the purchase of my Maverick but got months later on due to supply issues, and so is the CF bottle that came with my Vulcan 3
I am assuming the Urgans use the same size bottle a my Vulcan, and so it should also be 60 mm in diameter, and i dont think the Uragans have larger shrouds then a Vulcan 3.
I dident even think about being able to use my FX bottles on my AGT, but that would be nice, though i cant really think of a situation where it would be needed for me.
But if that FX part can screw into a AGT, then i see no reason why this should not work. ( using FX bottles on AGT )
What remain to be seen is if that FX bottle valve will screw onto a AGT bottle,,,,, it do seem a little stupid to me if there was "a lot" of different threads in little CF or ALU pressure bottles
Already decided that i will order one of those FX things to screw into the rifle and see what happen, or maybe i should wait to see this thread updated with the last part. CUZ it would be nice to have 3 bottles i could potentially use on my 2 rifles, and most of all less waste air if i should go for my Vulcan regulator again.
I am assuming the Urgans use the same size bottle a my Vulcan, and so it should also be 60 mm in diameter, and i dont think the Uragans have larger shrouds then a Vulcan 3.
I dident even think about being able to use my FX bottles on my AGT, but that would be nice, though i cant really think of a situation where it would be needed for me.
But if that FX part can screw into a AGT, then i see no reason why this should not work. ( using FX bottles on AGT )
What remain to be seen is if that FX bottle valve will screw onto a AGT bottle,,,,, it do seem a little stupid to me if there was "a lot" of different threads in little CF or ALU pressure bottles
Already decided that i will order one of those FX things to screw into the rifle and see what happen, or maybe i should wait to see this thread updated with the last part. CUZ it would be nice to have 3 bottles i could potentially use on my 2 rifles, and most of all less waste air if i should go for my Vulcan regulator again.
Upvote 0
I ORDERED FX ADAPTER JUST SO HAPPEN ITS SAME THREADS AS AGT UARGAN 12MMX1.0 ORDERED TO WASHERS AND USED O RING ALSO HOPE ALL THIS WORKS WITH OUT LEAKING

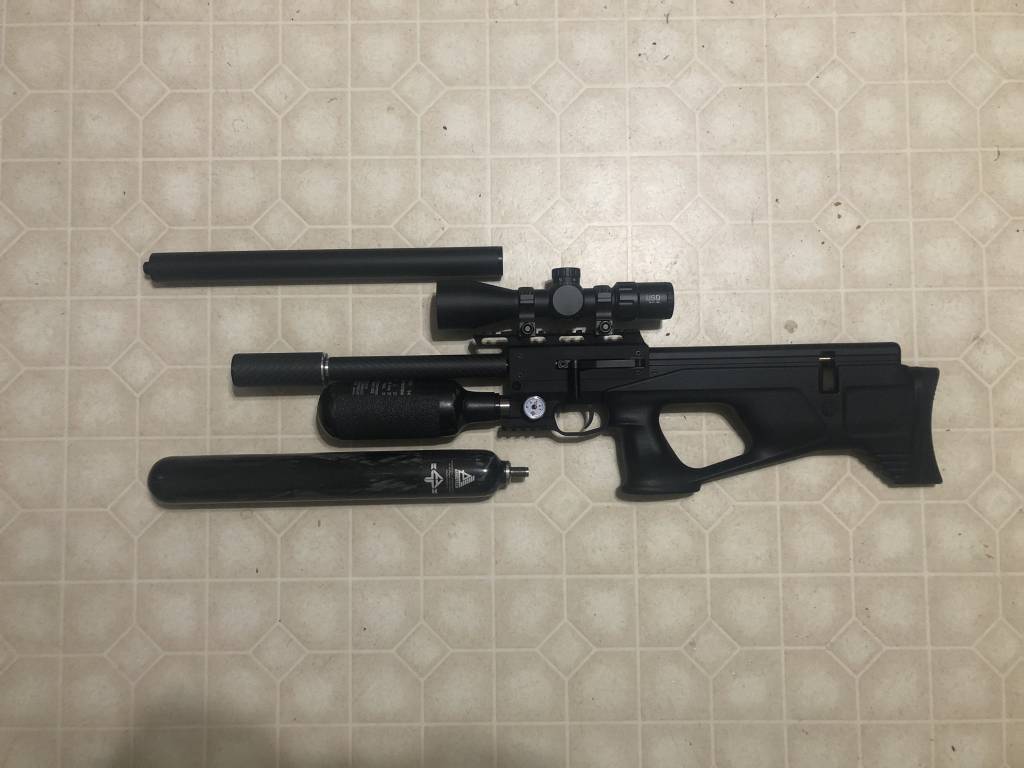

take a look at the uragan jon just did he made adapter for a fx bottle
Upvote 0

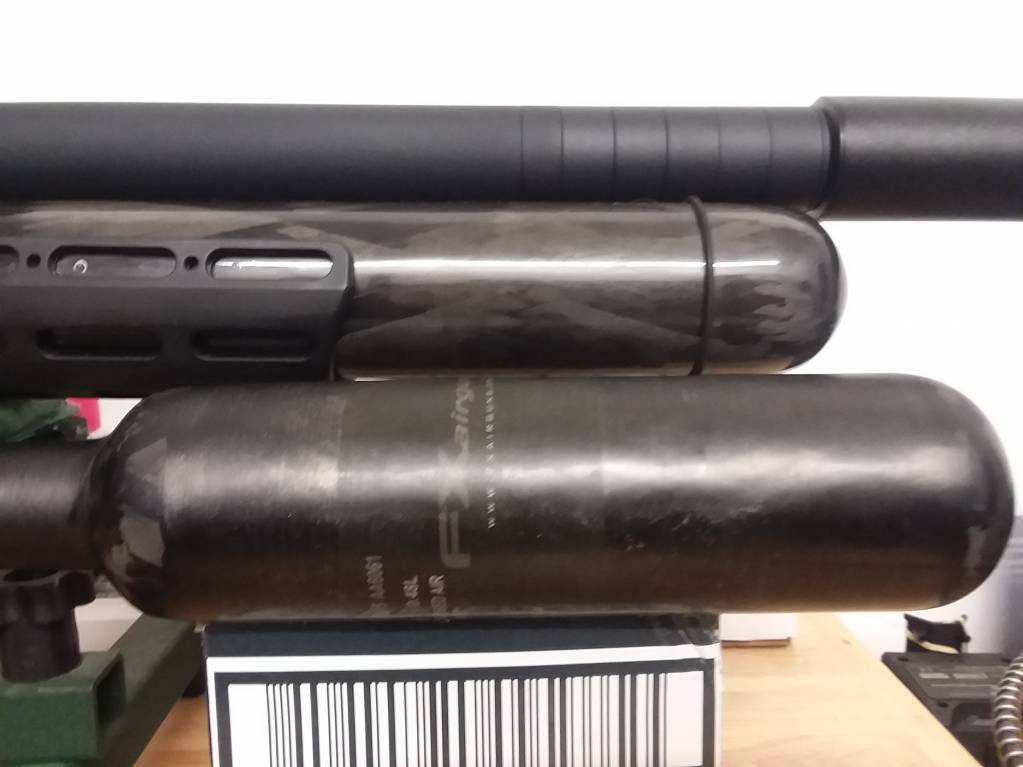

here is my uragan 30 bottle above an FX bottle....
unless you remove the shroud, the fx bottle will not fit my gun.
unless you remove the shroud, the fx bottle will not fit my gun.
Upvote 0
Damn ( confused looking smiley )
I am pretty sure it will work on my Vulcan 3 though. i am going to try it.
I am pretty sure it will work on my Vulcan 3 though. i am going to try it.
Upvote 0

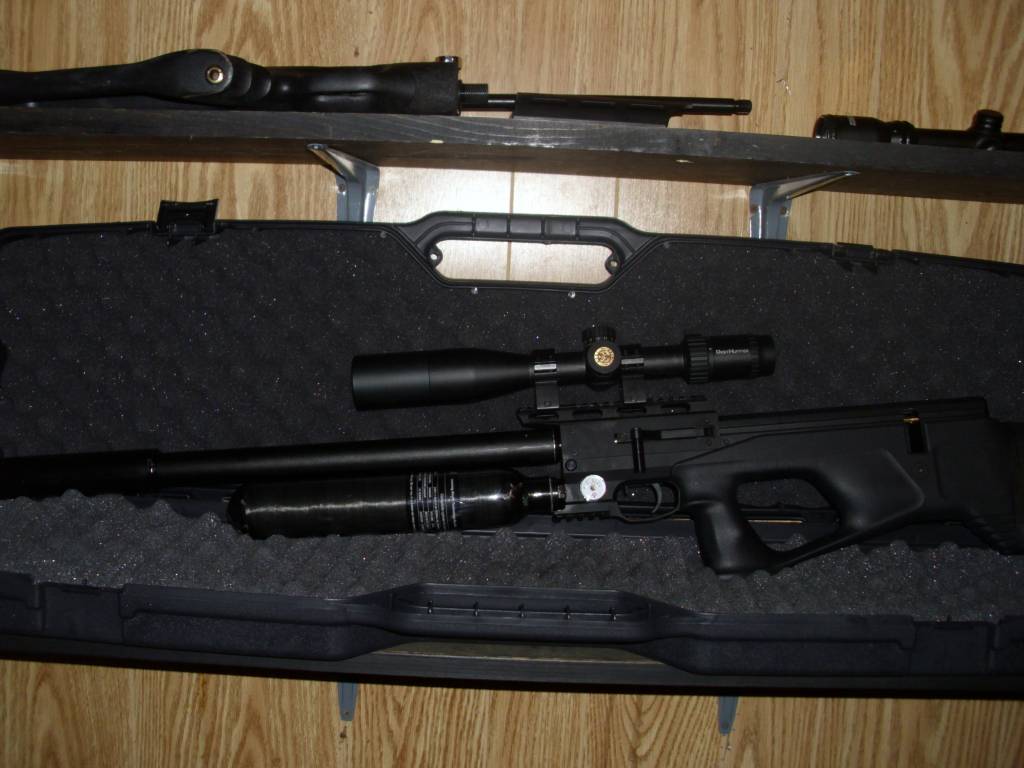

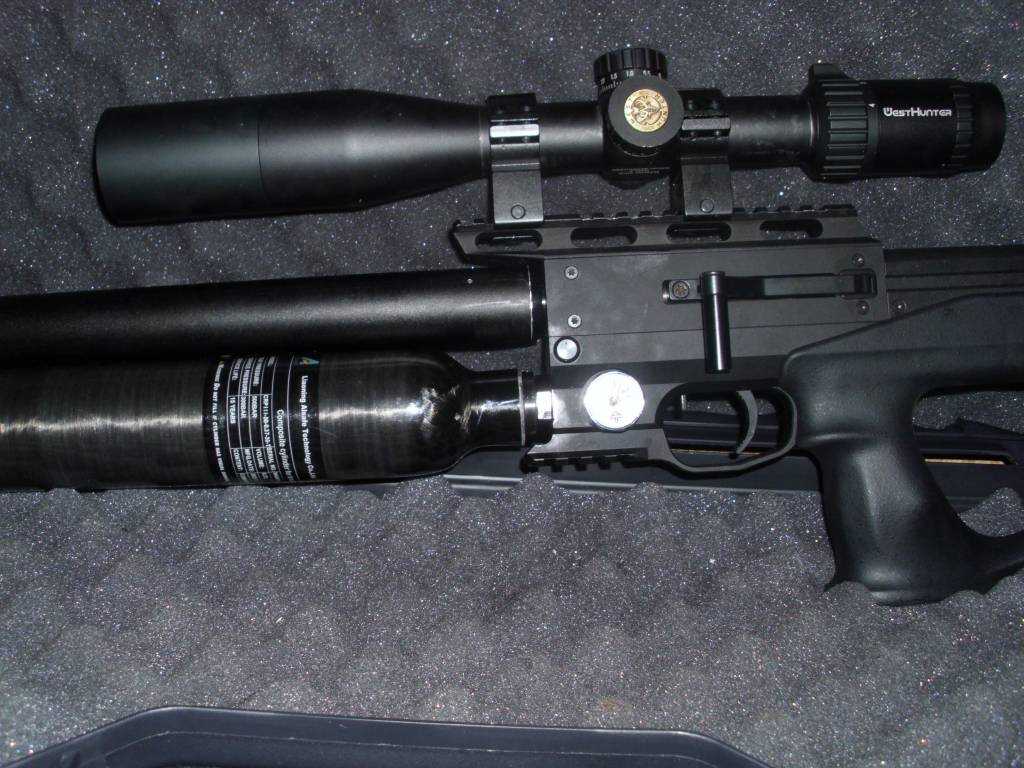

ok guys you are correct i post a pict up soon the fx tanks are 2.400 in o/d they are to big around to work with this set up but i used adapter in pict on action side there is a counter bore where o ring sits i used the fx style metal washers on both sides of the adapter then used factory o ring also i just now got it together and charged it up to 250 bar we see if it leaks or holds i did resherch on this set up was not shure if it would work really i dont see the need on this type rifle to have tank to remove and not lose air but hey if it works its set up like a fx man can change tanks out the tank i used was a ebay tank its 11 1/2 long and just barley over 2 inchs around its just barley touching the factory shroude i post a pict so you guys can see how it turned out nother option is to have a male to male adapter made 12mmx1.0 on side going in to uargan action then m18x1.5 male sticking out then you can just screw any tank you like on but trying to use fx tanks wount work unless you make a smaller shroude
Upvote 0

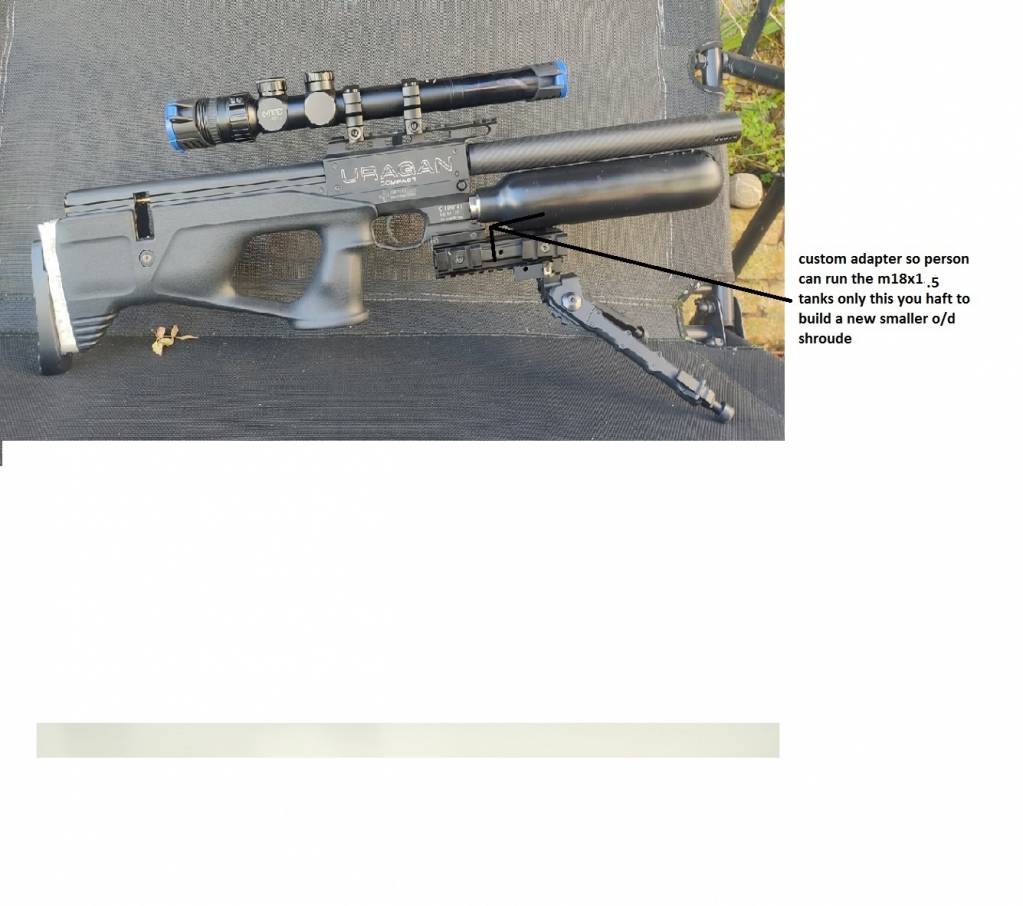

the agt tanks all have male 12mm sticking out that screws right in to action this limits a person on there tanks on the uargan has a 14 inch 2 inch o/d factory tank then they have the 7 3/4 inch long 2 inch od compact tanks this way i did it you can run any m18x1.5 tank as long as its not to big like derrick said to me the best is to have a adapter made male to male 12mmx1.5 to male m18x1.5 contact derrick hes the agt guy to go to he fix you right up
Upvote 0
Upvote 0
0.37L Carbon Fiber High Pressure Cylinder CE 4500psi Air Tank Paintball https://www.ebay.com/itm/372742098422
Upvote 0

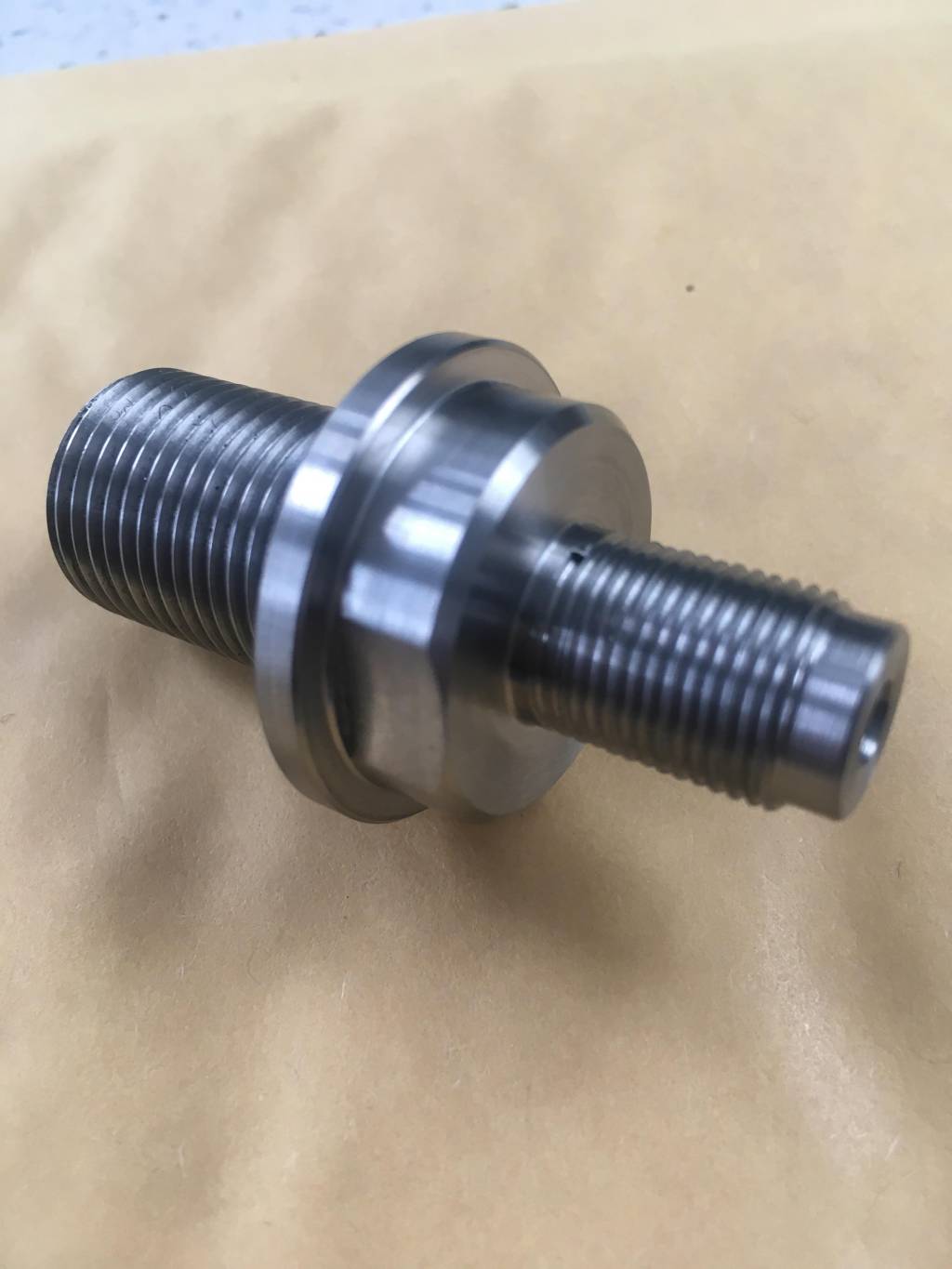

You could move the 12mm side off center if you turn the part in a 4 jaw chuck and time the 12mm threads to move the bottle lower and keep the original shroud. You would also need to drill the center hole at the correct angle. It's more work but it is possible. Thanks for sharing the build and nice work.
Upvote 0
Upvote 0
i really like that !!! i would use the stock barrel if possible.....maybe change the shroud ?
Upvote 0
yes that set up looks killer i like idea of like a drop block also would let person use the factory shroude mine fits but the 2 inch o/d tank rubes shroude just a little you can see very little light betwen shroude and tank gun looks killer with the fx tank on it
Upvote 0
How difficult is it to change calibers on the Urgan? Could you go from 30 cal to 22 cal with just swapping the probe and barrel?
