Air Venturi 90CI air tank leak

[dreamweaver]

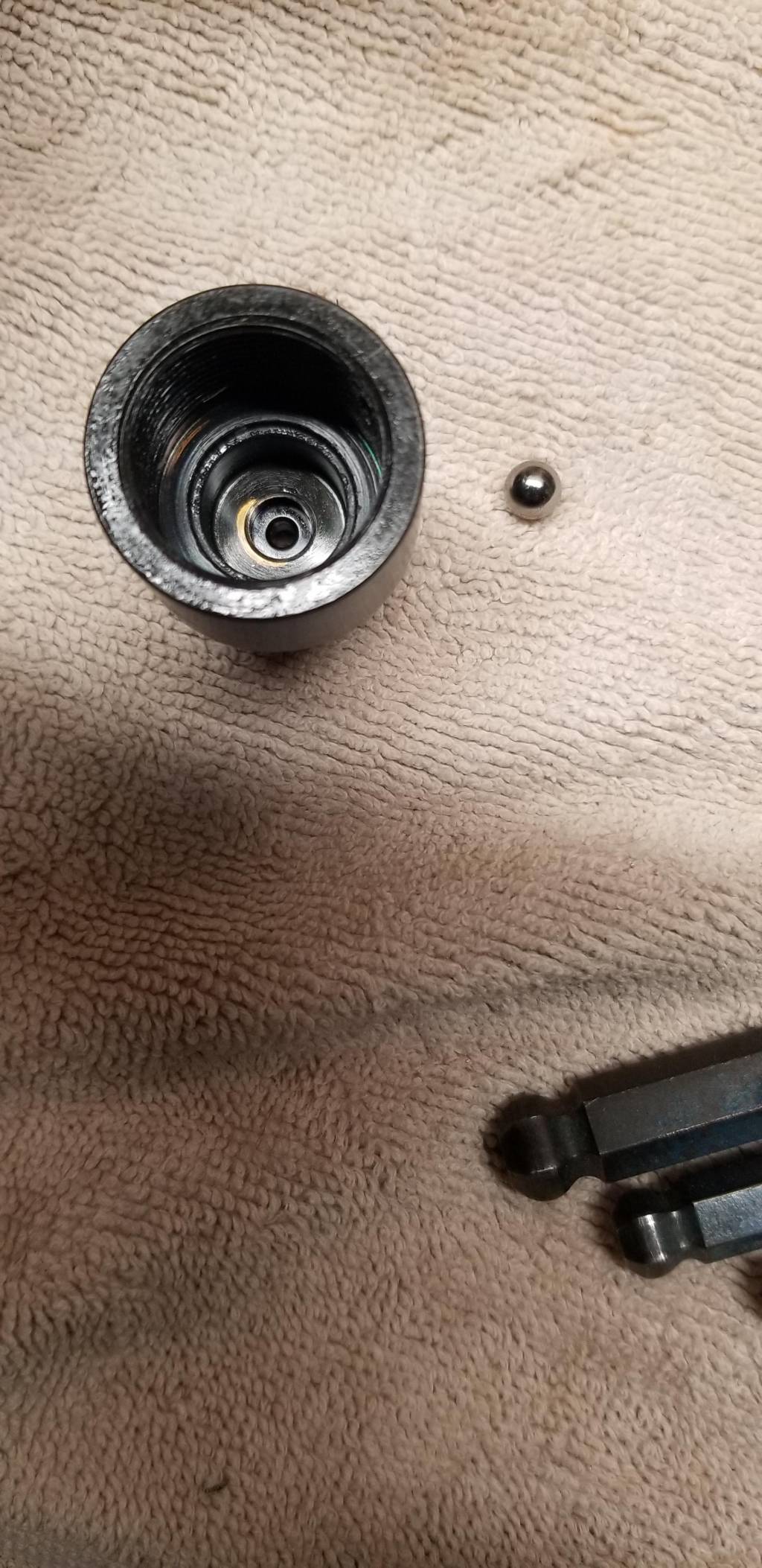

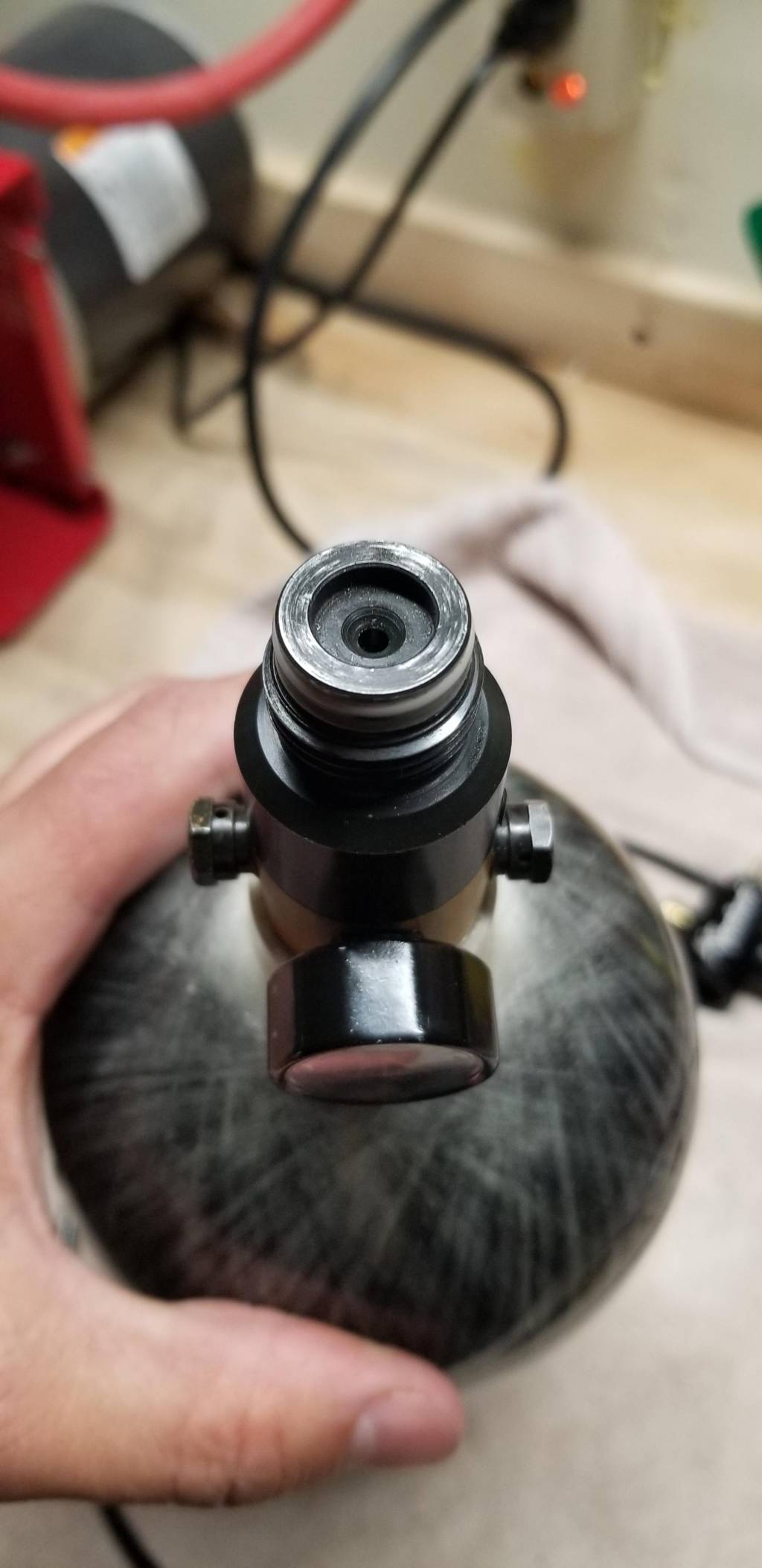

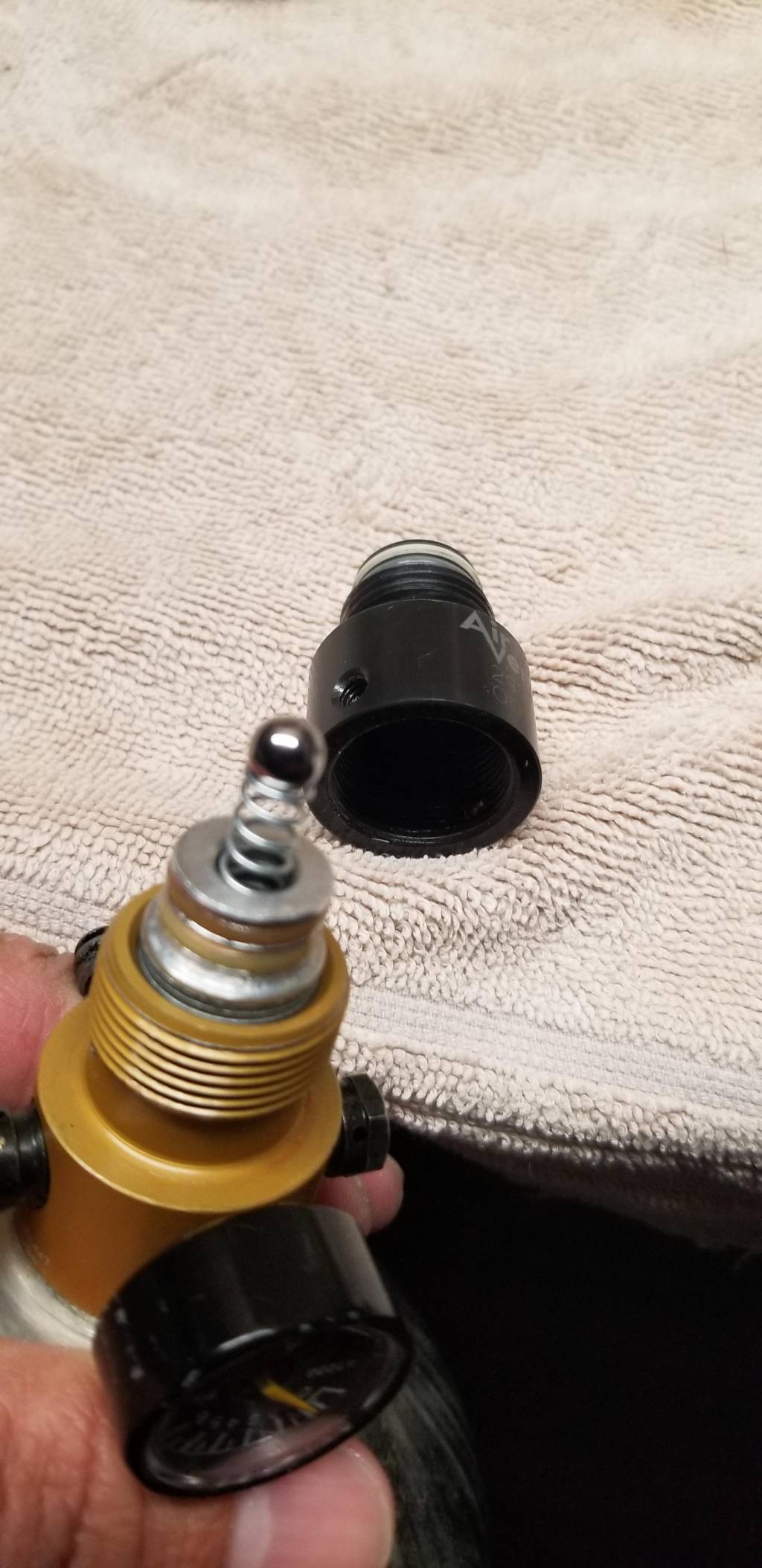

My 90ci air venturi tank all of a sudden started leaking at the valve. Basically the ball bearing that's pushed against the opening with spring pressure is not resealing. Is there some sort of sealing washer that's supposed to be in here or does that ball make a seal against the inside of the opening by itself? I took it apart and cleaned it good and reassembled. I didn't see any type of sealing washer. After reassembling It leaked immediately under just 125 psi shop air.

This tank is less than 5 years old. Is there a way to fix this, and if not, any idea where I could get a replacement valve?

Thanks for the help.



[crittahitta]

Mine had a leak a few months ago but at the burst disk. From your pic of the inside it sure looks like a recess for a sealing washer. I would call pyramid Airguns and ask. The tech department would know and probably have it.



[BrickTop]

That looks like a rebranded Ninja Regulator. Ninja sells rebuild kits and has excellent customer service. Send pics to Ninja Paintball I am pretty sure they can help you out.



[clcotner]

I have exactly the same problem. Were you able to fix this?



[flatpick65]

Me too. Same problem. I’m thinking I just need that Delrin square washer that the ball seals against. I’ve heard it’s a common problem with the Ninja set up but have yet to find a part number for that Delrin washer………



[Ezana4CE]

Contact the folks at Air Venturi tech support. They will assist you and should be able to send you the necessary part(s).

[email protected]



[Hateful McNasty]

Van you clean and polish the seat and ball that tarnish ( looks like tarnishing) or a carbon build up my not allow a positive seating/ seal.. if stainless a little dab of barkeepers helper cleaner on a #2 pencle eraser pre formed to lightly scrub/ buff back to clean and shiney may do the trick..

Next maybe the spring fatigue not holding properly?..
