Other AirForce Knockoff First Look + Other Pinty Guns

@SpindleB Posted about this AF knockoff several days ago and a few of us agreed to be be guinea pigs by pulling the trigger

Mine arrived today and so giving initial thoughts. I'll quantify this first by saying I've owned a few dozen 'real' AirForce Airguns over the years and am quite familiar with the platform.

When ordering from the website, I got a notification of the order as well as a notification when it shipped. 5 minutes after delivery, I also received an email notifying me of the same. Shipping was from California.

The box arrived securely packed, but not double boxed.


Upon opening, this is what I was met with...everything seemed secure and well packed.

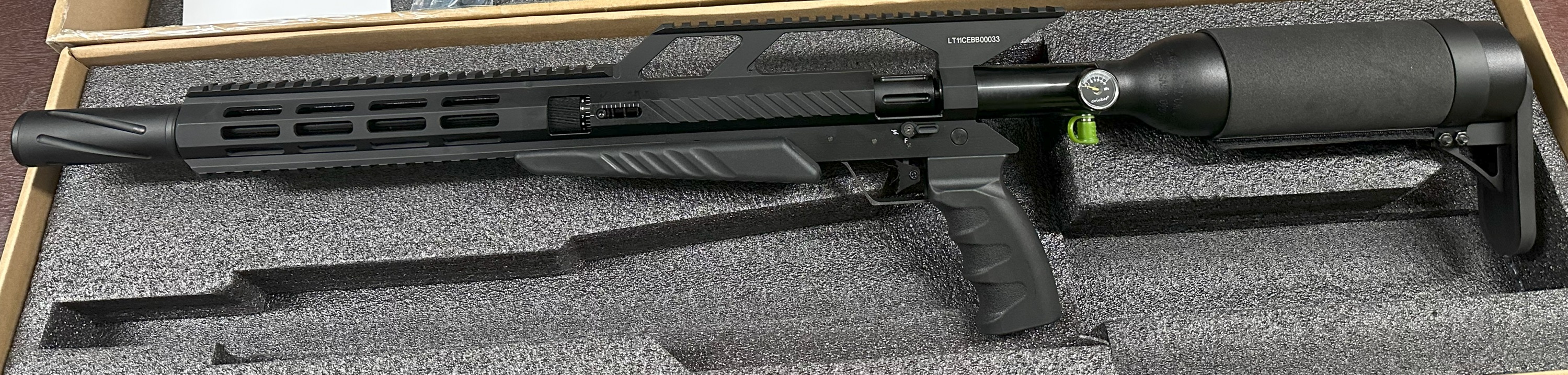

Removed the gun from it's wrapper

First thoughts. It feels nice. I cant help but get the feeling of 'cheap', but that may be bias. I had a 'Pinty' scope and it was useless. Still for $250 shipped (thereabouts), it looks good and uses a Huben regulator. Upon filling the gun for a leak check, I saw the reg was set at 14MPA according to the gauge. The pressure gauge was as close as any compared to the large gauge on my fill tank. There was a copious amount of silicon grease on internals so will need to clean some of that off. I heard no obvious leaking when filling the gun, but the test will be overnight. I like the frame design better than the AF guns. The skeletonized look and the pic rails are a welcome addition. The buttpad is actually padded and feels nice.

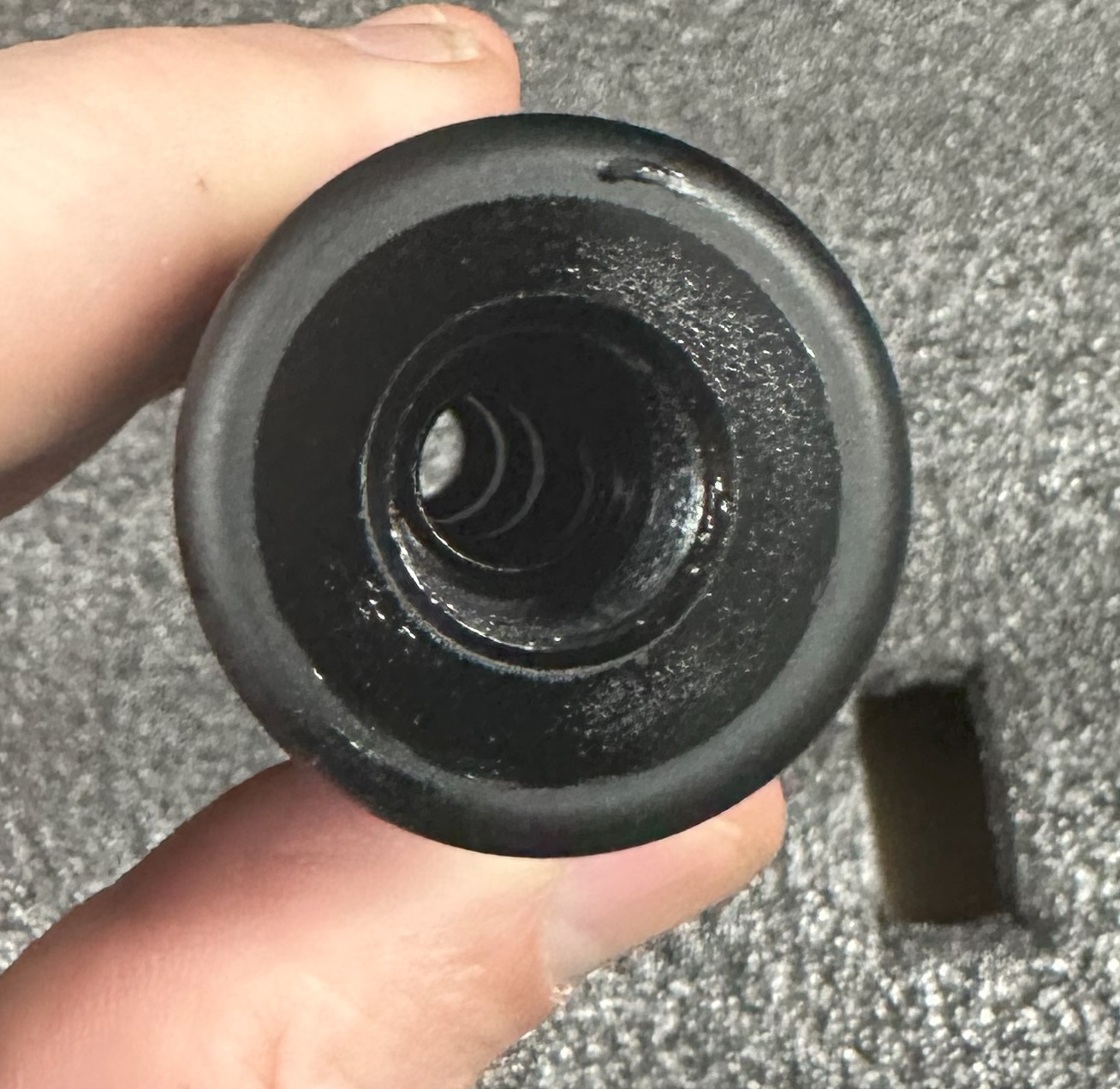

The moderator is proprietary. I don't know what threads it uses, but a DonnyFL wont fit it. The moderator is removable and is baffled, but quite small.

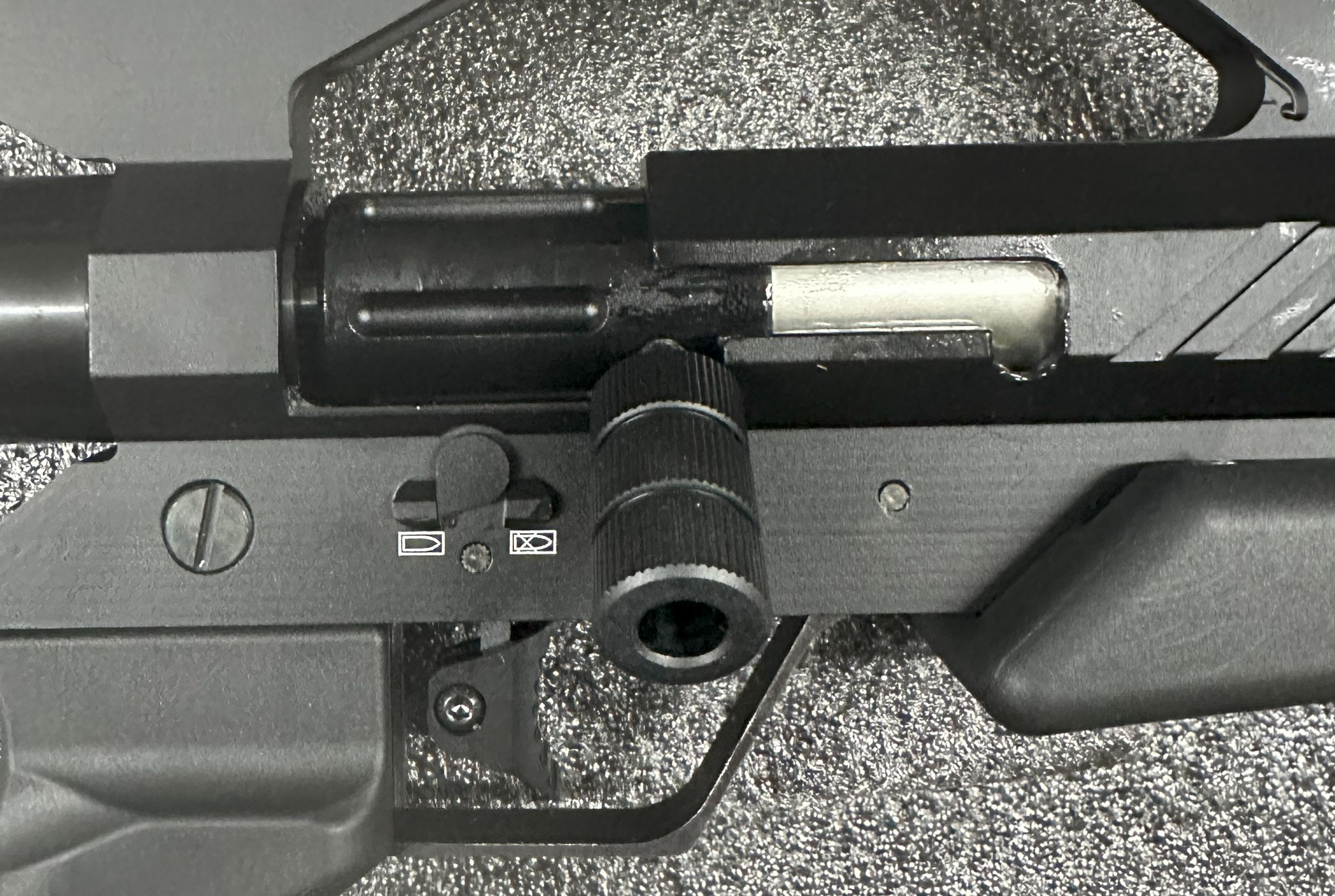

I really like the bolt on this opposed to the arrangement used by AirForce. At the time of pics, I'd not cleaned grease.



The power wheel has no numbers or indicators other than the screw and hashes


But it is cut out on the other side of the frame so you can more easily turn it and see from the other side, a welcome departure from the AF frame.

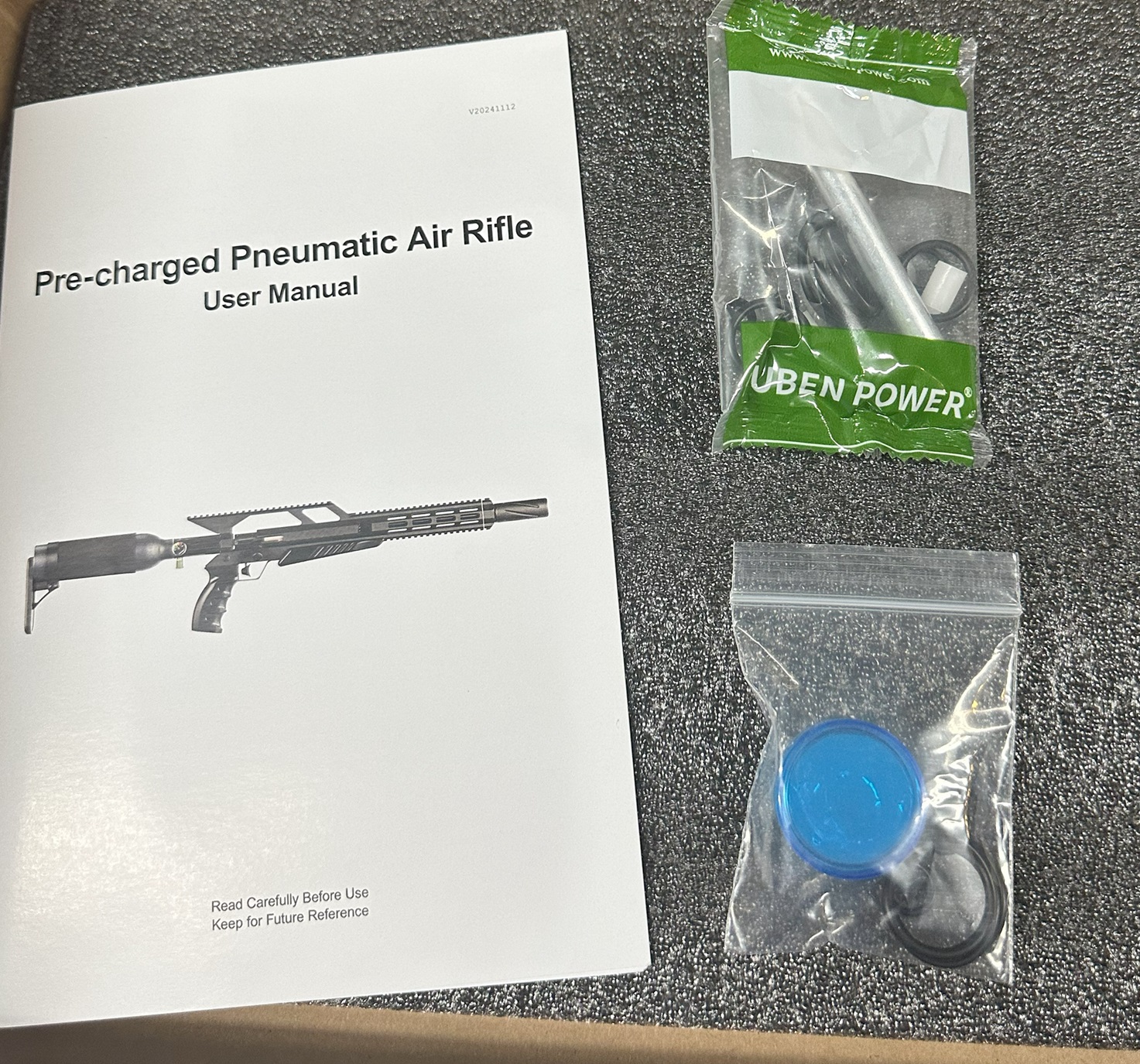

There was a manual, some spare o rings and other bits included.



After filling to 3kpsi (I guess I should have read to find out the SWP, but assumed at least 3k), I went outside to do a smoke test.
First impressions:
Cocking is ROUGH. It did smooth out a little over a couple shots, but initially pretty rough. In fact, closing the bolt the first time it 'caught' and pushed the tophat just enough to send the first pellet out the barrel WITHOUT the hammer being released. Good thing I had it pointed in a safe direction. Subsequent shots were smoother, but not what I'd call 'smooth' by any means.
A stock AF trigger is rough. Serviceable but rough. This trigger is worse by far. I don't know if it will break in or needs some polishing or both. Will see later how this translates to accuracy.
There doesn't appear to be much of a leade in on the barrel, if one at all. Pellets were tight and I could feel the rifling engaging at the very start of pushing in a pellet.
The short moderator didn't do a lot, at least on power level 3, according to the hash marks. It wasn't overly loud, but I imagine a lot of folks will want to put a real moderator on it. It doesn't bother me and I like the look of it so may keep it as is.

It sounded like it was putting out decent power, but will verify later. I'll mount a scope on it and do some chrony testing and shoot some groups and see how goes when it warms up just a little more outside!

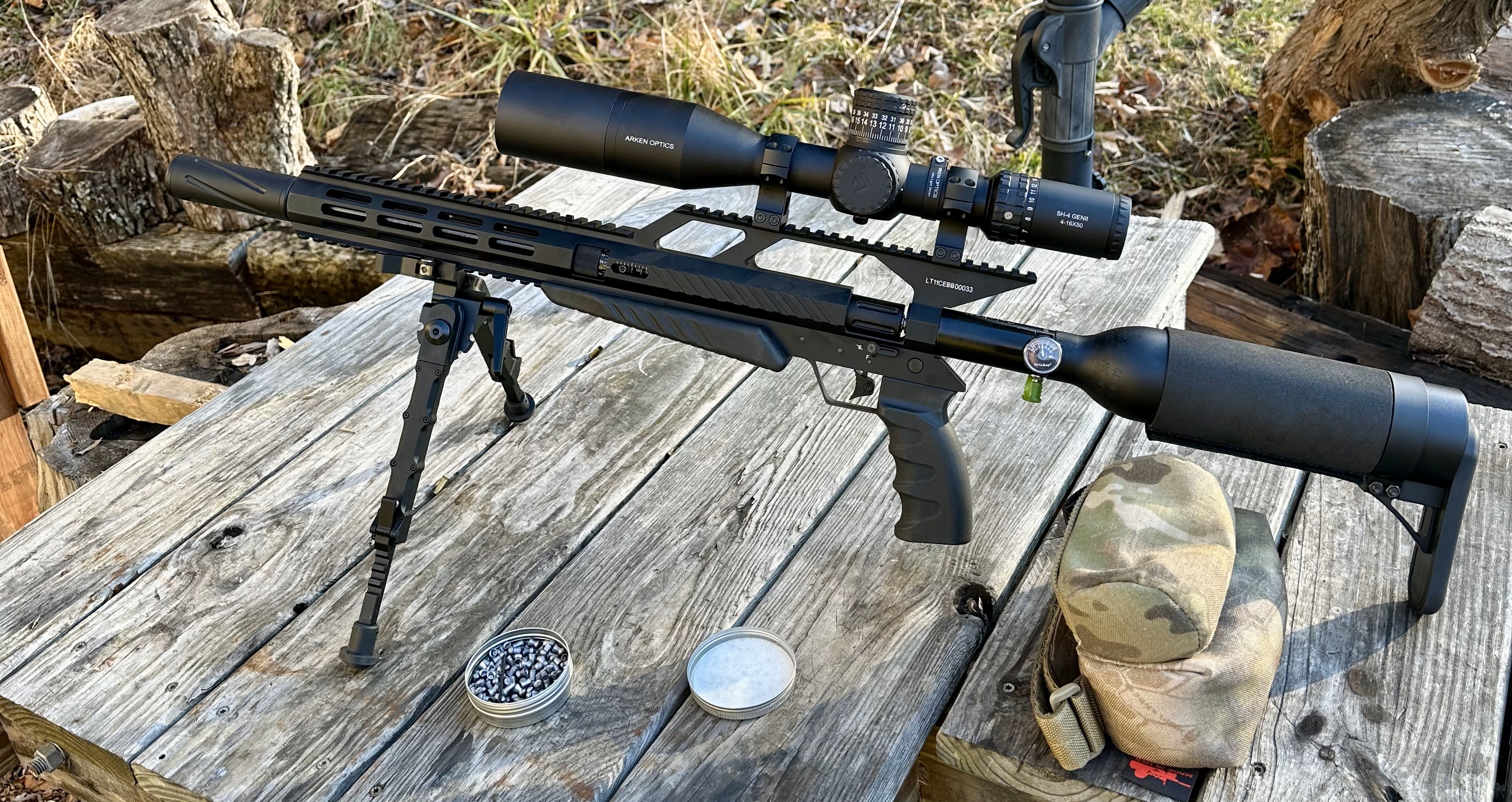

I'd sold off all my cheaper scopes at the Hickory show a couple years ago and so I'll be putting an Arken on this gun for testing. Either the Arken will make this gun better, or the gun will end up making the Arken worse... I'm not sure yet.
Kidding aside, first impressions were on par with the price point, I guess. Should be easy enough to smooth out the cocking with some polishing and such. The trigger.... I'm not sure yet, but usually there is 'something' that can be done. The true test will be if it can hit what I'm aiming at. More to come later today!

Last edited:
My hope is now a bit more elevated. Just went out to do some initial groups and chrony numbers.

3kPSI fill, reg at 14mpa (roughly 2kpsi) using JSB 18gr, PW set to 3
1. 879
2. 872
3. 878
4. 877
5. 878

Didnt feel the need to do more. I'll likely drop that down a bit as I had meant for this to be a plinker, but the more immediate issue is the trigger.

First off, the cocking DID smooth out considerably after the first several shots and is now what I would consider to be smooth (ish) considering the price point. In fact, it's acceptable and on par with AF guns, pre polishing.

I shot 5, 5 shot groups at 45 yards. Each group was the same story. I would have 3 shots inside of a nickel and then a couple shots off by as much as 3/4 inch. ALL of these were called. The trigger is just bad. The barrel appears to be good and as long as I didnt pull the shot with the ridiculous trigger, I was grouping fine. On my trigger pull gauge, the pull measured in at a hefty 5.88lbs on an average of 3 pulls.

Now that I was out in the open and shooting (and realizing the velocity it was putting out), I have a bit different opinion on the moderator. Considering its size, I think it did ok. I had assumed when shooting before that the gun was maybe shooting in the 750fps range and judged the moderator accordingly. It's still not quiet as a DonnyFL, but it's adequate, I think.

My hope is now a bit more elevated. Just went out to do some initial groups and chrony numbers.

3kPSI fill, reg at 14mpa (roughly 2kpsi) using JSB 18gr, PW set to 3
1. 879
2. 872
3. 878
4. 877
5. 878

Didnt feel the need to do more. I'll likely drop that down a bit as I had meant for this to be a plinker, but the more immediate issue is the trigger.

First off, the cocking DID smooth out considerably after the first several shots and is now what I would consider to be smooth (ish) considering the price point. In fact, it's acceptable and on par with AF guns, pre polishing.

I shot 5, 5 shot groups at 45 yards. Each group was the same story. I would have 3 shots inside of a nickel and then a couple shots off by as much as 3/4 inch. ALL of these were called. The trigger is just bad. The barrel appears to be good and as long as I didnt pull the shot with the ridiculous trigger, I was grouping fine. On my trigger pull gauge, the pull measured in at a hefty 5.88lbs on an average of 3 pulls.

Now that I was out in the open and shooting (and realizing the velocity it was putting out), I have a bit different opinion on the moderator. Considering its size, I think it did ok. I had assumed when shooting before that the gun was maybe shooting in thie 750fps range and judged the moderator accordingly. It's still not quiet as a DonnyFL, but it's adequate, I think.
So is it Airforce compatible? Parts interchangeable?

Any way to tell if it is a real Huben regulator or one of the plethora of knockoffs?

-- Matt

I'm not sure what all is or isnt compatible just yet. Havent spent a lot of time with it. I actually got in a new tool for the shop today so have been assembling that. I just wanted to be one of the cool kids and be the first to post on the AF knockoff...and beat @thammer to it :ROFLMAO:

The reg does indeed look Huben and looks like my other one, including the spare bits. If it's a knockoff, it fooled me!

Hopefully will tinker more with it tomorrow after I get the other new toy sorted here and tested out.

I'm not sure what all is or isnt compatible just yet. Havent spent a lot of time with it. I actually got in a new tool for the shop today so have been assembling that. I just wanted to be one of the cool kids and be the first to post on the AF knockoff...and beat @thammer to it :ROFLMAO:

The reg does indeed look Huben and looks like my other one, including the spare bits. If it's a knockoff, it fooled me!

Hopefully will tinker more with it tomorrow after I get the other new toy sorted here and tested out.
Now you are going to make me spend my money for a rifle I do not need and probably do not have time to shoot.

HARRUMPH I say! HARRUMPH!

-- Matt

I'm not sure what all is or isnt compatible just yet. Havent spent a lot of time with it. I actually got in a new tool for the shop today so have been assembling that. I just wanted to be one of the cool kids and be the first to post on the AF knockoff...and beat @thammer to it :ROFLMAO:

The reg does indeed look Huben and looks like my other one, including the spare bits. If it's a knockoff, it fooled me!

Hopefully will tinker more with it tomorrow after I get the other new toy sorted here and tested out.
No worries here. I'm glad you beat me to it. You have my hopes a little higher now. I'm even more excited than before.

  • Like
Reactions: markhooper
No worries here. I'm glad you beat me to it. You have my hopes a little higher now. I'm even more excited than before.
Been working in the shop and coming back to check an assembly vid and also to check pressure and so far, it seems to be holding. Hopefully tomorrow I can run some more numbers or start to dive into this trigger.

  • Like
Reactions: thammer
It is in the cart.
The $40 coupon is copied
Bad brain explaining to Good brain why I need to buy another rifle.
Good brain remains unconvinced.
Well.... as you already stated... you started this!

So I finished up my other project, at least as much as I'm going to today, and decided to throw a little more lead downrange.

Did a few other groups, but just mainly plinked at steel from 20-65 yards out. I didnt walk up to measure, but it looked like I was around 2 inch groups at 65 yards. That trigger makes accurate shooting difficult.

Did a few more groups at 48 yards. Had thought I was set up at 45, but rangefinder told me differently. Next time I'm motivated to do so, I'll move it to an even 50.

This is representative of what this gun will do with the trigger as is. I did a couple better and a few worse so selected what looked to be an 'average'. You really have to concentrate on that trigger pull. I guess next rainy or cold day, I need to look under the hood and see if I can easily lighten this trigger. I'm sure others will beat me to it if their triggers are the same.



Now I am looking forward to mine arriving! Rough trigger is to be expected at this price point. Recently finished the work on my Ruger Mk III basically making it a MK. II A polish job throughout the wacky linkages, and removal of the magazine safety was literally from really bad, to quite good. I'll give this one a chance, my Blitz went from intolerable to tolerable with break in, a heavy trigger on a full auto gun?? Not a bad thing IMO. I'll be scouting for the brown truck of happiness.

  • Like
Reactions: thammer
My hope is now a bit more elevated. Just went out to do some initial groups and chrony numbers.

3kPSI fill, reg at 14mpa (roughly 2kpsi) using JSB 18gr, PW set to 3
1. 879
2. 872
3. 878
4. 877
5. 878

Didnt feel the need to do more. I'll likely drop that down a bit as I had meant for this to be a plinker, but the more immediate issue is the trigger.

First off, the cocking DID smooth out considerably after the first several shots and is now what I would consider to be smooth (ish) considering the price point. In fact, it's acceptable and on par with AF guns, pre polishing.

I shot 5, 5 shot groups at 45 yards. Each group was the same story. I would have 3 shots inside of a nickel and then a couple shots off by as much as 3/4 inch. ALL of these were called. The trigger is just bad. The barrel appears to be good and as long as I didnt pull the shot with the ridiculous trigger, I was grouping fine. On my trigger pull gauge, the pull measured in at a hefty 5.88lbs on an average of 3 pulls.

Now that I was out in the open and shooting (and realizing the velocity it was putting out), I have a bit different opinion on the moderator. Considering its size, I think it did ok. I had assumed when shooting before that the gun was maybe shooting in the 750fps range and judged the moderator accordingly. It's still not quiet as a DonnyFL, but it's adequate, I think.
I've applied for the 15% discount and yet to receive an email? How long did it take you to get there email? Charles

I also used the provided code, worked great and will likely ship Monday ordering over the weekend. I did go shoot my shiny new Umarex SA 10. I was disappointed it is getting returned. About as accurate as throwing rocks on my basement range it's about 5 meters. I was not expecting great accuracy, but really bad is my description of the SA 10. Pyramyd shipped it with RWS hobby wadcutters. In addition 8 pulls of the trigger would only yield 6 shots mostly. It randomly will skip a pellet in the magazine. It was about the same with BB's. I bought it to stay sharp with my self defense PB's it is too inaccurate for that duty. Back it goes.
