Other Ajustable mounts 20moa

Hi.

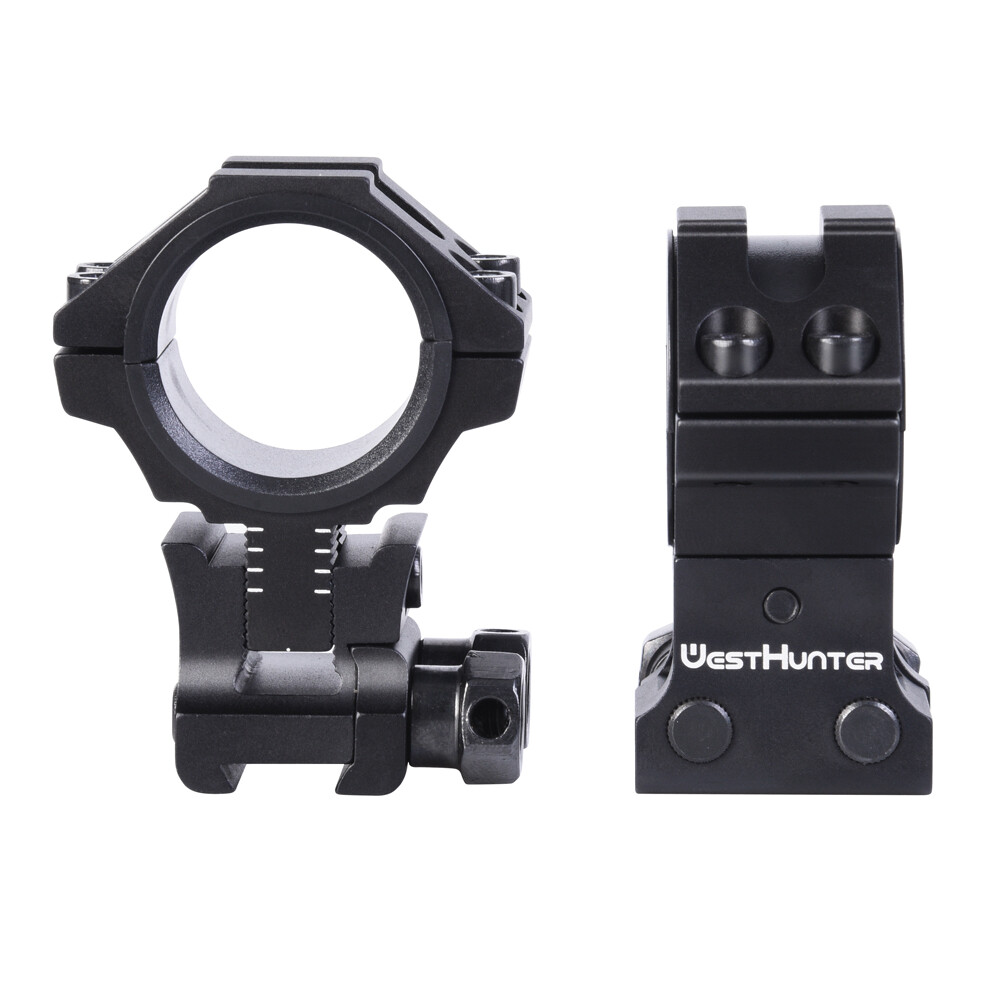

I got westhunter adjustable mounts (photo attached)
There is 4 white lines .
How many lines should I go up to get 20moa?

s-l1200 (1).jpg

Hi.
I got westhunter adjustable mounts (photo attached)
There is 4 white lines .
How many lines should I go up to get 20moa?

View attachment 558702
I just tilt my scope to where the gun is shooting at my desired zero range. You can do this to retain max adjustability either way or maximize your use of elevation turret. Id read or ask about the nuances of it to decide on what you prefer.

I just tilt my scope to where the gun is shooting at my desired zero range. You can do this to retain max adjustability either way or maximize your use of elevation turret. Id read or ask about the nuances of it to decide on what you prefer.
On Pard NS 4k maximum down range of vertical Y axis is maximum 102.
I can't zero my PCP riffle beyond 85 meters so I need 20moa elevation mount.

On Pard NS 4k maximum down range of vertical Y axis is maximum 102.
I can't zero my PCP riffle beyond 85 meters so I need 20moa elevation mount.
I understand completely and have been in your shoes. You can mostly bottom out your elevation turret adjustment like I did or leave your adjustments at 0 and tilt the rings to approximately where it's hitting as it is from a bench and tighten down the rings.

I bottomed out my turret so I could shoot as far as possible and dial with my regular scope, but this uses more of the edge of the optics and can cause some distortion. With my digital it doesn't use rings so I'm stuck but have a 30 moa base on that one.

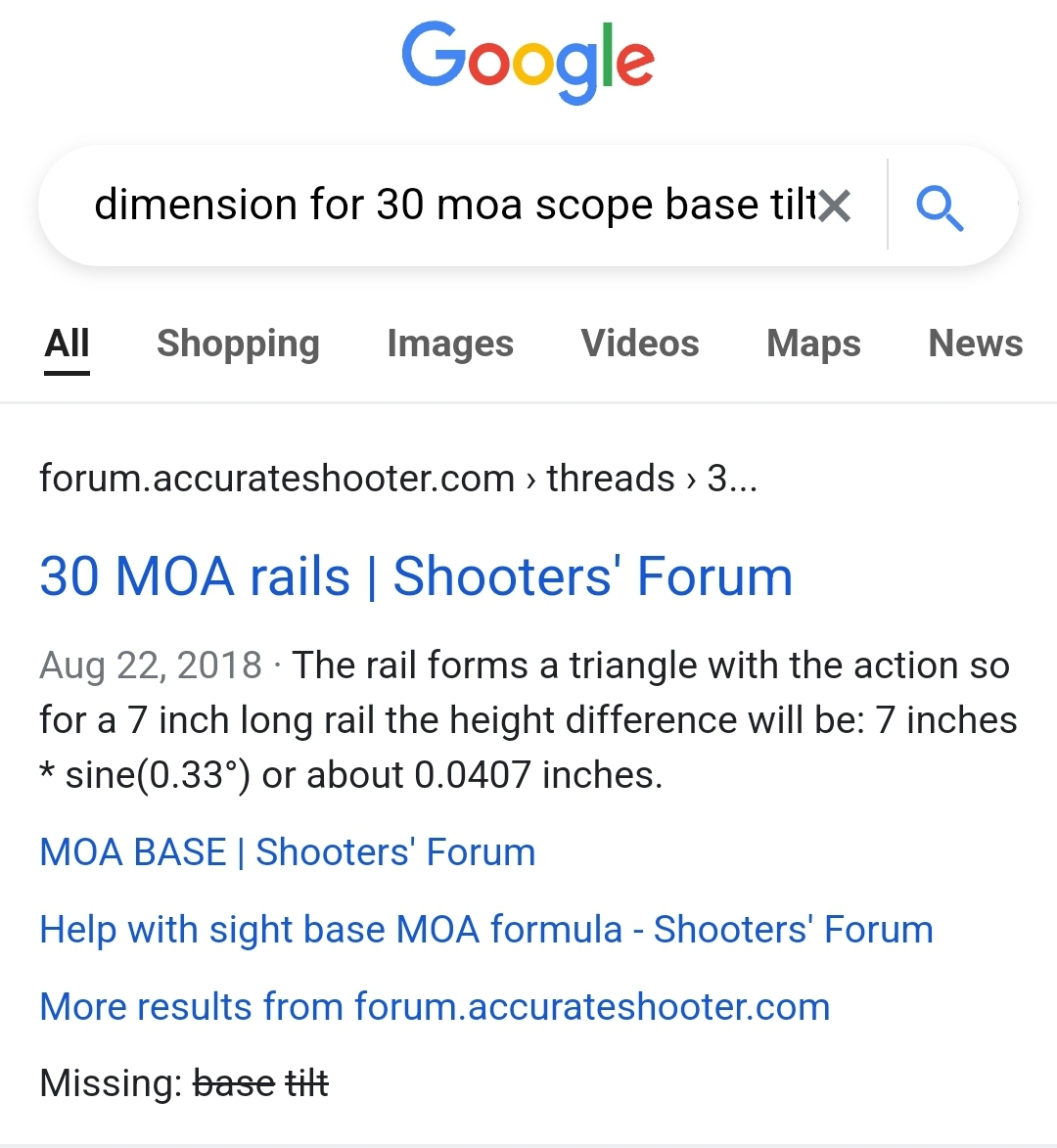

I hope you understand what I mean about moving the rings to where it shoots to save you room to zero(or for the chip) to adjust to where you want to be. Pic related, if it's too much and you want to just try calipers first.


These rings do not allow you to adjust for moa, they are simply height adjustable rings.

These are the scope rings I suggest you get that will allow you to get whatever MOA you need.

I also recommend these which already have 20MOA built in.
I have eagle vision rings that have a single clamping bolt and pulled off a tilt with it rather effectively. The design and tolerances allowed me to add 10 more moa to my impact prior to getting a 30 moa rail and would likely allow for more. Op seems like he should be able to use those rings for his end goal I think. If its plug and play and no experimentation he's after, I 100% agree with your suggestion too.
