American Air Arms All Things EVOL - Master Thread

Nice shooting!

I still have to get some testing done with the different mods that I have. I know the stock mod is great, but we always have to tweak and tune something!

Have been shooting some of the light weight slugs through the gun and it seems to be doing ok. Though honestly right now the way the pellet are shooting, there is nothing to complain about.
I only tried slugs in my .30, and the Hybrids shot great, but the accuracy with pellets is phenomenal.
Once I figured out a procedure to maintain a consistent set up and follow through, the Evol really began to shine, and I stayed with pellets.

Anyone have issues with magazines? Sometimes they jam up pretty bad on occasion. I've tried loosening up the center screw and playing with that but doesn't change anything , the 15.89 hades kinda fall in at an angle as the mag cycles

View attachment 358062
Yes, my .30 magazine jammed real bad today at the range. Finally free'd it from chamber, and there was a mutilated pellet in the magazine which was causing me not to be able to remove it. I have noticed that they do jam from time to time, not sure why.

  • Like
Reactions: orangeokie
Yes, my .30 magazine jammed real bad today at the range. Finally free'd it from chamber, and there was a mutilated pellet in the magazine which was causing me not to be able to remove it. I have noticed that they do jam from time to time, not sure why.
It seems to side load between the rotating portion and the case where the head of the pellet gets stuck right before leaving the mag.

If you have mag index problems please pm me with the caliber and pellet type that you are having issues with and I will see if there is a correlation to a certain pellet.

Thanks!
Hey Tom

I was at the local outdoor range today and I use two .30 cal EVOL magazines. I have noticed on occasion that my magazine does jam up a bit. I know about the little ball and pressing it in when I load, but sometimes I cannot remove easily. JSB 44.75 g pellets, and they look pretty good.

95% of the time, no issue. But, does jam once in a while which I know is not right.

Tommy B

  • Like
Reactions: orangeokie
I went to my local outdoor range today to Chrony my new EVOL .30 Paradigm for the first time. Perfect!

At range - first Chrony run
Paradigm at 50 yards
JSB 44.75g
Shot count: 8

Low: 870
Hi: 881
Avg: 876
Spread: 11
STD Dev: 4.0

870
881
877
879
875
872
872
879

Then I wanted to shoot some 50Y groups with JSB 44.75g. Wind was a bit breezy at 3-6mph, with a strong head wind. Shot 8 (5) shot groups at 50 yards for a CTC average of .67" CTC. I do believe on a quiet wind day, I could have had sub-MOA with the same situation. Also, shot (2) N50 cards. One was terrible, but one was pretty good. Shot a 215 ( worst ever N50 card ) and a 237. The 237 card had two bad bulls, which I circled. #16 and #3 bulls were me missing the wind call, I think. Had I shot two (9)'s instead, I would have broken into the low 240's. Next time..

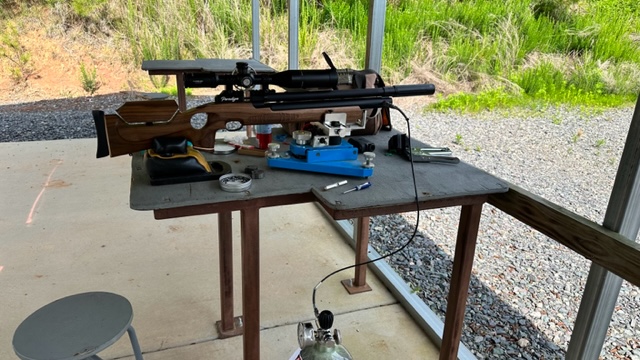

Just a side note for the 'bench rest junkies.' I have used a good Accu-Tac bi-Pod from the bench, but the Randolph front rest is perfect for the flat fore end stock on the Paradigm. Very stable, and I can't detect much recoil. Also had a Sumo .30 caliber suppressor on the end, and it is very quiet.

At some point, I may pick up a FALX high flow STO moderator, but not really needed since this is BR only for me.

Last edited:
I went to my local outdoor range today to Chrony my new EVOL .30 Paradigm for the first time. Perfect!

At range - first Chrony run
Paradigm at 50 yards
JSB 44.75g
Shot count: 8

Low: 870
Hi: 881
Avg: 876
Spread: 11
STD Dev: 4.0

870
881
877
879
875
872
872
879

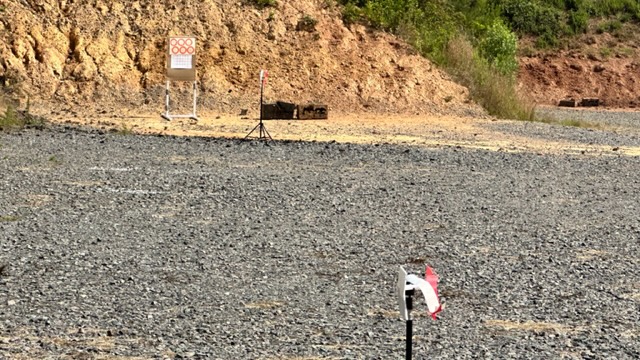

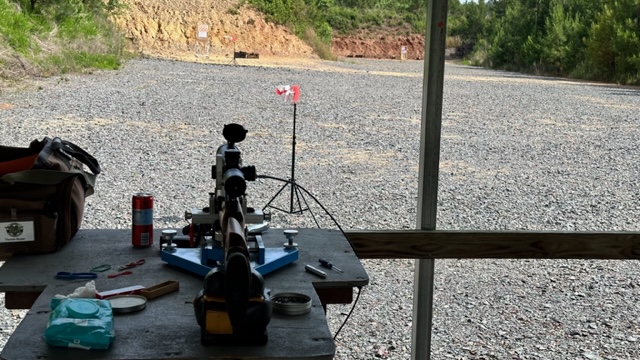

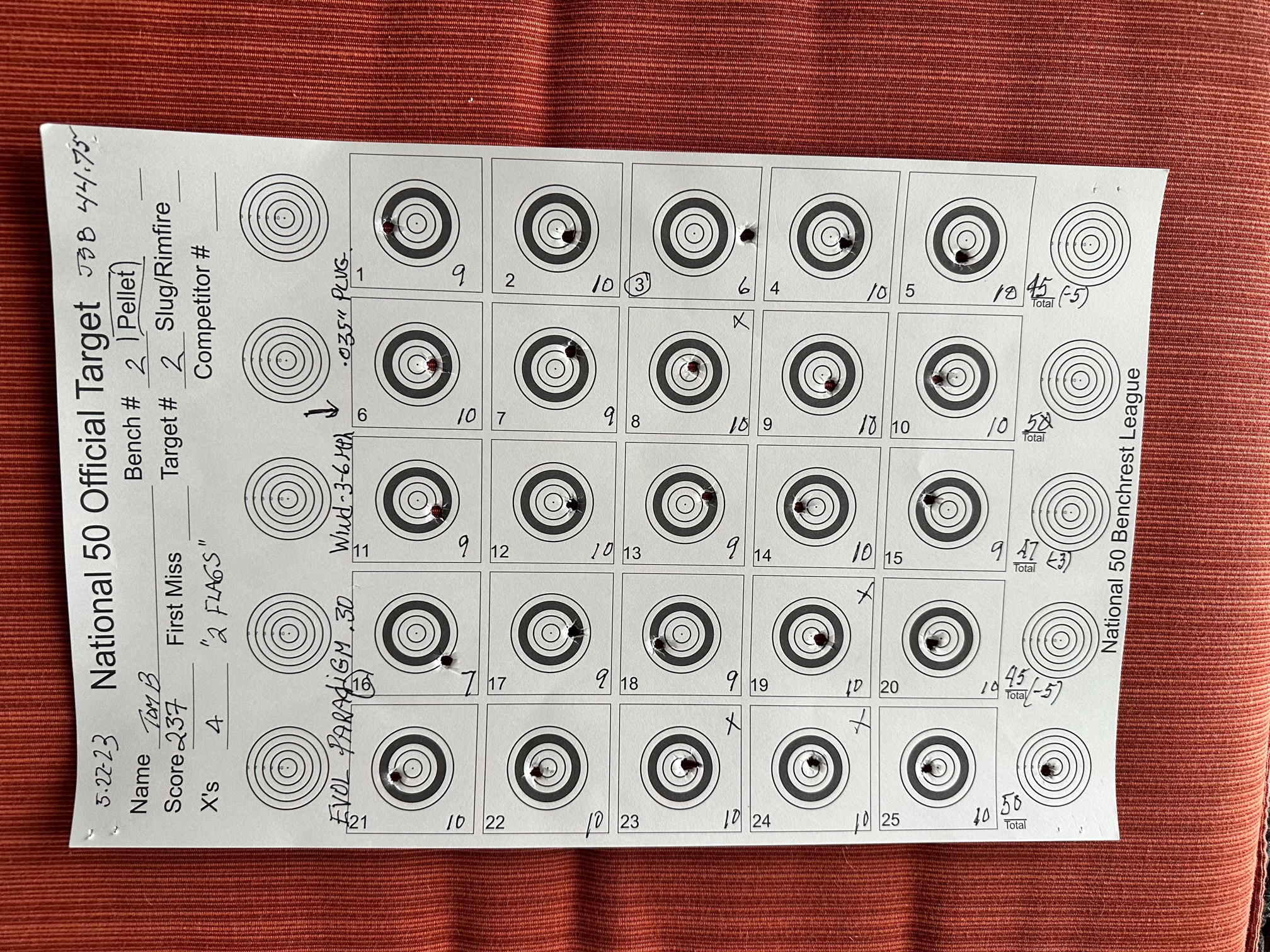

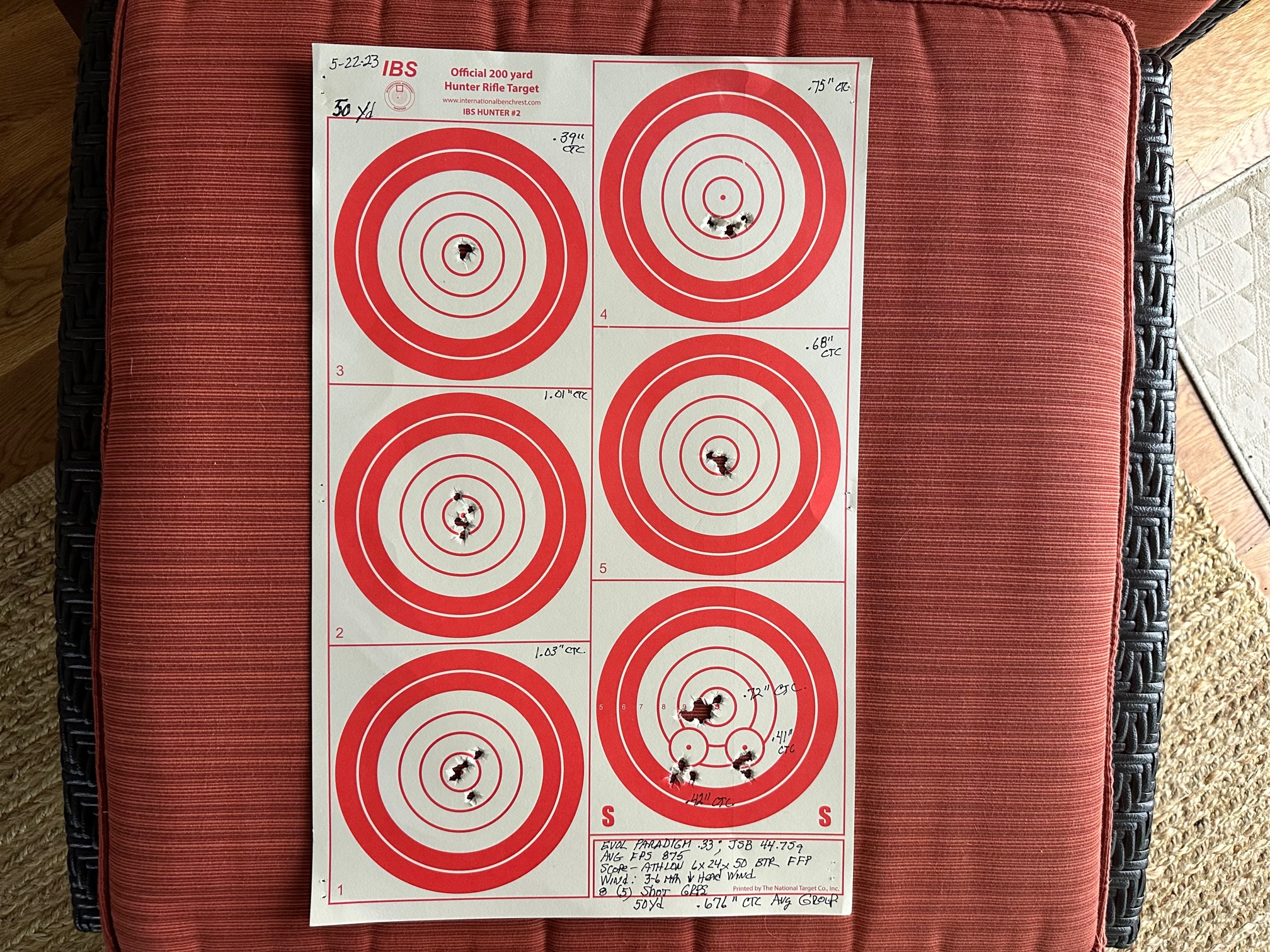

Then I wanted to shoot some 50Y groups with JSB 44.75g. Wind was a bit breezy at 3-6mph, with a strong head wind. Shot 8 (5) shot groups at 50 yards for a CTC average of .67" CTC. I do believe on a quiet wind day, I could have had sub-MOA with the same situation. Also, shot (2) N50 cards. One was terrible, but one was pretty good. Shot a 215 ( worst ever N50 card ) and a 237. The 237 card had two bad bulls, which I circled. #16 and #3 bulls were me missing the wind call, I think. Had I shot two (9)'s instead, I would have broken into the low 240's. Next time..

View attachment 358477

View attachment 358478

View attachment 358479

View attachment 358480

View attachment 358481

View attachment 358482

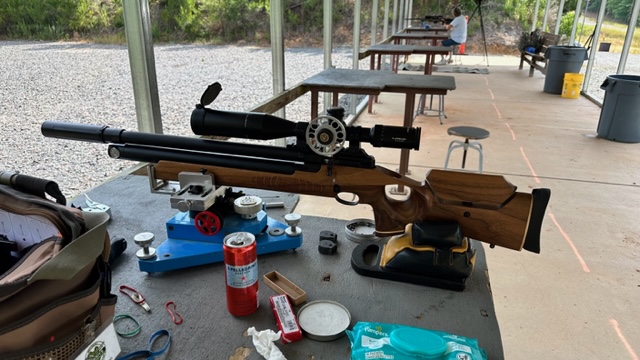

Just a side note for the 'bench rest junkies.' I have used a good Accu-Tac bi-Pod from the bench, but the Randolph front rest is perfect for the flat fore end stock on the Paradigm. Very stable, and I can't detect much recoil. Also had a Sumo .30 caliber suppressor on the end, and it is very quiet.

At some point, I may pick up a FALX high flow STO moderator, but not really needed since this is BR only for me.
what a beauty, what excellent shooting!!! I wonder how the .30 evol likes the new zans!

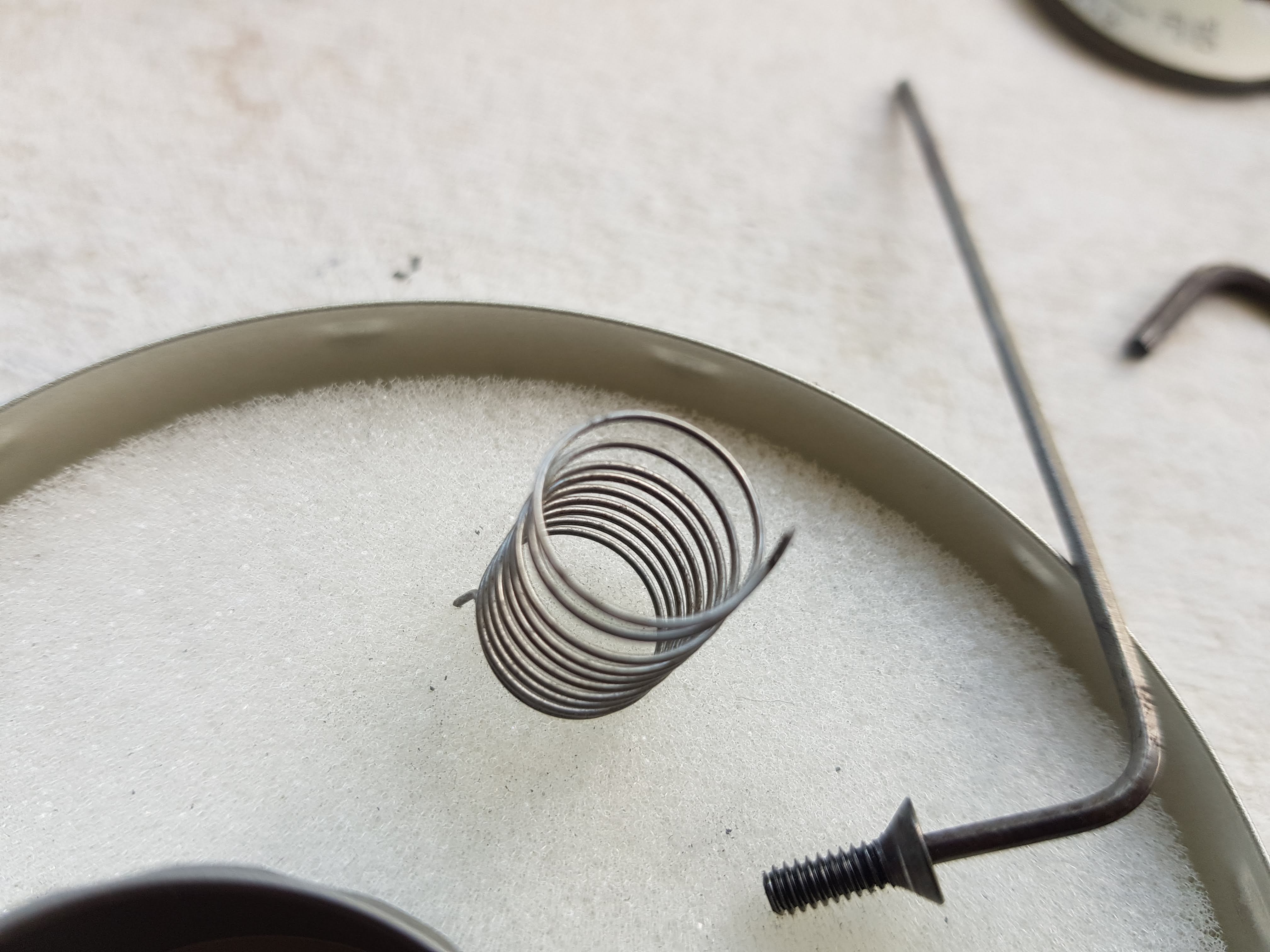

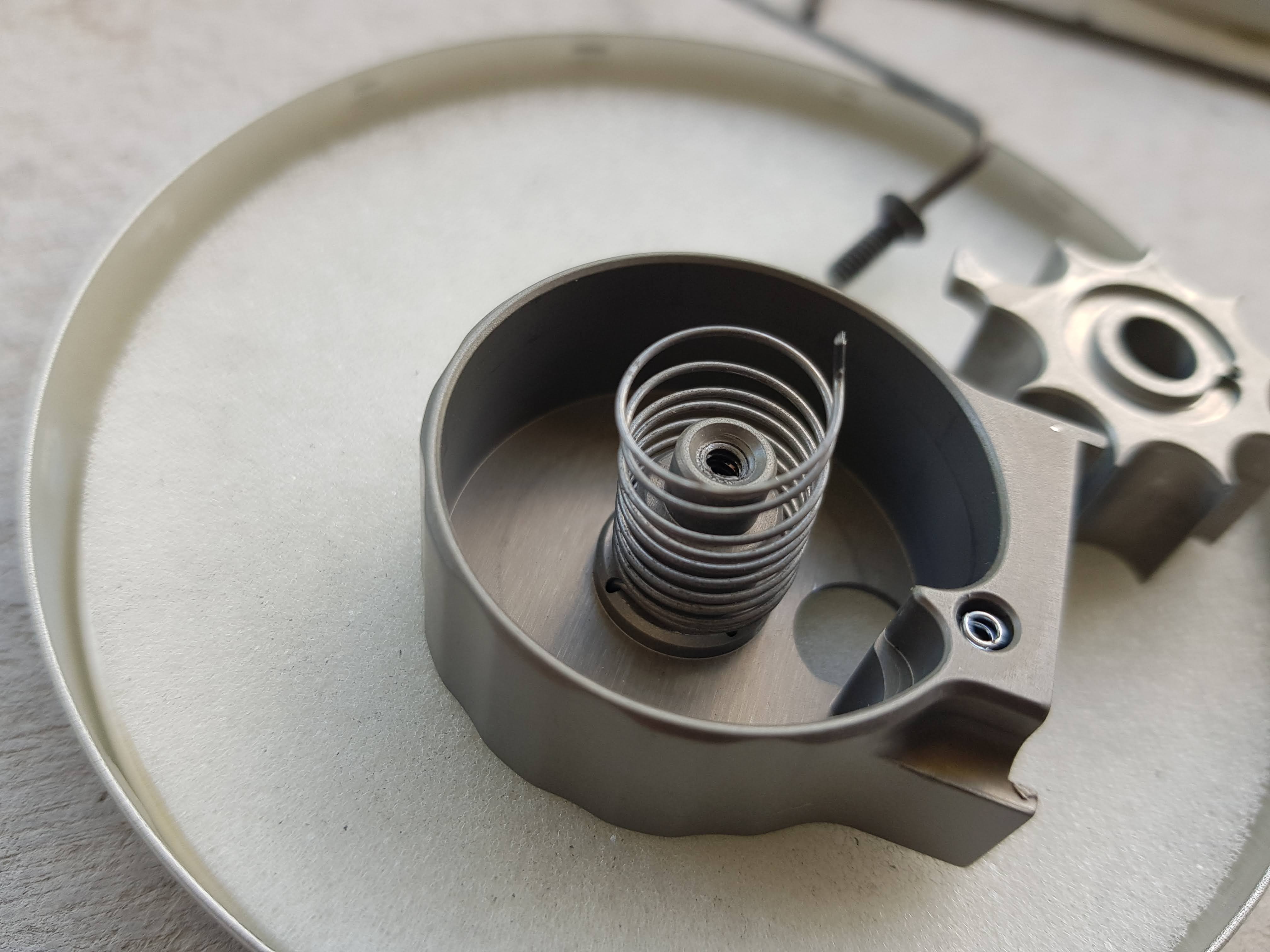

In regards to magazine indexing issues, it was a simple fix. I had magazine indexing issues on both my Evol 30 and 22 when it was brand new out of the box. All you got to do is open the magazine up and reset the coil spring in one of the 4 holes for the right amount of tension.

Test by loading the magazine and push the pellets out with a pointy object by hand to make sure it indexes properly. Just a word of caution. When you disassemble and assemble the magazine, just make sure not to lose the ball bearing. Ask me how I know lol. Also, the magazine schematics list the ball bearing size as 3/32". IIRC, it's actually a size up. I believe 1/8" but I have to verify that again.







It's also good to have an assortment of ball bearings in case you lose any.

Thanks you for the info Tom, very helpful!

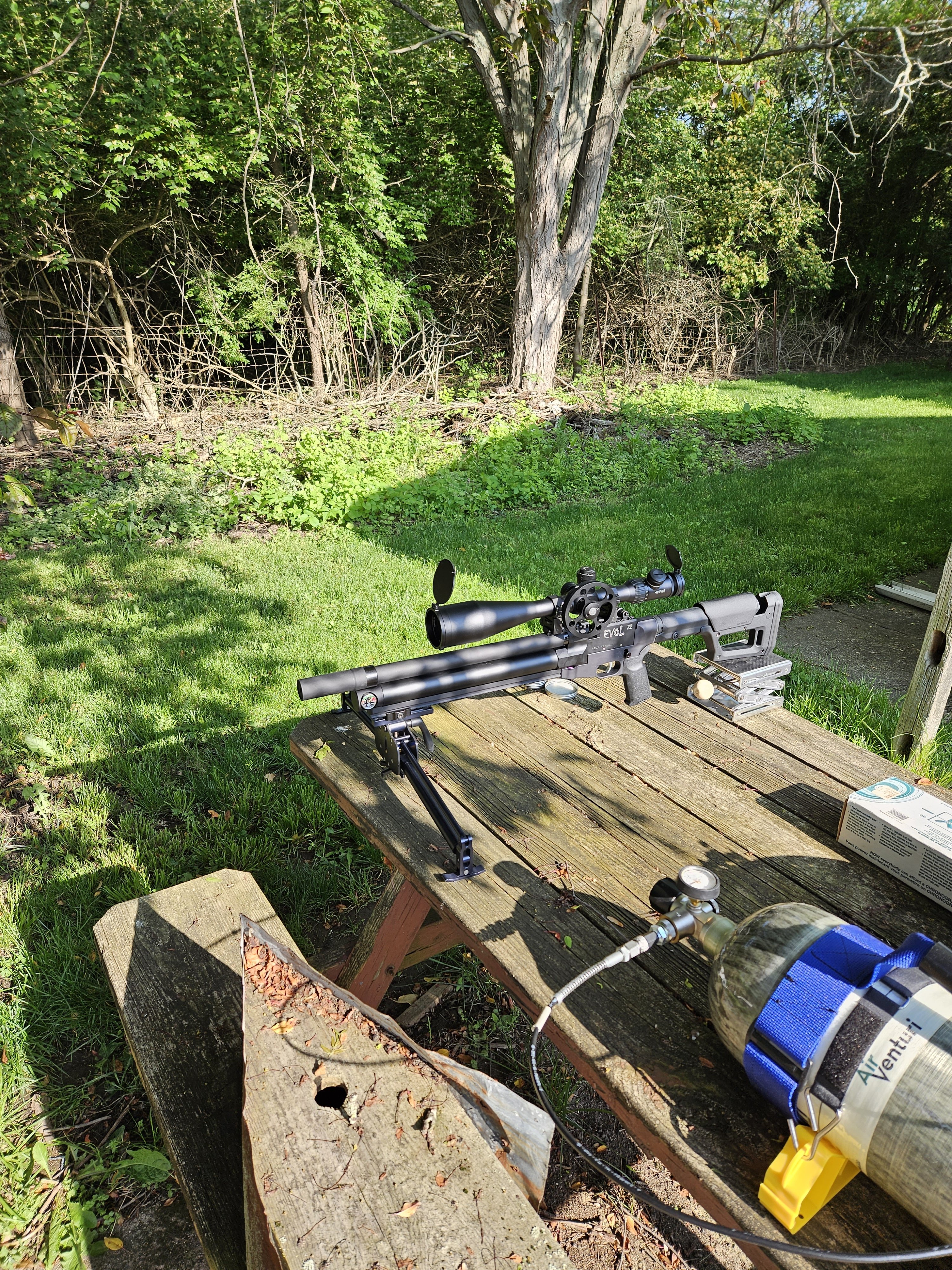

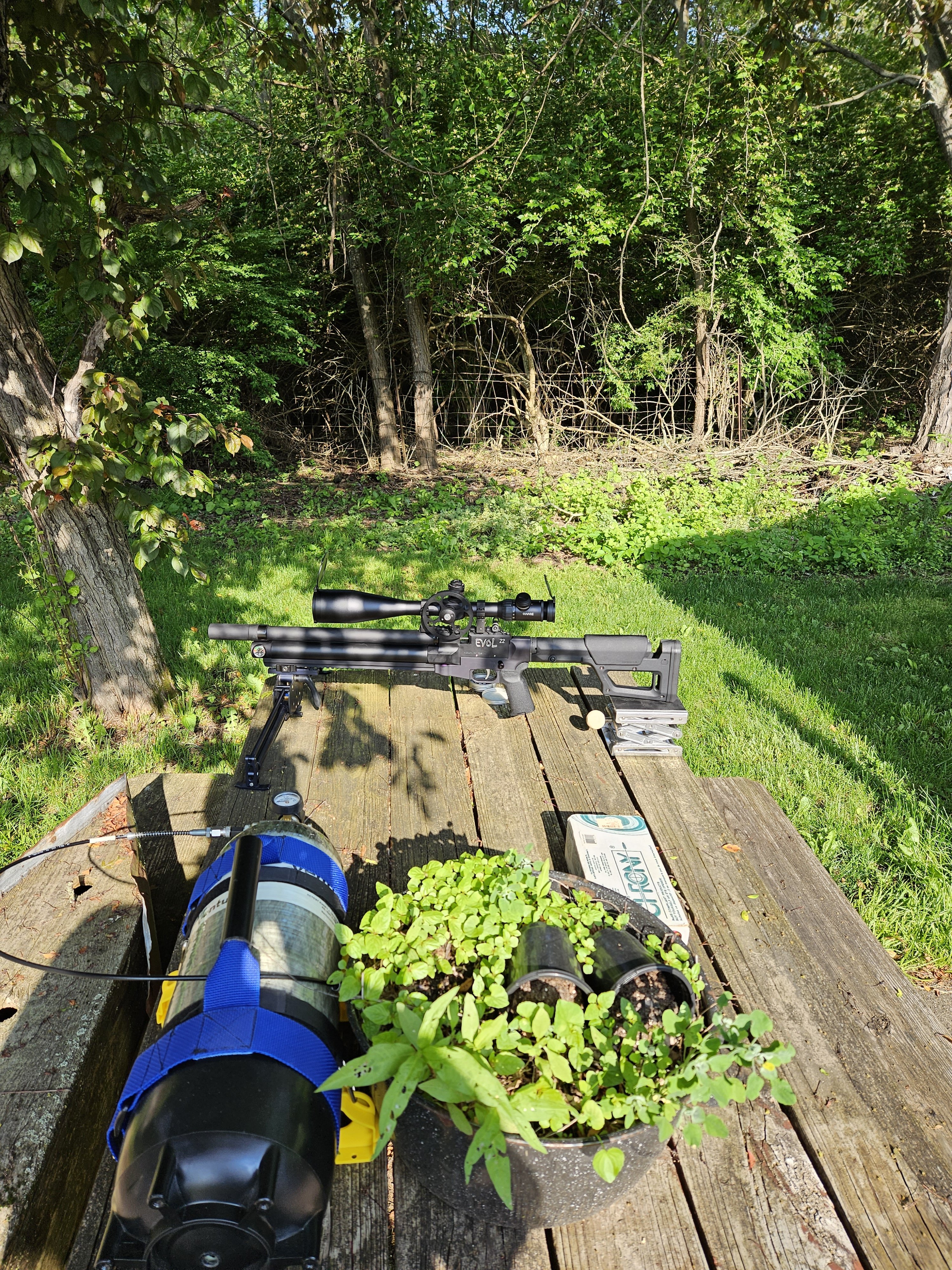

Spent some time with my 15" .22 this AM.
Basically just verifying everything in anticipation of an N50 match this coming weekend.
View attachment 358450

View attachment 358451

Wind was light and variable at 3-5 mph, and I was twitching about like a palsied meth head.
I was OK with it at 50 yards, but the wind on Saturday will likely foil all of my plans......
View attachment 358452

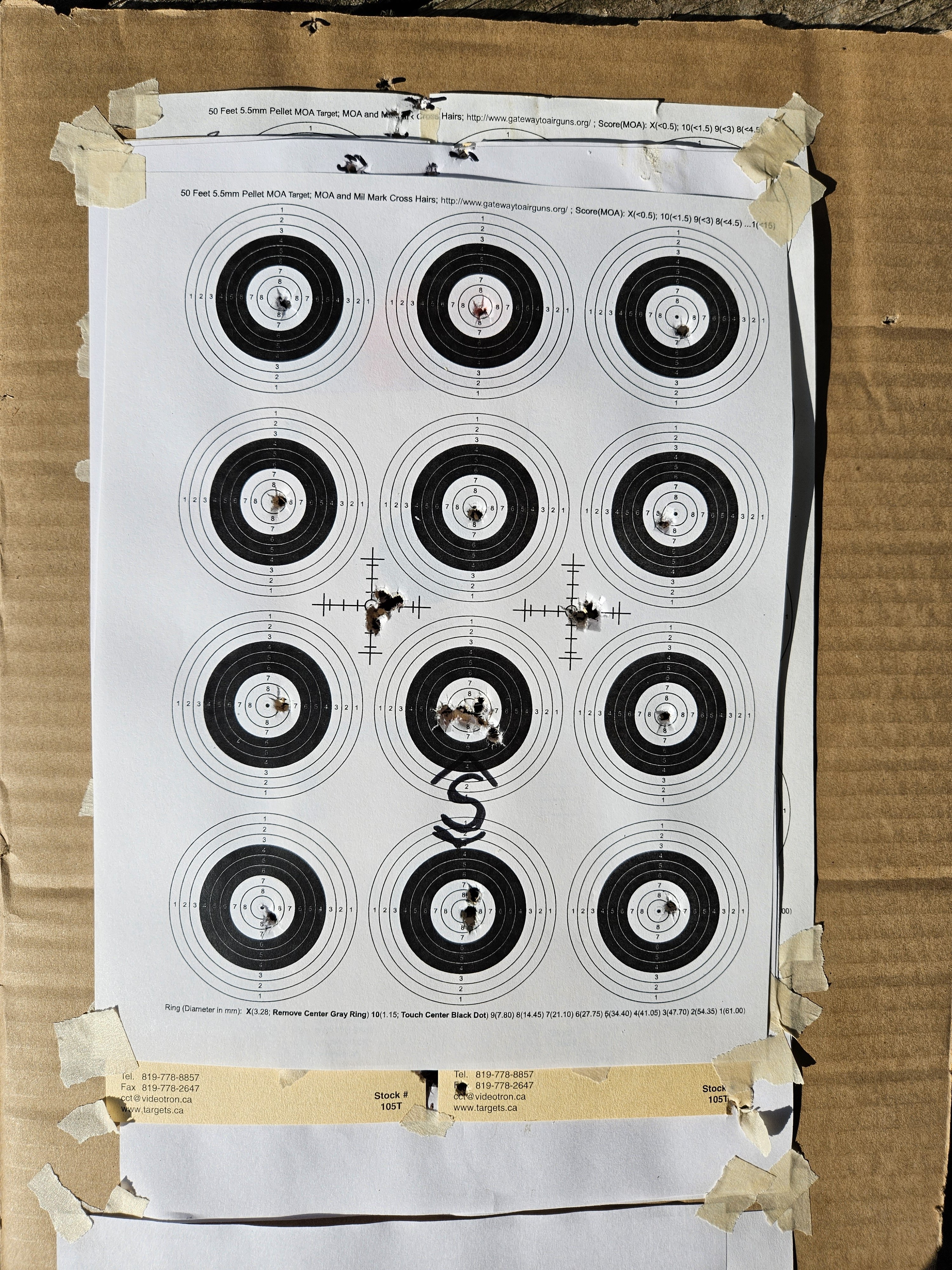

10 record shots that would have scored 10s an an official target maybe.
Fantastic shooting!

  • Like
Reactions: _CTAIRGUNNER_

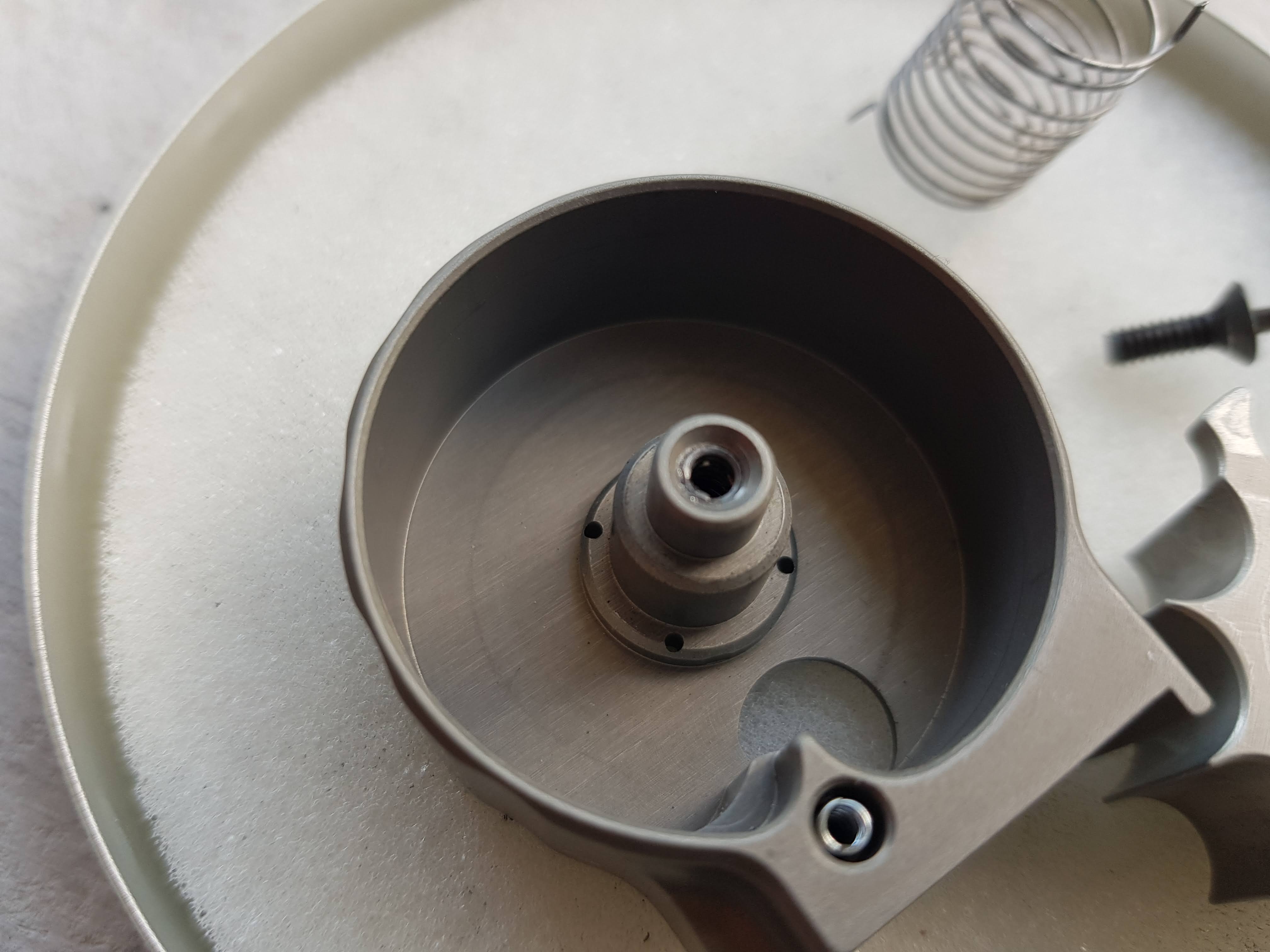

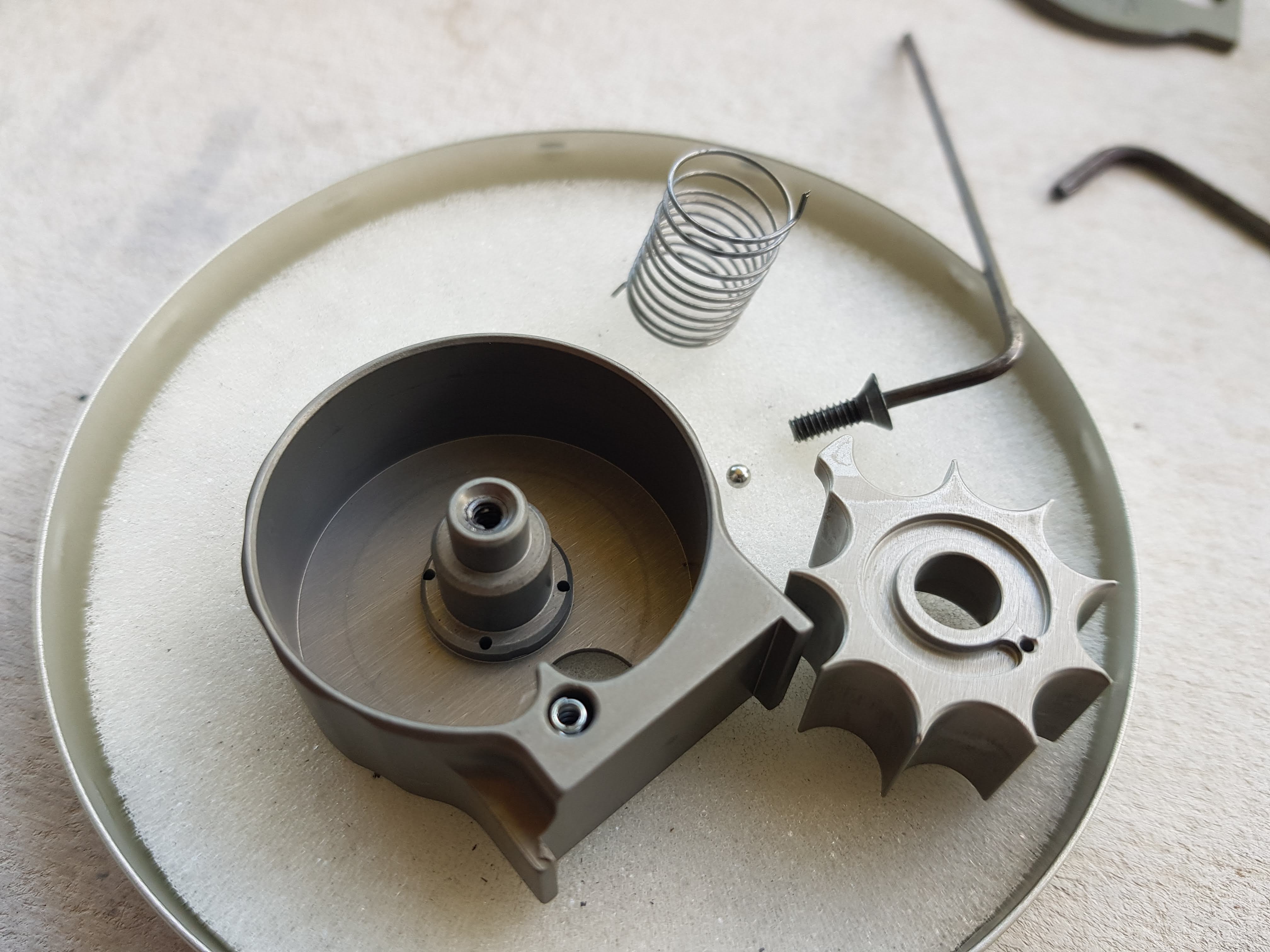

In regards to magazine indexing issues, it was a simple fix. I had magazine indexing issues on both my Evol 30 and 22 when it was brand new out of the box. All you got to do is open the magazine up and reset the coil spring in one of the 4 holes for the right amount of tension.

Test by loading the magazine and push the pellets out with a pointy object by hand to make sure it indexes properly. Just a word of caution. When you disassemble and assemble the magazine, just make sure not to lose the ball bearing. Ask me how I know lol. Also, the magazine schematics list the ball bearing size as 3/32". IIRC, it's actually a size up. I believe 1/8" but I have to verify that again.

View attachment 358521
View attachment 358522
View attachment 358523
View attachment 358524

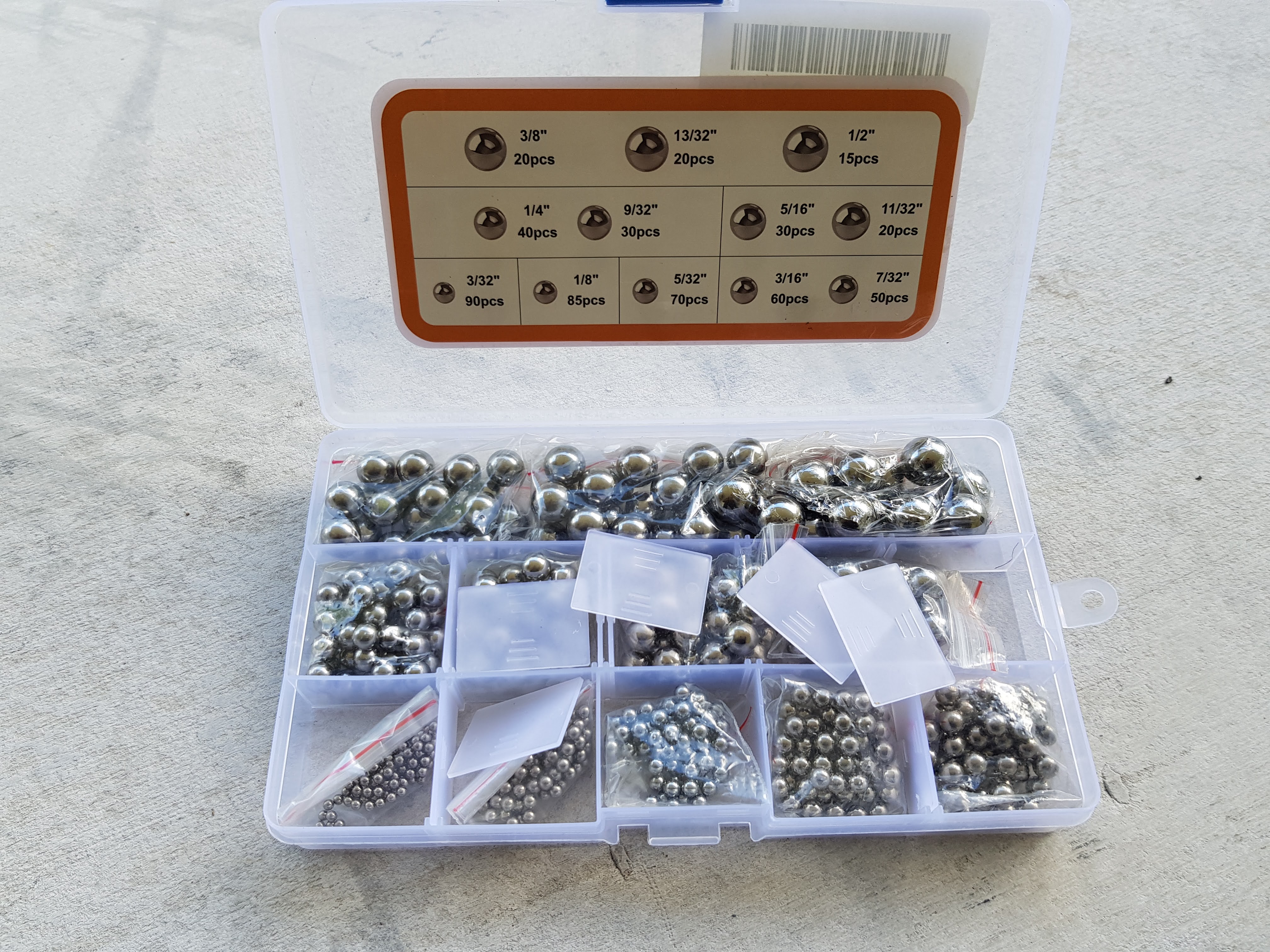

It's also good to have an assortment of ball bearings in case you lose any.
View attachment 358525
Thank you very much. Im going to take care of mine now. I also happen to have that same bearing kit just in case.

  • Like
Reactions: _CTAIRGUNNER_
I wish we had a part number list for the orings, Captain Oring has a slayer kit but no evol kit and Id like to have a few of each on hand, looks like I am gunna go oring hunting.
I went on Oring store llc and bought I think 10 of each when I got mine. I know it's convenient from captain oring but was cheaper buying it how I did compared to his prices. But would be nice for those that don't want to do that to go to him for a kit.

Yes, my .30 magazine jammed real bad today at the range. Finally free'd it from chamber, and there was a mutilated pellet in the magazine which was causing me not to be able to remove it. I have noticed that they do jam from time to time, not sure why.
It seems to side load between the rotating portion and the case where the head of the pellet gets stuck right before leaving the mag.
I have had this happen to me a couple of times with pellets as well. Aside from now carrying a fiberglass rod in my case now to tap the jammed pellet back into the magazine, I also did some experimenting with the different magazines to figure out why it happens and completed the fix for it.

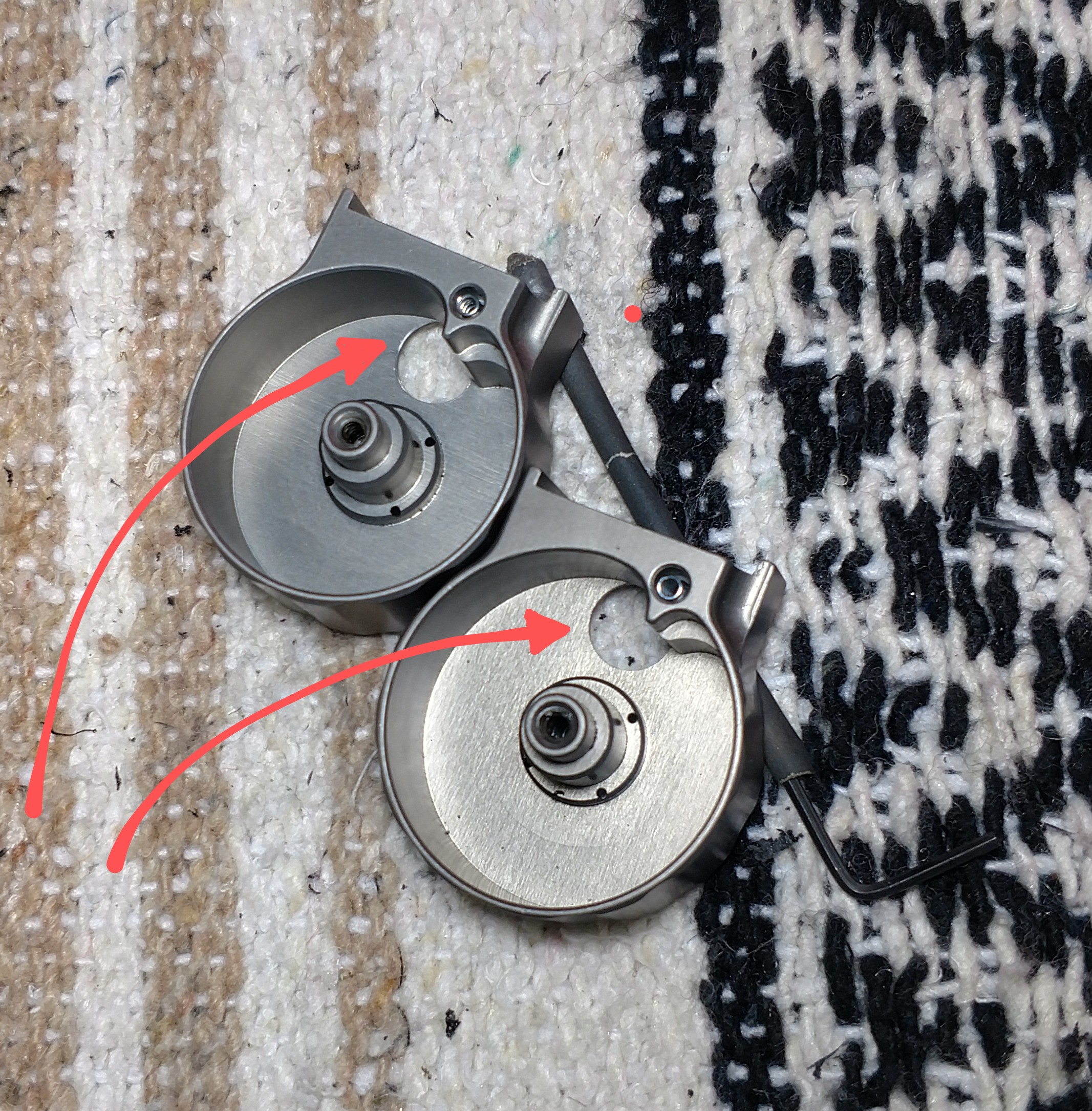

What happens is the very edge of a pellet head will catch this sharp edge of the magazine as it begins to exit. (Check out the difference in the two magazine holes, before and after.) This sharp edge is sometimes catching/dragging the edge of the pellet's head, which allows the pellet to want to move sideways in the magazine. Then, the extra force we apply with the cocking lever jams things up. Through testing, the solution was to cut, radius and polish the leading edge of the hole in the magazine. I haven't had a jam since, and can feel that there's no catching issues anymore.

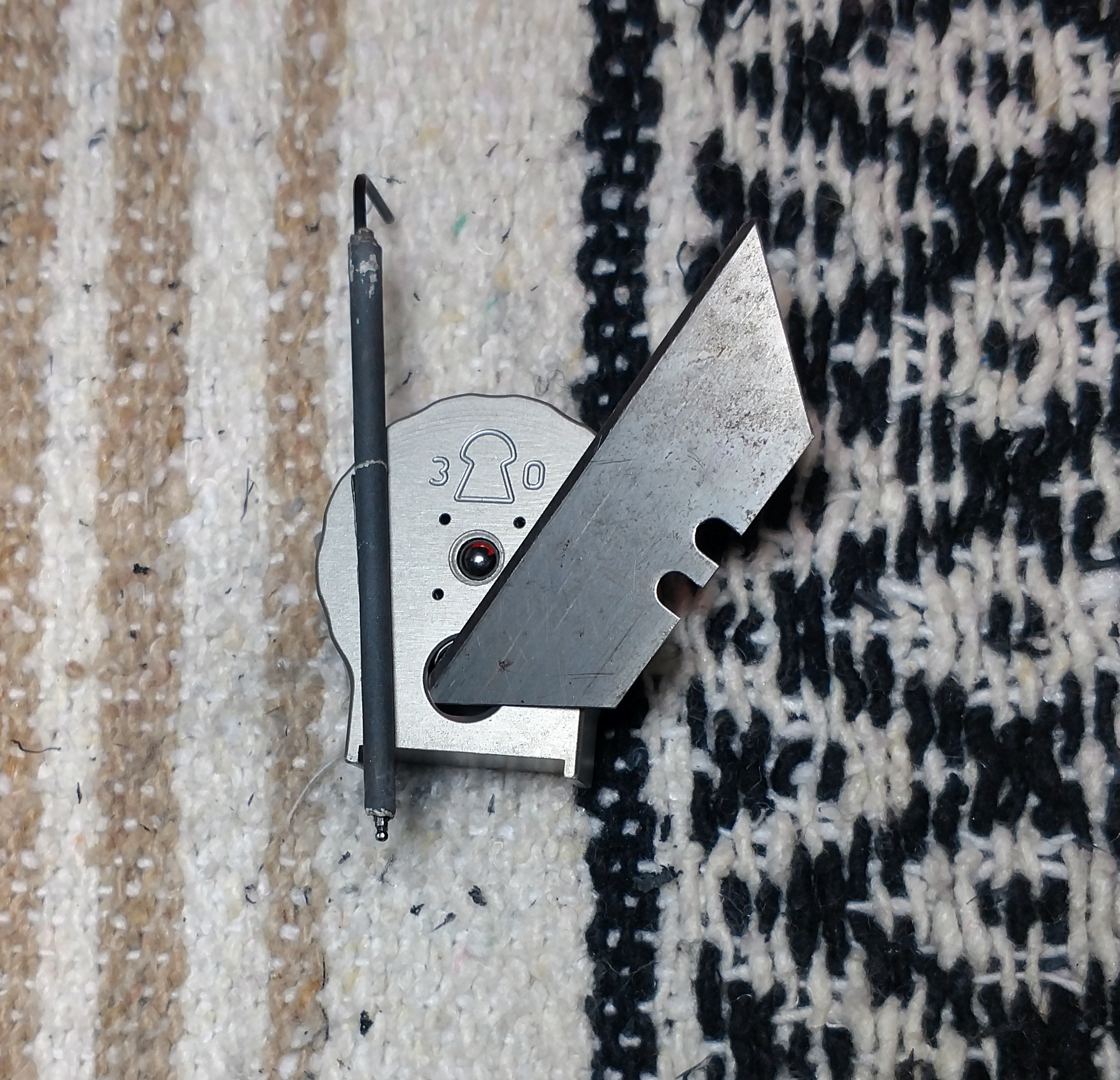

Cleaning and polishing up the inside edge of the hole was easy enough with these steps: (1) Disassemble the magazine. (2) Working from the outside to reach the inside corner of the hole at an angle, take a razor blade and lightly cut the sharp corner off the hole. One or two light cutting swipes all the way around the hole worked. (3) Polish the cut edge into a smooth round radius with 400-600 grit sandpaper (I rolled sandpaper tightly around a small .050" Allen wrench to work the close corners and add pressure to the paper.) (4) Reassemble, tightening the screw so the magazine lid is closed on all sides and rotates with a little bit of resistance.


Hey guys

I’m reading your good suggestions on fixing the magazine jamming issue. Q. Why do we have to do anything? Expensive magazines should have ZERO issues.

As an example; the Taipan and HW 100 magazines are flawless. These spring loaded magazines are problematic.

What about a better design?

I want to shoot, not fix magazines.

  • Like
Reactions: madeintheuk
Hey guys

I’m reading your good suggestions on fixing the magazine jamming issue. Q. Why do we have to do anything? Expensive magazines should have ZERO issues.

As an example; the Taipan and HW 100 magazines are flawless. These spring loaded magazines are problematic.

What about a better design?

I want to shoot, not fix magazines.


Tom Costan - I hope you are watching. Can you please comment?

If this magazine jamming issue persists, we all have concerns. Nobody wants to work on fixing magazine loading / removing issues.

Tom

  • Like
Reactions: madeintheuk
Tom Costan - I hope you are watching. Can you please comment?

If this magazine jamming issue persists, we all have concerns. Nobody wants to work on fixing magazine loading / removing issues.

Tom
I think we should all take a step back. Tom is a busy guy. Putting out a top tier product and thus far, been very communicative , he's running a business, I'm sure agn is not his top priority, while I'm sure his customer service is, we have to be patient. He's been super responsive and helpful with me and even cares about his works of art after they've changed hands from original owners.
