Huben All Things HUBEN K1 - Master Thread

But which shroud is on yours? Depending on which one you have they dampen the sound differently.
i have this one.

i always wondered what the differences are between the shroud vent sizes. mine blows a pretty decent amount of air per shot. noticeably more after putting a moderator on.

  • Like
Reactions: JaceSpace1369

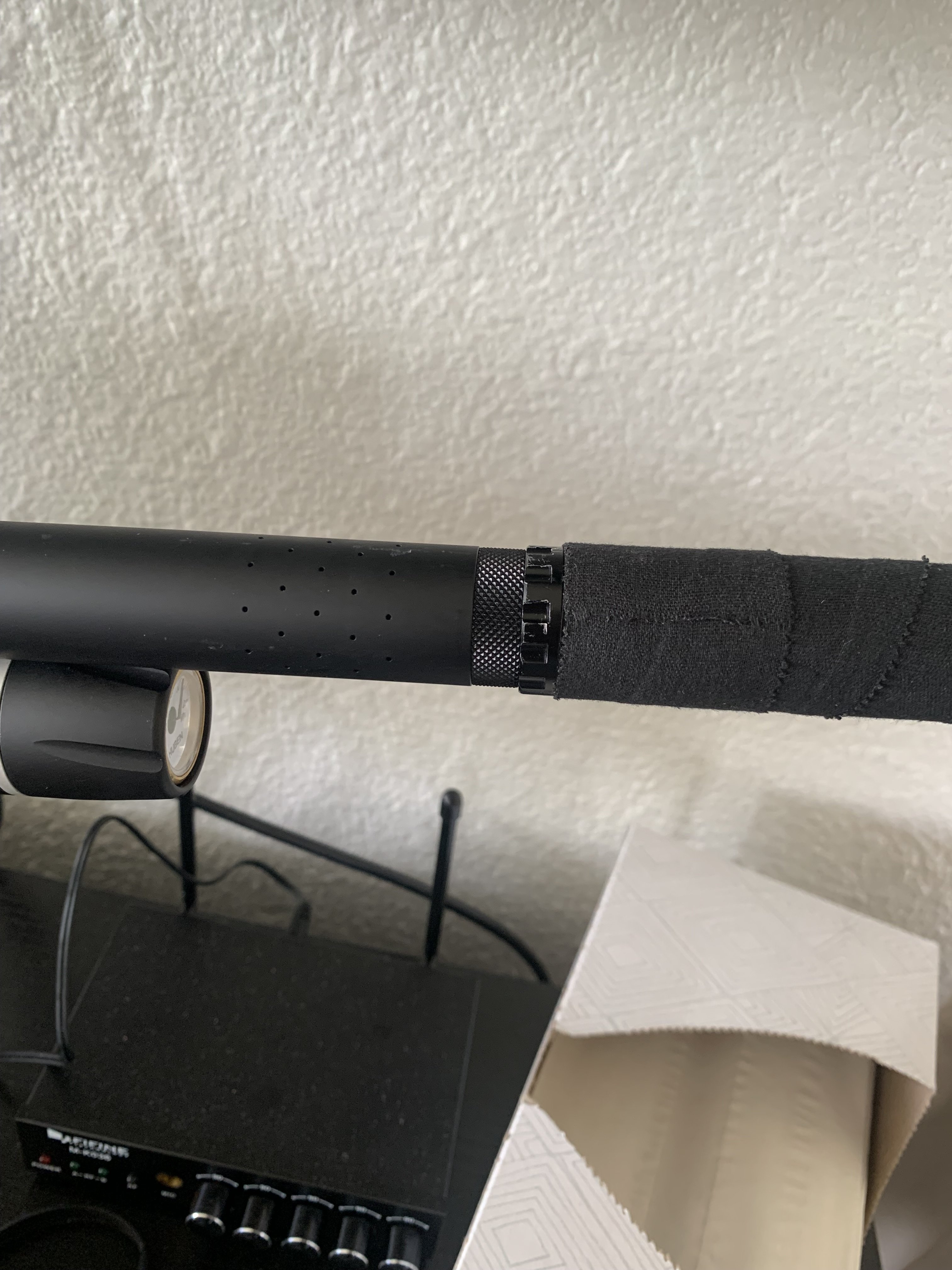

i have this one. View attachment 502342
i always wondered what the differences are between the shroud vent sizes. mine blows a pretty decent amount of air per shot. noticeably more after putting a moderator on.
From what I have heard/read, having the shroud with the vent towards the back reduces the noise a good bit. I wanted to get a CF shroud when I got my first K1 but I'm not paying a few hundred $ for a shroud 🙃


Btw guys don't forget that NSA makes .223 ammo as well.


From what I have heard/read, having the shroud with the vent towards the back reduces the noise a good bit. I wanted to get a CF shroud when I got my first K1 but I'm not paying a few hundred $ for a shroud 🙃

I’m not a fan of venting lead dust towards my nostrils. I do not understand the logic in this design. I prefer the vents away from my face and using a moderator.

  • Like
Reactions: JaceSpace1369
When I decided to put a moderator on my .22 K1, I thought about it and figured that the holes in the shroud would be counter productive. Why let air out before it passes through the moderator to be "moderated"?

So I built my own "baffle stack" out of left over Marauder baffle cones, by taping them together after cutting one shorter to get the correct overall length, and then wrapped the front and rear ends of the stack with enough electrical tape to cause enough of an interference fit with the shroud that air could not get past and thus the holes in the shroud were effectively blocked off.

Even though the stack was sub-optimal (because it was a smaller diameter than the shroud, thus left dead space that could have been used for expansion) the new home-made part resulted in a quieter shot cycle than the stock baffle stack. As an added bonus, accuracy was a bit better too . . .

Then even better than that, I found on here a 3Dprinted all in one custom baffle insert that did the same thing as mine without the wasted space, plus it was made with a bit of "Tesla Gas Diode" tech too. It proved even quieter than mine, and kept the same accuracy benefit too. Unfortunately, that member no longer lists them for sale . . .

  • Like
Reactions: JaceSpace1369
When I decided to put a moderator on my .22 K1, I thought about it and figured that the holes in the shroud would be counter productive. Why let air out before it passes through the moderator to be "moderated"?

So I built my own "baffle stack" out of left over Marauder baffle cones, by taping them together after cutting one shorter to get the correct overall length, and then wrapped the front and rear ends of the stack with enough electrical tape to cause enough of an interference fit with the shroud that air could not get past and thus the holes in the shroud were effectively blocked off.

Even though the stack was sub-optimal (because it was a smaller diameter than the shroud, thus left dead space that could have been used for expansion) the new home-made part resulted in a quieter shot cycle than the stock baffle stack. As an added bonus, accuracy was a bit better too . . .

Then even better than that, I found on here a 3Dprinted all in one custom baffle insert that did the same thing as mine without the wasted space, plus it was made with a bit of "Tesla Gas Diode" tech too. It proved even quieter than mine, and kept the same accuracy benefit too. Unfortunately, that member no longer lists them for sale . . .
can we see a picture of this 3d printed insert?

When I decided to put a moderator on my .22 K1, I thought about it and figured that the holes in the shroud would be counter productive. Why let air out before it passes through the moderator to be "moderated"?

So I built my own "baffle stack" out of left over Marauder baffle cones, by taping them together after cutting one shorter to get the correct overall length, and then wrapped the front and rear ends of the stack with enough electrical tape to cause enough of an interference fit with the shroud that air could not get past and thus the holes in the shroud were effectively blocked off.

Even though the stack was sub-optimal (because it was a smaller diameter than the shroud, thus left dead space that could have been used for expansion) the new home-made part resulted in a quieter shot cycle than the stock baffle stack. As an added bonus, accuracy was a bit better too . . .

Then even better than that, I found on here a 3Dprinted all in one custom baffle insert that did the same thing as mine without the wasted space, plus it was made with a bit of "Tesla Gas Diode" tech too. It proved even quieter than mine, and kept the same accuracy benefit too. Unfortunately, that member no longer lists them for sale . . .
Interesting, I figured someone by now would've had either a 3d file for it or made another one. I haven't been able to find anything.

Yes, I can't find it or anything like it either. The old post on it is gone, but that member is still here - I can reach out and see if he still makes them, or has the file on it . . .

Unfortunately I don't have a picture of it (I used to just direct people to the thread that had it), and I don't have time to pull it out now as I am getting ready to leave on a trip. But it was about 3.5" or so long and was a snug fit to the bore of the shroud, and it was directional in terms of air flow (obviously, given the baffle design). Sorry I can't help with a picture . . .

Yes, I can't find it or anything like it either. The old post on it is gone, but that member is still here - I can reach out and see if he still makes them, or has the file on it . . .

Unfortunately I don't have a picture of it (I used to just direct people to the thread that had it), and I don't have time to pull it out now as I am getting ready to leave on a trip. But it was about 3.5" or so long and was a snug fit to the bore of the shroud, and it was directional in terms of air flow (obviously, given the baffle design). Sorry I can't help with a picture . . .
No worries, if you can get any info from the member or tag him on here that would be helpful

  • Like
Reactions: gendoc
Awesome! You're welcome, how'd they shoot?
@JaceSpace1369 I only shot them out to 40 yards to notate a few holds. They shot well. I did notice that they don’t seat (move) much at all when inserting them into the mag. Even putting more pressure at the base of the slug with a seating instrument pushing them in they don’t move much at all. As a result, they can slide back when I tilt the rifle up. I used a half of a q-tip to attempt to seat them. I’m not sure if this is more of a length or diameter thing. I’ll have to take more time with them, chronograph them, take some measurements, and pay closer attention to their length in relation to the length of the chambers.

  • Like
Reactions: JaceSpace1369
@JaceSpace1369 I only shot them out to 40 yards to notate a few holds. They shot well. I did notice that they don’t seat (move) much at all when inserting them into the mag. Even putting more pressure at the base of the slug with a seating instrument pushing them in they don’t move much at all. As a result, they can slide back when I tilt the rifle up. I used a half of a q-tip to attempt to seat them. I’m not sure if this is more of a length or diameter thing. I’ll have to take more time with them, chronograph them, take some measurements, and pay closer attention to their length in relation to the length of the chambers.
it's a diameter thing, if the slug isn't wide e ough it won't engage with the grooves. The peanuts don't even engage, but the 3rd band prevents then from falling too far and jamming.

I ended up putting a slug backwards on purpose to see what would happen and it goes in about 1/3 of the way and then just sits.

You could try the same thing and actually push the slug in to seat snug and then push it out and measure the size.

@JaceSpace1369 and @Ezana4CE,

I contacted Jake on the insert and he is still making them. Here is the link to to his posting on it. Don’t know why I could not find it before . . .


@JaceSpace1369 and @Ezana4CE,

I contacted Jake on the insert and he is still making them. Here is the link to to his posting on it. Don’t know why I could not find it before . . .

I should be receiving his shroud insert sometime this week if the post office in CA gets their act together. It's been floating around the facilities since last Tuesday. I am also receiving a .218 sized Huben Magazine from Kelly on Tuesday so I will see how the .218 slug and .217 slugs fit and measure them, then test them throughout the week.

  • Like
Reactions: daddypaddy
I should be receiving his shroud insert sometime this week if the post office in CA gets their act together. It's been floating around the facilities since last Tuesday. I am also receiving a .218 sized Huben Magazine from Kelly on Tuesday so I will see how the .218 slug and .217 slugs fit and measure them, then test them throughout the week.
let us know if the inserts make a noticeable difference. i ended up making a silencer for mine and it makes a world of a difference. if the insert can bring the sound report down as much as the silencer i made, i’ll use that instead. i wanna keep the k1 as short as possible

let us know if the inserts make a noticeable difference. i ended up making a silencer for mine and it makes a world of a difference. if the insert can bring the sound report down as much as the silencer i made, i’ll use that instead. i wanna keep the k1 as short as possible
How quiet is yours? Mine is rather loud specially with the xlhp slugs.

Here is what I found on my gun with Jake's insert a few years back, copied and pasted form an old post:

Here is what I got in dB levels as measured in my finished basement with the phone about a meter from the muzzle (with lots of potential echo sources, but over carpet). The Huben is a .22 shooting JSB 18.1 grain pellets at 920 fps, and the LDC is a Huma Compact .30 cal (oversized for multiple uses and best accuracy). Of course the values below are only good for comparison to each other, and probably don't represent a "good" number of the actual loudness, since it is just a smart phone app and also was not done in the open. But they match what I hear on a relative basis.

Factory baffles, no LDC: 115 db
New Insert, no LDC: 112 db
Factory Baffles, with LDC: 107 dB
New Insert, with LDC: 102 dB
