Artemis / Snowpeak PP750 Help

[ThomasT]

Hello everyone,

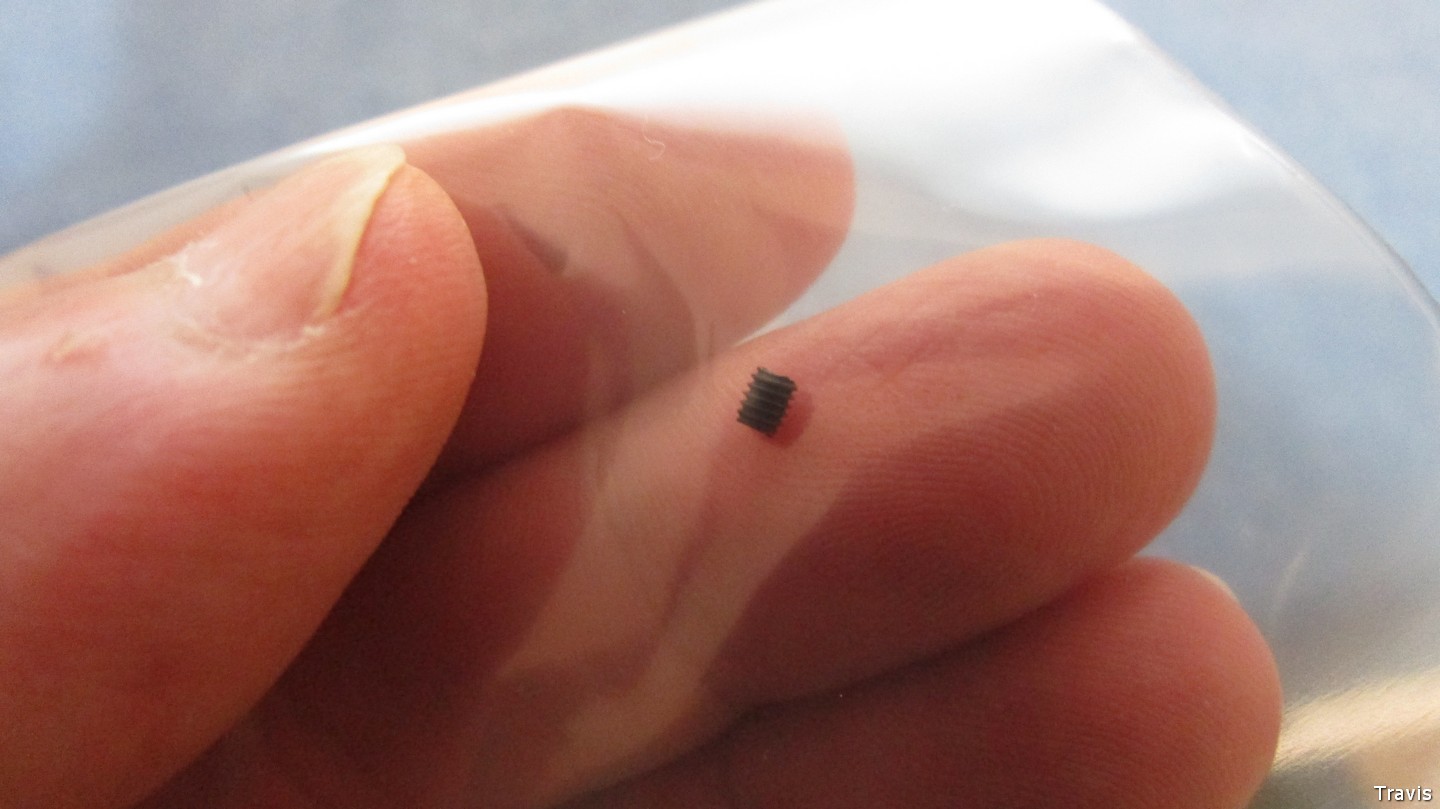

Does any body have a photo schematics parts break down for a Artemis / Snowpeak PP750 that I can get a copy of? See photo, had this small screw fall out from around the trigger area this morning. It is NOT an allen socket but a tiny Phillips.

ThomasT



[iAMzehTOASTY1]

Artemis / SPA / Snowpeak / SMK PP750 - Bagnall and Kirkwood Airgun Spares

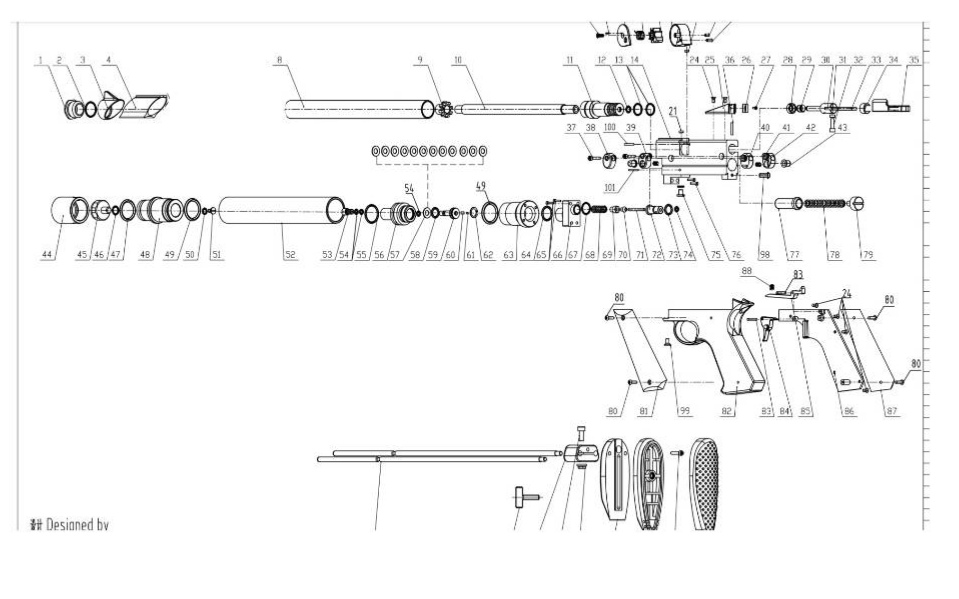

Please find below the exploded parts diagram, parts list and available spare parts for the Snowpeak / Artemis / SPA / SMK PP750 series air pistols. Exploded Parts Diagram : Available Spare Parts: Here at Bagnall and Kirkwood we stock many spare parts for your gun. From springs to seal kits...

spares.bagnallandkirkwood.co.uk



[iAMzehTOASTY1]

https://www.google.com/url?sa=t&source=web&rct=j&url=https://airgunwarriors.com/resources/library/SPA_Artemis_SMK_PP700S.pdf&ved=2ahUKEwinkaLNrIb9AhU2k2oFHWKVBtw4ChAWegQIHhAB&usg=AOvVaw09QN9Onpd8IOCv00QUXlIF



[iAMzehTOASTY1]

Aw dang. One of those is right, half awake



[ThomasT]

Aw dang. One of those is right, half awake

Hello @iAMzehTOASTY1

That drawing is for the PP700. I don't know if they are the same.

Thank you,
ThomasT



[iAMzehTOASTY1]

Hello @iAMzehTOASTY1

That drawing is for the PP700. I don't know if they are the same.

Thank you,
ThomasT

My bad I think the first one is the 750



[iAMzehTOASTY1]

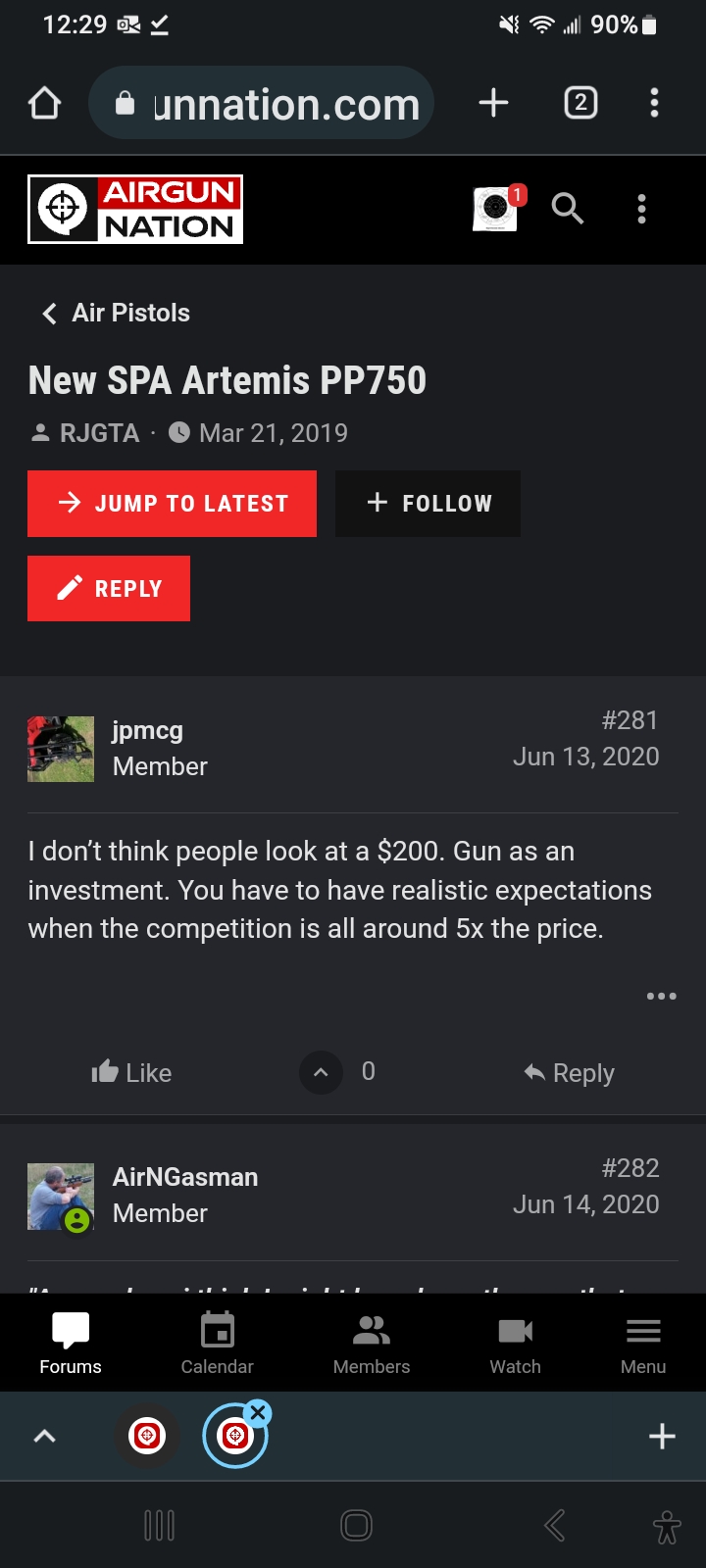

Found eeeet!



[ThomasT]

I need a pdf copy so that I can read the Parts List and be able to zoom in

ThomasT



[Hawkeye51]

Thomas
If I remember correctly, there are 3 small phillips screws on the right side of the handle. One is exposed and one or 2 are under the wooden grip. My guess is you forgot to install on of them under the wooden grip. Take a look.



[iAMzehTOASTY1]

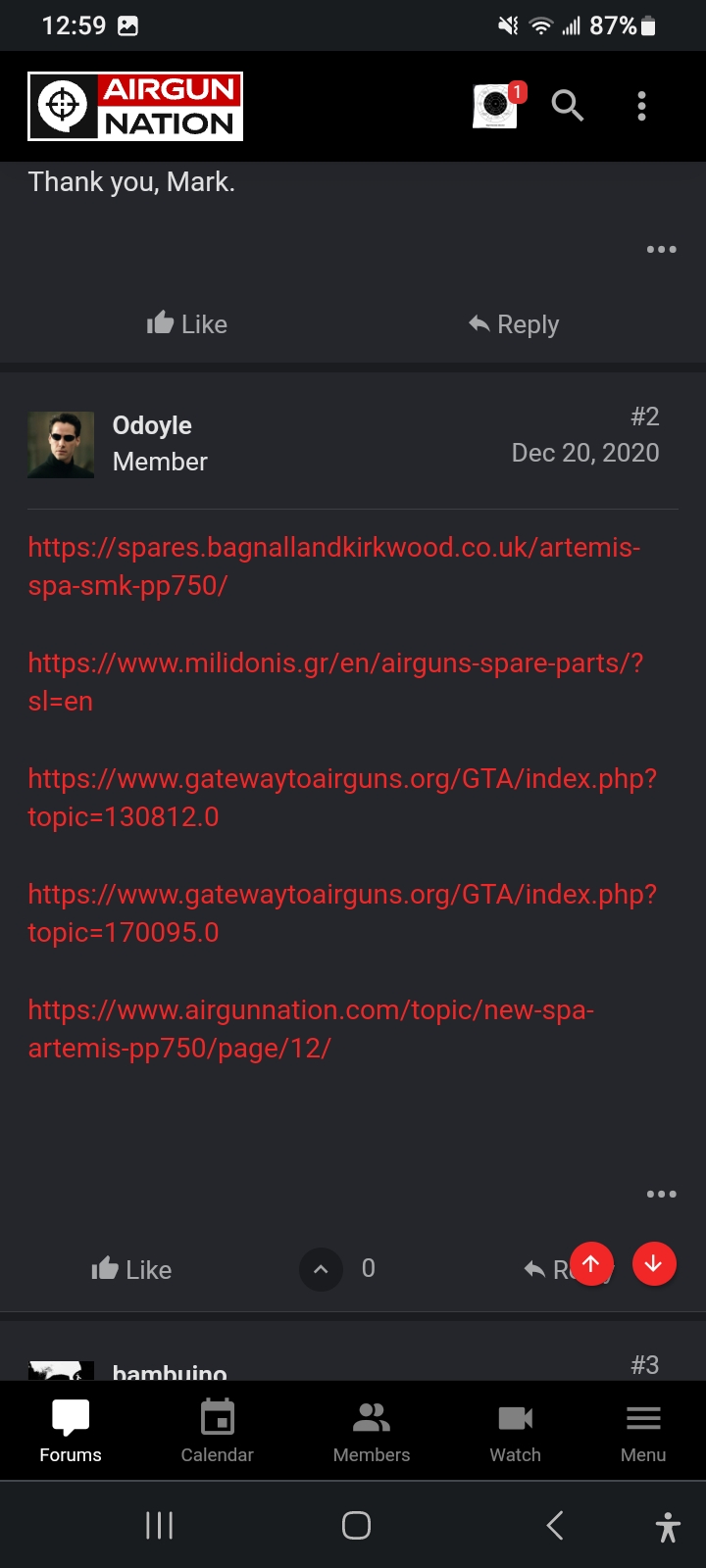

Thread title:
Edit*

Tuning Seek Artemis PP750 EVs and parts list​

• Thread starterbambuino
• Start dateDec 20, 2020



[shausen]

Here's the link:

https://www.gatewaytoairguns.org/GTA/index.php?action=dlattach;topic=177815.0;attach=330477



[ThomasT]

Here's the link:

https://www.gatewaytoairguns.org/GTA/index.php?action=dlattach;topic=177815.0;attach=330477

Hello @shausen

OK got it, thank you.

Now I just need to figure out what screw it is ???? May be #88, not sure until I take the gun apart.

Thank you again,
ThomasT



[ThomasT]

Thomas
If I remember correctly, there are 3 small phillips screws on the right side of the handle. One is exposed and one or 2 are under the wooden grip. My guess is you forgot to install on of them under the wooden grip. Take a look.

Hello @Hawkeye51

It was not those screws, I removed the wood and all of those screws are in place.

This screw is only 2.44mm diameter x 3mm long, really small.

I ordered the gun to have a long barrel with a full shroud , trigger set at 1 pound and shoot at 700fps. Did not get any of my requested items???

Thank you for the help,
ThomasT



[thane]

Looks like the rear site screw #27... mine was loose on all 3 pistols.



[ThomasT]

Looks like the rear site screw #27... mine was loose on all 3 pistols.

Hello @thane

I have removed the rear sight and using a scope. I took the side cover off and removed the trigger assembly and there are no missing screws in that part. It beats me where this goes, I am beginning to think it accidently got inside the gun when the dealer was working on it and it is not part of my gun?????

Bye the way, is your "Safety Pin" on the trigger backwards from other guns with this style of safety.
On all of my other guns when the "Pin" is pushed all the way towards the left side of the gun and sticking out of the trigger, a "red band" is showing and is ready to fire. On this gun it is just the opposite.

ThomasT



[SilentSquirrel]

The safety on mine is as you describe yours.
Opposite of the Crosman direction, for example



[ThomasT]

The safety on mine is as you describe yours.
Opposite of the Crosman direction, for example

Hello @SilentSquirrel

OK thank you, glade it's not just mine but to me it is dangerous.

ThomasT



[Seth0764]

It looks like the screw on the back of the trigger that holds the safety switch



[ThomasT]

It looks like the screw on the back of the trigger that holds the safety switch

Hello @Seth0764

Mine is different, there is a spring and ball bearing with a screw in from the top that holds the pin. Thanks for your help anyway.

ThomasT



[ThomasT]

Hello everyone

This is an update, still not a clue what that little screw is for but I shot about 8 magazines through the Pistol today with no problems. Accuracy is spot on and I do not hear or feel any thing out of normal.

ThomasT
