Air Venturi Avenge X Exploded view

Jump to latest Follow Reply
M

Maxgasmekl

Member
Aug 11, 2024
64
7
Hi - does anyone have an exploded view of the avenge x “internals”? As per my other tread my Avenge X shoots completely random. I wont even call it groups anymore… I know how to take the barrel, probe, stock apart, I have done it several times already, but I want to check every o-ring and regrease them to make sure that everything is in order. I just dont know how to get in there without some visual aid. And I would like to know what all the different screws are for before I untighten them. I know where the degas and regadjuster is located;) Oh - and here is a picture of my groups with the same pellet🙄🫣 (I have ordered som JSBs. One of the probe o-rings broke so I changed that one.


  • Like
Reactions: Bramezy
Upvote 0
Maxgasmekl said:
Hi - does anyone have an exploded view of the avenge x “internals”? As per my other tread my Avenge X shoots completely random. I wont even call it groups anymore… I know how to take the barrel, probe, stock apart, I have done it several times already, but I want to check every o-ring and regrease them to make sure that everything is in order. I just dont know how to get in there without some visual aid. And I would like to know what all the different screws are for before I untighten them. I know where the degas and regadjuster is located;) Oh - and here is a picture of my groups with the same pellet🙄🫣 (I have ordered som JSBs. One of the probe o-rings broke so I changed that one.

View attachment 511031
Click to expand...

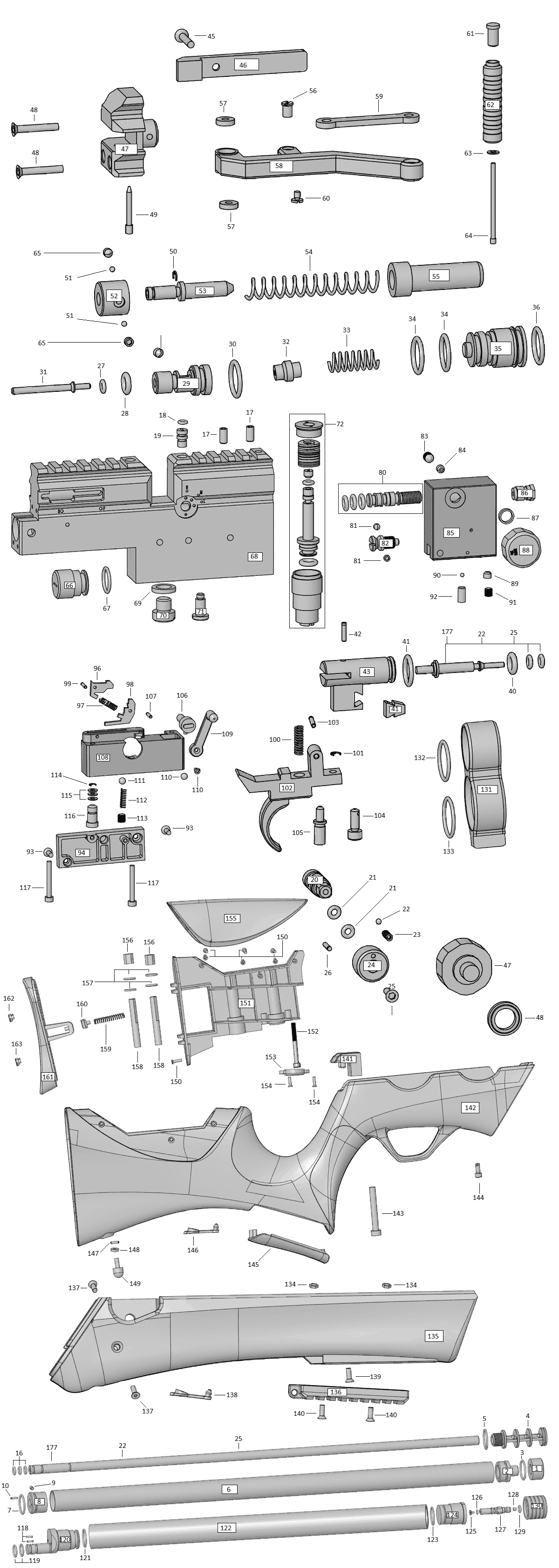

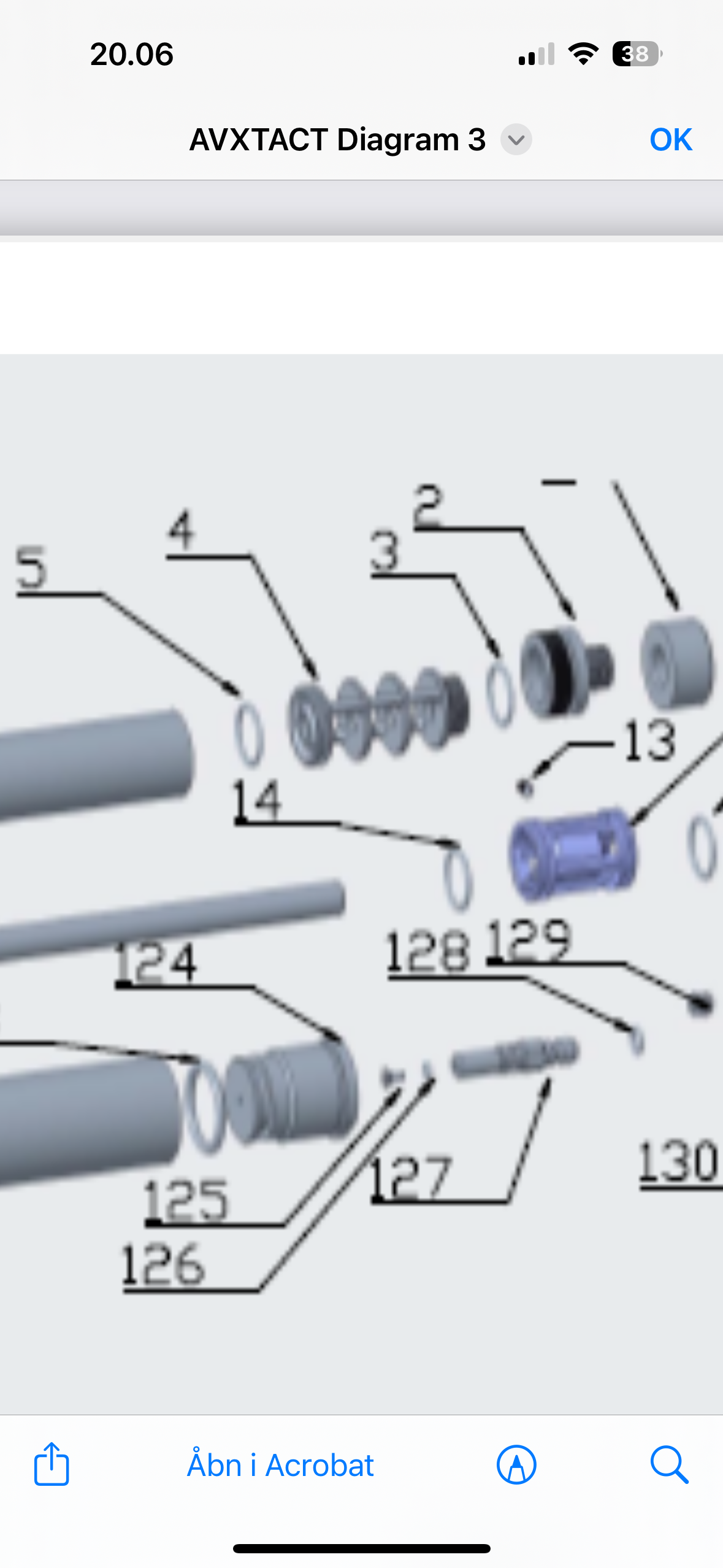

View attachment AVXTACT Diagram.pdf

Upvote 0
Maxgasmekl said:
Yes I have. Boy it makes a solid sound without the baffle on. The acuracy was just as crappy
Click to expand...
OK, good, one less thing. Barrel retaining set screws too tight? Too loose? My guns have done this and I was using harder pellets and needed a good clean. Also, heat. I suspect the guns shifted something when temps hit mid 90s and up and accuracy went to poop.
Assuming speeds are consistent?

Upvote 0
Bramezy said:
Yes, was worth a try. Mine had split in 2 for some reason. Have you tried shooting just the bare barrel, removing the shroud and all components?
Click to expand...
Or I mean no - because I cant loosen the shroud from the rearpiece. Some say to wrap rubber bands around it and turn it counter clockwise, but if I do so Ill swear that I will bent it. Its very-very tight. I tried with a set of pliers but that just scratched the shroud. Any ideas on how to get it of? Is there a set screw that has to be loosened?

Upvote 0
its just threaded on. The piece that adapts it to the barrel has a set screw. Luckily mine was not on super tight. Maybe remove the entire barrel from the gun and try, its only held in with 2 set screws. Be aware of the tiny tab that protrudes from the block, its indexes the barrel for you, easy to break off twisting things. Once removed you can carefully work on it. rubber anything will work for grip, no metal to metal.
You can also try some low heat, like hair dryer on high or heat gun quickly on low. Be careful of too much to fry the orings.
What part of the world are you in?

Upvote 0
Bramezy said:
OK, good, one less thing. Barrel retaining set screws too tight? Too loose? My guns have done this and I was using harder pellets and needed a good clean. Also, heat. I suspect the guns shifted something when temps hit mid 90s and up and accuracy went to poop.
Assuming speeds are consistent?
Click to expand...
By the way its a .177. I dont think I have ever mentioned that in this thread. And I dont know about speeds yet. I am waiting for my chrono to arrive. I know this is kind of an important item to own, its just weird that sometimes it shoot fine 1/2 inch groups at 22m for at group of five or more, and then next it is way off. 2 inches on samte distance. Same pellets. Same fill. 1800 psi on the reg and all the way out on the hs. Factory setting. Have tried to turn hs in, but that didnt improve anything:(

Upvote 0
Bramezy said:
its just threaded on. The piece that adapts it to the barrel has a set screw. Luckily mine was not on super tight. Maybe remove the entire barrel from the gun and try, its only held in with 2 set screws. Be aware of the tiny tab that protrudes from the block, its indexes the barrel for you, easy to break off twisting things. Once removed you can carefully work on it. rubber anything will work for grip, no metal to metal.
You can also try some low heat, like hair dryer on high or heat gun quickly on low. Be careful of too much to fry the orings.
What part of the world are you in?
Click to expand...

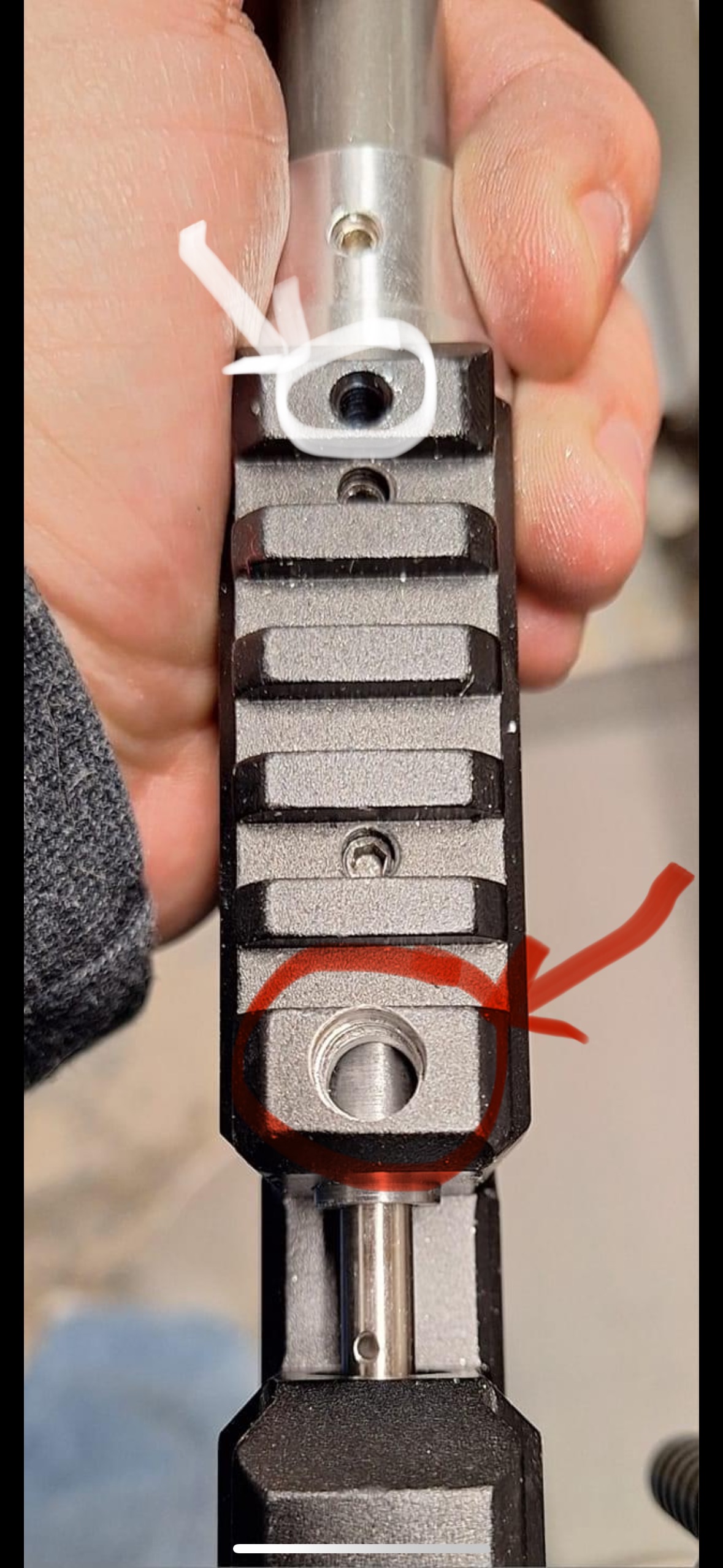

I have taken the shroud of several times. Cleaned the barrel like a million times. Regreased oring with silikone oil. And even when the shroud is off of the gun it is impossible to release from the end piece. I live in Denmark🤠I guess I must try the heat-method tomorrow. Ps: where is that setscrew that adapts it to the end piece located? If thats tight it makes sense that its impossible to turn

Upvote 0
