Bar setting Huma Regulator

[wkoslo]

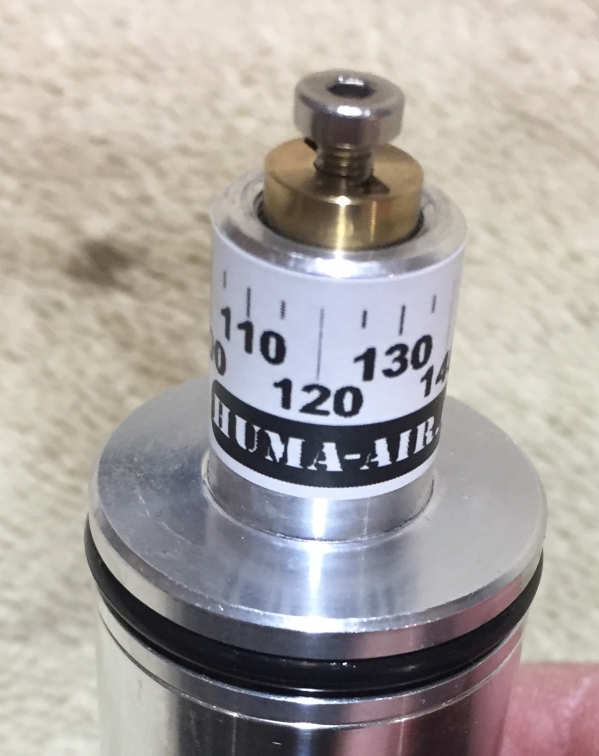

Hope I'm not missing something obvious with this and that its not an entirely stupid question...... but how do you set the bar pressure on the regulator. Does the notch in the top brass fitting point to the bar? If so, this is set to about 130 bar I'm assuming.........



[Sparta_AG]

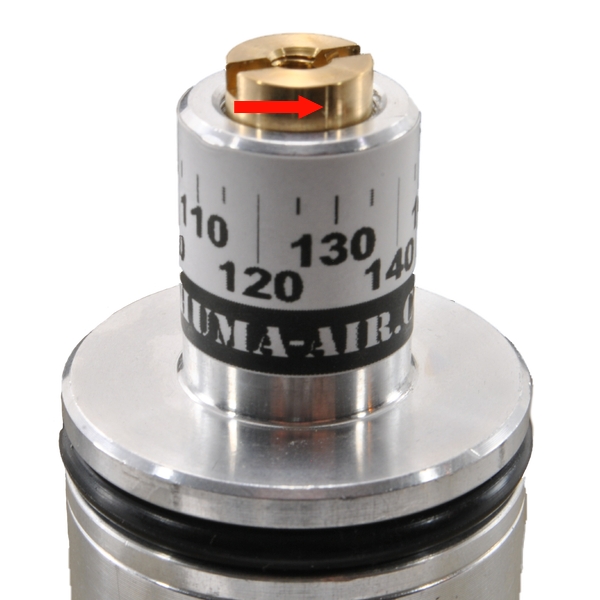

There is a fine machined line between the notch that indicates the setting. Picture below and instructions here: http://foto.huma-air.com/foto/how%20to%20adjust%20the%20regulator%20pressure.pdf



[Wager]

The line is very fine and easy to pass over. If you have any problems with the refresh rate being to slow just give me a shout and I'll help ya out. I ended up leaving my air gauge in tell I got everything to where. I wanted it because as I turned the reg up the bar indicator got more and more off.



[wkoslo]

Wager, I'm finding the same thing which led me to believe the indicator line was wrong or that there was something wrong with the regulator. At 110 bar, the regulator seems to be spot on, as I approach 150 bar, the pressure seems to be closer to 170 bar as indicated by the air gauge.........



[Wager]

Yep, that is exactly how mine is. Other tjen that and having to grind down the breather screw to get a decent refresh rate. Its a great reg, it just took a little bit to get it where I wanted it.
