Anyone that has been following me knows that I've spent a fair amount of time performing BC tests on a couple of my guns testing a variety of different things, such as BC's of different pellets shot through the same setup at the same temps through my RAW HM1000x, andmy son's FX Wildcat Mk II, BC's of the same pellet through different barrels to show the barrel effects on BC, BC's of the same pellet, through the same barrel across different temperatures, testing the BC characteristics of various slugs vs. JSB pellets, BC variability due to velocity changes, etc. I've done this testing primarily for my own learning, but I've shared it to help others here on the forum learn and see real world data with a controlled setup between different shoots to allow direct comparison betwen tests and I've done this for both .25 cal and .30 cal barrels on my primary setup.
Recently I put my .25 cal polygon barrel back on my RAW to get the setup ready to do some fall small game hunting. While tuning it in, I noticed that my BC was lower than I typically have seen (normally it sit at about 0.0555 - 0.0568)-coming in at slightly below the 0.050 mark (unusually low for this setup!). Knowing how much testing I've run through the gun in the past several months, including increasing the hammer spring tension, shooting slugs, etc I strongly suspected that my barrel was getting pretty dirty and was in need of a good cleaning. I've witnessed (and heard others talk about) a barrel getting dirty and having accuracy suffer as a results, but could some of that accuracy loss also show up in BC shifts that could actually be measured? Was this phenomenon what I was actually 'seeing' in the dirty barrel BC data? These were the questions swirling around in my mind...
So I did what I do, and set out to test the barrel before and after cleaning to see if I indeed could really see a difference in the BC / velocity numbers simply as a result of cleaning a dirty barrel. Since I found the results most interesting, I've decided to share them here with the rest of the community...
Objective:
To compare the external ballistics results the same setup with a dirty barrel, then clean the barrel and retest to see if I could see a change in performance and perhaps even see the infamous 'releading' taking place before my eyes...
Equipment:

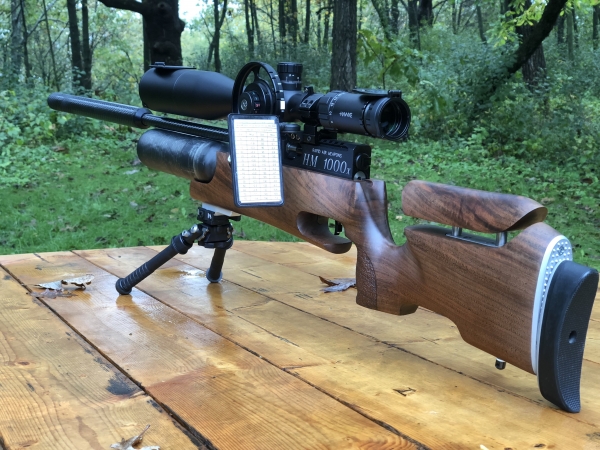

RAW HM1000x in .25 cal with factory polygonal barrel (made by LW). Hammer spring basically set to its lowest position (shooting ~ 60 fpe), and left completely alone for this comparison. Testing done with this gun's favorite food: JSB Heavy, Mk I pellets (33.95 grain), all testing done with pellets single shot loaded into the gun.
Method: Same as Usual...
Measure the velocity of two common pellets at 1 yard and 50 yards, averaged over a string of 12 shots, compile the results and calculate the BC of each combination. I use Chairgun Pro (desktop version) for the calculation of BC and use the GA form factor for diabolo pellets. I capture the data using two Caldwell chronographs (that have been calibrated to each other) and then compile the results in Excel. I record the local weather conditions using my Accuweather app-but only as a double check of the weather conditions the Caldwell app pulls in from its source (not sure where-but they match pretty closely). I do use the average humidity over the shooting session and look for any changes in pressure or temperature during the session-and then use the averge value of those numbers (from the Caldwell numbers).

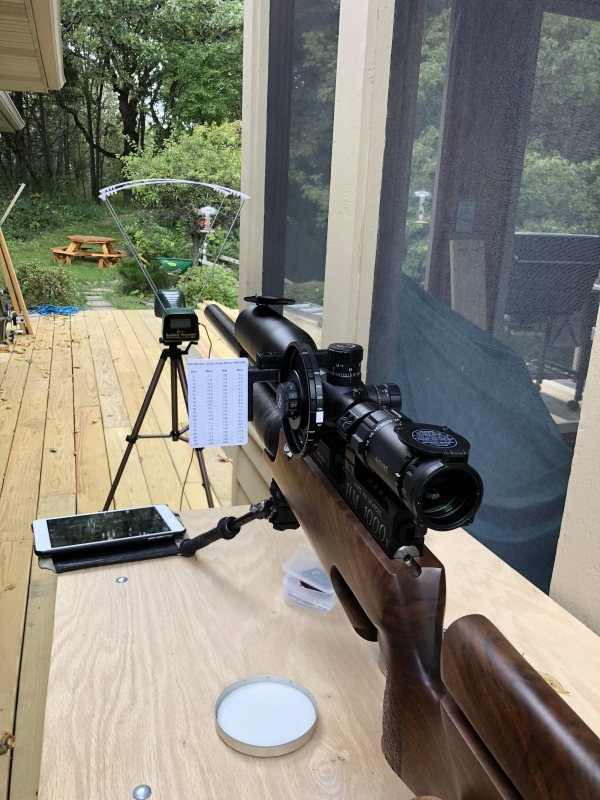

At yard: (Distance is set from the end of the moderator to the center of the rearmost sensor window)

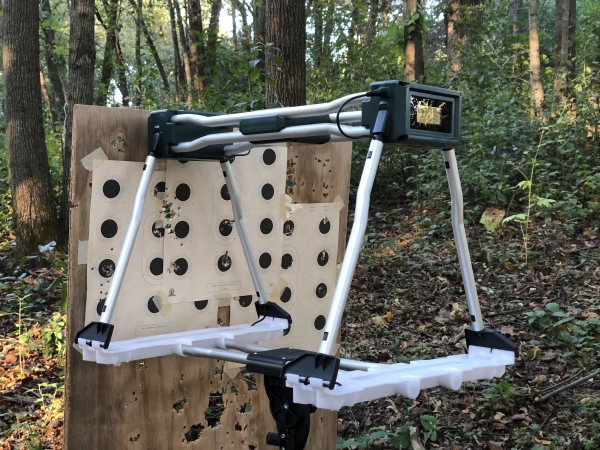

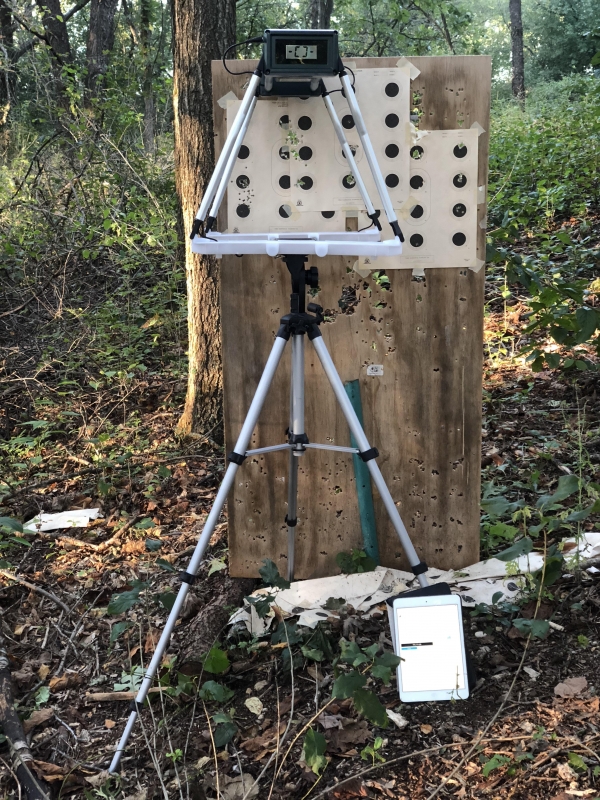

At 50 yards: (distance is set via Nikon laser rangefinder to target)
Summary of Results:
All data shown below represents the same gun configuration for all testing tonight: meaning the hammer spring and regulator settings unchanged from setup to setup.
Order of data acquisition:
RAW with polygon barrel, shooting JSB MK I pellets first, then MK II pellets
RAW with LW rifled barrel, shooting JSB MK I pellets first, then MK II pellets
Wildcat Mk II with ST barrel, shooting JSB MK II pellets first (mag were already loaded), then Mk I pellets

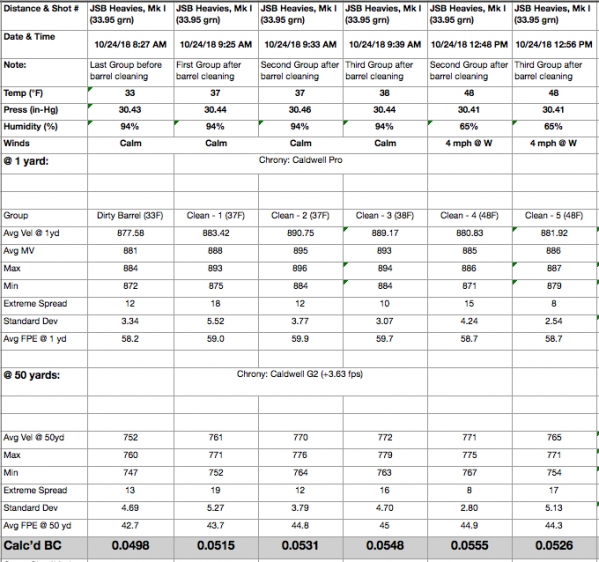

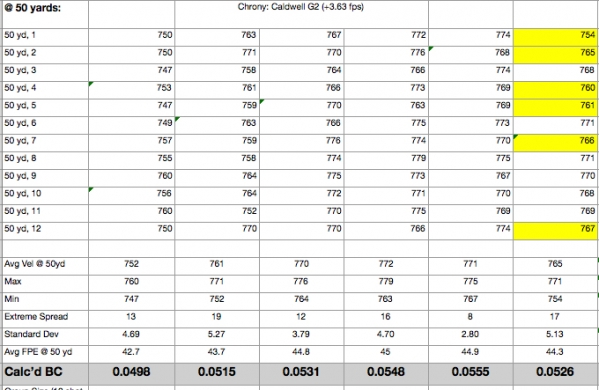

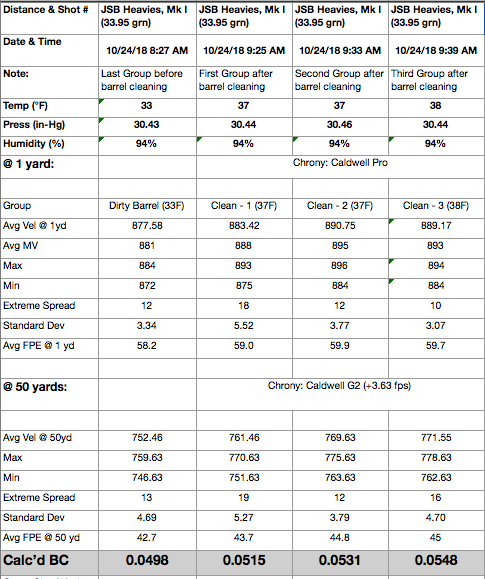

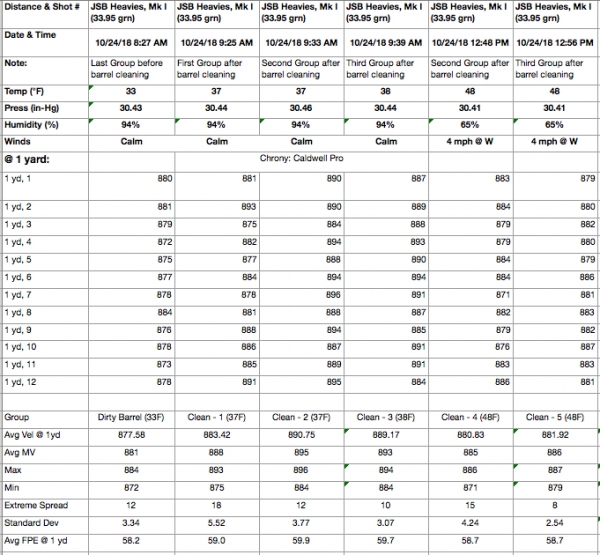

Data:

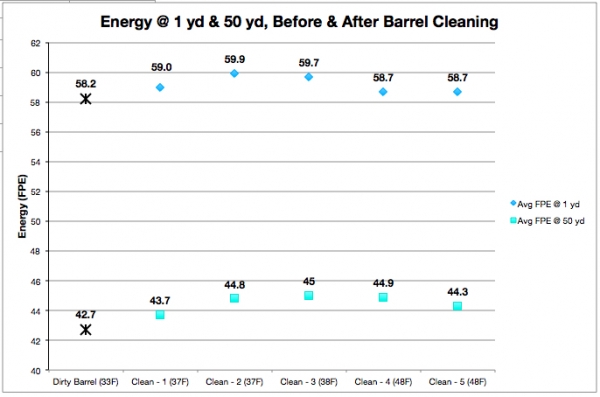

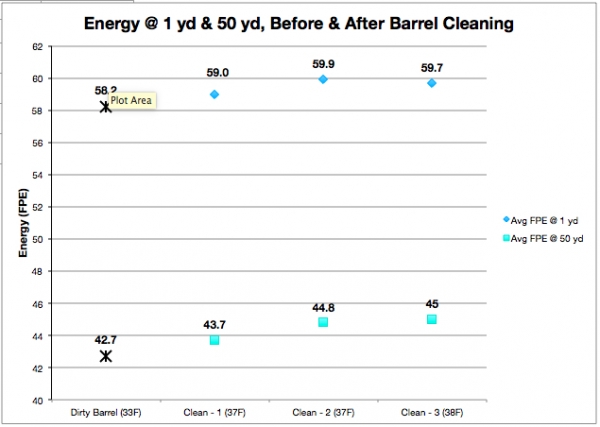

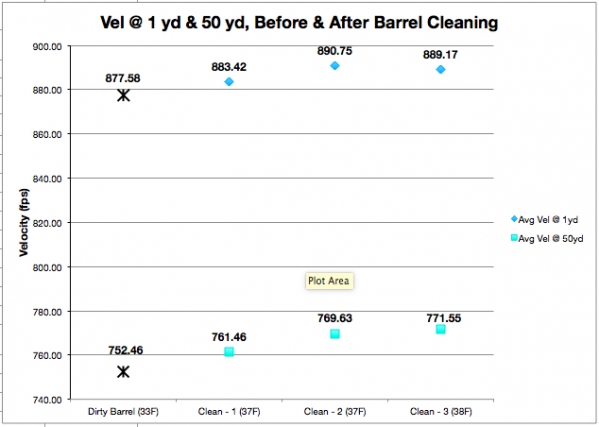

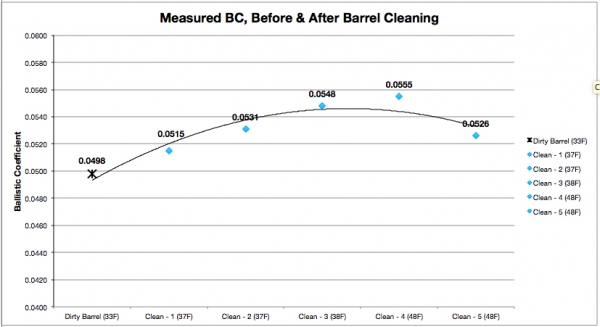

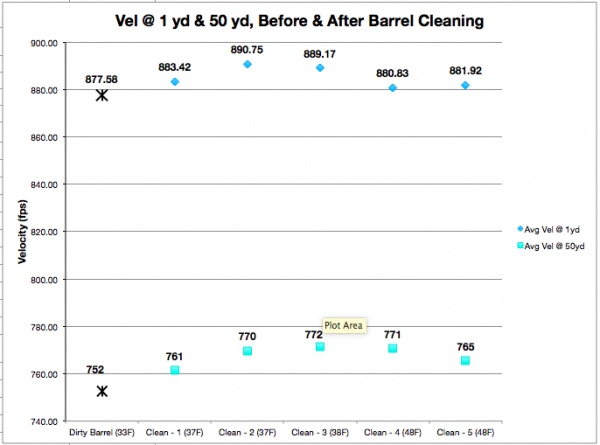

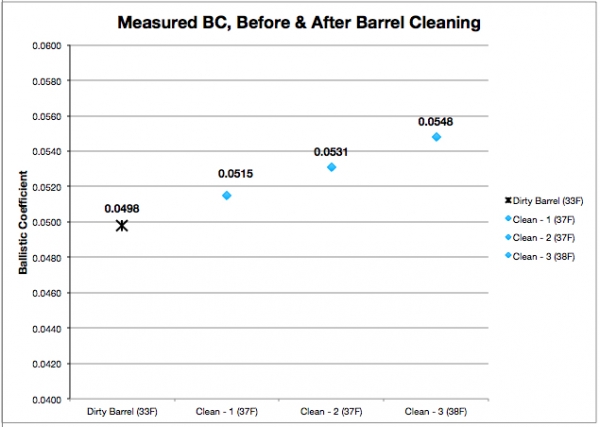

Plots of the data:
Conclusion(s):
As it turns out, I was indeed NOT imagining things when I noticed what I had suspected to be my barrel leading up-the data clearly shows the results and, interestingly, the process of re-leading the barrel after a good cleaning. The column furthest to the left shows the 'dirty' barrel's 12-shot group performance, and the 3 columns to the right show three 12-shot groups, after cleaning the barrel (after waiting for the gun to come back down to ambient temperature again). Based on what I see above, and at the target, I would say the barrel isn't fully settled back down again after the 36 shots as the BC was still climbing back to it's more typical 0.056 reading-having said that, it's nearly there with the 36 shots taken. Had I known that there was still more data to be taken to show it settling out fully, I would have shot another 2-3 12-shot groups to show it settle out.
Notes:
Hopefully you find this information interesting like I did when I acquired it and reviewed what is was showing me. I've heard about the accuracy going south in dirty barrels, but I didn't think there would be a way to see the impact of a dirty barrel via data-sure enough, the data shows it pretty clearly...
Please ask if you have any questions and feel free to point out anything I missed.
Sean
I hope you find this info helpful? Is so, please consider taking a second and simply leaving a '+' with a nice comment for me-it let's me know my time and effort is appreciated and keeps me going with this kind of work for the community. I've spent a bunch of money on Chronographs now, lead and time so it's a pretty small way of saying 'thanks for the efforts'. Enough said- Enjoy!
(Edit: Added underlines to the links above to make it more obvious that those are links to specific threads with other test results.)
Recently I put my .25 cal polygon barrel back on my RAW to get the setup ready to do some fall small game hunting. While tuning it in, I noticed that my BC was lower than I typically have seen (normally it sit at about 0.0555 - 0.0568)-coming in at slightly below the 0.050 mark (unusually low for this setup!). Knowing how much testing I've run through the gun in the past several months, including increasing the hammer spring tension, shooting slugs, etc I strongly suspected that my barrel was getting pretty dirty and was in need of a good cleaning. I've witnessed (and heard others talk about) a barrel getting dirty and having accuracy suffer as a results, but could some of that accuracy loss also show up in BC shifts that could actually be measured? Was this phenomenon what I was actually 'seeing' in the dirty barrel BC data? These were the questions swirling around in my mind...
So I did what I do, and set out to test the barrel before and after cleaning to see if I indeed could really see a difference in the BC / velocity numbers simply as a result of cleaning a dirty barrel. Since I found the results most interesting, I've decided to share them here with the rest of the community...
Objective:
To compare the external ballistics results the same setup with a dirty barrel, then clean the barrel and retest to see if I could see a change in performance and perhaps even see the infamous 'releading' taking place before my eyes...
Equipment:
RAW HM1000x in .25 cal with factory polygonal barrel (made by LW). Hammer spring basically set to its lowest position (shooting ~ 60 fpe), and left completely alone for this comparison. Testing done with this gun's favorite food: JSB Heavy, Mk I pellets (33.95 grain), all testing done with pellets single shot loaded into the gun.
Method: Same as Usual...
Measure the velocity of two common pellets at 1 yard and 50 yards, averaged over a string of 12 shots, compile the results and calculate the BC of each combination. I use Chairgun Pro (desktop version) for the calculation of BC and use the GA form factor for diabolo pellets. I capture the data using two Caldwell chronographs (that have been calibrated to each other) and then compile the results in Excel. I record the local weather conditions using my Accuweather app-but only as a double check of the weather conditions the Caldwell app pulls in from its source (not sure where-but they match pretty closely). I do use the average humidity over the shooting session and look for any changes in pressure or temperature during the session-and then use the averge value of those numbers (from the Caldwell numbers).
At yard: (Distance is set from the end of the moderator to the center of the rearmost sensor window)
At 50 yards: (distance is set via Nikon laser rangefinder to target)
Summary of Results:
All data shown below represents the same gun configuration for all testing tonight: meaning the hammer spring and regulator settings unchanged from setup to setup.
Order of data acquisition:
RAW with polygon barrel, shooting JSB MK I pellets first, then MK II pellets
RAW with LW rifled barrel, shooting JSB MK I pellets first, then MK II pellets
Wildcat Mk II with ST barrel, shooting JSB MK II pellets first (mag were already loaded), then Mk I pellets
Data:
Plots of the data:
Conclusion(s):
As it turns out, I was indeed NOT imagining things when I noticed what I had suspected to be my barrel leading up-the data clearly shows the results and, interestingly, the process of re-leading the barrel after a good cleaning. The column furthest to the left shows the 'dirty' barrel's 12-shot group performance, and the 3 columns to the right show three 12-shot groups, after cleaning the barrel (after waiting for the gun to come back down to ambient temperature again). Based on what I see above, and at the target, I would say the barrel isn't fully settled back down again after the 36 shots as the BC was still climbing back to it's more typical 0.056 reading-having said that, it's nearly there with the 36 shots taken. Had I known that there was still more data to be taken to show it settling out fully, I would have shot another 2-3 12-shot groups to show it settle out.
Notes:
- A single shot tray was used for all RAW shots
- Testing conditions were all held constant for the 3 groups shot after cleaning. Wind was very calm for both 'dirty' and 'clean' groups-however, the temp did rise by about 5 degrees as I went to clean my barrel. Having said that, from my other data: 5 degrees won't have much of an impact on the velocities and BC when the pressure and humidity are both held constant, so the comparison is still valid.
Hopefully you find this information interesting like I did when I acquired it and reviewed what is was showing me. I've heard about the accuracy going south in dirty barrels, but I didn't think there would be a way to see the impact of a dirty barrel via data-sure enough, the data shows it pretty clearly...
Please ask if you have any questions and feel free to point out anything I missed.
Sean
