Hi everyone,

I'm planning to purchase an Acecare 9L tank from Alibaba and equip it with the HP3 Omega valve. I also want to add a 2-meter swiveling kit connection hose from Best Fittings. I'll include pictures at the end for reference.

Main Concern​

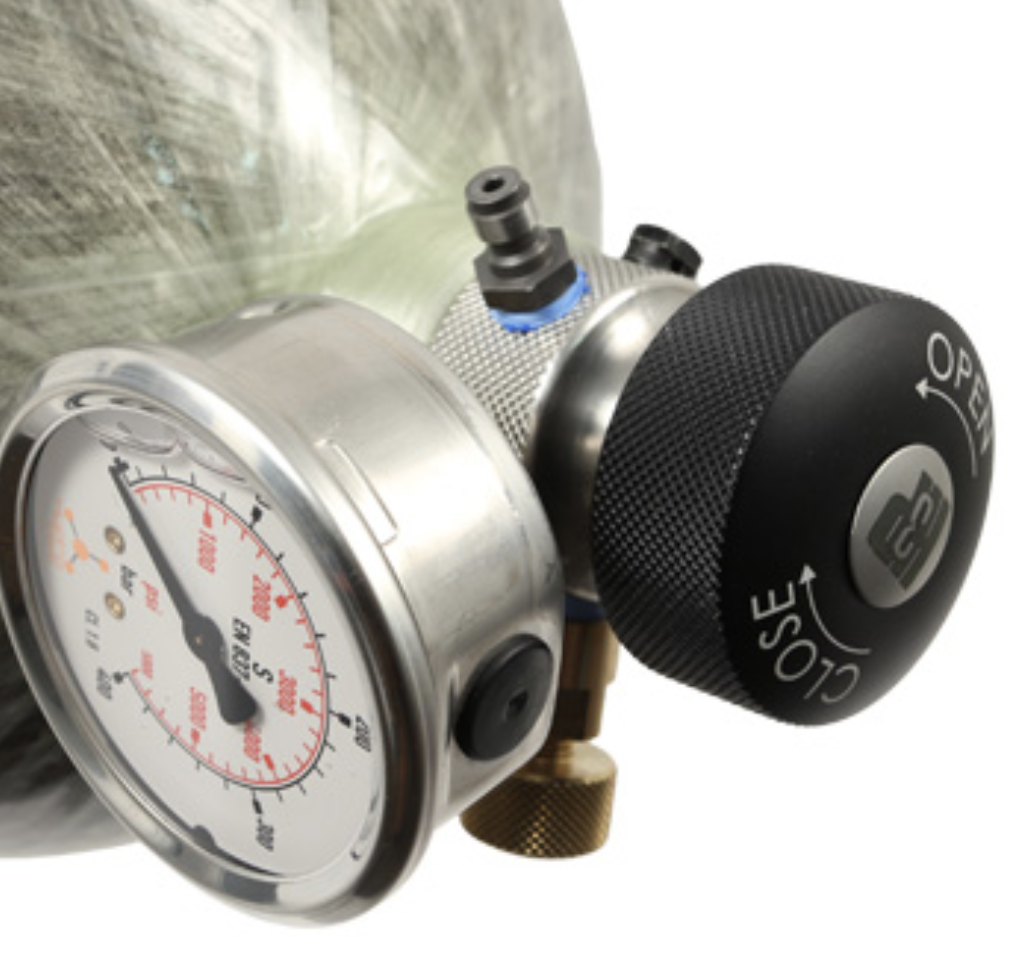

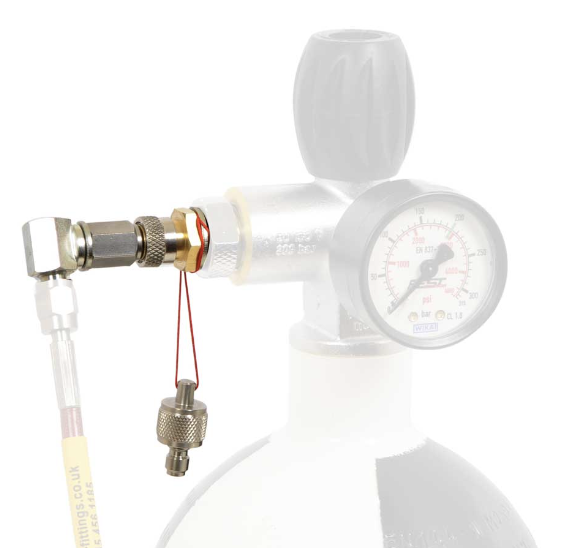

The HP3 valve comes with a male nipple for filling the tank and connecting the hose. However, the Best Fittings swiveling kit features a "BEST Fittings 1/8″ BSP Snap Connector" designed to fit an existing 1/8″ BSP DIN cylinder outlet.

Question​

If I remove the male nipple from the HP3 valve, will the outlet fit the snap connector from Best Fittings?

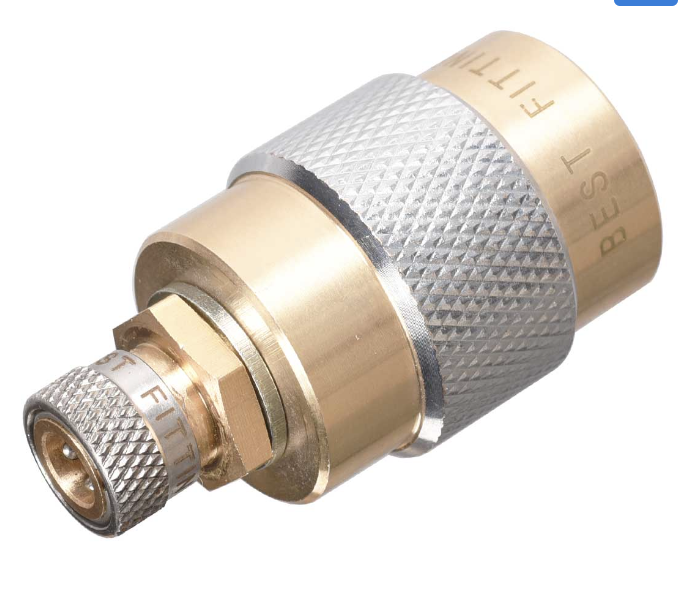

Additionally, my local air filling shop uses either a female or male DIN 300 outlet. Best Fittings offers a 300 BAR DIN Female to BEST Fittings Quick Coupler Socket, which I plan to connect to the end of the hose if I can install the kit.

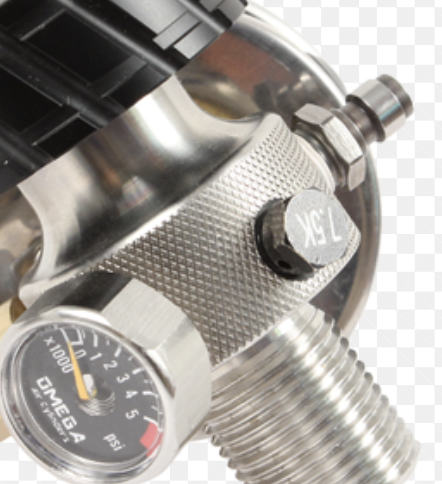

Also, what is the purpose and size thread of the 7.5k screw in the valve? can this also be used with a hose/kit?

Any advice or insights would be greatly appreciated!

Thanks!
@Billions


link to product list:
https://www.bestfittings.co.uk/shop/fill-lines-fittings/fittings/swivelling-quick-detach-hose-kit/

300 BAR DIN Female to BEST Fittings Quick Coupler Socket – Best Fittings

www.bestfittings.co.uk

Omega HP3 .875 Valve with Gauges (no Hose Assembly)

Fill your PCP Airgun in style with the Omega HP3 Tank valve. Dual Gauges, large one shows the pressure going into the airgun, and the small gauge shows the air remaining in the tank.

airtanksplus.com



[rcs9250]

Yep, that fill adapter you show with the female DIN300 and the female Foster quick connect is what you will need for the dive shop to refill your tank. The dive shops will typically have two types of fill whips. One with a male DIN300 and one with a yoke fill adapter for standard 3000psi scuba tanks.
But the fitting shown in your first photo will not connect to your intended valve.
Your intended valve has a male Foster that is used as in inlet and outlet for air.
You will need a hose with female Foster quick connects on both ends.
Gimme a minute to see if someone makes a 90° fitting that has one male and one female Foster quick connect. Pretty sure someone does. And that is if your desire to have the hose go 90° out of the valve.

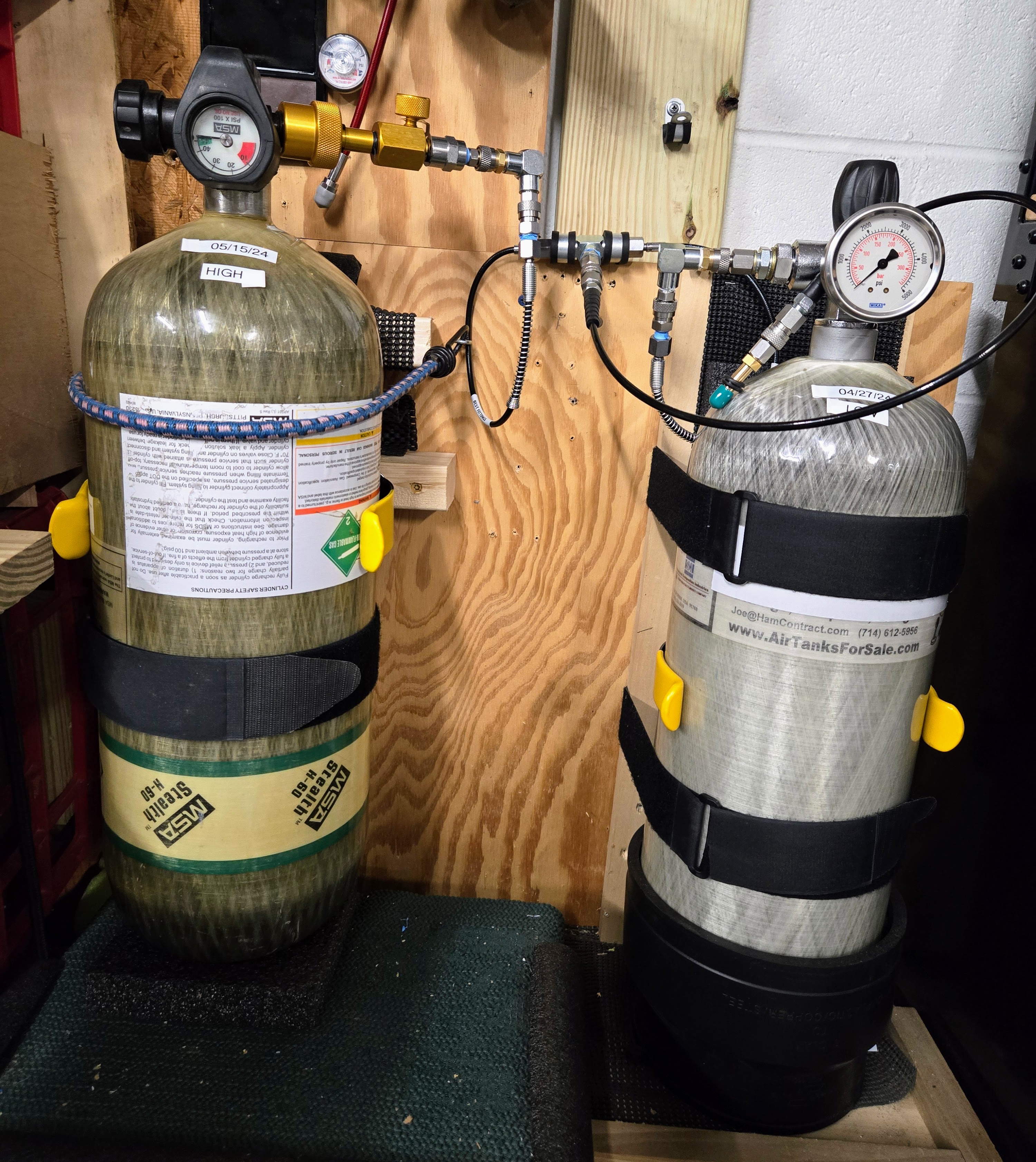

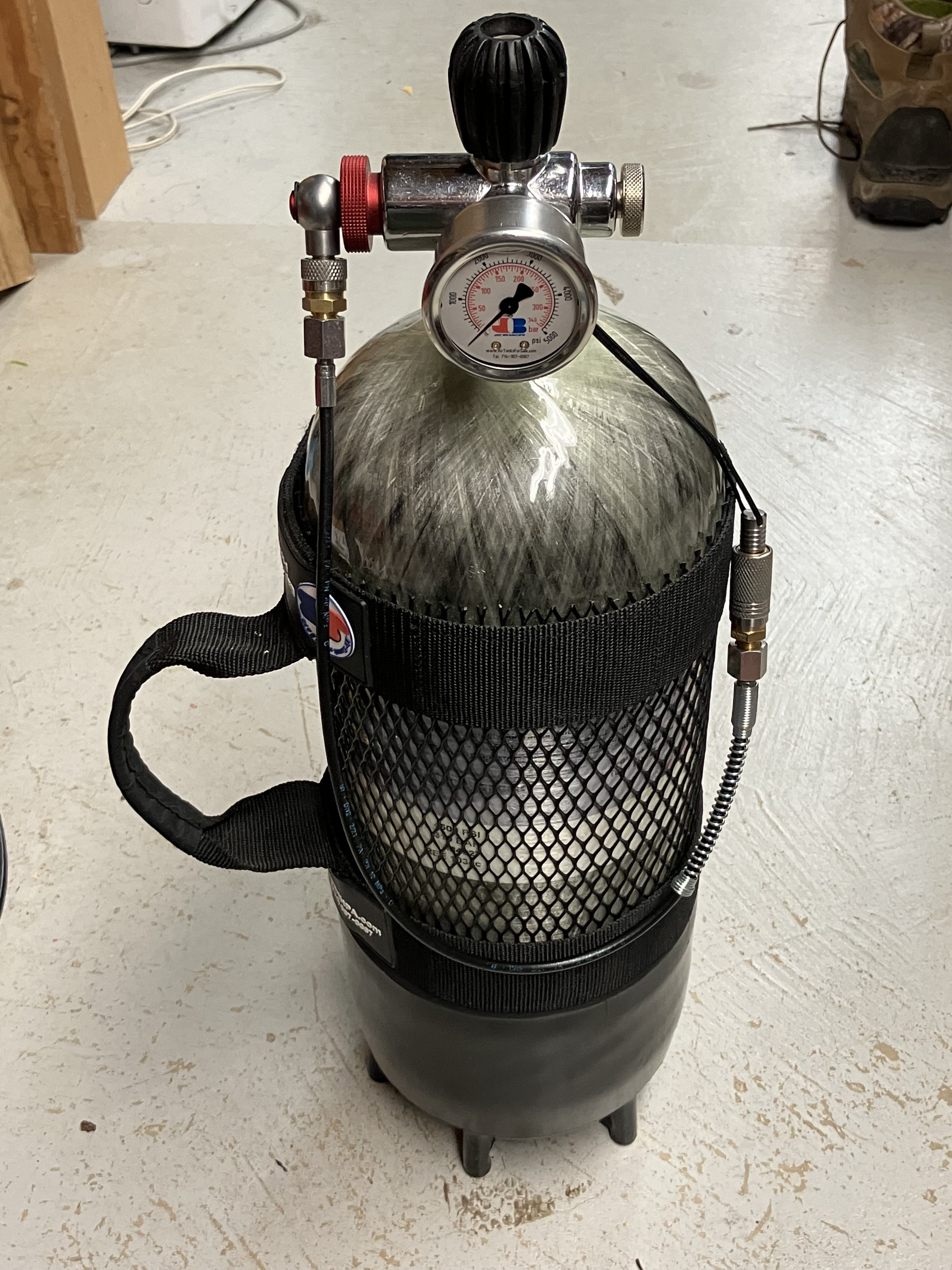

Here’s a photo of my tank with a 90° swivel fitting with male Foster and 300DIN male.



[rcs9250]

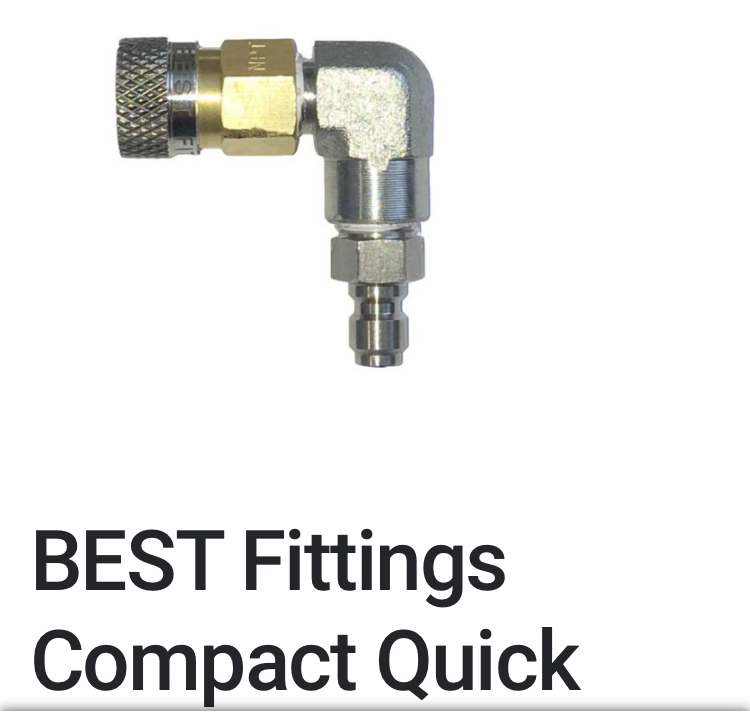

OK, Best Fittins has the 90° fitting you will need (if your fill hose has a female Foster on both ends.
A 90° fitting isn’t necessary but I find it convenient. As my photo shows, my fill hose stores right on the tank by using the dead head plug with lanyard to hold it in place and keep dirt out of the hose.

BEST Fittings Compact Quick Coupler Elbow Assembly – Best Fittings

www.bestfittings.co.uk



[F6Hawk]

Hi everyone,

I'm planning to purchase an Acecare 9L tank from Alibaba and equip it with the HP3 Omega valve. I also want to add a 2-meter swiveling kit connection hose from Best Fittings. I'll include pictures at the end for reference.

Main Concern​

The HP3 valve comes with a male nipple for filling the tank and connecting the hose. However, the Best Fittings swiveling kit features a "BEST Fittings 1/8″ BSP Snap Connector" designed to fit an existing 1/8″ BSP DIN cylinder outlet.

Question​

If I remove the male nipple from the HP3 valve, will the outlet fit the snap connector from Best Fittings?

Additionally, my local air filling shop uses either a female or male DIN 300 outlet. Best Fittings offers a 300 BAR DIN Female to BEST Fittings Quick Coupler Socket, which I plan to connect to the end of the hose if I can install the kit.

Also, what is the purpose and size thread of the 7.5k screw in the valve? can this also be used with a hose/kit?

Any advice or insights would be greatly appreciated!

Thanks!
@Billions


link to product list:
https://www.bestfittings.co.uk/shop/fill-lines-fittings/fittings/swivelling-quick-detach-hose-kit/

300 BAR DIN Female to BEST Fittings Quick Coupler Socket – Best Fittings

www.bestfittings.co.uk

Omega HP3 .875 Valve with Gauges (no Hose Assembly)

Fill your PCP Airgun in style with the Omega HP3 Tank valve. Dual Gauges, large one shows the pressure going into the airgun, and the small gauge shows the air remaining in the tank.

airtanksplus.com

Your local shop cannot fill via your Foster fitting? If not, bummer.

That "7.5K screw" is your burst disc, designed to rupture before the tank is overpressurized. Do NOT remove it nor replace it with anything except an exact 7.5k burst disc.



[Justaguy]

Do NOT mess with 7.5 burst disk for any reason. Yikes



[pesty3782]

Yep, that fill adapter you show with the female DIN300 and the female Foster quick connect is what you will need for the dive shop to refill your tank. The dive shops will typically have two types of fill whips. One with a male DIN300 and one with a yoke fill adapter for standard 3000psi scuba tanks.
But the fitting shown in your first photo will not connect to your intended valve.
Your intended valve has a male Foster that is used as in inlet and outlet for air.
You will need a hose with female Foster quick connects on both ends.
Gimme a minute to see if someone makes a 90° fitting that has one male and one female Foster quick connect. Pretty sure someone does. And that is if your desire to have the hose go 90° out of the valve.
Here’s a photo of my tank with a 90° swivel fitting with male Foster and 300DIN male.

View attachment 465870

rcs9250

Where did you get your rubber stand and carry handle?

Tony P.



[rcs9250]

rcs9250

Where did you get your rubber stand and carry handle?

Tony P.

The handle and boot came with the tank from TOPGUN-AIRGUNS (Joe Brancatos store). They call it an “Armor Kit”.

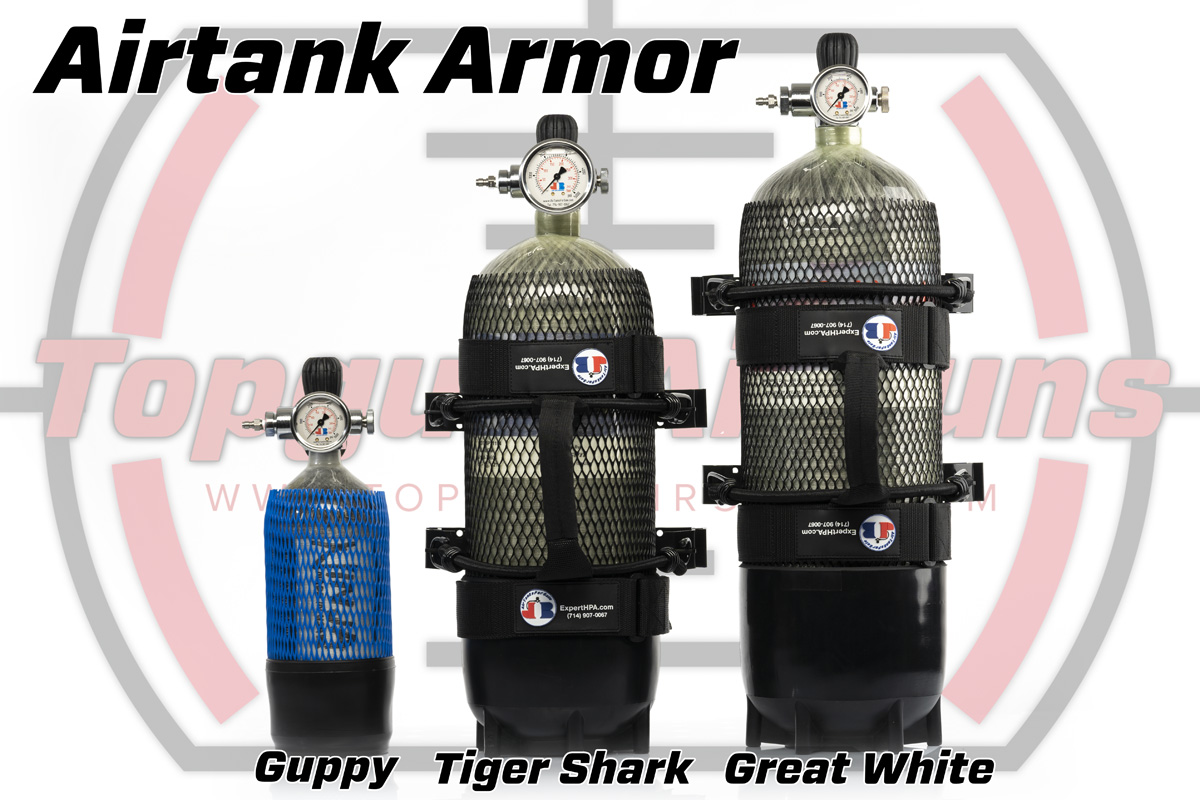

Airtank Armor Packages - TopGun-Airguns

THIS DOES NOT INCLUDE THE TANK, THIS IS JUST FOR THE TANK ARMOR KIT, IMAGES ARE FOR ILLUSTRATION ONLY We have complete armor packages for our tanks, and should basically any tank available corresponding with capacity (although not all tanks are of the quality of our USA made airtanks) We have 3...

www.topgun-airguns.com



[kayaker]

rcs9250

Where did you get your rubber stand and carry handle?

Tony P.

The rubber boots can be bought off of Amazon, if you get one to large just add electrical tape to the tank for a tight fit. Also the protective webbing on the tank can be found. Not sure of the carry handle, but probably.



[Ta-Ta Toothie]

Yep, that fill adapter you show with the female DIN300 and the female Foster quick connect is what you will need for the dive shop to refill your tank. The dive shops will typically have two types of fill whips. One with a male DIN300 and one with a yoke fill adapter for standard 3000psi scuba tanks.
But the fitting shown in your first photo will not connect to your intended valve.
Your intended valve has a male Foster that is used as in inlet and outlet for air.
You will need a hose with female Foster quick connects on both ends.
Gimme a minute to see if someone makes a 90° fitting that has one male and one female Foster quick connect. Pretty sure someone does. And that is if your desire to have the hose go 90° out of the valve.
Here’s a photo of my tank with a 90° swivel fitting with male Foster and 300DIN male.

View attachment 465870

I have the same Edgun 360° Valve Swivel and definitely enjoy it.



[pesty3782]

Thanks for the info...I will measure the 6.8 liter tank and see what I find

Tony P.



[F6Hawk]

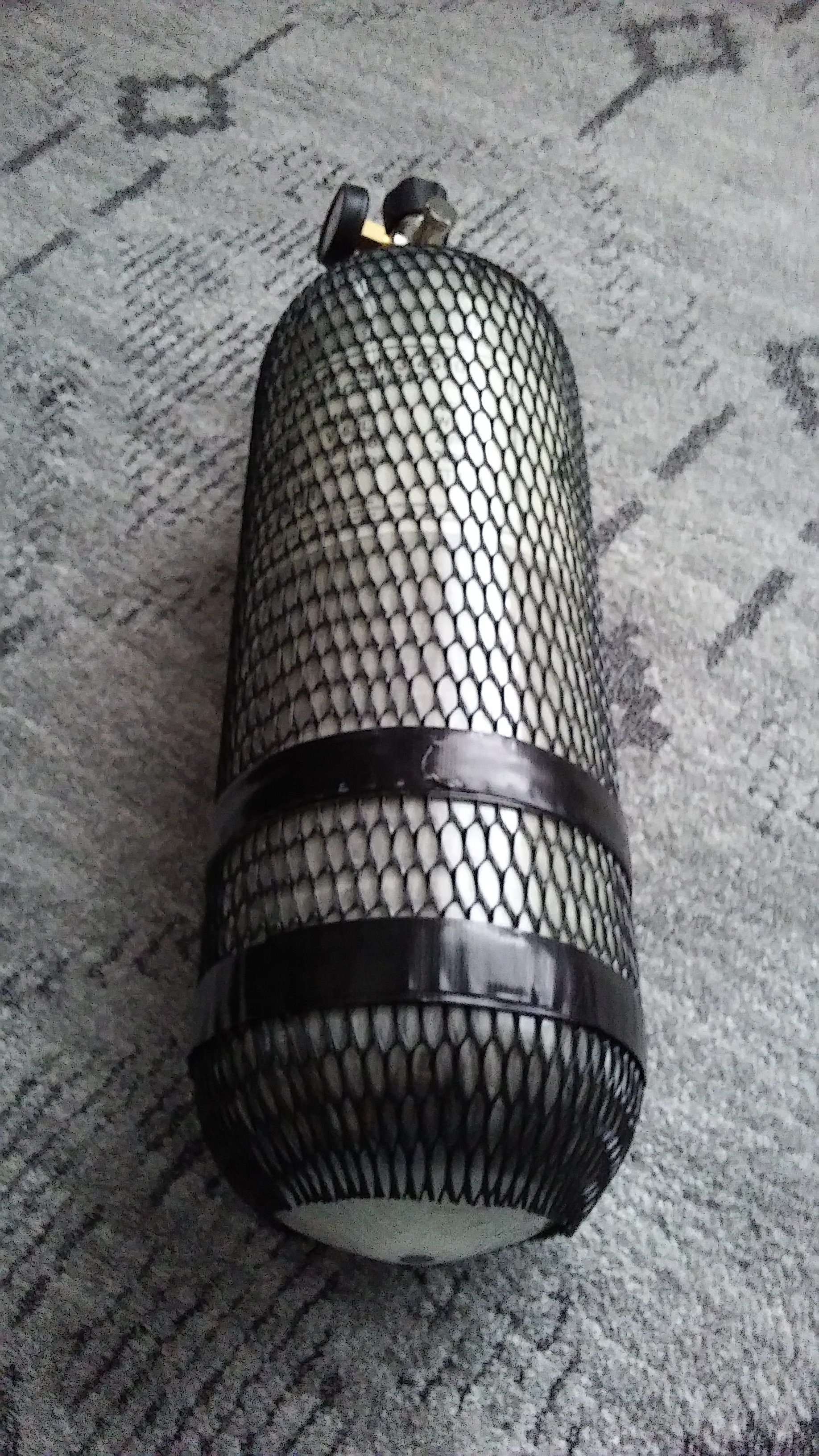

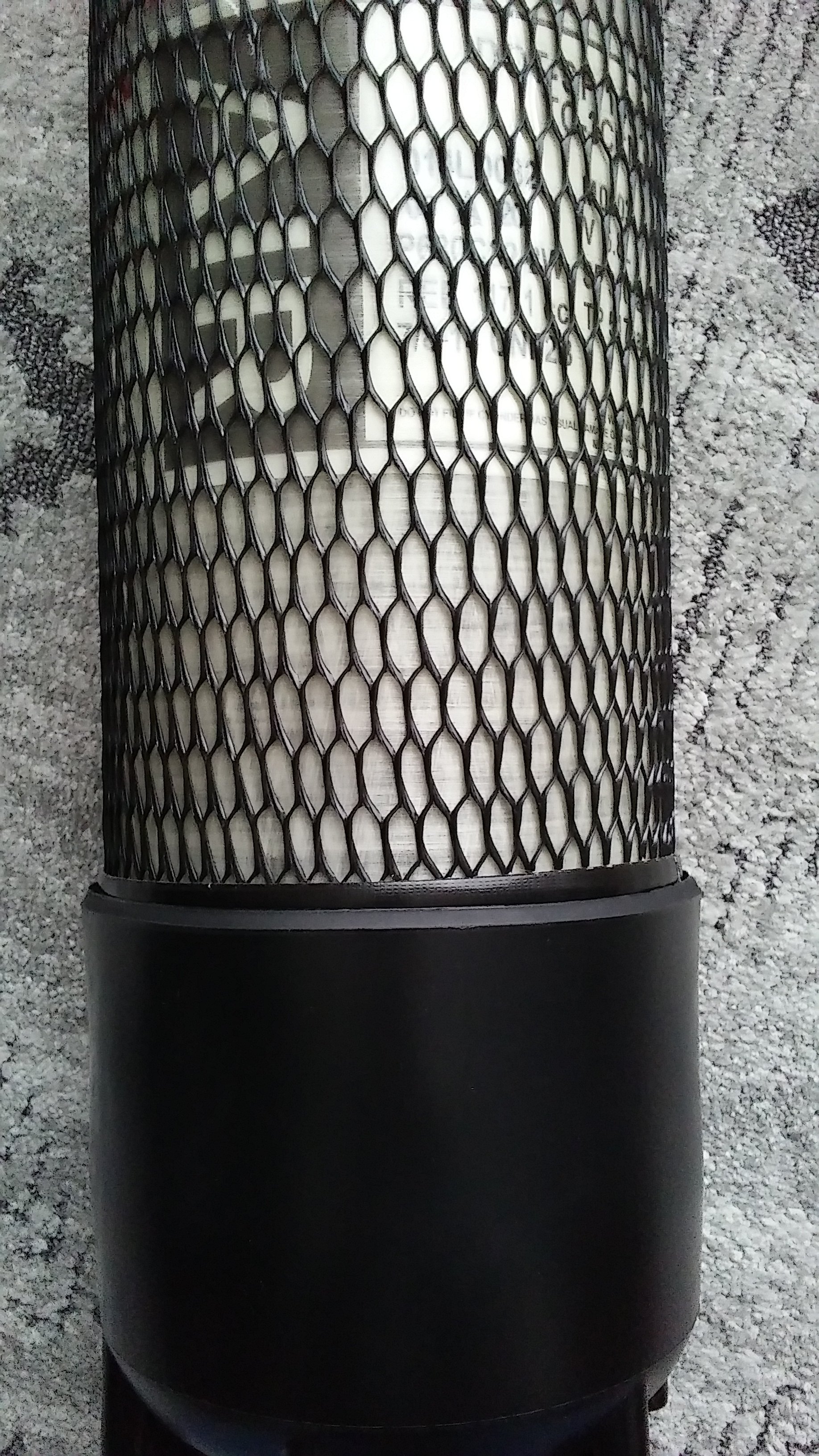

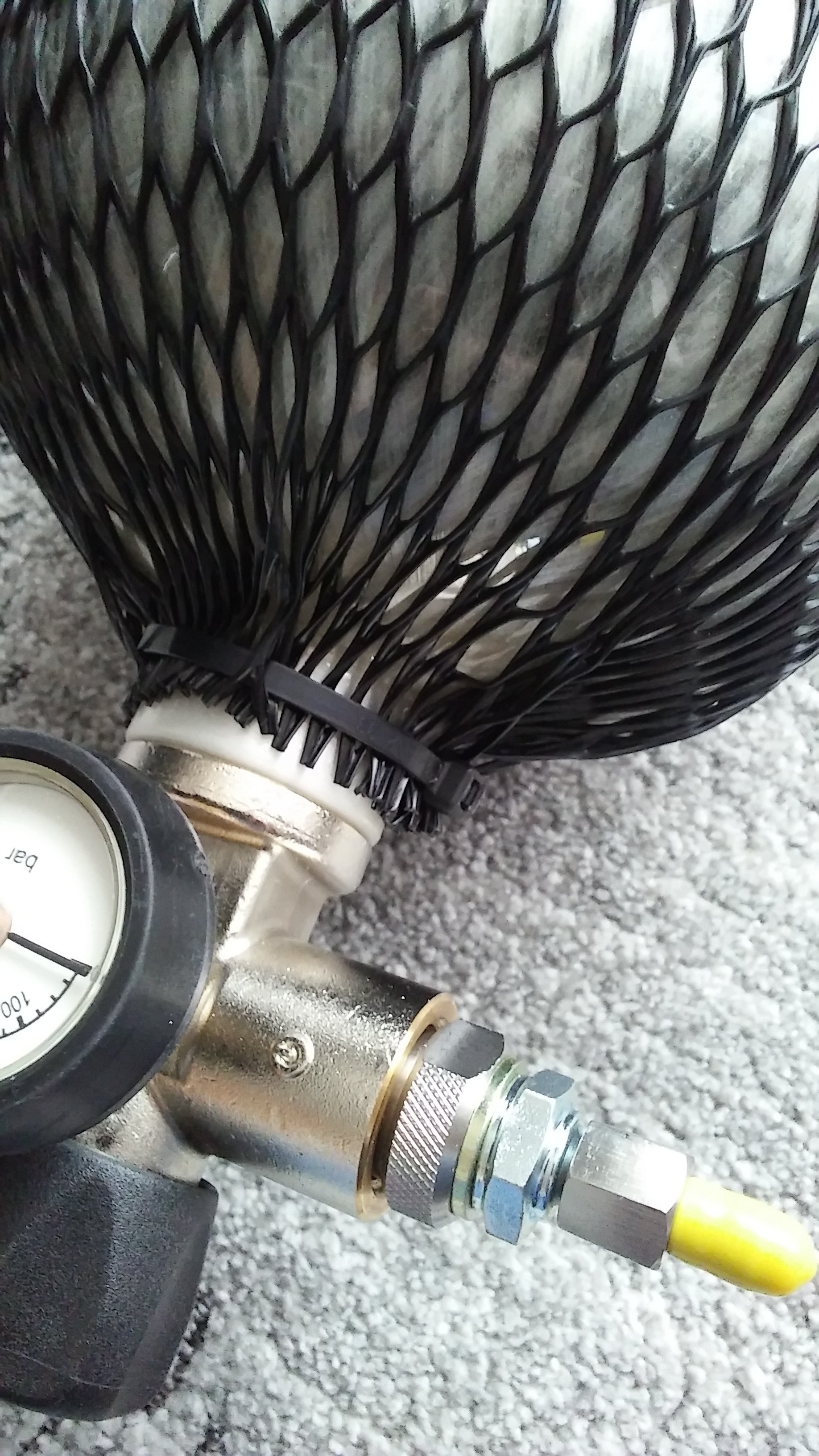

Here's the boot I put on my 9L bottle:

Amazon.com



[grackleblast]

I use those 90 degree fittings from Best Fittings on both of my tanks. It makes for a more compact and usable plumbing job. I highly recommend Best Fittings. They ship quickly and their quality is second to none.
