Bipod mount and FX radar mount, all in one.

[F5shooter2000]

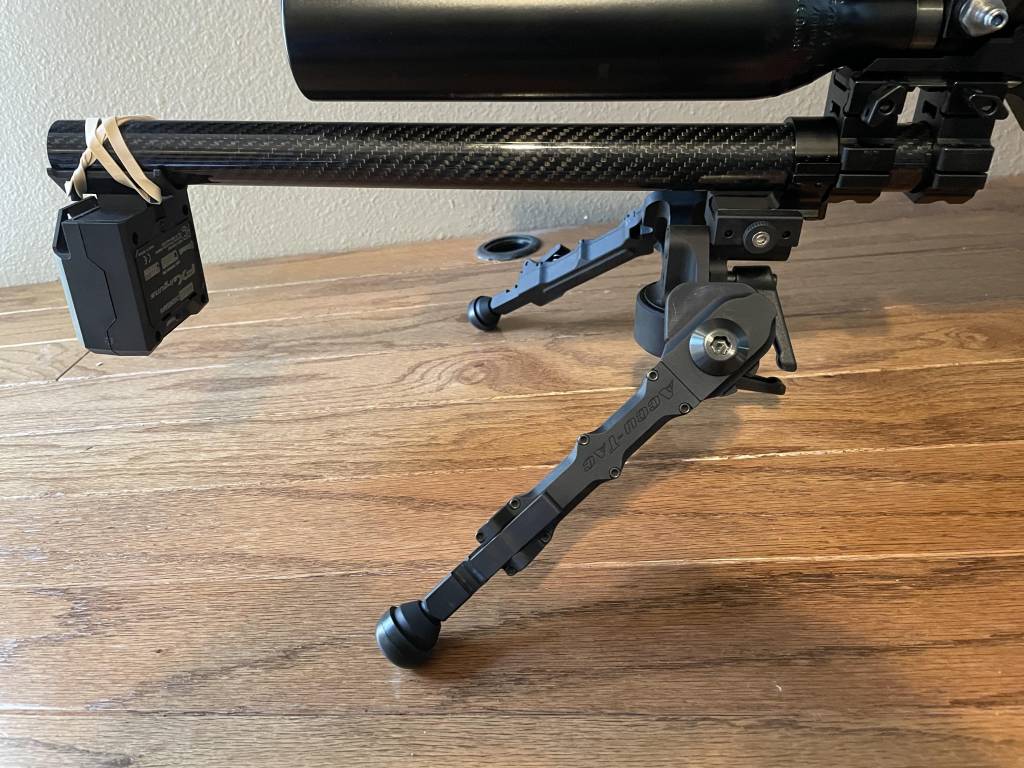

This is what I came up with to mount my FX radar and extend my bipod mount.

1)30mm OD x 27mm ID 420mm long carbon fiber tube.

2) UTG 30mm picatinny scope rings.

1) Generic 30mm scope ring picatinny adapter.



[jking]

Good idea. Have you tried the bipod out towards the end to check for flex? I know the extended picatinny bar on my Impact has quite a bit of flex if the bipod is further out.

Jking



[qball]

Nice! I was thinking about doing something similar for just the bipod but the chrono idea is awesome



[rcs9250]

Nice job, I love it.



[F5shooter2000]

I did try it and there was too much flex in it for me.



[Quagmire]

That's a pretty nifty solution. I was wanting to try something similar with my chrony, but I had a difficult time finding the parts I wanted. I eventually came up with something using the Sabre Tactical arca rail, and a short section of picatinny rail mounted through the bottom using tee nuts.



[d1lazarus]

I extended my bipod forward about 6" using that method, plenty of rigidity, but I am not sure that I like how much height it adds to the setup.
