Bolt Probe handle HELP

[Bngen3]

Hi All,

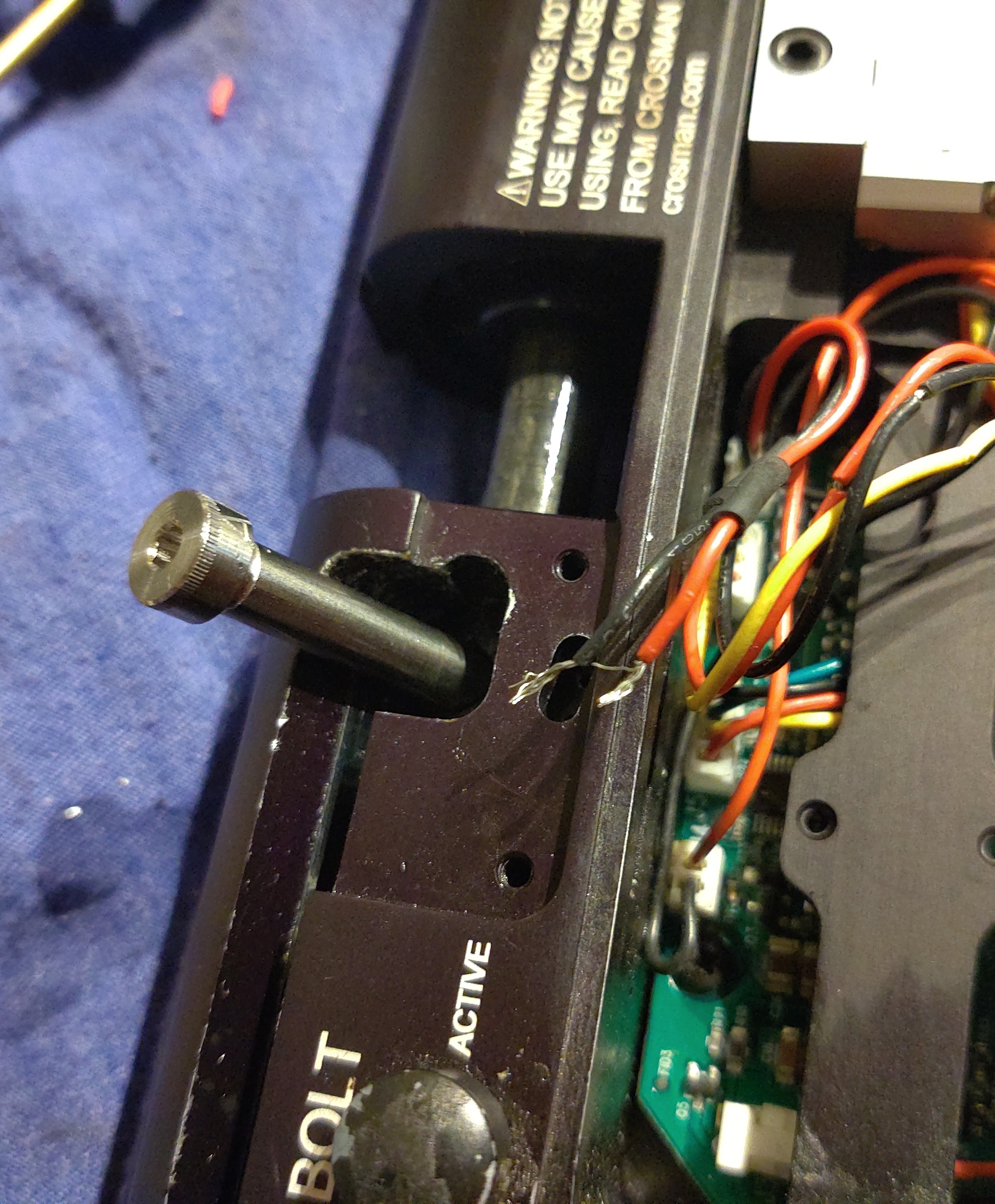

Hope someone can help me find a replacement bolt probe handle. It's for a .357 Rogue. I snapped it off in the probe but was able to back out the threads and remove it.
It's 55ish mm long and stem is 6mm. I'm guessing thread is 8x32 which I think is standard for benjamin ?
Just looking for where to get a replacement or if someone can machine one ?



[Treefrog]

Your local machine or welding shop can either TIG-weld it back together and re-cut the threads or make you a new one. It won't cost all that much, either.

Cheers,

J~



[Dr. Kralenstein]

If it's 8-32, maybe an extended bolt handle from discovery rifle would work?



[marflow 777]

so, i must ask did you call Crosman
there is no parts diagram that i can find but they can find the part and order several



[WoodWelder]

I know nothing of this rifle but does it need to be that long?

Can new threads be cut on the existing broken part?



[marflow 777]

if the part is not available at Crosman go to the hardware store and look for a shoulder bolt the right length, the end could be impoved after that but you will be able to use the rifle till you can find the part
Google shows me nothing and the should bolt could cost more than you think

https://www.google.com/search?q=8+3...GCAEQARgUkgcEMjAuM6AHlng&sclient=gws-wiz-serp



[Healthservices]

Double check threads first.

Allen



[Bngen3]

Thanks all, I have a thread gauge on order. maybe I can just find a shouldered bolt that will fit. I have already asked Benjamin about parts diagram and if any parts are available for the Rogue and was given a hard no being it was discontinued 12 years ago.



[Bngen3]

Also the micro lever switch on the gate that activates trigger disintegrated at the same time so been on the search for that all day. I think I found a replacement of correct specs on Ebay and should have that by end of next week. Moral of the story, don't buy a 12 year old electronic gun, or don't buy one ever..i dunno..haha



[marflow 777]

Ebay has many bolt action knobs
you might have to make it up for a bolt and a knob and or use all thread and do the same i have been looking and it seems harder than one would thing
https://www.mcmaster.com/products/s...ize~8-32/316-stainless-steel-shoulder-screws/



[John "spysir" Blount]

Wouldn't really know but if 8x32 you might try calling Dennis(NOT on a Sunday):

The Airgun Show Table

John



[Bngen3]

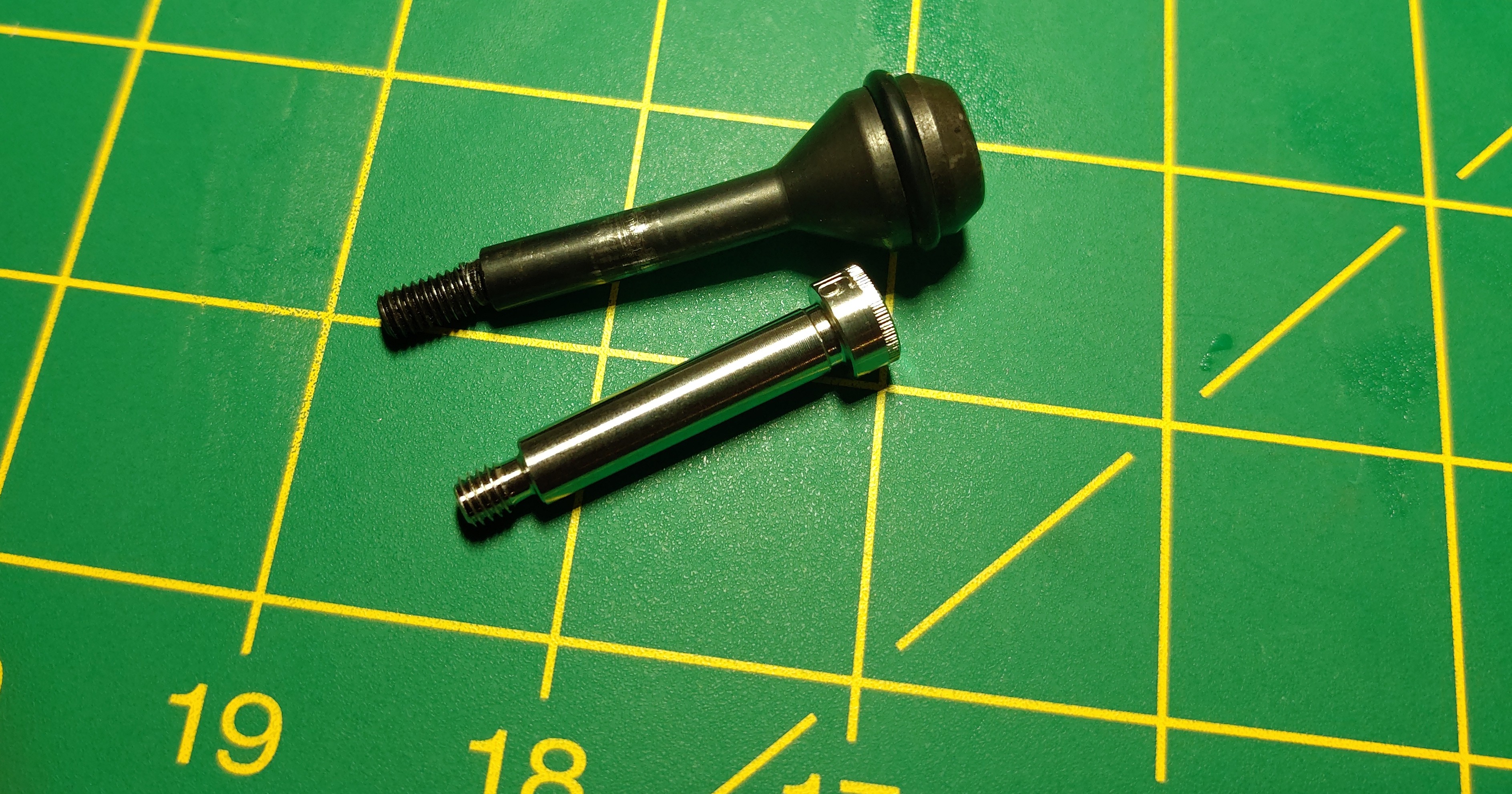

turns out it was a 10-32 thread, found a shouldered bolt that worked just fine. thanks all for the help. Now just waiting on the lever switch to get here and hope that works.



[marflow 777]

not see the bold end i would look for a wood half round that would fit epoxy it on
or there are many bolt handle knobs on Ebay
https://www.ebay.com/sch/i.html?_fr...acat=0&_odkw=rifle+bolt+handle+knob&_osacat=0



[Bngen3]

All good



[marflow 777]

well you could cut the old bold handle off and drill and epoxy on the bolt it needs to be Pretty LOL



[Bngen3]

haha, this gun is far from pretty



[Hateful McNasty]

haha, this gun is far from pretty

Well... Pretty ragged .. not to say I don't got some ragged out myself that shoot good still ..

Ya, one said. Cut and drill ... I could see cut the bolt head off thread it then the gun bolt handle "ball" off. Drill and thread it and screw it on the new bolt with a drop of red .. it almost looks factory then ..lol
