Carbon fiber 4500 PSI Paintball tanks

[Rsanbor7]



I am diving into the PCP pool. I have two 4500 PSI carbon fiber tanks that were used for paintball. I am confident that I can use the tanks to fill PCP but is there a fill adapter that will screw on to the paintball valve that has a fill vale a bleed vale and fill whip.



[BigTinBoat]

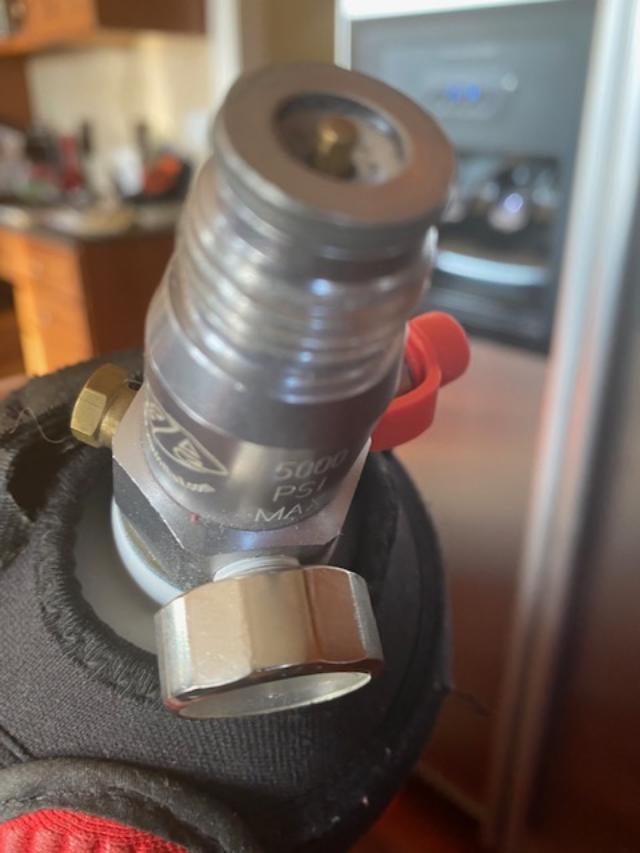

I use this CP Products ASA. I put a gauge in the one port and a microbore hose with female foster in the other port and it works perfect. It has "virtual resistance" so easy to turn under pressure was well as a built in system bleed. After filling you just unscrew the knob which shuts off the air flow. You then keep unscrewing it and it bleeds the system

https://www.ansgear.com/Custom_Products_Dovetail_On_Off_D_Black_p/cponoffasadblack.htm



Just remember that you will only be able to fill the PCP to whatever the output is of that regulator. I have 2 different tanks. One shimmed to 3100psi for filling and the other shimmed to 2200 for tethering.



[Jayson]

Same here but I remove the internals from the reg and fill the full bottle potential, that’s my backpack setup, a 68ci paintball bottle. Works good. Fills a 480cc about 3 full fills.



[Rsanbor7]

Ok I understand the ASA and the guage. The microbore fill whip needs a threaded end or you need an adapter with a threaded end to screw into the ASA



[BigTinBoat]

Ok I understand the ASA and the guage. The microbore fill whip needs a threaded end or you need an adapter with a threaded end to screw into the ASA

What I did with mine was put a Female foster into the ASA. The threaded end should be 1/8npt. Then I got a hose of this type. That way I can use the hose on the Output, and then switch ends and use is on the fill to my shoebox compressor.

https://www.ebay.com/itm/Paintball-34-In-Flight-Fill-Whip-for-3000psi-4500psi-Paintball-Tank/261282451762?hash=item3cd5a5d132:g:43MAAOSwqu9U84jT:sc:USPSFirstClass!21009!US!-1
