Just got the bugger today and im dumbfounded about a few things!

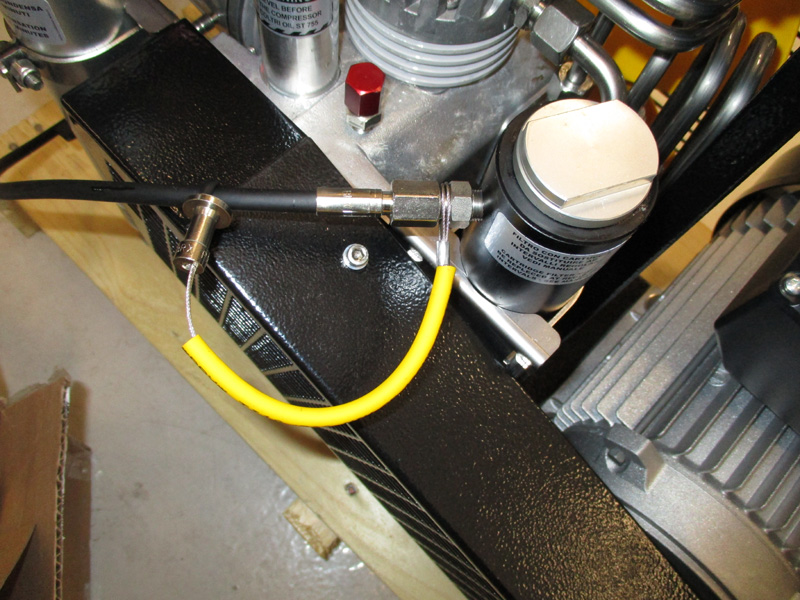

First the "safety" wire on the fill hose, why???

IMG_0511 s.1634055187.jpg

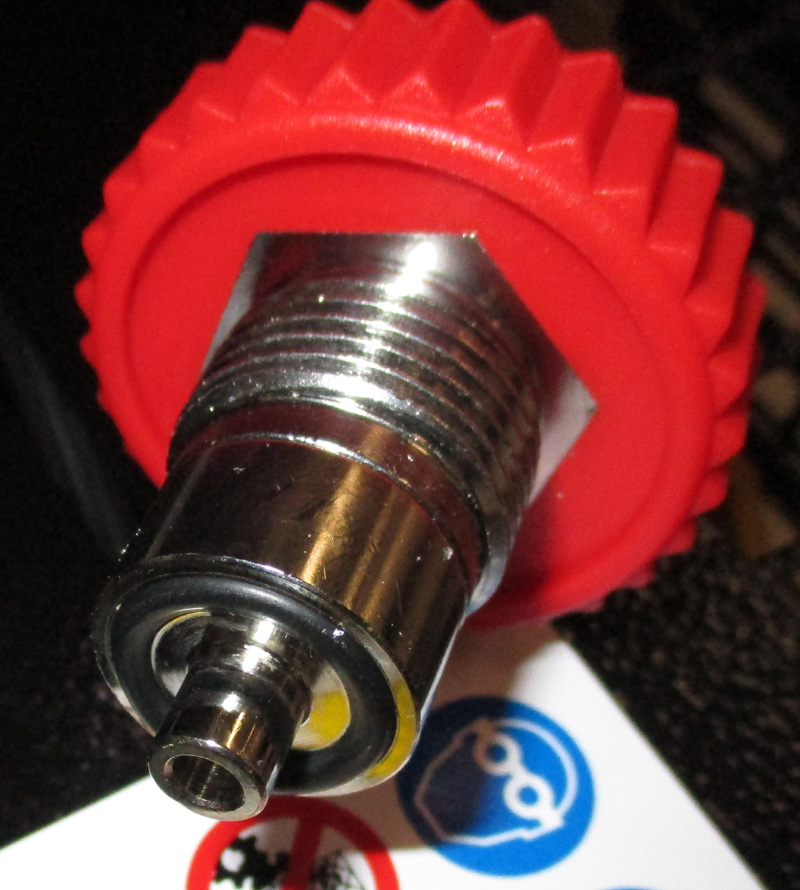

Next the extension on the DIN300 fill fitting, why???

I have never seen it before and none of my 7 300bar bottles accomodate it!

IMG_0513 s.1634055308.jpg


After turning it down it was as i feared, the flat part is so wide that it wont hardly fit in a DIN200 bottle, again why?

Are they so scared of you lot that every little bit has to be 100% lawyer proof?



Works as advertised and topped of a 12 liter bottle from 100bar to 220bar ~ 1440 liters in 23min.

Not nearly as noisy as i feared, a standard 1 cylinder 2hp shop compressor is very noisy and has a harsh sound, this is more like a steady "loud" hum. Have'nt done numbers yet but i would say at least 6-8 times faster than my trusty Altaros Booster.

I think it might be a "anti whip around" safety feature in case of a leak in the hose or the end coming loose.

A loose fire hose with the heavy nozzle at the end can whip around and easy cave in a human skull if it hit you, i am sure a high pressure smaller hose are also painful if it get loose and hit you.

Bigger scale.







https://youtu.be/ViXvWd9VpjA



PS. Once during a fire drill on the lower car deck on the ferry i worked on a fire hose got loose and performed the METHed up snake dance, in that one instance i dove in head first and secured it, but really the right thing is to run and stop the pump or close the valve in the other end.





  • Like
Reactions: Chickenthief
Upvote 0
I think it might be a "anti whip around" safety feature in case of a leak in the hose or the fill end coming loose.

A loose fire hose with the heavy nozzle at the end can whip around and easy cave in a human skull if it hit you, i am sure a high pressure smaller hose are also painful if it get loose and hit you.

Bigger scale.





https://youtu.be/ViXvWd9VpjA

Click to expand...


But 1½" from the outlet on a 26" "whip" ?

Makes no sense?

******************************************

Ahhhh now the penny dropped!

If it rips of the compressor and then the bottle will whip the snippet around violently with a full belly of air!

Dang Coltri upped their safety game :)

Upvote 0
Chickenthief “Next the extension on the DIN300 fill fitting, why???”


Thats a DIN 300 fitting, designed to prevent overfilling of 232 BAR tanks. An explanation of the different fittings, with helpful photos, can be found here-

http://www.nigelhewitt.co.uk/diving/din.html

Click to expand...


I know that but the small tube in the middle i have never seen before and as i said it wont fit any of my 7 DIN300 bottles
