5.28.2023 UPDATE: As of today, I've got ONE (1) last kit left so if you want one of these - grab one before they're gone b/c I will not be restocking for awhile on these...
[Please note: if you have one of the original Impact MkI w/ a serial # BEFORE 183534, P/M me and I can still make a complete kit for you if needed...]
Hello AGN:
I sold some of these FX Impact o-ring reseal kits awhile back and they were pretty popular but they didn't include the M3 so I just spent way more time than I care to admit very carefully reviewing the following FX schematics to update the kits to include every o-ring you'll ever likely need to service your beloved Impact (this was an insane amount of work but I was already too committed to eject!):
FX Impact MkI & MkII (without Power Plenum)
FX Impact MkII (with Power Plenum)
FX Impact M3
FX Impact M3 Barrel
FX Air Bottle
Each one of these kits will now allow you to fully reseal every o-ring in the action, power plenum, factory regulator(s), barrels and, yes, even the air bottle at least once (with plenty of o-rings to spare) FOR EVERY FX IMPACT MODEL FROM THE MKI (after serial #183534), IMPACT X, MKII (with or without Power Plenum) AND M3 IN THE MOST POPULAR 0.22, 0.25 AND 0.30 CALIBERS!!! Please note that most other o-ring kits are model/caliber specific or are only for a specific part of the rifle (action, regulator or barrel) - whereas my kit will include all the o-rings you'll need to reseal the entire rifle PLUS ALL 3 CALIBER BARRELS LISTED ABOVE (except for some of the older shrouds - but those don't really ever need to be replaced anyways). For example, if your Impact is normally set up in 0.22 but you occasionally switch it out to a 0.25 or 0.30 barrel, this kit will provide you all of the o-rings you'll need for the barrel inlet, attachment, liner lock, breech and also the STX liner outer o-rings - which means you just have to buy ONE (1) kit even if you have multiple calibers for your Impact!!! To my knowledge, no other Impact reseal kit in existence that provides all of these sizes in one single kit...

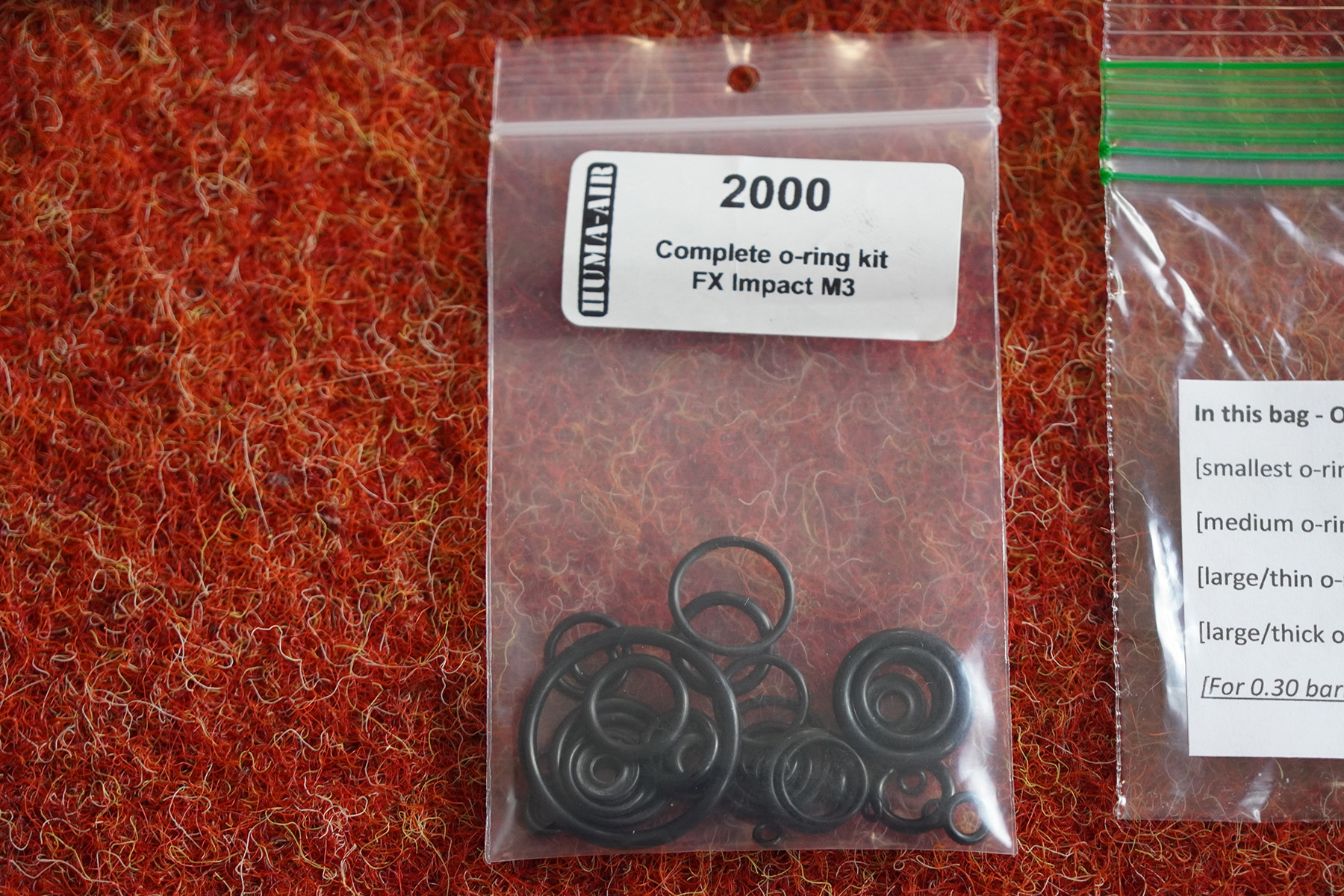

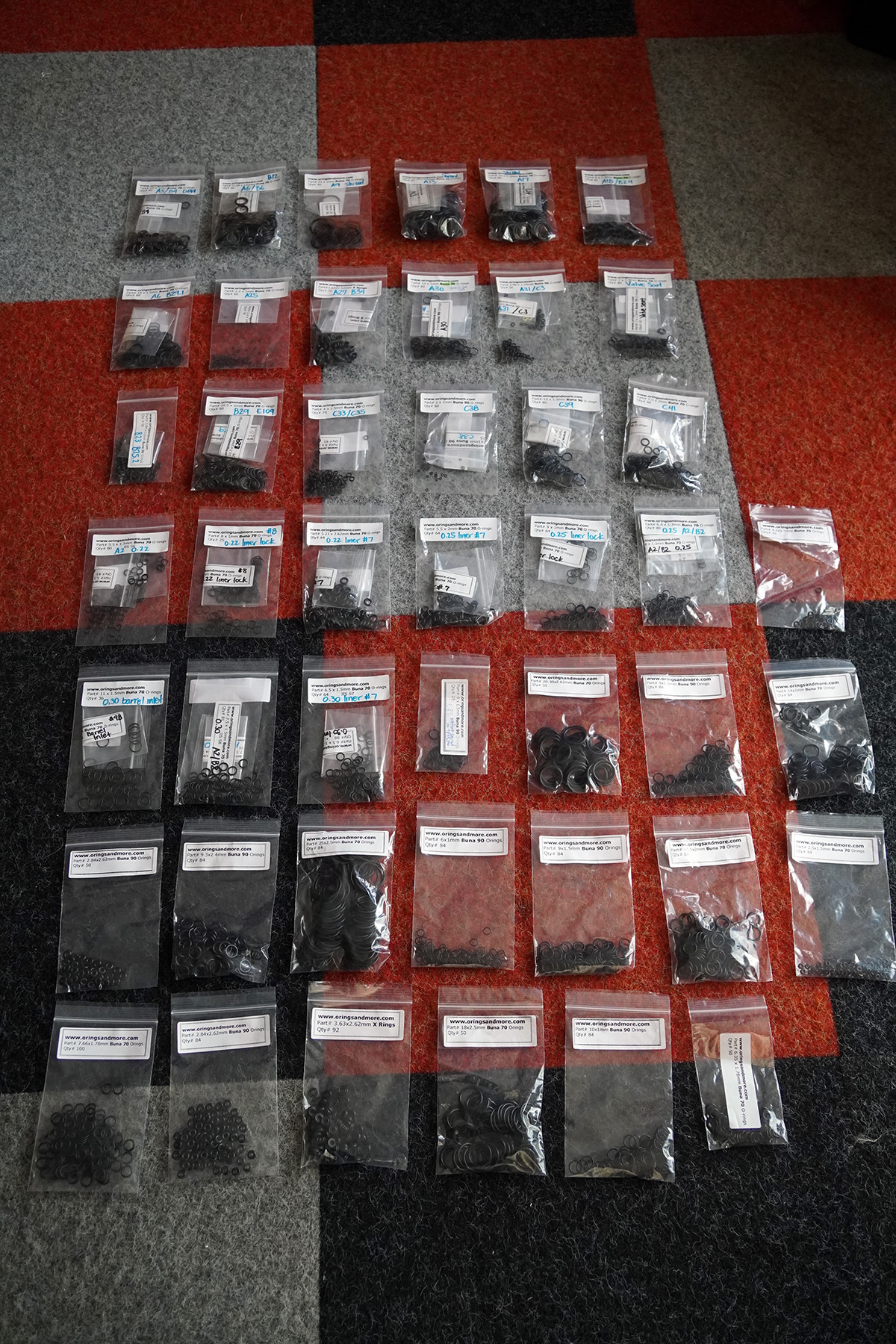

Please see the photos below to compare what the typical commercial "complete" Impact reseal kit looks like (a single, unlabeled bag with a couple dozen orings) versus what my kit provides (multiple bags with o-rings carefully sorted, sized and labeled).

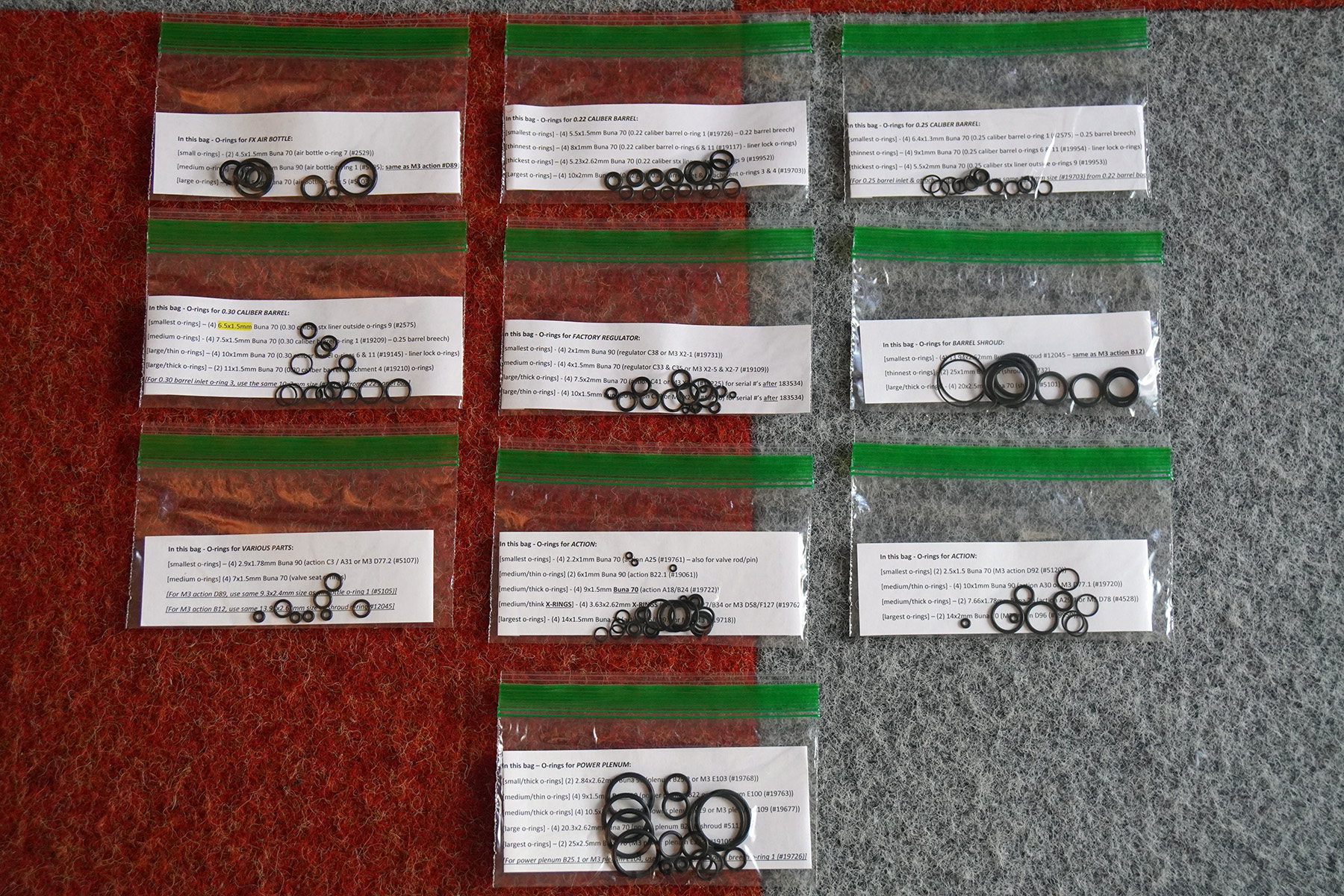

Here's what's included in each kit (o-rings will be carefully separated by rifle part and sizes into ziploc bags and clearly labeled as shown in the photos below):
[(quantity) / size / hardness rating / FX schematic part # (MkI / MkII / M3)]
For action:
(2) 13.95x2.62mm Buna 70 (M3 action B12)
(4) 9×1.5mm Buna 70 (action A18/B24 / M3 C49)
(4) 2.2x1mm Buna 70 (action A25/M3 action D94 / M3 power plenum E105)
(4) 3.63×2.62mm X-rings (action Air Gauges A27/B34 / M3 D58/F127)
(2) 7.66x1.78mm Buna 70 (action A29.1 / M3 D78)
(4) 10x1mm Buna 90 (action A30 / M3 D77.1)
(4) 2.9×1.78mm Buna 90 (action A31/C3 / M3 D77.2)
(4) 6x1mm Buna 90 (action B22.1)
(4) 10x2mm Buna 70 (M3 action D89 #19703)
(4) 14×1.5mm Buna 70 (action A6/B29.1 / M3 B13)
(2) 2.5x1.5mm Buna 70 (M3 D92)
(2) 14x2mm Buna 70 (M3 D96)
For power plenum:
(4) 9x1.5mm Buna 90 (power plenum B22 / M3 Plenum E100)
(2) 20.24x2.62 Buna 70 (power plenum B23)
(4) 5.5x1.5mm Buna 70 (power plenum B25.1 / M3 E104)
(2) 2.84x2.62 Buna 90 (power plenum B23/B25.2 / M3 E103)
(4) 10.5x2mm Buna 70 (power plenum B29 / M3 E109)
(2) 25x2.5mm Buna 70 (M3 power plenum E102)
For factory regulator(s):
(4) 4×1.5mm Buna 70 (action C33/C35 / M3 X2-5/X2-7)
(4) 2x1mm Buna 90 (action C38 / M3 X2-1)
(4) 10×1.5mm Buna 90 (action C39 – for serial #’s after 183534 / M3 X2-8)
(4) 7.5x2mm Buna 70 (action C41 – for serial #’s after 183534 / M3 X2-4)
For air bottle:
(2) 9.3x2.4mm Buna 90 (bottle 1 / M3 action D89 #5105)
(2) 18x2mm Buna 70 (bottle 5)
(2) 4.5x1.5mm Buna 70 (bottle 7)
For barrel/shroud:
0.22 caliber:
(4) 5.5×1.5mm Buna 70 (barrel 1 – 0.22 caliber breech)
(4) 5.23×2.62mm Buna 70 (barrel 9 - 0.22 liner outside o-rings)
(4) 8x1mm Buna 70 (barrel 6 & 11 - 0.22 liner lock & barrel attachment o-rings)
(4) 10x2mm Buna 70 (barrel 3 & 4 - 0.22 barrel attachment & inlet outer o-rings)
0.25 caliber:
(4) 6.35×1.27mm Buna 70 (barrel 1 – 0.25 caliber breech)
(4) 5.5x2mm Buna 70 (barrel 9 - 0.25 liner outside o-rings)
(4) 9x1mm Buna 70 (barrel 6 & 11 - 0.25 liner lock & barrel attachment o-rings)
(4) 10x2mm Buna 70 (barrel 3 & 4 - 0.25 barrel attachment & inlet outer o-rings)
0.30 caliber:
(4) 7.5×1.5mm Buna 70 (barrel 1 – 0.30 caliber breech)
(4) 6.35×1.27mm Buna 70 (barrel 9 - 0.30 liner outside o-rings)
(4) 10x1mm Buna 70 (barrel 6 & 11 - 0.30 liner lock & barrel attachment o-rings)
(2) 10x2mm Buna 70 (barrel 3 - 0.30 barrel inlet outer o-ring)
(2) 11×1.5mm Buna 70 (barrel 4 - barrel attachment outer o-ring)
(4) 13.94×2.62mm Buna 70 (shroud #12045 - sames M3 action B12)
(2) 25x1mm Buna 70 (shroud #19732)
(2) 20.3×2.62mm Buna 70 (shroud #5113)
(2) 20×2.5mm Buna 70 (shroud #5101)
PRICE: $29.99 shipped (for each kit - which includes ALL of the o-rings listed above!!!)
