Crosman 2200 Magnum - Disassembly and rebuild = reinstated pester

[iAMzehTOASTY1]

She is back in business!!!
Ordered a new valve, transfer seal, and pump cup.
Came in about 1:45pm
Got to work. Made sure to takes lots of pictures bc I only found 1 other source of pictures online.
Less than an hour later and had it all done!
Function tested a.couple dry fires. Loaded a Hades.
WHAAMMM!!
SHE HOWLED!!
So I slapped another in and grabbed the chrono.
Back to factory numbers!
My first.full teardown/tinker

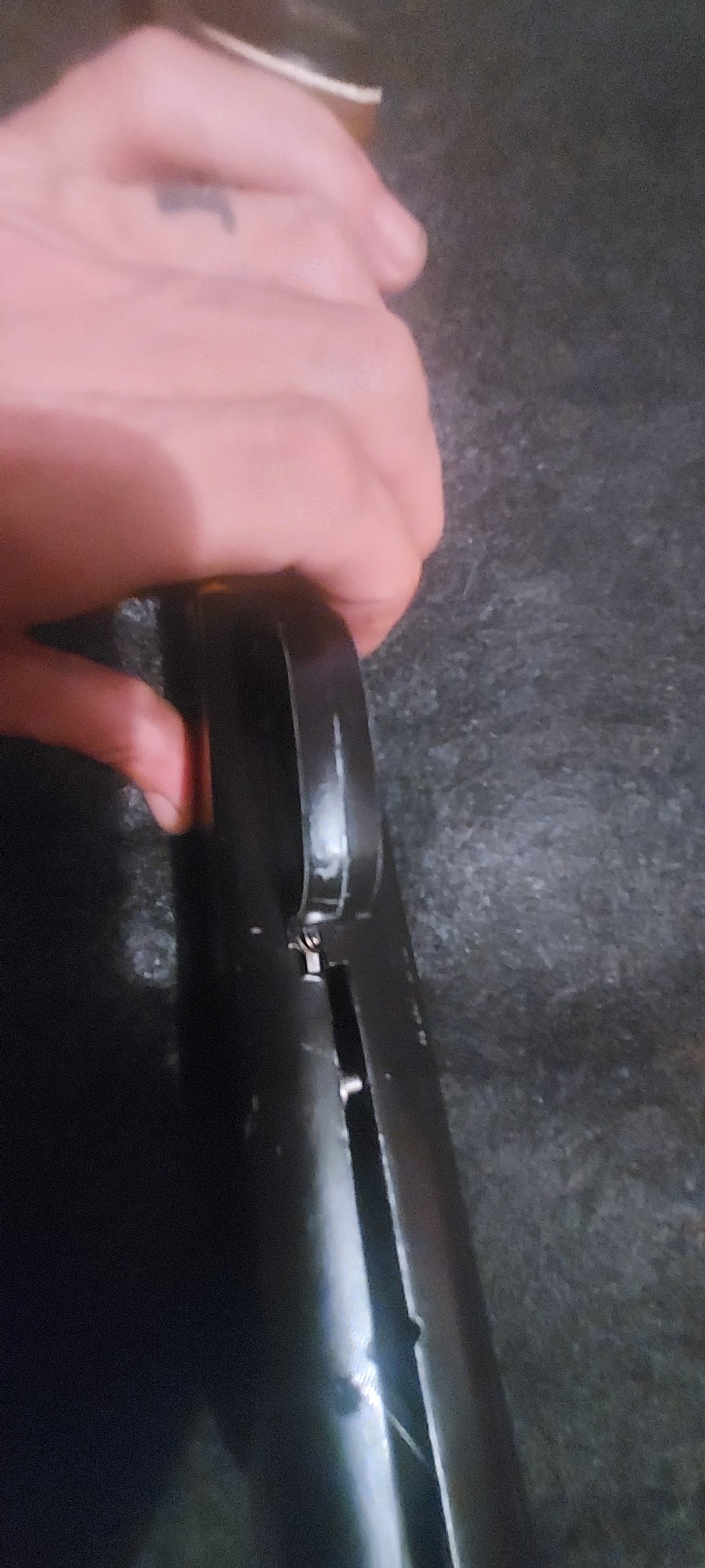

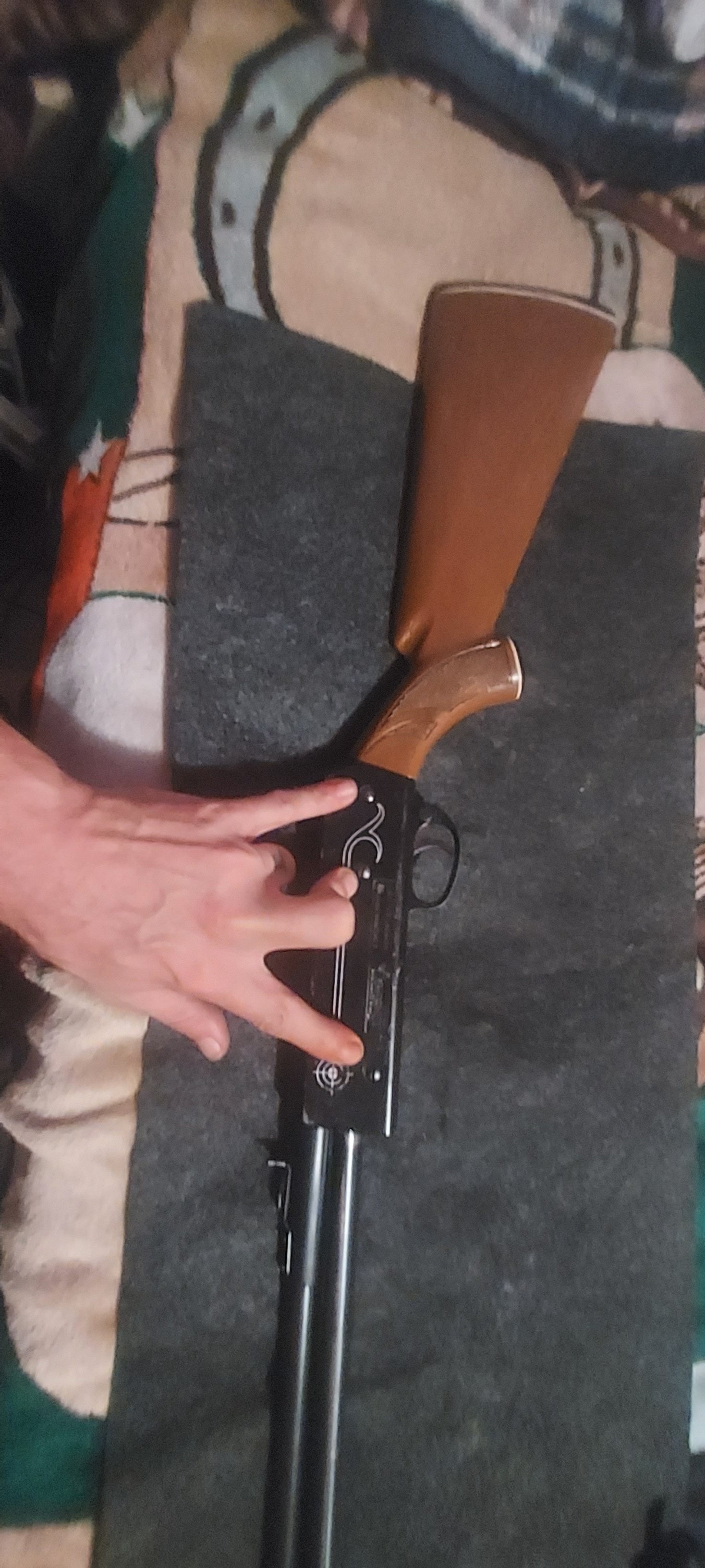

Start here. Remove that screw. There is a nut on the other side that has a.mold in the plastic so that it sits flush when tightened. Removing the screw will allow you to rive both HALVES of black plastic.

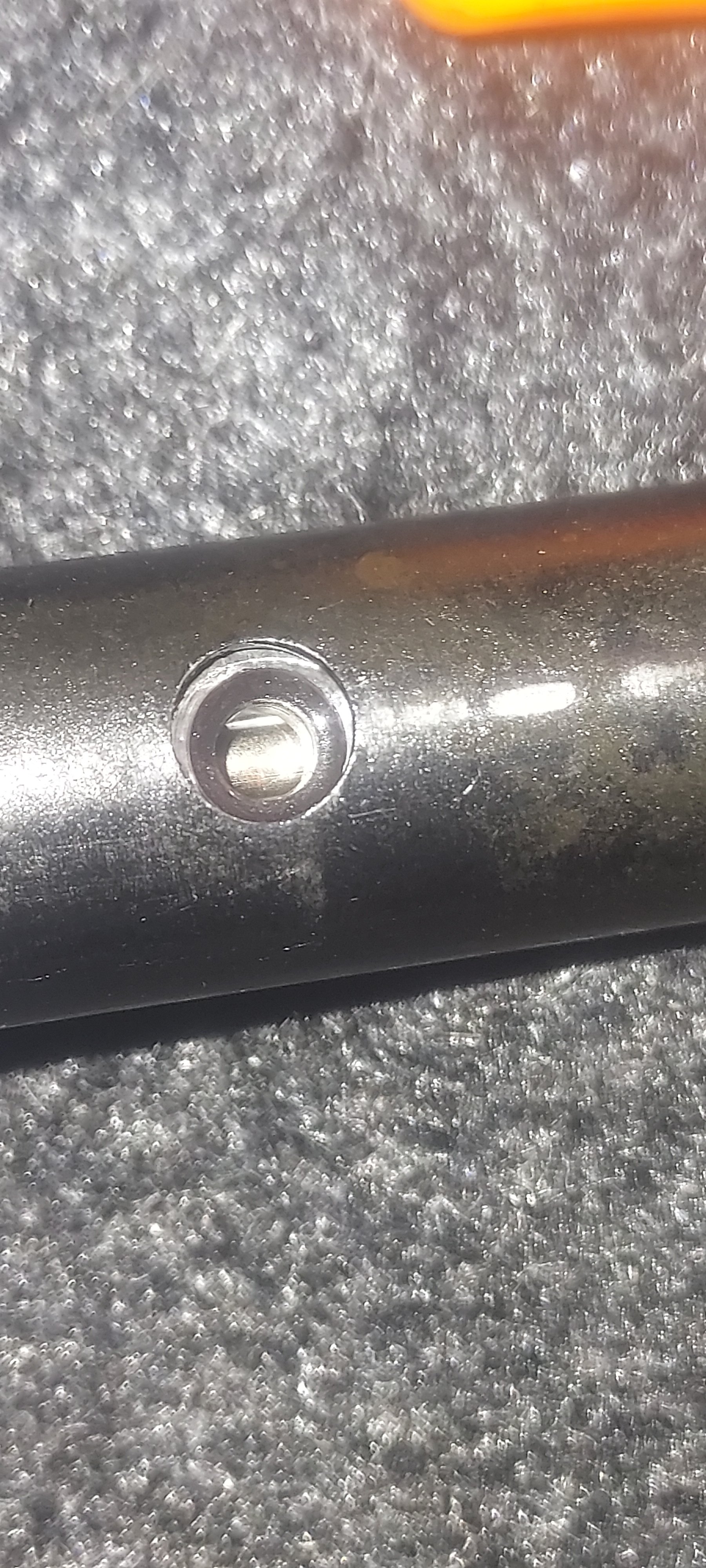

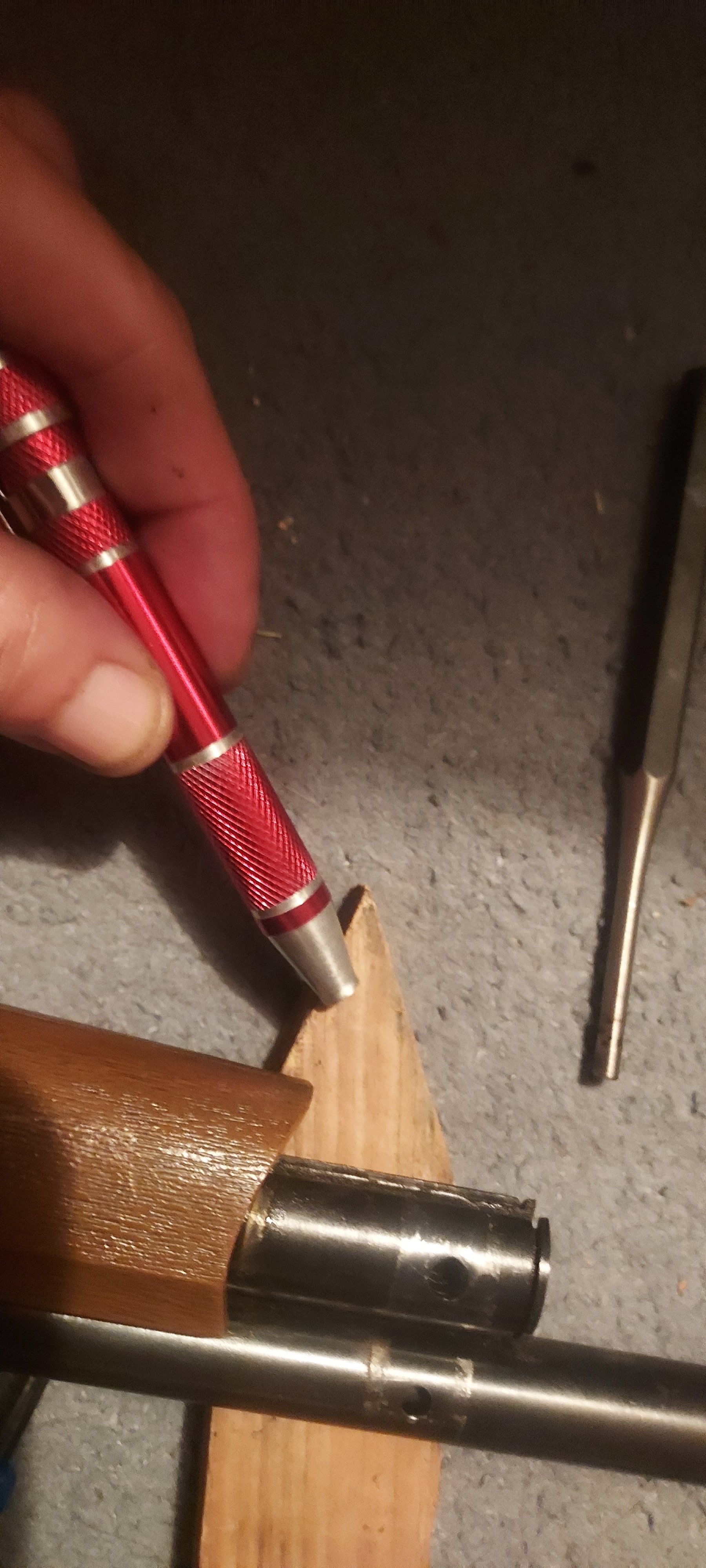

Roll pin to punch out under that black plastic cover.

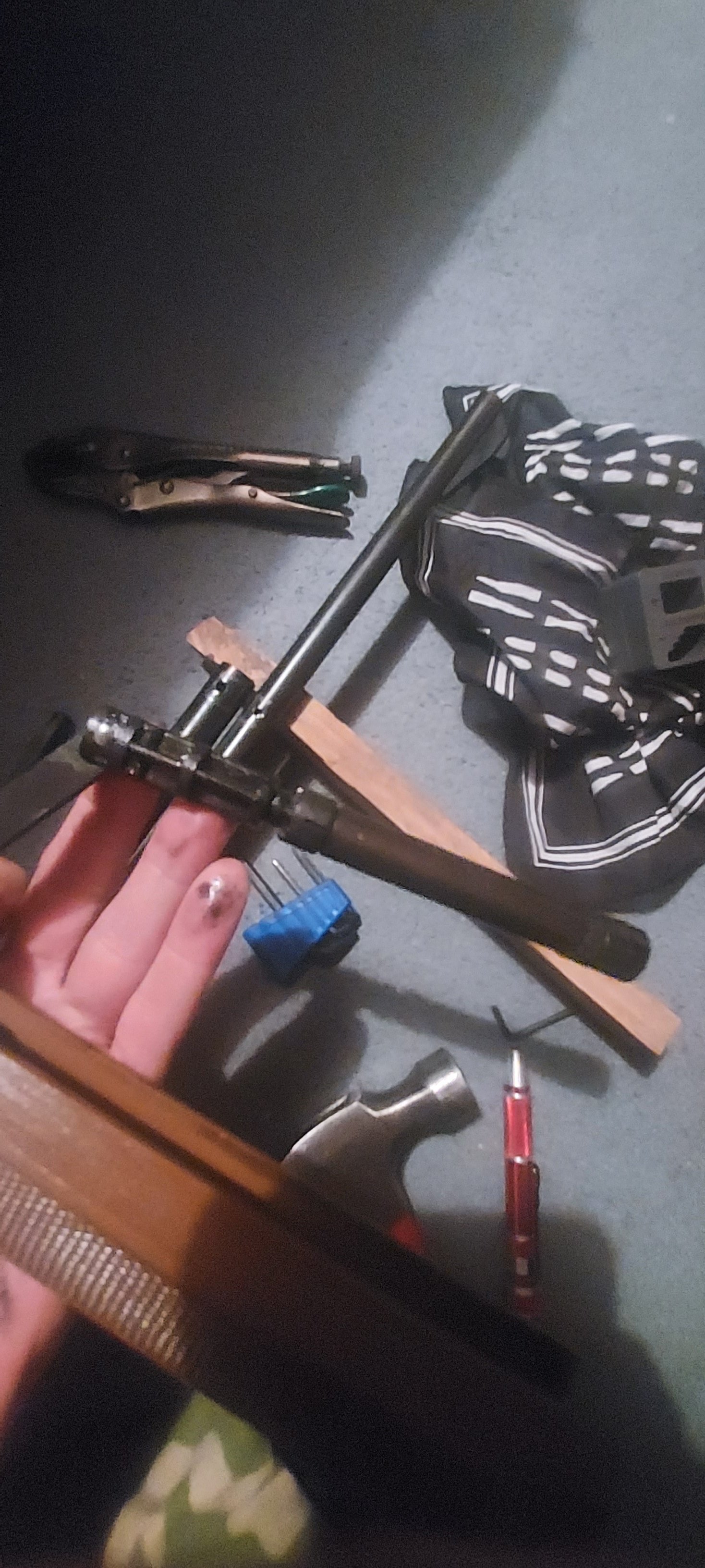

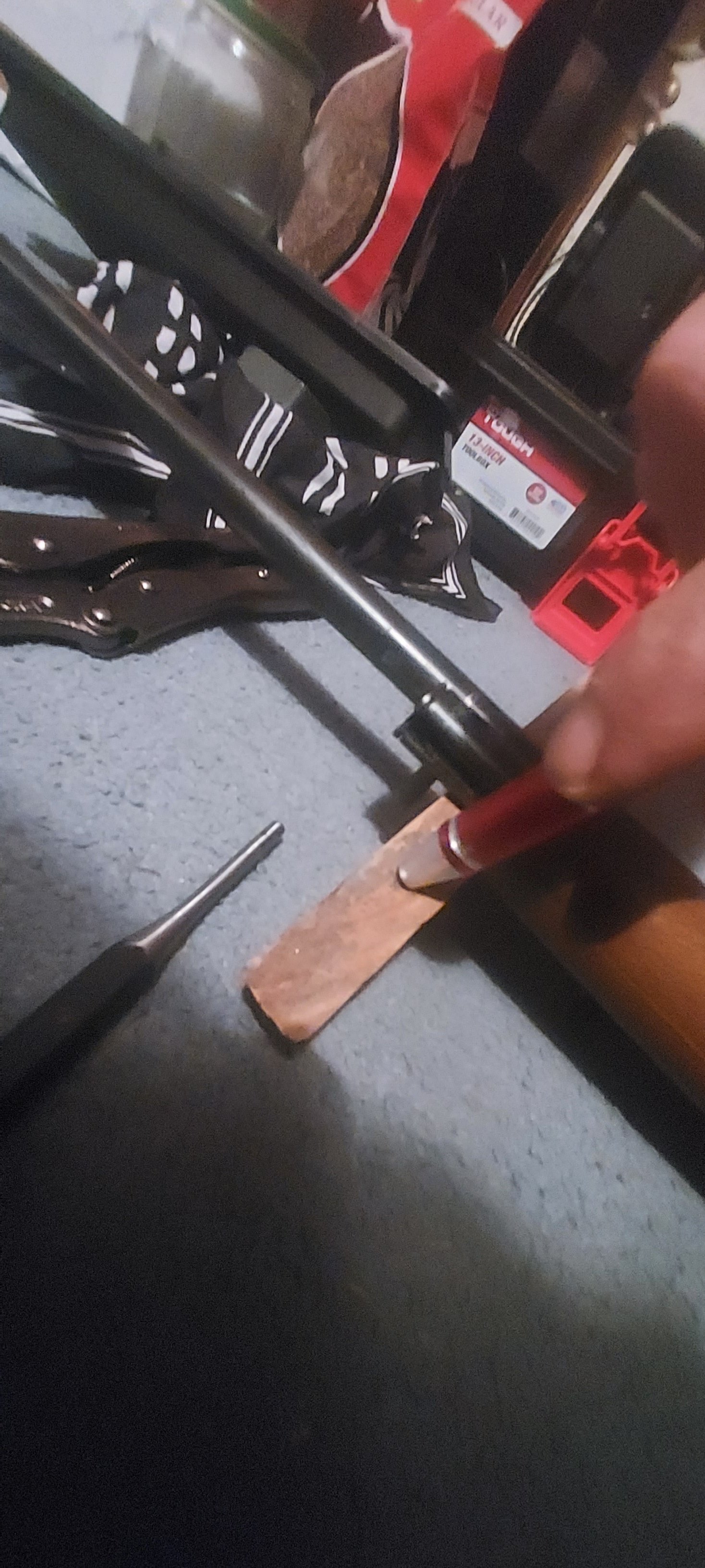

Used a wooden stake to get enough wood under everything while still being level.

Halfway out.

Flipped the stake so that the pin had enough room to get out the rest of the way.

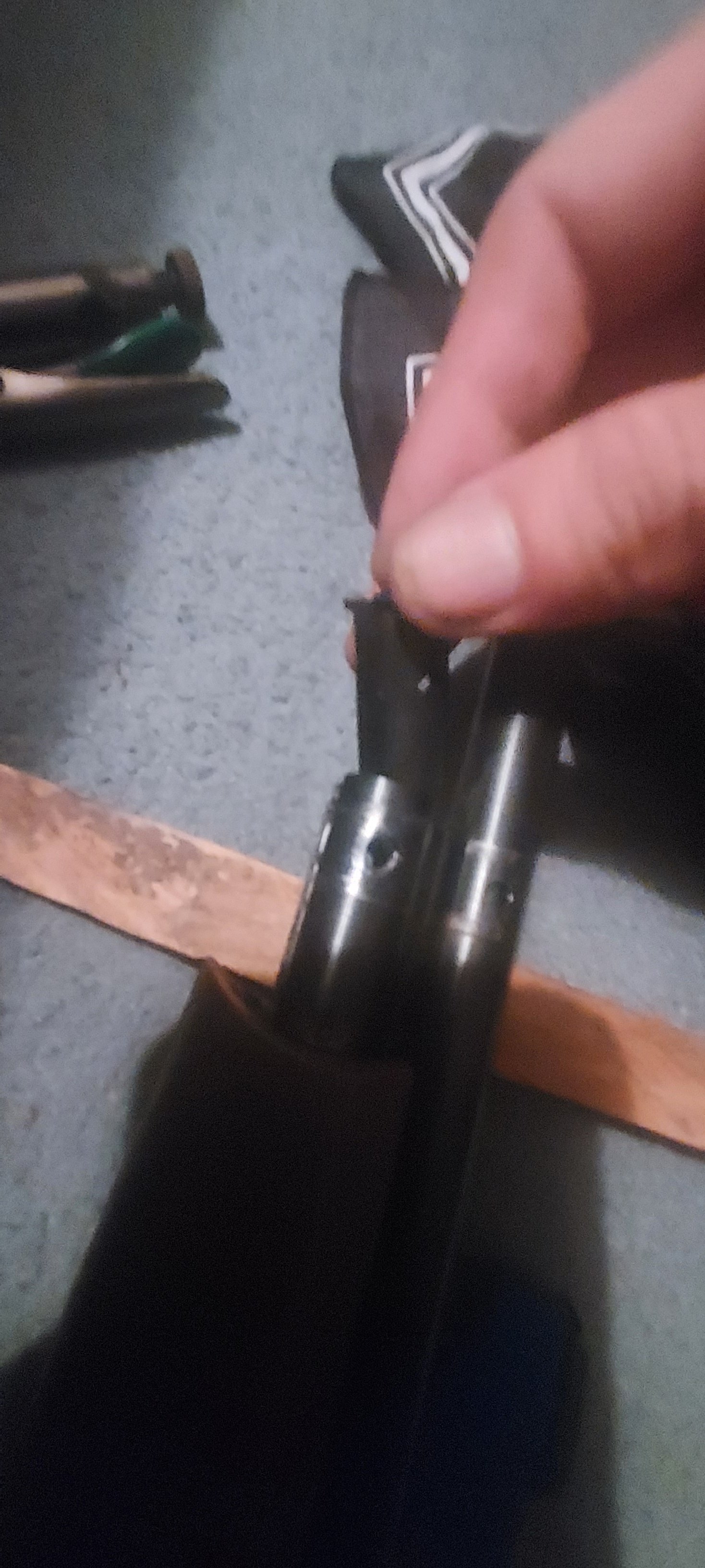

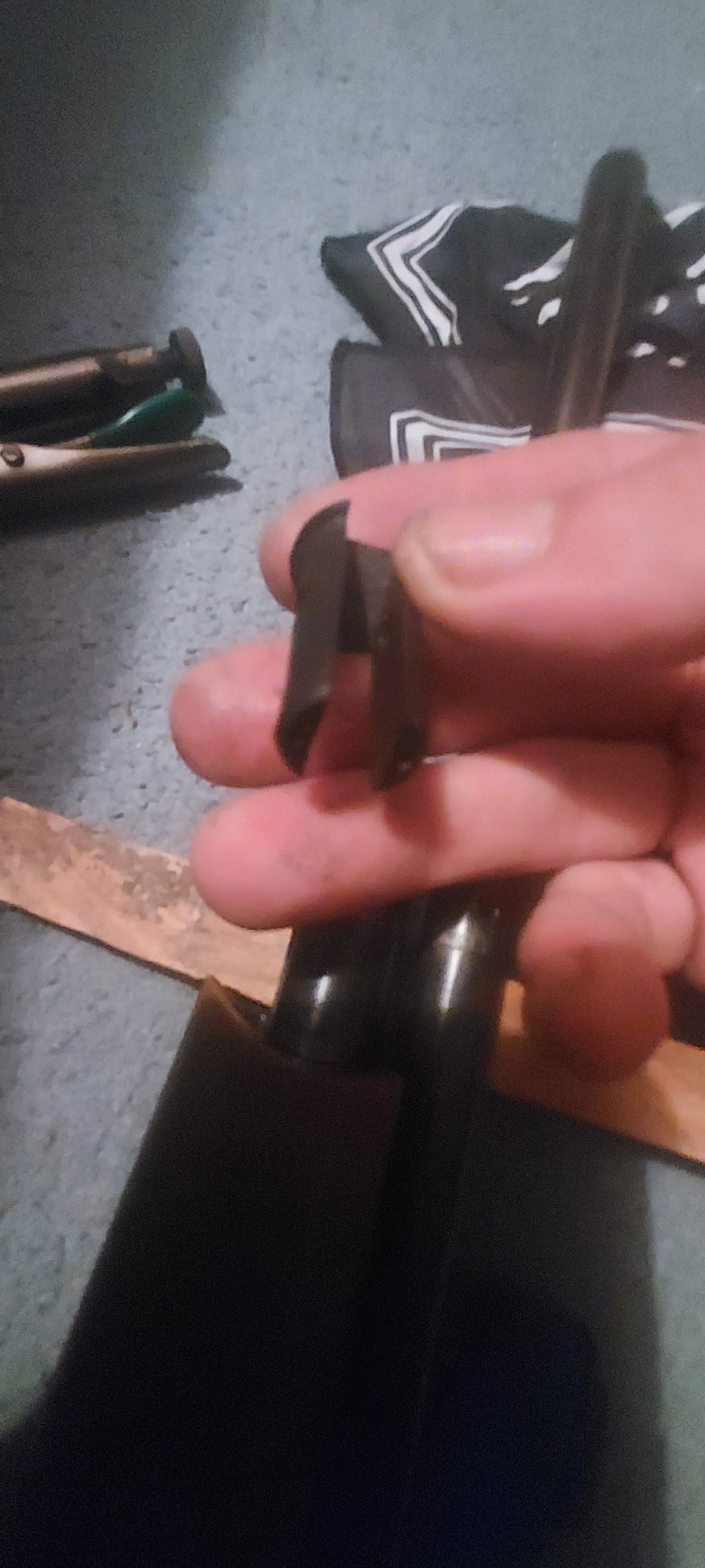

There is a cap in the end that you can now remove after pin removed.

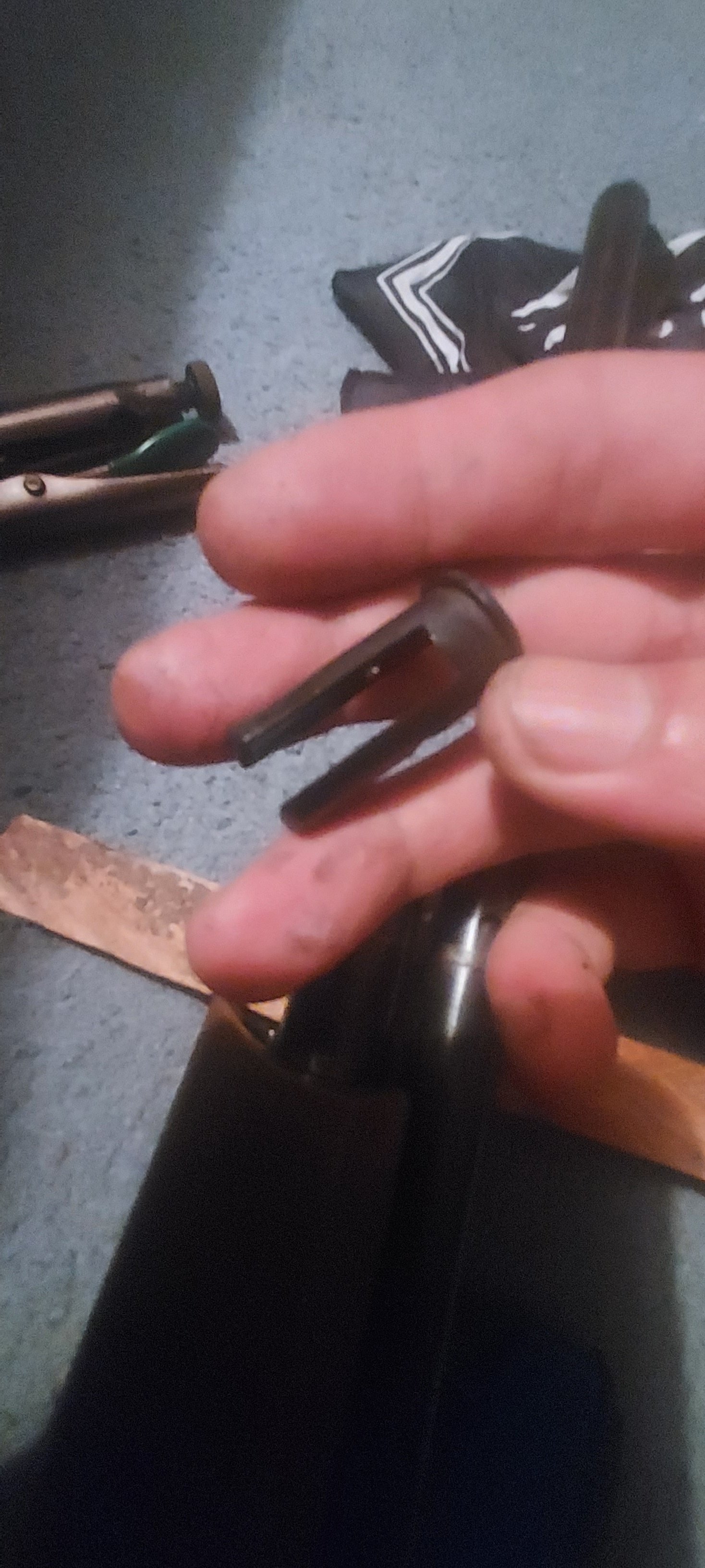

It has a distinct shape.

The fully.slotted side goes.towards the pump handle.

The other side toward the barrel.

That pin also holds the pump arm. So now you can slide out that whole assembly without removing the handle.

Mine was gunky. So I cleaned her up and put some oil on her.

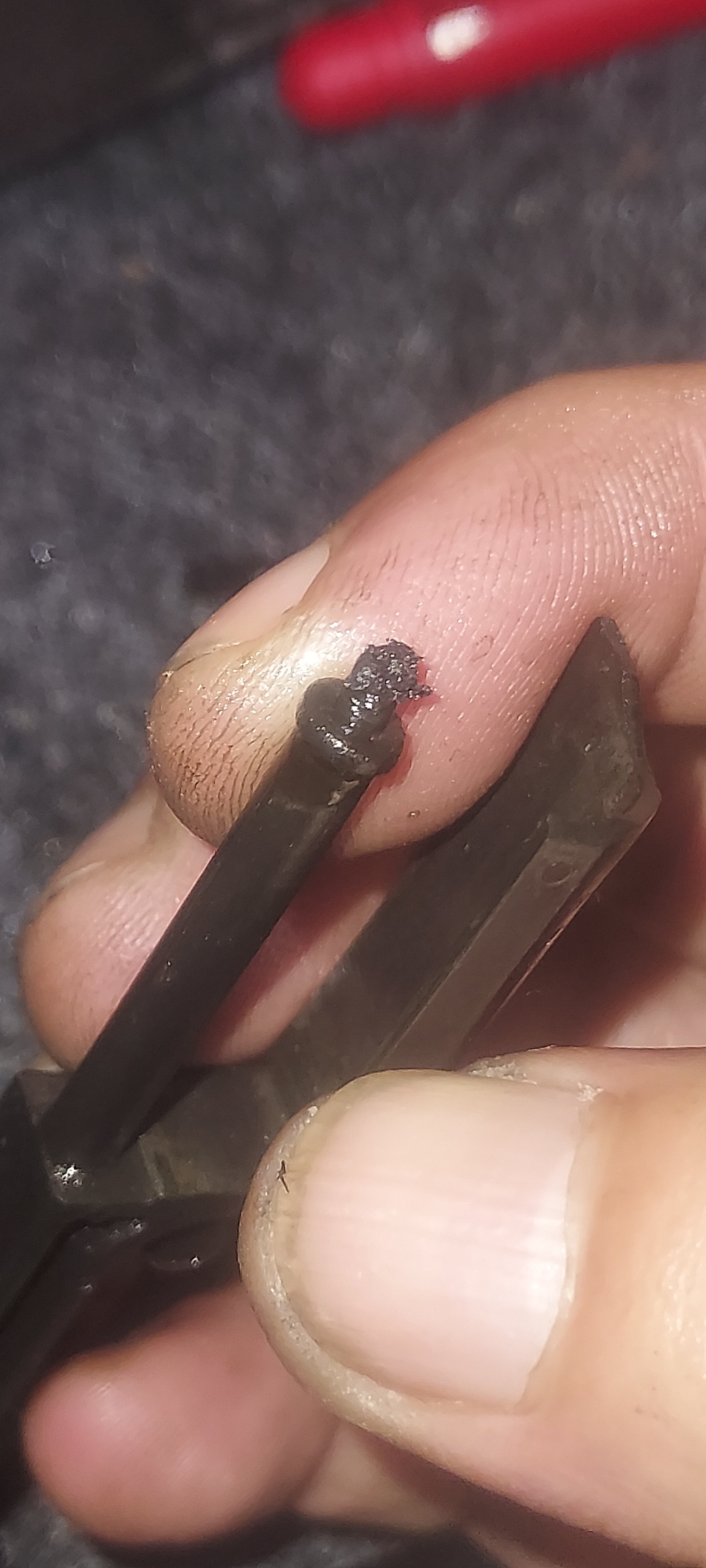

Of you are JUST replacing the cup. You can stop there.(the pump cup is on the end of the assembly attached to the pump handle. Use a cloth to get friction and grab/twist until it pops off. To install the new on I put a dab of oil on and it popped right into place of the old one.

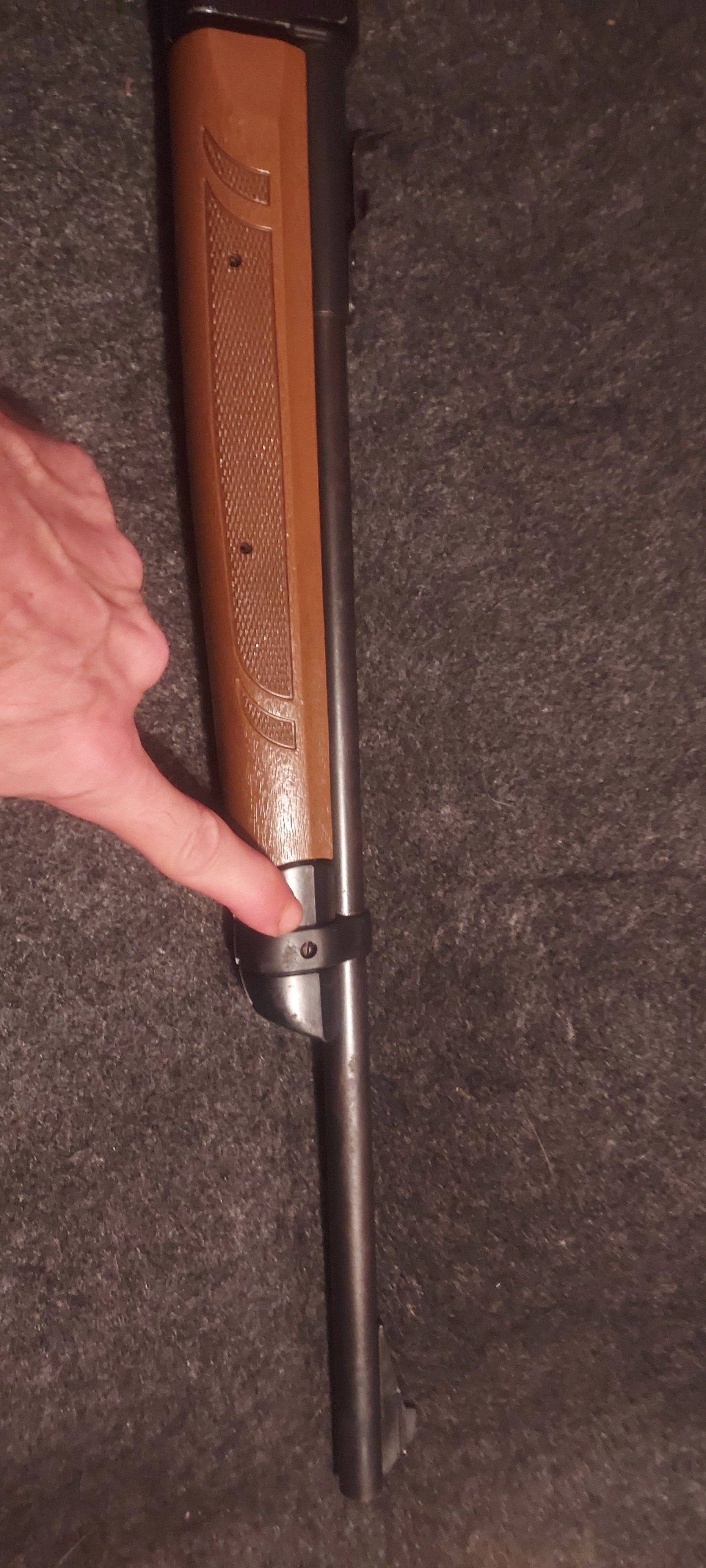

3screws! These 3 screws will start the journey to inside. Once removed. There is a spring...in front of the trigger guard. Just make sure your that area is Pointed at you. If it springs out it lands in your lap.

I took it apart sloooowly to peak in before. That spring.

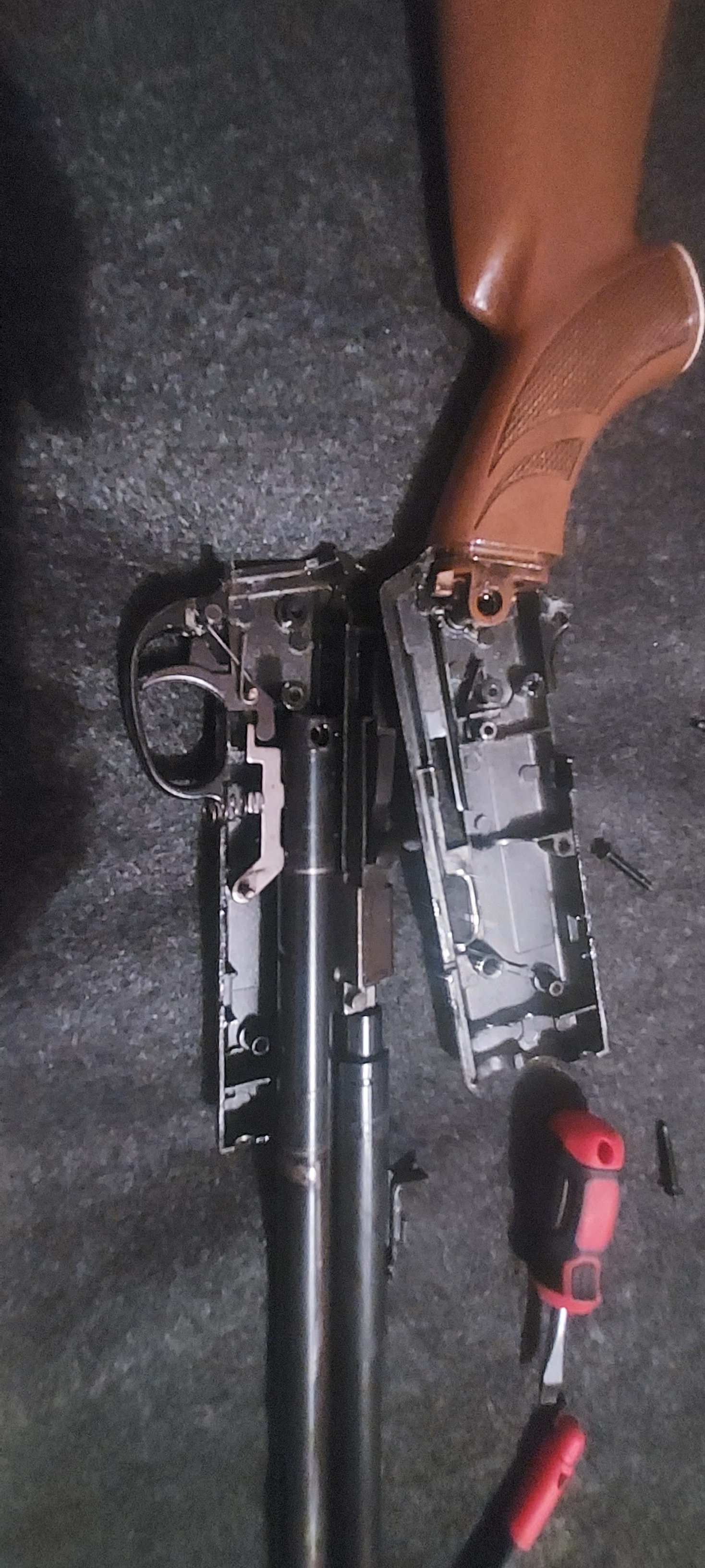

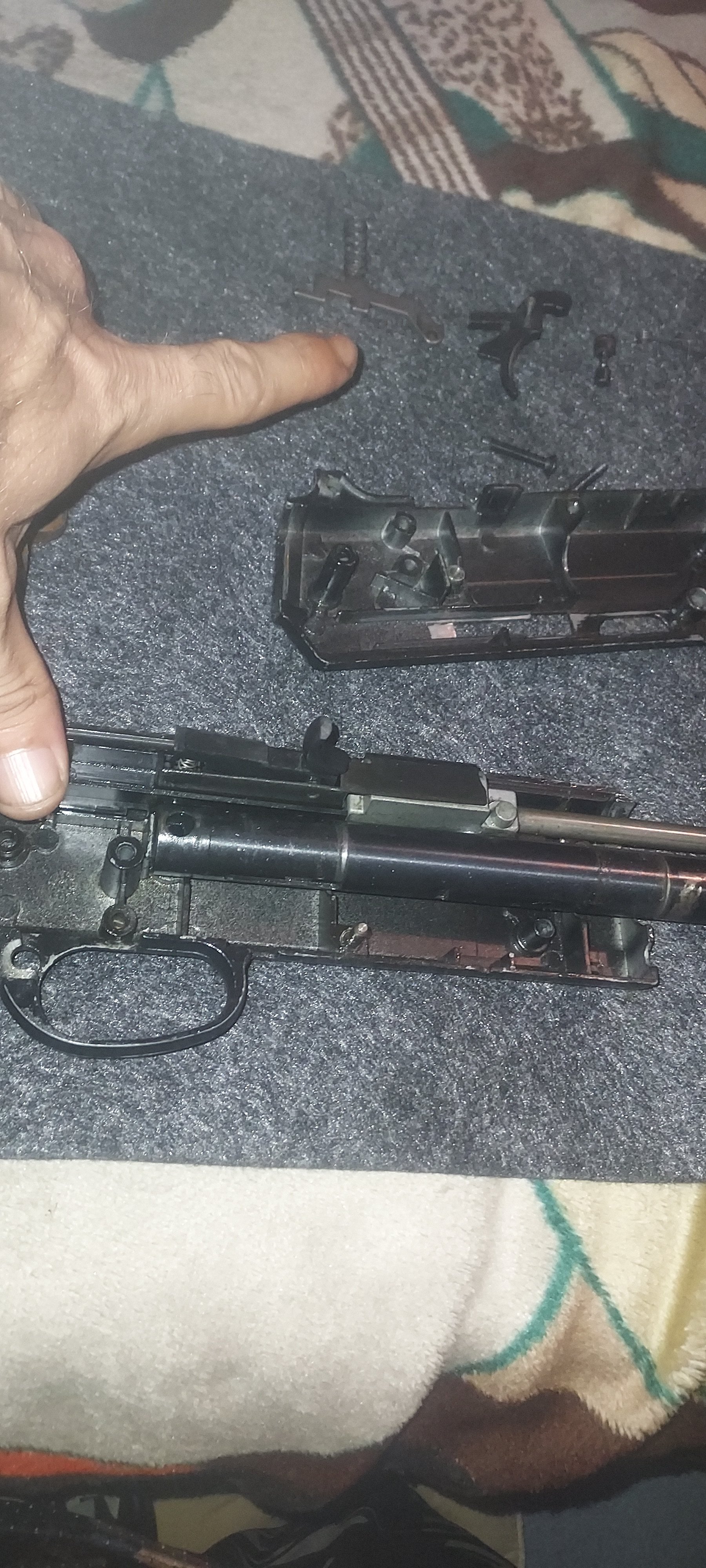

Once in half; you have this. The buttstock is also tied into this. However it has holes and a nice ridge to line it up.

Close up

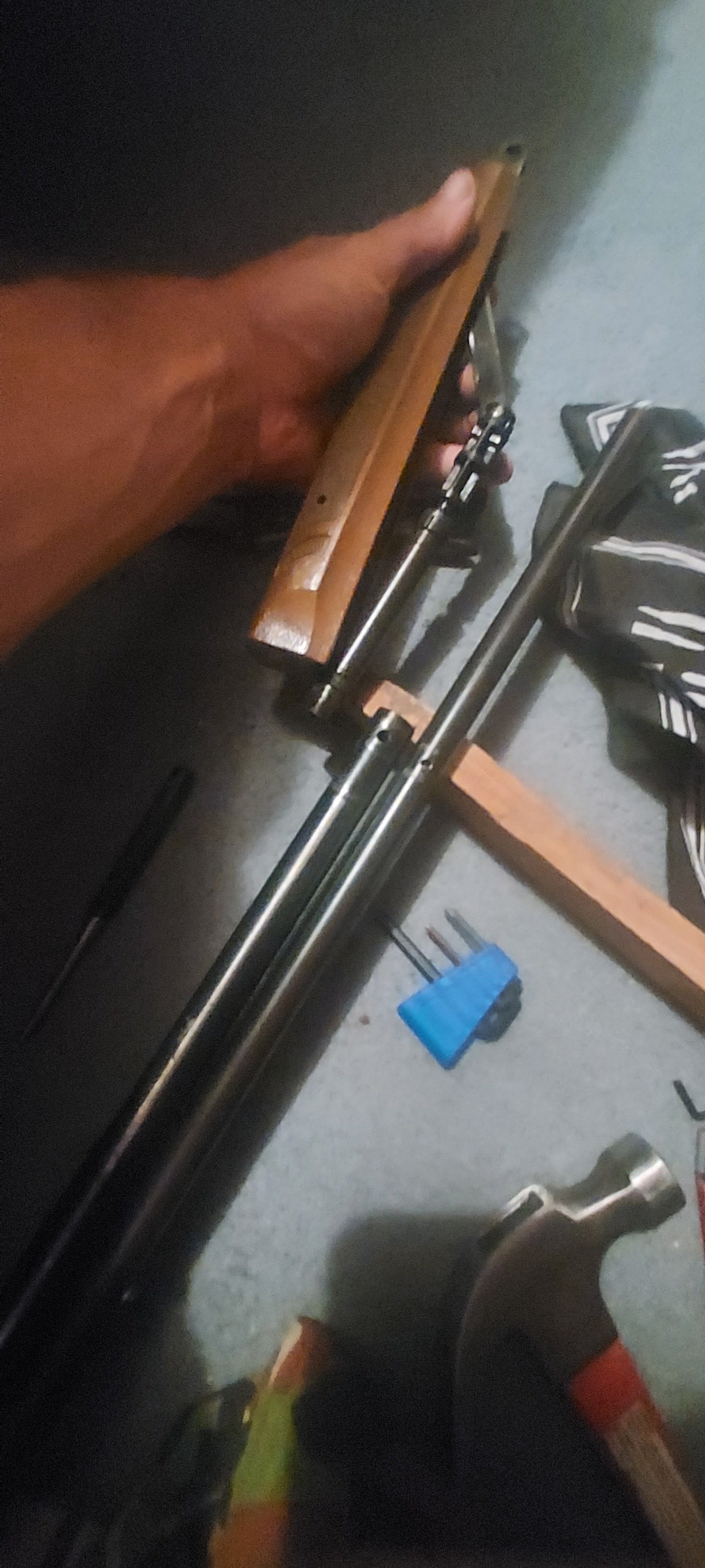

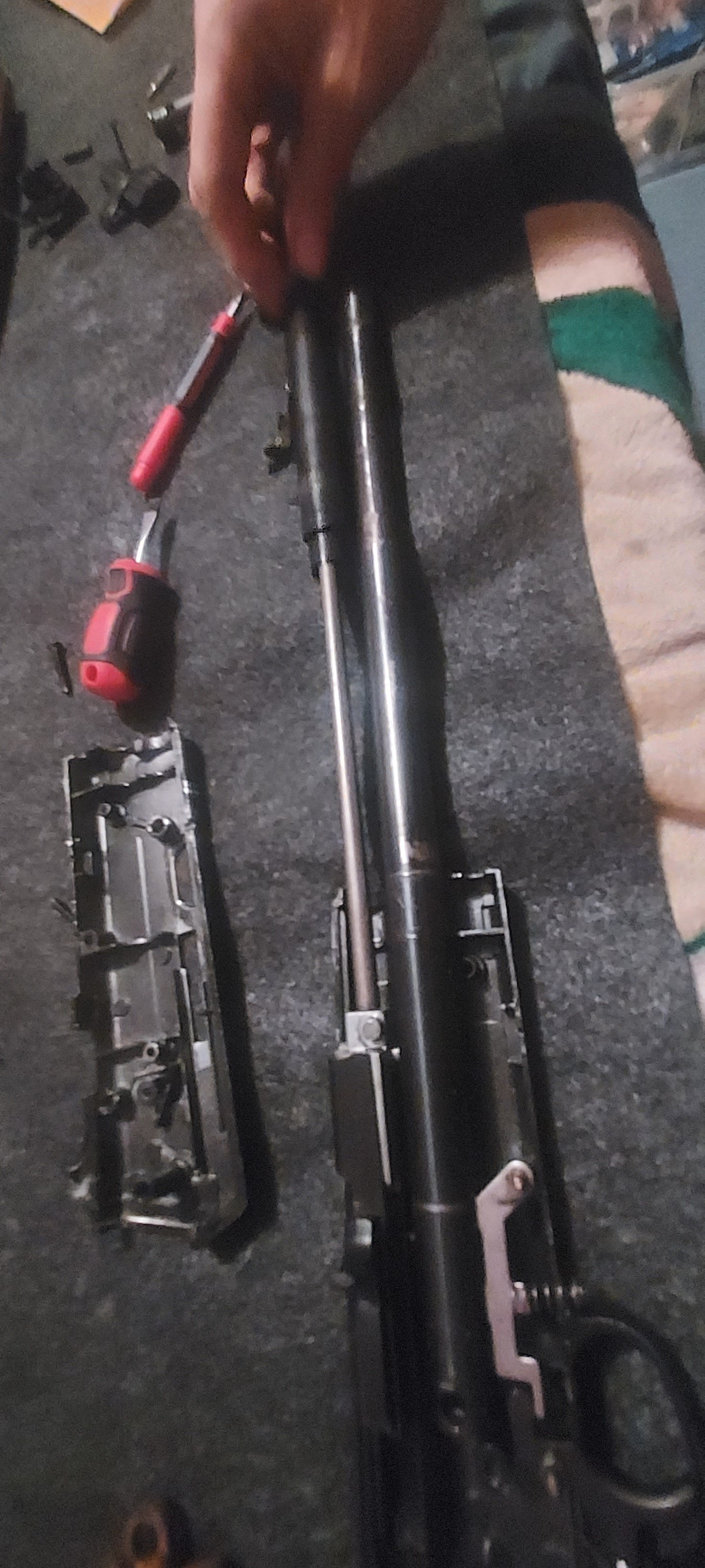

This barrel is "shrouded". It slides.off after your halves are apart.

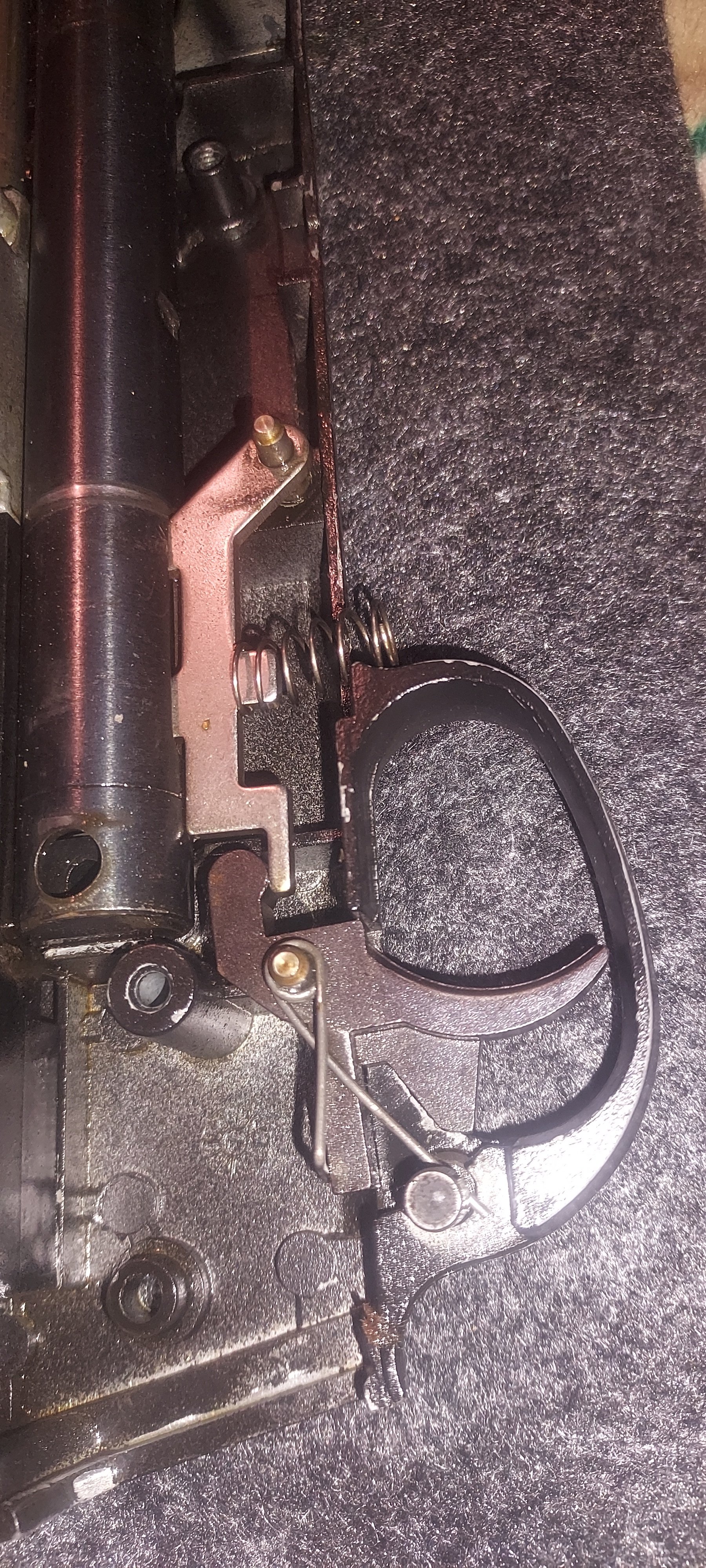

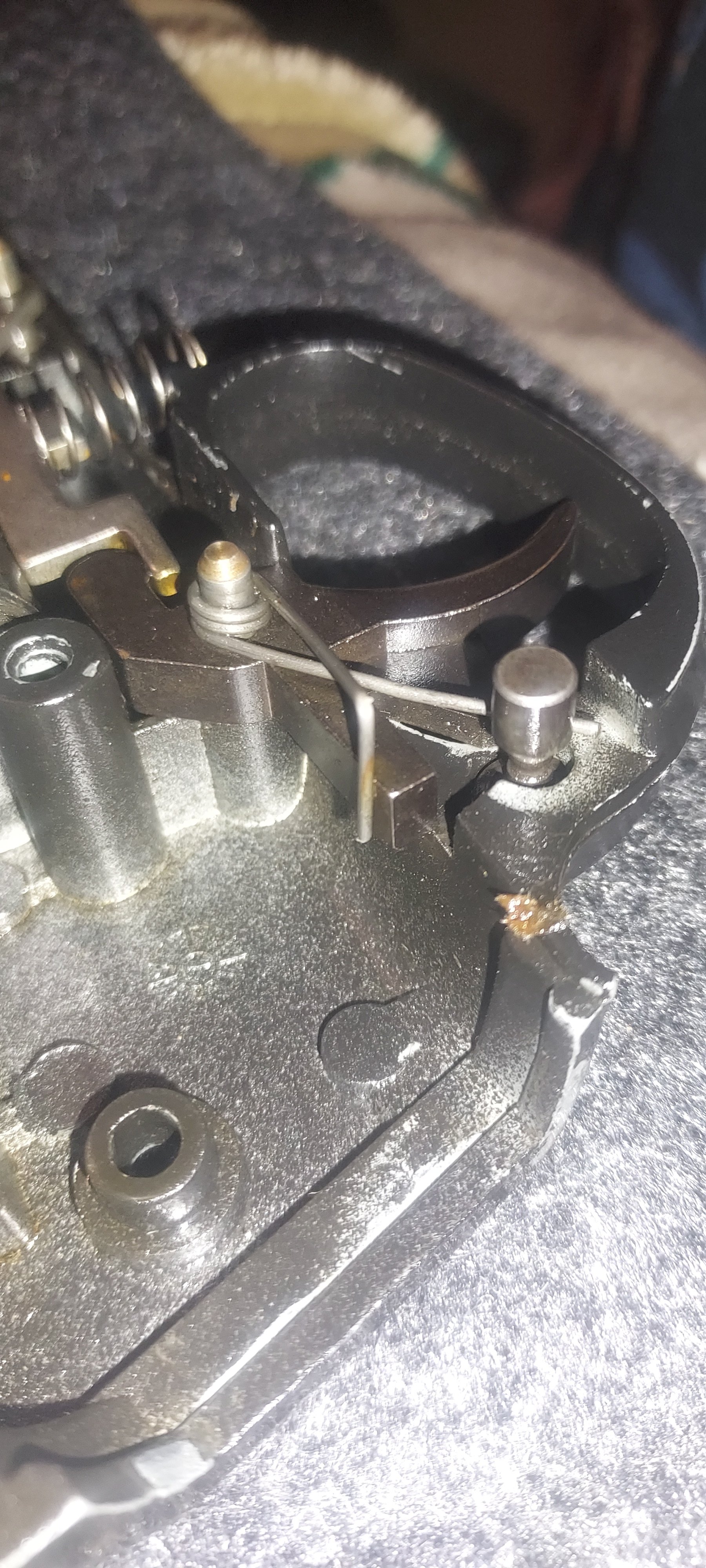

Safety closeup

That spring...can stay like that to hold it in place.



[iAMzehTOASTY1]

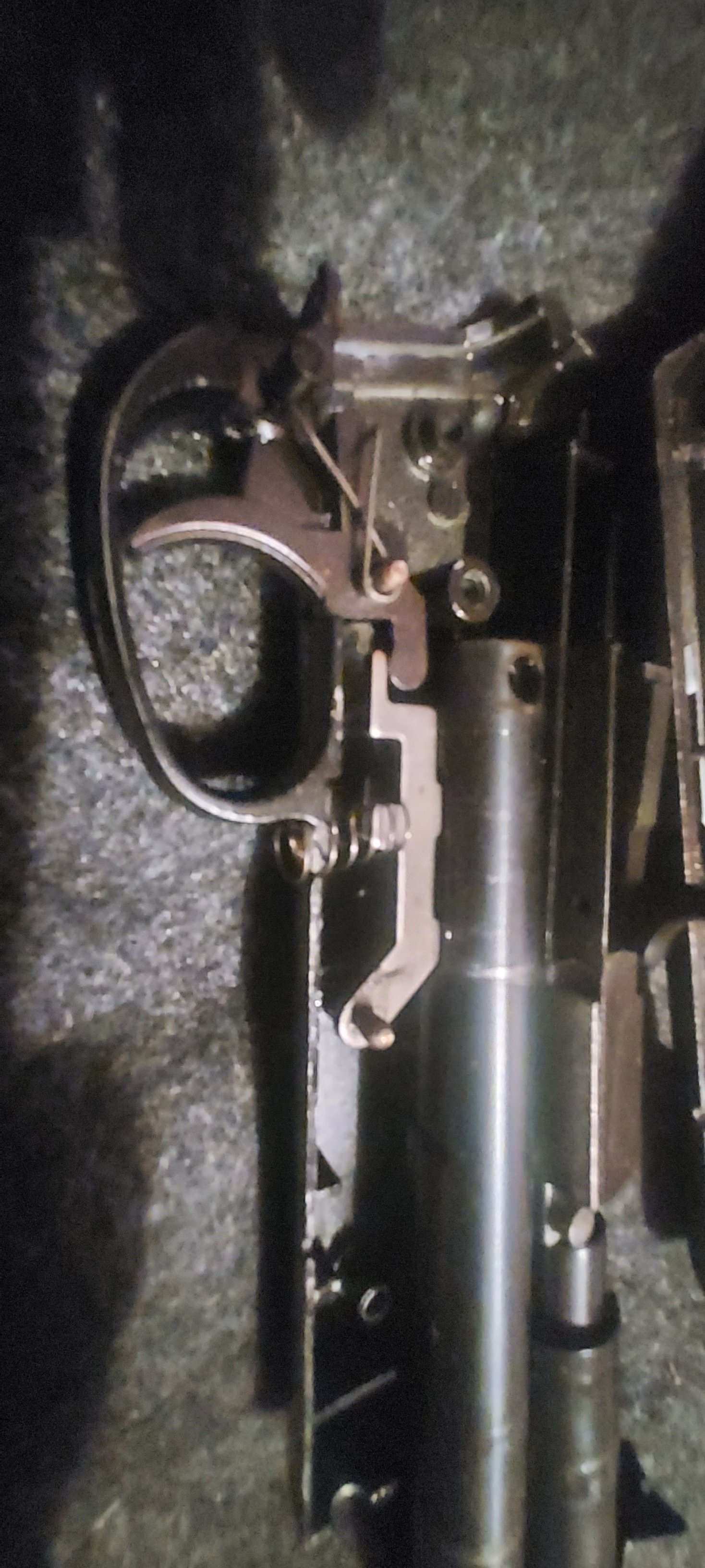

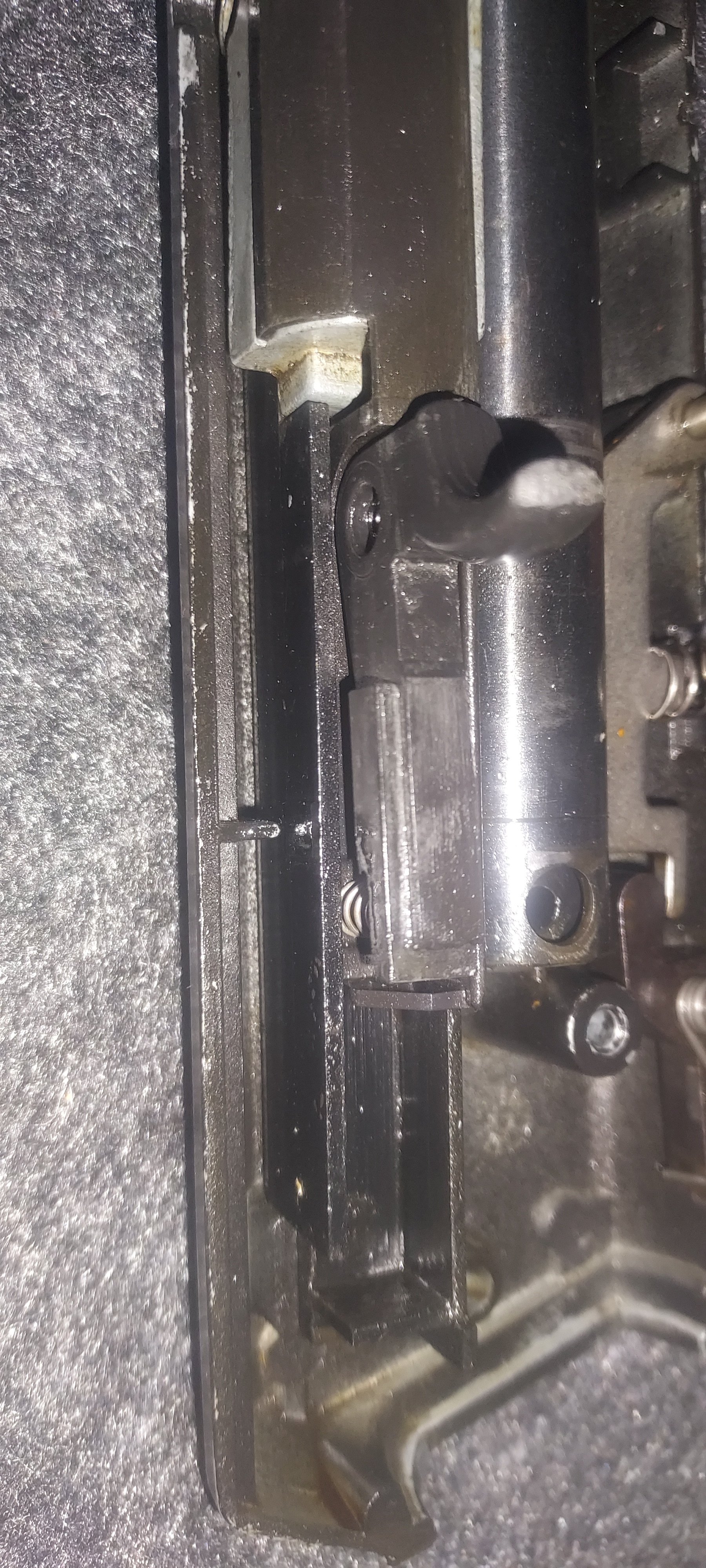

Close up for Hammer area.

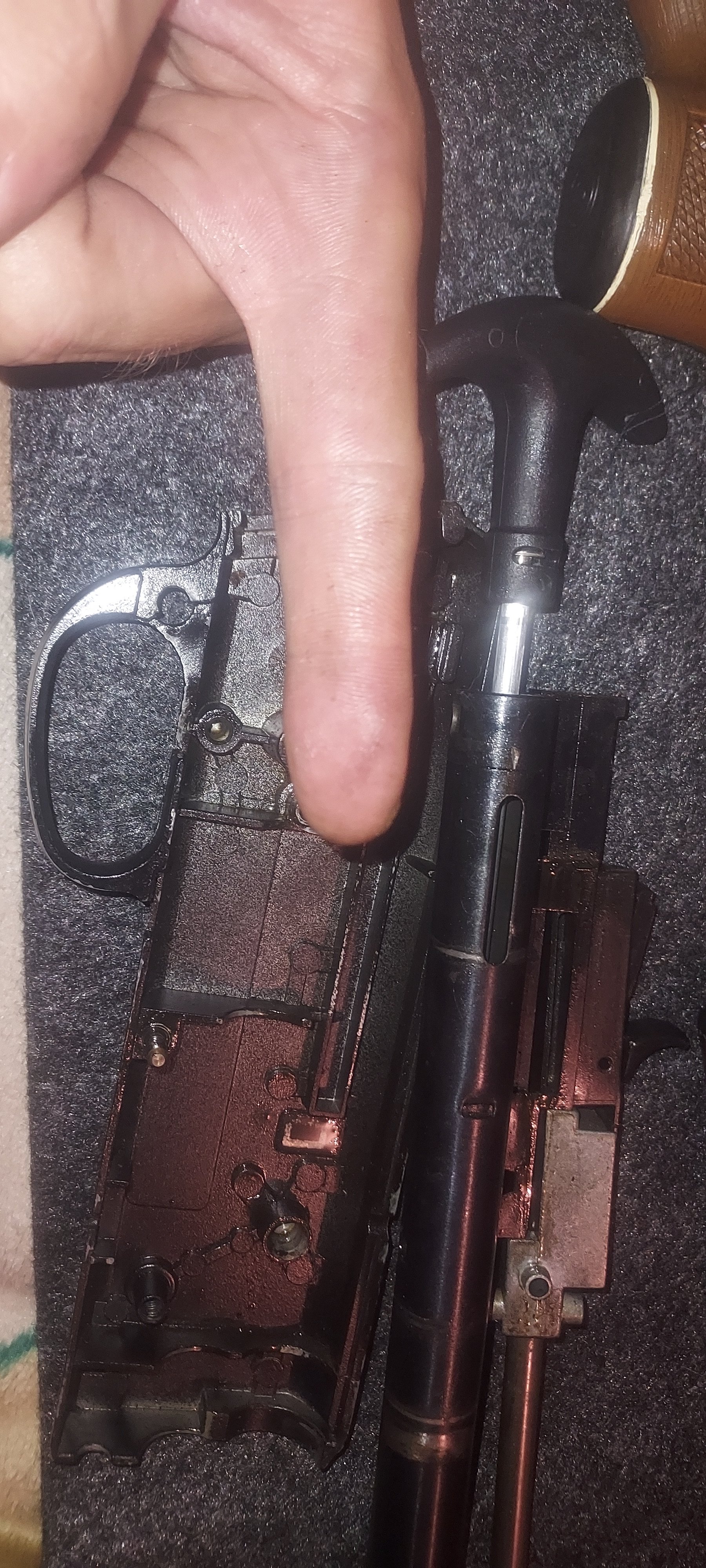

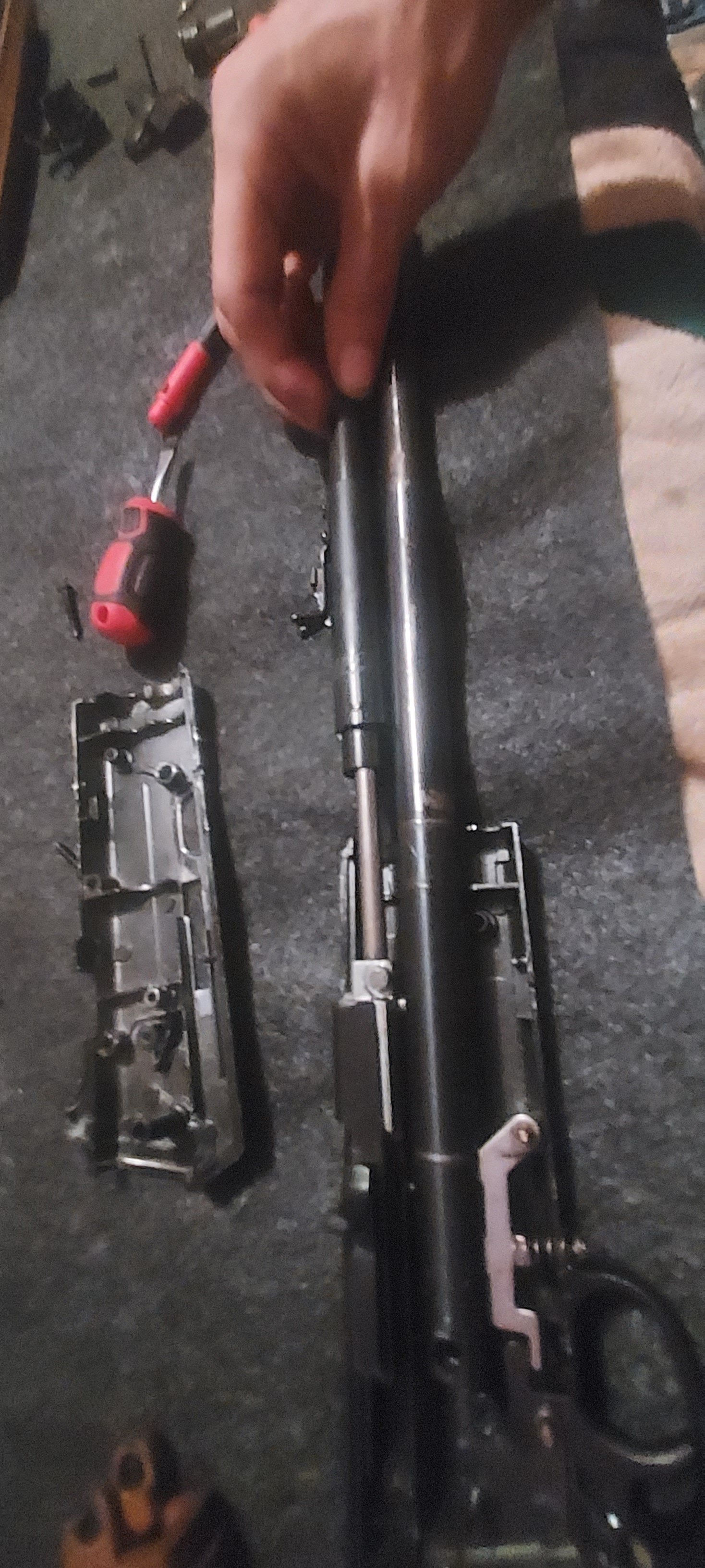

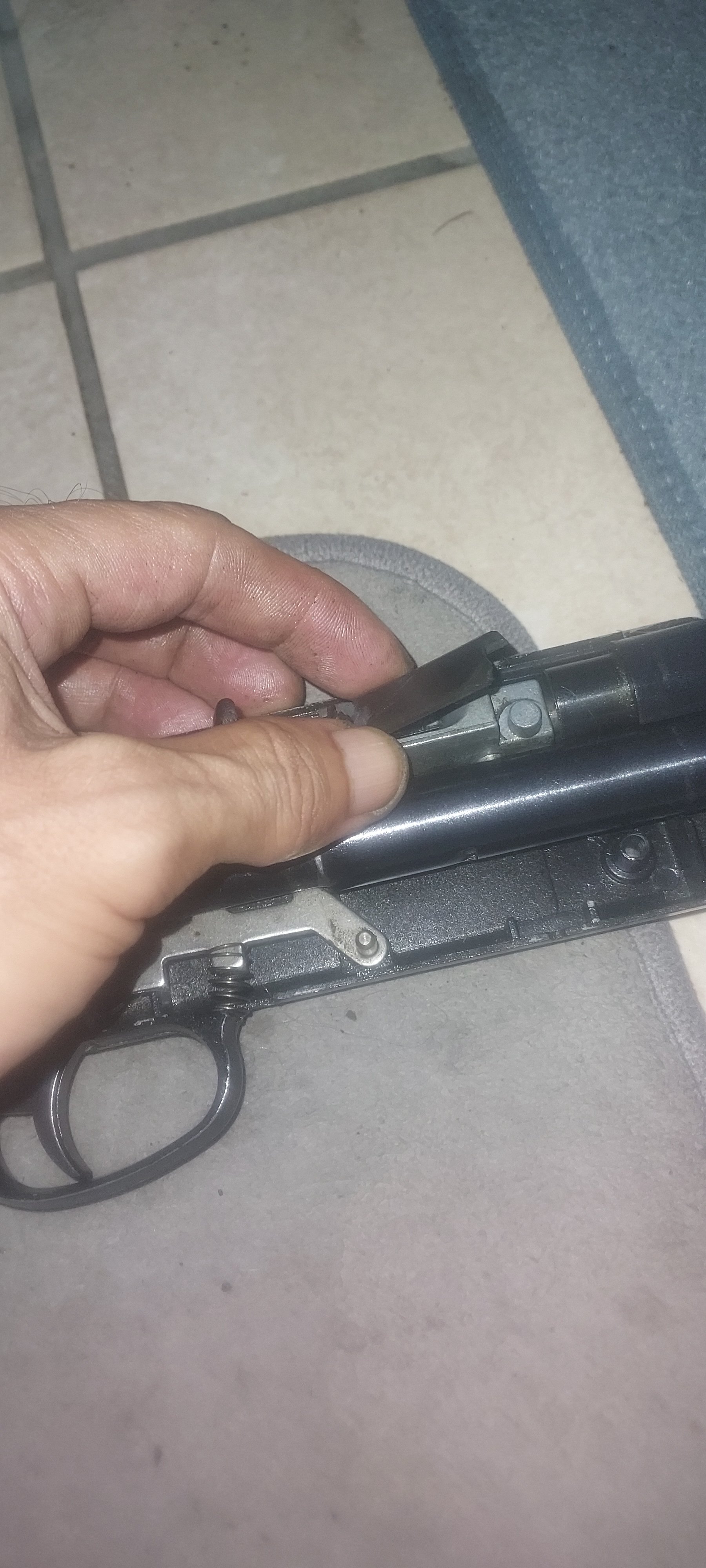

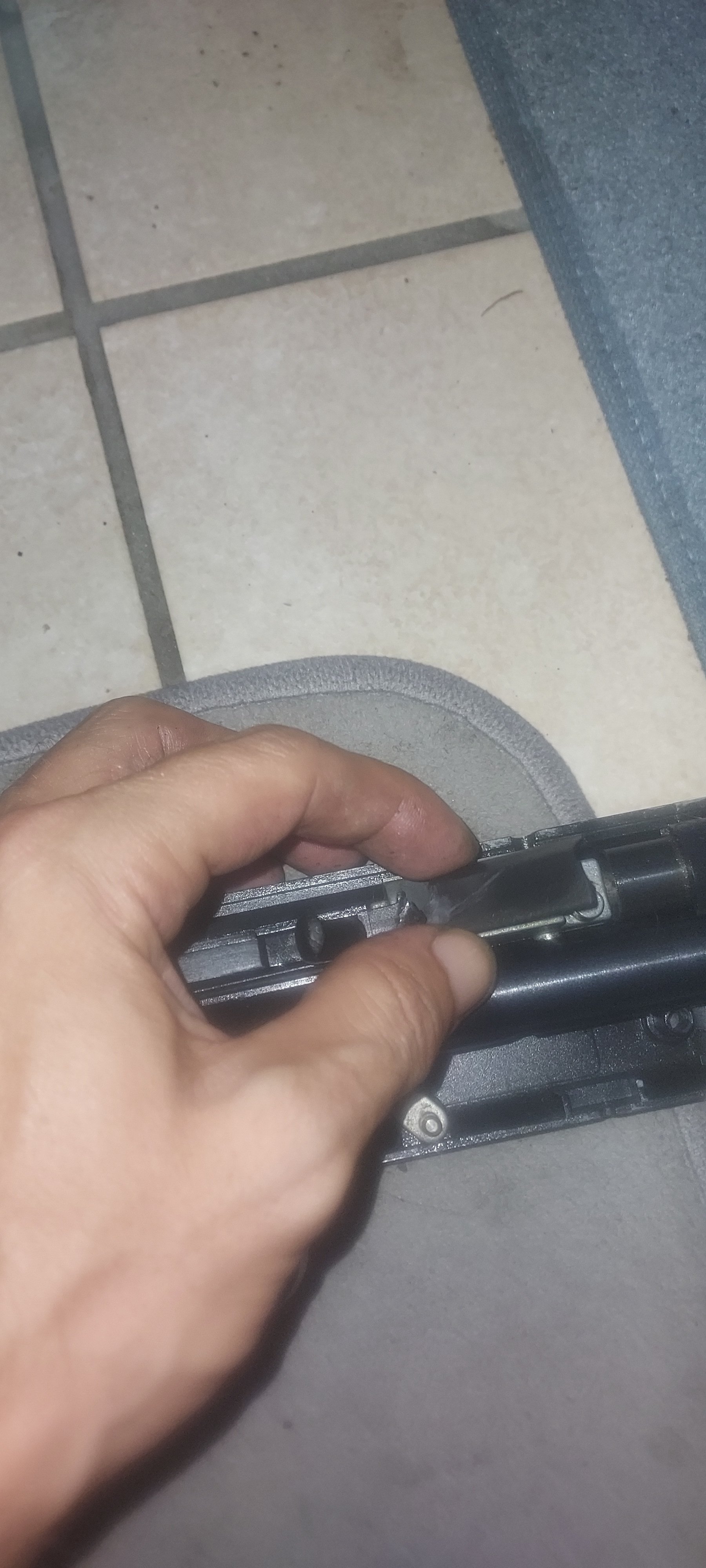

Without safety/trigger assembly. Where my fingers are: lift and the valve tube is free. Do not let go. My index finger is holding in the back piece of the hammer "assembly". After you lift, slowly release index finger(only about half inch) and it's free.

The safety pieces removed and set aside

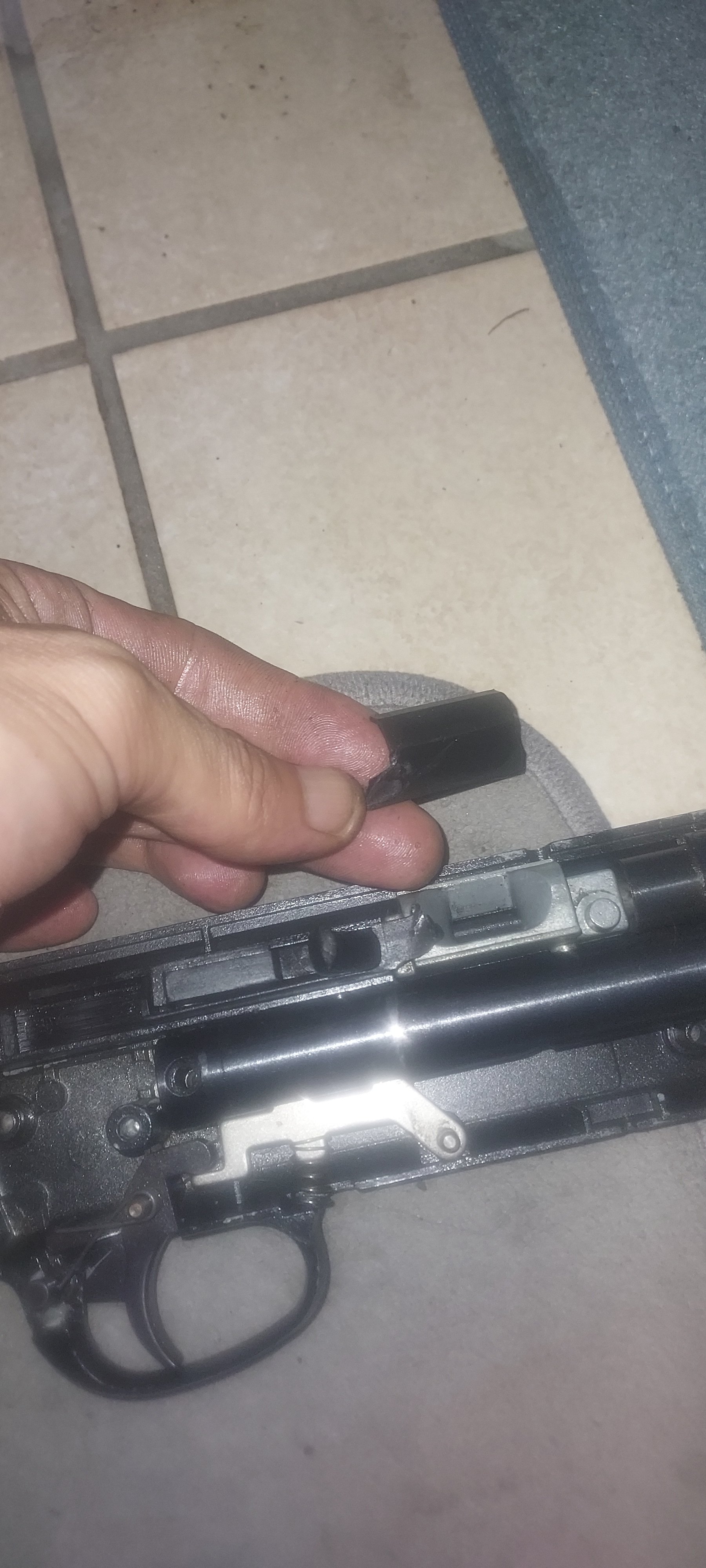

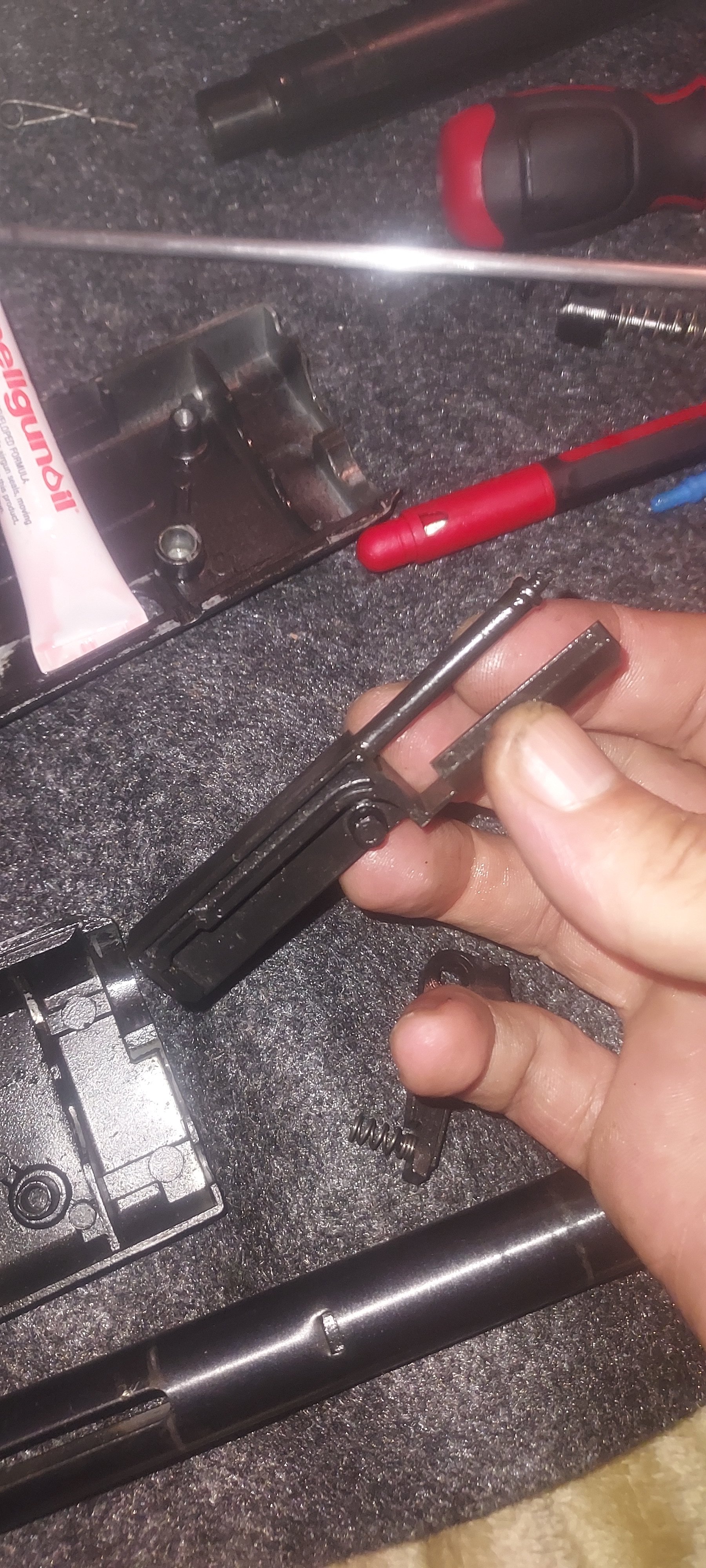

Close up of bolt pieces/mechanism

The hammer "assembly"
That black plastic piece is the piece in the previous pictures.

This post lines up in a groove on the tube

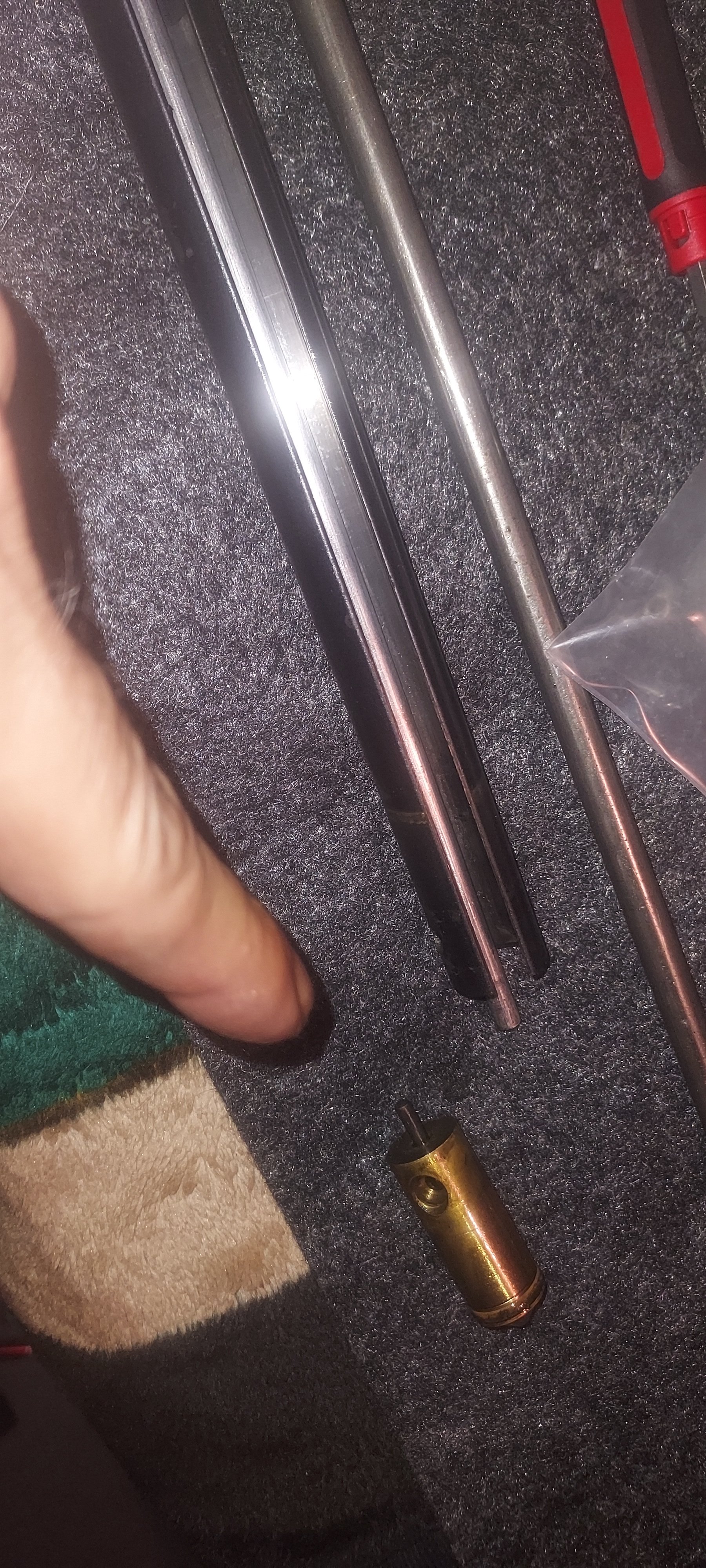

To get the valve out, it must go forward. I used my cleaning rod.

Then she pops out of the end.

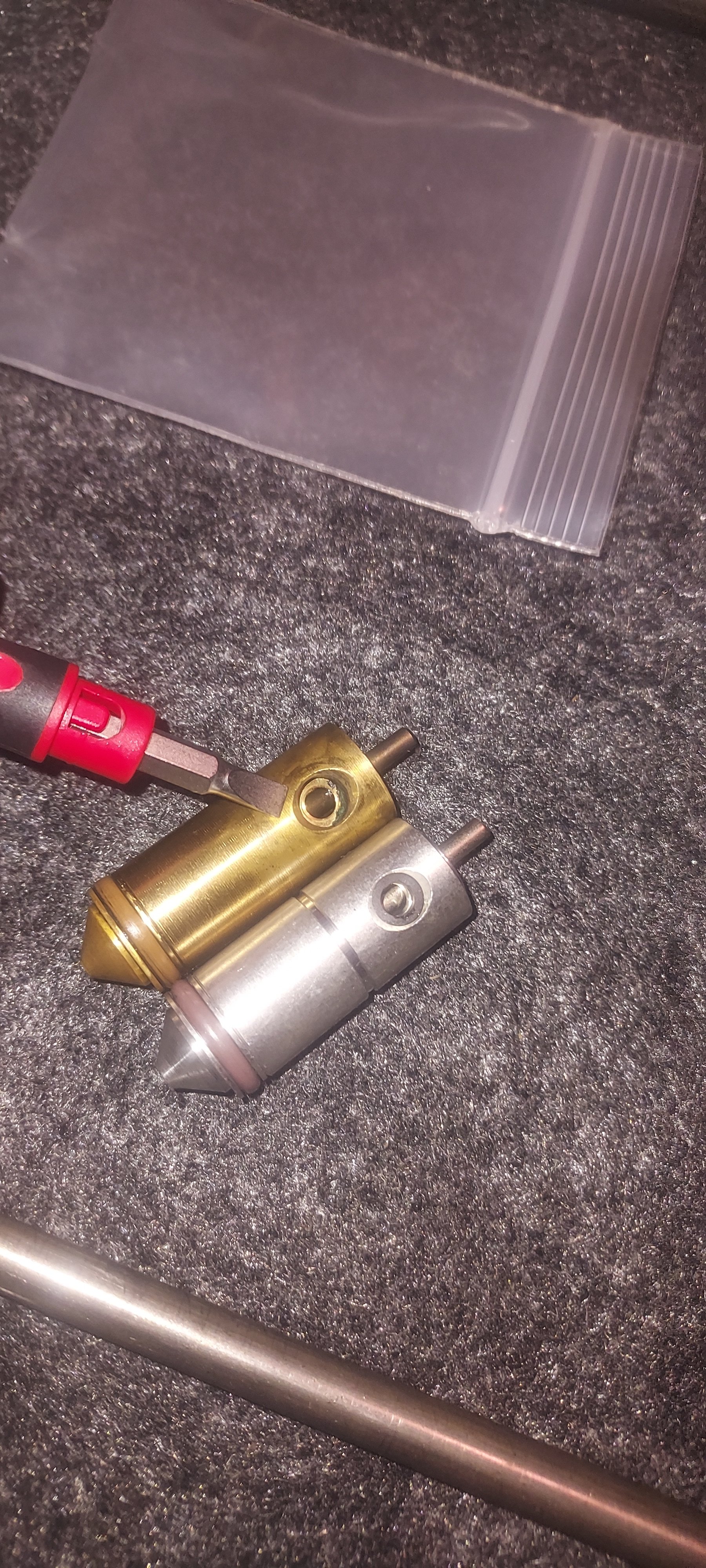

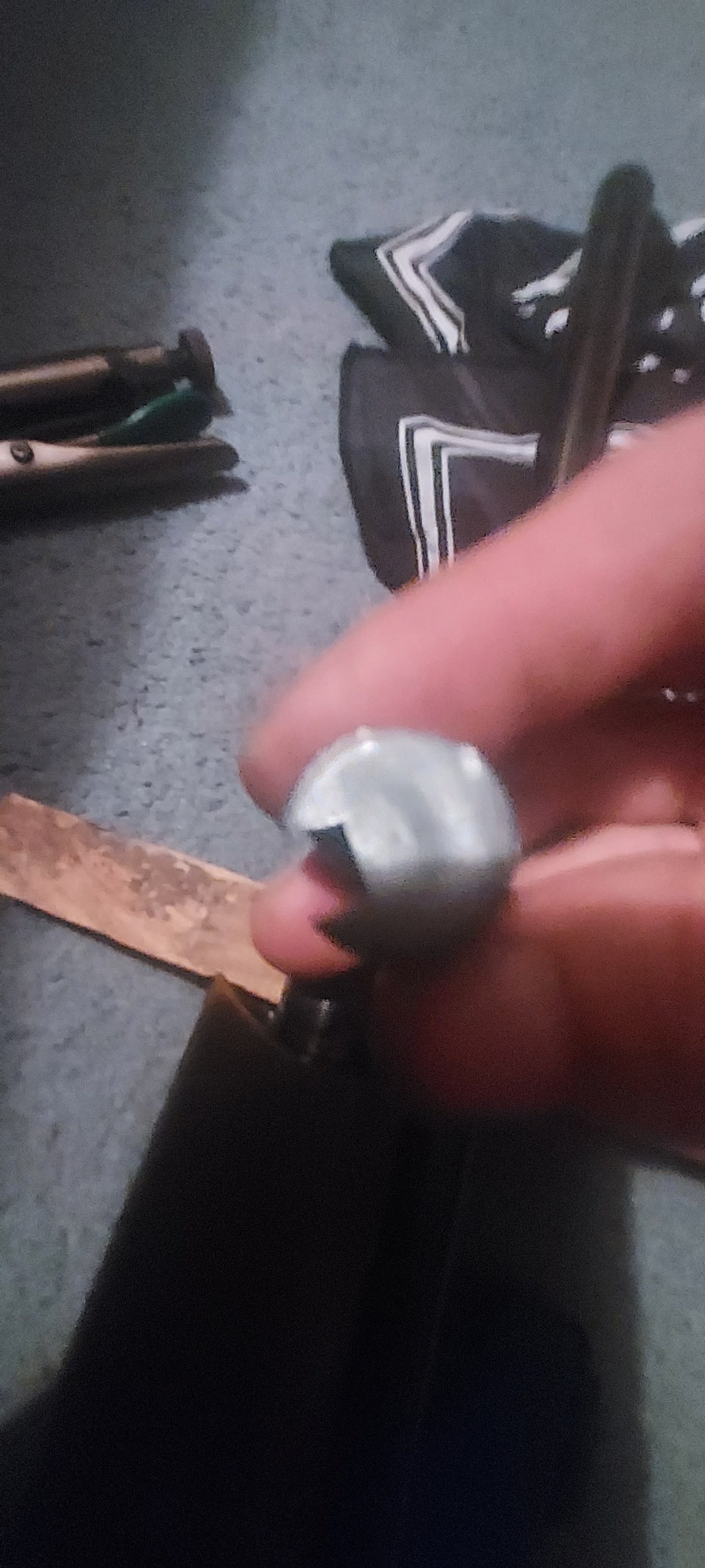

New vs old

Old one's transfer port is near gone...i saw a TRACE of material...

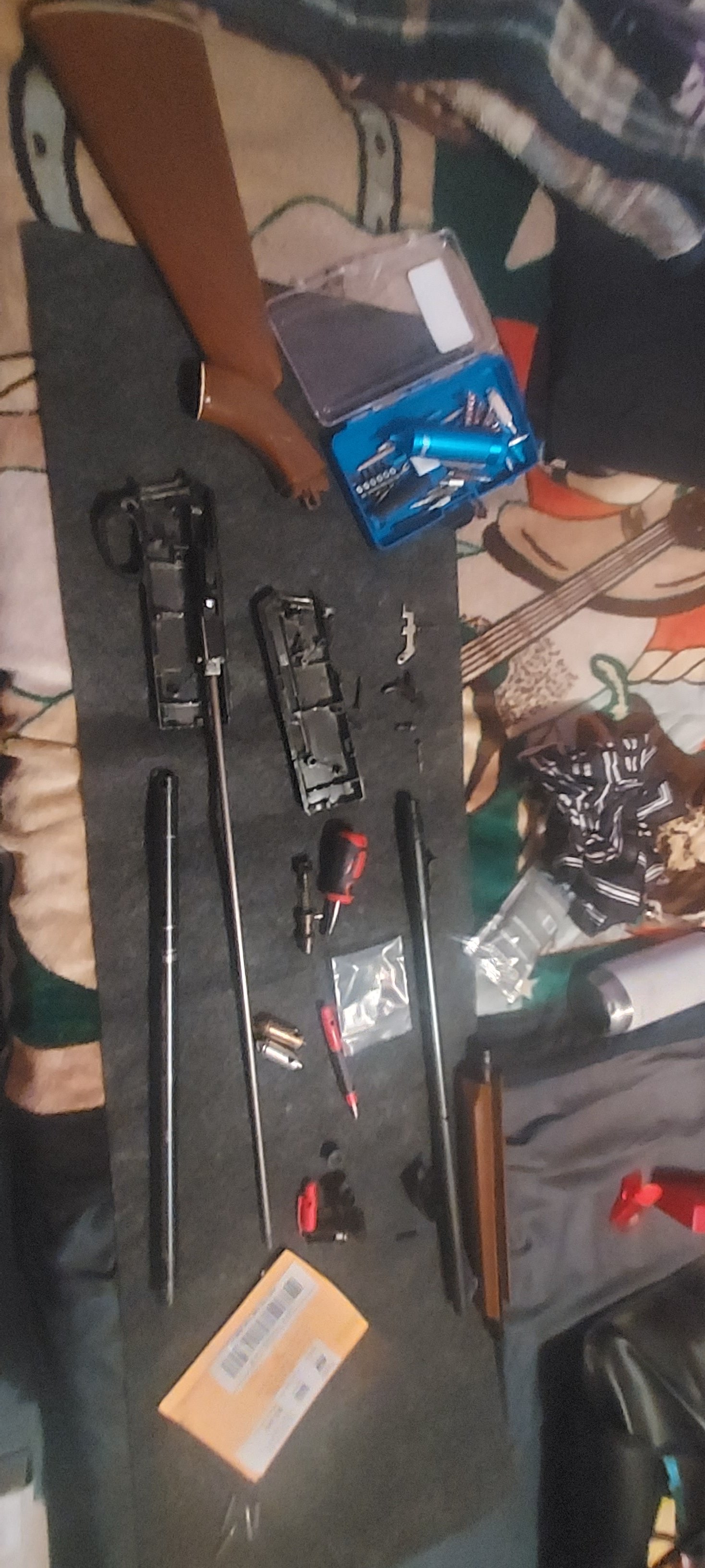

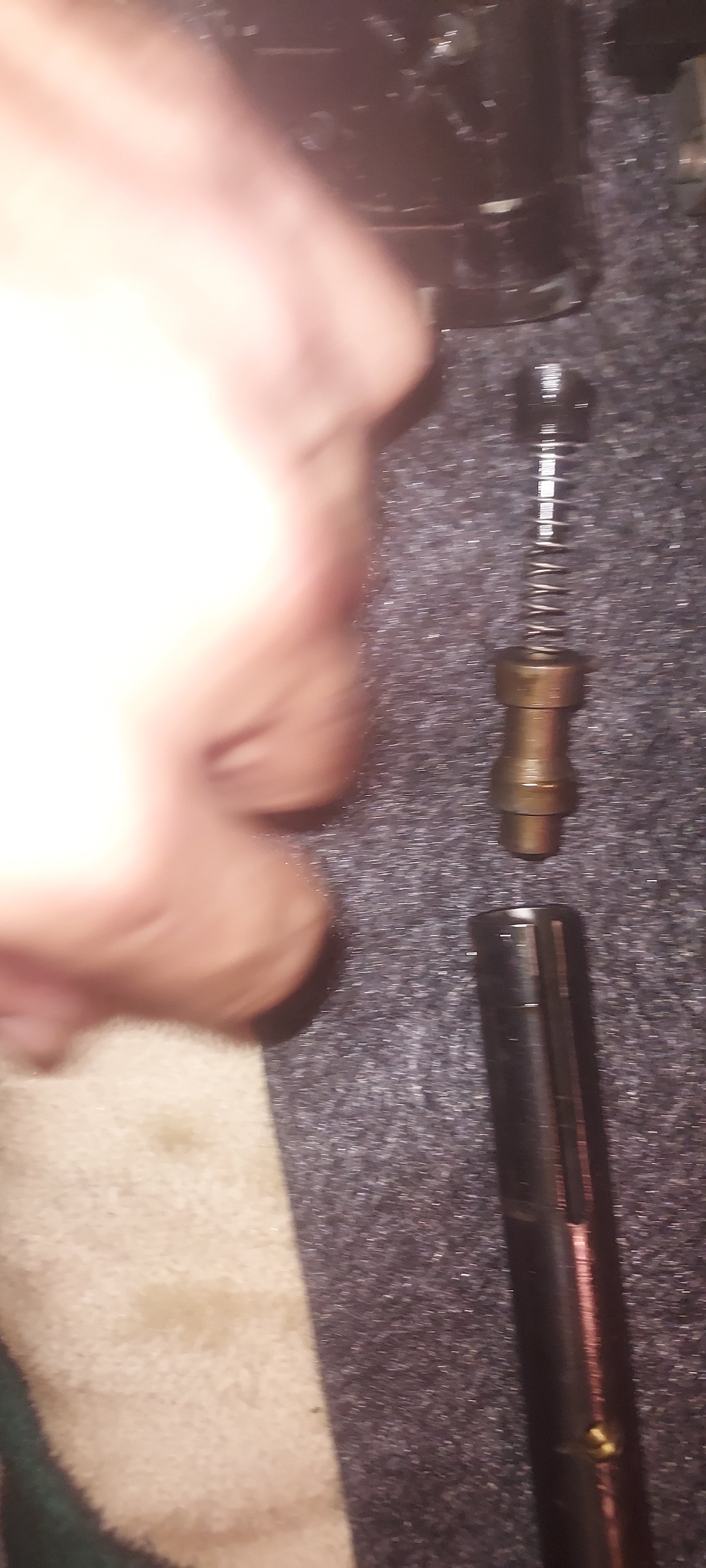

All apart.

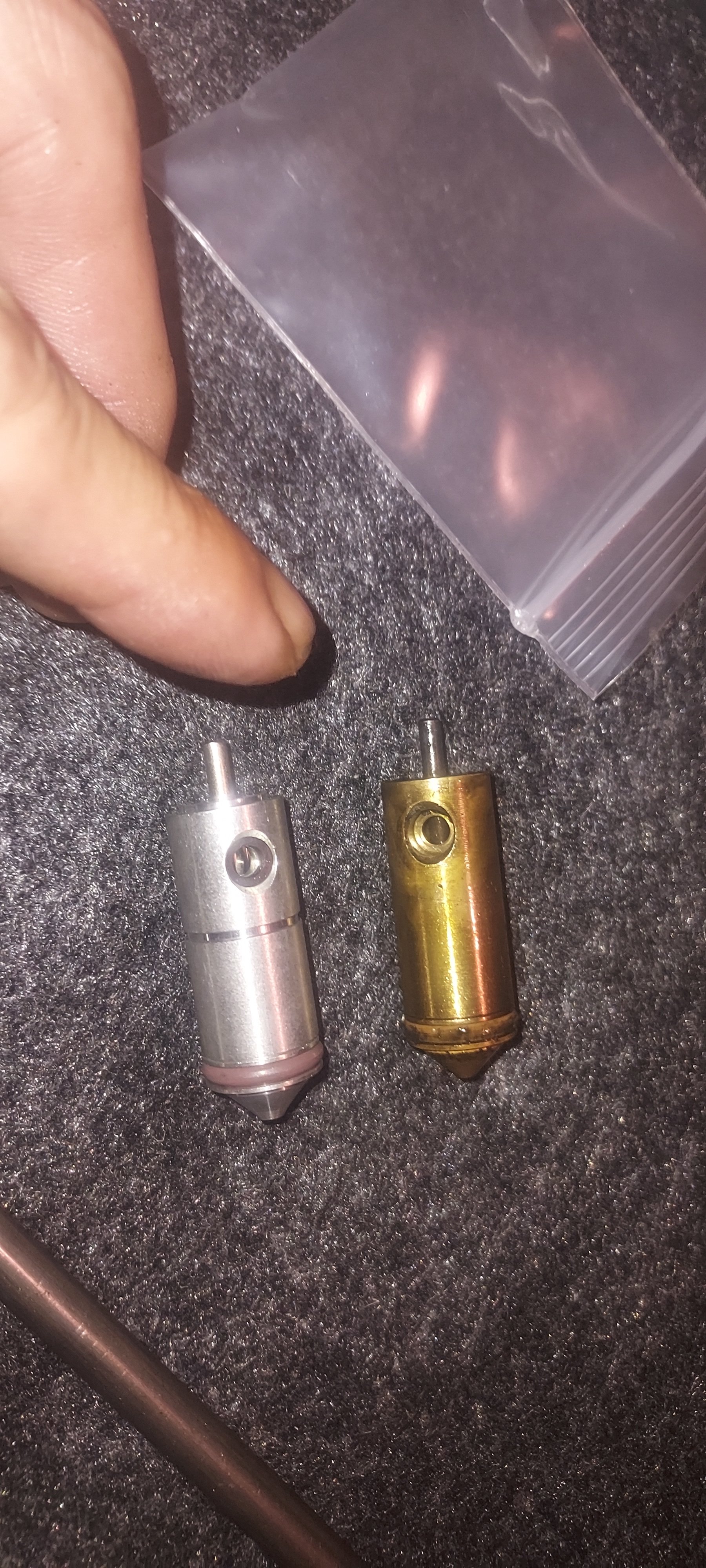

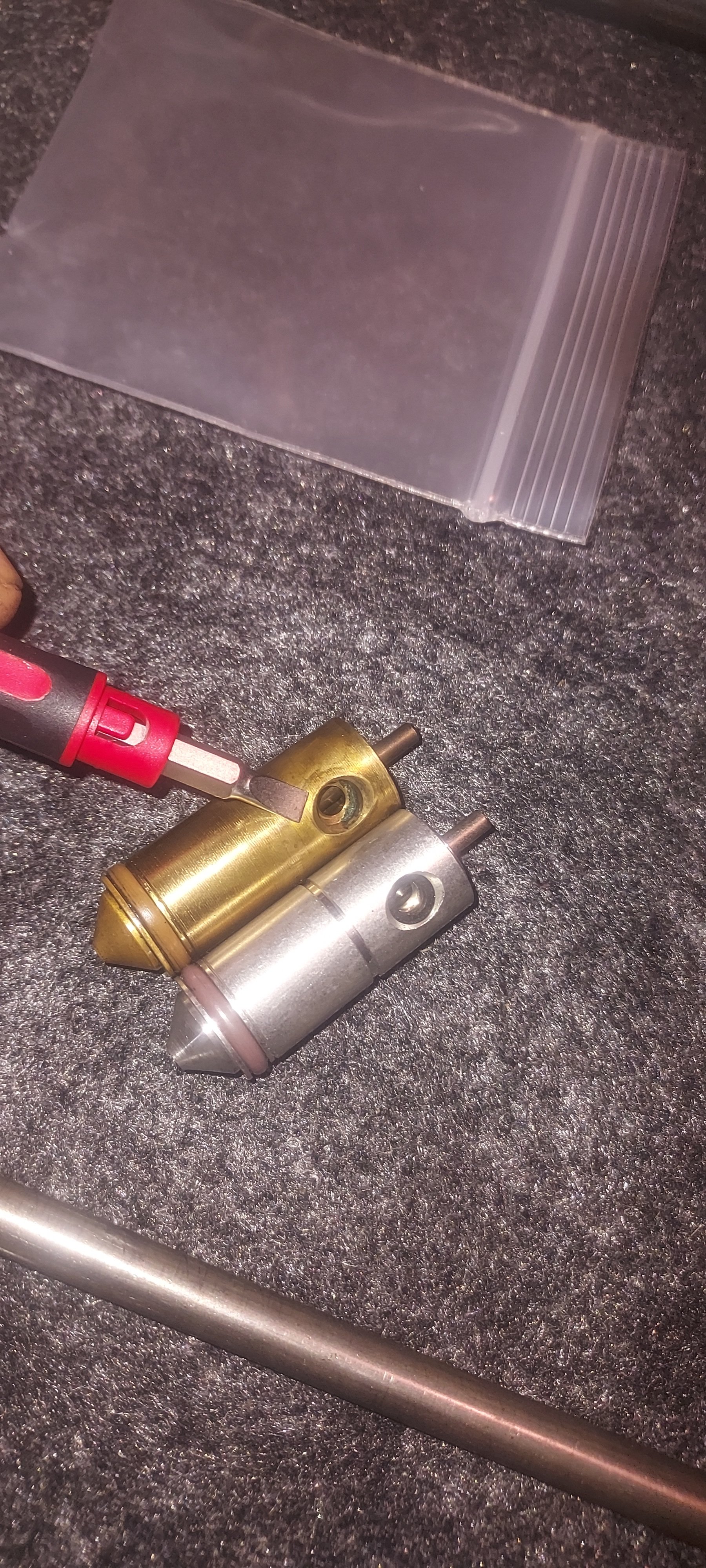

Transfer port comparison

Bolt probe is plastic and looked chewed on. Sanded it round and smooth before reinstall.

Took a bit but lined up the new valve in there.

Bolt.probe piece

It broke a bit. Just the part that cover the loading area...still functional though

Probably try and find a new one down the road but ehh...

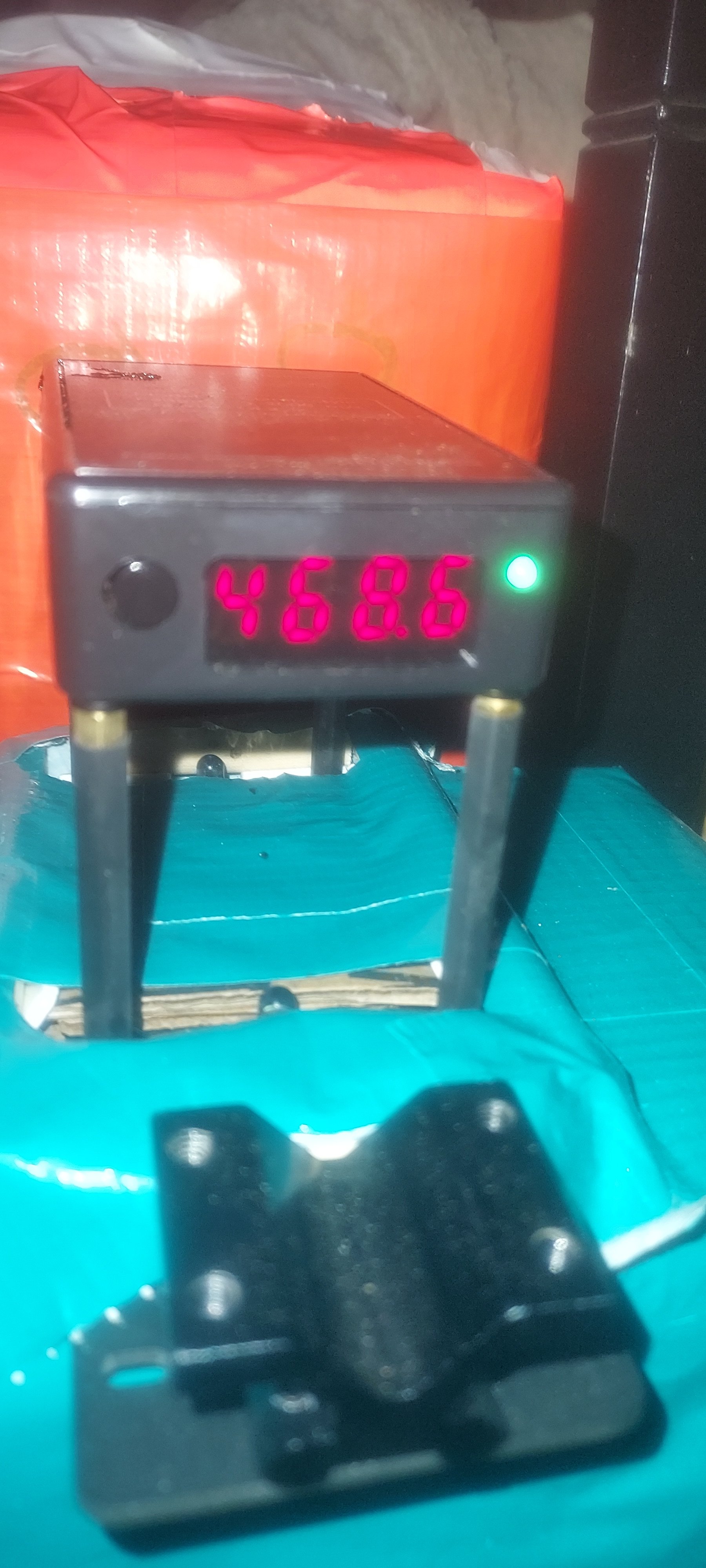

Got.it back together. Oiled her up. Let the oil sit for a.minute. pumps 3 times n fired. Sounded good. Pumped 5 times. Ooo louder. Pumped 10 times and grabbed the chrono with a Jsb Hades.
WHAAMMM! Right in the factory numbers area!

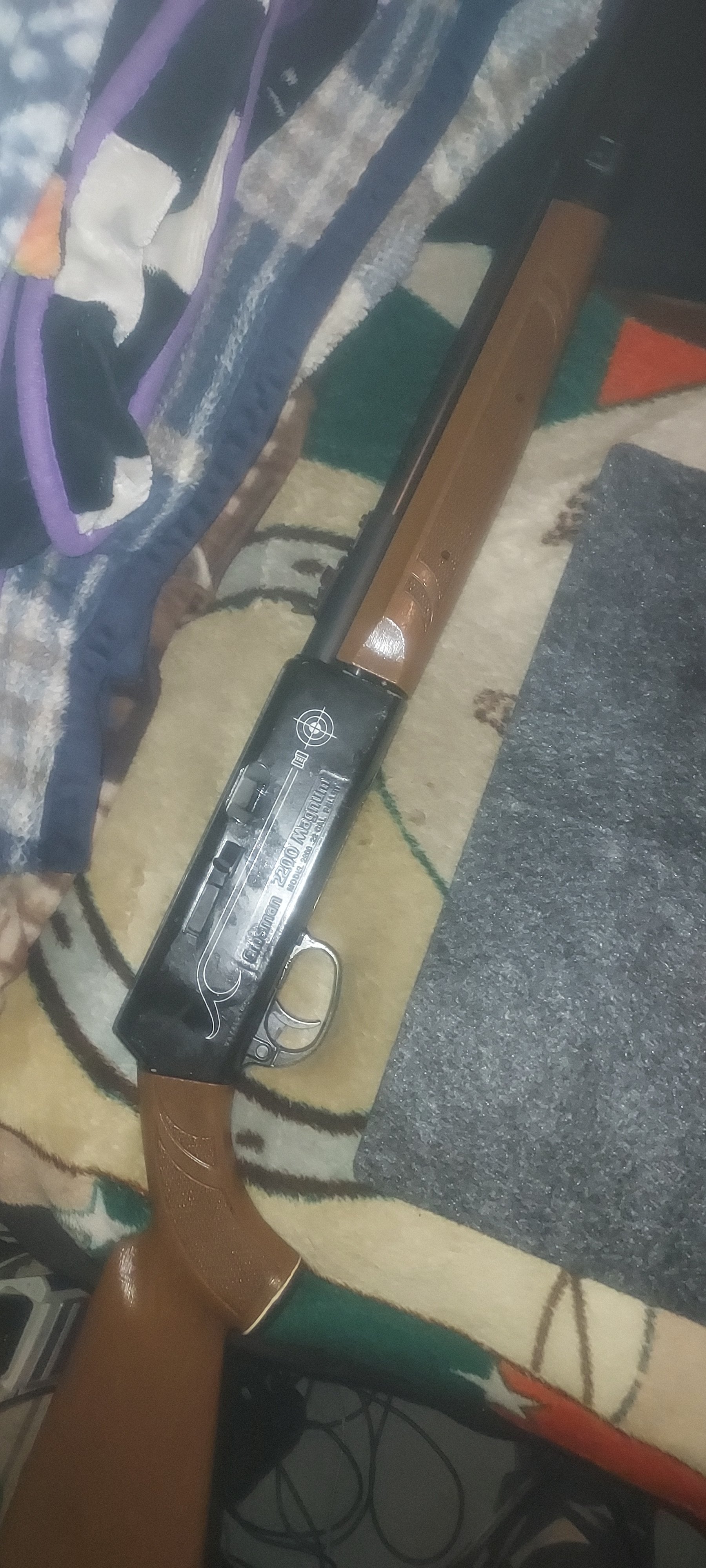

All back together.
