This can be a very deep and enjoyable rabbit hole. Look at some of @biohazardman posts as he has a nice set of links to different manufacturers posts with accessories. @nervoustrig also has an active history of being helpful on the 2240 platform. Look at this post and see what you like. My guns, as they looked a year ago are here.

If I had one word of advice, I would say that you would want to replace the valve as you are upgrading, so I wouldn't mess with the adapters that thread into the stock valve and require that you screw it down to the frame. When you do this, you are limited by the volume and pressure that the stock valve can handle, and you will soon find that is insufficient. My 2240 in 22cal is running at 2900PSI, and I am getting a max of 31FPE, and I promise that is all I can get from that gun with the hardware I have. If you want a slug gun, you may want to look at a different platform or get a really aggressive valve/plenum/etc. that I don't know about.

Upvote 0

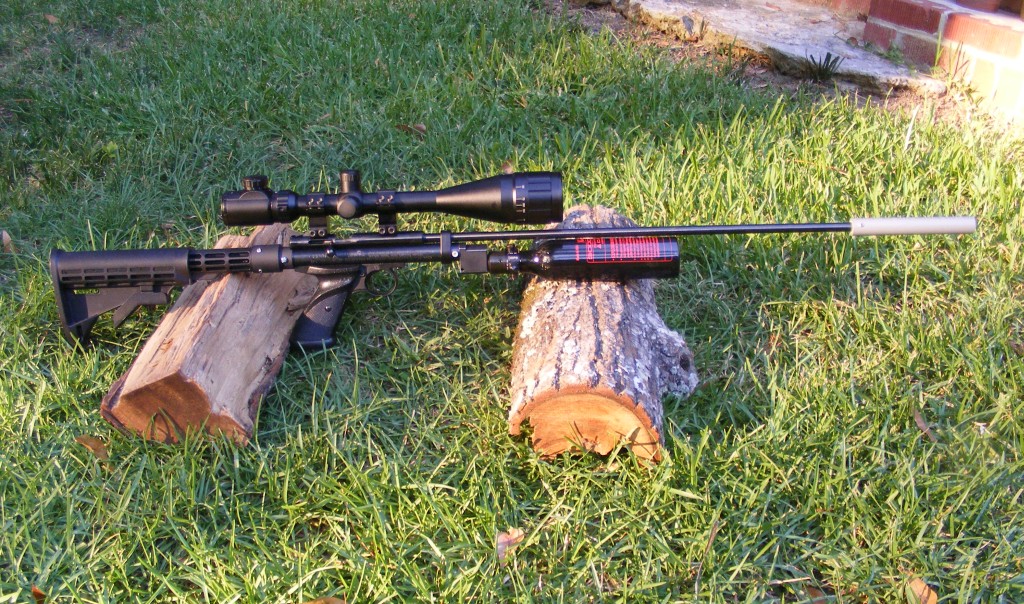

I turned one into a bottled broomstick a few years back:


Full build details here

Lightweight bottled 2240 for the kiddos...now put through the paces! - Airguns & Guns Forum

Lightweight bottled 2240 for the kiddos...now put through the paces!, Air guns, Airgun Forum
www.gatewaytoairguns.org

  • Like
Reactions: maxtrouble, Dr. Kralenstein and shambozzie
Upvote 0
SkeeterHawk said:
This can be a very deep and enjoyable rabbit hole. Look at some of @biohazardman posts as he has a nice set of links to different manufacturers posts with accessories. @nervoustrig also has an active history of being helpful on the 2240 platform. Look at this post and see what you like. My guns, as they looked a year ago are here.

If I had one word of advice, I would say that you would want to replace the valve as you are upgrading, so I wouldn't mess with the adapters that thread into the stock valve and require that you screw it down to the frame. When you do this, you are limited by the volume and pressure that the stock valve can handle, and you will soon find that is insufficient. My 2240 in 22cal is running at 2900PSI, and I am getting a max of 31FPE, and I promise that is all I can get from that gun with the hardware I have. If you want a slug gun, you may want to look at a different platform or get a really aggressive valve/plenum/etc. that I don't know about.
Click to expand...
Thank you for the info I checked out that thread and seen some super cool 2240s can't wait to get mine built.

  • Like
Reactions: SkeeterHawk
Upvote 0
Upvote 0
Upvote 0
JirehP05 said:
Hello everyone! I am quite new to the airgun community (only own a few big bores only for hunting) and I am wanting to make a crossman 2240 HPA bottle build but I have absolutely no idea where to start or how much it will cost. I am wanting to make something similar to this.
Click to expand...

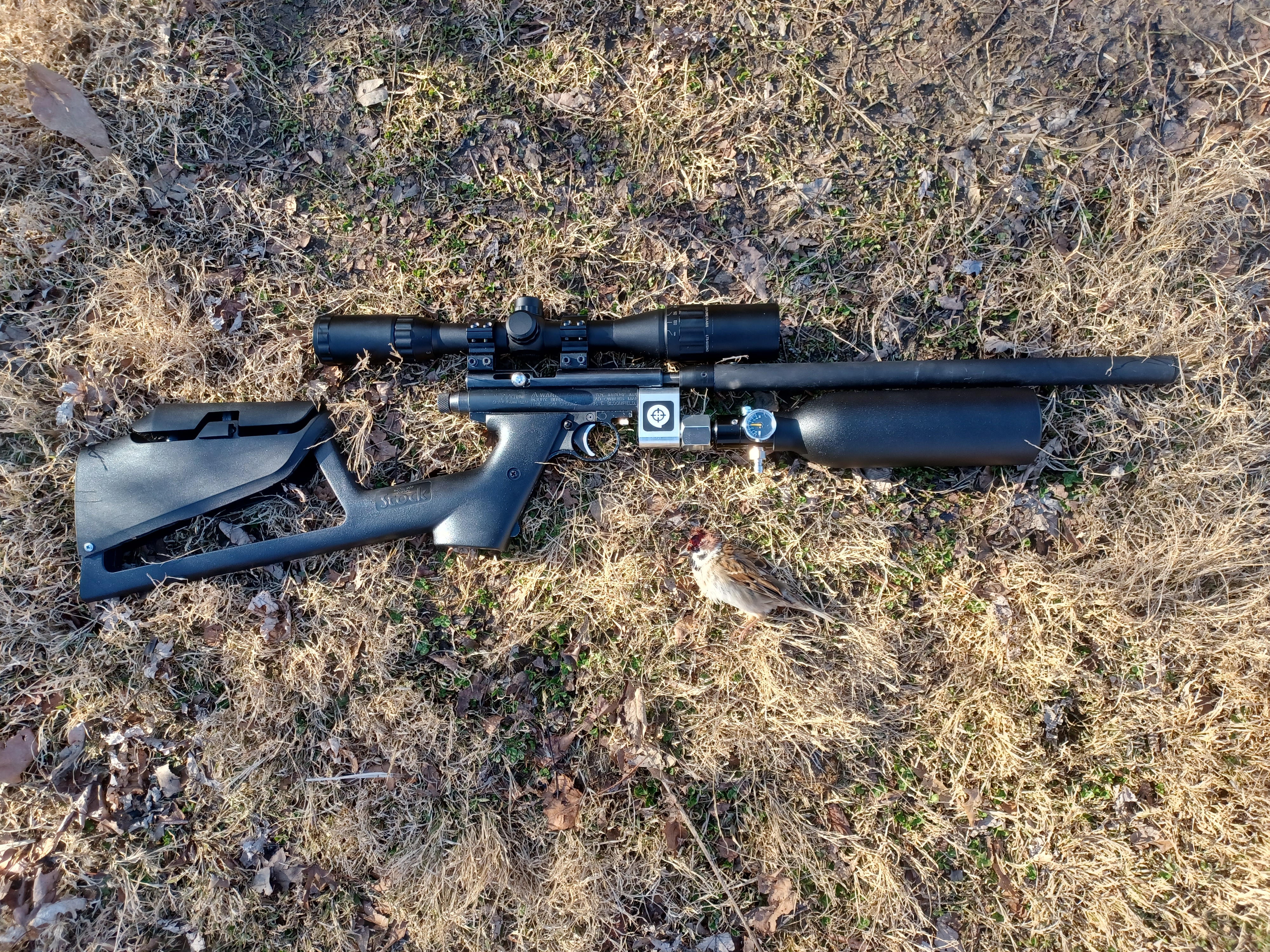

I've built quite a few myself and they will end up in the $300 range, depending on where you source parts and your hands on skills. My 2240 is currently set up with a 1720 177 barrel and shrouded with 8 baffles. It's quiet as a mouse fart, stacking cheap pellets out to 35-40 yards, and is doing 11 fpe for 100 shots on a 250cc bottle with 4000 psi fill.

  • Like
Reactions: museguy, maxtrouble, SkeeterHawk and 2 others
Upvote 0
nobody1 said:
Get your wallet out if you want a Crosman 2240 "build".
A "build" usually means buying overpriced parts to replace some of the parts your 2240 already has.
I will not go that route again.

Buy a P700, PP750, PP800, etc or any other PCP pistol for much better performance and lower cost than a "build"
Click to expand...
I'm not doing it for the cost or performance I am doing this because it seems like a fun experience and would give me a lot more knowledge about air guns and let connect with the air gun community more.

  • Like
  • Love
Reactions: iAMzehTOASTY1, rcarlisle, Red_Ryder_Sniper and 3 others
Upvote 0
Boostcreep said:
I've built quite a few myself and they will end up in the $300 range, depending on where you source parts and your hands on skills. My 2240 is currently set up with a 1720 177 barrel and shrouded with 8 baffles. It's quiet as a mouse fart, stacking cheap pellets out to 35-40 yards, and is doing 11 fpe for 100 shots on a 250cc bottle with 4000 psi fill.View attachment 332516
Click to expand...
Are the parts for the 22XX and 17XX series interchangeable without any major modification to the gun and would I be able to just drop in a .177 cal barrel to swap between .22 and .177 cal?

Upvote 0
JirehP05 said:
Are the parts for the 22XX and 17XX series interchangeable without any major modification to the gun and would I be able to just drop in a .177 cal barrel to swap between .22 and .177 cal?
Click to expand...
You'd be hard pressed to find a 1740 or 1760 nowadays, but you can drop in a 177 barrel into the breech as long as you use a 177 bolt probe as well. I swap back and forth all the time. Once you get used to the teardown, it's about a 10 minute process to swap calibers... provided you don't drop anything lol.

Make sure you get an upgraded breech screw, the stock ones almost always strip out since. Magnum Air Power has some very nice torx style ones that will basically last forever and handle the higher pressures you'd be pushing. As long as you have a barrel band, you'll be fine though. I've never personally had a breech pop off, even with a 30 fpe rig.

  • Like
Reactions: museguy and MileHighAirGunner
Upvote 0
There is a guy in thailand who manufactures a ready-made kit, I bought it from him and everything arrived fine.

Login • Instagram

Welcome back to Instagram. Sign in to check out what your friends, family & interests have been capturing & sharing around the world.
www.instagram.com www.instagram.com

There is also this site, I already bought an eccentric valve from them and adapted it to a Diana pistol.

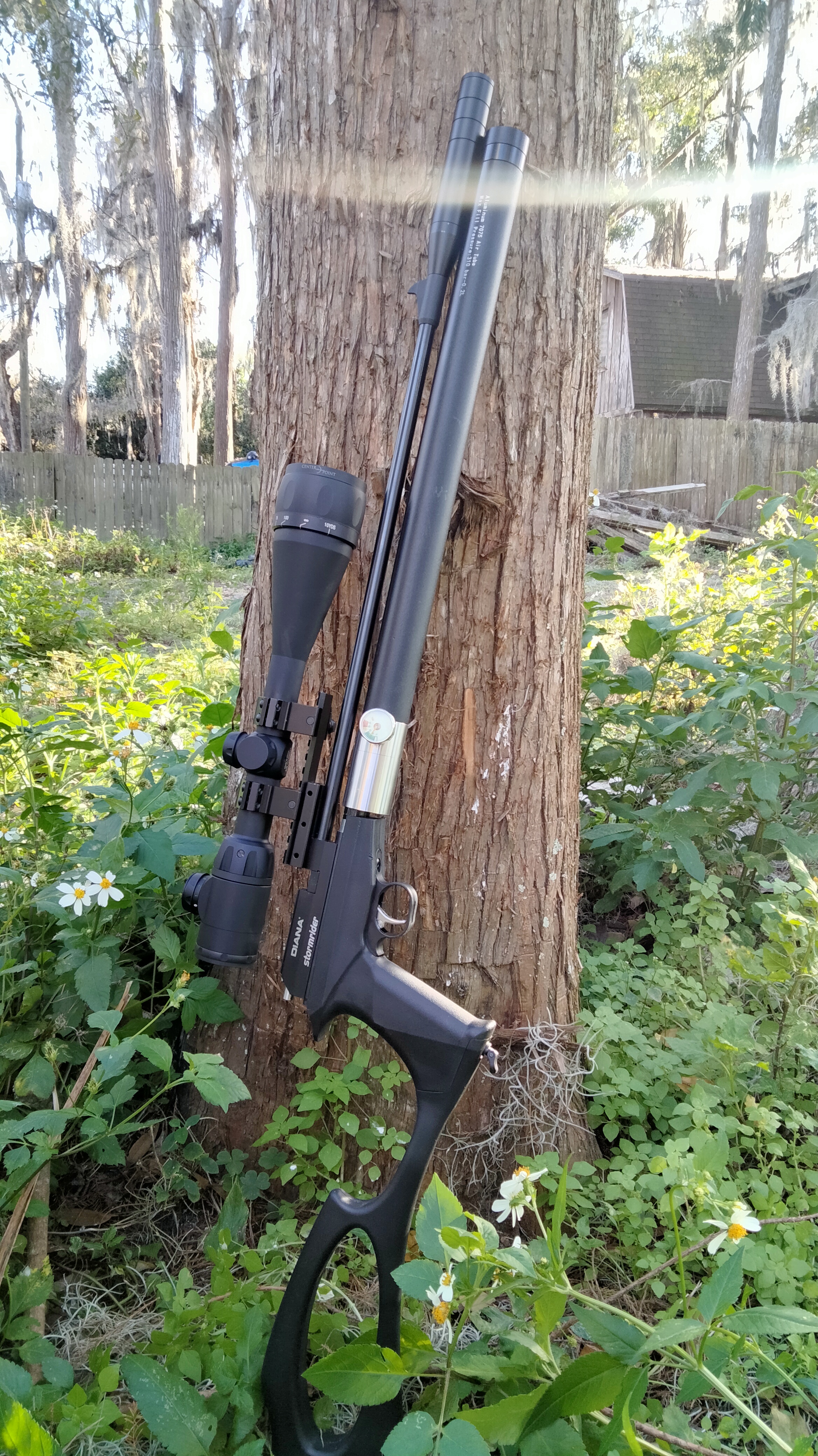

Diana and Crosman 2240
diana pcp.jpg


Product-Needle Valve

hubenpower.com hubenpower.com

  • Like
Reactions: boscoebrea
Upvote 0
Zombie said:
There is a guy in thailand who manufactures a ready-made kit, I bought it from him and everything arrived fine.

Login • Instagram

Welcome back to Instagram. Sign in to check out what your friends, family & interests have been capturing & sharing around the world.
www.instagram.com www.instagram.com

There is also this site, I already bought an eccentric valve from them and adapted it to a Diana pistol.

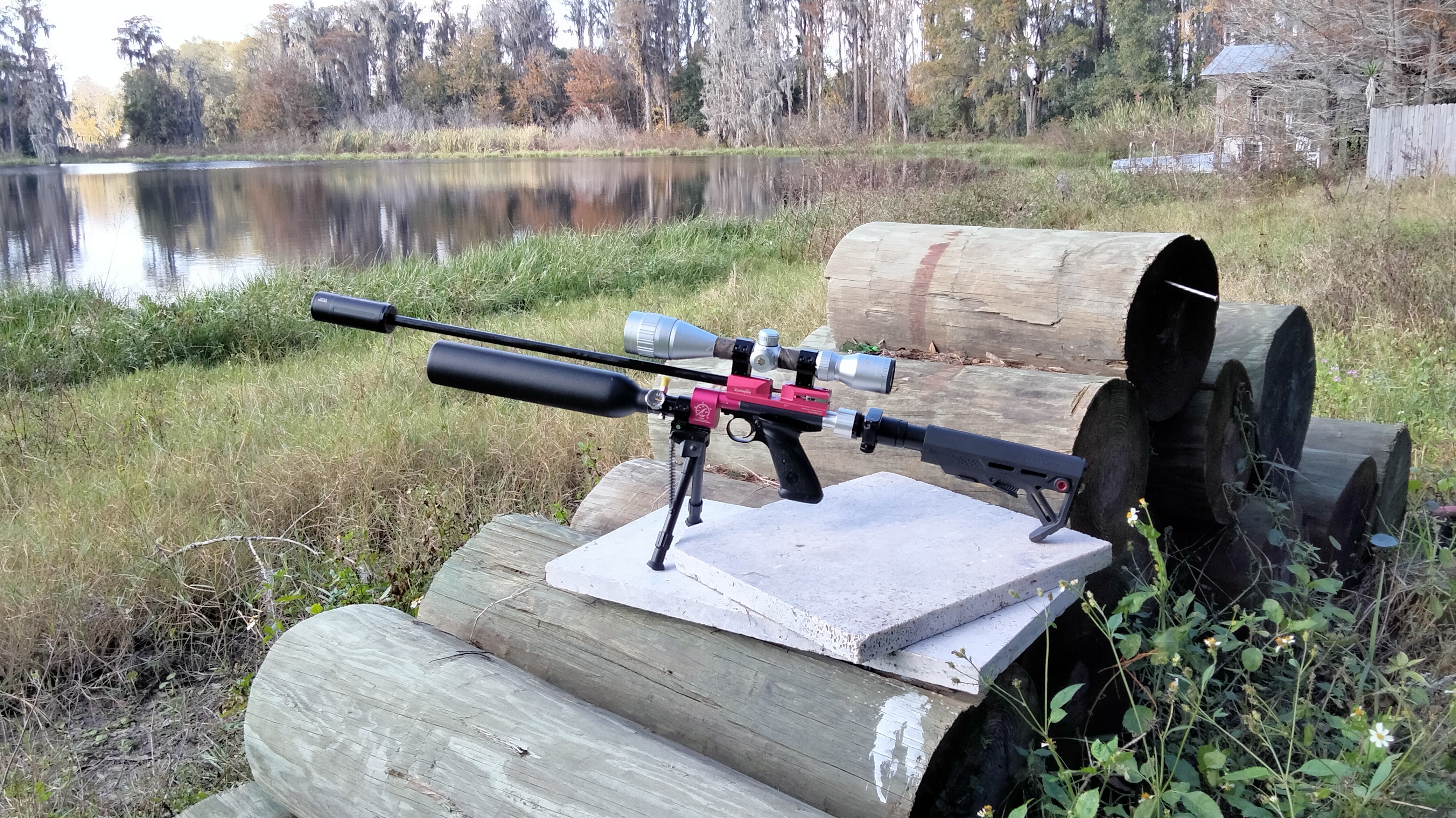

Diana and Crosman 2240View attachment 333529
View attachment 333528

Product-Needle Valve

hubenpower.com hubenpower.com
Click to expand...
This is super sick I just checked out his Instagram and I am going to buy some parts from him.

  • Like
Reactions: museguy and RAMJET66
Upvote 0
