Does anyone know what the angle of the front D75 dovetail is, or whether it is compatible with a Walther dovetail?
Diana D75 front sight dovetail
- Thread starter jccams
- Start date
the front globe sight for the Diana 75 TO1 should be the same as he Diana today, FWB 150-300, Kimber 82 .22LR and Walther
as for Weihrauch not sure
as for Weihrauch not sure
Upvote 0
I need to know what dovetail profile is a better match to the D75, Walther or older Anshutz, both have 9mm dovetails. I'm buying an adapter overseas and want to get it right.
Upvote 0
i have no way to measure that and in reality, they are all different to some degree
how engagement edges are made from sharp to rounded
life is a crap shoot
how engagement edges are made from sharp to rounded
life is a crap shoot
Upvote 0
The Diana front dovetail should be a 60° dovetail, like most others are.
The Walther front dovetail is a 70° dovetail.

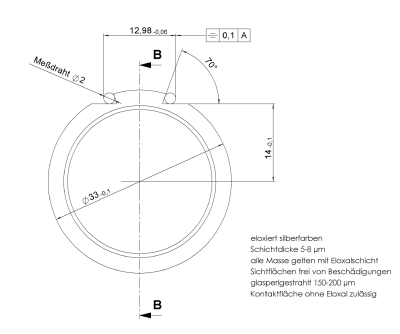

This download below is the Walther machine drawing, and it has not changed as of the present.
If the early Anschutz is a 60° 9mm dovetail, it should be a better fit on the Diana dovetail.
The Walther front dovetail is a 70° dovetail.
This download below is the Walther machine drawing, and it has not changed as of the present.
If the early Anschutz is a 60° 9mm dovetail, it should be a better fit on the Diana dovetail.
Last edited:
Upvote 0
Chuck, that's great info - thanks! Walther seems to have made an effort to keep other brands of sights from fitting their guns; odd front dovetail angle and rear grooves just wide enuff to keep an 11mm Anschutz sight from fitting!
Again, I don't own a D75, but I've stuck an old Anschutz tunnel front on other Dianas (and Weihrauchs) many times. They fit fine and center up with no issues - pic is an HW 55:
The sliding "foot" on these sights, per my old drafting traingle, is indeed 60 degrees:
Again, I don't own a D75, but I've stuck an old Anschutz tunnel front on other Dianas (and Weihrauchs) many times. They fit fine and center up with no issues - pic is an HW 55:
The sliding "foot" on these sights, per my old drafting traingle, is indeed 60 degrees:
Last edited:
Upvote 0
Correct Mike, Walther displays a focus on proprietary fitment of their sighting systems. Perhaps they are just obstinant and prefer to remain to be different from the other major manufacturers?
Pursuing and acquiring weird sighting systems is old hat to many of us, but Walther collecting adds a new wrinkle to the weirdness!
Last edited:
Upvote 0
Very interesting thread!
I am wanting to change the front sight of my old (late 90’s) Diana 54, which I think also has a 9mm dove tail.
Great to learn stuff from threads and forums like this
I am wanting to change the front sight of my old (late 90’s) Diana 54, which I think also has a 9mm dove tail.
Great to learn stuff from threads and forums like this
