DayState O-rings - A Reference for Owners

[airborne]

I know this is a old post but when I check link and then go to my profile there is nothing there. I tried it twice, maybe I am doing something wrong......Pete



[travels4fun]

"airborne"I know this is a old post but when I check link and then go to my profile there is nothing there. I tried it twice, maybe I am doing something wrong......Pete

Try clicking on Bookmark. This will the change to Bookmarked which is normal. To view topics you have bookmarked, go to you profile and then click on Forums.



[travels4fun]

"steppenwulf"any info on the pulsar 177 breech O ring?

I believe it takes a metric 4mm x 1.5mm (CS) Buna N70.



[fenderguy]

anybody know exactly what causes the bolt blow back problem that seems to happen randomly on an airwolf ?



[fe7565]

Try the Daystate Owners' Forum, or this old thread: www.network54.com/Forum/79537/thread/1395291408/Airwolf+MCT+bolt+still+flipping+anyone+else+had+problem-



[shailu]

How do you degas a ranger?
thanks in advance



[Stone02]

Pulsar 0.22 breech seal: 5 x 1.5 mm A75 for 12 ft-lb (UK) or A90 for higher power.



[D-RIG]

"shailu"How do you degas a ranger?
thanks in advance

I like to loosen the air gauge , but only turn it 1/2 or 3/4
of a turn if you turn it like 3-4 revolutions it will let loose
and blow away from your gun . Good luck .



[Diamondback]

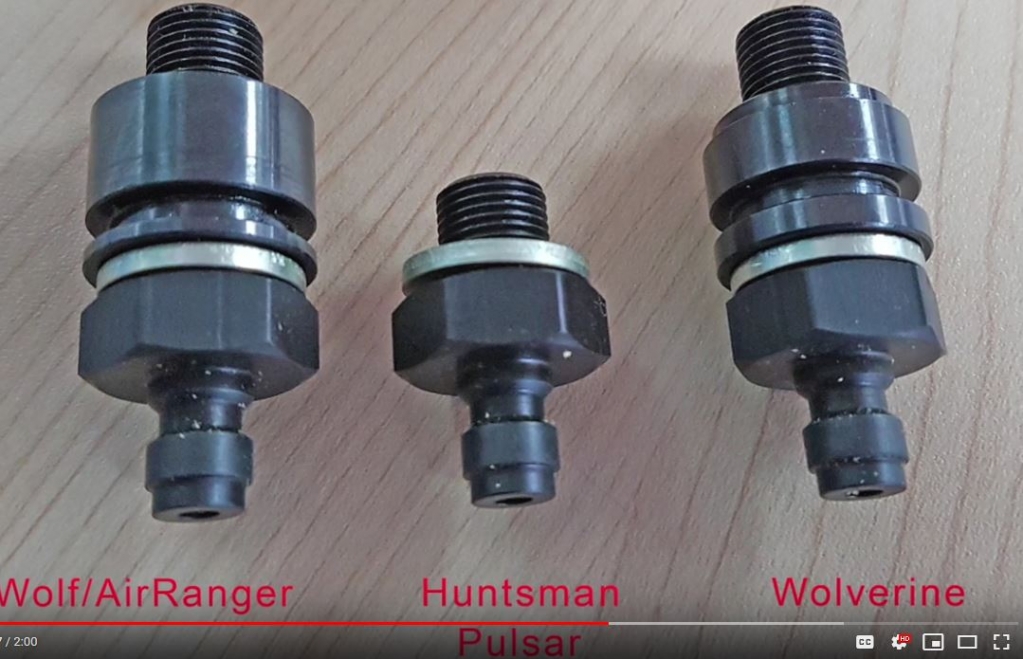

JFYI, the 2 piece fill assembly uses a couple of 1/8" BSP bonded seal washers, also called dowdy seals.

There is another bonded seal washer / dowdy seal under the air gauge (on my older AirWolf CDT) that seemed a bit smaller in size. I don't know the size.

When I loosened my gauge to empty the tank of air, this seal was ruined. Since I didn't have a replacement & wanted to shoot today, I removed the dowdy seal & dropped a silicon smeared A008 oring (ID 3/16" x OD 5/16" x CS 1/16) down into the hole where the threaded gauge shaft goes & tightened the gauge up as tight as I could by hand on top of the oring, followed by another 1/8 turn with a wrench, & it's holding just fine.
BTW, my BSA R10's use an oring in the bottom of the hole instead of a dowdy seal under the gauge face, so this is where I got the idea (I think Mrods & AA S4XX rigs seal their gauges the same way).

Hope this helps...db



[2D1C]





[2D1C]





[2D1C]

@fenderguy. I have had this happen several times. As have others here. To prevent it I have had to keep an eye on the detente tension ball on the top rear of the receiver.
It has to be adjusted from time to time. You'll know when it's time as the bolt will start to jump up more.
If the bolt retainer screw hasn't broke yet? Your lucky! its a pain in the %$$ to fix!
My theory of why this happens is. When the bolt is closed the pellet probe sits right over top of the transfer port. When the trigger is pulled that HPA launches the pellet and also hammers that probe causing it to jump, that in turn puts a lot of back pressure on the probe retaining screw / bushing. I have three of those little screws and bushing for spares!
Great time to change out the TP # 8 O rings though

Dennis



[Jheikkila]

Help!!

How do you guys get the old rings off the probe?



[Crosfire]

Bug ups for the post. I'm late to respond. However, as stated previously, this gives me the desired level of detailed to service my Huntsman.



[MMoudk]

what is excat size of this o-ring for Pulsar hp?

thanks



[Tweeter]

Help!!

How do you guys get the old rings off the probe?

I used a pin to stick the o ring and lift it up so I could cut it with an exacto knife.



[amjadwq1]

Is there any Daystate Red Wolf o-ring reference manual for owners



[Skip-in-WV]

Am I missing something. I dont see Wolverine R listed. Are the orings the same as another model?



[amjadwq1]

can someone provide details of RedWolf O-ring Kit, 5.56 m cal- 50 foot pound energy



[amjadwq1]

Hello

can you help in providing oring details for Daystate Red Wolf 5.5mm (50 ft/lbs) please.
