HW/Weihrauch Deburring Weihrauch

[camd]

Would really appreciate any proven tips, tricks and methods to how you deburr your weihrauchs (hw50/95/98).

Cheers
Cam



[Hateful McNasty]

Like the tubes cut outs ?

PVC pipe and sand paper rolled around it that fits contor of tube area needing razor blades removed .. ( broom handle/ something like as good )



[crowski]

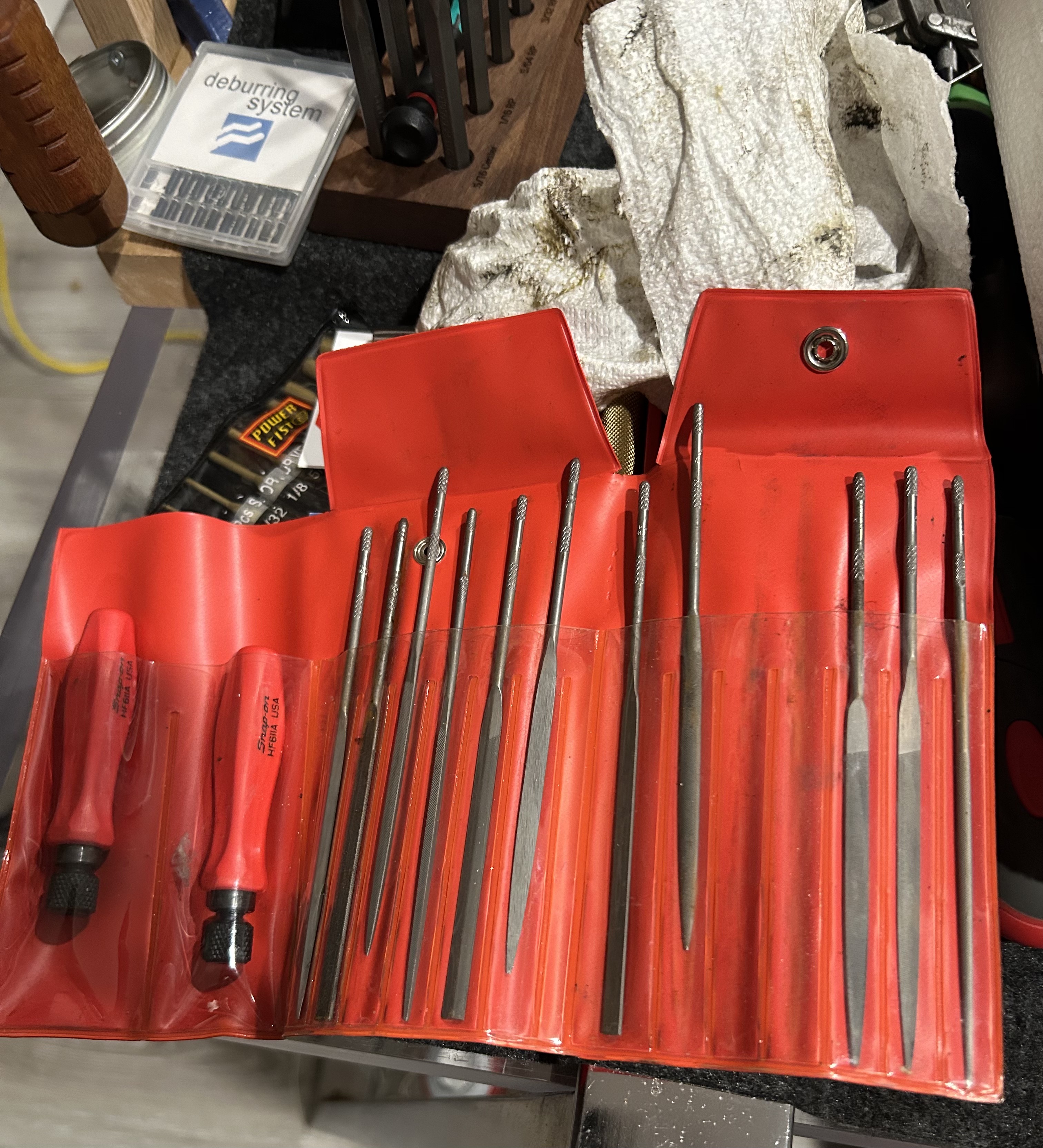

I use these small files. They work great.

Crow



[Hateful McNasty]

Ya, a combo of them files and scratching papers should do the job nice..

I even got a scotch Brite patch cut to fit the transfer port face and glued on a broom handle to clean/ polish that too.



[MDriskill]

A knife-sharpening stone also works well to tame sharp edges at the cocking lever slot, etc.



[beerthief]

using a diamond cutting wheel on a drill , you can cut a fine sharpening stone . then put the piece in a lathe and sand round . Also you can glue the pieces in a stack then file and sand to the dementions you need or want .
tile cutting disk @ Harbor FGT.



[Bear-of-Grayling]

Find a close fitting socket and wrap it with blue painters tape, then 1500 grit on double face tape, to a nice snug fit. I have a cut off extension to chuck it up. This will really polish up the interior. The piston on a buffing wheel and all edges with needle files then a Dremel with firm buffing wheels.



[Hateful McNasty]

Or wrap scratching paper around a broom handle that best fits the tubes contour.. lol



[bustachip]

Or wrap scratching paper around a broom handle that best fits the tubes contour.. lol

That's what I use wooden dowels and sandpaper glued on the bottom, for the bottom of compression tube. Then blue shop towels with solvent wrapped around the wood dowels to clean insides. Small files and 400 to 600 paper for burrs. You can polish the piston in hand with 600 paper and a little alcohol. Many ways of getting it done.



[Hateful McNasty]

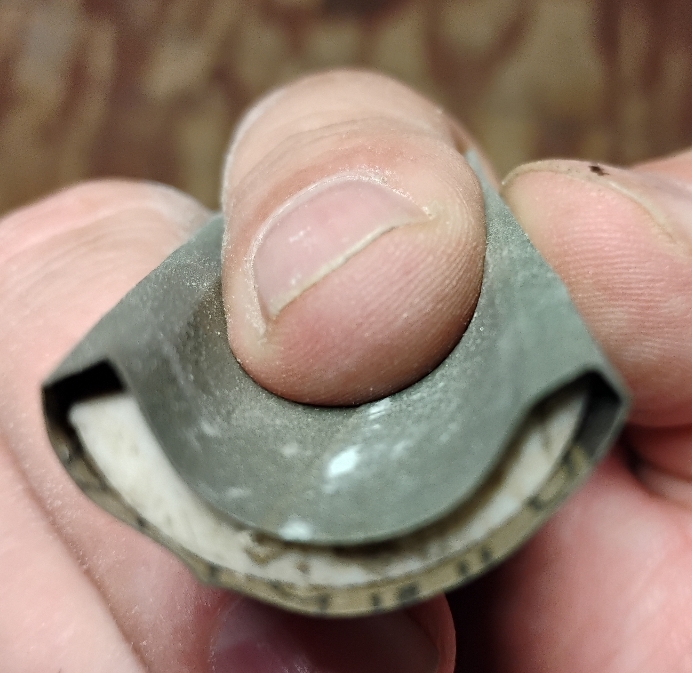

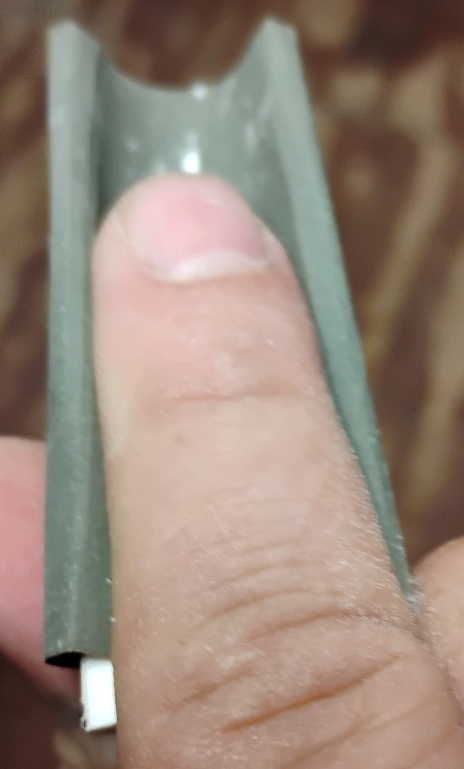

Here's a quick pvc pipe made sander if you just want to finger her out some



[jarmstrong]

ball hone,,, quoting motorhead
"Tearing it apart did a ball hone job on inner tube surfaces placing a nice cross hatch on compression bore & also deburring the cocking slot & holes that the seal must pass over when fitting said seal and final assembly. "

HW/Weihrauch - Acquired a HW30 Delux last week ... Fresh ARH seal, Piston sleeve & fitted guide .. WHOA SMOOTH !!!

I know as a tuner I've been here before, tho been Years since doing an R7 / HW30 and this time around it was personal !! ... Lol Tearing it apart did a ball hone job on inner tube surfaces placing a nice cross hatch on compression bore & also deburring the cocking slot & holes that the seal...

www.airgunnation.com



[Hateful McNasty]

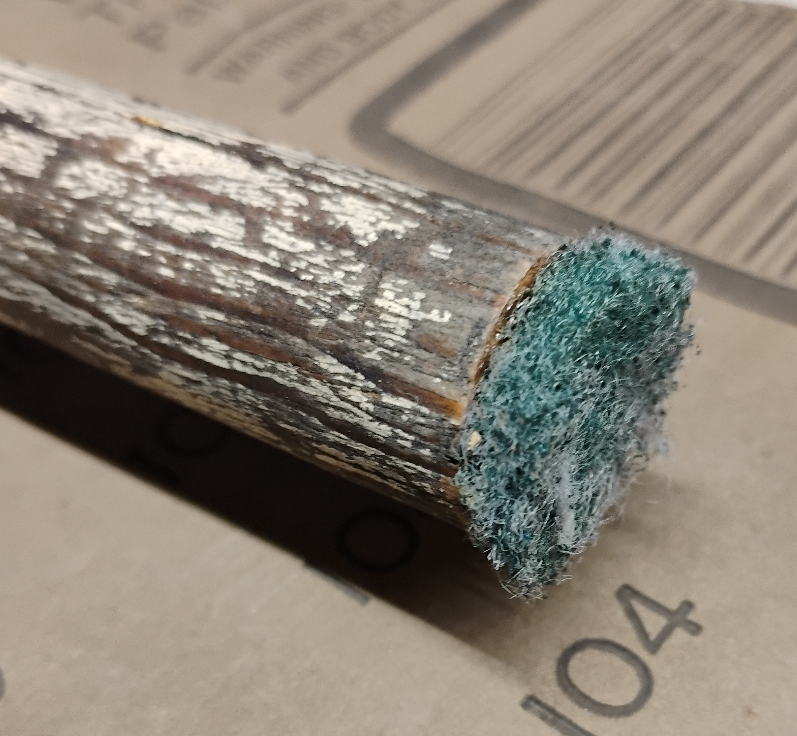

A transferport block face cleanerupper


It ain't rocket science or costly ordeals



[A.G.R]

A transferport block face cleanerupper
View attachment 512092

It ain't rocket science or costly ordeals

I love it…………. ,”it ain’t rocket science or costly ordeals“. I’m using it today at work.



[SpiralGroove]

- I use a Dremel for deburring/polishing most everything, but be careful not to mare the blueing when doing the receiver slots.
- I chuck the receiver/piston in my lathe and sand/polish it's inside/outside with carborundum attached to a metal rod or file.
- Trigger sears on a sharpening stone and edges by hand.

As always, less is more ................ take the equivalent of roughly 2,000 shots of wear off the internals.

While this isn't absolutely necessary on a new gun, after you do one -> you won't be able to shoot a gun out-of-the box again.



[camd]

Appreciate everyone's input!
Tomorrow I'll be knocking off early to pick up my new 98!


And some pvc pipe and sandpaper
