FX Dreamline valve seat orientation

[OatmealMu]

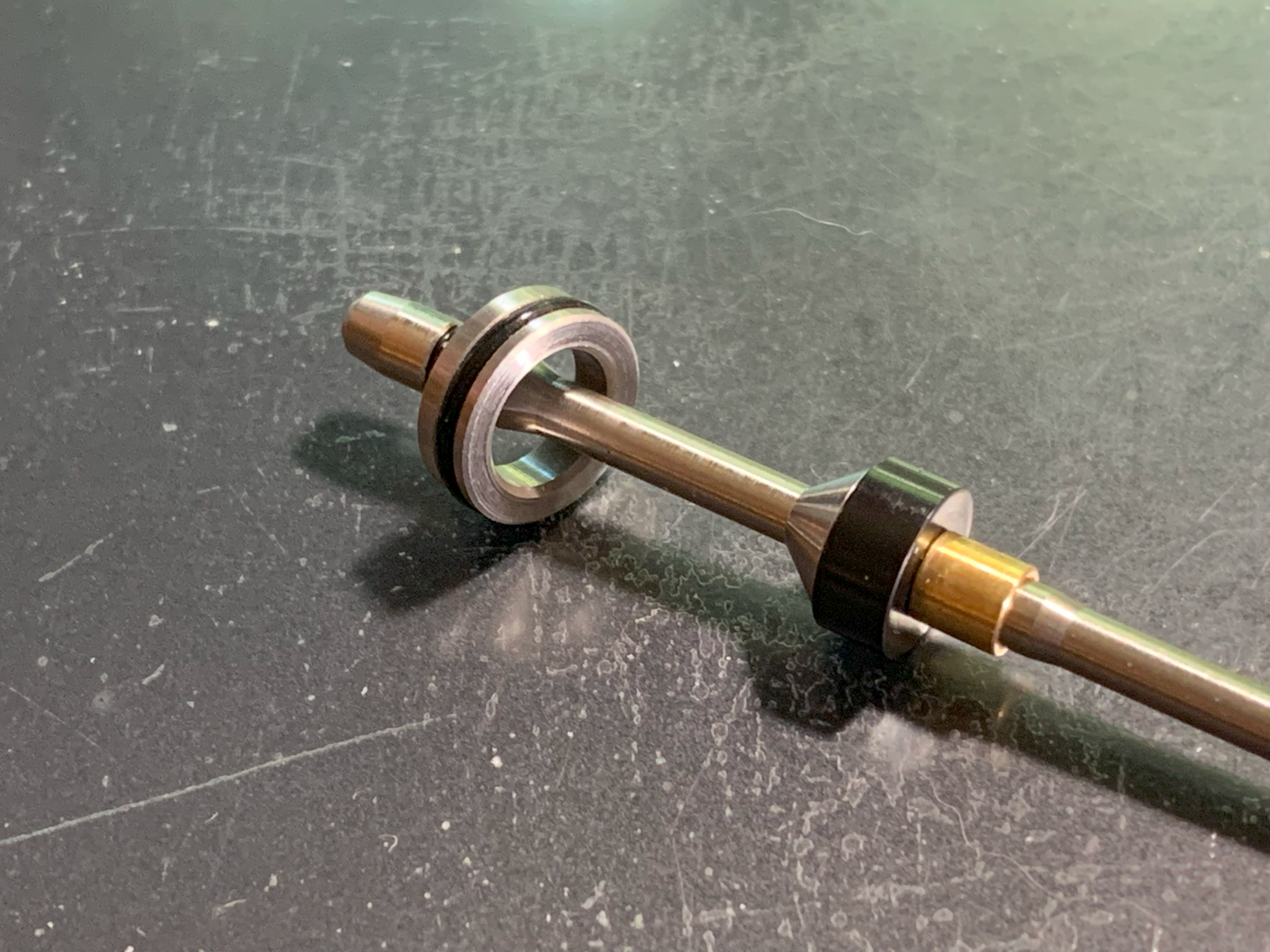

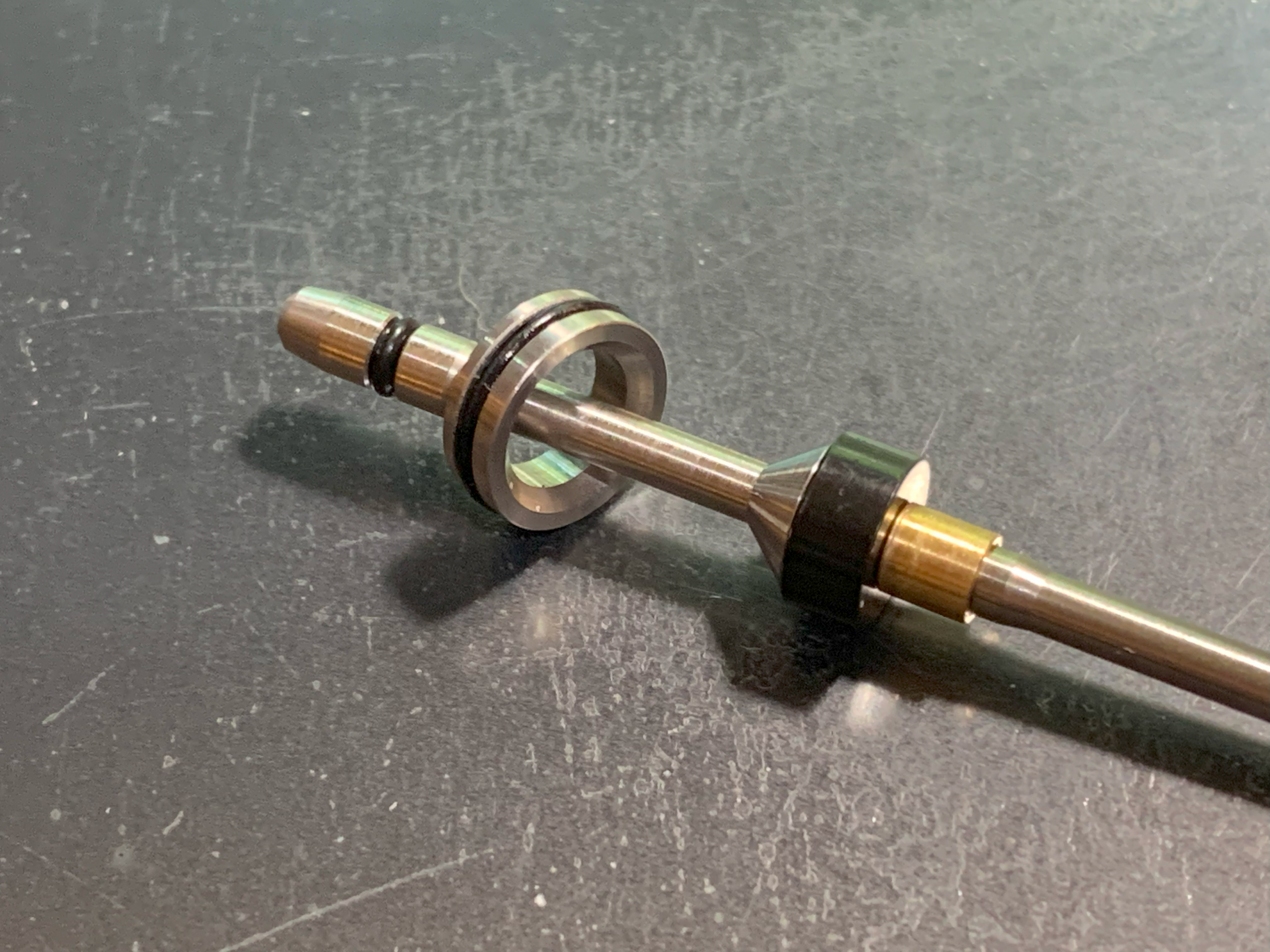

Just to verify, which direction is the valve seat supposed to be oriented?




I assume it's the first, but I'm narrowing down a leak and want to make sure, so I don't have to crack everything open again.

Thanks.



[Stubbers]

Top/first picture is correct.

-Matt



[Centercut]

I recommend replacing those two orings (valve pin and valve seat) while its apart... Also the ones not shown on the valve seat cap, one internal one external.
