EdGun Leshiy 2 problems with significant air loss with each trigger pull?

Jump to latest Follow Reply
armored007

armored007

Member
Jul 18, 2021
188
20
United States
So my L2 is only about 14 months old and out of warranty sadly, it started yesterday with each pull of the trigger a large volume of air also comes out, Brian at EdGun said to adjust the stopper screw, but still it has the problem. The roller still seems round and I don't see any debris and tried different mags, the barrel end is flush etc...

Any other suggestions or will I have to send it in to EdGun West for repairs, any ideas of the cost?

AirGunShooter said:
If you “lean” on the break point of the trigger without pulling through, air will leak. The longer holding force on the trigger at that point, the more air leaks. This may be what you’re experiencing.
Click to expand...
Yes, these triggers are more like pistol triggers than your “match grade” variety. A quick pull and follow through is needed for no air loss, and decent accuracy. Takes some time to get used to.

Upvote 0
AirGunShooter said:
If you “lean” on the break point of the trigger without pulling through, air will leak. The longer holding force on the trigger at that point, the more air leaks. This may be what you’re experiencing.
Click to expand...
no it isn't even with a quick pull of the trigger it almost seems like it's stuck and lose about 50-70 bars with even shot.

Upvote 0

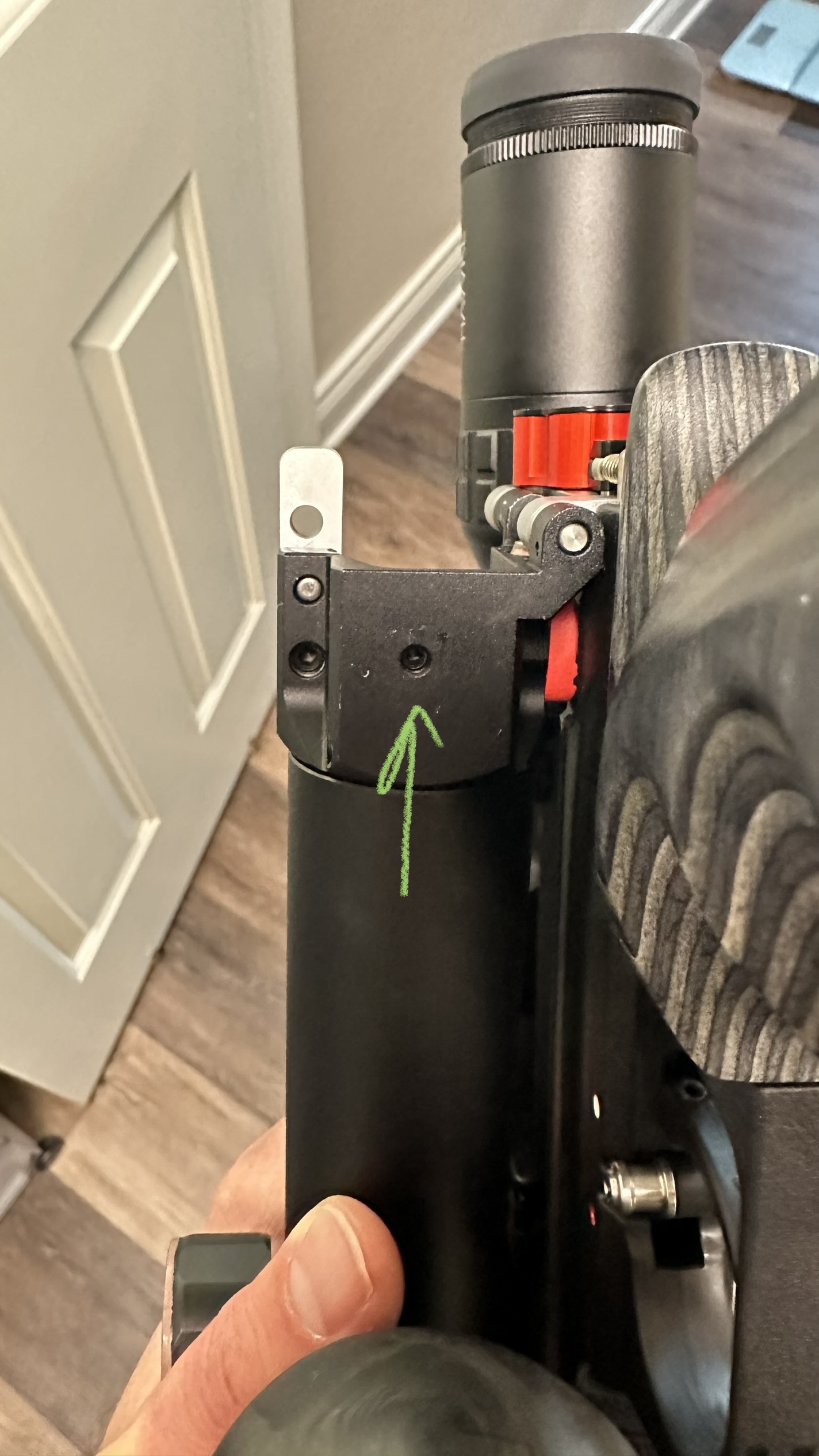

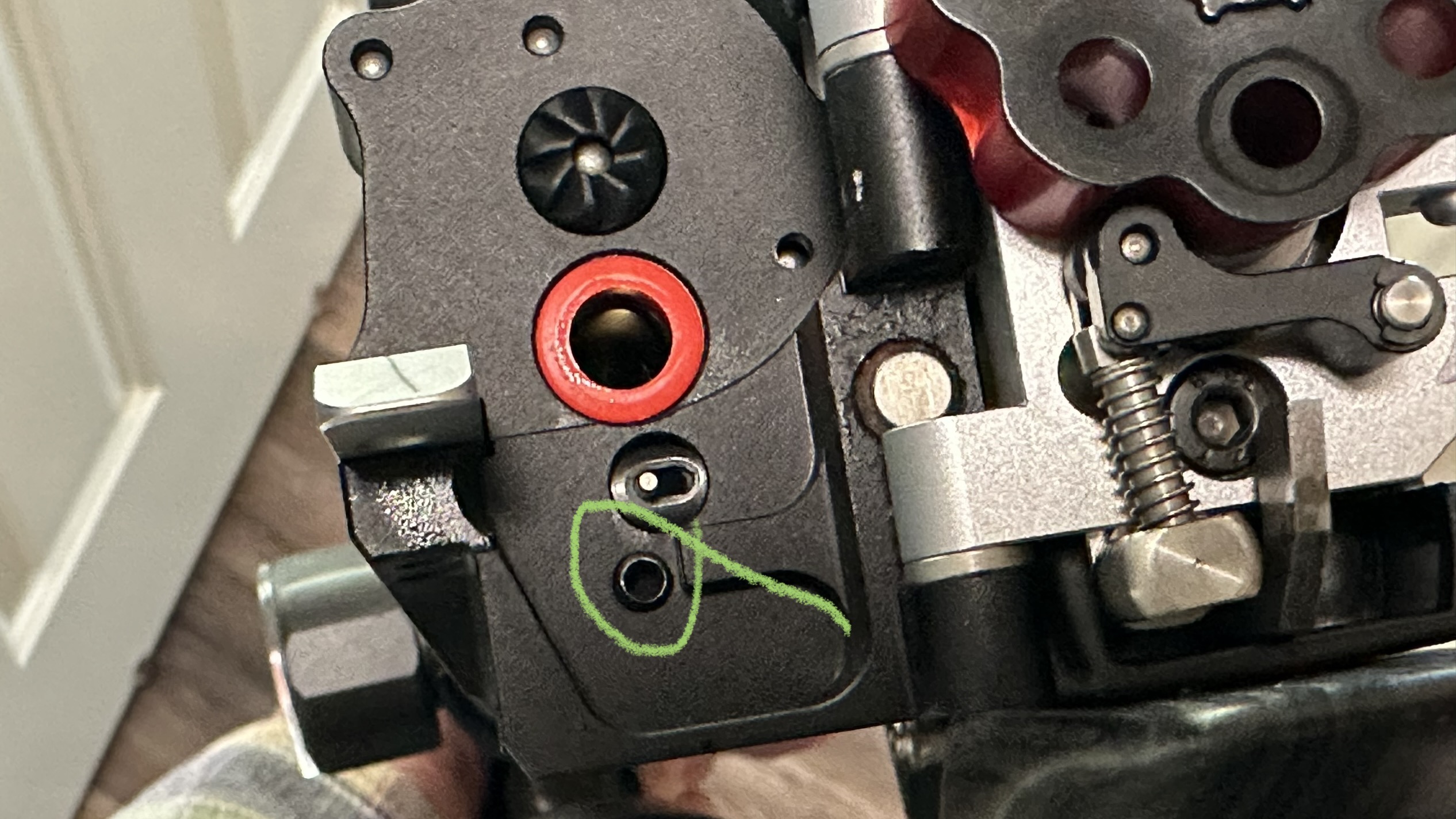

Y'all forgot to mention that the trigger waste-gate can be adjusted. This can also minimize the noise level and wasted air. Loosen the grub screw underneath the air cylinder, back out (increase the length) of the grub screw on the rear, tighten the grub screw underneath to lock it in place. Note that backing out the grub screw too much will restrict the airgun from firing. I like to adjust mine “just enough” to fire.


  • Like
Reactions: SHOMER, RAMJET66, armored007 and 1 other person
Upvote 0
Michael said:
Y'all forgot to mention that the trigger waste-gate can be adjusted. This can also minimize the noise level and wasted air. Loosen the grub screw underneath the air cylinder, back out (increase the length) of the grub screw on the rear, tighten the grub screw underneath to lock it in place. Note that backing out the grub screw too much will restrict the airgun from firing. I like to adjust mine “just enough” to fire.

View attachment 305855View attachment 305856
Click to expand...
that was the first thing Brian told me to do, but it didn't work sadly enough

Upvote 0
ctshooter said:
You might need to open up the valve and check all the parts. It could be a stuck nozzle or maybe a part in the valve. Tear in an o-ring, something basically preventing the valve from closing up in a timely manner.
Click to expand...
When this happened to me I had tear the valve down and adjust the trigger stopper. Just the trigger stopper was insufficient. Something got stuck because of the dump.

  • Like
Reactions: armored007
Upvote 0
armored007 said:
sorry for the newb question, but when you said value is it the gun or the stock? Any extra details are appreciated!
Click to expand...
This video shows how to adjust the stopper.


In my case, the dump from me riding had made the valve stick open. Still bot entirely sure why, but hasn't happened again.

Tearing down and reassembling following this video:


Fixed it for me.

If you've never done the before an important note! You MUST empty the gun of all air before messing with the valve!

See this video:


40 seconds for degassing instructions.
11:55 for instructions and removing the brace and then valve.

  • Like
Reactions: armored007
Upvote 0
Larcat said:
This video shows how to adjust the stopper.


In my case, the dump from me riding had made the valve stick open. Still bot entirely sure why, but hasn't happened again.

Tearing down and reassembling following this video:


Fixed it for me.

If you've never done the before an important note! You MUST empty the gun of all air before messing with the valve!

See this video:


40 seconds for degassing instructions.
11:55 for instructions and removing the brace and then valve.
Click to expand...
thank you, i just disassembled and checked everything, nothing was broke like the ball, springs or struts, maybe it jammed up?i did the stopper adjustment previously first and didn't work. i'll try to test it out later and see if it worked from the value dissasembly

Last edited:
  • Like
Reactions: RAMJET66
Upvote 0
armored007 said:
thank you, i will give it a try later in the week. when brian told me to adjust the stopper and i told him it didn't work and he said that was it and time to take the gun apart without further details or help.
Click to expand...
No problem. Valve is easy, but there are a bunch of little pieces so be aware of that, but you'll be fine :)

  • Like
Reactions: RAMJET66 and armored007
Upvote 0
well it still has the same problem, been messing with it all day today between conference calls at home/work.

i'm sending it to edgunwest and sadly it'll cost me $300 initially for the repair and it's only a little over a year old and well-taken care of and less than 300 rounds.

quite disappointed and kind of pissed off with it being over $2500 and it's a paperweight, looking into FX next.

  • Like
Reactions: madeintheuk
Upvote 0
armored007 said:
well it still has the same problem, been messing with it all day today between conference calls at home/work.

i'm sending it to edgunwest and sadly it'll cost me $300 initially for the repair and it's only a little over a year old and well-taken care of and less than 300 rounds.

quite disappointed and kind of pissed off with it being over $2500 and it's a paperweight, looking into FX next.
Click to expand...
Sucks man, I'm sorry the suggestions didn't work. If you find out what was wrong, tell us?

  • Like
Reactions: armored007
Upvote 0

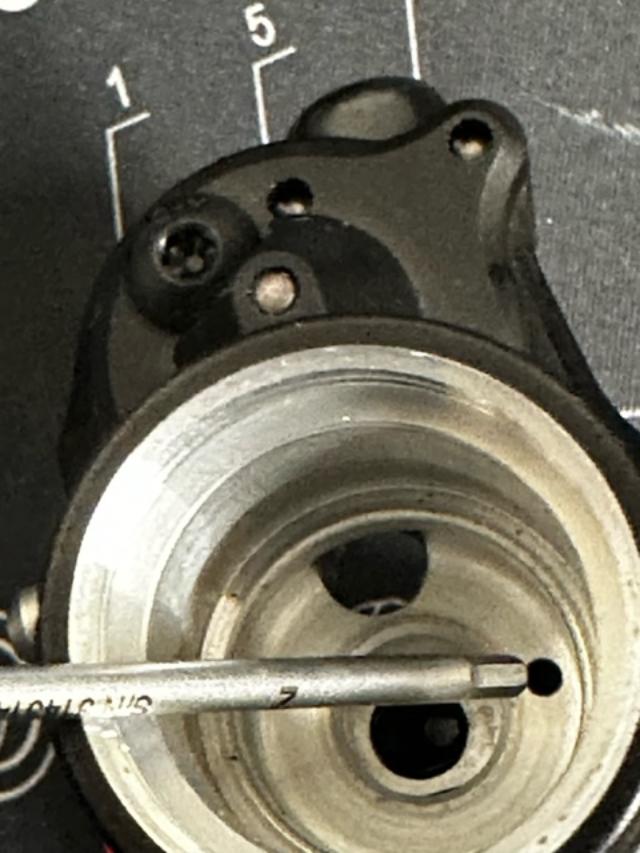

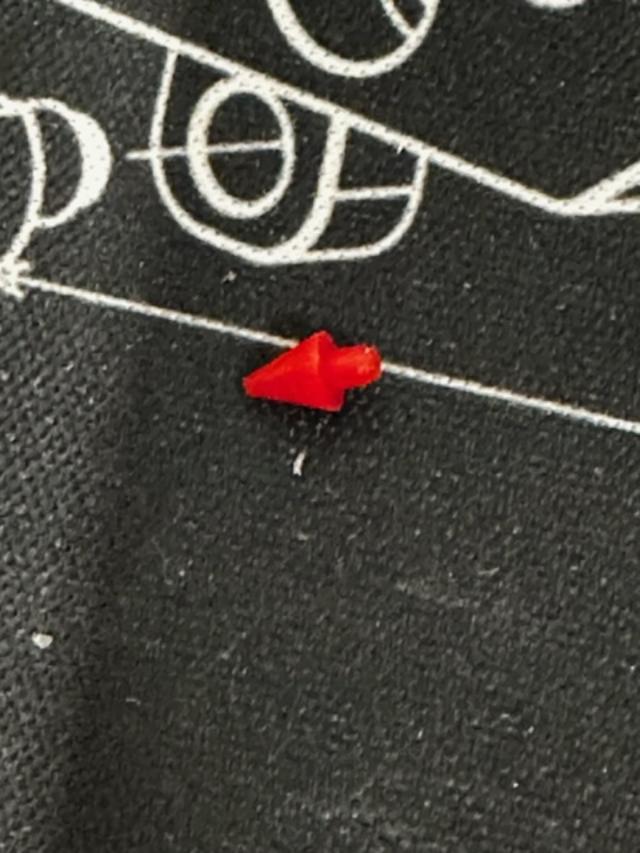

so it seems like one of my Poly Mags red tips was defective and got logged into the value, therefore causing all the problems. would this be a one-off defective ammo? i will just stick to NSA bullets and slugs, JSB's that are proven to work and not a gimmick maybe?

i'm kinda kicking myself also since I disassembled the value and didn't even catch that red plastic piece stuck there.

ETA" Brian said it took him quite a while to find out what was wrong too, now i don't feel too stupid, lol



thumbnail (1).jpg

Last edited:
  • Like
Reactions: tnbndr
Upvote 0
