You'll get the hang of it eventually. There's very little tolerance in there, but if you're gentle you'll find it without causing any harm to the gun.
Some of the newer magazines have a little rounding on the magazine post, which makes it a bit easier.
Upvote 0
So you made the wheel with lever? Looks like a very finished product.
My Immersive 10x40 (branded Element Immersive) arrived today. Had to knock out the two bolts on the smallest mount and tap them into the other side to get the knobs out of the way of folding the stock, while putting the scope mount as close as possible to the magazine. Neither of the longer supplied variable-MOA mounts would work, owing to the magazine plate and magazine. I could order a riser extended mount, but like the scope right there. Gets my eye right in the sweet spot without having to crane my neck unnaturally forward, thanks to the Leshiy's rather short length of pull. Folded, it adds a bit to the length, but it's still only 16" without that ugly brake mounted, 16.7" with it. Got to get a M14x1.5 thread protector to replace that useless thing...
The scope's side focus knob has white lines, and a 6 at the bottom, infinity symbol at the top. I suppose with everyone adjusting focus on the ocular lens to suit their particular vision correction needs, numbering the knob wouldn't make much sense. So is your big wheel numbered for your setup? Seems like something I'd like to get marked accurately at some point to enable use of the focus as a rough rangefinder. Making or buying a wheel with room for numbers on it would be a nice trick.
Upvote 0

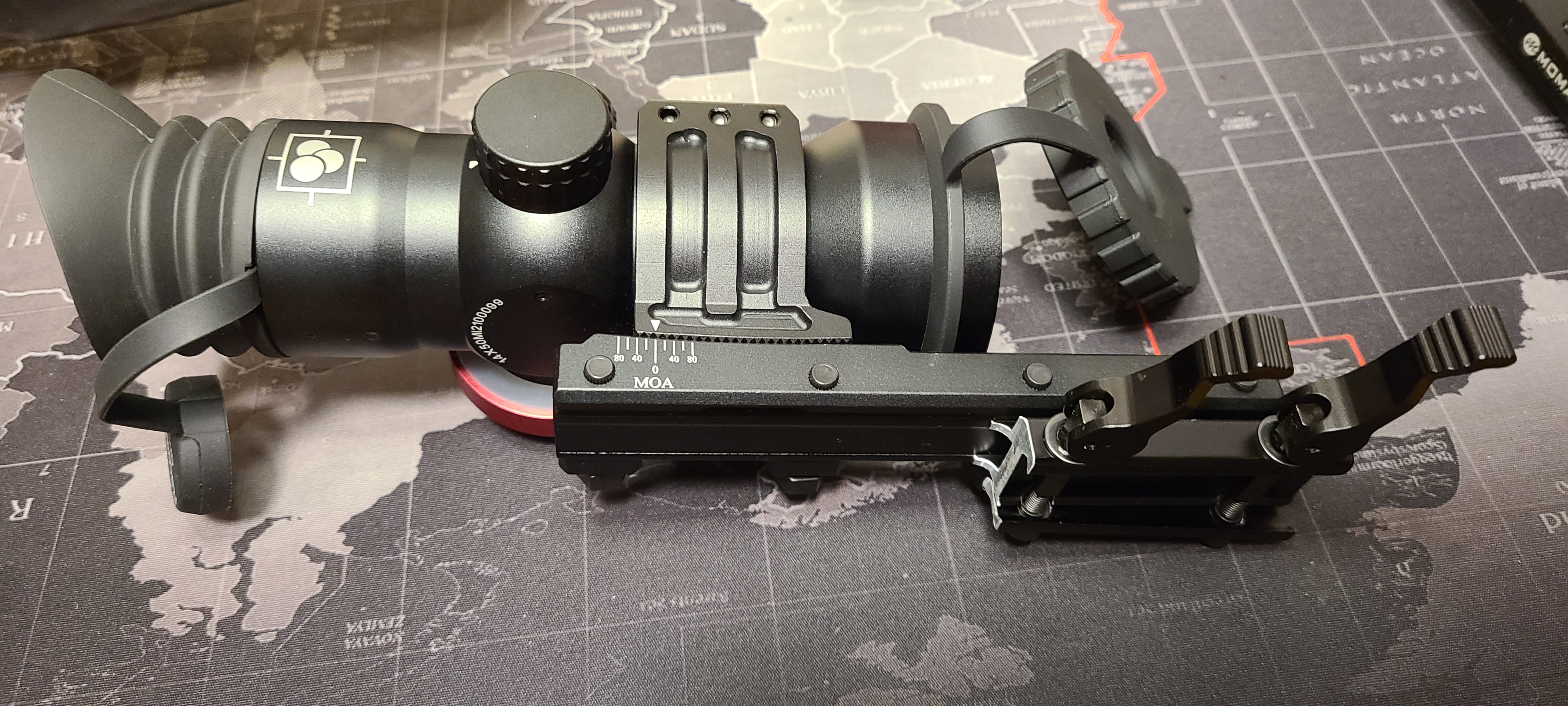

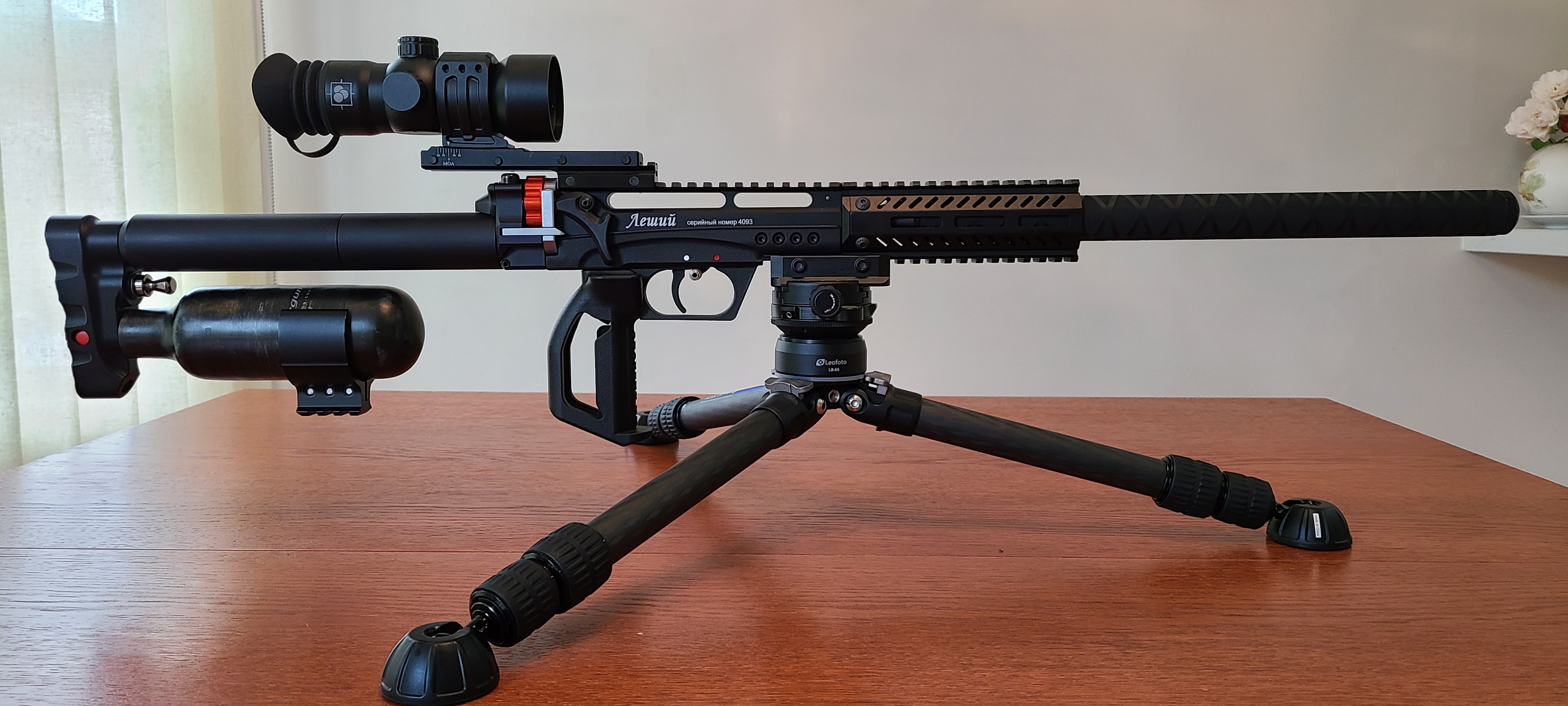

I had the IO 14x50 at first (2022), the eye relief was zero. No other way around but imagine this:
This was just a nightmare for packing

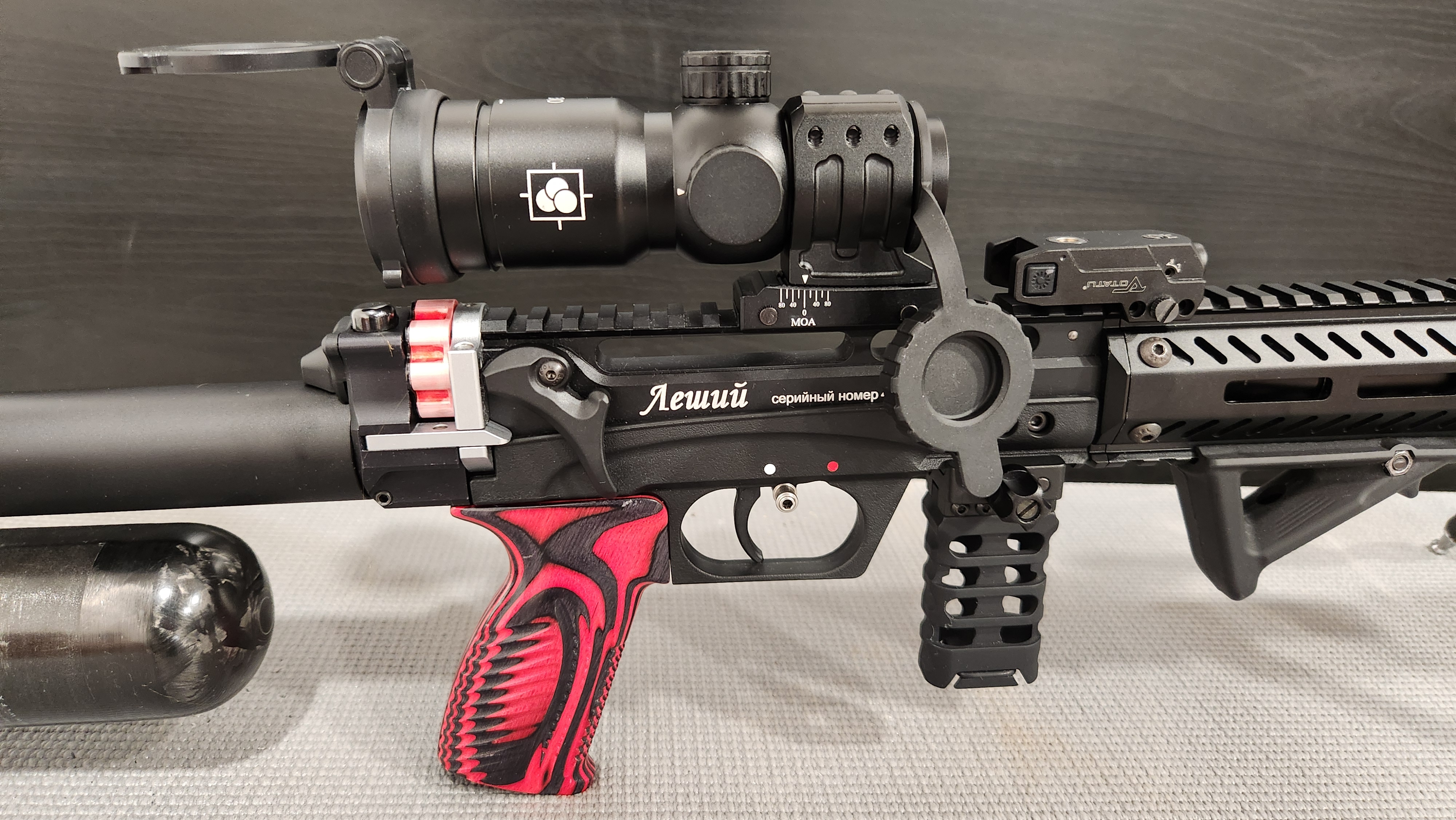

For the next 5x30 pro I shortened the PL (the rare air tube) for about 40mm, and now looks like this:
This was just a nightmare for packing
For the next 5x30 pro I shortened the PL (the rare air tube) for about 40mm, and now looks like this:
Upvote 0
I wish the Elements base was a QD. Love my Burris one-piece QD bases for my TNW ASR and my Sig Cross. Makes it so easy to arrange bits in a backpack while hiking, and they return to zero very consistently on both rifles. Oh well, like I said the overhang isn't much, with the Leshiy now just 16" OAL folded with the scope. Easily fits in any pack I use - the TNW is 19", so the Leshiy is easy by comparison. And I LOVE the view through the 10x40! Fantastic scope.
----------------
Got out the boresight green laser kit yesterday and checked the Elements scope at 8 yards, getting it close, then at 65 yards against a neighbour's fence and dialed it in a bit closer. Then a shot on paper inside at 8 yards. Needed 2 clicks Left, 16 clicks Up. Second shot, still needed a minor adjustment. Did that, and third shot (with 1.2" holdover marked on the paper for this range, according to Chairgun's calculation) was dead on the bull, 1/4 of the hole in each quadrant around the crosshair I'd drawn for a target. So at least I should be on paper at 50 yards, whenever I get an opportunity to go out and properly shoot this thing.
And once that's done and I've shot for holdovers to confirm various ranges, I can set about marking the focus wheel somehow. Maybe just a plastic wheel bonded to it with some Sugru silicone putty, with marked distances on the side for crude rangefinding.
----------------
Got out the boresight green laser kit yesterday and checked the Elements scope at 8 yards, getting it close, then at 65 yards against a neighbour's fence and dialed it in a bit closer. Then a shot on paper inside at 8 yards. Needed 2 clicks Left, 16 clicks Up. Second shot, still needed a minor adjustment. Did that, and third shot (with 1.2" holdover marked on the paper for this range, according to Chairgun's calculation) was dead on the bull, 1/4 of the hole in each quadrant around the crosshair I'd drawn for a target. So at least I should be on paper at 50 yards, whenever I get an opportunity to go out and properly shoot this thing.
And once that's done and I've shot for holdovers to confirm various ranges, I can set about marking the focus wheel somehow. Maybe just a plastic wheel bonded to it with some Sugru silicone putty, with marked distances on the side for crude rangefinding.
Last edited:
Upvote 0
Just removed the dog bone and collar that shouldn't be in my .25. I did choose for a 0.4 and a 0.5 jet, starting at 130 bar.
Friday to the range....
Friday to the range....
Upvote 0
From what I've seen mentioned in this thread and in a couple of Youtube videos, the 'collar and bone' parts have been added to low-power imports in the UK, and perhaps elsewhere. Typically these lower power Leshiy 2 examples are in .177" or .22", but it could be there are other calibres where they are also used - as shown in the above post regarding a .25" example.
Last edited:
Upvote 0
Did their placement seem relatively intuitive when removing them? I’m actually putting them in as I’m converting a .30 to a .177
Upvote 0
Might be in this thread or Edgun West Website, but there is an exploded view of the gun that shows the placement. My .22 does not have it, not sure you need to add it to the .177.
Upvote 0
For sub-12fpe it seems that going to the largest gets and around 80bar regulator setpoint would be sufficient. If not quite, then using a restrictive power puck. Or maybe those aren't quite enough still, hence the 'dogbone and collar'?
Upvote 0
Last edited:
Upvote 0

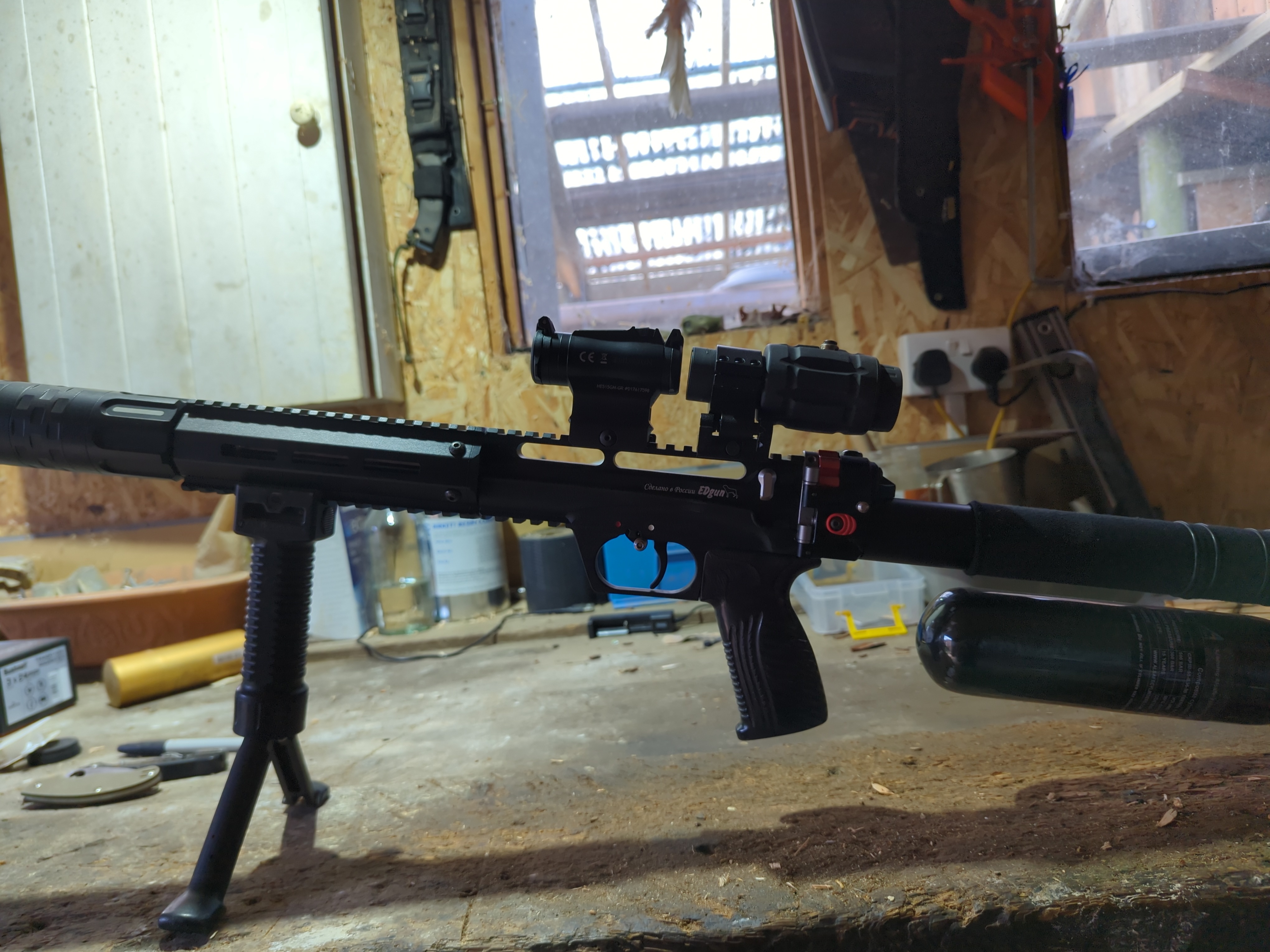

Well I have mounted the Bushnell magnifier behind the holosun - they work just about but for some reason I can't seem to change or adjust, the Bushnell seems to sit slightly slanted so that I can't centre the dot, it sits low down in the field of view, but it works
Upvote 0
I had a situation couple years ago. A same Brand - SigSauer - the red dot and the magnifier were not in same centerline.
Romeo7 + Juliete6 I am talking about. Several months of chasing the Dealer and Sig, finally I sent in for Service, no luck. I made them pay it out. That was back in 2021.
Maybe you can fix it with shim plates. You would need to measure both centerlines individually.
Romeo7 + Juliete6 I am talking about. Several months of chasing the Dealer and Sig, finally I sent in for Service, no luck. I made them pay it out. That was back in 2021.
Maybe you can fix it with shim plates. You would need to measure both centerlines individually.
Upvote 0

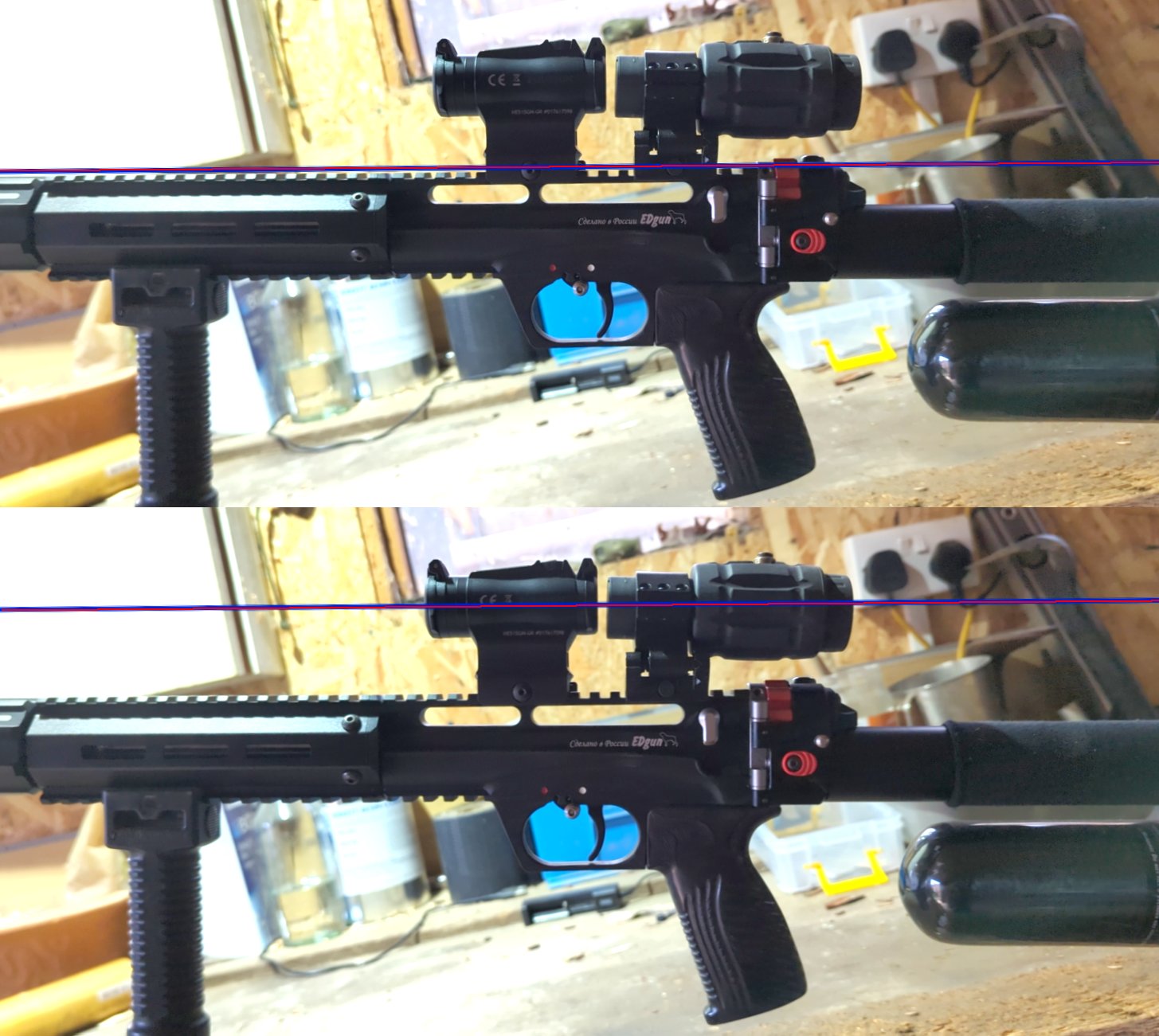

I copied your picture, levelled it, and drew a line parallel to the optic rail and then through the optical centres. The dot sight looks fairly close to being parallel to the rail. The magnifier isn't anywhere near parallel, pointing upwards about 1.8 degrees according to my screen protractor. That's rather amazing. I've never seen such a crooked mount.
Upvote 0
Really appreciate the responses and suggestions guys, Its definitely a really crooked mount, I'm think maybe order a new mount, possibly a holosun mount which I dare say will put the Bushnell magnifier in exactly the correct position..... I can't see why there would be any incompatibility? Either way I'm not particularly impressed with the mount supplied by Bushnell even if it was not crooked its still not great....
Aside from that, I really like the HS515GM GR
it is deffo a quality bit of kit and easy to use - I'm thinking of getting a small and compact NV scope too, most of my pest control will be at night, want something really compact though, thinking the sightmark wraith mini - anyone tried one of these on a leshiy2?
Aside from that, I really like the HS515GM GR
it is deffo a quality bit of kit and easy to use - I'm thinking of getting a small and compact NV scope too, most of my pest control will be at night, want something really compact though, thinking the sightmark wraith mini - anyone tried one of these on a leshiy2?
Upvote 0

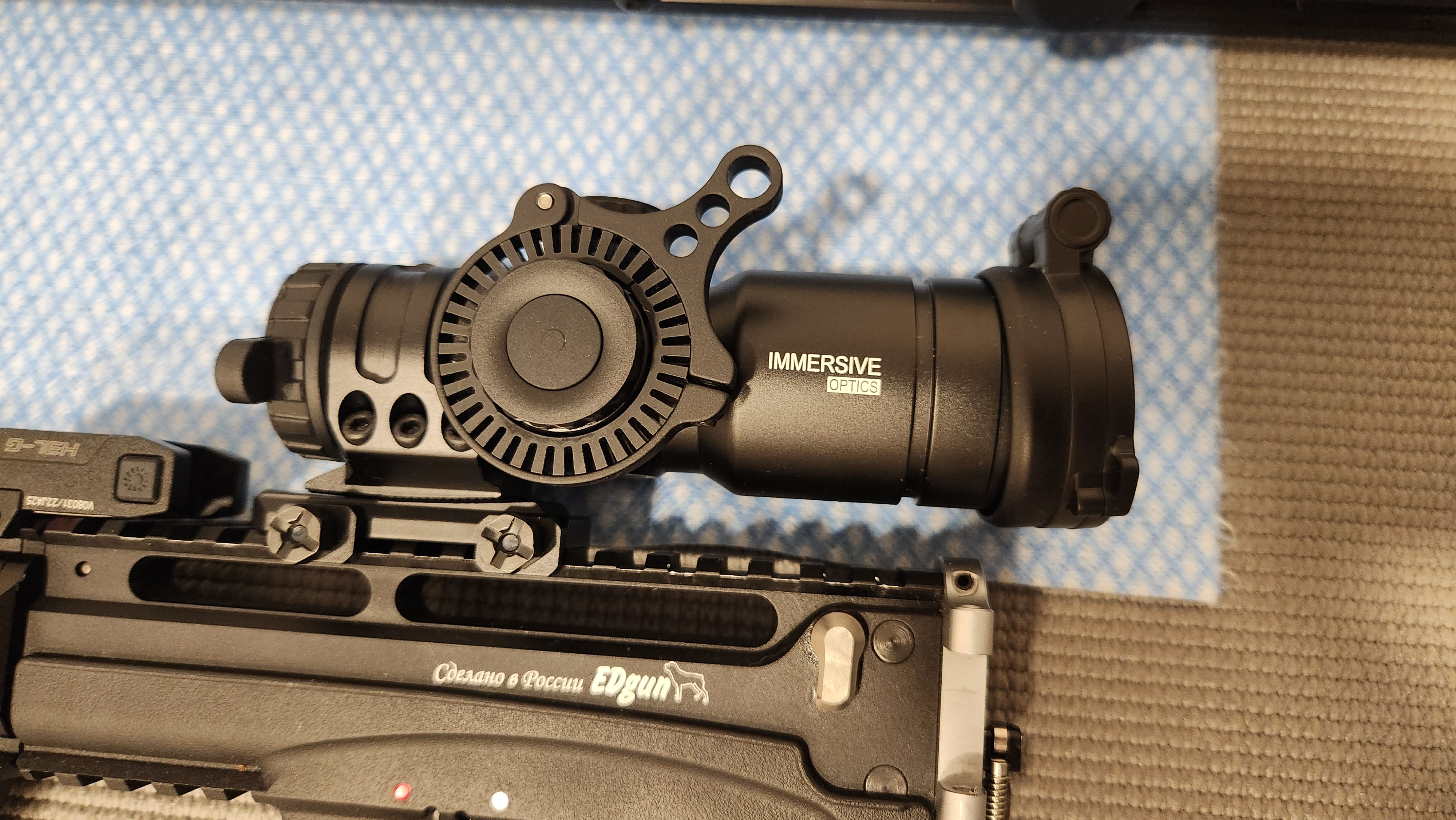

I love the Emersive 14 X scope on my Wildcat and Leshiy2 . But don’t like side focus scopes for hunting. Hard to hold a rifle and focus at the same time so I made this set up on both rifles. Works perfect and I can still fold the Leshiy
Upvote 0
They're standard in .17 and .22 everywhere. They were missing in the original L2s and were introduced when the REPR came out, as a part of the revised front plug. Apparently they're there to improve the efficiency in lower powered guns by reducing the volume behind the valve. If you're aiming for max power with the .22, it's best to remove them. If you like to conserve air with a sub-30fpe .22/350, you want to keep them. No need for them in .25 and above. Note: simply removing them changes the valve timing and you'd need bigger jets to stay at the same fps. But if you're removing them you want more fps, so you don't care.
Upvote 0
