have the r5m edgun. front gauge is off. is there a battery? how do i get at it? let me know folks.
Edgun R5M front digital gauge not working
- Thread starter rangur1
- Start date
Is it new? Some of them are tricky on where you have to press it, and how hard. Generally... the lower right hand corner of the actual LED window. Press pretty firmly
Upvote 0

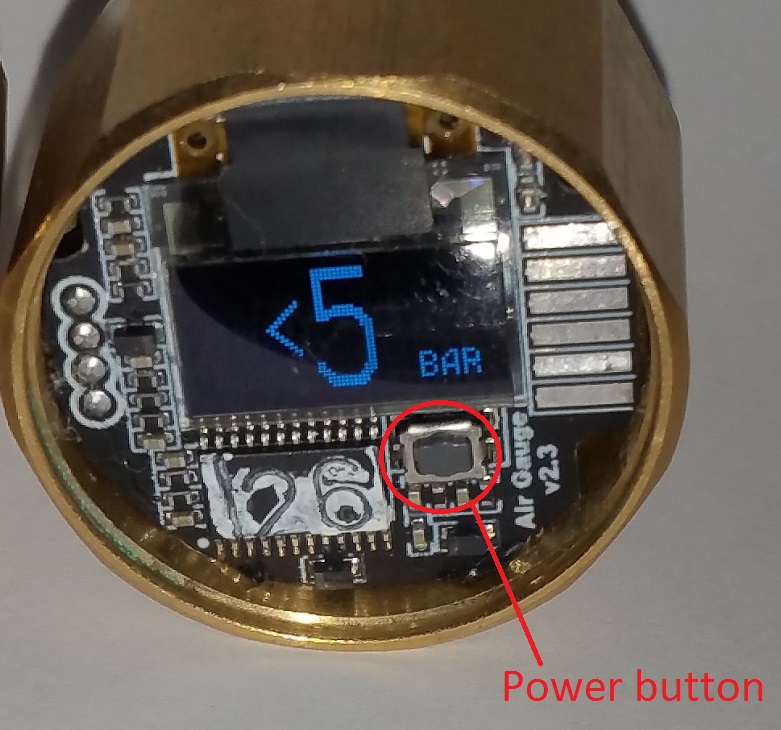

Expose the gauge and you'll see a little black sticker on the side. Peel it off and apply compressed air to the hole to pop the plastic face off. Lift out the pcb/screen and the battery is underneath. I believe it's a 2032 cell. Put everything back and snap the face back on, running your finger around the edge to seat it.
Upvote 0
I had Brain over at Edgun West replace mines with the Analog gauge...just didnt want to deal with changing batteries....
Upvote 0
Mine is leaking between the metal and the window material on my new Leshiy. I'm waiting for Brian to send me a analog gauge to swap it out. Other than that i'm loving my new gun.
Upvote 0
I dont care for the digital gauge myself as am really thinking of swapping it out for an analog one soon.
Upvote 0
FYI there is a video on Edgun West website on changing the battery. Under resources and click vids
Upvote 0

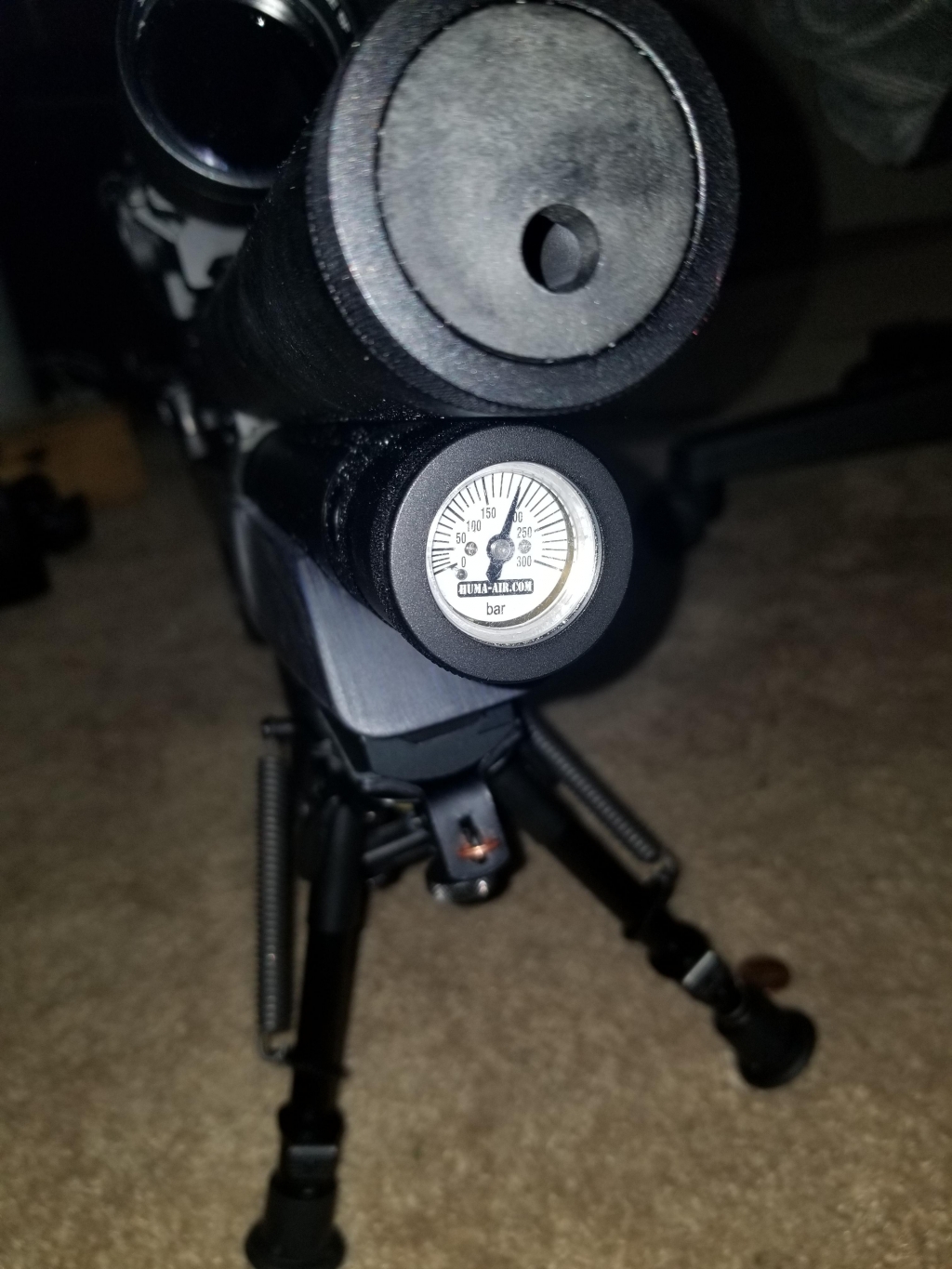

Brian sent me a analog gauge (arrived today) and said he would fix the digital gauge for me if i like but im kinda diggin the analog one.
Upvote 0
