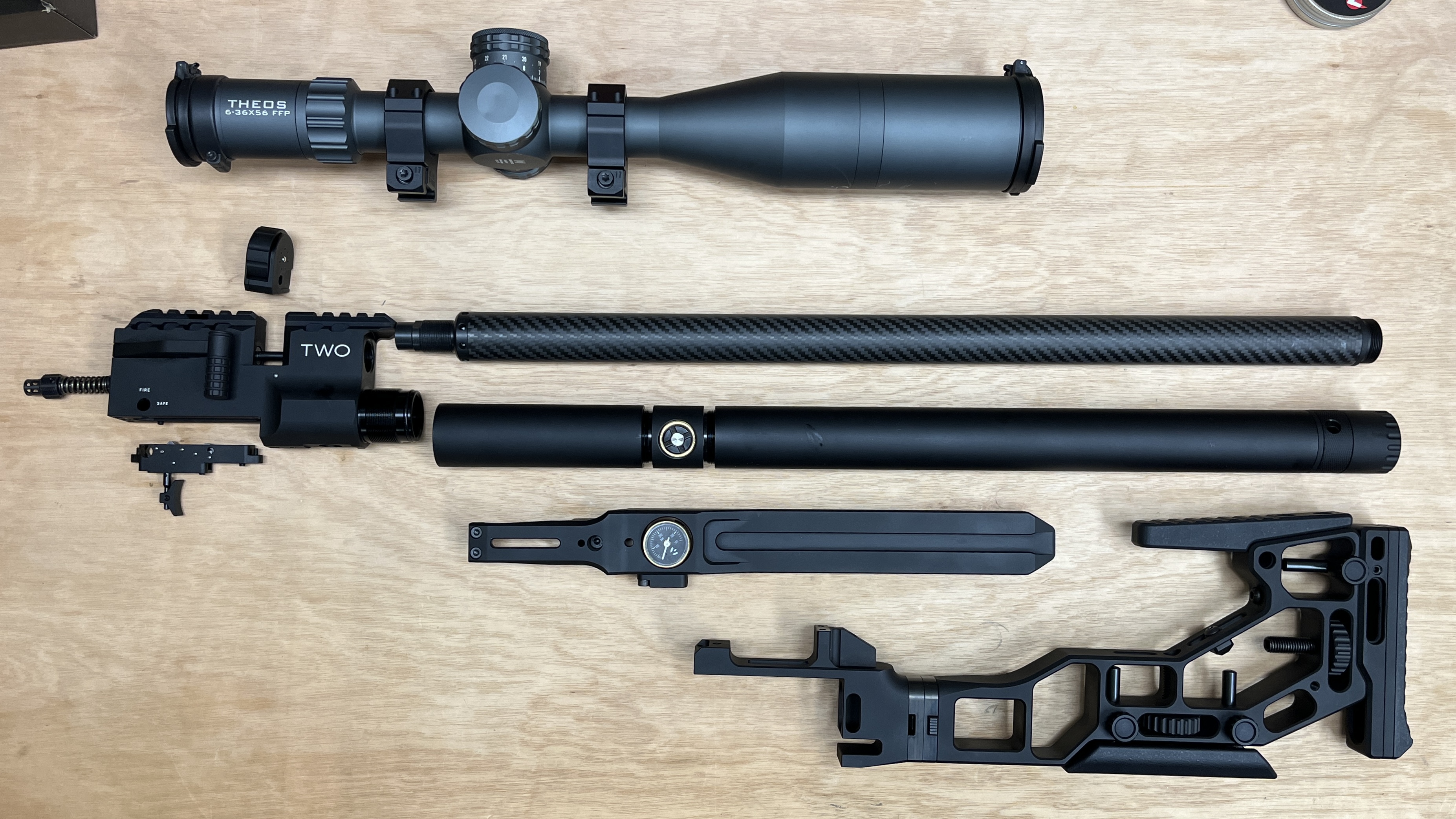

Mine fell apart today ;)

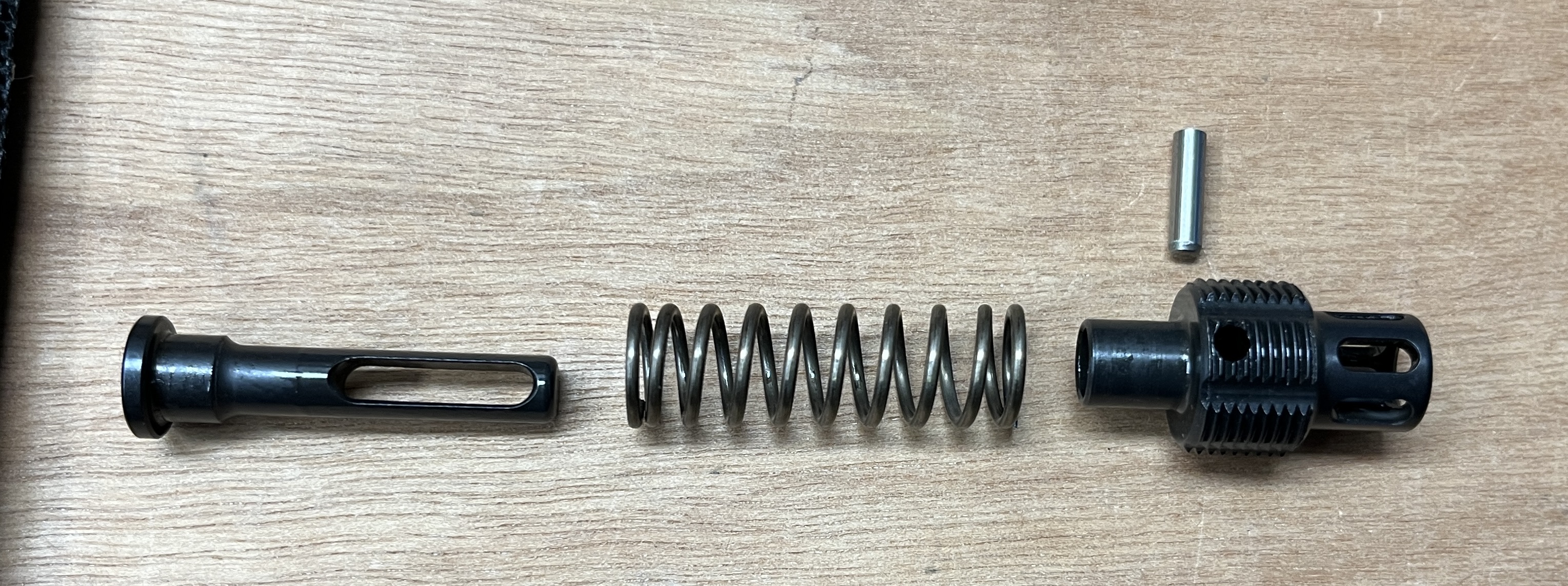

What I can see at first glance is that it is a really well built and robust design! For the once owning one and hearing a ping during a shot: it is the hammer spring system that is resonating. A solution is being worked on :) One way to do it now already is to pull out the stainless steel pin that is holding the hammer spring assembly together, that way it still functions the same but then without the pre-tension. Other temporary solution is putting a small piece of silicone or rubber hose around the spring to dampen it's resonance.


  • Like
Reactions: pan60, Ezana4CE, woodman73 and 6 others
Upvote 0
woogie_man said:
How does the machining look on the rifle? Any marks or sharp edges?

Really interesting breakdown as well

Thanks for the pictures
Click to expand...

The overall machining looks good! Haven't really found a sharp edge luckily.

Peskådot671 said:
How did you remove the barrel?
Click to expand...
The barrel assembly is threaded into the receiver but mine was pretty tight. There is a nut with 4mm holes drilled into it on the barrel that sits agains the receiver, I've placed a 4mm drillbit in one of the holes and used a hammer strike too help it come loose. Now I can easily loosen and thighten the barrel

  • Like
  • Love
Reactions: Peskådot671, Franklink and Ranchibi
Upvote 0
broekzwans said:
The overall machining looks good! Haven't really found a sharp edge luckily.


The barrel assembly is threaded into the receiver but mine was pretty tight. There is a nut with 4mm holes drilled into it on the barrel that sits agains the receiver, I've placed a 4mm drillbit in one of the holes and used a hammer strike too help it come loose. Now I can easily loosen and thighten the barrel
Click to expand...

Barrel threaded into breech block = what all airguns should be.

  • Like
Reactions: pan60, Jaxjax, Rvaughn and 2 others
Upvote 0
Been testing yesterday (in my garage) and today (at the 100 meter range). The following data is now available for the 550mm CZ barrel of what the maximum velocity is for a certain slug weight at a certain regulated pressure:

in readable units:

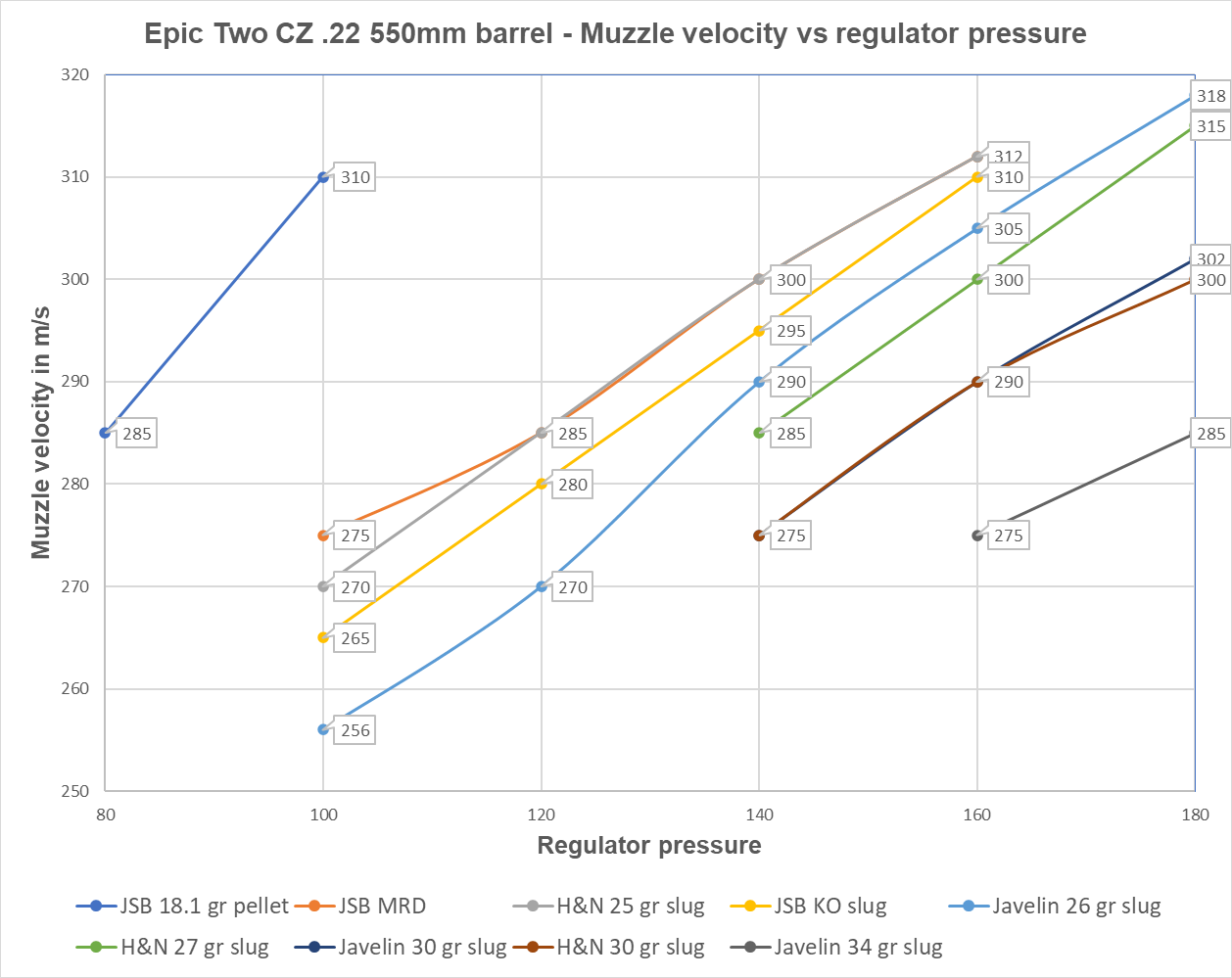

MV 550CZ 22 mps.png


and in murica units of velocity :geek:

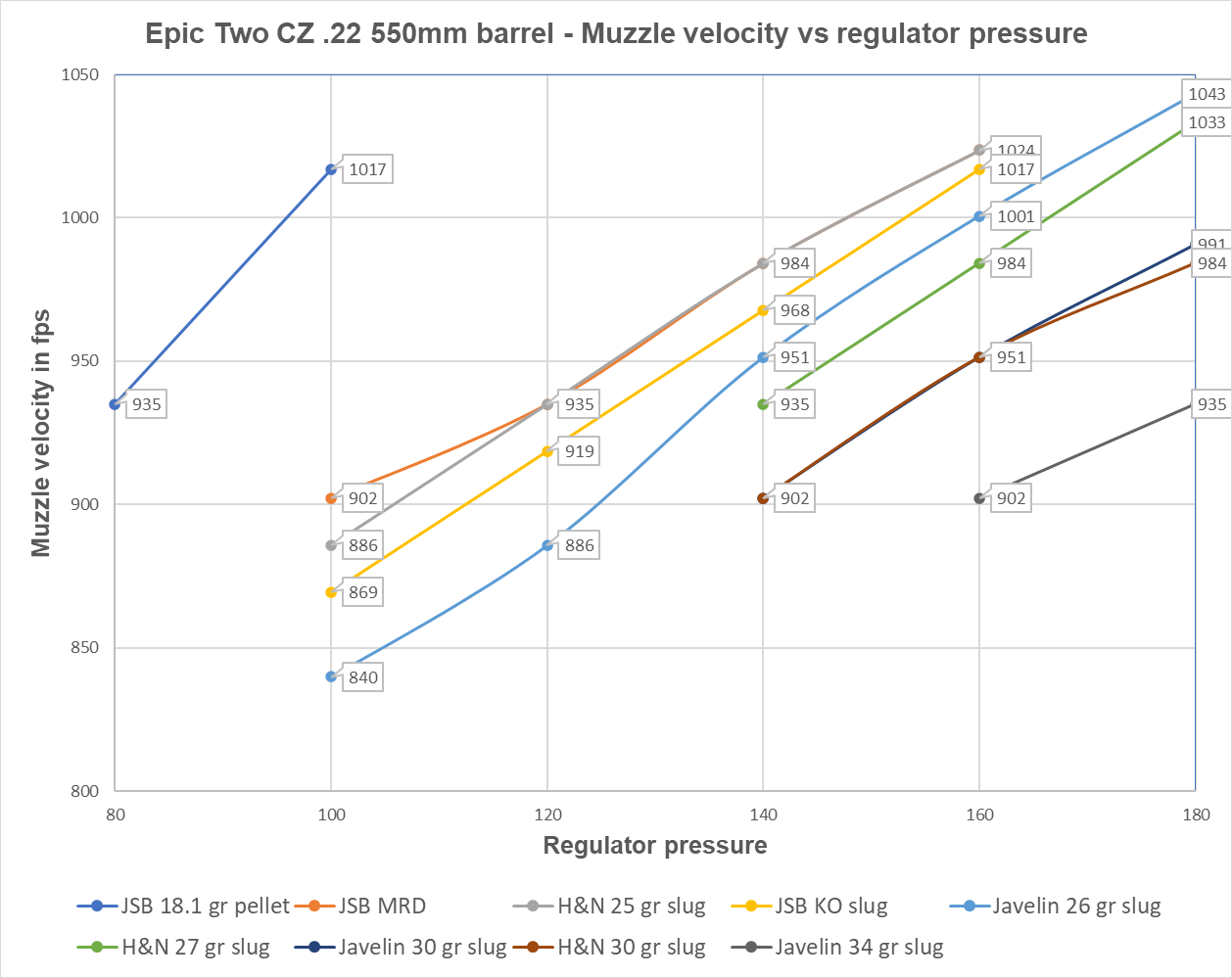

MV 550CZ 22 fps.png

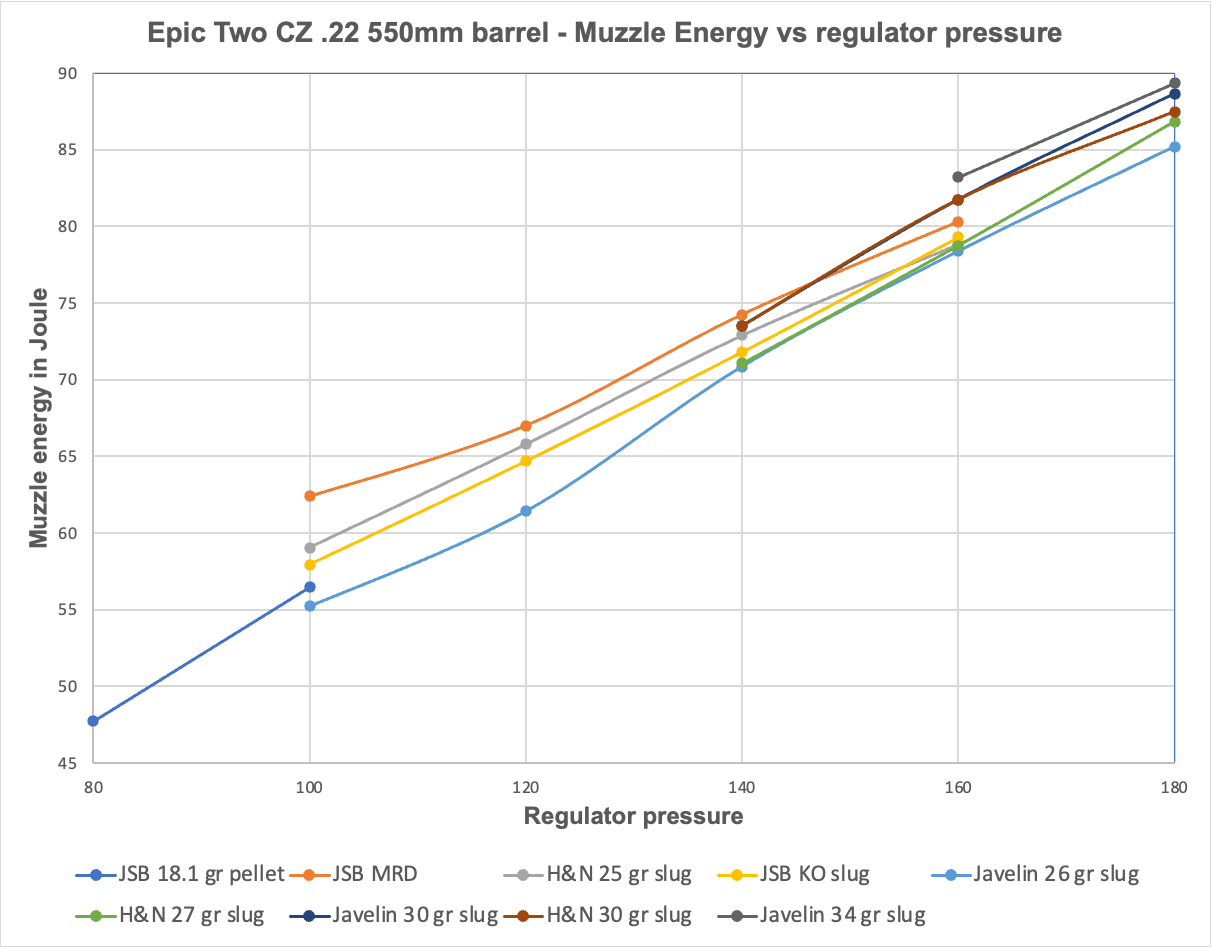

Translated to energy:

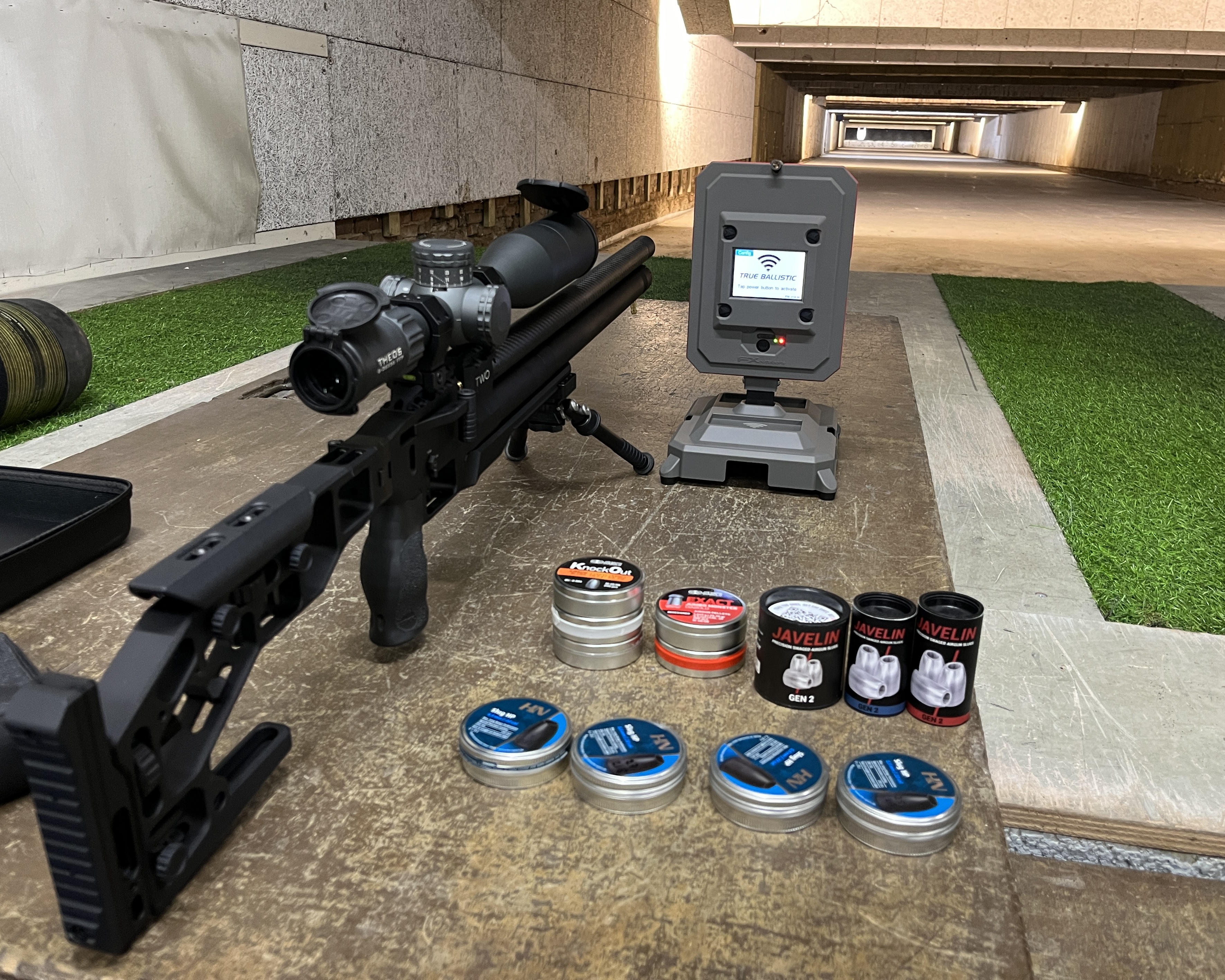

And on the range today just to see what slug diameter and weight I needed to look for.


Got good results with the H&N and Javelin slugs in .218 and already had groups of approximately >50mm at 100 meter (0.5MRAD = 1.6 MOA) without any proper tuning. Several weights had groups of 40mm and smaller. The JSB KOs weren't showing any form of grouping, the Monster redesign showed good groups but as always a poop load of flyers as well. Pictures of the groups are on my instagram

Last edited:
  • Like
Reactions: Airfuture, AmosBurton, woodman73 and 5 others
Upvote 0
csdilligaf said:
Plenty of power. But how is the shot spread? Say over 10 shot what is the extreme spread?
Click to expand...

If you're 'in tune' it's about 1-2 m/s or 3-6 fps max. When I was pushing too hard with the hammer it became incosistent but I can't imagine why you would use that tune on purpose since there was no velocity gain anymore.

I expect the values to go up a little with the LW polygonal barrel of the same length. Should get that delivered soon so I'll update this thread then

  • Like
Reactions: Olle Grieze and Ranchibi
Upvote 0
Ranchibi said:
Beautiful, powerful and accurate! Thank you for sharing all your tune/shooting info especially with slugs 👍.
Click to expand...

statistically my groups are not saying much at the moment but it was just a quick test to find where I should look for in slugs. After this I'll start testing more thoroughly to find accuracy nodes and then with 50 - 100 shots per tune to find the right setting.

  • Like
Reactions: Ranchibi and BBGunn
Upvote 0
broekzwans said:
The overall machining looks good! Haven't really found a sharp edge luckily.


The barrel assembly is threaded into the receiver but mine was pretty tight. There is a nut with 4mm holes drilled into it on the barrel that sits agains the receiver, I've placed a 4mm drillbit in one of the holes and used a hammer strike too help it come loose. Now I can easily loosen and thighten the barrel
Click to expand...
Got mine a few weeks ago. Did the drill bit hammer trick. Broke the bit….. Am afraid have to make a tool for it. Have Epic in .25. Also got an .22 Long barrel kit.

Upvote 0
My barrel was very tight as well, after it came loose I placed it back with some Molykote multilub so it wouldn't seize up next time. So far that worked great since I can get it loose quite easily now.

Downside is that you can't fit a C spanner around it due to the picatinny rail. Use a hardened steel pin and make a handle on it and you should be able to get it loose. Or get a 4mm pin punch, that should be stiff enough by itself.

  • Like
Reactions: Olle Grieze
Upvote 0
broekzwans said:
My barrel was very tight as well, after it came loose I placed it back with some Molykote multilub so it wouldn't seize up next time. So far that worked great since I can get it loose quite easily now.

Downside is that you can't fit a C spanner around it due to the picatinny rail. Use a hardened steel pin and make a handle on it and you should be able to get it loose. Or get a 4mm pin punch, that should be stiff enough by itself.
Click to expand...
Did that, punch bend…….. gonna make an U formed tool with pins at 180’. Heeft daar een Tjech aardig op staan leunen 🤓😁👍

Upvote 0
Olle Grieze said:
Did that, punch bend…….. gonna make an U formed tool with pins at 180’. Heeft daar een Tjech aardig op staan leunen 🤓😁👍
Click to expand...
o_O gevalletje handvast aandraaien met oostblok newton meters :LOL:

In English: the barrel can be tightened quite hard in the breechblock so it can take some effort to get it loose the first time. Maybe some heat from a heat gun or hair drier will help to get it loose. Make sure to apply some lube when you thread it back in ;)

csdilligaf said:
How much does that hammer weigh?
Click to expand...
18 grams is the hammer weight

  • Like
Reactions: Olle Grieze
Upvote 1
