Skout Epoch - what is the thread size for under stock 4 holes?

Jump to latest Follow Reply
inverted

inverted

Member
Oct 2, 2015
130
53
Croatia
Sorry for my ignorance but since I'm from Europe I have no easy way of checking this.

What is the thread/bolt size of these holes?



I plan to design/make some kind of monopod so I need to know which bolts I need to order.

Thank you!

inverted said:
Sorry for my ignorance but since I'm from Europe I have no easy way of checking this.

What is the thread/bolt size of these holes?

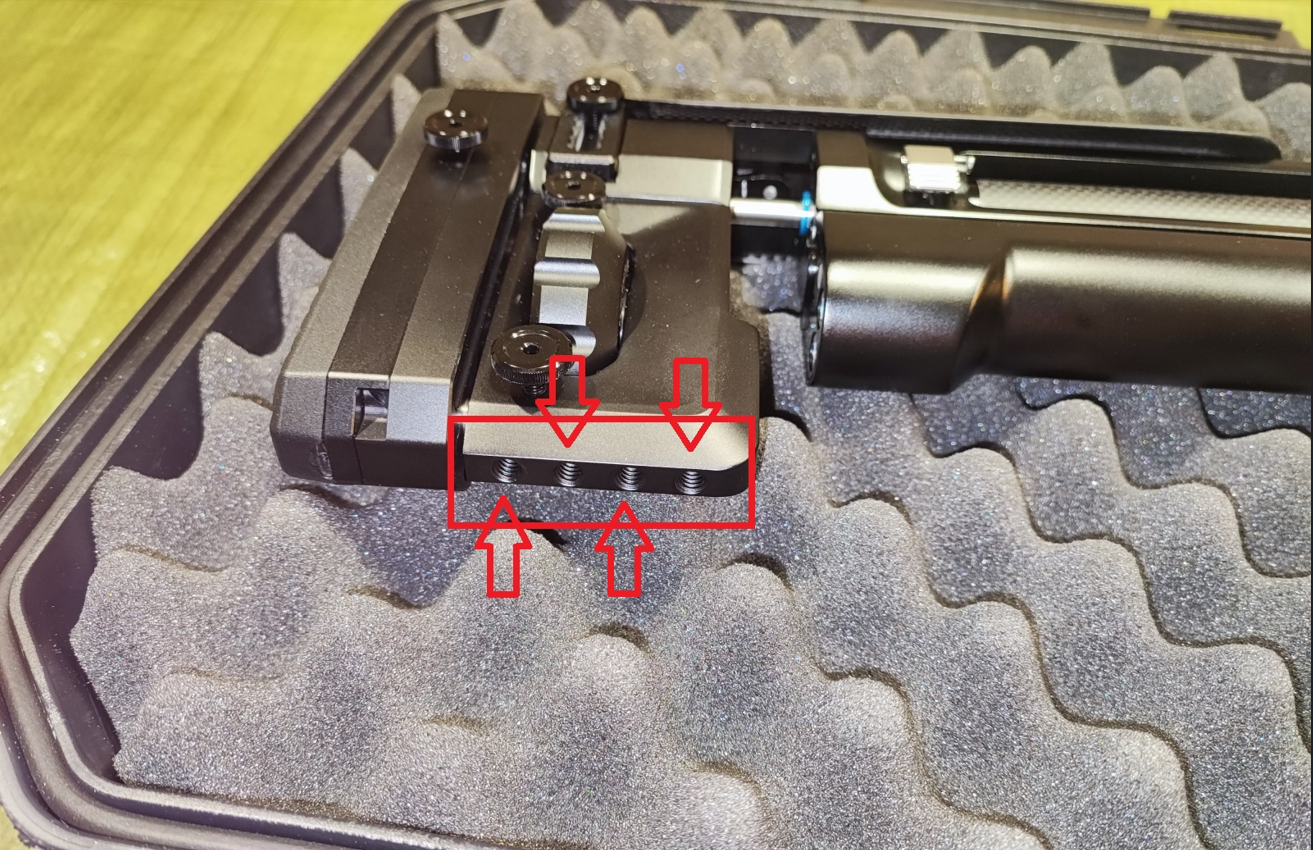

View attachment 397242

I plan to design/make some kind of monopod so I need to know which bolts I need to order.

Thank you!
Click to expand...
1/4-20 Threads, the spacing from center to center of the holes is 1/2"

  • Like
Reactions: Shortcut and MysticalDragon
Upvote 0
inverted said:
I have one imperial size thread gauges but it too big in size to get it into a 1/4" hole
It's for outside threads only
I'll have to get one of these "Nut and Bolt Thread Checker" gauges sets
Click to expand...
Ya, I got one i found had it's shortcomings like that.. lesson learned for the next one replacing it ..lol. also if it don't fit it's probably the wrong guage . Like a 4n Guage blade will fit inside a 4m hole..ect kinda thing..


There's been times I took the part in the store and check the bolts at the bolt bin till I found the right one when in doubt..


Sometimes it don't hurt to have a assortment thing around handy


Last edited:
