Tuning Fitting

[Elblondie]

Hi
Yesterday I noticed that my 22Cal Benjamin Marauder, my 22Cal Diana Stormrider and my 177Cal Gamo Coyote, air intake valves sizes are different. Anyone knows which are their size? Where I can find a fitting to convert them to the one that I have, the fitting that fit the Marauder? I fill it with a Scuba air tank!
Thanks in advance.

Eric



[Gerry52]

Pictures of the 3 different fittings might help. I know the Mrod is a Male foster but don't know about the other 2.



[dizzums]

youll need a male 8mm foster fitting on da probes with (usually) a bspp thread ... you could use female also if its cheaper, more available etc, and use a double male to attach between to your (assuming) female fill hose foster ..



[ThomasT]

Hi
Yesterday I noticed that my 22Cal Benjamin Marauder, my 22Cal Diana Stormrider and my 177Cal Gamo Coyote, air intake valves sizes are different. Anyone knows which are their size? Where I can find a fitting to convert them to the one that I have, the fitting that fit the Marauder? I fill it with a Scuba air tank!
Thanks in advance.

Eric

Hello Elblondie,

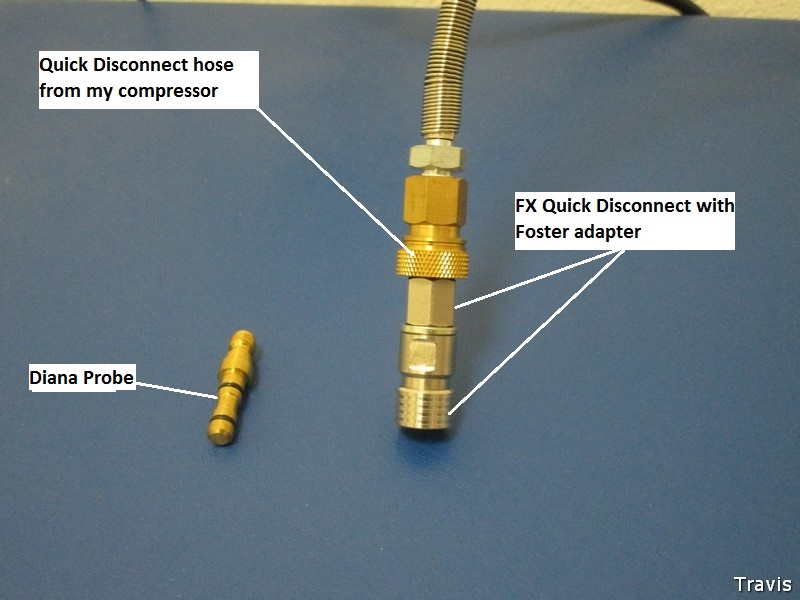

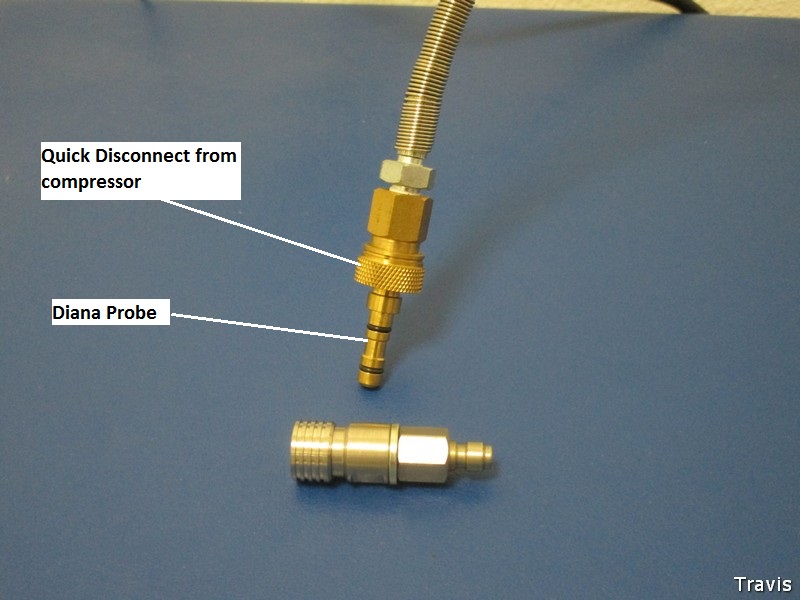

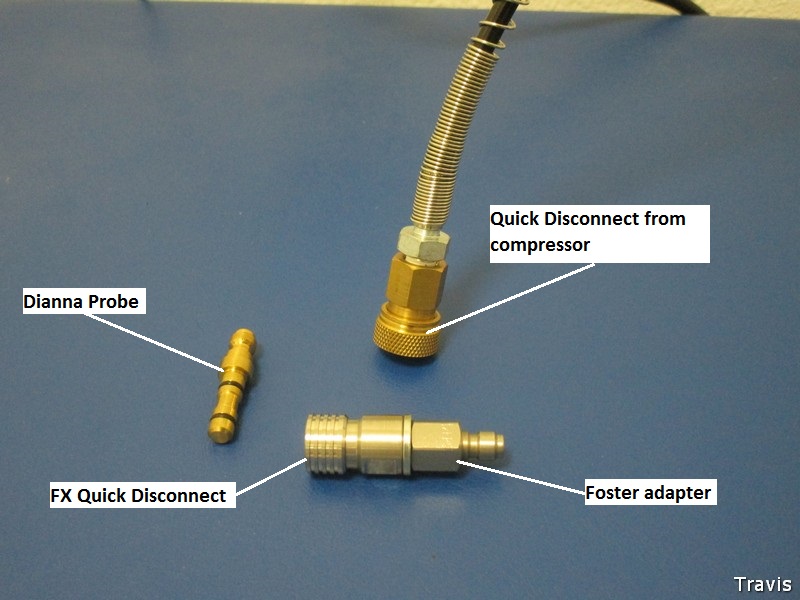

I had a similar problem because the Quick Disconnect from my compressor would fit the Diana Probe but would not fit the Foster fitting on the FX Crown. Also the Diana Probe would not fit the FX Quick disconnect. I did not want to change any fitting on my rifles so I made this adapter for the FX QD. Now when filling the Diana Rifles I use their Probe, and when I fill the FX I use the adapter with the FX QD.

Hope this will help,
ThomasT
