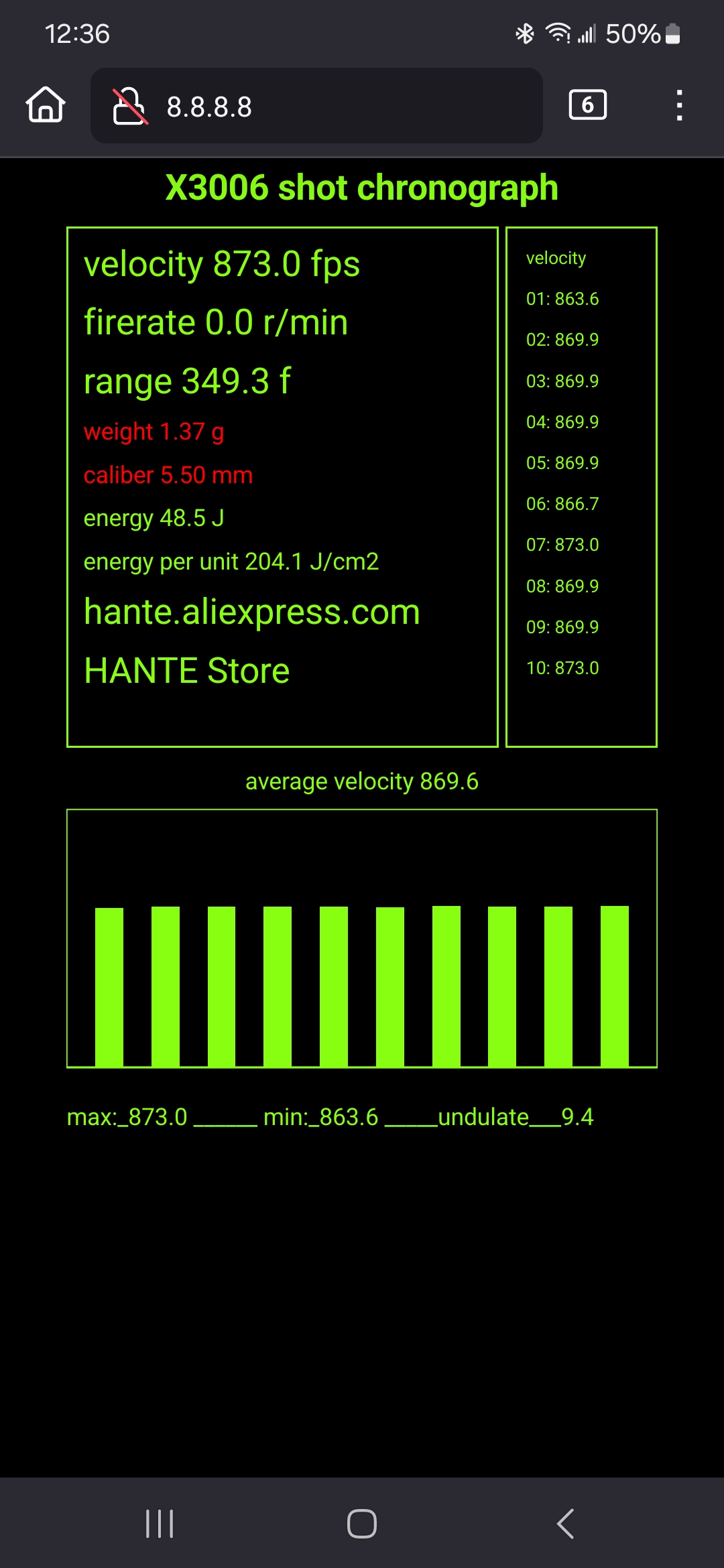

Finally got everything dialed in and assembled correctly. Firing H&N Barracuda Match 21g. Regulator set at 2400PSI. Power Wheel at 8
Airforce FrankenTalon on the Chrony
- Thread starter SpindleB
- Start date
Traded out the 12" barrel for the 19" barrel.
WHOA, put in 14.3gr H&N and POW supersonic report. Put the 21gr H&N in, 1015FPS. Cranked the power wheel down to 2, mid 900. Guess I need to adjust the regulator down from 2500PSI i was using with the 12" barrel.
Although at 2 on the wheel it is a bit easier to cock.
Ordered a 16mm barrel to 1/2-20 Adapter from Trajectron so I can use one of my better moderators. Without the inserts from the 12" the 6 inch moderator that came with the gun is much less effective.
-- Matt
WHOA, put in 14.3gr H&N and POW supersonic report. Put the 21gr H&N in, 1015FPS. Cranked the power wheel down to 2, mid 900. Guess I need to adjust the regulator down from 2500PSI i was using with the 12" barrel.
Although at 2 on the wheel it is a bit easier to cock.
Ordered a 16mm barrel to 1/2-20 Adapter from Trajectron so I can use one of my better moderators. Without the inserts from the 12" the 6 inch moderator that came with the gun is much less effective.
-- Matt
Upvote 0
that bit more barrel does make a difference, dont it!? Have seen several folks mention Trajectron and I'd not ordered from them due to suspicions, but seems they are legit. Will have to poke around and see what all they have.
Numbers look great... hows the accuracy or have you gotten there yet?
Numbers look great... hows the accuracy or have you gotten there yet?
Upvote 0
Not with the 19, yet. Need to quiet it back down. No sense disturbing the crazy lady in the apartments across the creek.
Trajectron has been great for me. Some really good prices, some not so good. $17 shipping DHL, usually less than a week to CA.
$19 90g hammer probably the best deal.
Adapters that cost $45 elsewhere are $23.
Buy a broke down Talon SS for $100. Spend $750 (at least) in parts just to play around with the platform. A brilliant plan if I do say so myself.
-- Matt
Upvote 0

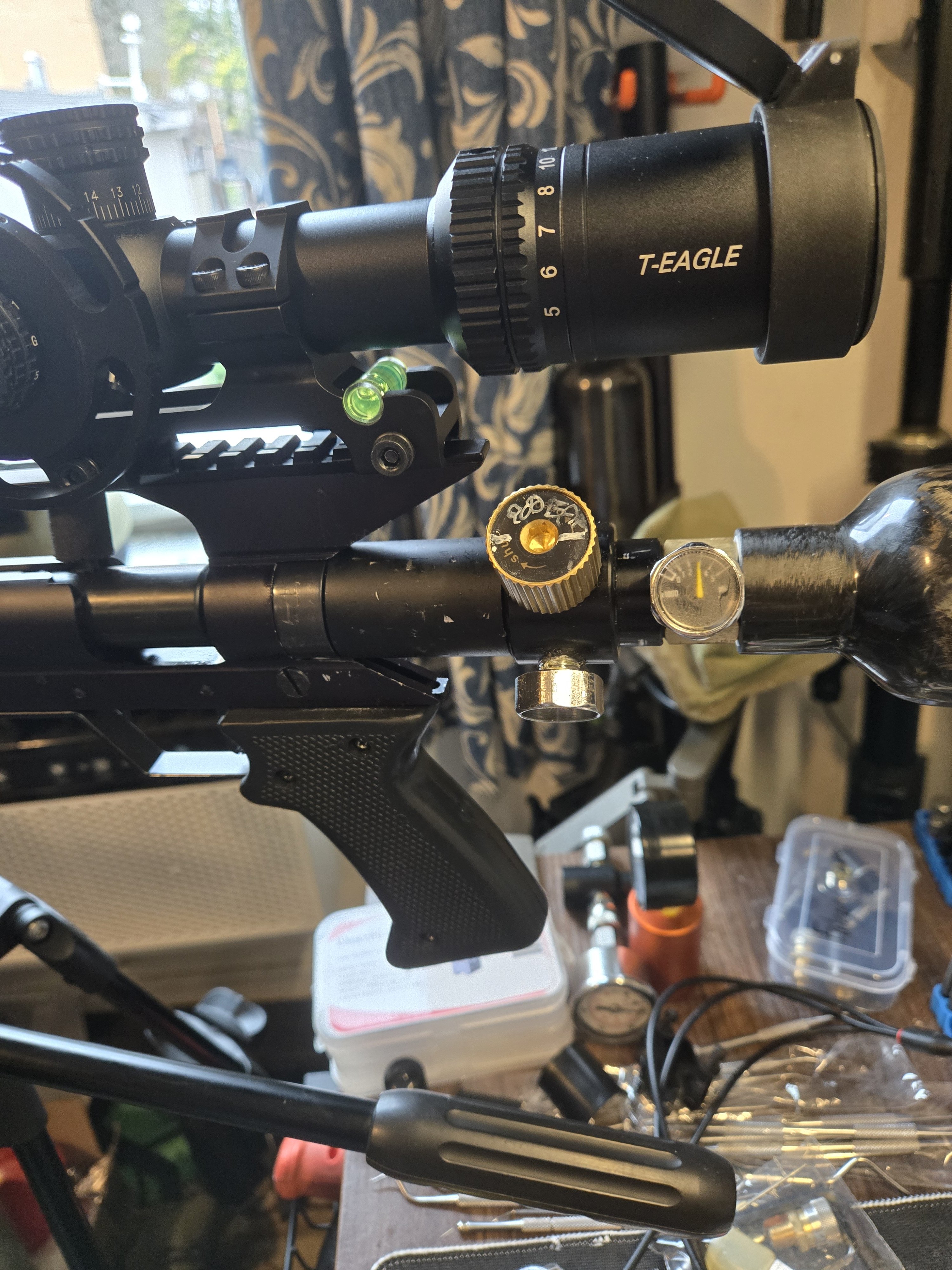

Put an externally adjustable regulator and a 15cc plenum on the 0.5L Bottle. Set it to 2200psi. Power wheel at 4. Getting 875FPS with H&N Field Target Trophy 14.3. Accuracy can be good, but getting fliers. I'll check with the Barracuda Match 21gr.
Upvote 0
Parts I ordered from Trajectron yesterday will be here Thursday. 5 days from India by DHL for $17
Upvote 0

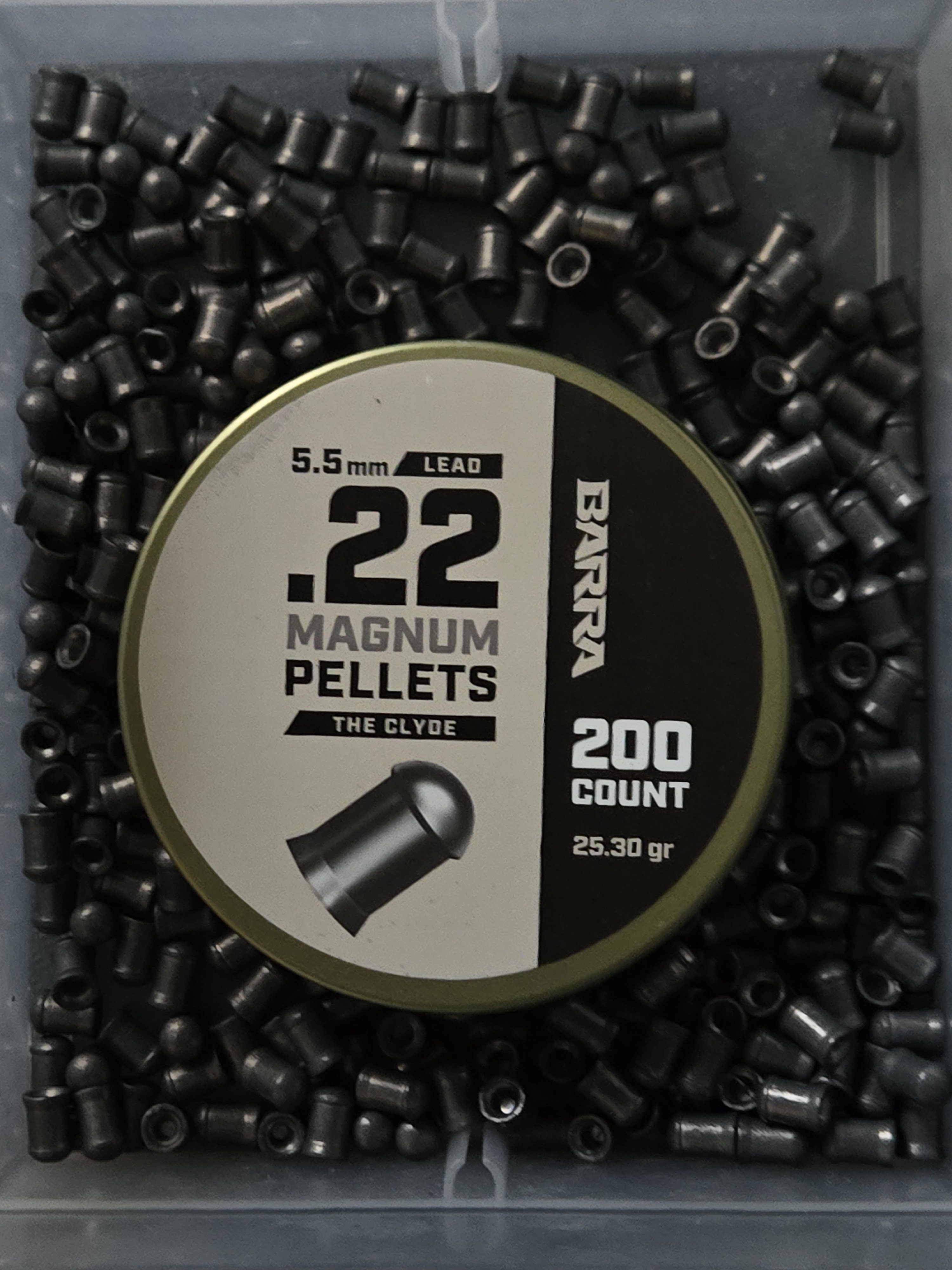

Just put 40 or so Barra "The Clyde" pellets down range. Didn't have the Chrony on but they were impressive accuracy wise. Gusty wind and nickel size groups at 45 yards. All 3 of the heavy .22 have been really good with the new 19" barrel.
The various tank setups the Huben Power drop block with the shorty 1.1L is winning hands down. The stock unit isn't much. The Huben Power Cricket Max-ATH and Trajectron high flow valve is better than the stock but surprisingly 100FPS behind the drop block. I've got some high flow rebuilds for the Airforce valves and I'll probably try the stock valve first to see if that improves.
-- Matt
Upvote 0

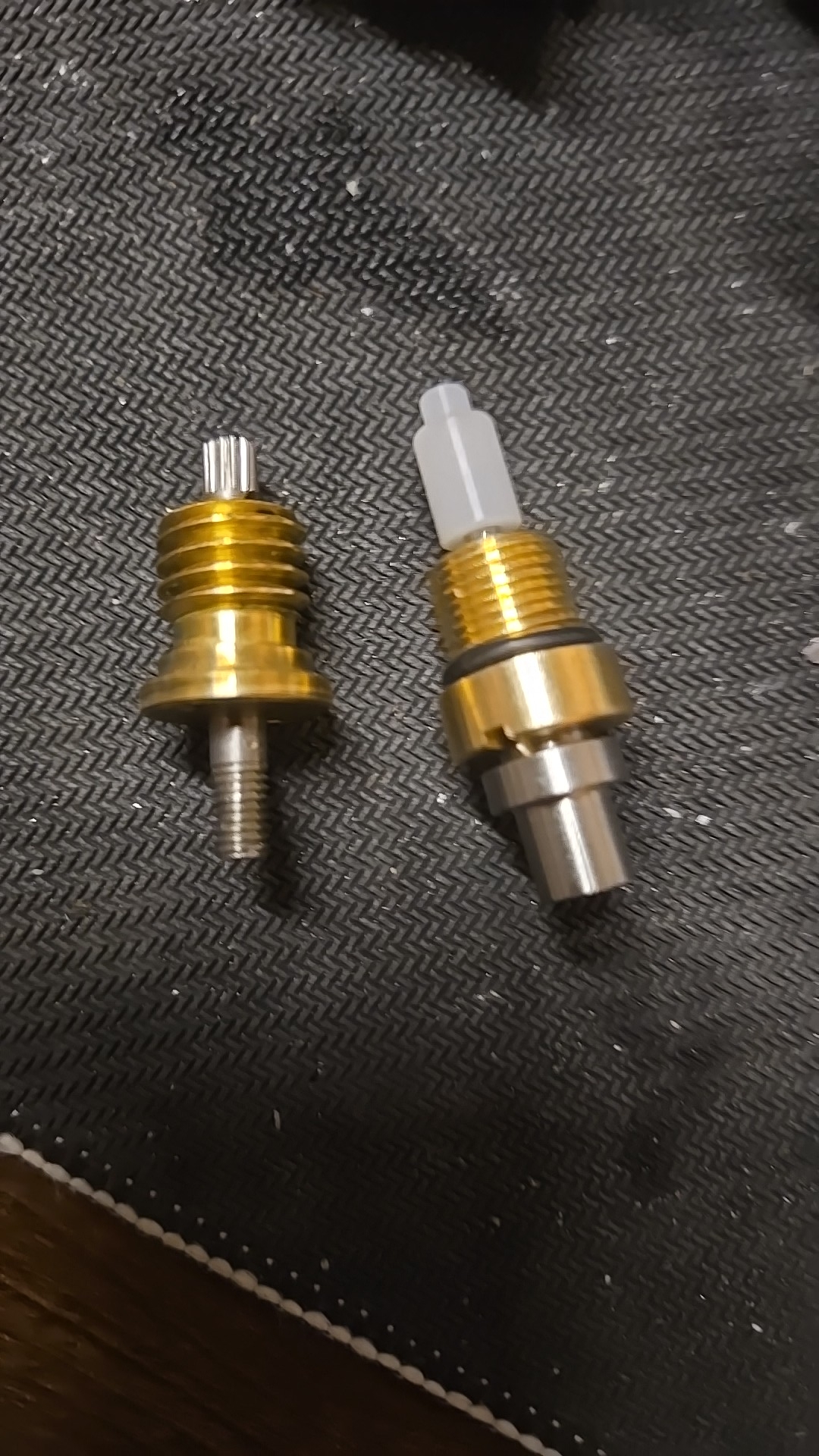

No rebuild of the stock valve or the Trajectron. The rebuild kit use a much finer thread on the body. I try the AliExpress high flow valve when it gets here. See if it can keep up with the Huben Power drop block.
I do like my big volume bottles. Put a lot of pellets down range, 80-100, this afternoon. Dropped the 1.1L from ~4000psi to ~3200psi.
Upvote 0
As a test in another thread I cranked the power wheel to 10 and got 960FPS and 70J energy with Apolo Monster 25.4gr.
Which makes me think I can probably get 80j or close by increasing the regulator pressure. Since I have no clue where I'm going with this build it is on the list of additional stupid stuff to try.
I'm kind of surprised how much I'm enjoying the AF platform. Was not a big fan going in but it is simple and yet lots of paths to go down.
Which makes me think I can probably get 80j or close by increasing the regulator pressure. Since I have no clue where I'm going with this build it is on the list of additional stupid stuff to try.
I'm kind of surprised how much I'm enjoying the AF platform. Was not a big fan going in but it is simple and yet lots of paths to go down.
Upvote 0

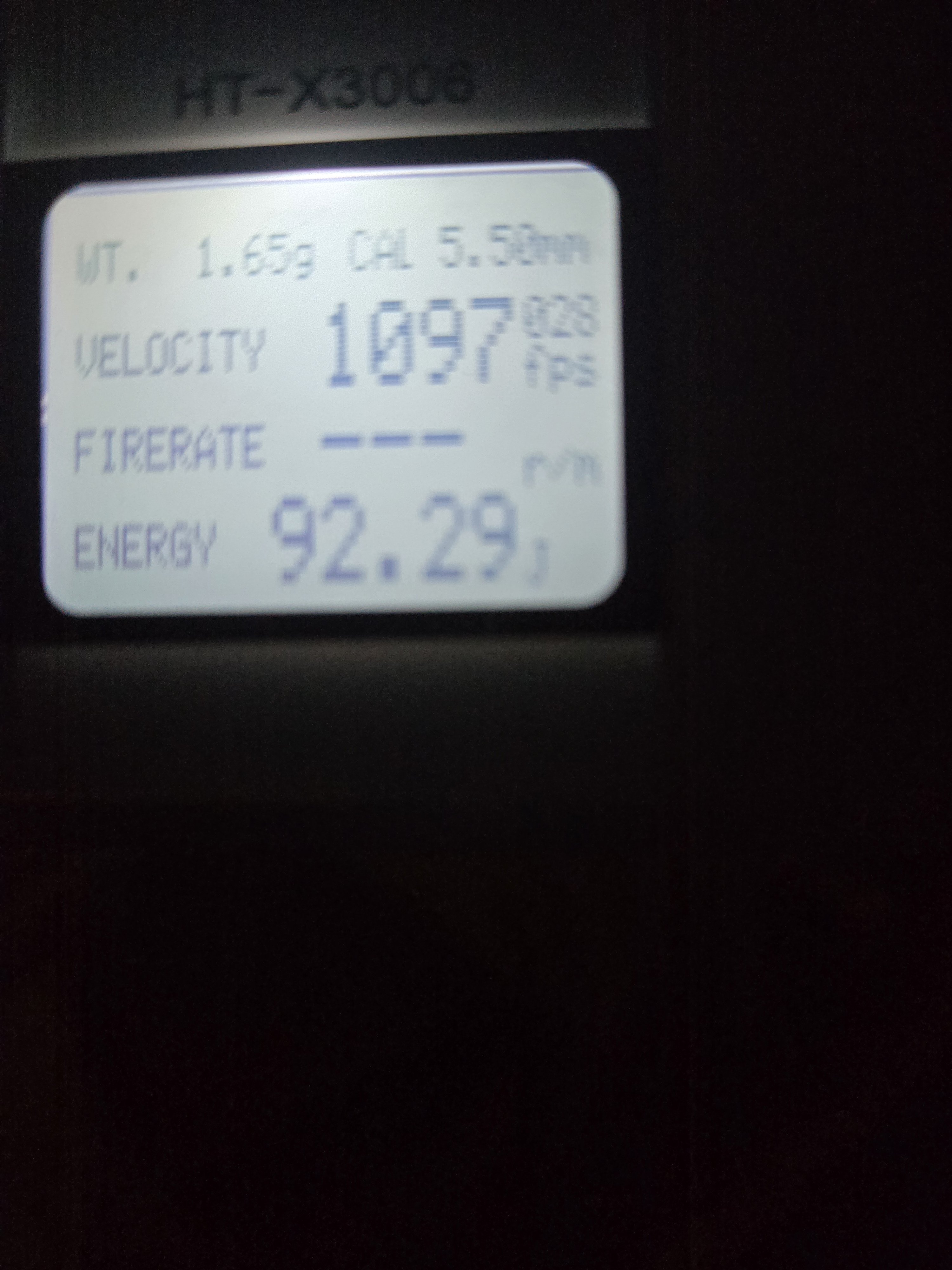

It seems the 50cc plenum on the Cricket Max-ATH is helpful. Set the regulator to 3000psi, put in the Apolo Monster 25.4gr and boom 92j from a .22.
Upvote 0

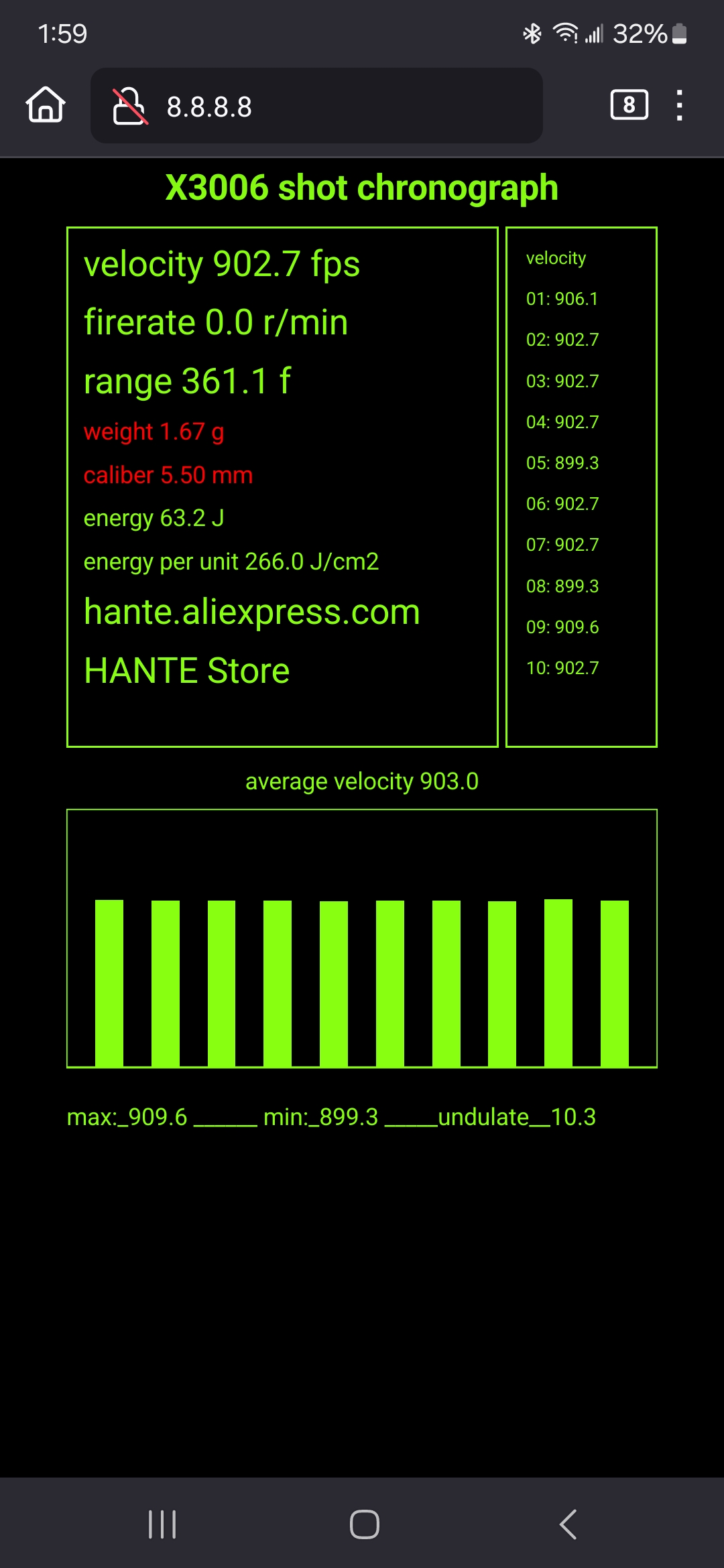

Cranked the PW back down to 4, nice and consistent throwing Apolo Monster 25.4gr at 970FPS and 70J. Uses a lot of air with the regulator set to 3000psi. I'll move that back down to 2500psi or 2200psi.
Upvote 0
Trajectron is legit..Ive ordered twice and very happy both times...THere Airforce Condor V2 valvewith 110 gram hammer and heavy spring is a power house..In a 28 inch 12 twist .222 cal i can get 1000 fps with 52 grain slugs.. Trajectron 9 inch moderator for $70.00 works well..
Upvote 0
Great to hear... I'd looked at their stuff a bit. Will have to look more seriously when I build back up the secret squirrel fund.
Upvote 0
All the small parts I've been using on Frank here have come from Trajectron. Got a lot of FX stuff too. Lot of stuff for older models too
Upvote 0

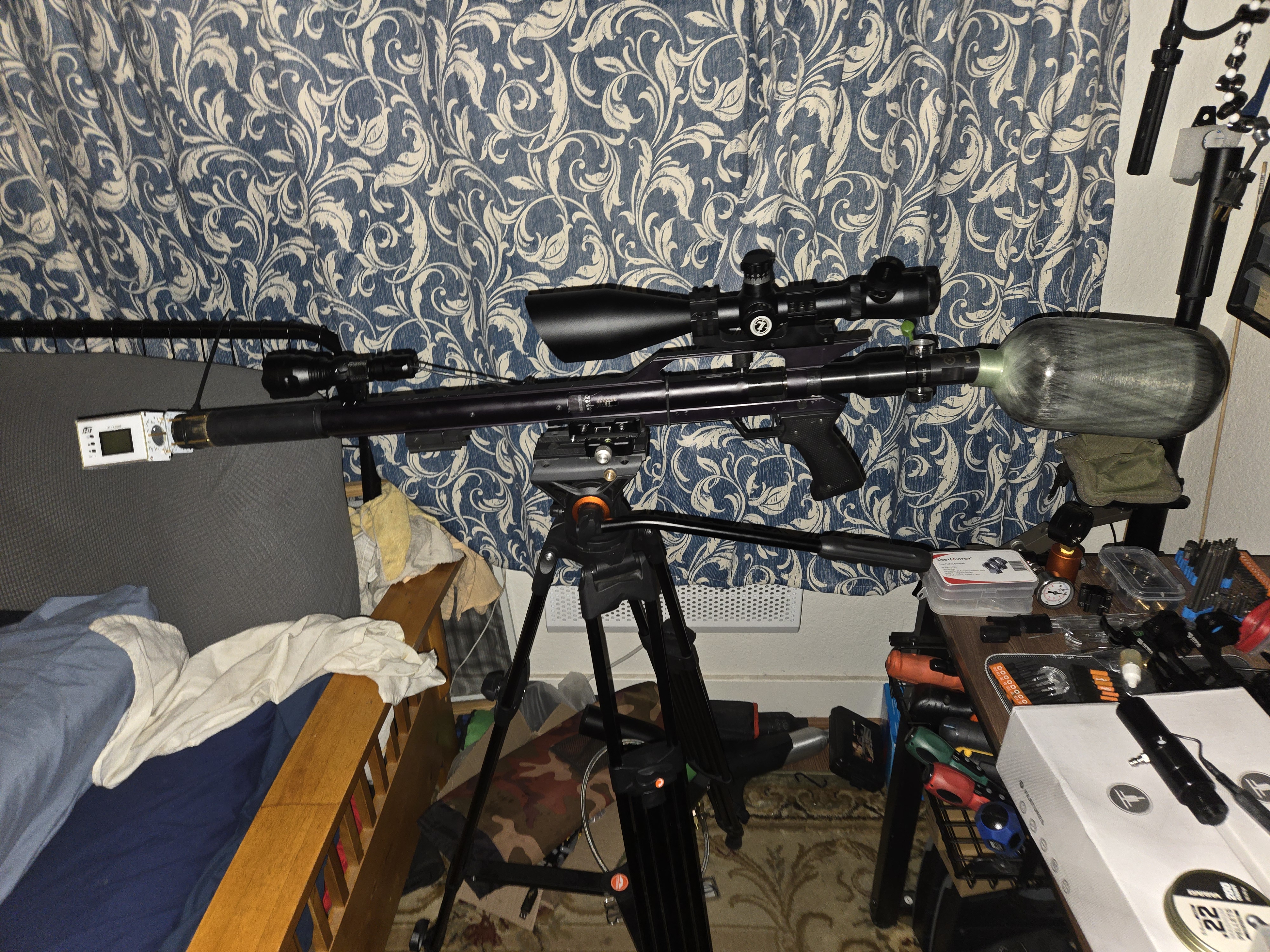

Version 3 of FrankenTalon
1.1L Acecare "fat" bottle
Angled fiting to drop bottle
Huben Power Cricket Max-ATH
Trajectron 90g hammer
Trajectron heavy spring
LW 19" barrel

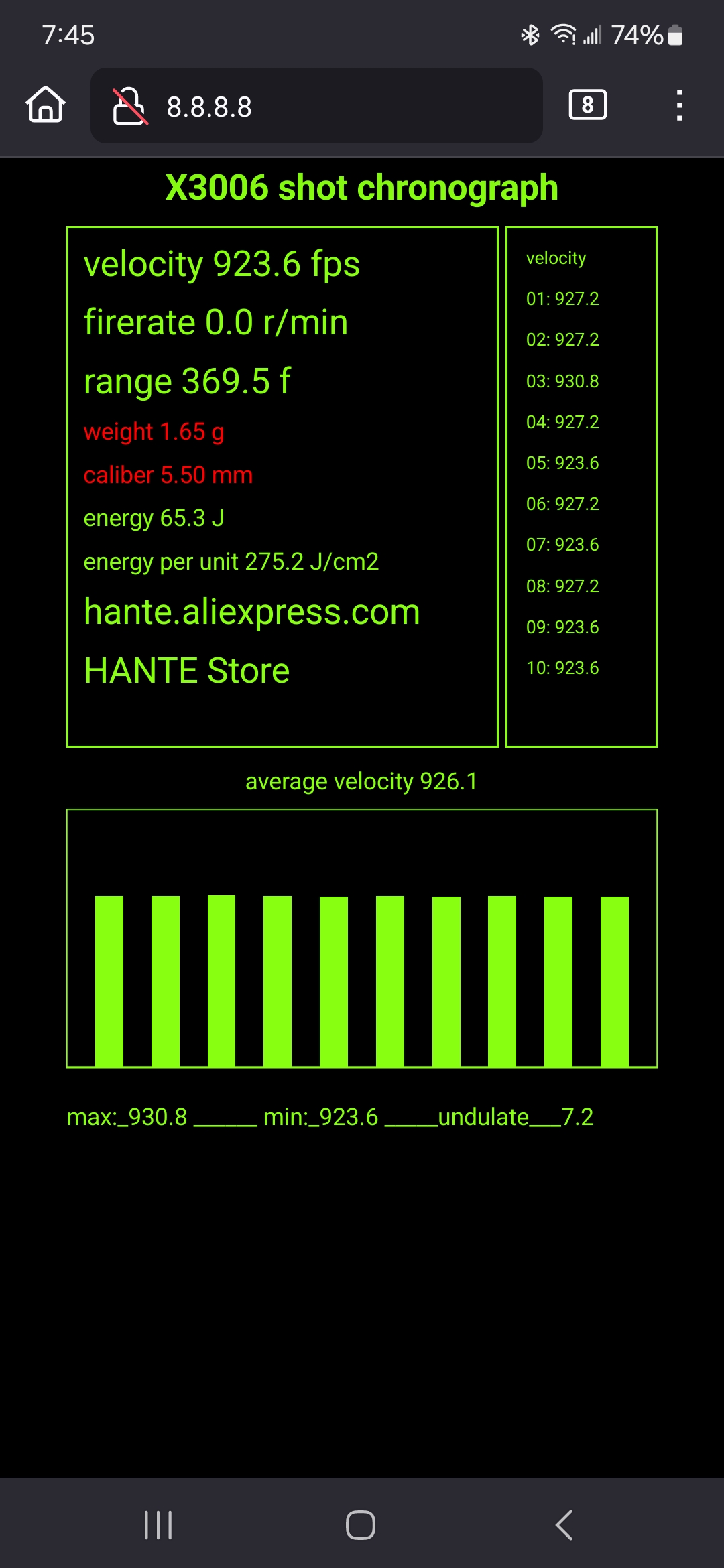

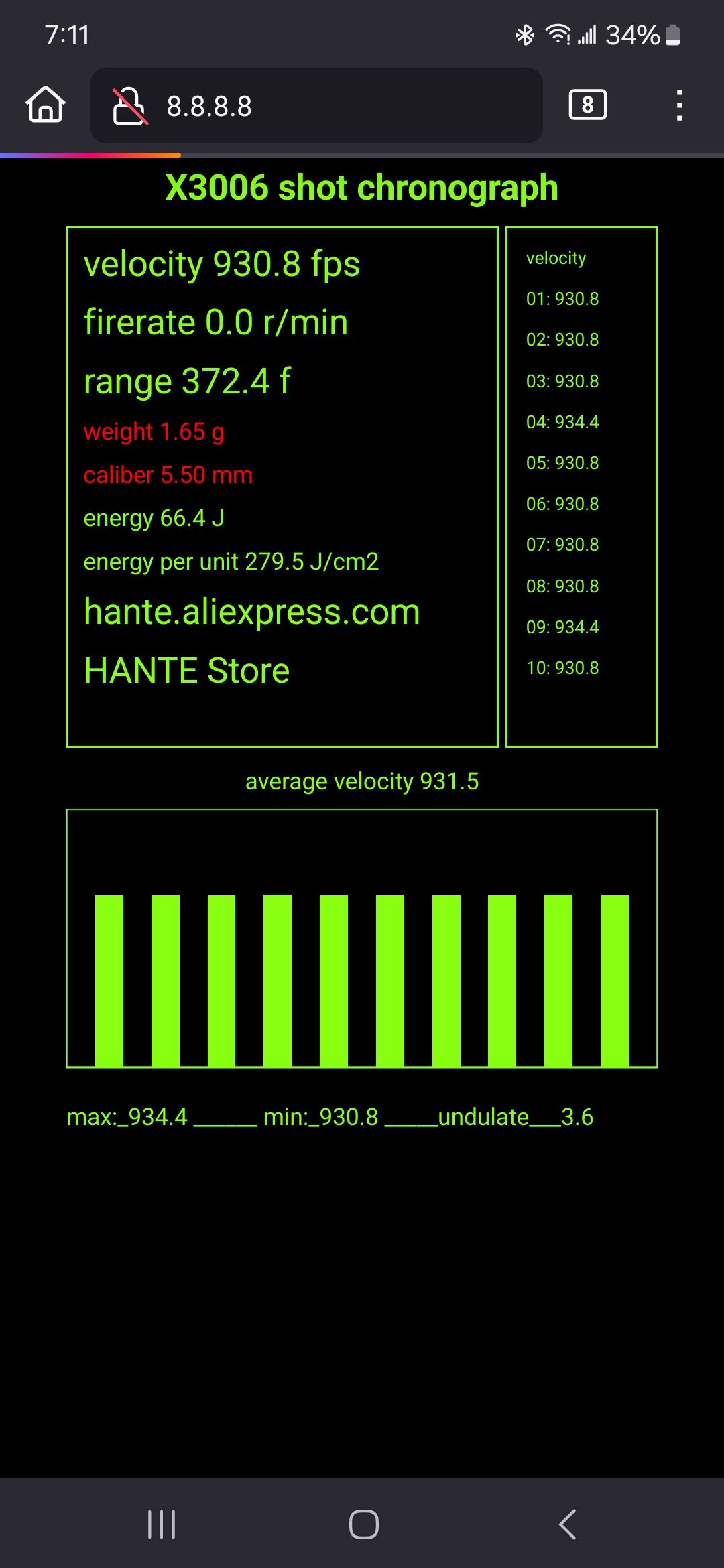

Able to develop almost 1100 FPS and 90J using Apolo Monster 25.4gr. Currently PW 4, Reg pressure 2200psi, 920FPS and 65J.
1.1L Acecare "fat" bottle
Angled fiting to drop bottle
Huben Power Cricket Max-ATH
Trajectron 90g hammer
Trajectron heavy spring
LW 19" barrel
Able to develop almost 1100 FPS and 90J using Apolo Monster 25.4gr. Currently PW 4, Reg pressure 2200psi, 920FPS and 65J.
Upvote 0
Barra "The Clyde" 25.3gr. Nice tight group at 45 yards and nuts on consistent. I'd get a picture but it is far too muddy out back.
