Front Clip-on Zeroing Adjustment Instruction

[PARD]

​

To ensure accurate alignment of the reticle with the actual aiming point at a zeroing distance after mounting the front clip-on device on the daytime scope, precise zero adjustment is crucial. The following steps detail how to adjust the reticle to match the bullet's point of impact, ensuring accuracy for shooting or observation.​

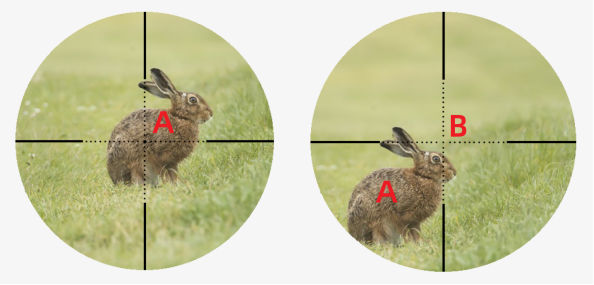

Figure 1 shows the optical reticle center(A) before installing the front clip-on device (FT, FD, Predator), while Figure 2 depicts the optical reticle center(B) after installation.

Fig. 1 Fig. 2

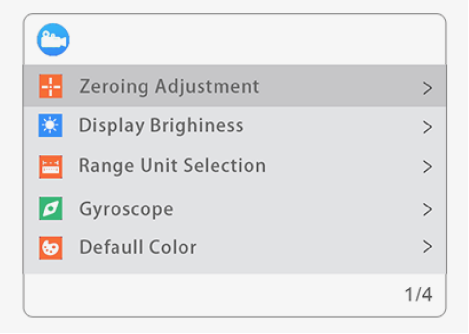

2、Open the menu and select the Zero Adjustment.

Fig. 3​

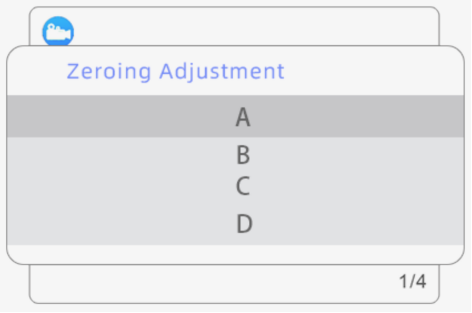

3、There are five data sets(A-E) available for saving. By pressing/toggling the ↑ and↓ buttons to select a set, press OK key to enter it.

Fig. 4

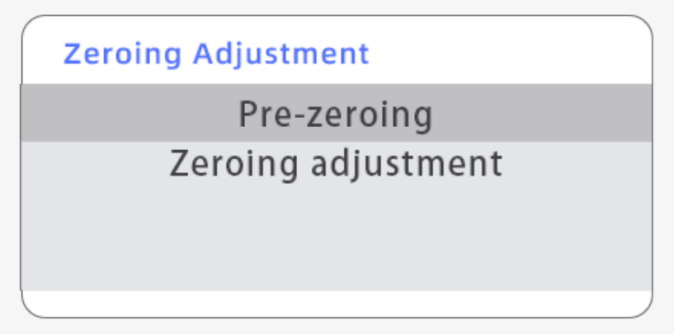

4、Press the OK key to enter the Pre-zeroing option.

Fig. 5​

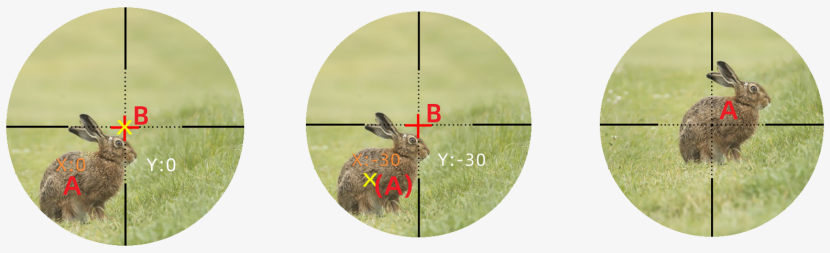

5、Move the X/Y axis by pressing/toggling the↑ and↓ button to align the red reticle (German version: Red dot) with the Point B, press the OK key to switch the X/Y coordinates, then press/toggle the menu button to save and return.

Fig. 6​

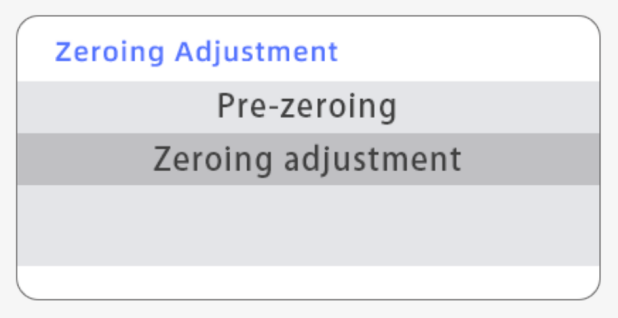

6、Then enter the Zeroing adjustment option.

Fig. 7
7、Adjust the value of X/Y to move the yellow cross to the position where the point A is before installing the device, then press/toggle the menu button to return and save.

Fig. 8​

Note: After each installation of the device, you can double press/toggle the menu button to confirm whether the red reticle(German version: Red dot) aligns with the optical reticle. The red reticle (Red dot) will automatically vanish after three seconds.



By following these instructions, the reticle is accurately aligned to the target. For further assistance or questions, please contact our support team at [email protected].
