Fx 700mm barrel tensioner kit- solution for increase in muzzle crack

Jump to latest Follow Reply
wooferocau said:
I initially fitted the tensioner kit with just the inner carbon sleeve and tensioning up the barrel nut as per the norm. The results were terrible. It did help a little with accuracy but POI changes were worse than the STD setup...and that's saying something.

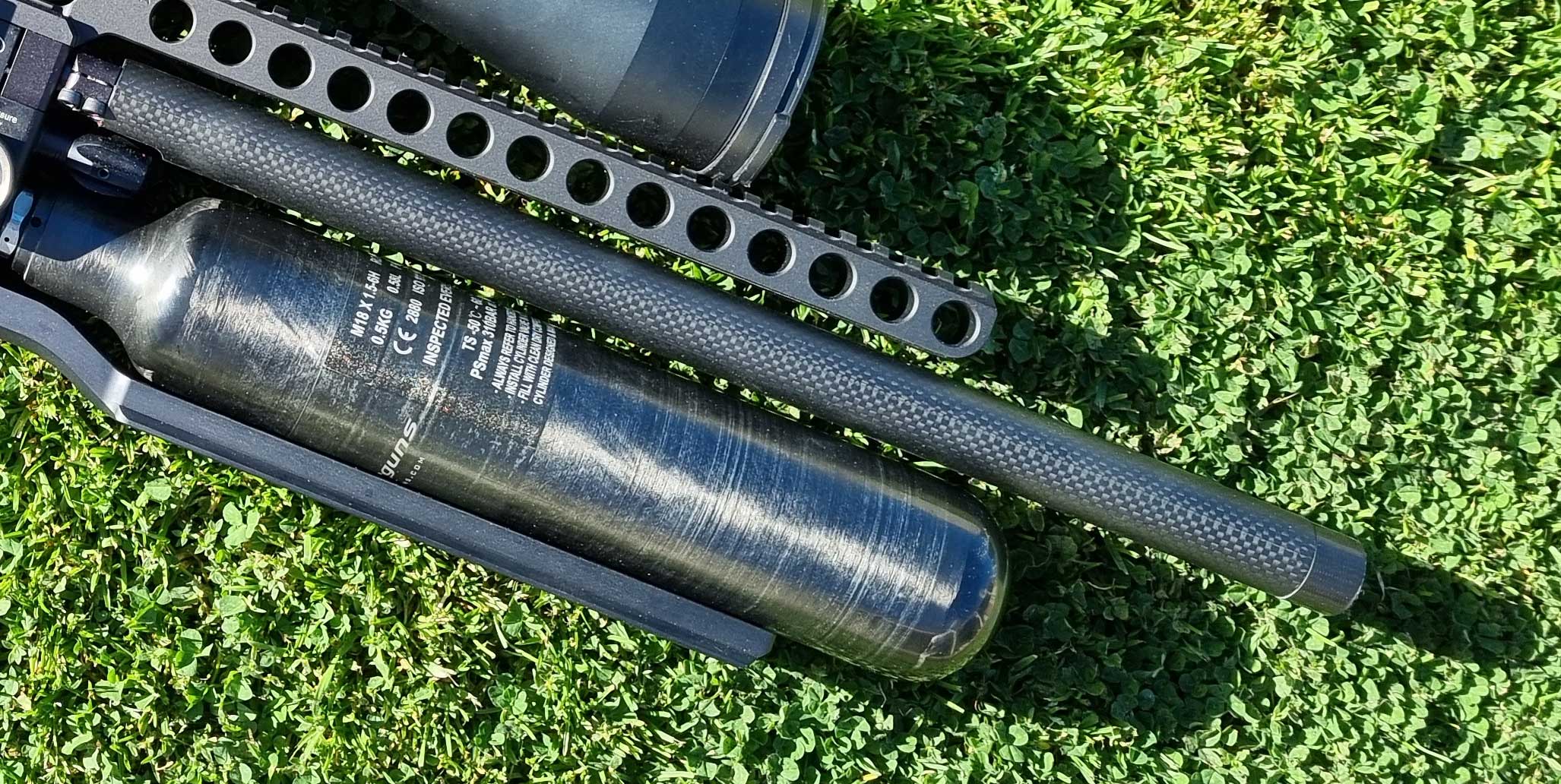

I ended up bonding the FX liner and inner carbon tube permanently to the steel barrel tube. I then got a piece of 25mm OD heavy wall carbon tube, machined some spacers . This assembly was placed over the 20mm carbon tube that comes with the FX Tensioning kit.
Again this was bonded permanently in place . the whole barrel assembly is now effectively one piece.

When i install it i just slide the assembly into the frame until it bottoms on the barrel clamp forward of the reciever....NO tension .

Accuracy is superb and POI impact changes have been eliminated.

The other very important aspect is you can now "Bump" or move the barrel , rough handling or otherwise and the POI doesn't change!!

The original Stock FX barrel setup leaves A LOT to be desired!!

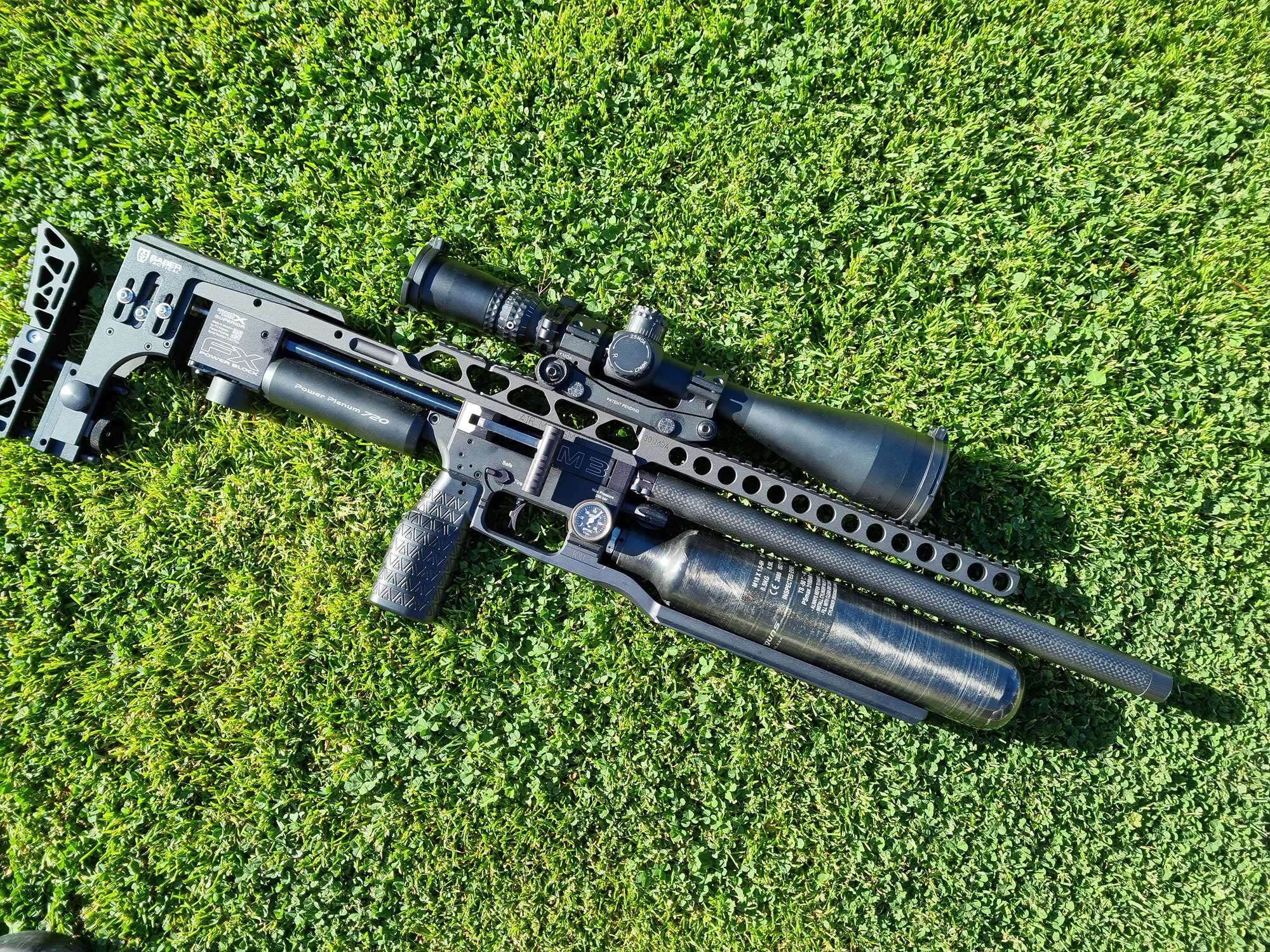

View attachment 389297

View attachment 389298

View attachment 389299

View attachment 389300

View attachment 389301
Click to expand...
What kind of epoxy did you use?

Upvote 0
mackeral5 said:
I did reach out to the email address, perhaps I didn't use the secret code or perhaps they only have 700mm. I asked about buying a 500mm and a 600mm, I just got a short "contact FXUSA"
Click to expand...
I got the same thing initially but replied with a request for a special order.
Usually, if it has an FX part number they can get it.
I believe they had the 700mm in stock because they shipped it the same day.
Contacting FXUSA may also work. Very good people.

Upvote 0
zer0dev said:
Thank you. Assembly question... When fixing the liner + CF tube to the steel sleeve, how did you keep the threads clean? Or did you loctite the jam nut into the sleeve as well?
Click to expand...
Yes.. i loctited the jam nut as well....i have no intention of ever trying to disassemble , so i wanted every component "fixed" ..

I will say again ...its been a massive improvement over the stock setup !!

Upvote 0
wooferocau said:
Yes.. i loctited the jam nut as well....i have no intention of ever trying to disassemble , so i wanted every component "fixed" ..

I will say again ...its been a massive improvement over the stock setup !!
Click to expand...
Thank you again! I'm thinking I'm going to repurpose the Bullet Central tension kit. It has a tight fitting tension sleeve and a shroud. I don't have machine tools, but I can hacksaw the sleeve to length. First candidate is a 700mm .30 cal liner for bench.

Upvote 0
Matt B. (SHOOK) said:
One thing I haven't heard mentioned is how you are venting into the shroud .the muzzle end of the factory shroud has 2 ports in it where it threads onto the barrel underneath the shroud .the way the tensioner is set up the muzzle end of it has no ports
Click to expand...
In exactly the same way. It's just a shroud screwed on to a tensioned barrel instead of a barrel tube of almost exactly the same length. It is physically the same thing after just blowing out the tail cap for a bigger diameter carbon "barrel tube".

Upvote 0
Redwolfpaul25 said:
Hi everybody.

Recently i installed a installed a 700mm fx tension kit onto my .25 M3, not so much to see if i can increase accuracy as its already quite good but moreover to see if i can eliminate POI shift ( jury is still out on that one !).
Obviously removing the fx factory shroud and replacing it with the carbon fibre shroud and jam nut has ment that there is quite a increase in muzzle report as my current tune is pushing 41g slugs at 960fps ( some 80 odd ftlbs) and my 0DB sound mod is not coping very well. Has anyone else experienced this ? Im thinking of putting a carbon fibre tube cut to the appropriate and sliding that over the barrel tension tube to see if that soaks up any of the sound, next will be seeing about a different sound moderator, maybe a donny fl Ronin or something else.
Click to expand...
I put my barrel shroud back over the barrel tension tube

  • Like
Reactions: 6gun
Upvote 0
Hello everyone... I reading this thread from the beginning and it is very informative.. I have order fx liner kit 177 700mm sniper tensioned with stx heavy liner include in the Kit last october... After few days the Kit arrived and i straightly put it to my m3.. The seller contacted me and told me to check the cf sleeve inside the barrel. I opened the barrel and all i can find only liner with 3 orings... The seller told me the fx made mistakes and huge mistakes... Apparently all the Kit that come to Indonesia without cf sleeve.. The seller had put complaint and said fx will shipped it. I also emailed fx support, they very lightly said that sorry and will shipped it right away... Until now I haven't receive the cf sleeve...
Very bad QC for fx Airgun...
Btw i have checked all the DIY post in this thread... If i'm not using the standard shroud but made shroud from cf tube will it silent the bark like the standard shroud?
Anyone can give the illustration how shroud can silent the bark?
Regards

Robinson
