FX barrel on my RAW TM1000x

[RavenRider]

I'd lie to try FX barrels on my RAW rifles. I've read about some RAW owners doing this and I have a large assortment of FX Barrel liners and shrouds. I would like to experiment with different lengths and calibers. Can someone make an adapter for me?



[Long_Gun_Dallas]

I know muhbaur could, but not sure if there are any issues with export or shipping. I'm not even sure what country he is in.



[bucketboy]

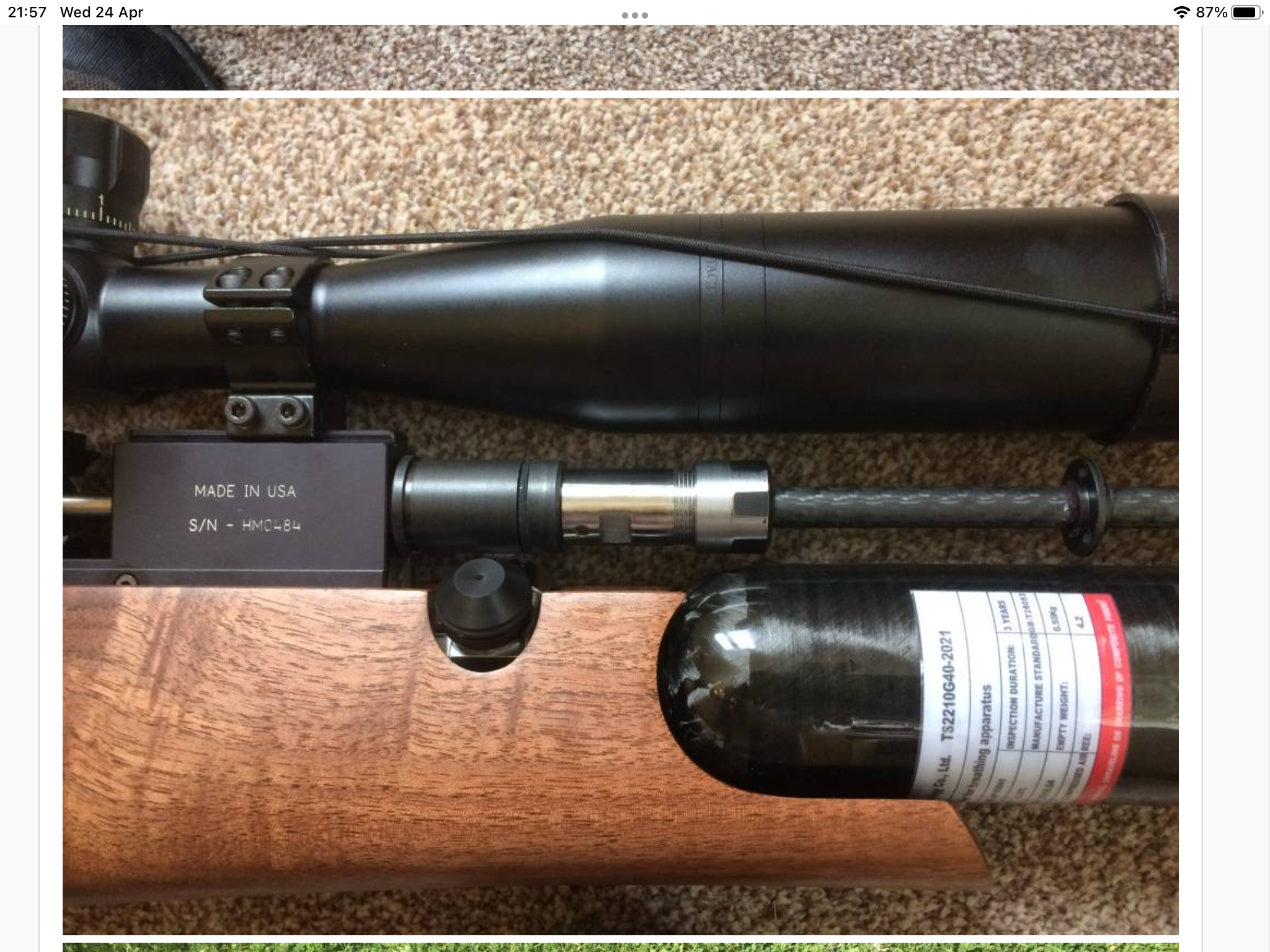

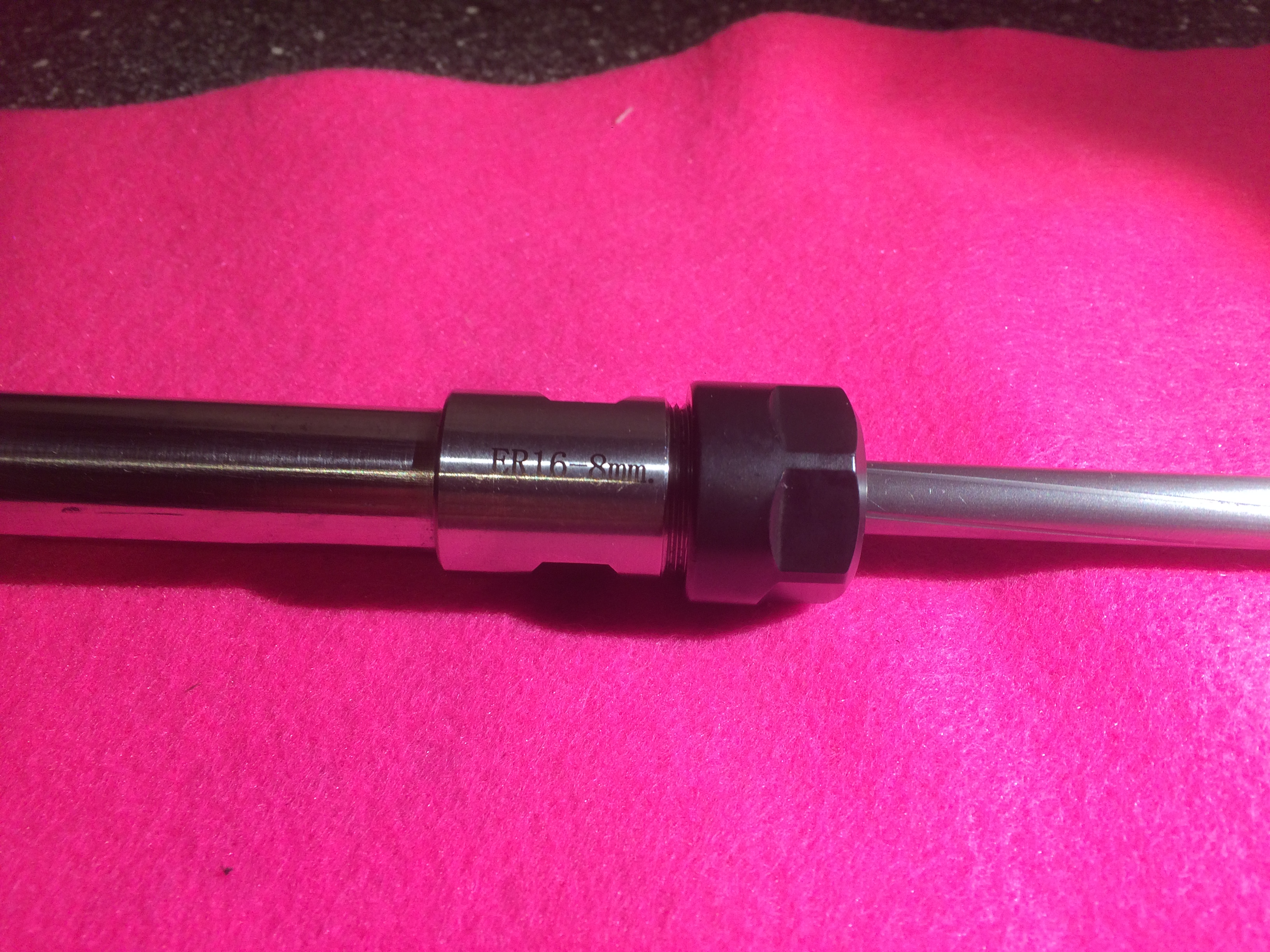

I have made a couple from er11 collect chucks, it did give me the ability to quickly index the barrel or completely swap them out but I no longer have fx liners fitted to any of my guns, they were accurate enough but they tended to get dirty very quickly and the also suffered from poi shift. No more drinking straws for me thanks.



[jps2486]

I have made a couple from er11 collect chucks, it did give me the ability to quickly index the barrel or completely swap them out but I no longer have fx liners fitted to any of my guns, they were accurate enough but they tended to get dirty very quickly and the also suffered from poi shift. No more drinking straws for me thanks.



View attachment 458786

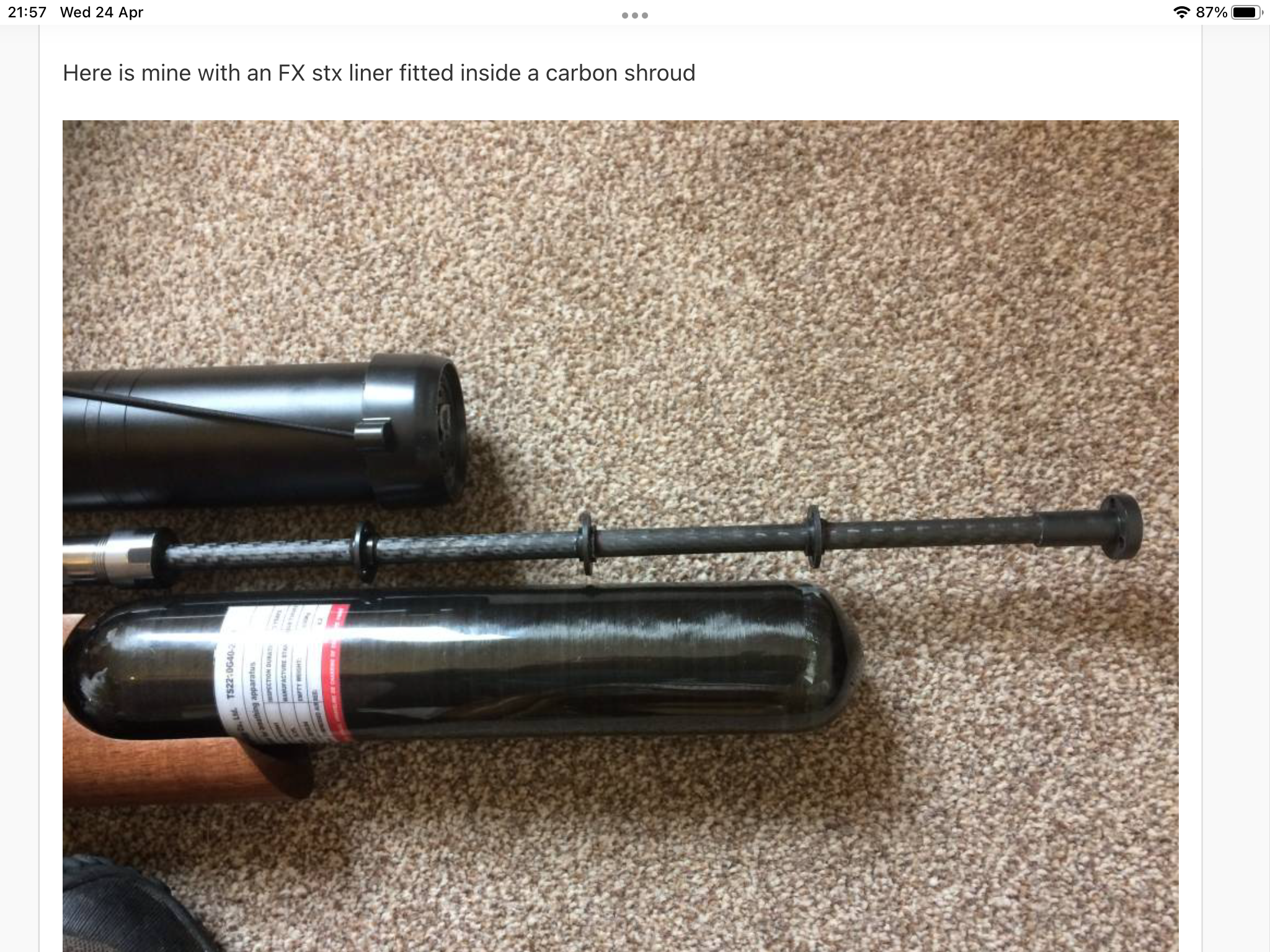

Note that the three supports evenly spaced along the barrel liner are intended to make the barrel behave more like a stiff, one piece large diameter barrel that RAW normally uses. This design is an inexpensive alternative to using LW barrels by FX. It's good point is that you can cheaply change liners.



[bucketboy]

Note that the three supports evenly spaced along the barrel liner are intended to make the barrel behave more like a stiff, one piece large diameter barrel that RAW normally uses. This design is an inexpensive alternative to using LW barrels by FX. It's good point is that you can cheaply change liners.

Yep I fitted a carbon sleeve to the liner and shroud supports for the external shroud but I can assure you that it isn’t even close to being as ridged as a lw 16mm blank. Lighter, yes, stiffer, no.
