FX Dreamline Orings and part numbers

[Roamer]

Hello-

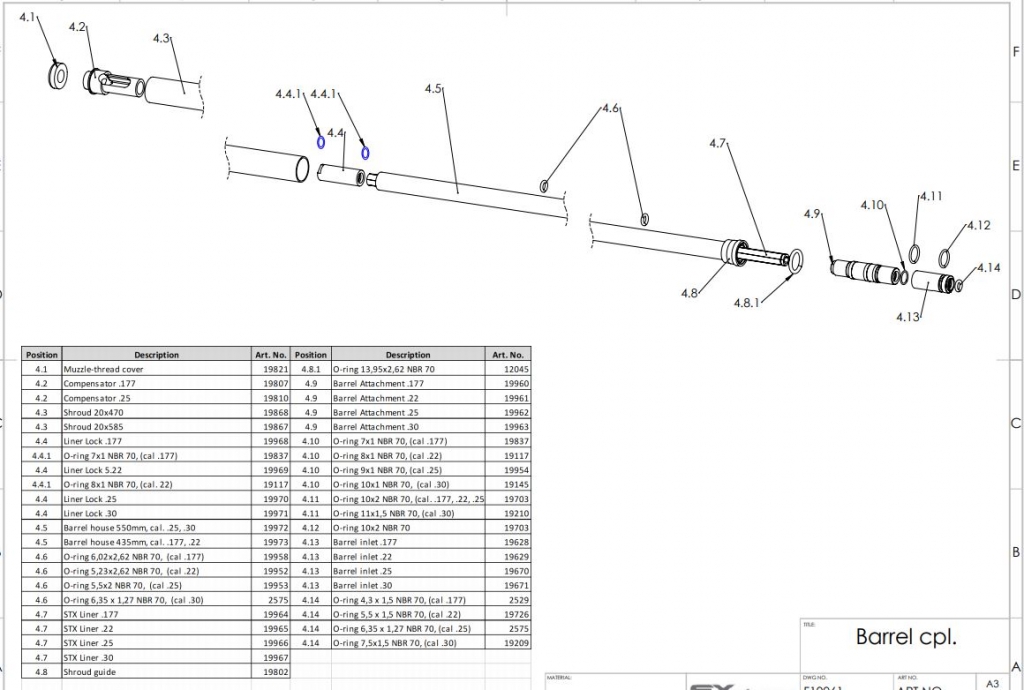

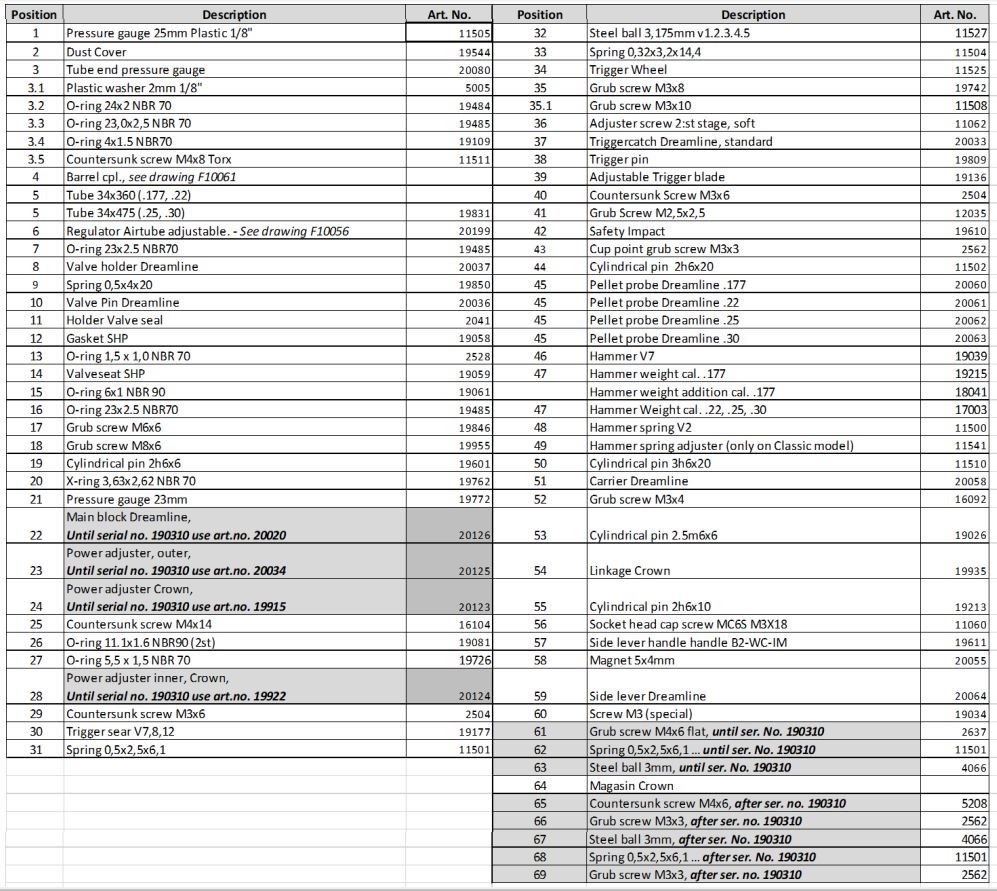

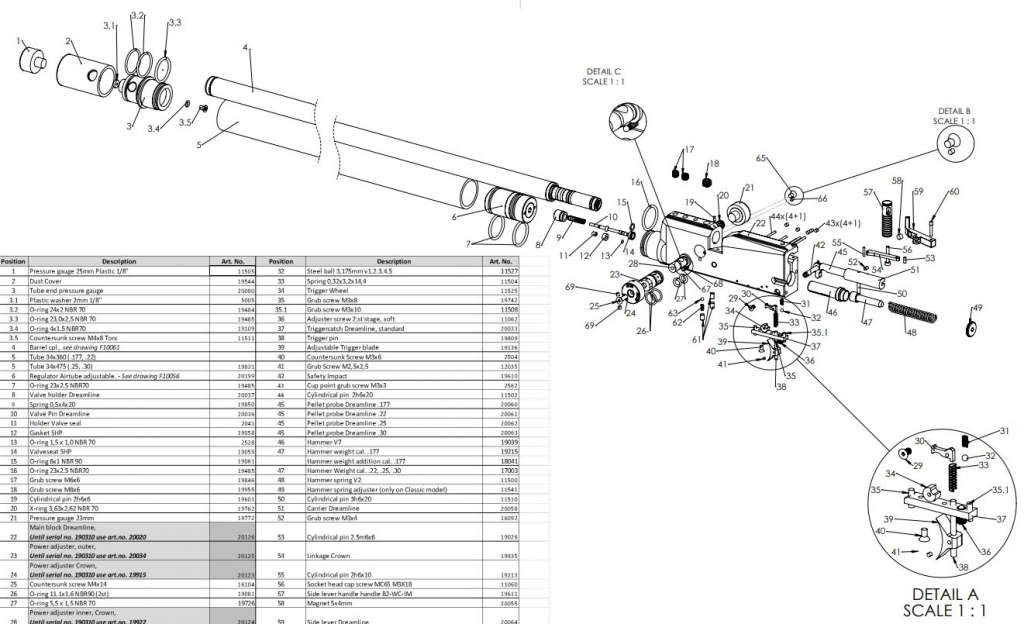

First post here. I am a relative newb at PCP's. Have done some digging online to find exploded diagrams of my FX dreamline to have spare part numbers as well as oring specs for maintenance and repair. Found that information, and have posted it below, as well as a table I created with all the orings needed for a complete overhaul. Cheers!



[prfssrlee]

Awesome info. Thank you!



[Grim_Reaper]

Thank you for the info!! Has anyone removed the air cylinder yet? I had a moisture problem with my compressor. I haven't dug into it yet though. I'd like to change it and or upgrade it to the bottle.



[Roamer]

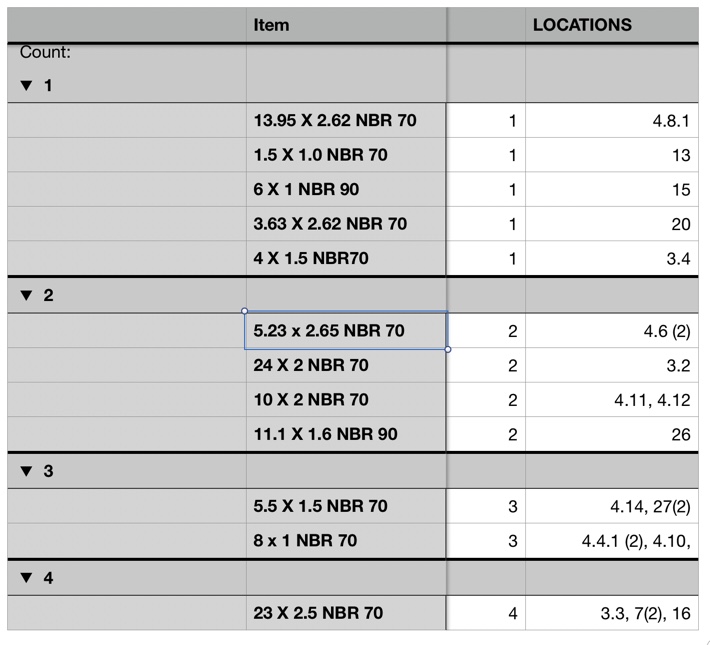

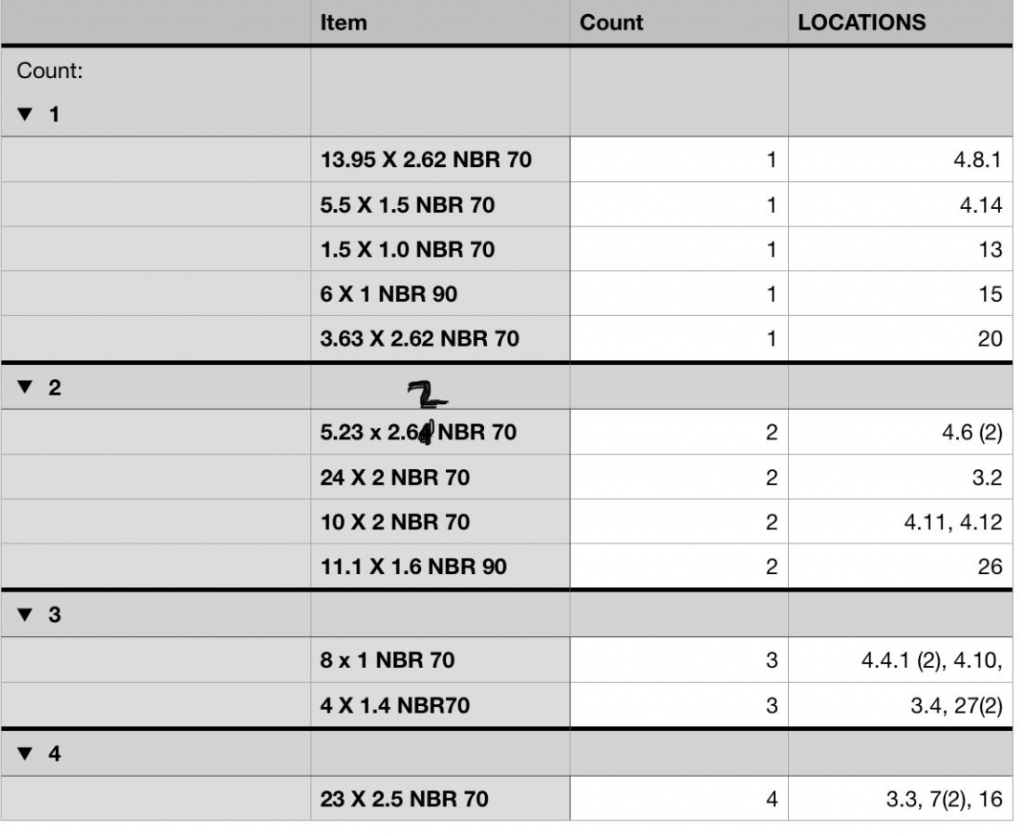

Hey everybody. Went to order orings and realized a couple errors in the count/location table. Fixed it. Pic below.

I've removed the cylinder. Had to remove the supressor off the bvarrel first, and ensure no air in the tank. Then the tank cylinder just spins right off.



[Grim_Reaper]

Thanks!
