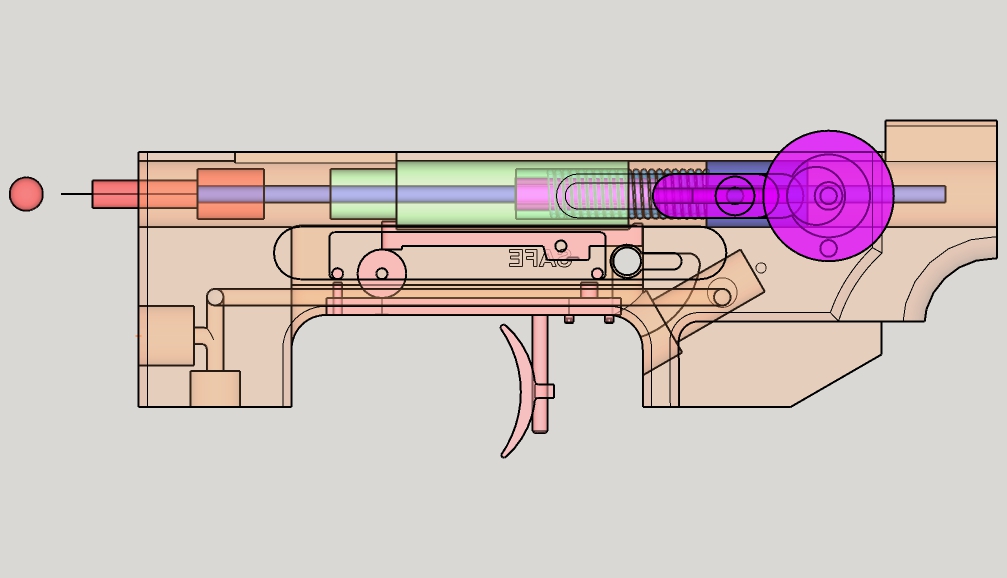

FX Impact scan

View attachment 1540014661_4039048965bcac245e58c05.21904283_fx-impact-1.snapshot.3.zip

Unzip and open the Adobe file. Move it around with mouse to view in 3D.

what do you mean by scan? Did you X ray it or other imaging device used?

is this some kind of sabotaged reverse engineer project for the Chinese? lol

I think it could be done by scanning part by part, and then guessing a bit on the cavities.

Looks like that because thats where many mistakes are made, on the insides.

Doing it this way would same enormous time compared to model everything.



Anyways it help alot in understanding the gun.

reverse engineering the FX Impact, Anyone want to help? I have no formal training in any kind of engineering, I'm just recreating it from watching dissassembly videos on youtube and the part list diagram.

The scan photo is not very accurate, mine is more closer to dimensionally correct


Attachments

  • FX-Impact-M3-original v211.png
    FX-Impact-M3-original v211.png
    38.6 KB · Views: 161
  • FX-Impact-M3-original v212.png
    FX-Impact-M3-original v212.png
    70.2 KB · Views: 150
  • FX-Impact-M3-original v213.png
    FX-Impact-M3-original v213.png
    53.5 KB · Views: 147

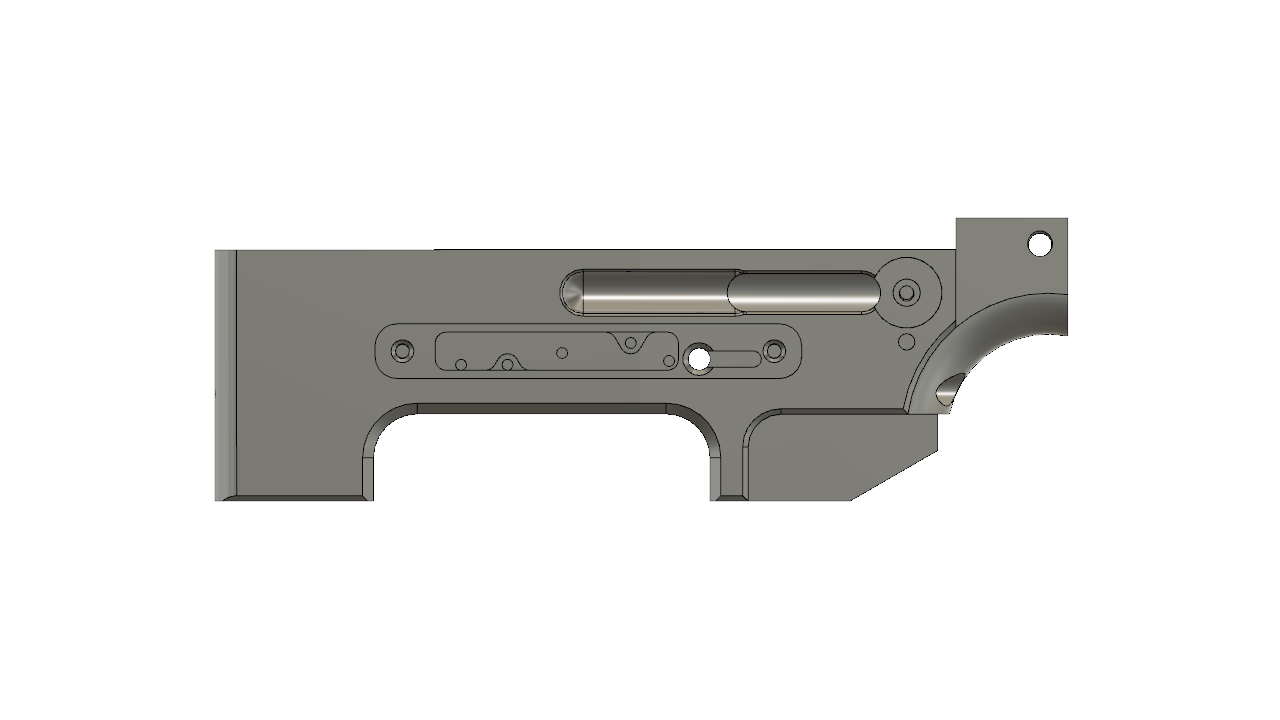

  • FX-Impact-M3-original v21.png
    FX-Impact-M3-original v21.png
    43.3 KB · Views: 128
  • FX-Impact-M3-original v214.png
    FX-Impact-M3-original v214.png
    102.4 KB · Views: 140

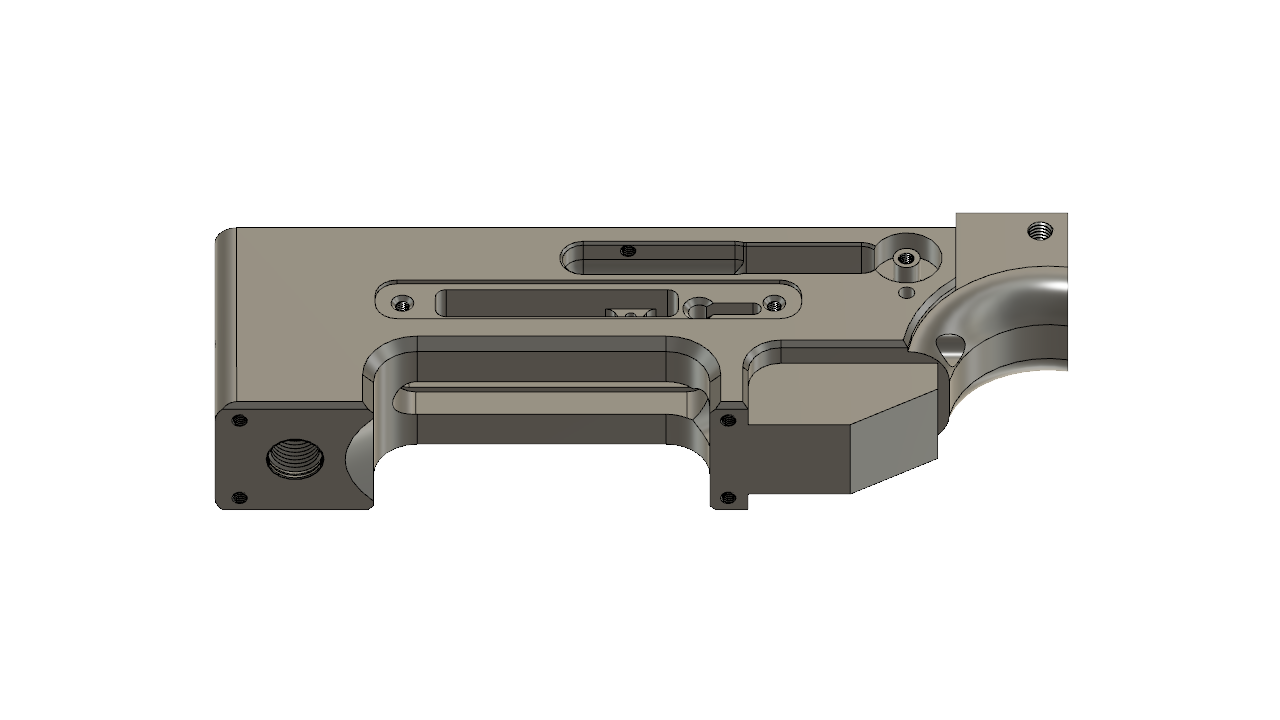

  • FX-Impact-M3-original v215.png
    FX-Impact-M3-original v215.png
    59.1 KB · Views: 135

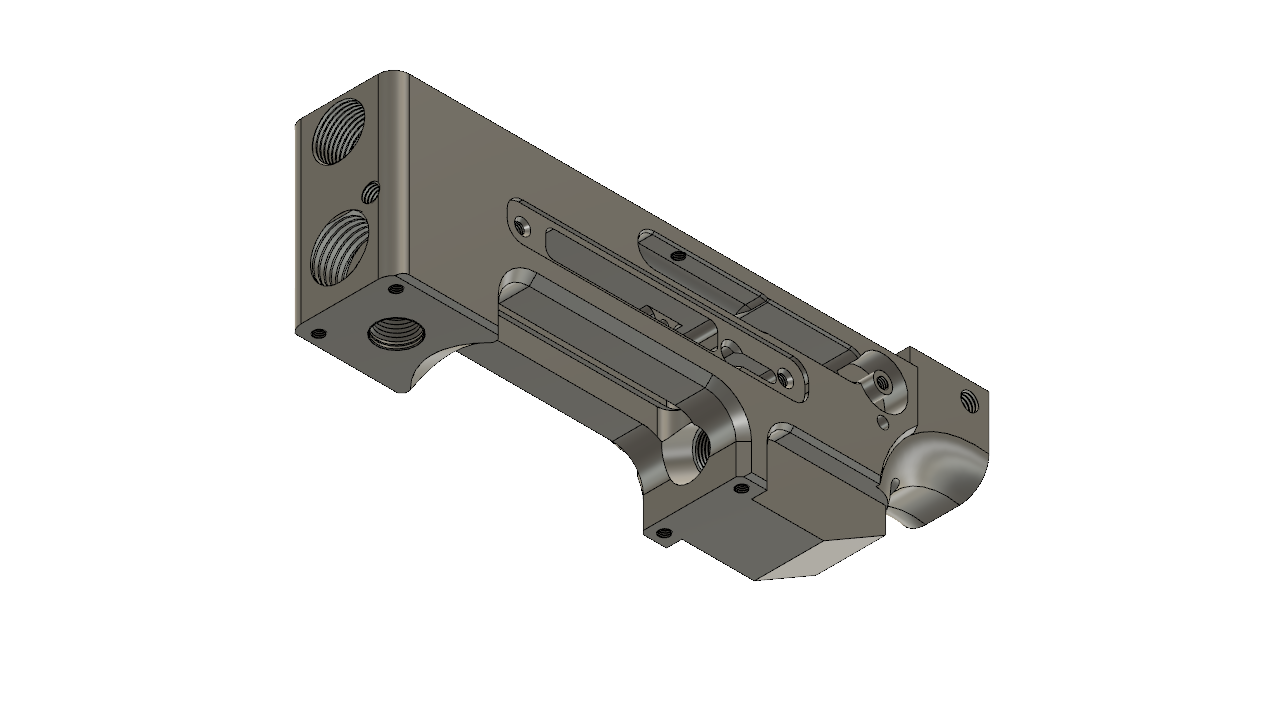

  • FX-Impact-M3-original v216.png
    FX-Impact-M3-original v216.png
    103.2 KB · Views: 145

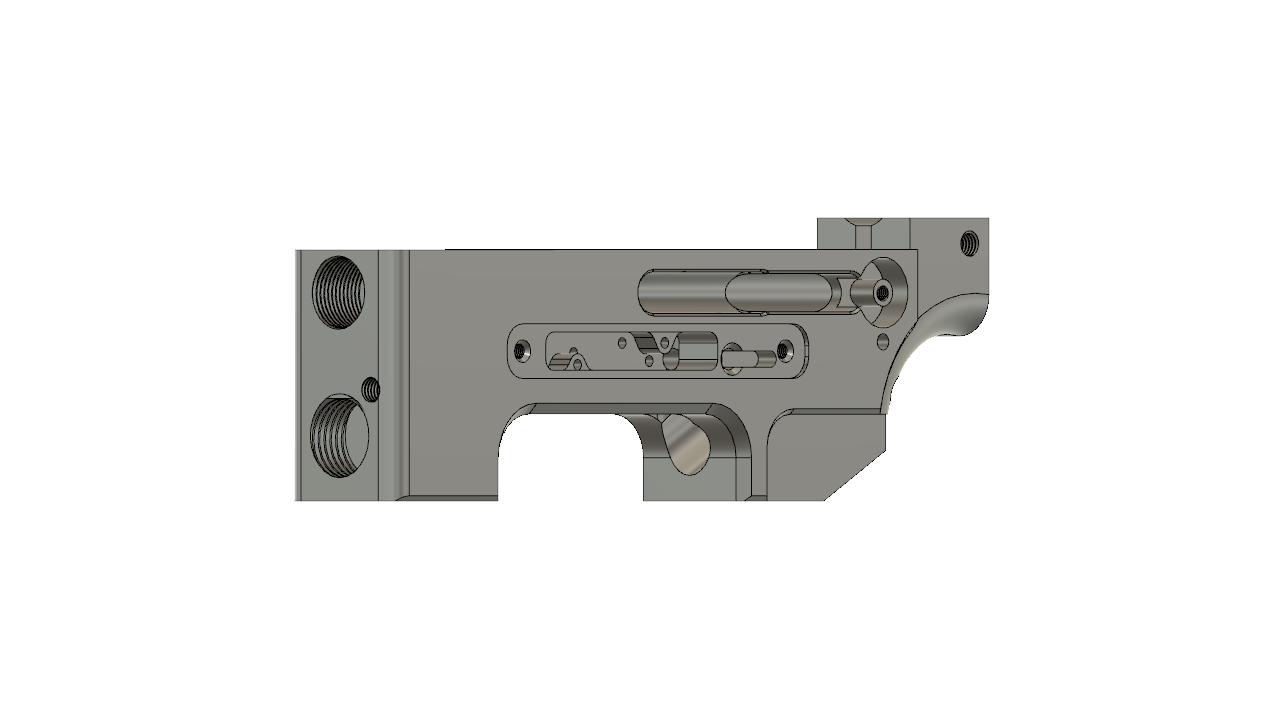

  • FX-Impact-M3-original v217.png
    FX-Impact-M3-original v217.png
    57.9 KB · Views: 124

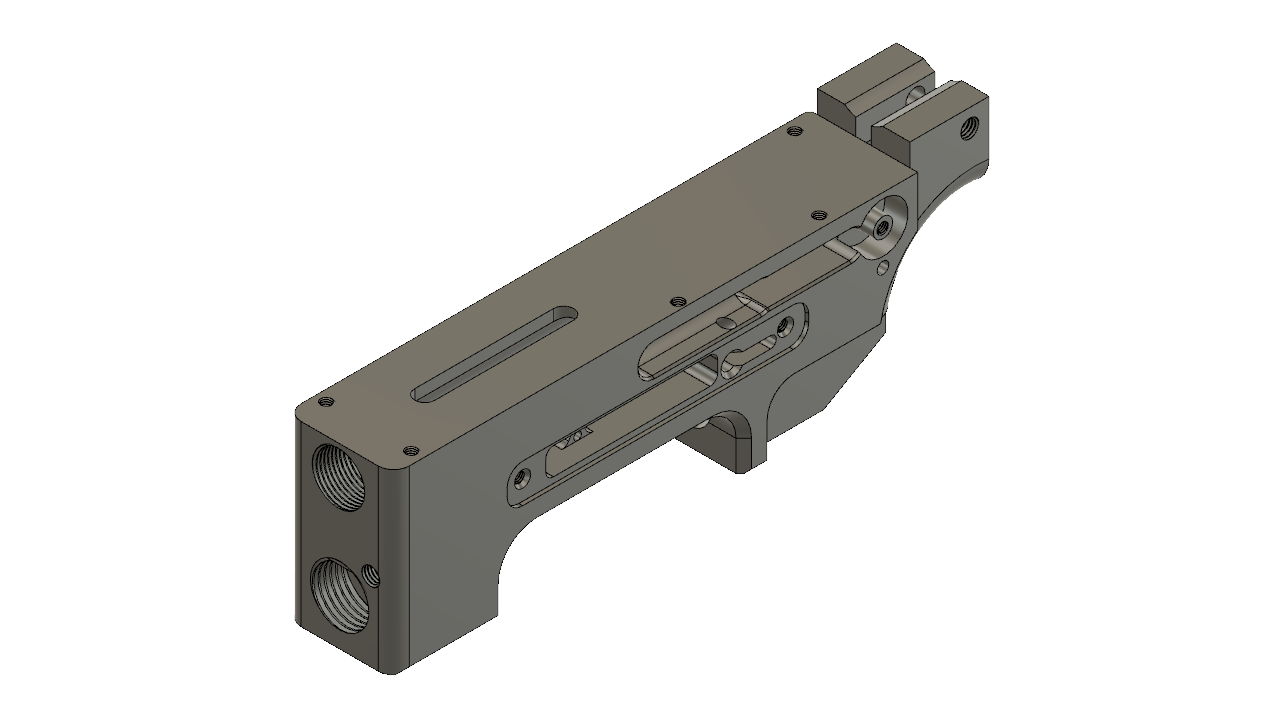

  • FX-Impact-M3-original v218.png
    FX-Impact-M3-original v218.png
    83.1 KB · Views: 154
Last edited:
