FX King block damage

Jump to latest Follow Reply
Ta-Ta Toothie

Ta-Ta Toothie

Member
Jan 3, 2024
1,642
1
1,387
CA
I'm not sure if anyone else experienced this. Had the King now for a few months and noticed a pretty big extreme spread and POI change. I keep my settings the same and clean the barrel when needed so I dug deeper. Looks like the hammer chamber in the block is getting debris possibly from the pellet probe assembly and getting jammed up with the hammer. When I took out the trigger, there was aluminum debris all over it. I took a few pics with my bore scope.



  • Wow
  • Like
Reactions: _CTAIRGUNNER_, Long_Gun_Dallas, qball and 3 others
Ta-Ta Toothie said:
Thanks for the offer, Im A ok. And thanks for assuming I'm new to airguns. Some of you just blown my mind.
Click to expand...
I often think the same thing. Well the blow my mind part. sorry I couldn't really help you. I don't have this FX. It is kinda sad you had to go through 5 pages of derail to find someone to help you.Kudos for you for not loosing it to bad. loved your sarcasm.good read. FX is a good company I hope they will help you out.

  • Like
Reactions: Ta-Ta Toothie and jking
Upvote 0
Ta-Ta Toothie said:
I'm not sure if anyone else experienced this. Had the King now for a few months and noticed a pretty big extreme spread and POI change. I keep my settings the same and clean the barrel when needed so I dug deeper. Looks like the hammer chamber in the block is getting debris possibly from the pellet probe assembly and getting jammed up with the hammer. When I took out the trigger, there was aluminum debris all over it. I took a few pics with my bore scope. View attachment 424754View attachment 424755

View attachment 424756
Click to expand...
I can't tell what part I'm looking at or understand it from the description. Can you back off a little and show exactly where this is happening? Sorry, just not understanding it. I had a similar issue as far as debris falling down on the trigger assembly a few years back and I think my hammer housing/sear surface/edge was getting beat to heck against the harder sear on a bounce back.

Upvote 0
jking said:
I can't tell what part I'm looking at or understand it from the description. Can you back off a little and show exactly where this is happening? Sorry, just not understanding it. I had a similar issue as far as debris falling down on the trigger assembly a few years back and I think my hammer housing/sear surface/edge was getting beat to heck against the harder sear on a bounce back.
Click to expand...

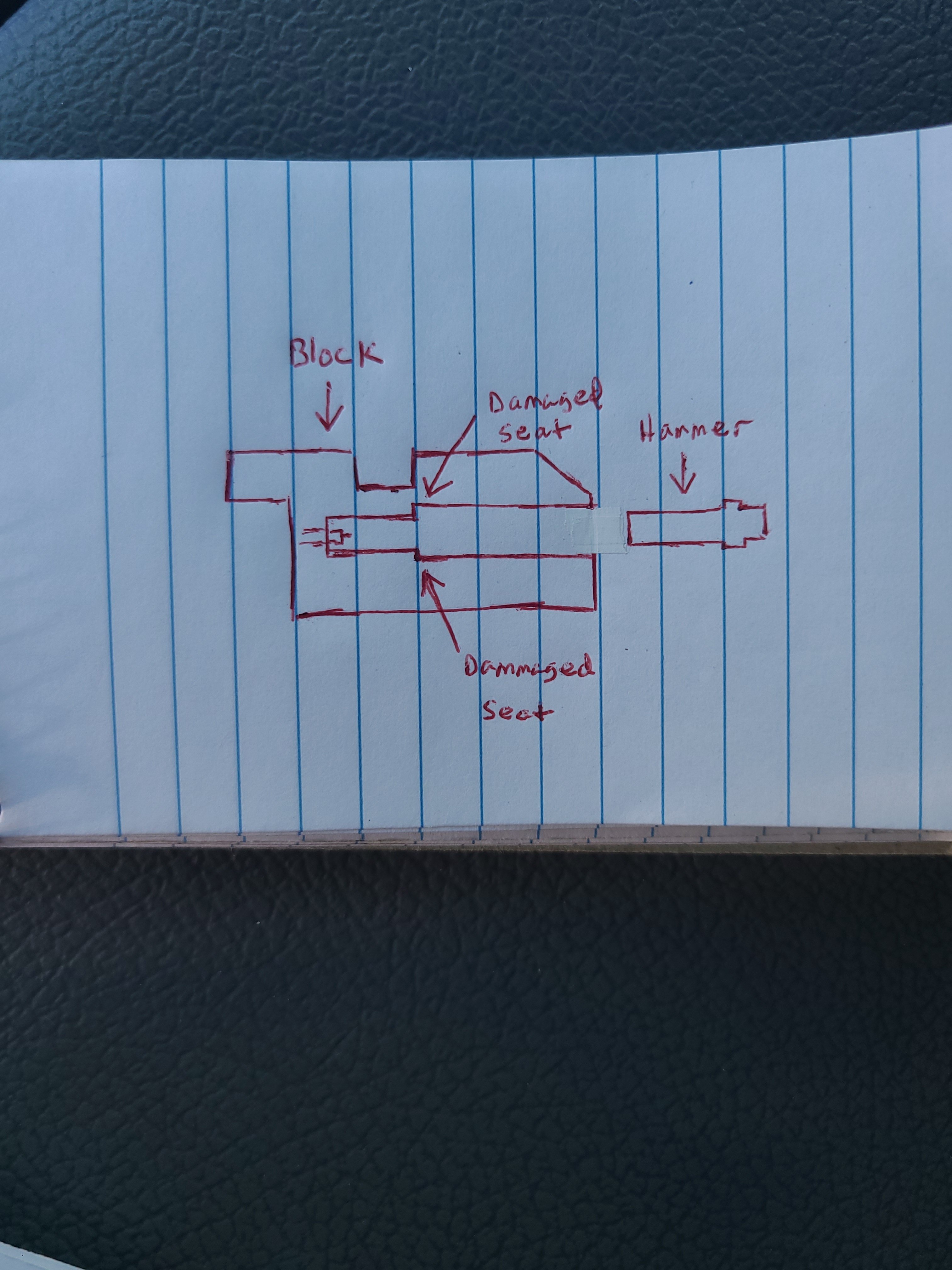

Sorry, I can't zoom that out. They were taken with a bore scope. Here is a sketch I did earlier.

Upvote 0
TheBeardedGunsmith said:
I'm not familiar with the FX models and have no idea how they work but the picture shown doesn't look like a spot where a hammer or semi fixed object was hitting another surface. The impact marks almost look helical like rifling (I know it's not the rifling. )
Click to expand...
100% that is where the shear surface on the hammer was striking. The hammer rotates, it doesn't have a fixed guide. So when it's cocked, the spring can rotate the hammer etc.

Upvote 0
Ta-Ta Toothie said:
There is two milled flats, one of both side to provide relief for the vent holes. The hammer can rotate in its bore, The pattern you are seeing if from repeated hits.
Click to expand...

Ta-Ta Toothie said:
There is two milled flats, one of both side to provide relief for the vent holes. The hammer can rotate in its bore, The pattern you are seeing if from repeated hits.
Click to expand...
From debris, rough edges on hammer or clearance issues.

Upvote 0
Dr. Kralenstein said:
For the price, they should be. I expect issues with a $300 gun, but even a lot of those far exceed their price points.

I'd love to get a dreamline classic some day, as they seem to be one of their least problematic guns. I just can't believe the stories I read about some of their guns issues.
Click to expand...
I'd recommend an older Crown for sure. Or even a Royale. But the Royale barrels only like pellets and under 900fps. Bummer about the new gun. That looks like some serious carnage.

  • Like
Reactions: Ta-Ta Toothie
Upvote 0
With the way the marks have material displaced outward towards the hammer, and the rotating pattern they show, I believe they are tool marks from manufacturing.

If it were caused by the hammer smacking it the damage would be imprinted and probably not have chunks broken off. Those chunks might be what you saw in your trigger assembly.

Never been into that gun and never will, but just thinking out loud from problems I've seen before elsewhere.

  • Like
Reactions: Dr. Kralenstein and Ta-Ta Toothie
Upvote 0
thumper said:
With the way the marks have material displaced outward towards the hammer, and the rotating pattern they show, I believe they are tool marks from manufacturing.

If it were caused by the hammer smacking it the damage would be imprinted and probably not have chunks broken off. Those chunks might be what you saw in your trigger assembly.

Never been into that gun and never will, but just thinking out loud from problems I've seen before elsewhere.
Click to expand...
I'm with you on that.

  • Like
Reactions: Dr. Kralenstein, Long_Gun_Dallas and thumper
Upvote 0
thumper said:
With the way the marks have material displaced outward towards the hammer, and the rotating pattern they show, I believe they are tool marks from manufacturing.

If it were caused by the hammer smacking it the damage would be imprinted and probably not have chunks broken off. Those chunks might be what you saw in your trigger assembly.

Never been into that gun and never will, but just thinking out loud from problems I've seen before elsewhere.
Click to expand...
Makes sense.

Upvote 0
thumper said:
With the way the marks have material displaced outward towards the hammer, and the rotating pattern they show, I believe they are tool marks from manufacturing.

If it were caused by the hammer smacking it the damage would be imprinted and probably not have chunks broken off. Those chunks might be what you saw in your trigger assembly.

Never been into that gun and never will, but just thinking out loud from problems I've seen
Click to expand...

thumper said:
With the way the marks have material displaced outward towards the hammer, and the rotating pattern they show, I believe they are tool marks from manufacturing.

If it were caused by the hammer smacking it the damage would be imprinted and probably not have chunks broken off. Those chunks might be what you saw in your trigger assembly.

Never been into that gun and never will, but just thinking out loud from problems I've seen before elsewhere.
Click to expand...
Thanks to you both.

  • Like
Reactions: TheBeardedGunsmith and thumper
Upvote 0
thumper said:
With the way the marks have material displaced outward towards the hammer, and the rotating pattern they show, I believe they are tool marks from manufacturing.

If it were caused by the hammer smacking it the damage would be imprinted and probably not have chunks broken off. Those chunks might be what you saw in your trigger assembly.

Never been into that gun and never will, but just thinking out loud from problems I've seen before elsewhere.
Click to expand...
That kind of what I was thinking. Looks like tooling marks. Crazy it even got sent out like that if it's the case.

  • Like
Reactions: Ta-Ta Toothie and TheBeardedGunsmith
Upvote 0
Long_Gun_Dallas said:
That kind of what I was thinking. Looks like tooling marks. Crazy it even got sent out like that if it's the case.
Click to expand...
Gun had a few rusty, boogerd up screws, and a marred trigger post. Barrel jam nut was also lose. I was sent replacements for the screws. Still waiting for the trigger post. Something is majorly wrong there. If it fits it ships...

  • Wow
Reactions: Long_Gun_Dallas
Upvote 0
Long_Gun_Dallas said:
That kind of what I was thinking. Looks like tooling marks. Crazy it even got sent out like that if it's the case.
Click to expand...
I agree. I would almost bet my house that was a reamer that was fed in crooked and started to oscillate back and forth, cutting those gouges before finding its center. And I know because I've done it before by accident 🙃

  • Like
Reactions: Long_Gun_Dallas and Ta-Ta Toothie
Upvote 0
Ta-Ta Toothie said:
Gun had a few rusty, boogerd up screws, and a marred trigger post. Barrel jam nut was also lose. I was sent replacements for the screws. Still waiting for the trigger post. Something is majorly wrong there. If it fits it ships...
Click to expand...
That is what we call a Friday afternoon gun. Not sure why it skipped QC though.

  • Like
Reactions: Long_Gun_Dallas and Dr. Kralenstein
Upvote 0
