Tuning FX Super Swift / Adjustments

[markT]

I have a FX Super Swift and would like some information on this rifle. I can not find the "Super Swift" on FX's website.

My rifle has a loud bark when I have the "power adjuster" on high. I think I'm shooting supersonic..

My question is: the set screw located just below the magazine holder handle straight in line with the bbl.

I must remove this set screw to remove the action from the stock.

Does this screw have anything to do with velocity ( hammer tension)?

How tight should this screw be against the spring?



[Butch]

https://spares.bagnallandkirkwood.co.uk/wp-content/uploads/2017/07/Type-B-Exploded-Parts-List-and-Diagram.pdf


this link should help you.


Butch



[markT]

Thanks Butch but this is not my rifle..



[markT]

After some more looking it looks like my rifle is a Cutlas.. It wears the badge of Super Swift.. and nothing on FX drawings for "Other model names."

The screw is a set screw that fits in the stock.

Another question. Can the hammer tension be adjusted on this rifle. The call out for the slotted brass screw says hammer spring adjuster.



[Gerry52]

If callout identifies screw as hammer spring adjuster I'm darn near sure it's telling you it can be adjusted!



[markT]

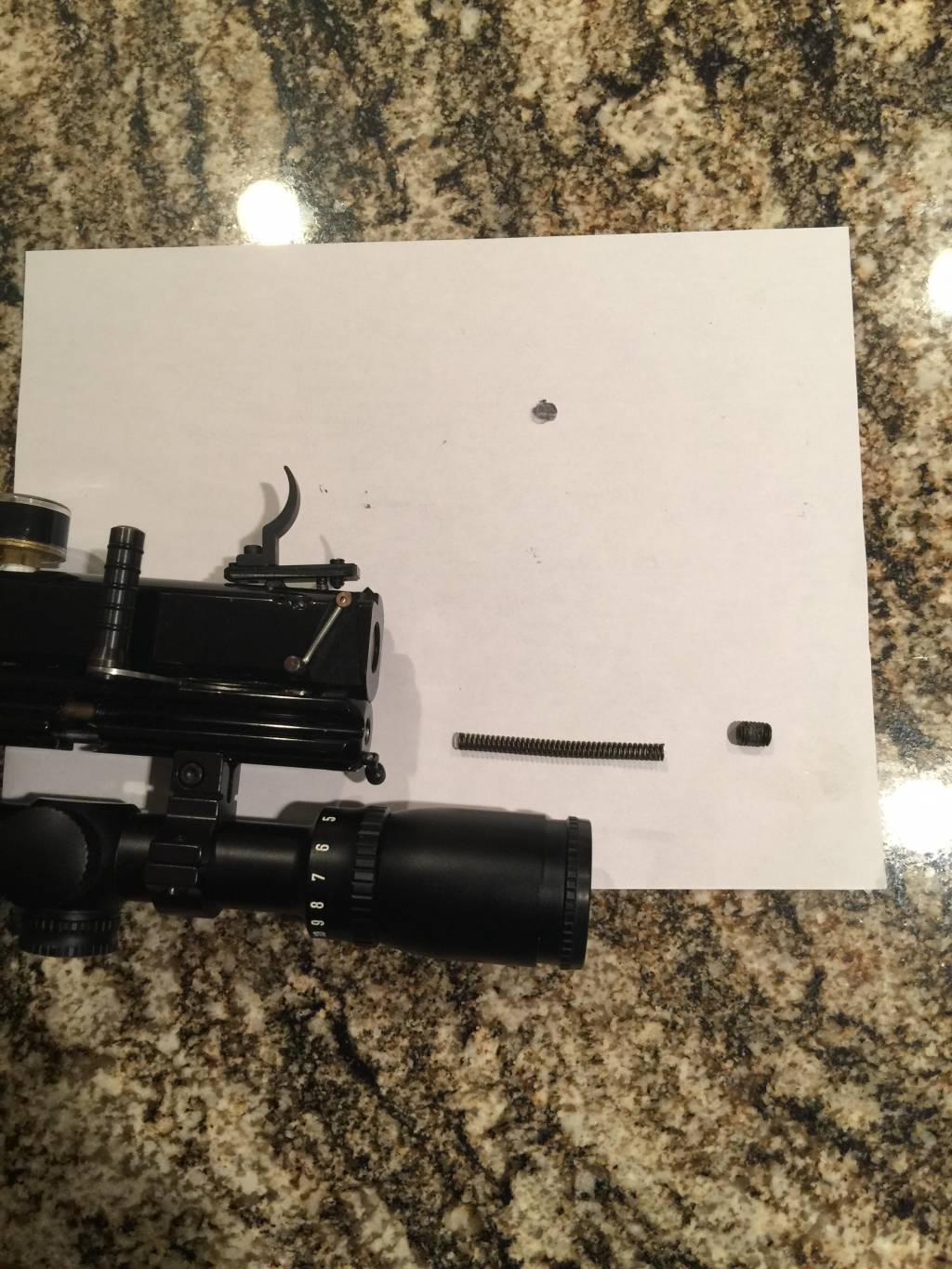

This was

this was the set screw that fits in the stock. Brass slotted screw is below (above in picture) this one



[FX-USA]

Hi MarkT,

Give our customer service or technician department a call or email and we can happily find a solution for the difficulties you're having with your FX Swift.


Regards,

FX Airguns USA

Contact:

Monday – Thursday 9 AM – 4 PM EST
Fridays 9 AM – 3 PM EST
Phone: +1 866 639 0772
[email protected]



[markT]

Thanks FX, I didn’t think about coming to you all for some reason. oops. Email was sent.
