Brocock/BRK Ghost - “if i just had 2 more inches…”

[Erdb]

of shroud that is

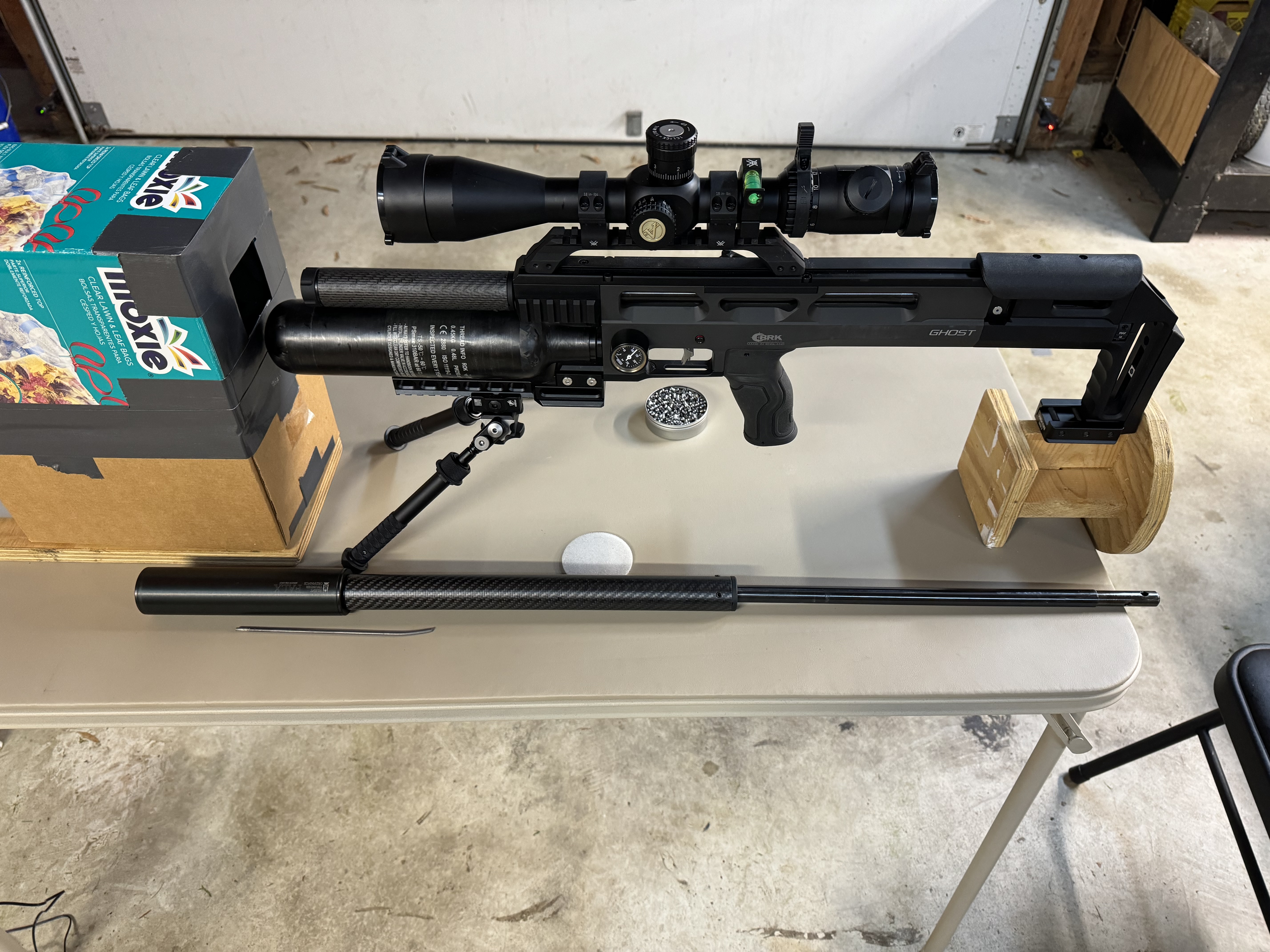

Put new .177 carbine barrel on my .22HP ghost but find it is too loud for my liking. Unfortunately, my .22 Falx diameter is too big to clear 480cc bottle, so I’ve considered:

1 - buy smaller 300cc bottle (less shots )
2 - see if I can get a ghost plus shroud to replace shorter carbine shroud (do they exist?)
3 - put the longer .22 hp shroud on and see if it quiets down enough (kinda defeats purpose of the short carbine barrel)
4 - open to other ideas…

What would AGN do?
View attachment IMG_3449.jpeg



[Emu]

Ask the piece to be machined. Just an extension of current suppressor receiver with a new supressor receiver.

Super quick and easy..... And cheap.



[Vetmx]

One would think you would get a boatload of shots with a 300cc bottle. The gun would be ergonomically correct too. With the 480 you are probably looking forward to only filling the gun once a month. I’d try the 300 for a while. You might like it.



[Triggs75]

Get a thinner moderator dedicated to your .177 barrel?

Oh and that is an interesting setup you have as a bag rider. Looks solid and won’t move while you are testing/shooting on that bench



[Franklink]

The only part of the shroud kit that determines length is the carbon fiber tube......and carbon fiber tube is relatively cheap online.

So two options, source a longer carbon fiber tube of the same specs and reuse the shroud hardware to make yourself a longer shroud. Or buy an entire new longer shroud kit.



[markhooper]

just go to a machine shop/ metal yard and get or order a piece of aluminum tubing.. have it threaded if it is needed.. I'm sick of the plastic and carbon fiber stuff and those thin barrel liners..
if I ever get a chance to do a custom build for myself, I'm going to try to get a good old fashioned hexagon barrel like would go on a Henry golden boy, along with open sights and then machine to fit a quality action.. assuming that I could afford the action..
don't have a clue where you are, but if you were close, I'd volunteer to do whatever you need, in exchange for a visit and well if I was not too tired.. maybe shoot some targets..
Mark



[cavedweller]

of shroud that is

Put new .177 carbine barrel on my .22HP ghost but find it is too loud for my liking. Unfortunately, my .22 Falx diameter is too big to clear 480cc bottle, so I’ve considered:

1 - buy smaller 300cc bottle (less shots )
2 - see if I can get a ghost plus shroud to replace shorter carbine shroud (do they exist?)
3 - put the longer .22 hp shroud on and see if it quiets down enough (kinda defeats purpose of the short carbine barrel)
4 - open to other ideas…

What would AGN do?
View attachment 405130

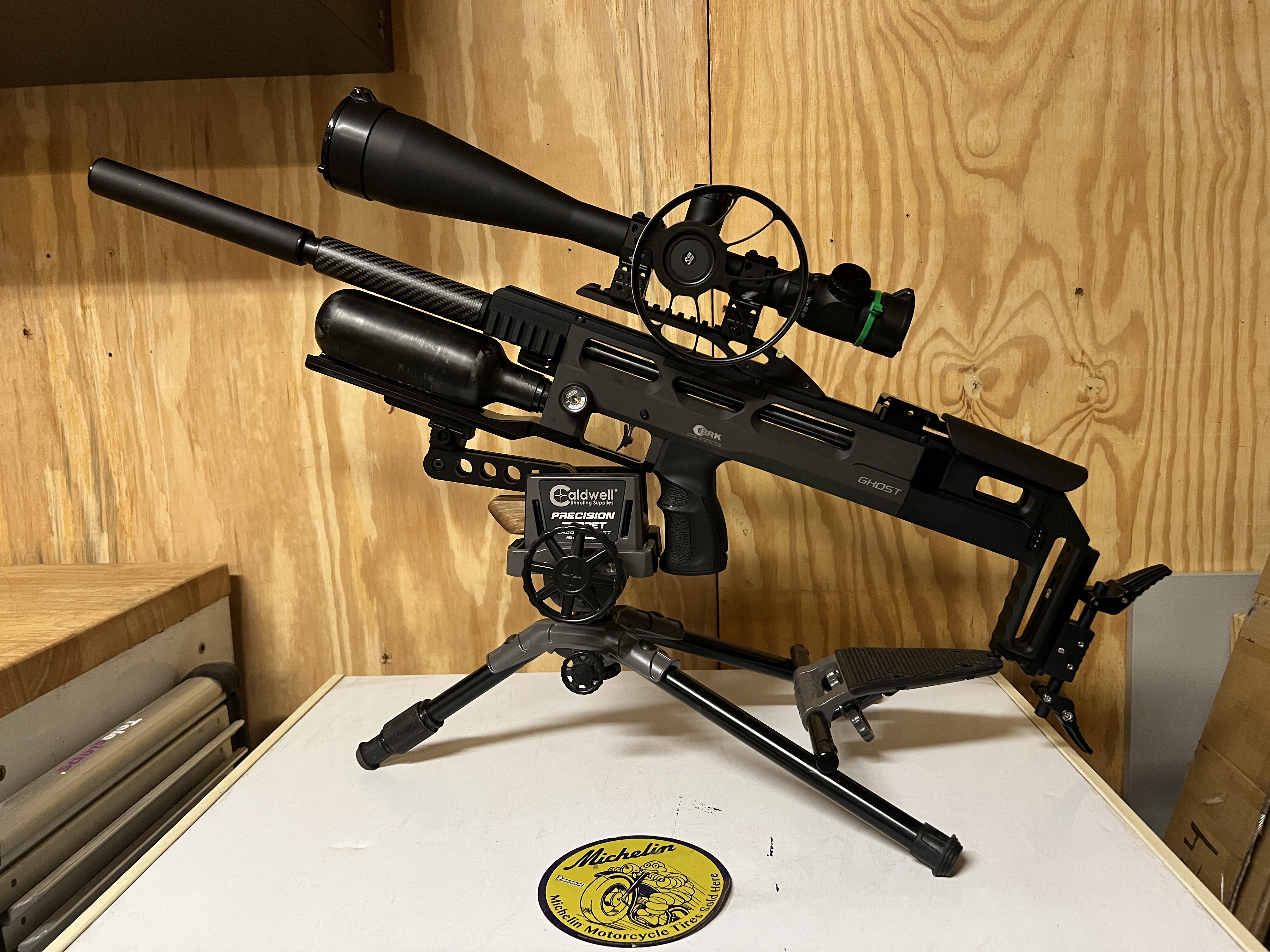

Turn the reg pressure down a bit? Back off on the wheel a bit? My ghost Carbine is pretty quiet as configured using a Weihrauch moderator - buying another smaller valved bottle is a great option



[Erdb]

One would think you would get a boatload of shots with a 300cc bottle. The gun would be ergonomically correct too. With the 480 you are probably looking forward to only filling the gun once a month. I’d try the 300 for a while. You might like it.

Thanks @Vetmx - it may come to that. Thanks for the feedback



[Erdb]

Get a thinner moderator dedicated to your .177 barrel?

Oh and that is an interesting setup you have as a bag rider. Looks solid and won’t move while you are testing/shooting on that bench

@Triggs75 - leaning that way now. I think a moderator in 1.22 diameter will fit (perhaps a Hugget Snipe or Huma Mod30). That was just a random block of wood to get the barrel lined up for some quick chrono work



[ctshooter]

Get a 3 section Huma Mod30. I used that with my Alpha Wolf .177 barrel and it was extremely effective. A touch more noise reduction than a Huggett Snipe IMO.



[Erdb]

The only part of the shroud kit that determines length is the carbon fiber tube......and carbon fiber tube is relatively cheap online.

So two options, source a longer carbon fiber tube of the same specs and reuse the shroud hardware to make yourself a longer shroud. Or buy an entire new longer shroud kit.

@Franklink - thanks. I'll need to check with AoA on a Plus shroud as I just don't have the time (and required tooling) to roll my own shroud.

I believe I saw you had a Hugget Atom on your carbine with a 300cc bottle at one time. Is the diameter on that really 1.22? I think a 1.22 dia moderator will fit in conjunction with a 480cc bottle - might make it look less "awkward" too.



[Erdb]

Get a 3 section Huma Mod30. I used that with my Alpha Wolf .177 barrel and it was extremely effective. A touch more noise reduction than a Huggett Snipe IMO.

@ctshooter - good info. Any suggestion on best place to source - I'm seeing palmbeachairguns has them listed but will need to check stock. Thanks!



[Erdb]

Turn the reg pressure down a bit? Back off on the wheel a bit? My ghost Carbine is pretty quiet as configured using a Weihrauch moderator - buying another smaller valved bottle is a great option
View attachment 405172

Fair points. Primary concern is noise but I still want to be around 20fpe. I'm pushing 10.34's at around 900fps and it's pretty loud without moderator.

Currently leaning towards smaller diameter moderator now. Thanks



[ctshooter]

@ctshooter - good info. Any suggestion on best place to source - I'm seeing palmbeachairguns has them listed but will need to check stock. Thanks!

I can't really recommend a place to buy. I've had mine for a few years and think I got the direct from Huma at the time.



[DesertSilver]

That's what she said.



[Franklink]

@Franklink - thanks. I'll need to check with AoA on a Plus shroud as I just don't have the time (and required tooling) to roll my own shroud.

I believe I saw you had a Hugget Atom on your carbine with a 300cc bottle at one time. Is the diameter on that really 1.22? I think a 1.22 dia moderator will fit in conjunction with a 480cc bottle - might make it look less "awkward" too.

Here's some mock ups. 480 cc barrel, Carbine barrel/shroud. Both the 0db and the Huggett Atom have plenty of clearance with the bottle (shroud and both moderator are essentially the same diameter.).


Clearance


How it looks with the Huggett ATOM.


Its 29.5inches overall in the above phot but would be 29" without the aftermarket extended air stripper. It's about an inch longer with the ODB, (110 I think is the model).


Reference next to a (mostly) Veteran Short


Reference next to a HW50s, typical sporter length of 40.5"


Hopefully that gives you an idea.



[Solo1]

The short o db mod is only about 1/4” larger in diameter than the shroud. Thats what i have on my ghost hp and its quiet Well cole was a little quicker than me. Lol



[GhostRider1685]

I’m running the same 0db 30cal that I use on my .25hp barrel. I would like to try the new DonnyFL modular but I’m happy with this setup (for now).



[Erdb]

Here's some mock ups. 480 cc barrel, Carbine barrel/shroud. Both the 0db and the Huggett Atom have plenty of clearance with the bottle (shroud and both moderator are essentially the same diameter.).

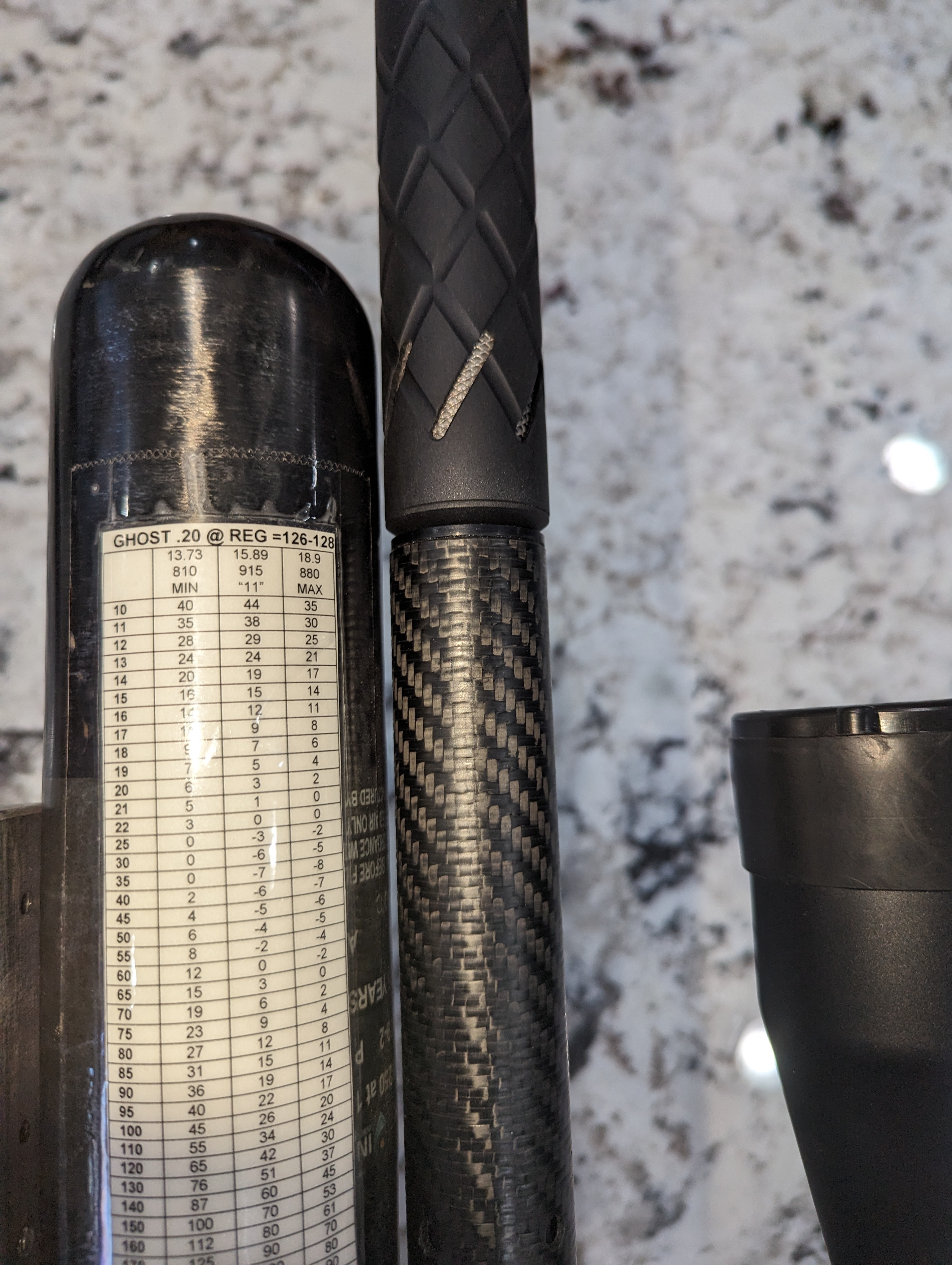

Clearance
View attachment 405356

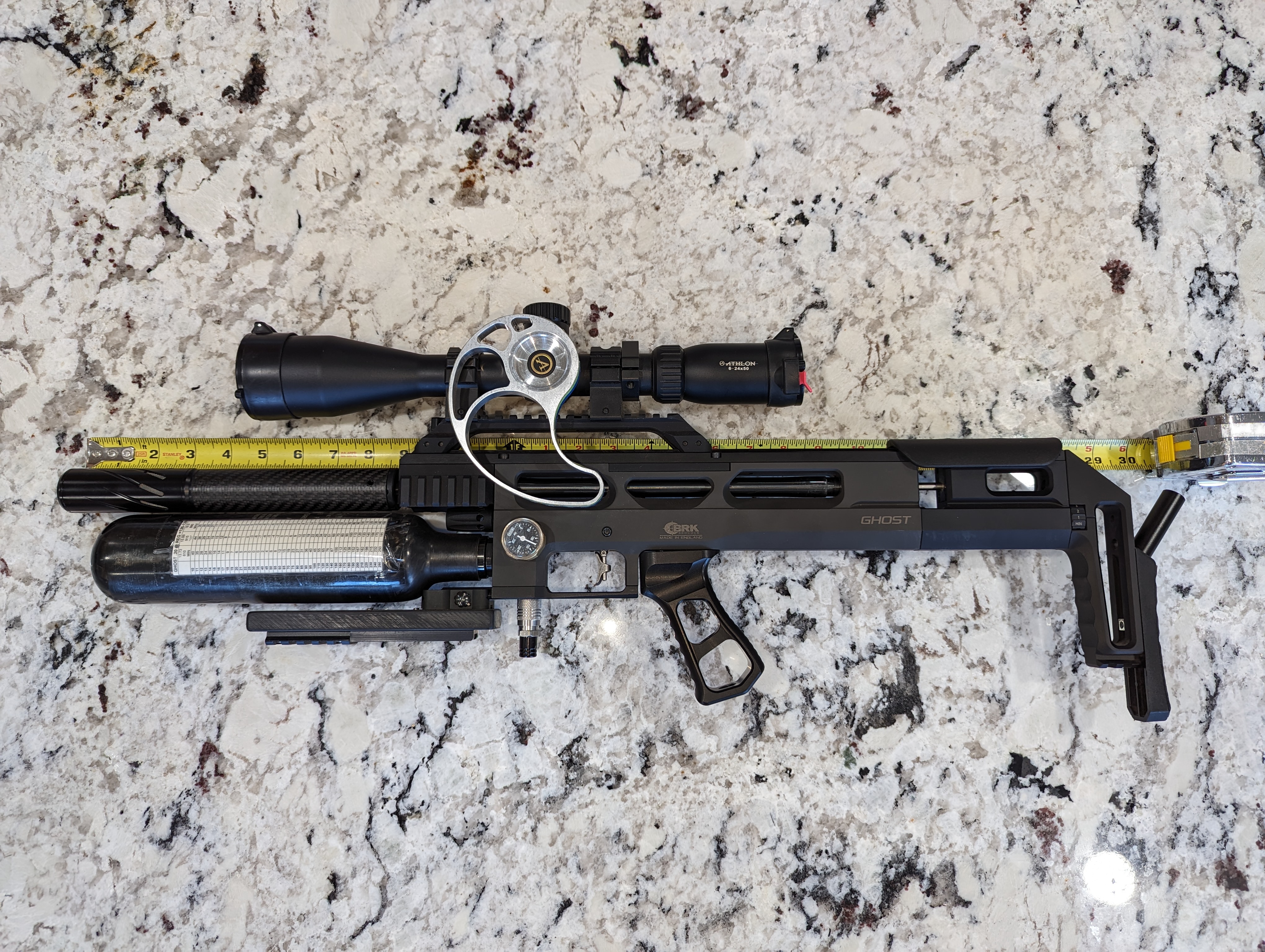

How it looks with the Huggett ATOM.
View attachment 405357

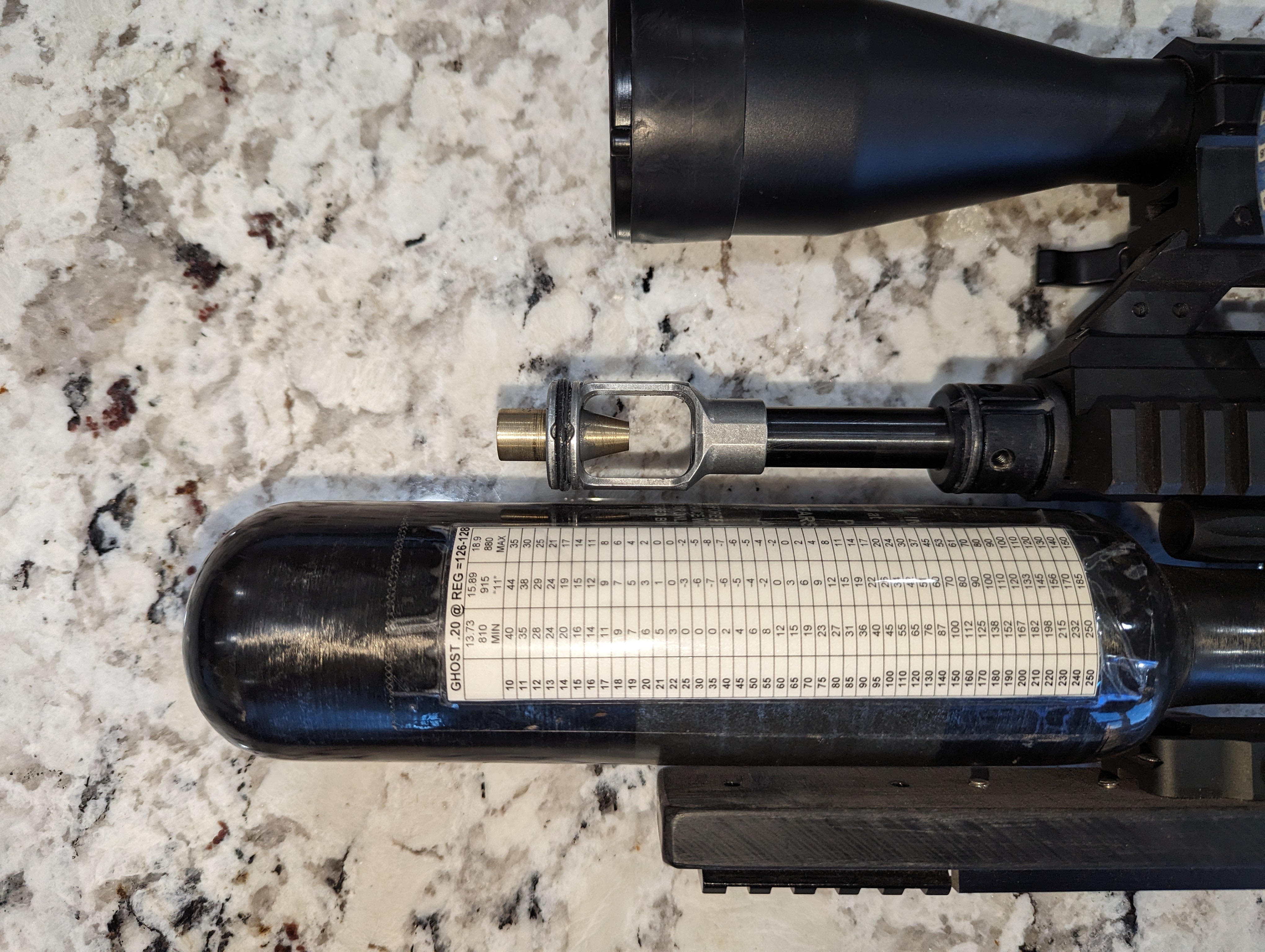

Its 29.5inches overall in the above phot but would be 29" without the aftermarket extended air stripper. It's about an inch longer with the ODB, (110 I think is the model).
View attachment 405360

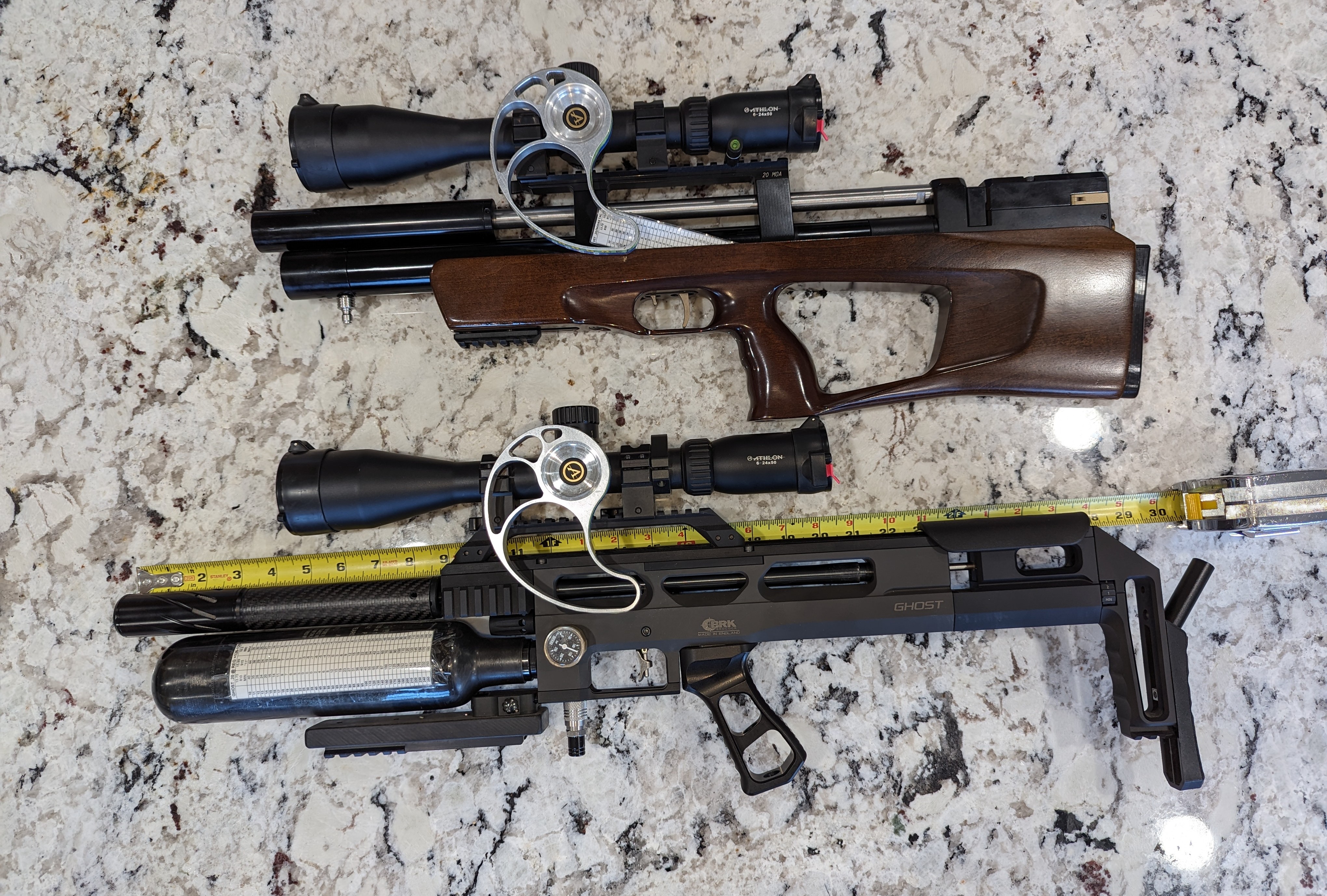

Reference next to a (mostly) Veteran Short
View attachment 405361

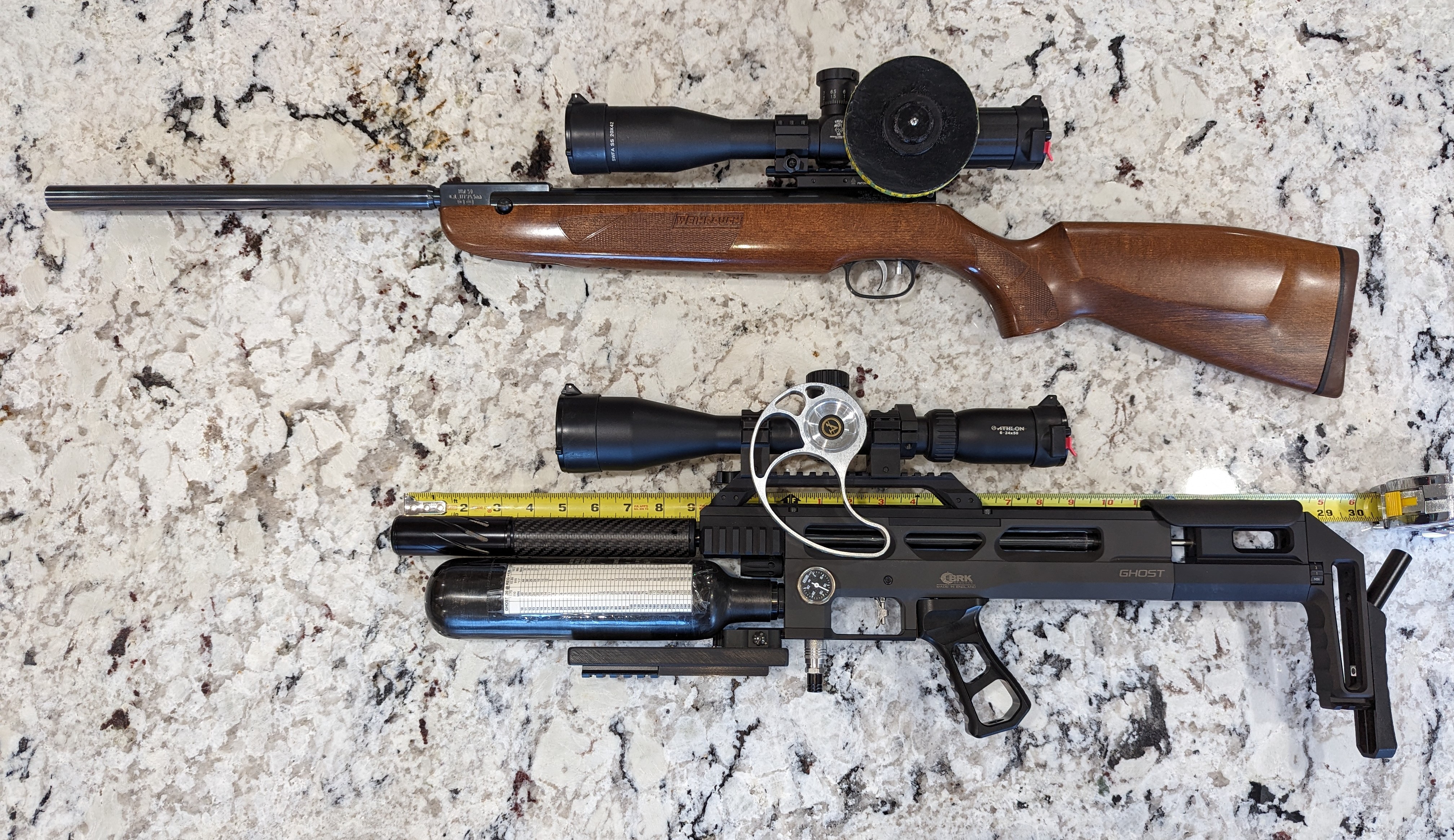

Reference next to a HW50s, typical sporter length of 40.5"
View attachment 405363

Hopefully that gives you an idea.

Thanks a lot for the pics @Franklink - measurements indicated 1.22” would clear but nothing helps like seeing one mocked up.



[Erdb]

As an update to all that provided helpful input, I ordered a huma 30 standard (thinking I can always shorten later if a 3 section is quiet enough)
