For those who have not read the full encyclopedia on the other thread... This can be just for this category of mod.
Huben GK1 - Carbine or Stock Mods
- Thread starter bluemoon_wulf
- Start date

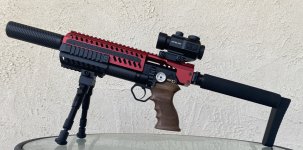

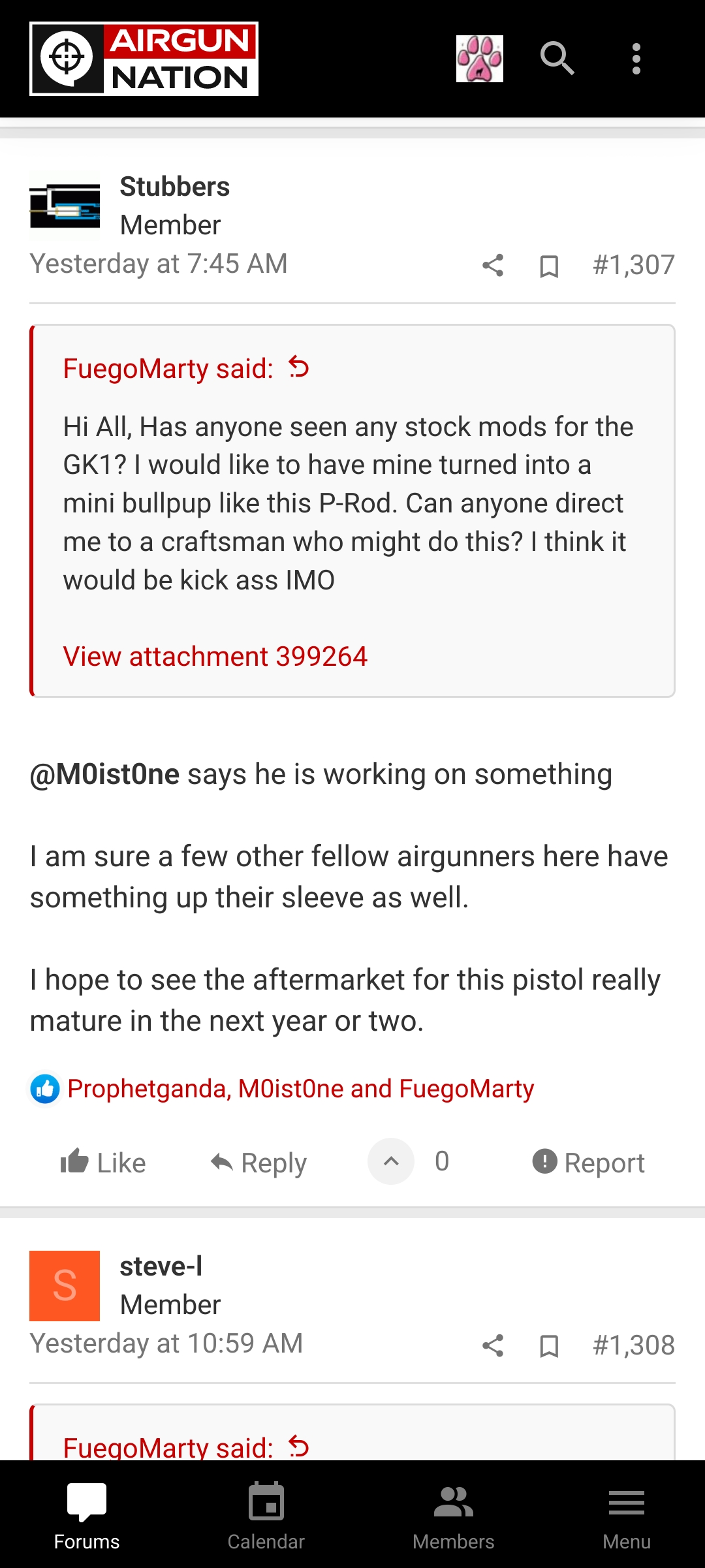

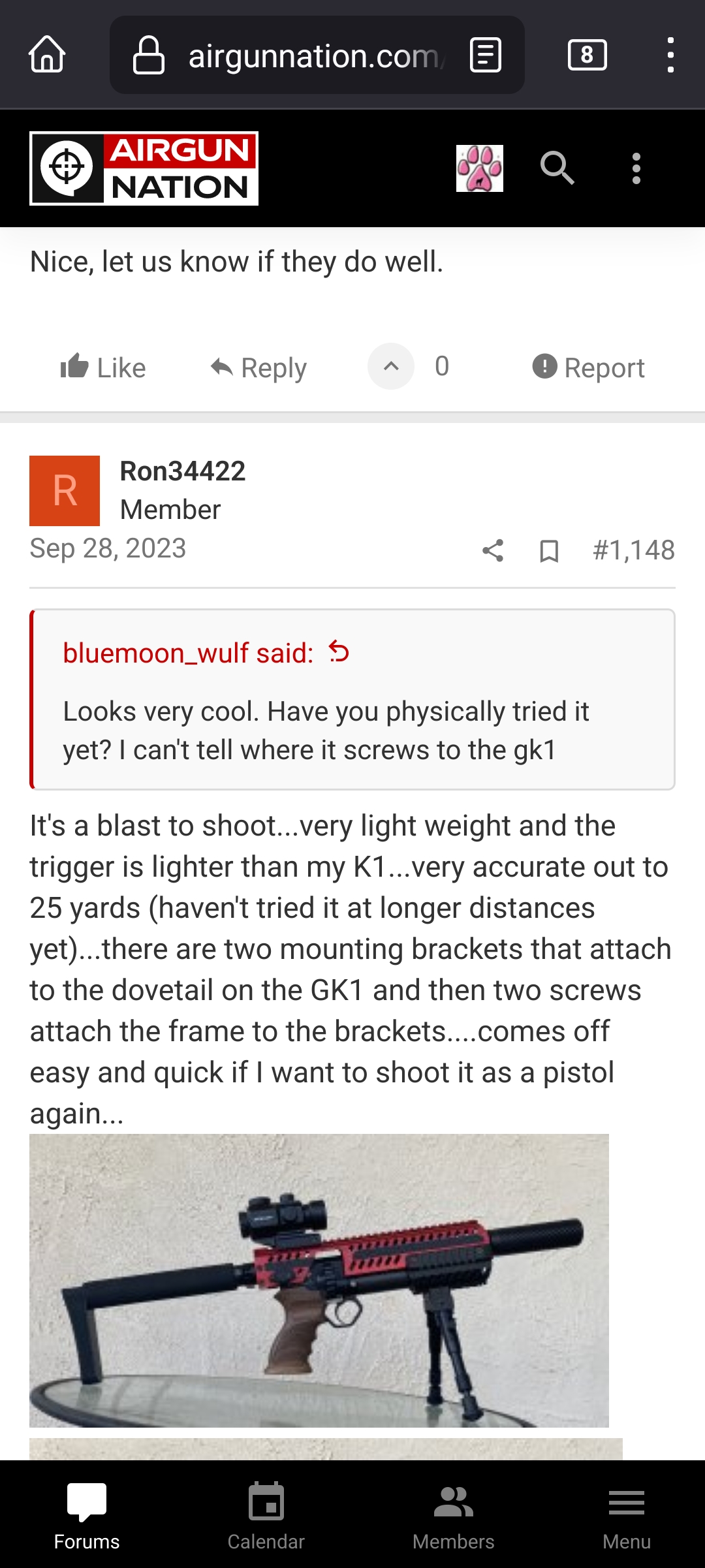

From the other thread, Ron34422, was the first I saw..
Which is the Ataman P2C Conversion Kit for the AP16 pistol
Which is the Ataman P2C Conversion Kit for the AP16 pistol
Upvote 0

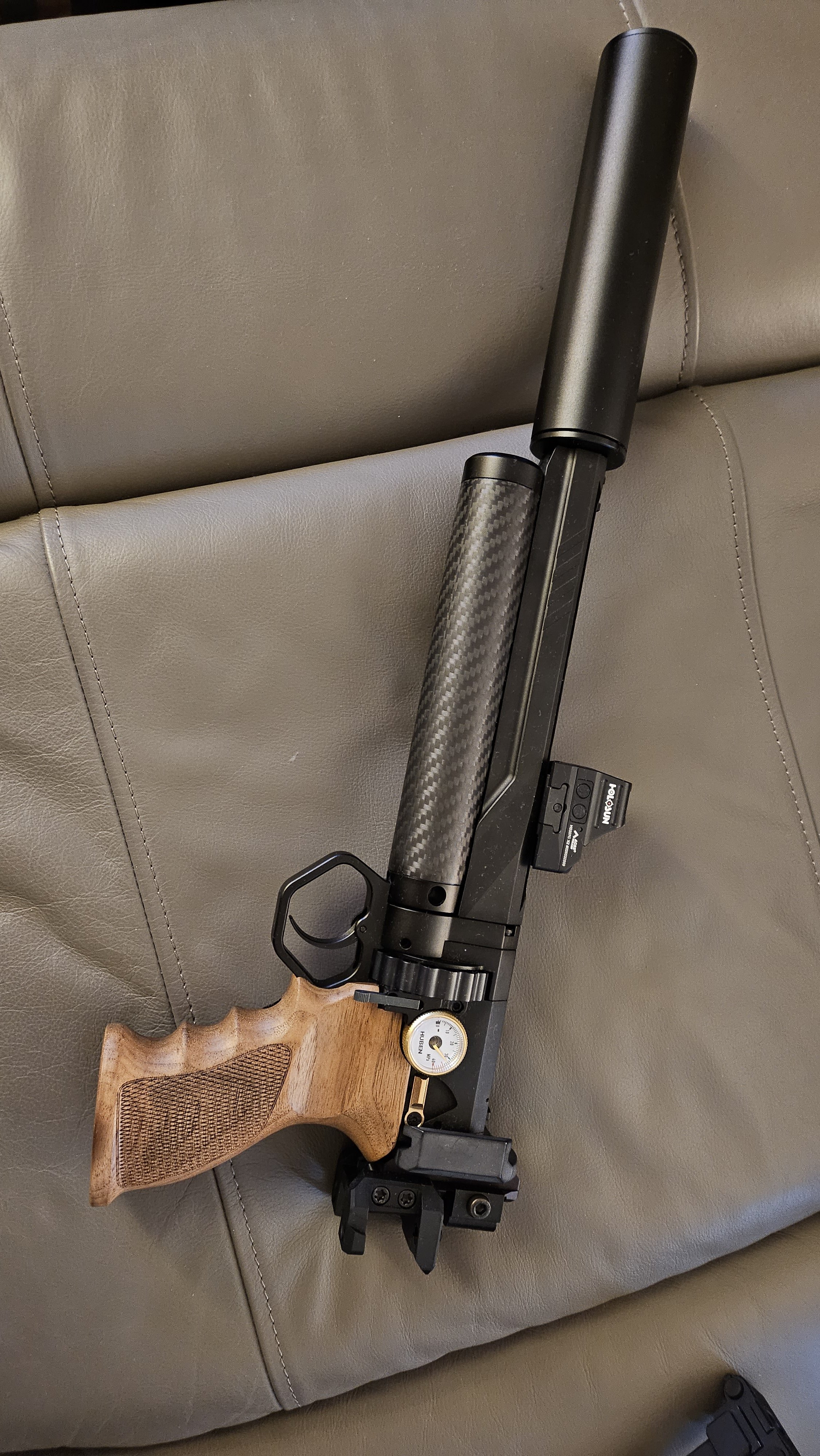

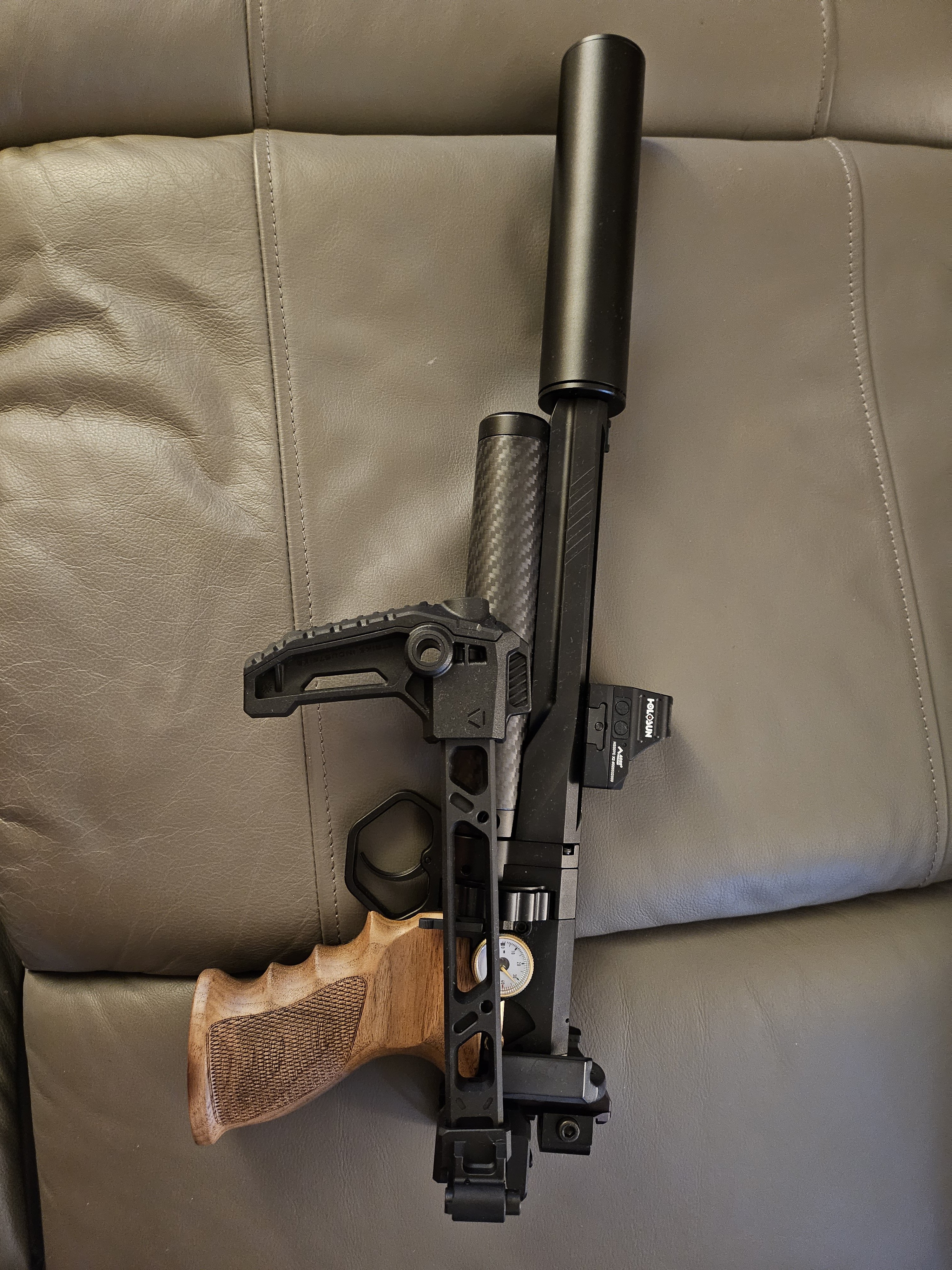

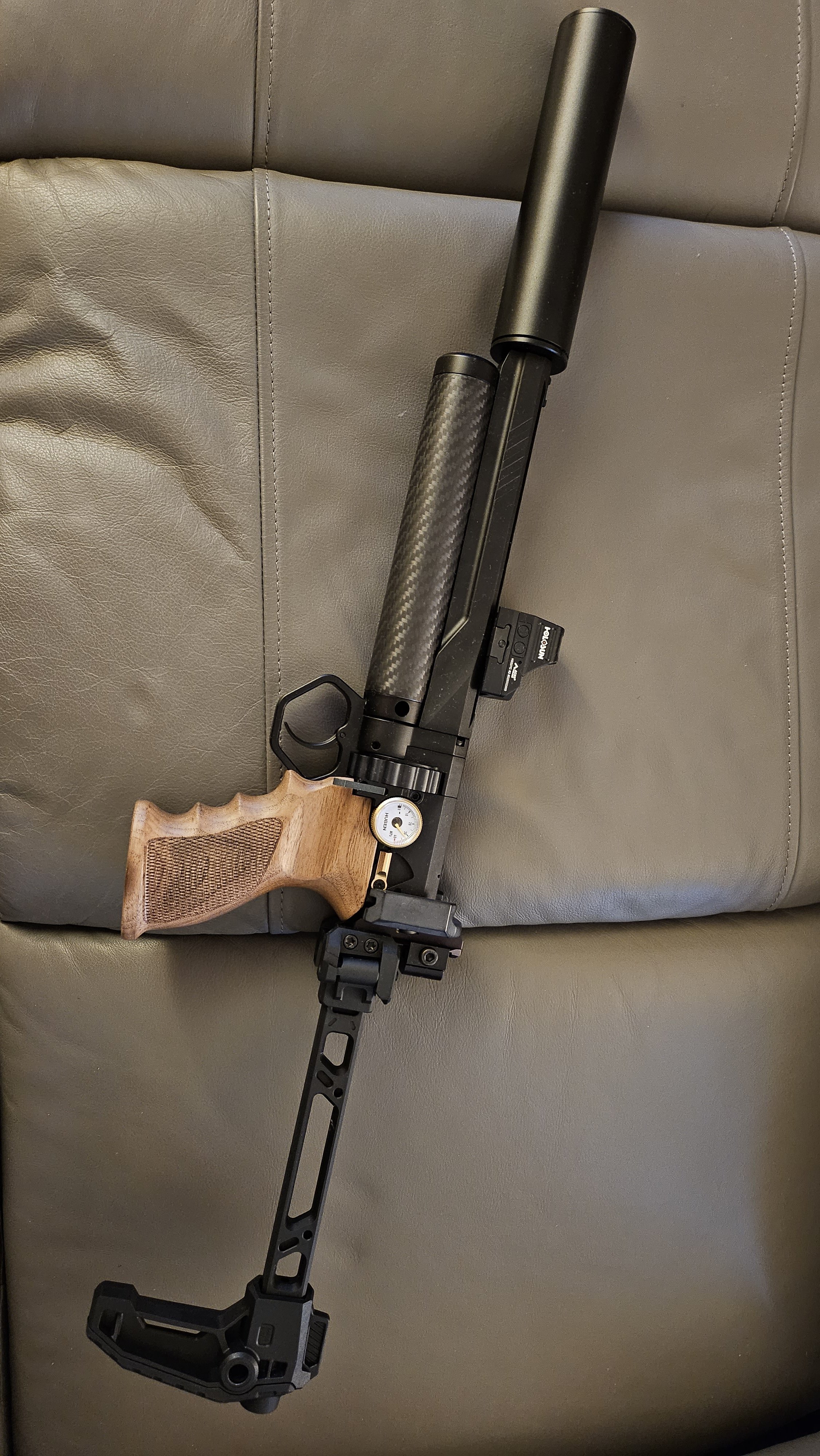

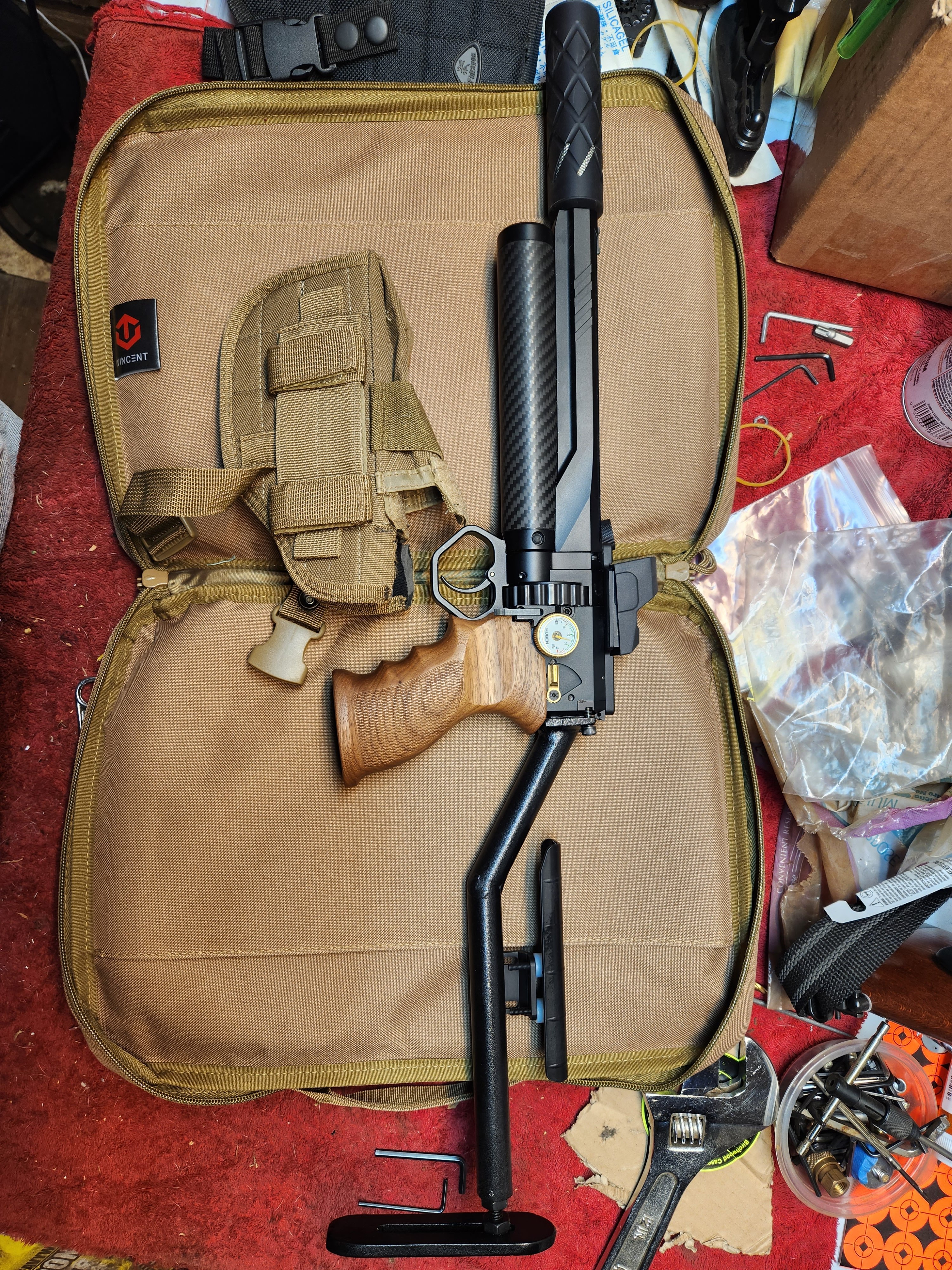

Here is the solution I came up with.
A picatinny stock adapter,
model is what I used
A folding, tooless removable stock. So I can do pistol or carbine at a moments notice.
A picatinny stock adapter,
model is what I used A folding, tooless removable stock. So I can do pistol or carbine at a moments notice.
Upvote 0
Nice- Can the stock fold to the right side of the gun? Where did you get these parts? May I ask who Ron is? TY for the thread
Upvote 0
Just googled that pic stock, 230$-270$ from one retailer
And 50~ from another!
www.sixmm.com
-Matt
And 50~ from another!
[5KU] SS-8R Aluminium Foldable Stock[For 1913 Picatinny Rail System ]
[5KU] SS-8R Aluminium Foldable Stock[For 1913 Picatinny Rail System] Description: Part No.: 5KU-327 5KU has come out a new foldable stock especially for any Buttstock with 1913 20mm Picatinny Rail. like the SIG AIR MCX AEG Series it is very lightweight stock which made by Aluminium, also there...
www.sixmm.com -Matt
Last edited:
Upvote 0
Ron34422 that i quoted at the top of this thread;
this folder does both left and right.
will list my parts choices next post
Upvote 0
Strike Industries Dual Folder Stock
www.opticsplanet.com i picked it because it folds both left and right, and can be removed completely without use of any tools. with 1 rubber bumper installed i have zero wiggle. only complaint is i wish the cheek rest was included
A3 Tactical Rear Stock Adapter for CZ Scorpion
www.opticsplanet.com .

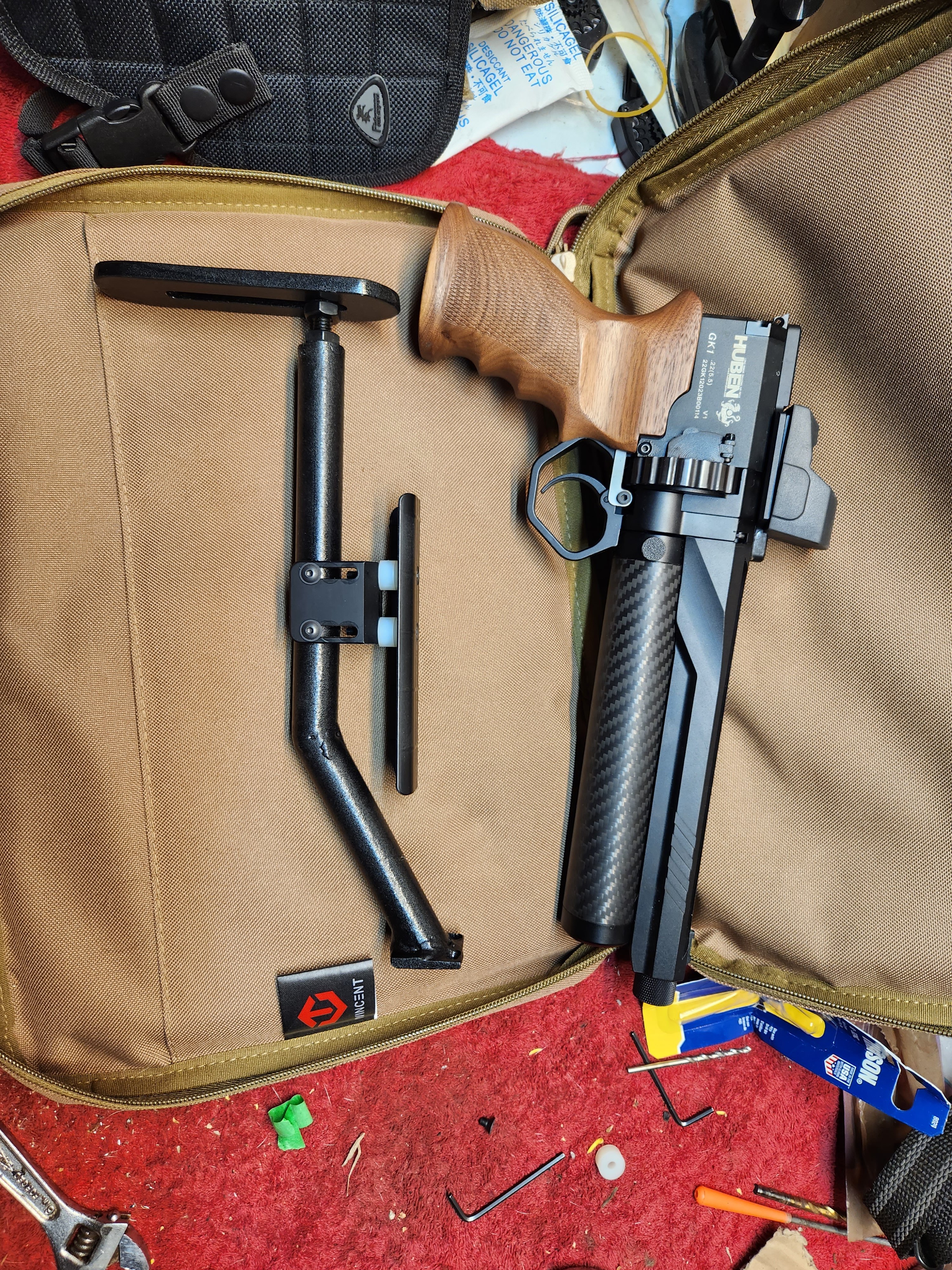

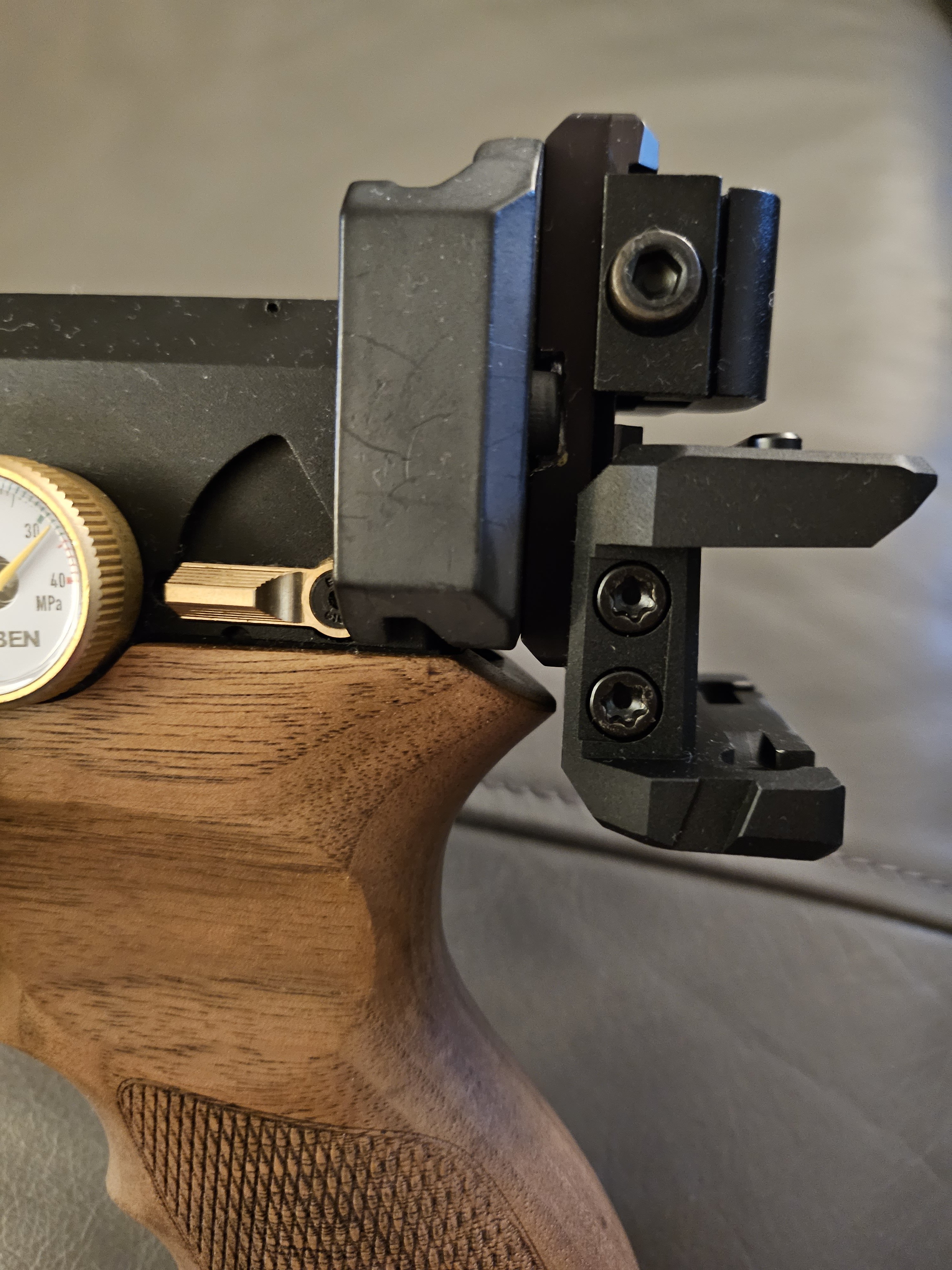

Neither of these HAS to be the part. but one of each category to make this version of a carbine work. and of course there is drilling involved to adapt the adapter to our guns. i also replaced the 2 rear bolts with higher strength just be on the safe side. oh, and i did install a qd right above the stock, that is the top lump you see in the closeup pic. so i can sling folded or sling as pistol.
Strike Industries Dual Folding Stock SI-FSA-STOCK Gun Type: Pistol, Rifle, — Free 2 Day Shipping w/ code 2DAYAIR
Shop Strike Industries Dual Folding Stock | 4.3 Star Rating on 23 Reviews for Strike Industries Dual Folding Stock Free 2 Day Shipping + Free Shipping over $49.
www.opticsplanet.com A3 Tactical Rear Stock Adapter for CZ Scorpion
A3 Tactical Rear Stock Adapter for CZ Scorpion Up to 18% Off w/ Free S&H — 4 models
Shop A3 Tactical Rear Stock Adapter for CZ Scorpion | Up to 18% Off 4 Star Rating on 1 Review for A3 Tactical Rear Stock Adapter for CZ Scorpion + Free Shipping...
www.opticsplanet.com Neither of these HAS to be the part. but one of each category to make this version of a carbine work. and of course there is drilling involved to adapt the adapter to our guns. i also replaced the 2 rear bolts with higher strength just be on the safe side. oh, and i did install a qd right above the stock, that is the top lump you see in the closeup pic. so i can sling folded or sling as pistol.
Last edited:
Upvote 0
Thanks for this info I just might have another little pistol/carbine setup besides my prod marauder. I love the fact it's semi and powerful. Perfect woods walker gun. I love mine so much I'm going for seconds lolStrike Industries Dual Folder Stock
i picked it because it folds both left and right, and can be removed completely without use of any tools. with 1 rubber bumper installed i have zero wiggle. only complaint is i wish the cheek rest was includedStrike Industries Dual Folding Stock SI-FSA-STOCK Gun Type: Pistol, Rifle, — Free 2 Day Shipping w/ code 2DAYAIR
Shop Strike Industries Dual Folding Stock | 4.3 Star Rating on 23 Reviews for Strike Industries Dual Folding Stock Free 2 Day Shipping + Free Shipping over $49.
A3 Tactical Rear Stock Adapter for CZ Scorpion
.A3 Tactical Rear Stock Adapter for CZ Scorpion Up to 18% Off w/ Free S&H — 4 models
Shop A3 Tactical Rear Stock Adapter for CZ Scorpion | Up to 18% Off 4 Star Rating on 1 Review for A3 Tactical Rear Stock Adapter for CZ Scorpion + Free Shipping...
Neither of these HAS to be the part. but one of each category to make this version of a carbine work. and of course there is drilling involved to adapt the adapter to our guns. i also replaced the 2 rear bolts with higher strength just be on the safe side. oh, and i did install a qd right above the stock, that is the top lump you see in the closeup pic. so i can sling folded or sling as pistol.
Upvote 0
I had a prod bullpup. Loved the size. But wanted a little more power.
Love gk1 power. Optic not so simple
Upvote 0
Exactly, the power and semi-auto and large capacity mag are all pluses with the GK1and small size
Upvote 0
Does anyone have the Ataman in stock? The only sites I see they're in stock on look like scam sites
Upvote 0
Just googled that pic stock, 230$-270$ from one retailer
And 50~ from another!
[5KU] SS-8R Aluminium Foldable Stock[For 1913 Picatinny Rail System ]
[5KU] SS-8R Aluminium Foldable Stock[For 1913 Picatinny Rail System] Description: Part No.: 5KU-327 5KU has come out a new foldable stock especially for any Buttstock with 1913 20mm Picatinny Rail. like the SIG AIR MCX AEG Series it is very lightweight stock which made by Aluminium, also there...
-Matt
I have two of those for another build.
5KU SS-8 Style with Folding Buttplate Stock and 1913 Picatinny Rail Folding Mech
Clamps on any 1913 Picatinny 20mm RailFor MPX / MCX Folding Braces / StocksFor Airsoft Only
shop.jkarmy.com and
5KU SS-8R Style with Folding Buttplate Stock and 1913 Picatinny Rail Folding Mech
Clamps on any 1913 Picatinny 20mm RailFor MPX / MCX Folding Braces / StocksFor Airsoft Only
shop.jkarmy.com (with good experience from jkarmy, but lots of airsoft sites have them)
I also have an Artisan MCX 1913 folding stock but the folding mechanism is much better on the 5KU ones - it is smaller and neater and has less height and clears the wrist better. The folding mech on the 5KUs is not actually like the one in the pictures in the links above- they have updated it. The 5KUs have two holes for a rubber cheek pad of varying height. The straight SS-8 model has a low enough cheek rest to work better with a very low mounted red dot or iron sights, though of course this would depend on receiver height.
The buttplate is too short on all of those to shoulder well (with sights or optics that aren't ludicrously high mounted) and I use them with a ducktaped padded piece of aluminium to extend downwards - which is more easily done on the plain aluminium buttplates.
This is all mounted on a 11mm dovetail rail, with a dovetail-to-pic-rail adapter, on my pistols (all Crosmans).
(the folding mechanism position can be moved backwards by adding a 2-slot high profile riser optics mount between the pic rail adapter and the clamp)
Last edited:
Upvote 0
...It should be possible to replace the "Receiver back cover plate" (part 10) on the back of the GK1 with an L-shaped component that adds a 11mm dovetail or pic rail.
Or just use longer screws, to add a plain pic rail with 2 holes in it, on top of the back plate.
Or just use longer screws, to add a plain pic rail with 2 holes in it, on top of the back plate.
Upvote 0
Looking at all the buffer and pic adapters as I was trying to figure out what to do.. I don't know if a pure pic rail would be strong enough. All the torque and forces?? The adapters all seem to have extra metal, which might be needed to avoid the pic rail bending.
I have read Amazon reviews about cantilever pic rails bending, so ....
I have read Amazon reviews about cantilever pic rails bending, so ....
Upvote 0

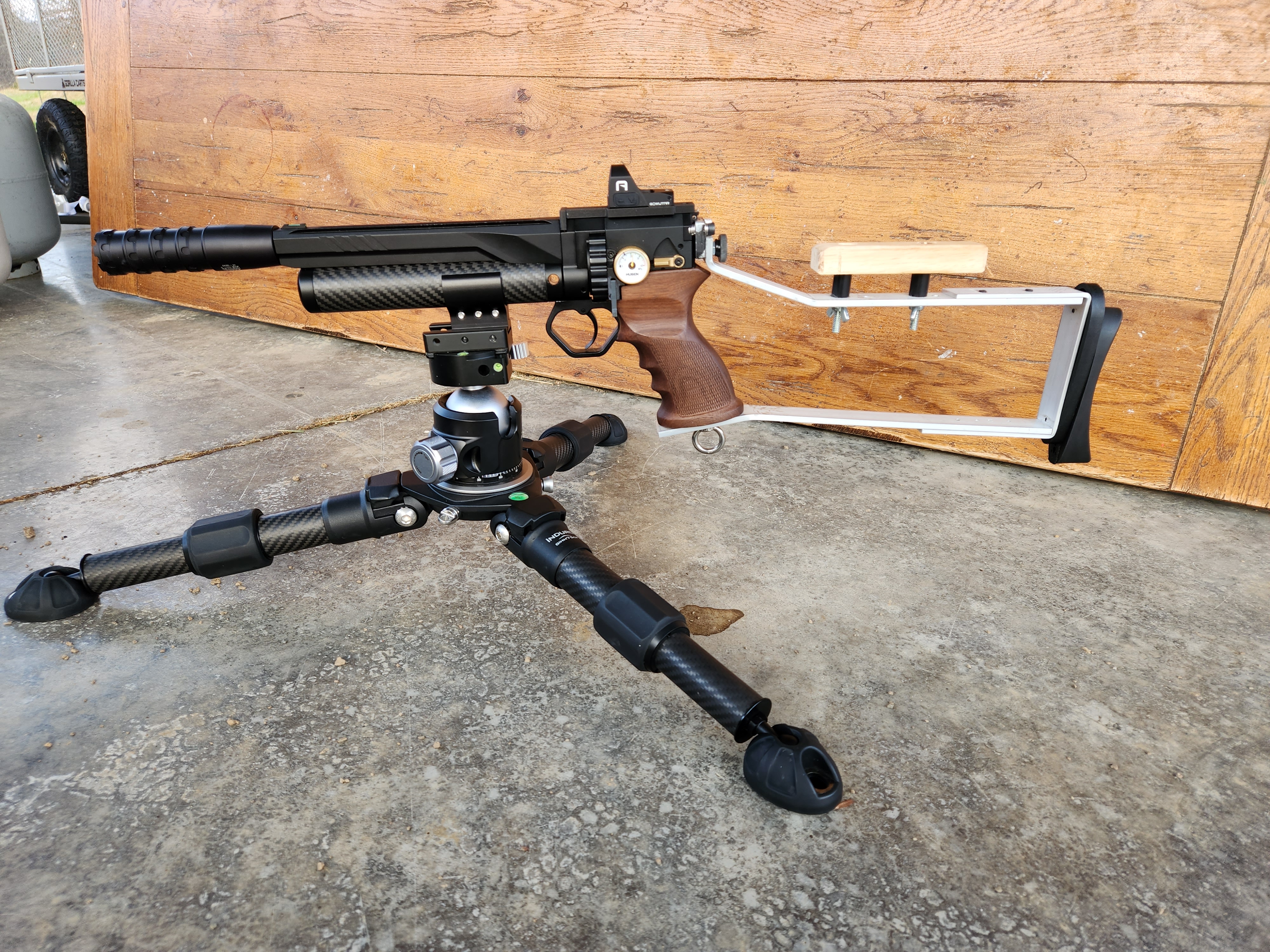

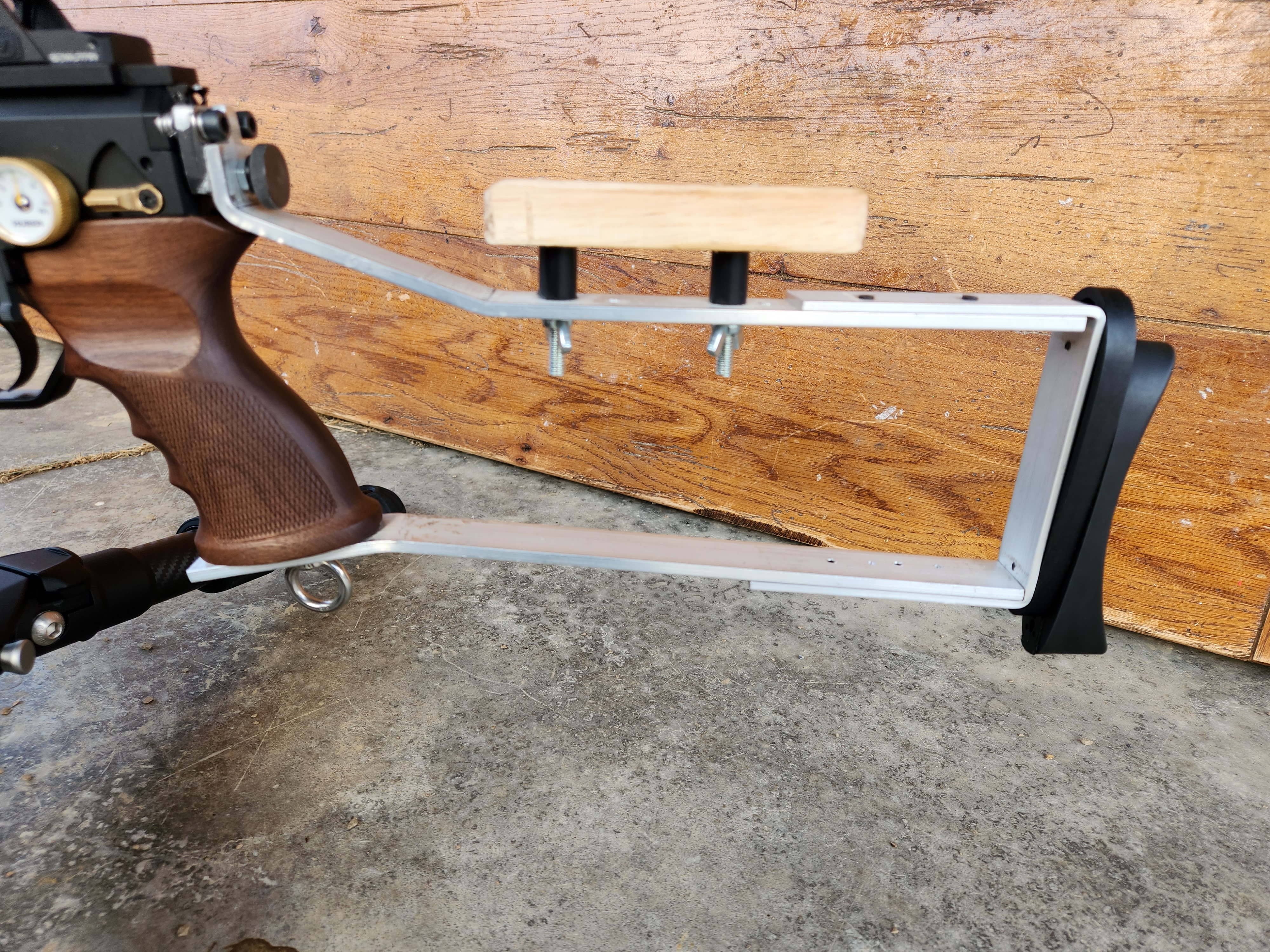

Made this today. With some flat aluminum that was laying on my shed floor for a few years. I think it is 1/4x1 and 1/8 x1. Figured I would get rid of a safety hazard, LOL. One thing about this flat aluminum easy to work with. Bent it in the vise & I just drilled and tapped it and screwed it together. It is easy on and off with two thumb screws. Is solid as an ax. Does not need that Butt plate, but it was laying on the floor too. Just got it finished and too cold & windy to shoot it. Might paint it tomorrow maybe not.
