Guage on my Yongheng compressor destroyed..

Jump to latest Follow Reply
Nope never seen anything like that before.........

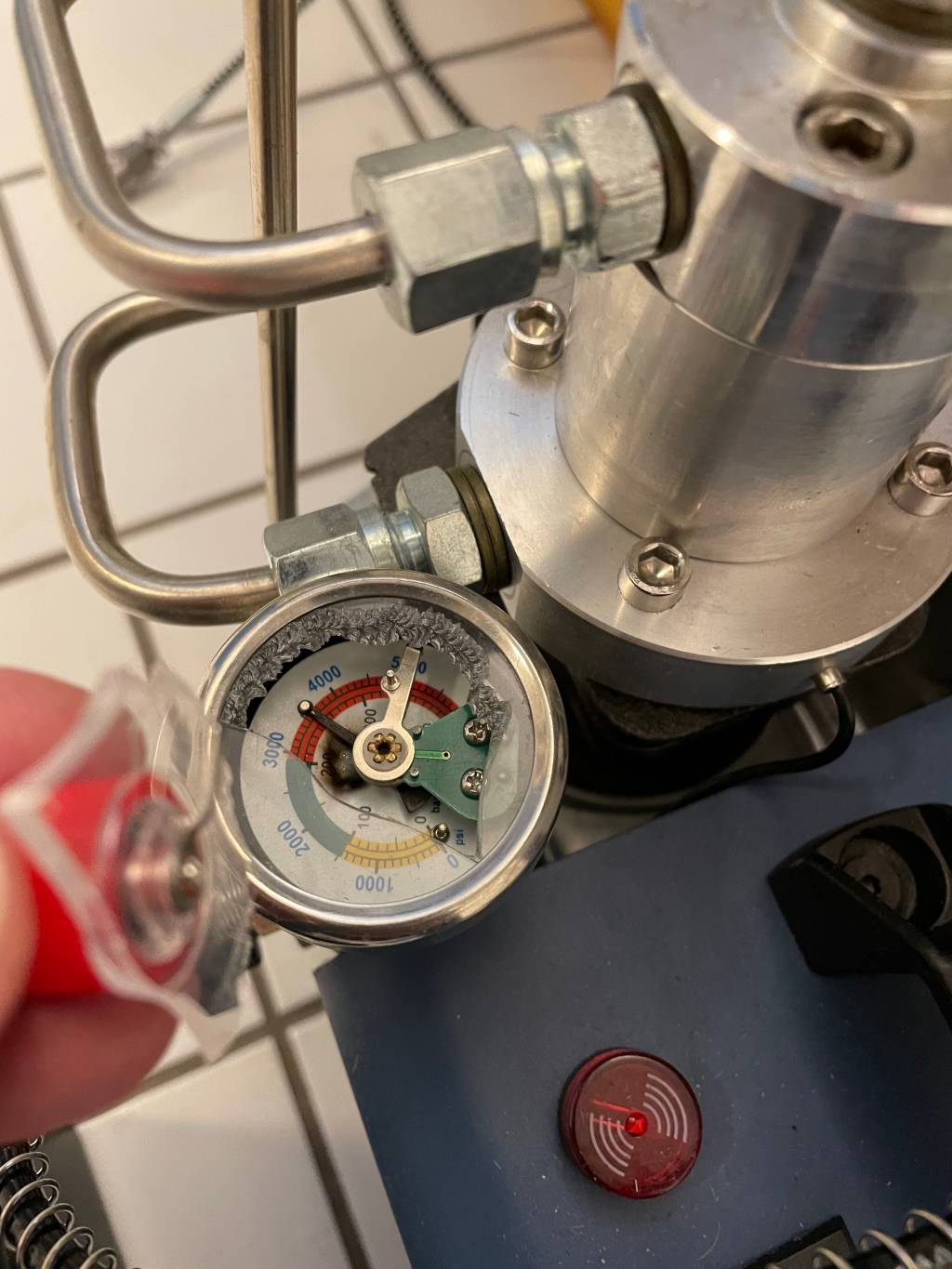

Yong Heng gauge went BOOM!

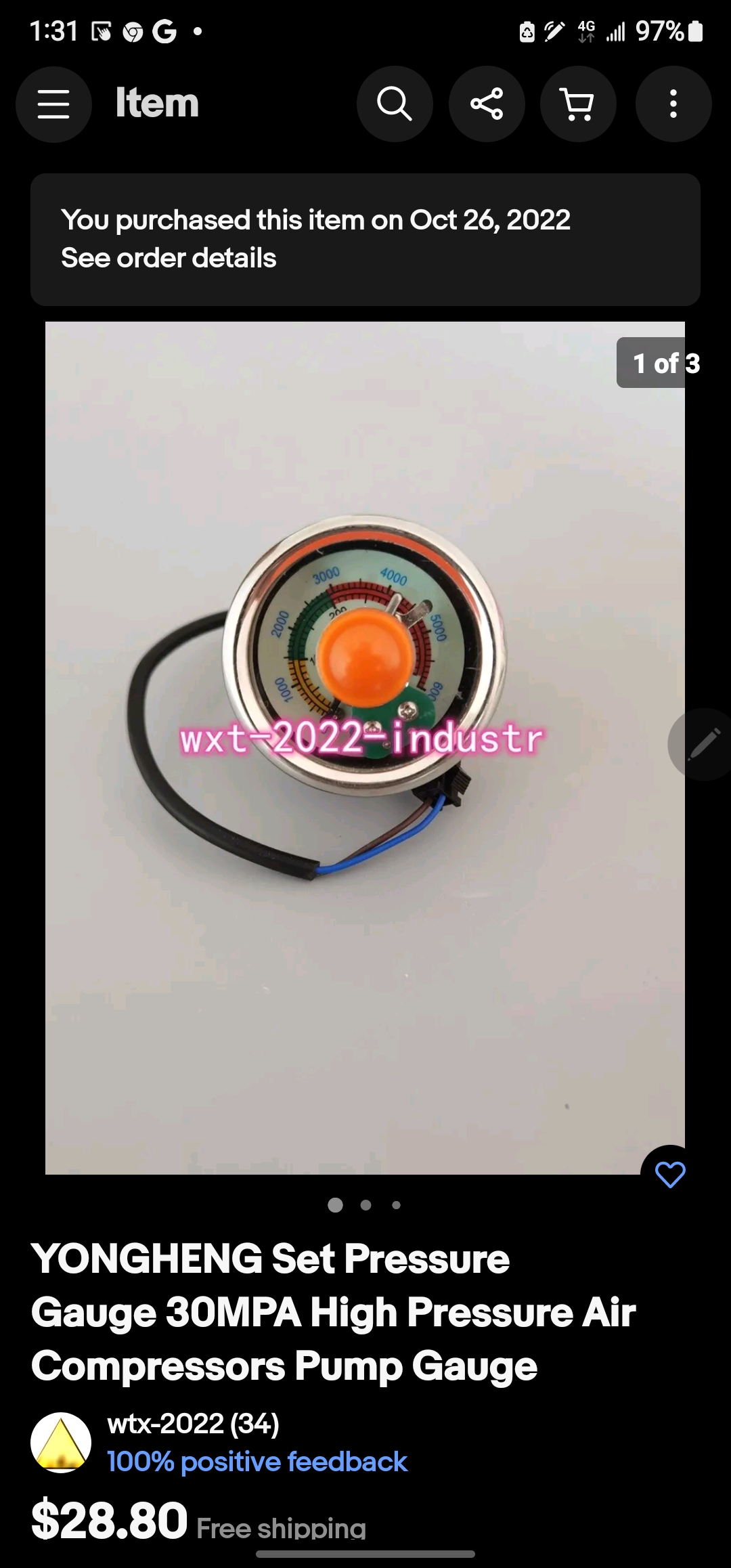

I was filling a tank. It was up near 300 bar and I heard a big pop. The circuit breaker blew. And ran over and saw this. Got a new one coming via eBay so not down and out for too long.
www.airgunnation.com www.airgunnation.com


Upvote 0
well it is a machanical device, and if it was like mine the needle violently vibrates at high frequency which is going to cause stress and wear leading to failure ... not saying its a complete solution, but what i did was pry the plug out and dump in some thick silicone shock oil .. the original idea was to fill it and seal it but it seeped so i drained it, but it was lubed well, and even with that it damped it pretty well .. so far no failures ..

Upvote 0
ctshooter said:
Totally agree on the needle vibration. I think that is what caused the arcing which ended up blowing mine out. I have since ditched the auto stop as it's way too glitchy. Got two oil filled standard gauges from Amazon and much better now.
Click to expand...

Which gauge did you pick off Amazon? I need to replace the one on my Yong Heng as it is reading too low.

Upvote 0
ctshooter said:

Looks like the price went up a lot - I paid $12.50 each a few days ago.
Click to expand...

Thanks. That looks like a well made gauge. I have noticed that lately. One item I was wanting more of went up 50% a couple of days after I bought one. so I took it out of my cart. 4 weeks later it was back to the old price. I have also noticed the prices on E Bikes dropping from their covid inflated level. One company is giving a $300 discount. Not quite as much as the price jump from pre covid, but it is decent.

Upvote 0
bigHUN said:
Whenever I am running my compressor I am staying within reach, no coffee no toilet no moving away.

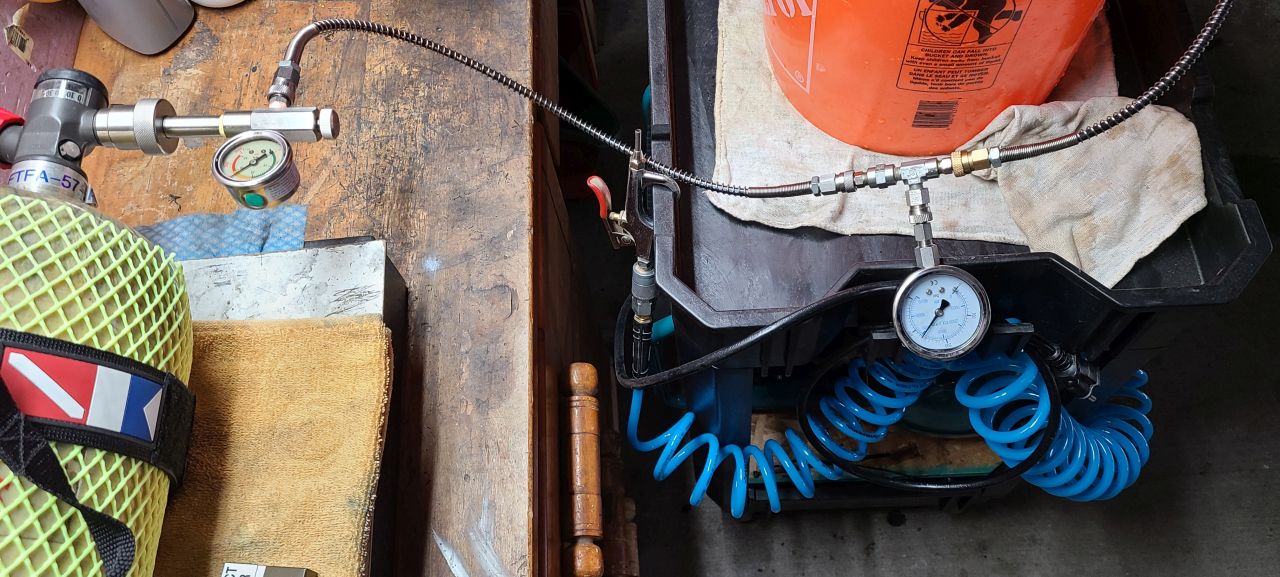

Second, I have two more gauges inline for double and triple checking the pressure I am filling in my tanks.
And the last, I hear some people disconnected the wire, so then just any matching thread
Click to expand...

1. I promise, I'll have coffee before using YH again.

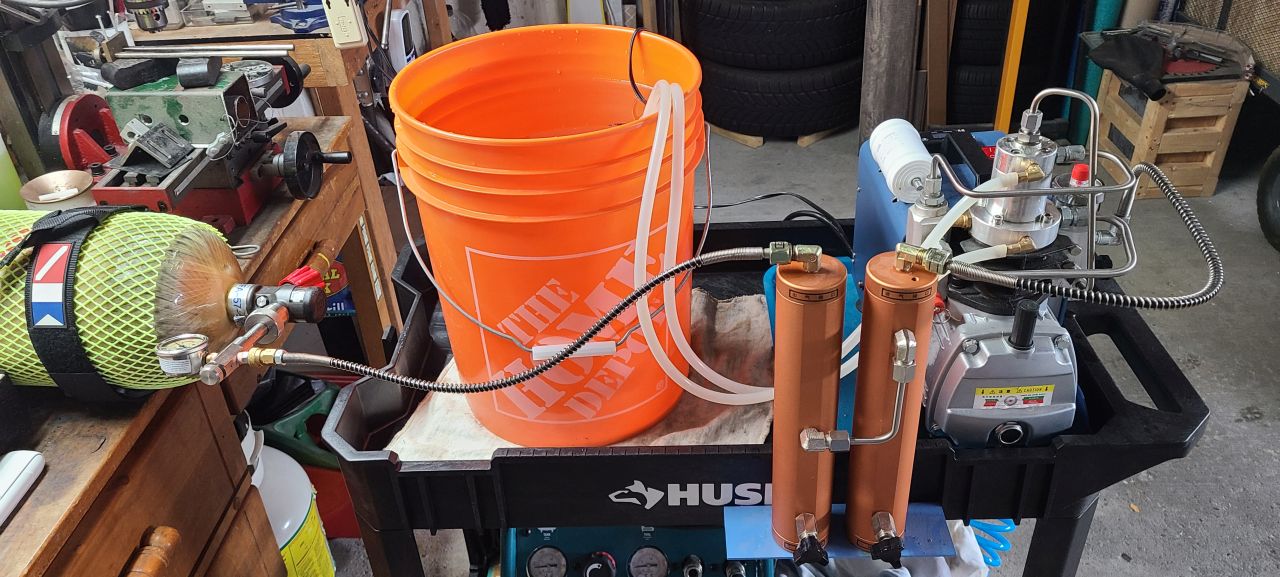

2. I will surely look into installing additional pressure guages. Can you provide a picture of your setup?
3. I should have thought if this.

Upvote 0
Upvote 0
bckyrdsnpr52 said:
After replacing 3 gauges, I now just put a brass plug there and rely on my tanks gauge, it's more accurate anyway.
Click to expand...
I need a plug too. I don't need a guage on my YH. I use an in-line T-section on my output air line and attach a really frickin' good guage to that.
Anyway, I really don't trust the guage on my YH. After only a few uses the gauge needle won't go down all the way when there's no pressure. I feel like it's gonna blow every time I use it now.

grungy

Last edited by a moderator:
Upvote 0
