GX CS4 Owner's Manual?

[aven22cal!]

Where can I find a copy of a GX CS4 owner's manual online?



[FLgunner]

I would e-mail GX Pumps at [email protected] and ask if they have it in a .pdf they can e-mail you.



[Air King]

Target Forge reactive targets for everyone

targetforge.net



[aven22cal!]

Target Forge reactive targets for everyone

targetforge.net

Thank you for the detailed diagrams. One other question: There's a thin rubber disc the width or slightly larger than the grease pit in the grease pit of the CS4. If it's supposed to be there, how is it positioned? I ask because I don't see it on the diagram and I bought the compressor used.



[aven22cal!]

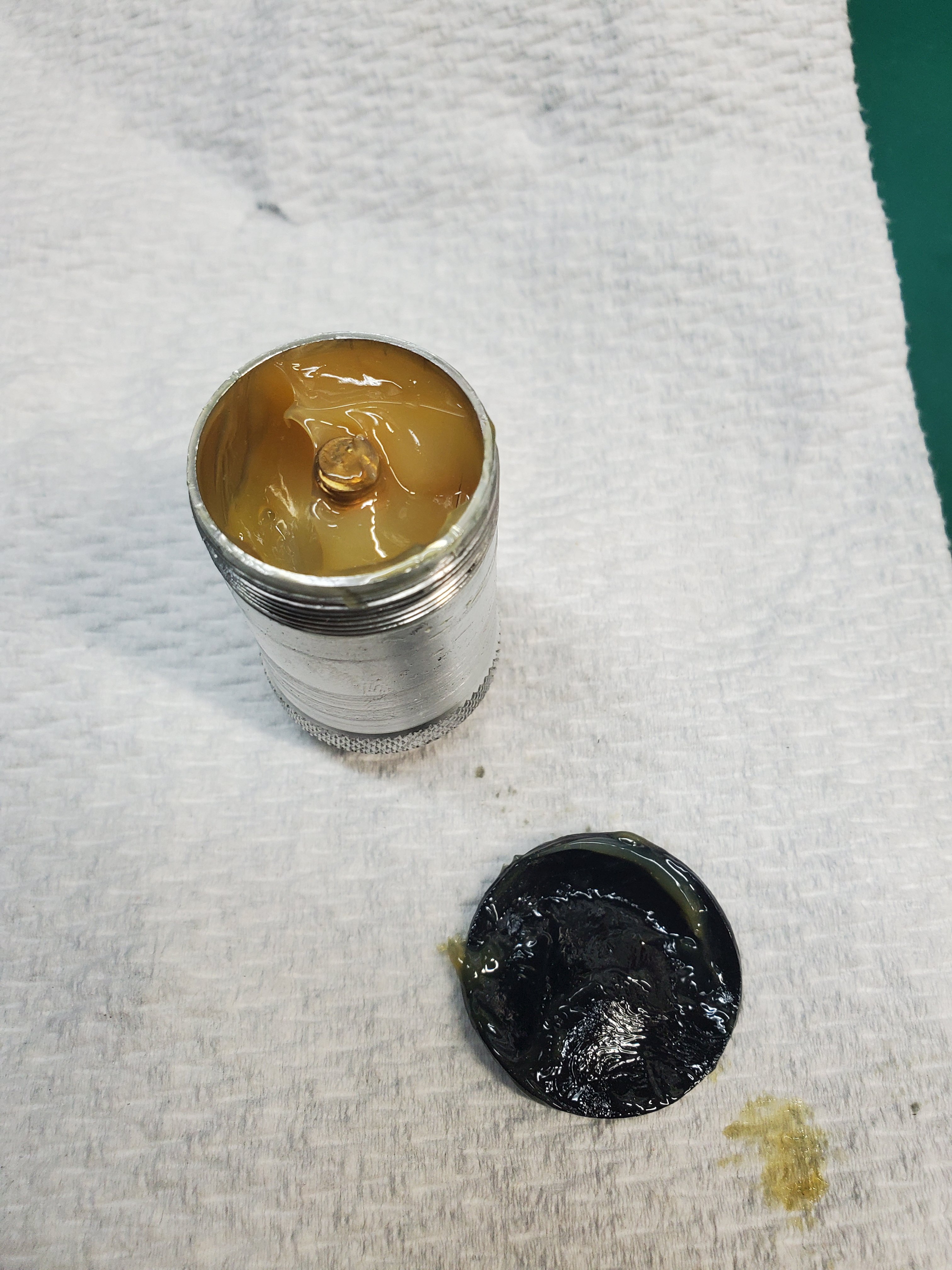

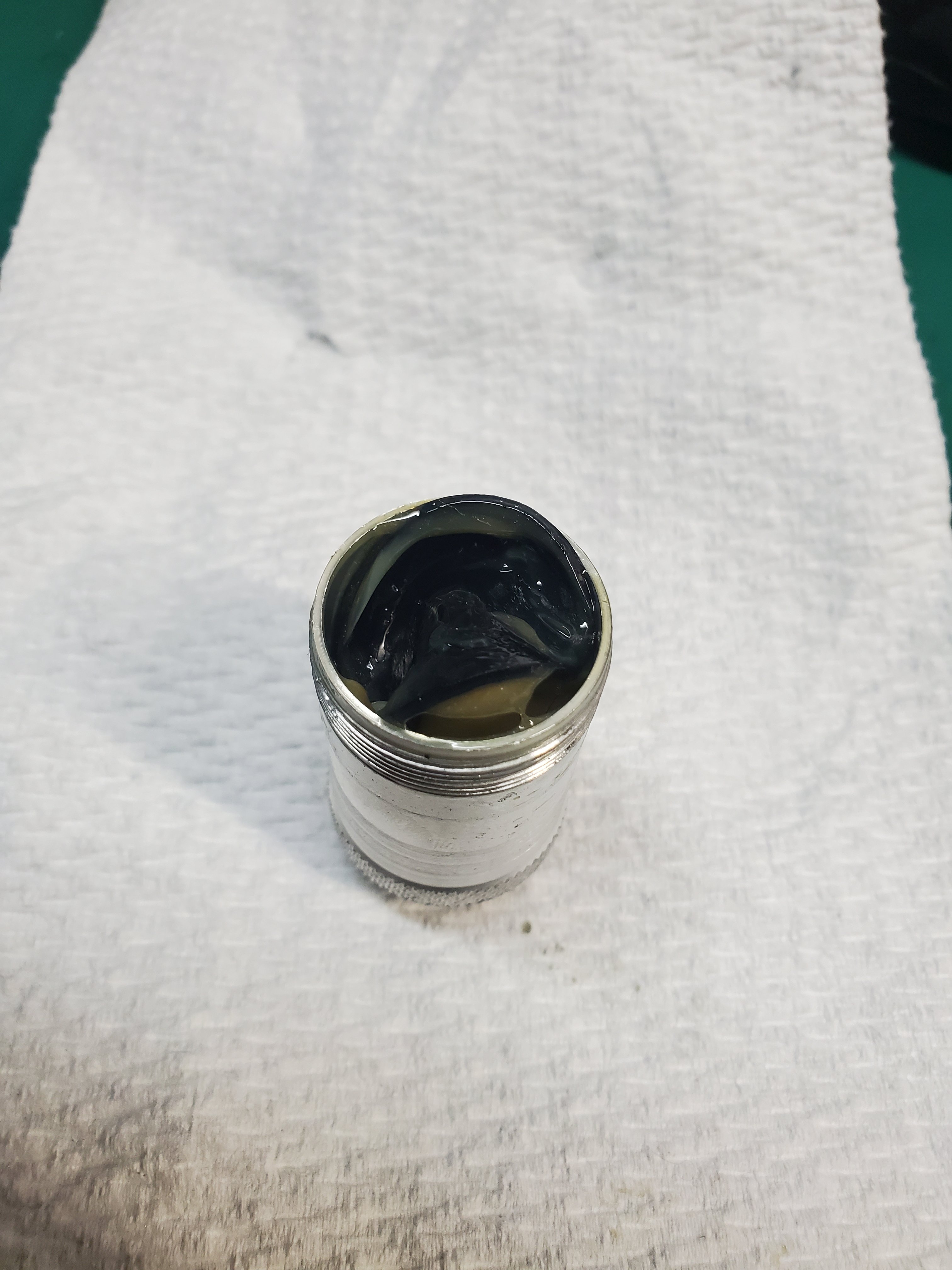

Here are pi s



[FLgunner]

It goes in the bottom of the grease well that is attached to the compressor. The grease should be added on top of it. Mine was wrapped also, I just cleaned all the grease out and placed it as flat as possible before adding more grease.



[aven22cal!]

It goes in the bottom of the grease well that is attached to the compressor. The grease should be added on top of it. Mine was wrapped also, I just cleaned all the grease out and placed it as flat as possible before adding more grease.

Thank you! I thought it might be something they put in there to block any grease from getting into the piston during transportation.



[Justaguy]

The little tri fold pamphlet is the owners manual. I emailed them and asked for one also... that is what they sent me.
