My model c pumps and shoots fine. The problem is the pump arm no longer stays shut. It hangs down and doesn't snap shut like it used to.
Any help is appreciated. Thanks
Any help is appreciated. Thanks
Hanging pump arm.
- Thread starter bluestreaker123
- Start date
Have you tried attaching neodymium "button" magnet(s) (small round ones) to the arm where it contacts metal when it closes? Works well for holding closed levers when they get "tired".
Upvote 0
Rather doubt a magnet will be attracted to the brass tube of a Streak!
There is a leaf spring in the lever assembly to push it up when closed - yours may be broken or out of position?
Don R.
There is a leaf spring in the lever assembly to push it up when closed - yours may be broken or out of position?
Don R.
Upvote 0
Well that's problem. The pump arm spring is missing. Thanks a lot for your help.
Now, any tips on where to find one???
Thanks
Now, any tips on where to find one???
Thanks
Upvote 0
I don't know if the spring can be replaced without removing the link rivet. One expert source for parts and repairs (who likely knows the answer) is:
Mike Baker
[email protected]
5037069512
Don R.
Mike Baker
[email protected]
5037069512
Don R.
Upvote 0
I do not know personally but it appears Don R. may well be correct on that spring & replacement.
Esp. airguns from this era I still like: https://anotherairgunblog.blogspot.com/search/label/sheridan
And click around to more fun fun airgun fun.
John
Esp. airguns from this era I still like: https://anotherairgunblog.blogspot.com/search/label/sheridan
And click around to more fun fun airgun fun.
John
Upvote 0
So, you're definitely missing the spring huh?
What is that rifles history?
Did you loose it, or aquire it that way?

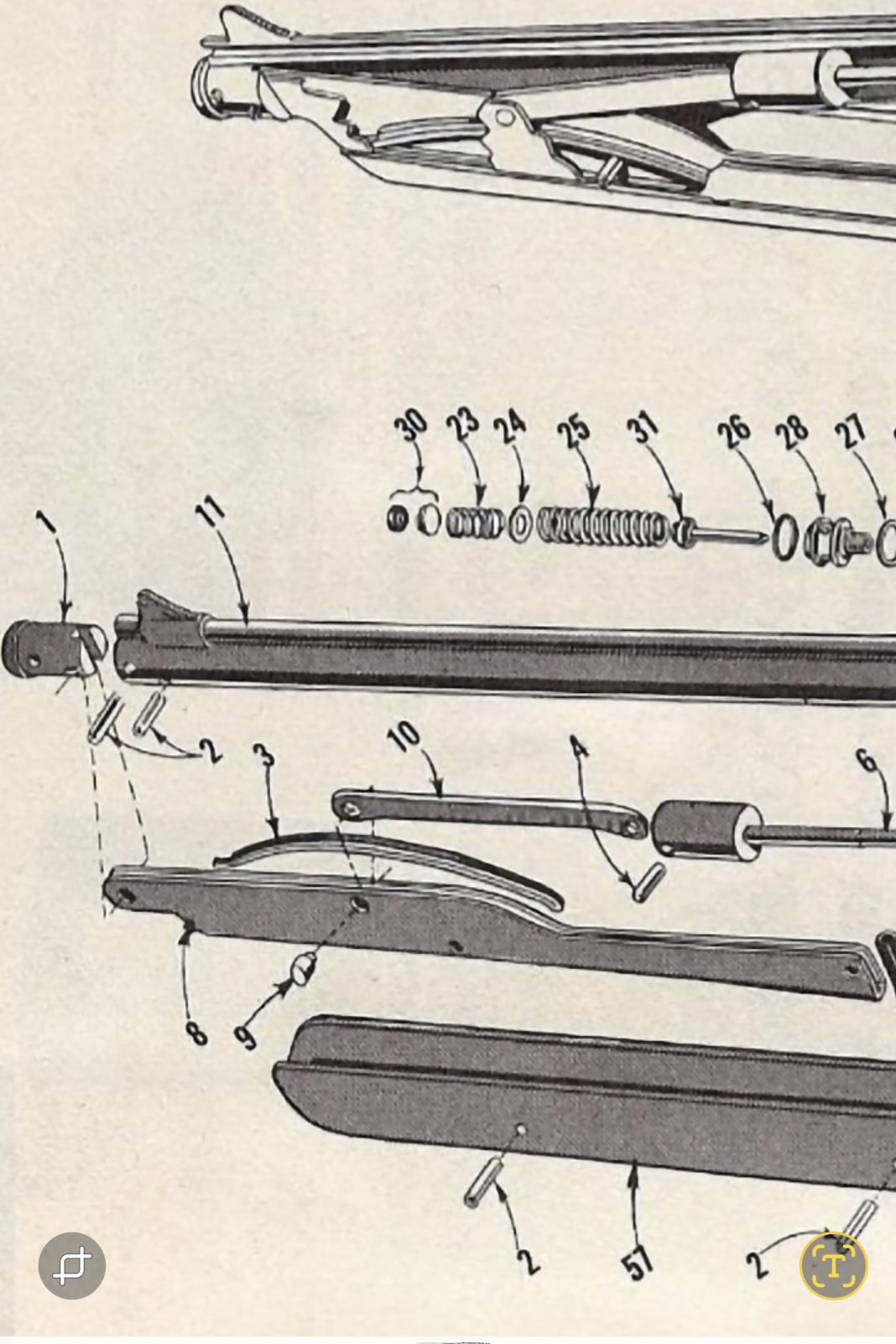

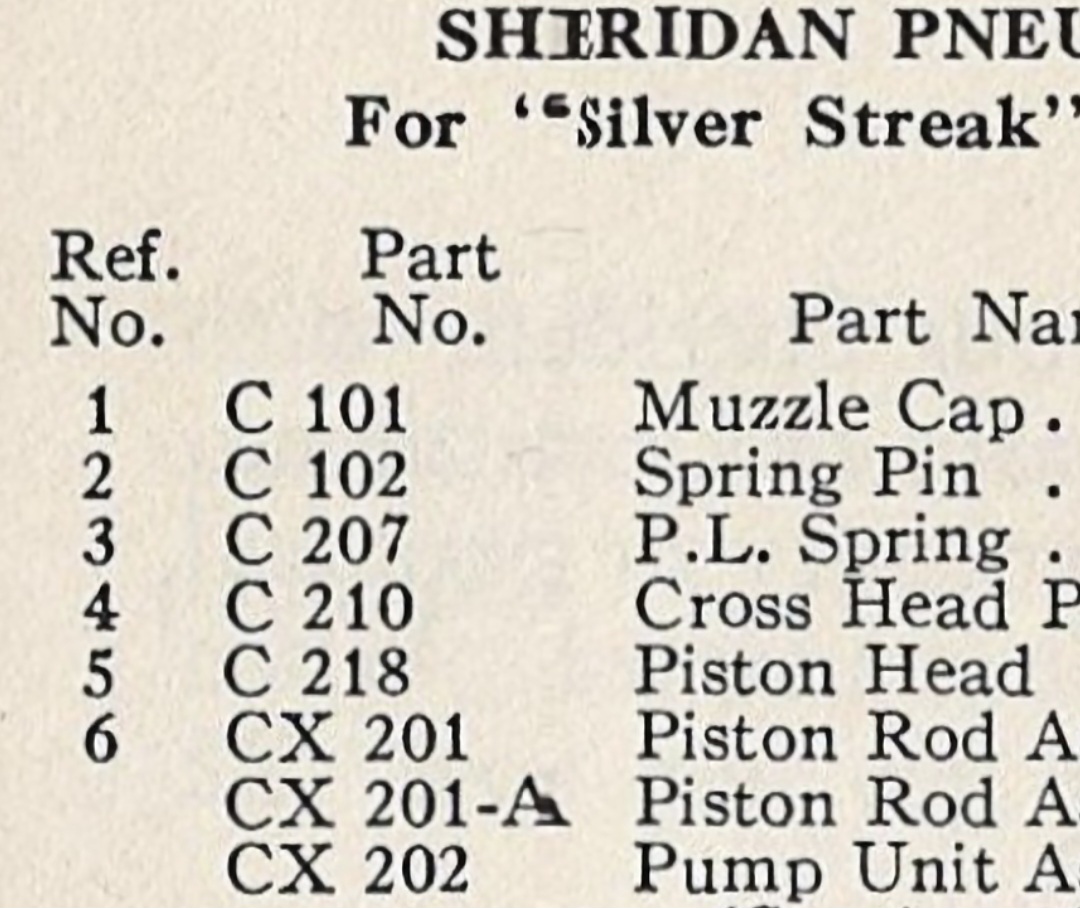

The part is number 3 PL Spring 207, it is inside the pump lever. It could possibly still be there and restricted some way?
If it is gone this is the part to search for.
What is that rifles history?
Did you loose it, or aquire it that way?
The part is number 3 PL Spring 207, it is inside the pump lever. It could possibly still be there and restricted some way?
If it is gone this is the part to search for.
Upvote 0
Yes I got it that way. It's definitely not there.
Thanks for the diagram and the part #s. Now I just have to find one.
Your info is very helpful
Thanks
Joe
Thanks for the diagram and the part #s. Now I just have to find one.
Your info is very helpful
Thanks
Joe
Upvote 0
There is a bit of confusion there, but the number shown is for the C Model not the C9.
The C9 doesn't show a separate spring. The C9's part number is for the lever arm assembly altogether.
The C9 doesn't show a separate spring. The C9's part number is for the lever arm assembly altogether.
Upvote 0

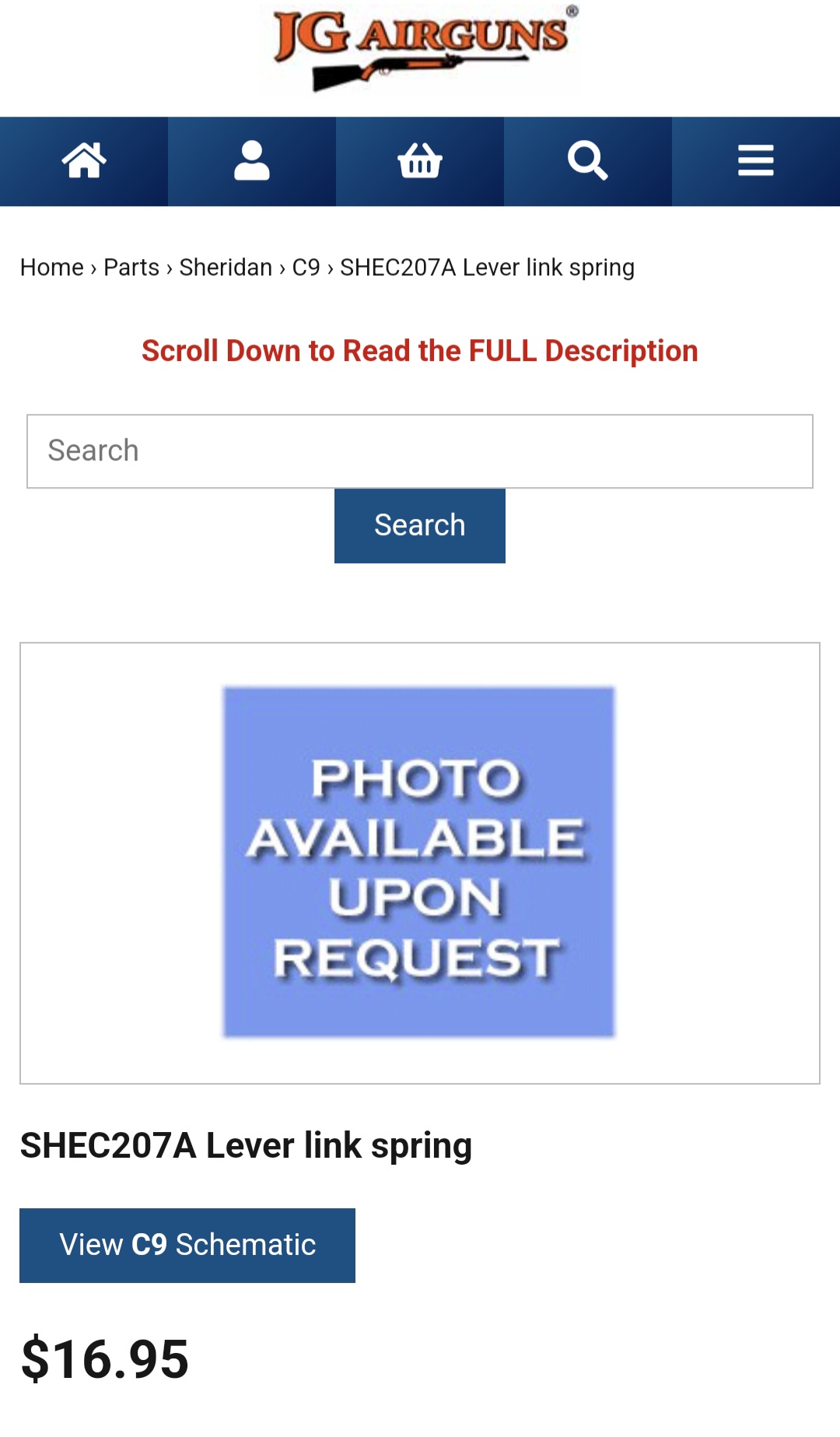

Yes I saw that. I need the spring for the C model. I'm looking for a pic better pic of the C9 to see if its the same.
Upvote 0
It's not the same, and the spring in the C9 is not an available part.
On the C9 it is all one unit with one part number.
We also know that the C Model number is for that part is C207 (SHE) just means Sheridan.
The C9 hasn't got any part numbers close to 207.
Just ask Jg for a picture of it, if you're still not sure.
Upvote 0

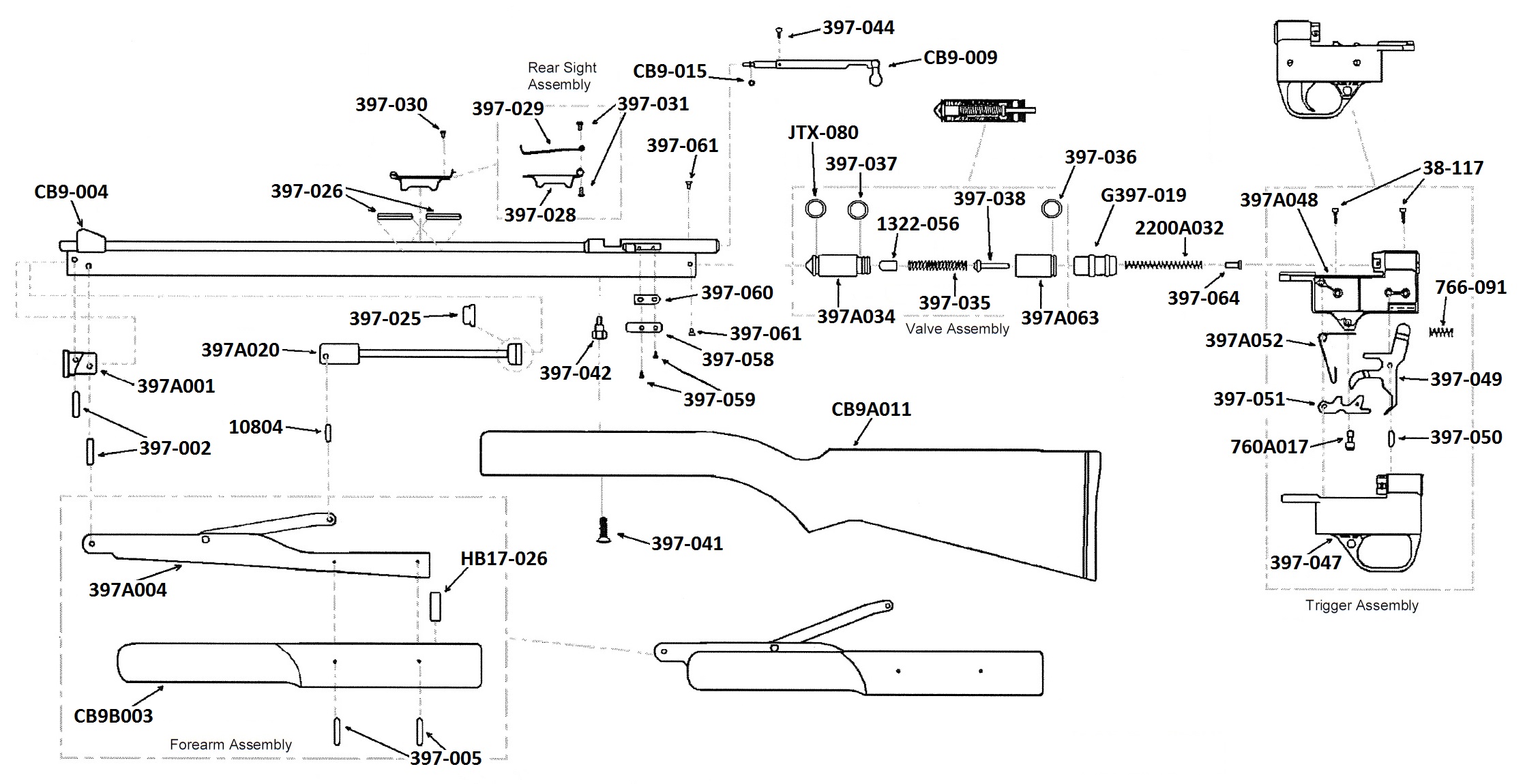

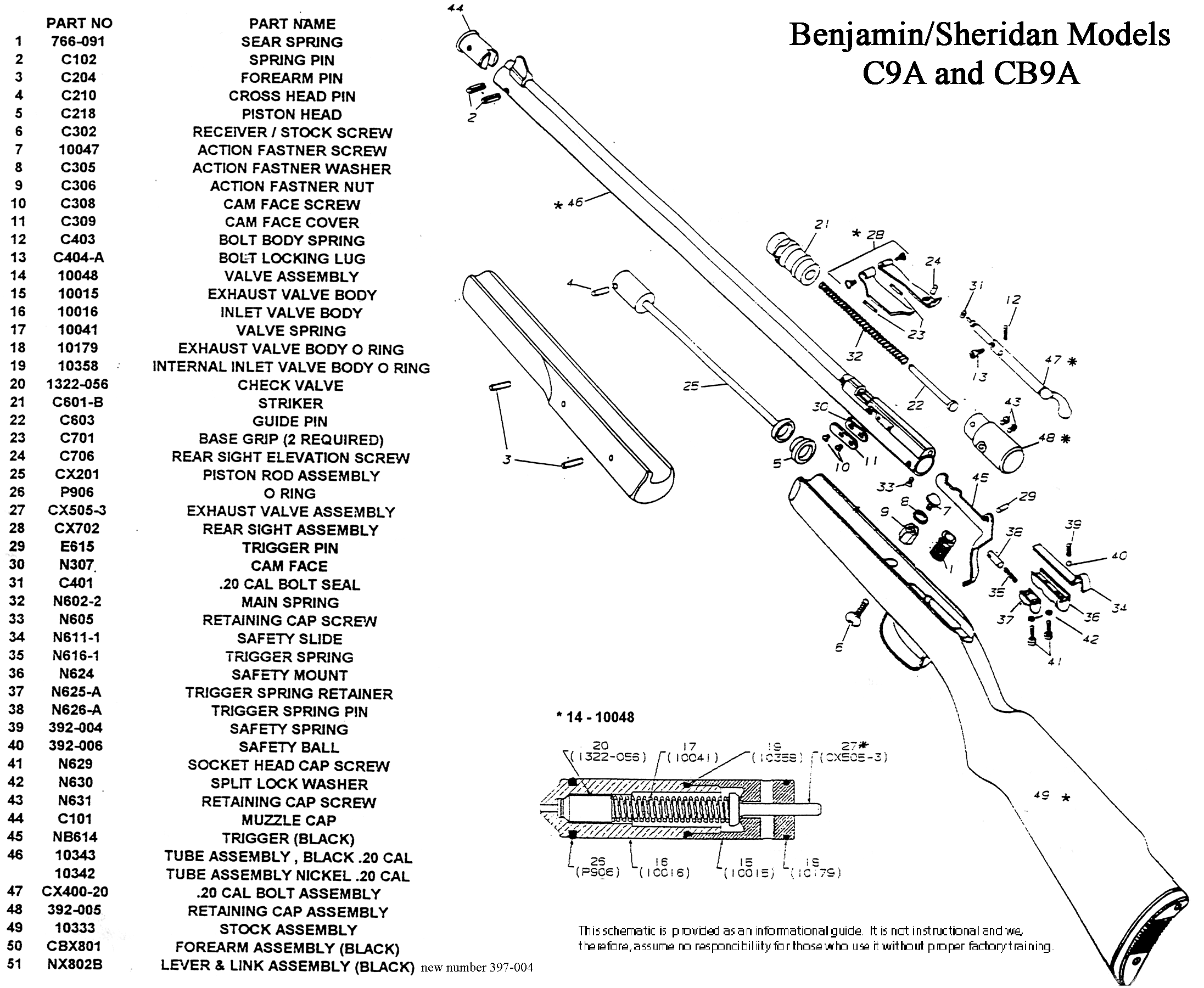

Heres the C9 schematic notice the lever assembly is sold as one part unlike the older C Model.
