Help, How can I connect this air venturi fill whip to this 4500 psi blue filter do I need an adapter or should I screw it in?.

Jump to latest Follow Reply
MarksmanPete

MarksmanPete

Member
Oct 10, 2022
546
142
Washington, US
  1. Need help am trying to run this air venturi dn2 1/8th bspp fill whip from my filter as shown in the pictures, As im screwing it in by hand im starting to feel a bit of resistance so I stop, I dont know weather this is the right thread size, I dont want to damage the threads, Is there an adapter to make this work.? I dont want to have to buy a new fill whip.

Marksman,
Confusing between Delrin and Dowty style male foster end adapters, I bought two of each on eBay. (Hint: Delrin style come with Delrin washers, Dowty Seal won't.) In the center of photo, the installed (shorter) male foster end adapter is a Delrin, the longer adapter (un-installed) in front of it is for a Dowty Seal. That longer one will fit perfectly on your fill whip end. WM

Upvote 0
WorriedMan said:
Marksman,
Think the filter uses a small white Delrin "donut" washer to seal, not the Dowty seal (metal washer with attached rubber ring) your trying to use. Look inside hole for white Delrin washer that the female brass foster fitting tightens against, that's the sealing style in use. WM
Click to expand...
Yeah I see now the gold one is flat on the end the other is taperes to a small hole.

Upvote 0
WorriedMan said:
Marksman,
Think the filter uses a small white Delrin "donut" washer to seal, not the Dowty seal (metal washer with attached rubber ring) your trying to use. Look inside hole for white Delrin washer that the female brass foster fitting tightens against, that's the sealing style in use. WM
Click to expand...
I dont know if they have any fill whips like that just found this maybe would this work ? https://www.amazon.com/Pressure-530...369&s=hi&sprefix=fill+whip+p,tools,127&sr=1-7

Upvote 0
WorriedMan said:
Checked my eBay purchase history; Jan. 2021, bought 2pcs. Quick Disconnect Fittings Plug Adapter 1/8 NPT Plug for Paintball/PCP Brand HDMC, $11.99 from kunding03-compressor. (The other two adapters I bought, from another seller, included Delrin washers and were listed as 1/8 BSPP Male fittings, around $9.)
Click to expand...
Wow I just ran a diffrent fill whip an it fit it had the same flat end it unscrewd it off my four uncles an amazon cheap chinese pump the fill whip connecting to the pump uses a delrin seal as well it doesent taper of.

Upvote 0
MarksmanPete said:
Wow I just ran a diffrent fill whip an it fit it had the same flat end it unscrewd it off my four uncles an amazon cheap chinese pump the fill whip connecting to the pump uses a delrin seal as well it doesent taper of.
Click to expand...
Good Job, I've mixed and matched a few parts from my Chinese HPA handpump, even borrowed gauge when Yong Heng original started leaking air. WM

Upvote 0
Now you know two kinds of sealing systems found on Chinese HPA compressors. The white "donut" Delrin washer that sits in the hole base for flat-ended parts to tighten against and the metal/rubber Dowty Seal that seals when tightened between two flat surfaces. (No matter how they attach the male and female 8mm Quick Disconnects will function together.) WM

Upvote 0
WorriedMan said:

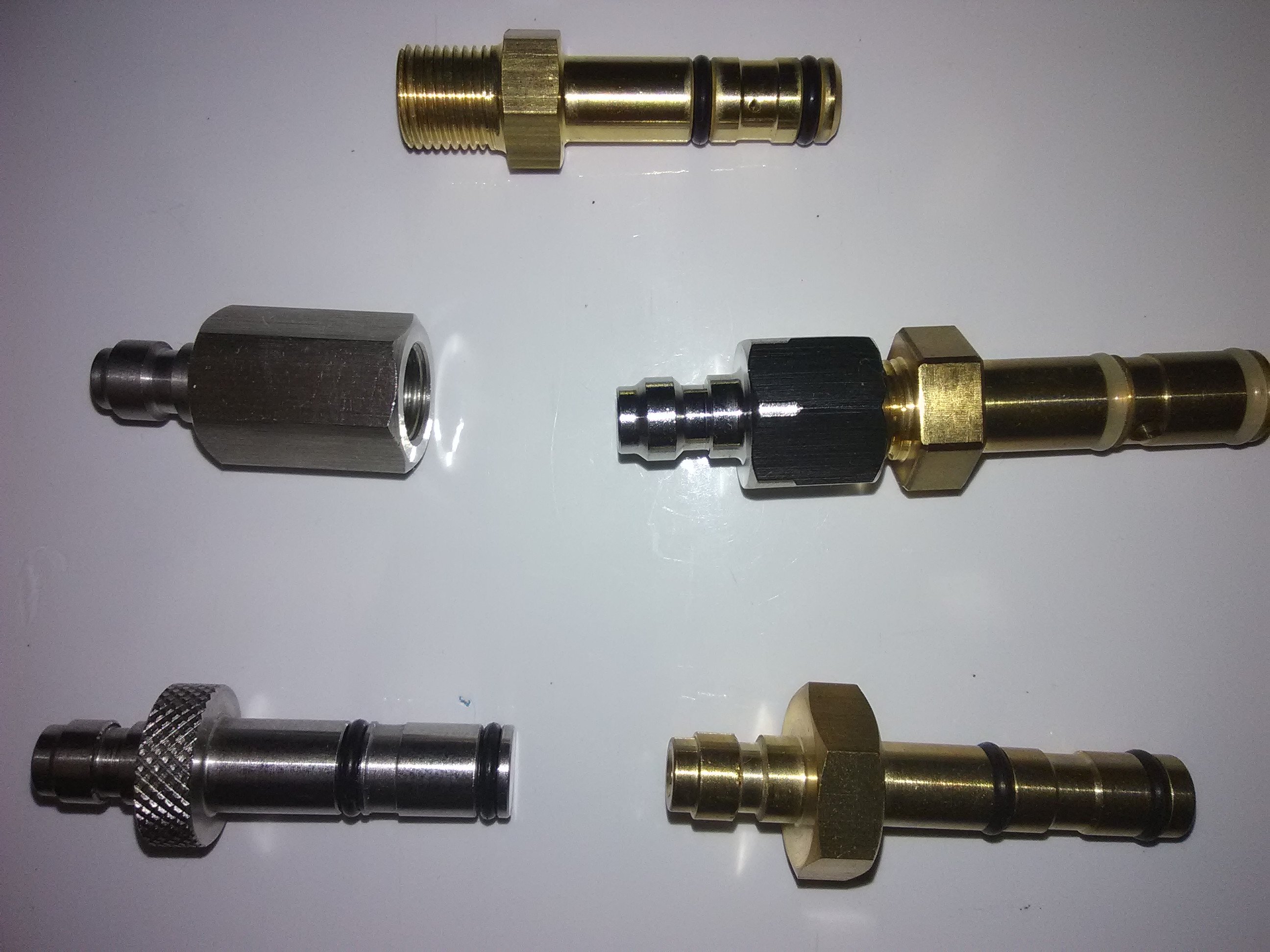

I'd use a male foster adapter to screw on hose "Dowty" washer end, then re-install female foster in filter. Male foster adapter looks like one in photo, they come in Delrin and Dowty sealing styles. WMView attachment 354016
Click to expand...
WorriedMan said:
Now you know two kinds of sealing systems found on Chinese HPA compressors. The white "donut" Delrin washer that sits in the hole base for flat-ended parts to tighten against and the metal/rubber Dowty Seal that seals when tightened between two flat surfaces. (No matter how they attach the male and female 8mm Quick Disconnects will function together.) WM
Click to expand...
Ohh I was you where reffering to it as dowty its called bspp. But yeah now I know. What about this I think I just found the adapter I need https://www.amazon.com/Universal-Qu...refix=1/8th+bspp+adapter+pcp,tools,141&sr=1-3

Upvote 0
WorriedMan said:
Now you know two kinds of sealing systems found on Chinese HPA compressors. The white "donut" Delrin washer that sits in the hole base for flat-ended parts to tighten against and the metal/rubber Dowty Seal that seals when tightened between two flat surfaces. (No matter how they attach the male and female 8mm Quick Disconnects will function together.) WM
Click to expand...
Wait whats the 3rd one npt I know bspp and delrin one which is M10 X 1 But here I see a 3rd adapter https://www.amazon.com/Universal-Qu...refix=m10+1+adapter+pcp,tools,216&sr=1-3&th=1

Upvote 0
WorriedMan said:
Now you know two kinds of sealing systems found on Chinese HPA compressors. The white "donut" Delrin washer that sits in the hole base for flat-ended parts to tighten against and the metal/rubber Dowty Seal that seals when tightened between two flat surfaces. (No matter how they attach the male and female 8mm Quick Disconnects will function together.) WM
Click to expand...
I placed an order on https://www.amazon.com/Universal-Qu...refix=m10+1+adapter+pcp,tools,216&sr=1-3&th=1 the 1/8th bspp should work all good as the fill whip is 1/8th bspp

Upvote 0
WorriedMan said:

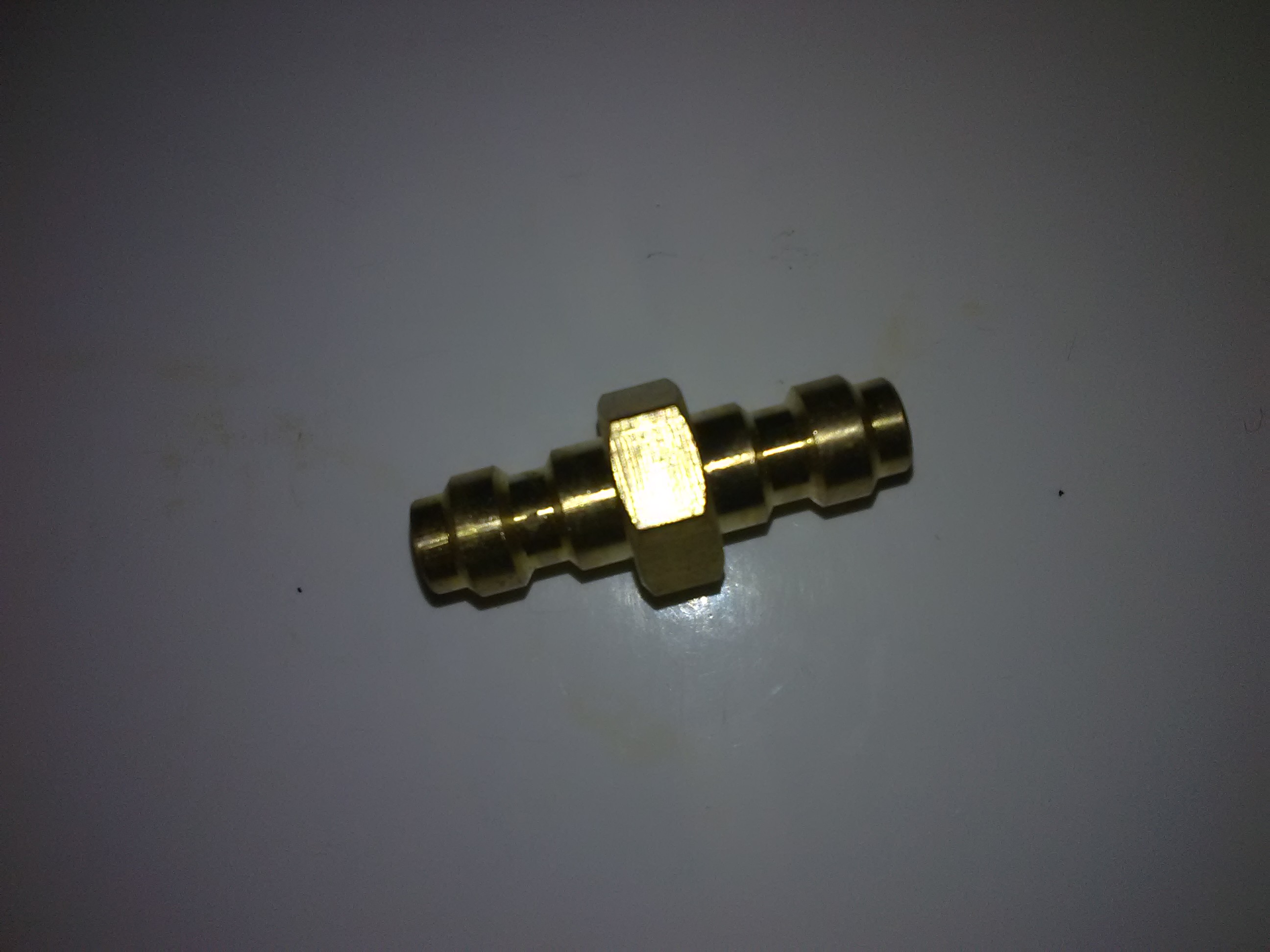

Think you're on the right track, I bought male 8mm quick-disconnect fittings in 1/8 bspp and 1/8 npt, as well as pictured adapters, when setting up my YH fill station, not that expensive and preferred having extra on hand. As long as everything is rated for the high pressures we use, shouldn't be a problem. WMView attachment 354106
Click to expand...
Preciate the replies.

  • Like
Reactions: iAMzehTOASTY1 and WorriedMan
Upvote 0
MarksmanPete said:
Preciate the replies.
Click to expand...
WorriedMan said:
Think you're on the right track, I bought male 8mm quick-disconnect fittings in 1/8 bspp and 1/8 npt, as well as pictured adapters, when setting up my YH fill station, not that expensive and preferred having extra on hand. As long as everything is rated for the high pressures we use, shouldn't be a problem. WMView attachment 354106
Click to expand...
Me too!👀I've yet to run into this problem and now I will have a better understanding when I do! 🤗thanks!!

  • Like
Reactions: MarksmanPete
Upvote 0
iAMzehTOASTY1 said:
Me too!👀I've yet to run into this problem and now I will have a better understanding when I do! 🤗thanks!!
Click to expand...
iAM,
Biohazardman was kind, understanding and patient as I started my Yong Heng journey, while I'll never be able to hold a candle to the knowledge he has, I'm happy to share what I learned. WM

  • Like
  • Love
Reactions: MarksmanPete and iAMzehTOASTY1
Upvote 0
