Help / Streamline Tank vent hole leak

[markT]

FX Streamline .177 / Sat for months and months leaked out all air / tried to fill and air leaking from vent hole in tank.
Ordered new orings
Position G1 p/n 19497 ( 23.3 mm x 2.4 mm B70)
Position B5 p/n 19485 ( 23 mm x 2.5mm B70)
FX parts list the pressure regulator as one part number.
Does anyone know the size of the O-rings on the brass part of the pressure regulator?



[markT]

Anyone? Lots of views, no replies... No one else experienced this issue?



[wyshadow]

This would be a good reason to buy a huma. (Damn auto correct)



[Bigragu]

Go to fx’s website and download their parts diagram. It’s in the support section. All o ring sizes are listed.

If by chance it’s not given(and I have yet to see that), email FXUSA and send them this pic along with your guns serial number. Many ways to get o ring sizes from FX



[markT]

@Bigragu in the original post it reads "FX parts list the pressure regulator as one part number." The O-rings are NOT listed individually. I sent FX an email on Sunday and apparently they were closed on Monday, July 3. RBR is always a good policy...
@wyshadow: We stopped selling "humans" back in 1865...



[Trucker3573]

I’m sure FX will supply the info rather quickly. I usually have quick service when calling too. Usually try to call right about 9 am est when they open.



[Bigragu]

@Bigragu in the original post it reads "FX parts list the pressure regulator as one part number." The O-rings are NOT listed individually. I sent FX an email on Sunday and apparently they were closed on Monday, July 3. RBR is always a good policy...
@wyshadow: We stopped selling "humans" back in 1865...

Ahhh, I stand corrected then- I apologize. You should be able to get an answer today, hopefully.



[Privateer]

Sure are listed if you find the right PDF file!
https://fxairguns.com/wp-content/uploads/2020/09/F10056-3-eng.pdf



[Bigragu]

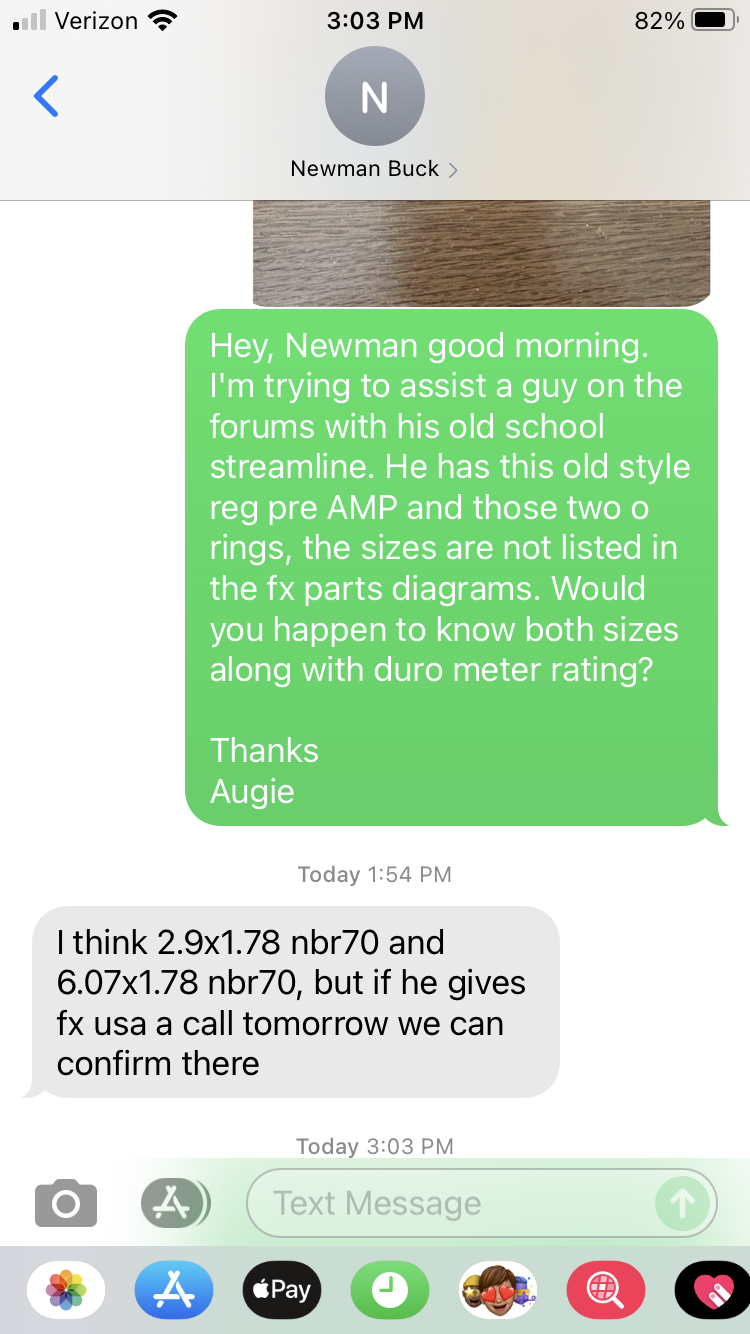

Just got a size for you from Newman, head fx tech, but he highly recommends contacting fx USA tomorrow.

I texted Newman and here’s his reply-

I sent him your exact photo you posted on your thread showing the reg



[Privateer]

Ernest Rowe confirms the above sizes at about 5:30 in.



[markT]

Contacted FX on Thursday.. Loooong wait as I called at 9:00 am.. Anyway going to send rifle to FX for reseal $125. I wouldn't normally do this but I totally screwed up the regulator by screwing in the knurled brass park way too deep and I cant get it back out. FX said they were going to send me an email with shipping info etc but haven't received anything as of today. I almost want to order a HUMA regulator set at 120 bar but the order website ( HUMA) doesnt provide a place to give instructions that I can find,, Suggestions?



[markT]

@Privateer: Excellent sir, thank you!! Perfect!!
After watching the video I was able to remove the threaded part and disassemble the regulator.. I have decided to rebuild it myself. Ordered the orings this morning ( Oringsandmore.com)



[markT]

After thinking about this and NOT receiving anything ( email) from FX USA service.( Ben I think) as he said I would. I ordered a HUMA from Utah Airguns.. Waiting in delivery.. Kinda strange that FX didn't send information (shipping) as they said they would.. yes, I check SPAM etc and No I didn't call them back...



[markT]

Huma arrived a day early form UA. Well done UA!. I installed it backwards. ( yep dumb a$$) Watched video and flipped it around. Leaking out vent hole. Called UA got disconnected. They called me right back.. HECK YES UA!! Told technician what I had done he said should be good to go. I told him leaking form vent hole. After a few questions the Streamline in .177 does not use the spacer. I need ~4.0 mm to make the holes line up. Pota-Ban and lots of filing I made a ~4.mm spacer from the spacer they shipped. Set the HUMA at 120 and she stacking 13.43 Monsters Diabolos at 31 yards... What a journey.. Hats off to UA!!!
