any info how to rebuild it mine is broken?? I already ordered the rebuild kit from PA, but would be nice to get some info how to do it.
Hill mk4 pump
- Thread starter Eddy1840
- Start date
Upvote 0
G
Guest
Guest

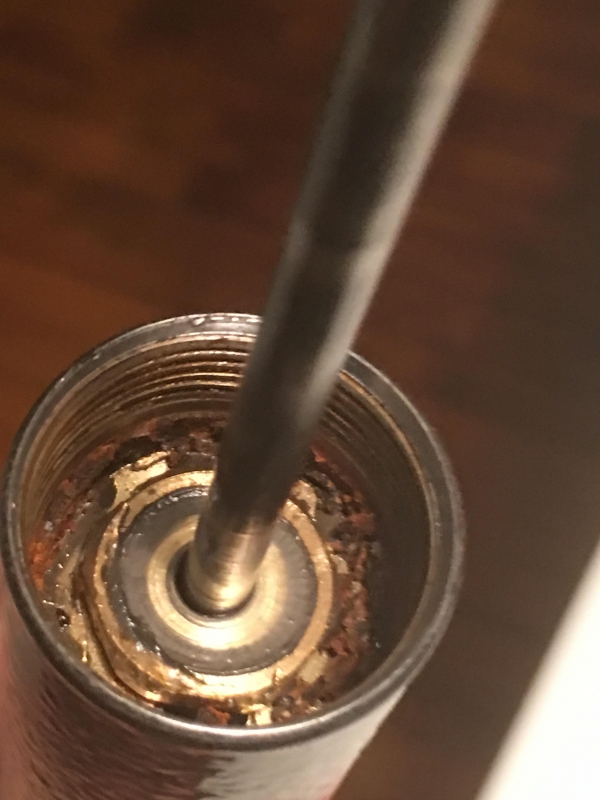

Yikes! Looks like it could use a good cleaning and rebuild! Here's the pdf from Hills website on how to rebuild your pump completely.
http://www.airriflepump.com/acatalog/06R35074%20-%20Z4128-401%20Instructions.pdf
http://www.airriflepump.com/acatalog/06R35074%20-%20Z4128-401%20Instructions.pdf
Upvote 0
G
Guest
Guest
Not a problem, it is super easy to do I just recently had to rebuild my Mk4 when it stopped working so any questions just ask. I do have one tip for you. Make sure to lubricate the small (green) high pressure o ring with silicone oil NOT silicone grease. I used the Hill grease on every other o ring and it worked fine but not on the high pressure o ring. It made the pump VERY hard to operate but after cleaning and re lubing the green o ring with silicone oil it works like new. It took me a while to figure this out and had me scratching my head. I think the grease is just too heavy for that area and causes too much friction. Good luck!
Upvote 0
Where did you buy the silicon oil?I did that mistake already lol
Im so excited my airwolf came from AOA they did the full reseal and reprogrammed to shoot jsb 25.39 at 864 fps also I have my impact waiting for air to do some testing with the Edgun gauge. Damm, for sure need a compressor...
Im so excited my airwolf came from AOA they did the full reseal and reprogrammed to shoot jsb 25.39 at 864 fps also I have my impact waiting for air to do some testing with the Edgun gauge. Damm, for sure need a compressor...Upvote 0
That actually looks ok. That from us using the siicone grease on it. It collects there and build up. If you didn' have any than I would be concerned. Grease looks clear, not dirty or milky from the pics.
Upvote 0
Hi,
mk4 is not totally different from mk3.
https://www.google.com/url?sa=t&source=web&rct=j&url=%23&ved=0ahUKEwjTquizue7YAhUH0lMKHYCJDdUQwqsBCEkwAA&usg=AOvVaw0VTJzWxrN8ZFOD4xbU2nov
The link is for mk3 pump rebuild but should give you a good idea for mk4 as well.
I used hill grease and you should not use too much. That will leave a huge gunk like in your pic.
hope this helps
if interested, I have strong and clean mk3 and mk4 I might put up for sale.
mk4 is not totally different from mk3.
https://www.google.com/url?sa=t&source=web&rct=j&url=%23&ved=0ahUKEwjTquizue7YAhUH0lMKHYCJDdUQwqsBCEkwAA&usg=AOvVaw0VTJzWxrN8ZFOD4xbU2nov
The link is for mk3 pump rebuild but should give you a good idea for mk4 as well.
I used hill grease and you should not use too much. That will leave a huge gunk like in your pic.
hope this helps
if interested, I have strong and clean mk3 and mk4 I might put up for sale.
Upvote 0
Eddy,
Here is silicone oil I use in my hand pump, works great.
Traxxas 1666 Silicone Shock Oil https://www.amazon.com/dp/B0006O5GKY?ref=yo_pop_ma_swf
Here is silicone oil I use in my hand pump, works great.
Traxxas 1666 Silicone Shock Oil https://www.amazon.com/dp/B0006O5GKY?ref=yo_pop_ma_swf
Upvote 0
Thanks. I fixed, work for a few fills and than broke again. I think the brass piece that hold the blue o'ring is bad.. I'm getting mad
with this sh***
with this sh***Upvote 0
Fantastic info on this thread, thanks all.
Not to hi-jack this thread but I have question before I make this purchase. I don't usually pump, but when I do I like the ability to field strip and maintain myself. It seems relatively easy based on the instructions above.
The only tools necessary are the wrenches (17mm, 20mm, 24mm, 30mm)and a flat head screw driver? Theoretically, could I get away with a couple of adjustable wrenches? The seal kit? Silicone oil/grease?
Planning a trip and need a reliable but serviceable pump for my FX Wildcat.
Not to hi-jack this thread but I have question before I make this purchase. I don't usually pump, but when I do I like the ability to field strip and maintain myself. It seems relatively easy based on the instructions above.
The only tools necessary are the wrenches (17mm, 20mm, 24mm, 30mm)and a flat head screw driver? Theoretically, could I get away with a couple of adjustable wrenches? The seal kit? Silicone oil/grease?
Planning a trip and need a reliable but serviceable pump for my FX Wildcat.
