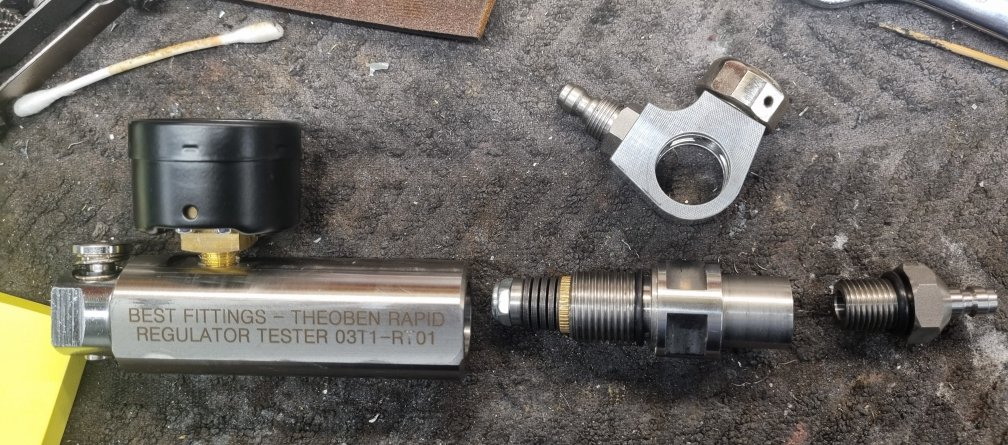

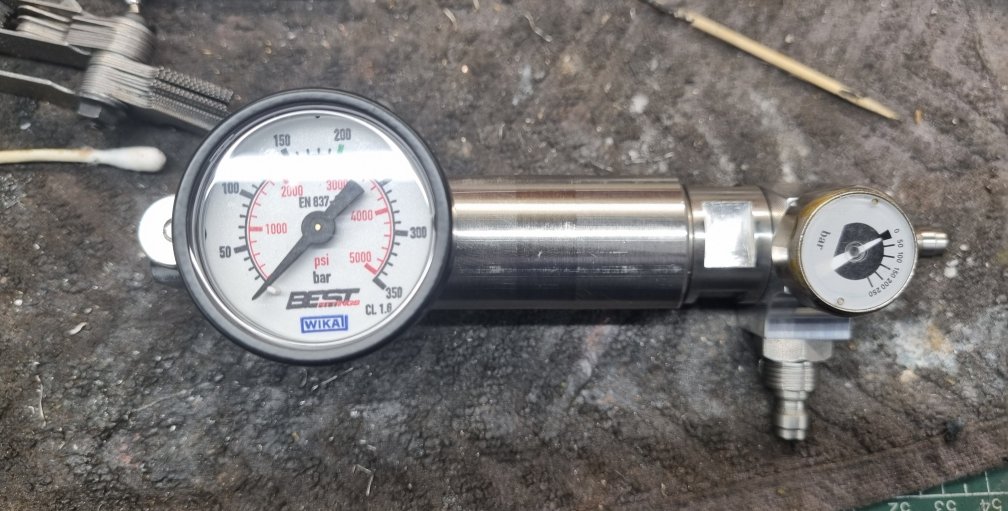

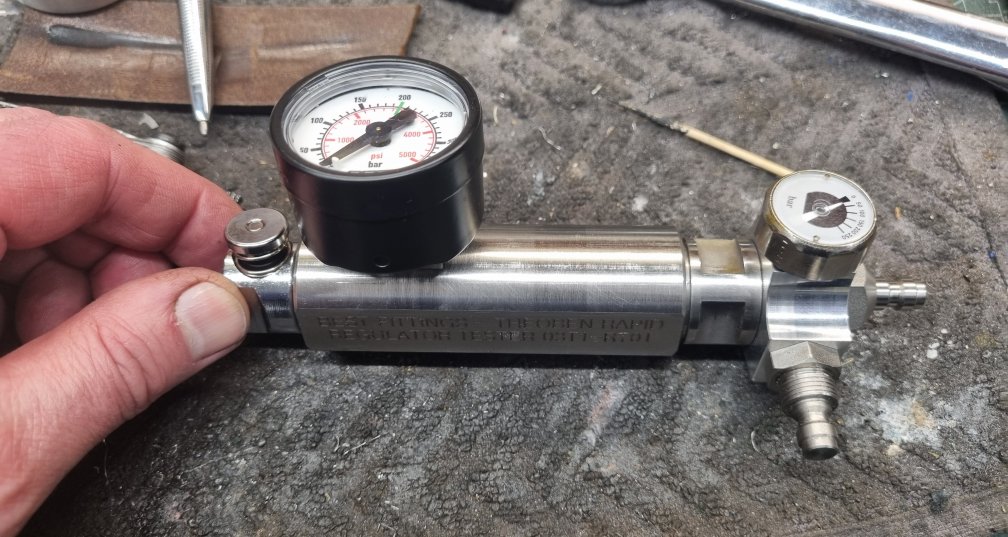

A few pics showing a HM1000x regulator tester, compared to a standard Rapid reg tester. The prior made by converting a Best Fitting tester.




Technica Data:

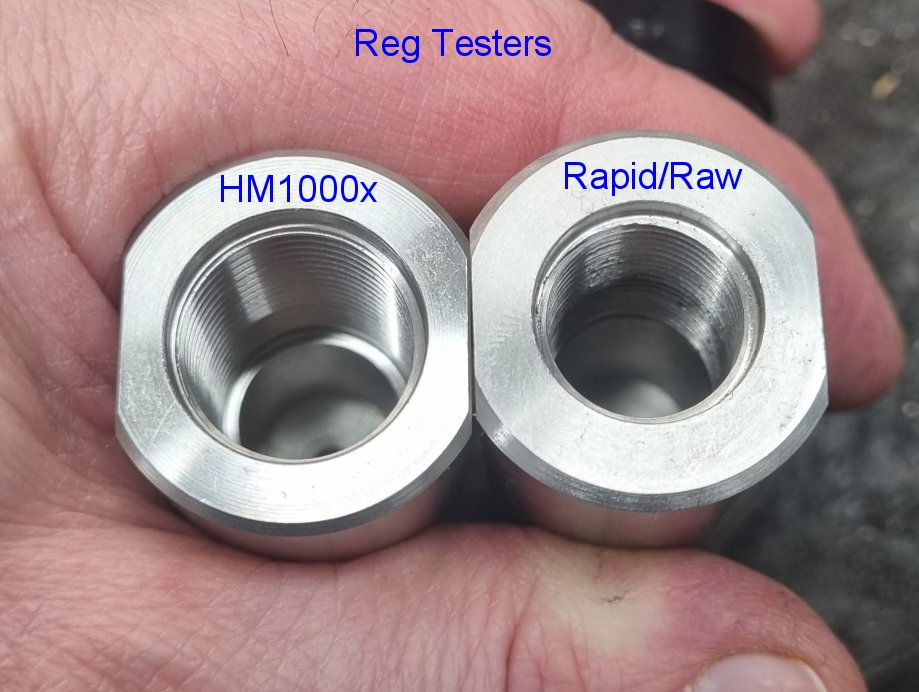

Theoben/RAW/Impact reg thread: 3/8 BSPP 19 tpi [55 degree] thread. (16.66mm OD thread)

HM1000x reg thread: 3/4 UNF 16 tpi [60 degree] thread. (19.05mm OD Thread)

  • Like
Reactions: Ranchibi, bucketboy, qball and 3 others
The RAW/Theoben regulator tester is available from Best Fitting in the UK, but it is the smaller thread size as mentioned above. I can't find the larger thread size available anywhere to purchase. I purchased two of the Best Fittings reg testers with the small thread size and use one for my older RAW's, and then used my lathe to open the thread size to fit the later, larger regulator thread size.

  • Like
Reactions: manabeknives
Upvote 0
Quickoz said:
Ok. One more question, do you know where I can find another plug?
Click to expand...

Bottom blanking plug

Rapid Air Weapons - The most accurate air rifles made in the USA. 35 years of air rifle manufacturing experience. Hunters and competition shooters agree, the most reliable, rugged, and accurate air rifles money can buy.
www.rapidairworx.com

Upvote 0
woogie_man said:
Just know that many of the new rifles won't have the blanking plug.
Click to expand...
Yes, removing the blanking plug was a running change that allowed RAW to create a larger plenum in the action. I think the HMx rifles will be the first to show up with that change, because they are the highest volume sellers.

  • Like
Reactions: woogie_man
Upvote 0
