bigHUN said:
Thank you very much, this was a reason I gave up with dipping in arduino back ten years ago when I realized it is just not for my braincells.
We all have - or missing some skill each on hes own. The most visible is that what we missing.
Click to expand...
Don't give up. I am only a step ahead of you in learning, like a yellow belt vs white belt. DaystateRbel is probably a black belt already. Try first, and ask specifics later if you get stuck to get you going again. Looking at my code would probably make some coding pros throw up in disgust. But the end justifies the means in this case. For a pro it may take 10 mins to accomplish something that for us amateurs takes 4 hours...but with frustration comes reward.

Last edited:
  • Like
Reactions: 177er, Philt66, Leon83 and 1 other person
Upvote 0
@DaystateRebel , Still unable to compile with the latest version for the Heltec ESP32 (I've ensured I have the right Heltec board selected in the IDE)
This is the error that pops up


Git:
\FXChronyv3\FXChronyv3.ino: In function 'void setup()':
\FXChronyv3\FXChronyv3.ino:189:28: error: 'doubleClick' was not declared in this scope
   button.attachDoubleClick(doubleClick);
                            ^~~~~~~~~~~
\FXChronyv3\FXChronyv3.ino:189:28: note: suggested alternative: 'double_t'
   button.attachDoubleClick(doubleClick);
                            ^~~~~~~~~~~
                            double_t
\FXChronyv3\FXChronyv3.ino:190:30: error: 'longPressStop' was not declared in this scope
   button.attachLongPressStop(longPressStop);
                              ^~~~~~~~~~~~~
\FXChronyv3\FXChronyv3.ino:191:22: error: 'singleClick' was not declared in this scope
   button.attachClick(singleClick);
                      ^~~~~~~~~~~
\FXChronyv3\FXChronyv3.ino:245:3: error: 'build_gun_menu' was not declared in this scope
   build_gun_menu();
   ^~~~~~~~~~~~~~

Upvote 0
177er said:
@DaystateRebel , Still unable to compile with the latest version for the Heltec ESP32 (I've ensured I have the right Heltec board selected in the IDE)
This is the error that pops up
Click to expand...
That code definitely builds, possibly something went wrong when adding your own guns and pellets? Can you DM me the .ino file?

  • Like
Reactions: 177er
Upvote 0

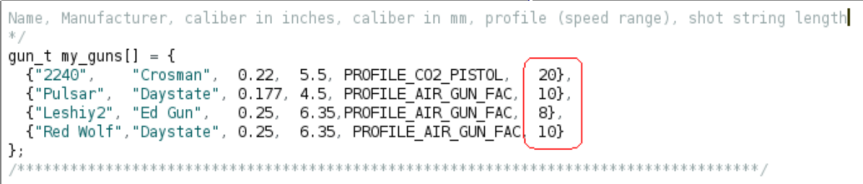

Update: Shot strings can now be defined per gun upto a maximum of 20. This is so you can set it to be the same as your magazine size. The shot string will reset on the next shot after it is full.

Note the additional number in the gun structure


  • Like
Reactions: 177er, Hallyster61 and fe7565
Upvote 0
DaystateRebel said:
Update: Shot strings can now be defined per gun upto a maximum of 20. This is so you can set it to be the same as your magazine size. The shot string will reset on the next shot after it is full.

Note the additional number in the gun structure

View attachment 320348
Click to expand...
Cool. Now can set it to warn if "out of bullets" so will not shoot blanks :)

Last edited:
Upvote 0
DaystateRebel said:
That code definitely builds, possibly something went wrong when adding your own guns and pellets? Can you DM me the .ino file?
Click to expand...
I didn't add any guns/pellets, it was the same file as in the repo.
DMing it anyway. Just to be on the safe side, I'm downloading the latest INO from your repository and compiling it now.
DaystateRebel said:
Update: Shot strings can now be defined per gun upto a maximum of 20. This is so you can set it to be the same as your magazine size. The shot string will reset on the next shot after it is full.

Note the additional number in the gun structure

View attachment 320348
Click to expand...
Amazing work, thank you!
Could this be saved to computer? (or will remain in memory after reset/shutdown?)

Upvote 0
177er said:
I didn't add any guns/pellets, it was the same file as in the repo.
DMing it anyway. Just to be on the safe side, I'm downloading the latest INO from your repository and compiling it now.
Click to expand...
Ok

177er said:
Amazing work, thank you!
Could this be saved to computer? (or will remain in memory after reset/shutdown?)
Click to expand...
Yes, attach the display to your computer, start the Arduino application & select the Tools | serial monitor. In the display double click the "dump" option in the shot string menu.

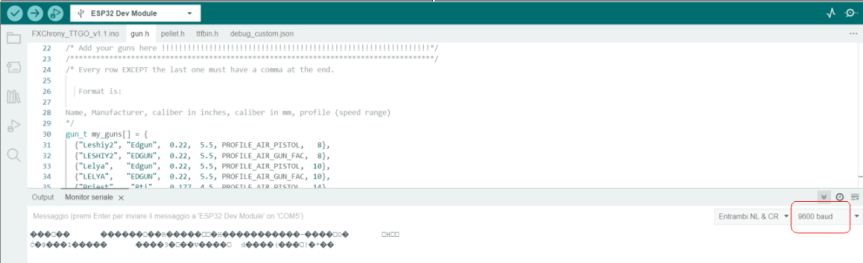

Make sure you set the serial monitors Baud Rate to 115200 or you'll get garbage


Last edited:
Upvote 0
DaystateRebel said:
Ok


Yes, attach the display to your computer, start the Arduino application & select the Tools | serial monitor. In the display double click the "dump" option in the menu.

Make sure you set the serial monitors Baud Rate to 115200 or you'll get garbage

View attachment 320392
Click to expand...
Thank you once again!
I compiled the latest version, which works,

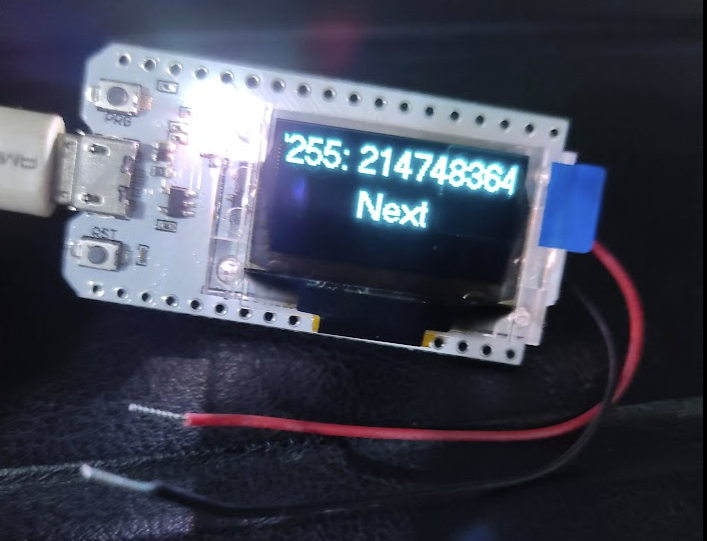

I ran into an error in the menu for Shot strings

Steps
1. Click to Settings > Shot Strings
2. Single Click : Stats : Works
3. Single Click Go to : Review
- Double Click : Review
Error - unable to exit or move forward.


Upvote 0
DaystateRebel said:
It might be a good idea to unplug the battery wires, if they touch each other you may damage the battery charger electronics, if they touch something on thge PCB it may damage something else
Click to expand...

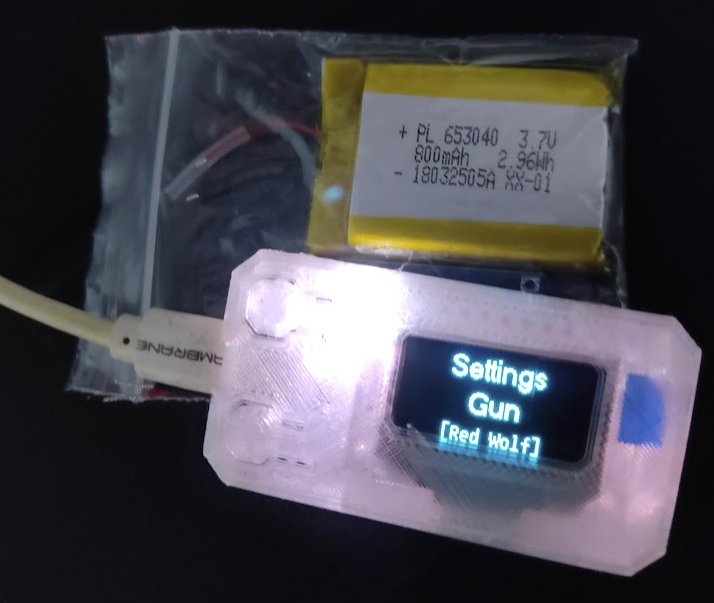

Thank you - I agree,
I had to wait a while to get a 1.25mm pitch JST connector, and I checked to see if it was a fit.
I've bought some heat shrink sleeves and a switch that I'll use the battery with, just need to measure things properly and 3D print them.

Appreciate everything you did here.

Upvote 0
DaystateRebel said:
When picking a battery try to get a protected pack (see my post on page 1). The battery's size is specified in it part number.

You have a 653040 which is 6.5mm thick, 30mm wide and 40mm long. Ideally you want a xx2540
Click to expand...
Yes, I wanted a smaller part, but it wasn't available from the shop I ordered from, also, this one said it had BMS protection.
I'll probably order another just for some more capacity and dimensions elsewhere.

Upvote 0
Privateer said:
Rev6 compiled fine when using the M5Stack-Core-ESP32
I get an error with the M5Stack-Core2 . Trying to figure it out.


fatal error: bits/error_constants.h: No such file or directory #include <bits/error_constants.h>
Click to expand...
Unfortunately, it will not work without some changes. I noted this to you before here. https://www.airgunnation.com/threads/homebrew-fx-chrony-display.1278760/post-1392404

The Core Basic has three buttons and the Core2 has touchscreen only. So there is a hardware difference. The rev6 code would need to be adapted to the touchscreen and the rev6 will not work on the Core 2. The Rev3 does not use the "OneButton" menus, but rev6 does.

Last edited:
