You can choose to flip it in the settings menu.
I'll try it ASAP to be sure it works also on my E-Ink display.
I'll try it ASAP to be sure it works also on my E-Ink display.
Upvote 0
Homebrew FX Chrony display
- Thread starter DaystateRebel
- Start date
Q to you:
I am probably couple weeks away to receive my e-Paper screen, so speculating only.
Currently I am powering my dopler radar from an external battery bank (with a usb cable permanently soldered to the FX board) and logically I would tap the Lilygo screen into those same pins.

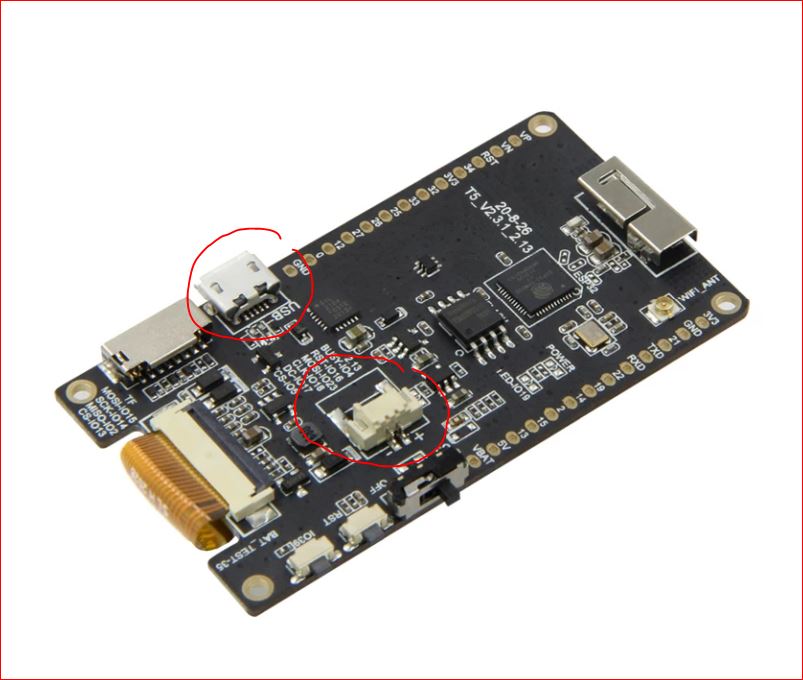

I just noticed that the Lilygo have a permanent USB port, can this be used to power the unit? That way I could have a removable cable...
Or I need to connect to a second pin location (the usb port is for programming only)?
Upvote 0

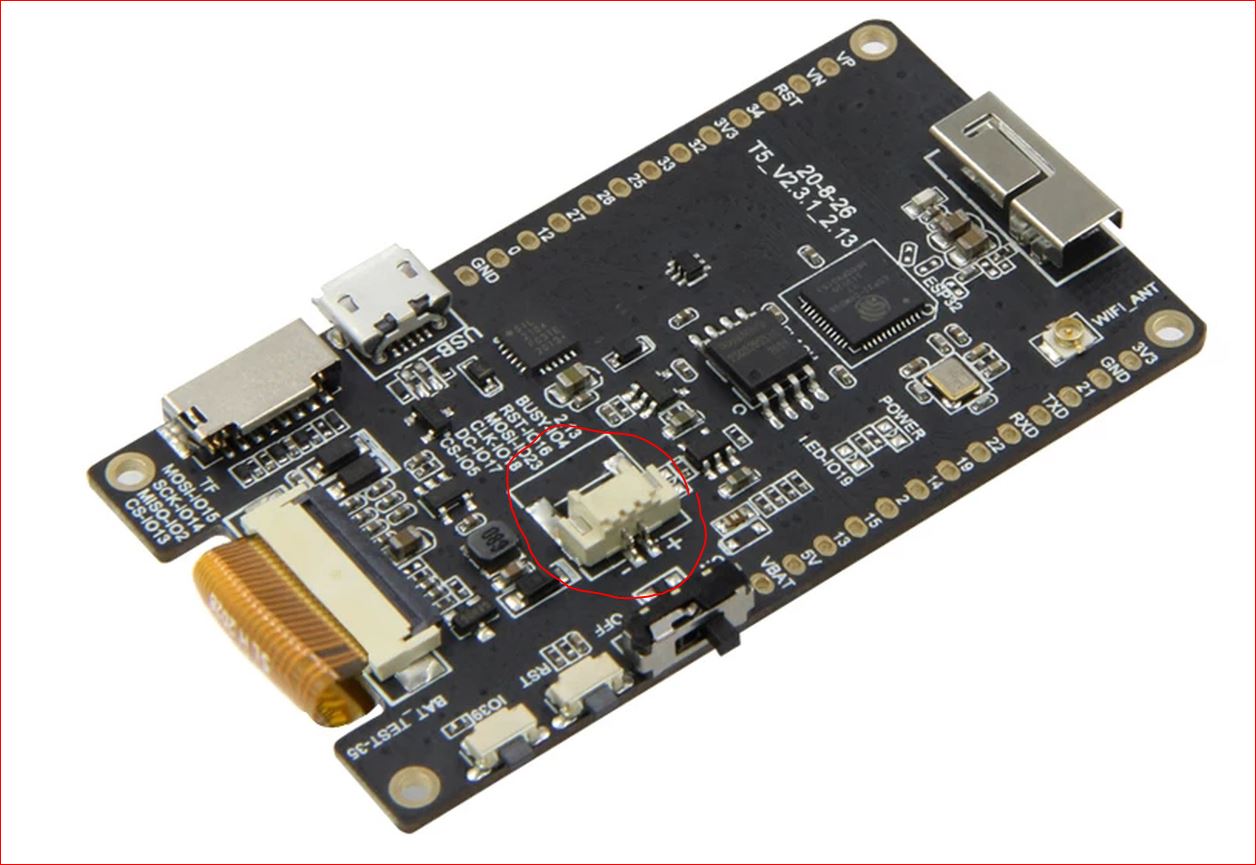

Excellent, the usb cable is removable. That second square connector, can I tap into to power the FX radar? Anybody have a name for that plug?
Upvote 0
Wouldn't recommend that, i believe that plug runs a charging circuit for a lipo as well as Power in to board, its not a direct connection to usb port. if you already run chrono from a usb you should be able to work out powering board by that plug from chrono. ive put a 350mah lipo feeding both and charged via the board usb plug.
Upvote 0
it does flip from the menu although inverted it is a little off centre (But not enough to bother you). Odd thing though, first time i flipped it nothing happened then returning setting to normal it flipped now it flips every time but for normal way up it is set Flip on.
Upvote 0
I was tinkering about possibility how to remove the permanent cable from the FX board and just use the USB on Lilygo and tap them together
Last edited:
Upvote 0
If your battery pack only has 1 output? You can get splitter USB cables. Thus power 2 units from 1 cable.
Upvote 0
The battery pack has 2 outputs, but so far I was using one for radar and one for tablet-A (Strelok). If I could make the radar+Lilygo a single cable and removable that would be the ultimate goal. That way I could have both the radar and the Strelok wind direction working w/o interrupting the BT.
Upvote 0

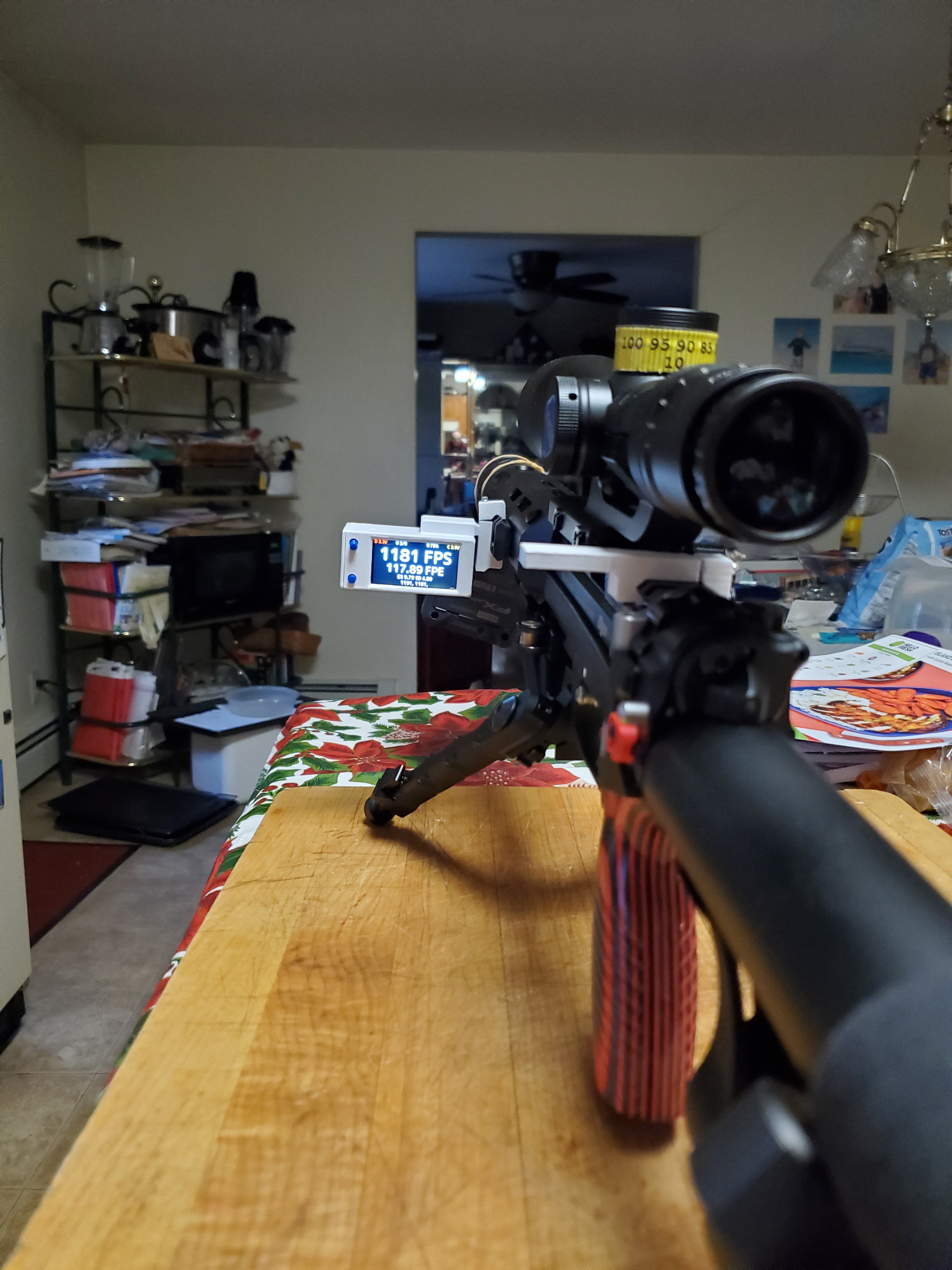

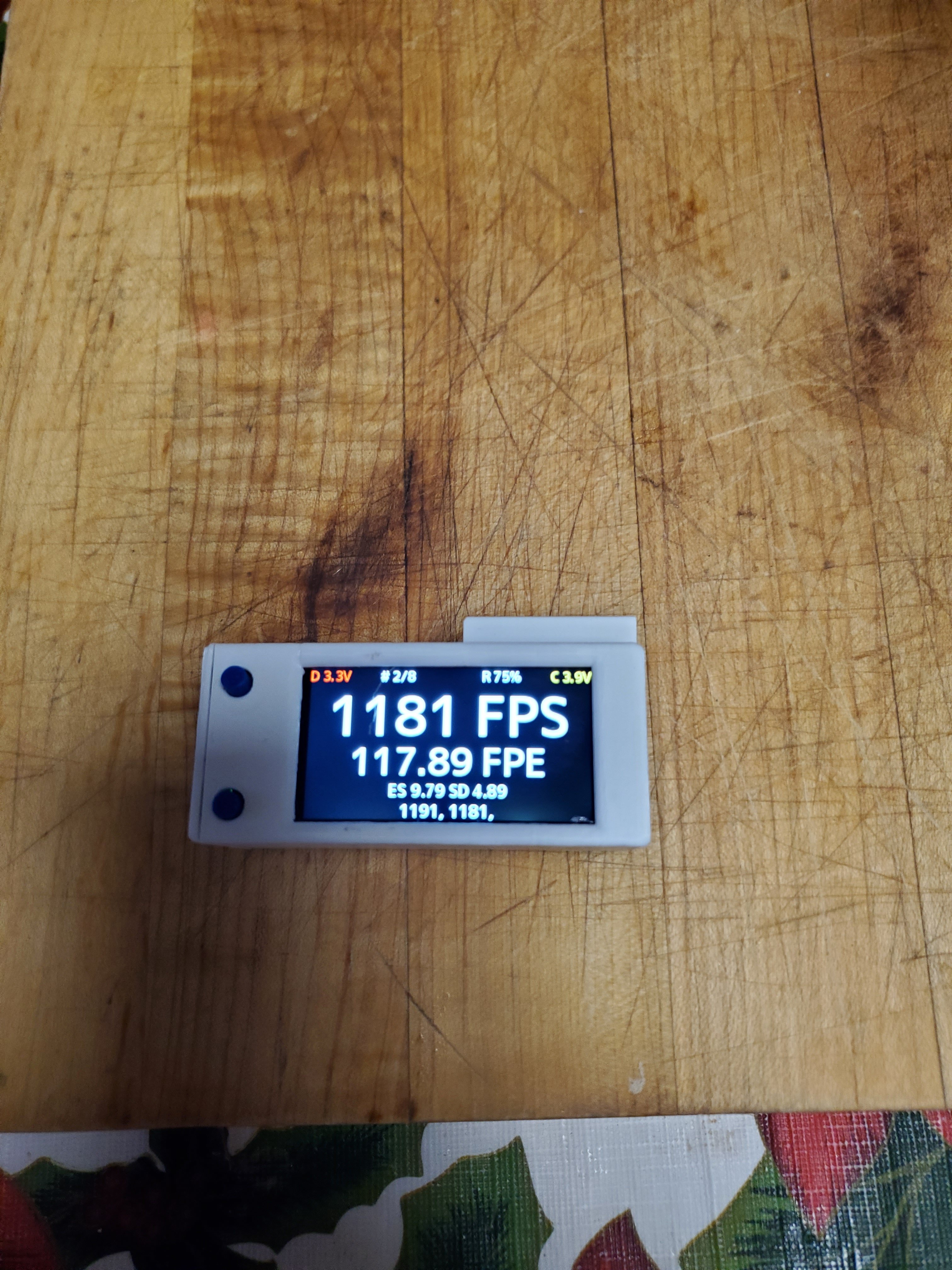

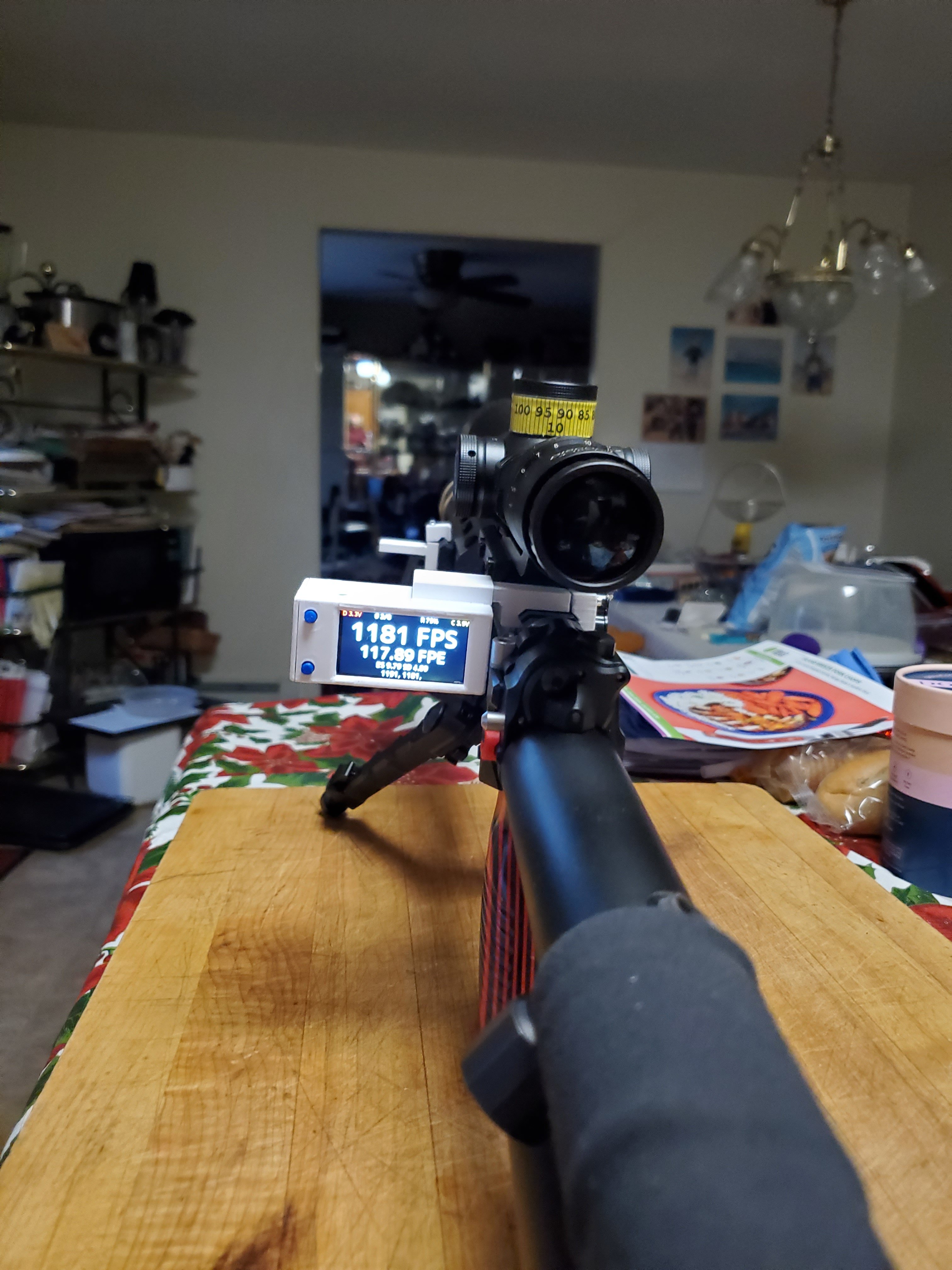

Made a box for the t-display s3
https://www.printables.com/model/377606-lilygo-t-display-s3-box-for-pic-rail
https://www.printables.com/model/377606-lilygo-t-display-s3-box-for-pic-rail
Upvote 0
I received my lilygo e-paper board from bangood much earlier then expected, I am so excited to load it up.
What was the latest update on the development?
What was the latest update on the development?
Upvote 0
Lilyboard e-paper board from banggood.......

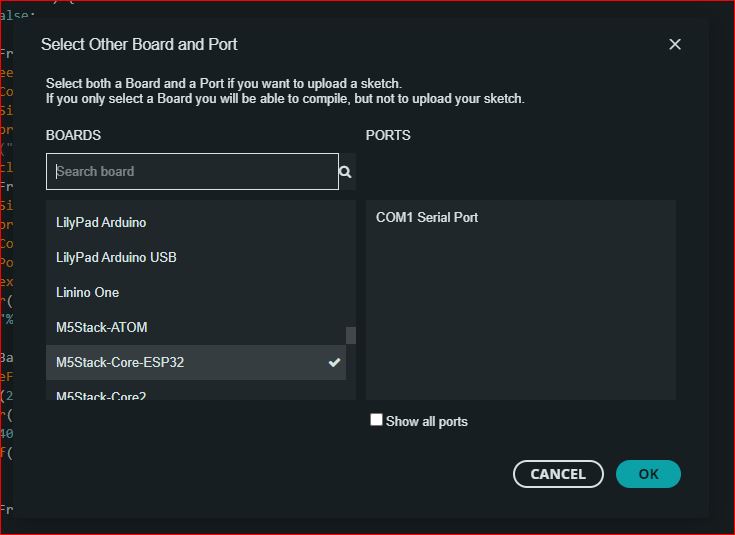

I got a compiling error, what board shall I select? Also what libraries?
I got a compiling error, what board shall I select? Also what libraries?
Upvote 0
Very nice project and I want to thank you all for all the effort of this open-source project.
I like the idea of a E-ink display for less battery consumption but also the m5stick which already includes a battery and case.
So I was thinking what other options are there which combines these 2 features?
Would a M5stack M5Core INK work? https://docs.m5stack.com/en/core/coreink
Are there better solutions?
I like the idea of a E-ink display for less battery consumption but also the m5stick which already includes a battery and case.
So I was thinking what other options are there which combines these 2 features?
Would a M5stack M5Core INK work? https://docs.m5stack.com/en/core/coreink
Are there better solutions?
Upvote 0
I have a N5Core and the e-paper, on Core don't like much the buttons, and the white screen is lagging a bit but gives more time for Reg refresh. I will employ the e-paper and working now on enclosure design.
Upvote 0
Don't understand the question, there is a function to flip the display. I looked at your bang good link and didn't see a gyro in your board. So I don't think there is a way to flip the display automatically according the reading of the gyro. So you need to flip it yourself. Im'm not an expert so I could be wrong.
